WebGate MD1600H User Manual

eDVR User Guide

MD1600H

(v 1.0)

FCC Compliance Statement

Caution : Any changes or modifications in construction of this device which are not expressly

approved the party responsible for compliance could void the user's authority to operate the equipment.
NOTE : This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications,
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.

Warning

This is a class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures

CAUTION

1. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
Disposal of used batteries according to the general recommendations against the environmental
pollution.

2. Do not throw the batteries into a fire, and do not heat, short-circuit or attempt to disassemble the

batteries.

3. Do not attempt to recharge the batteries.

Important Notice

1. Do not place heavy objects on the top of the eDVR.

2. eDVR is for indoor use. It is not weatherproof. Use eDVR with referring to its environmental

specifications (Temperature & Humidity). To clean the eDVR, gently wipe the outside with a clean dry
cloth.

3. eDVR uses AC power of 110V ~ 240V. Be cautious not to cause electric damages to eDVR.

4. Be careful not to drop the eDVR. Physical shocks may harm the product including internal HDD. In

addition, be sure the eDVR is secured after installation.

5. eDVR is made of metal. Therefore you can hurt human beings if you throw it to them or hit on them.

When installing eDVR, be cautious to locate on safe places where children are unreachable.

6. If eDVR does not operate properly, please contact the closest WEBGATE distributor for after sales

service. Tampering or disassembling the product will void the warranty.

7. Security surveillance laws may differ for each country. Therefore, please contact the local region first

to avoid any surveillance law violations.

The contents of this manual can be modified in accordance with Firmware or Software upgrade. In the
interest of continually improving products, approval & outlook can be modified without prior notice

4

Contents

Overview.......................................................................................................................................7

1. Introduction............................................................................................................................7

2. Description..............................................................................................................................9

2.1. Front Part..........................................................................................................................9

2.1.1. MD1600H front part...................................................................................................9

2.2. Rear Part......................................................................................................................... 11

2.2.1. MD1600H rear part .................................................................................................. 11

2.3. Summery of Installation...................................................................................................12

Basic Structure..........................................................................................................................13

3. Monitoring............................................................................................................................13

3.1. Basic Screen monitoring ..................................................................................................13

3.2. Single full screen mode....................................................................................................13

3.3. Multi screen mode ...........................................................................................................13

3.4. Manual Recording...........................................................................................................14

3.5. Auto Switch mode ...........................................................................................................14

3.5.1. System Standard mode..............................................................................................15

3.5.2. User Sequence mode ................................................................................................16

3.6. Alarm mode....................................................................................................................17

3.7. Zoom Screen mode..........................................................................................................17

3.8. Pause Live screen............................................................................................................17

3.9. PTZ Control....................................................................................................................18

3.9.1. Pan/Tilt Control .......................................................................................................18

3.9.2. Zoom/Focus Control.................................................................................................18

3.9.3. Utilizing Load Preset................................................................................................18

3.9.4. Utilizing Save Preset ................................................................................................19

3.9.5. Utilizing Clear Preset................................................................................................19

3.9.6. Utilizing Auxiliary On ..............................................................................................19

3.9.7. Utilizing Auxiliary Off .............................................................................................19

3.10. Relay control...............................................................................................................20

5

3.11. Screen Lock control.........................................................................................................20

3.12. Utilizing Quad monitor.................................................................................................21

3.12.1. Monitoring ..............................................................................................................21

3.12.2. Monitoring & Playback.............................................................................................22

4. Playback...............................................................................................................................23

4.1. Various Playback mode(Playback) ....................................................................................23

4.1.1. Playback on standard monitor (16 division) ................................................................23

4.1.2. Playback to divided Channel(4/9/16)..........................................................................23

4.1.3. Playback channel no. 5~16 at 4/9 channel division......................................................23

4.1.4. Zoon Playback screen ...............................................................................................23

4.1.5. Various Playback functions .......................................................................................24

4.2. Search mode ...................................................................................................................25

4.3. Copy / Backup / Delete ....................................................................................................26

4.3.1. Copy Image.............................................................................................................26

4.3.2. Backup Data ............................................................................................................27

4.3.3. Delete Data..............................................................................................................28

5. Configuration .......................................................................................................................29

5.1. Quick Setup ....................................................................................................................29

5.1.1. Tim Set(Date/Time)..................................................................................................29

5.1.2. Recording Setup.......................................................................................................32

5.2. Camera Setup..................................................................................................................34

5.3. Manual Recording setup...................................................................................................37

5.4. Schedule Recording Setup................................................................................................38

5.4.1. Global Setup............................................................................................................38

5.4.2. Setup by Channel .....................................................................................................39

5.5. Alarm Recording Setup....................................................................................................42

5.5.1. Sensor Setup............................................................................................................42

5.5.2. Motion Detection Setup ............................................................................................43

5.5.3. Text Setup ...............................................................................................................46

5.5.4. Global Alarm Recording ...........................................................................................48

5.5.5. Setup by Channel .....................................................................................................49

5.6. Alarm Action Setup .........................................................................................................51

5.6.1. Schedule..................................................................................................................51

6

5.6.2. Setup.......................................................................................................................52

5.6.3. System Alarm ..........................................................................................................53

5.7. Monitor Setup .................................................................................................................55

5.8. System Setup ..................................................................................................................56

5.8.1. Audio Setup.............................................................................................................56

5.8.2. Time Schedule Setup ................................................................................................57

5.8.3. Special Time............................................................................................................58

5.8.4. Security Setup..........................................................................................................59

5.8.5. Disk Setup ...............................................................................................................61

5.8.6. Network Setup.........................................................................................................62

5.8.7. Serial Setup .............................................................................................................67

5.8.8. Status Overview .......................................................................................................68

5.8.9. Miscellaneous..........................................................................................................69

5.9. Disk Manager (Utility).....................................................................................................71

5.9.1. Disk Manager ..........................................................................................................72

5.9.2. USB Utility..............................................................................................................74

Extension ...................................................................................................................................76

6. External device connection....................................................................................................76

6.1. Using Text device ............................................................................................................76

6.1.1. Setup in Text............................................................................................................76

6.1.2. Setup in RS232 menu of Serial Setup.........................................................................77

6.1.3. Setup in Alarm Rec ..................................................................................................78

6.1.4. Setup in Recording ...................................................................................................79

6.2. Using Keyboard ..............................................................................................................80

6.2.1. Setup in COM1 menu of Serial Setup.........................................................................80

6.2.2. Setup in PTZ menu of Serial Setup ............................................................................80

APPENDIX ..................................................................................................................................81

#1. Technical Specifications...................................................................................................82

#2. Utilizing IP address in Local network................................................................................86

#2.1. Outline....................................................................................................................86

#2.2. IP structure and Network grade..................................................................................86

#2.3. Network Class..........................................................................................................86

7

Overview

1. Introduction

eDVR MD1600 Series is new conceptual DVR(Digital Video Recorder), which can record 16ch ananlog
video channel, Audio, Text & Alarm data etc simultaneously. Also, it upgrades video quality and file size
applying MPEG algorithm.

Quick Setup menu in eDVR MD1600 Series makes possible to direct recording by only connection
between Power & CCTV video. Quick Setup menu is programmed to optimize video quality and
recording performance.

Also, eDVR Series can extend the storage to maximum 8TB through IEEE 1394, eSATA and Network
Storage. For easy backup, it is easy to apply through user PC for HDD backup by FAT32 which is man
Window format type. Through 1 USB port, F/W upgrading and saing & retrieving setting value and copy
smalle size images is available.

<Note>

Extension through NVS04, IEEE 1394b will be supported later.
For the details, please contact to local distributor.

eDVR MD1600 Series offers with Control Center Lite-D software. Control Center Lite-D S/W makes
available for easy setup, saving, playback via remote PC.

8

Main features

- It supports 16ch video

- Supports 4 ch bi-directional audio

- Supports recording, playback, network recording, network playback simultaneously (Pentaplex)

- Max. 480(MD1600H) ips recording speed

- Max. 480(MD1600H) ips real-time display speed

- Real time video surveilliance and recording via PC monitor & CCTV monitor

- Support Quad CCTV monitor(1 Normal, 3 Spot)

- Internal hardware Quad Splitter for analog channel

- Internal software multiplexer for 16channel division monitoring

(1 / 4 / 9 / 16 channel mode)

- Max. 8TB storage (External HDD expansion via IEEE 1394, eSATA, Network Storage)

- Various Recording & playback

- Independent file system for effective alarm data management

- Recording text data from ATM/POS in relevant to video data

- 16 sensor input & 4 alarm output

- MD searching (64 different specified MD area set, when Control Center operates)

- Text Searching (when Control Center operates)

- Internal CD-R/DVD-R backup

- PTZ control through RS232, RS485

- 32bit True Color graphic OSD menu for easy to use (Support Anti-Flicker)

- Support Static IP and DHCP, dynamic IP and xDSL, cable modem user

- Apply embedded Linux OS for reliability and efficiency

- Support Remote controller

- Firmware upgrading, Setup, retrieving through USB memory device

- Digital Water Mark

- Register max. 16 units eDVR to Control Center Lite-D (PC user interfacer)

[Total 256 channel managements (16 eDVR MD1600H x 16ch) through one S/W program]

<Note>

It supports only DVD backup. CD backup will be supported later.
For the details, please contact to local distributor.

<Note>

Extension through NVS04, IEEE 1394b will be supported later.
For the details, please contact to local distributor.

9

2. Description

2.1. Front Part

2.1.1. MD1600H front part

(1) Status LED

Power

: It indicates Power input, and light on at Power in.

Network

: Indicates Ethernet & communication status and twinkle as much as image delivery via
Ethernet.

Record

: Indicates video recording, and twinkle as much as image record

Play

: Indicates Playback mode and twinkle as many as image played at playback mode. Also,
twinkle as many as image delivered per second when it connects to Control Center Lite­D Playback.

(2) Remote controller receiver
(3) Power Switch

It is the switch to Power On/Off. While the system Off, press longer than 5 sec. to display
admin/password input screen. Then input password to turn power off.

(4) USB Interface

Supply 1 USB port

(4) USB Interfacer (5) Function buttons

(1) Status LED

(6) Channel button

(7) Menu & Directions

(3) Power switch

(2) Remote controller

receiver

10

(5) Function buttons

COPY

: Function to copy recorded images

In single monitoring mode, press the button to activate COPY menu

SEQ

: Function to diplay all video connected sequentially

Press more than 1 sec. to operate User Sequnce mode

MULTI

: Function to monitor multi video images in a screen((4/9/16 division channel)

SELECT

: Function to select video channel to control PTZ in Monitor model.
And function to select video channel to Copy/Backup/Delete in Playback mode.

ZOOM

: Zoom video image at 1 channel mode

RELAY

: Relay On/Off in Monitoring mode and return to original status when alarm pop-up

MON

: Function to select Monitor(1~4) to control

Press the button and monitor number to control relevant monitor

REC

: Function to start/stop recording by user

Start/Stop user recording according to set in advance

(6) Channel Select button

Select video channel when monitoring & playback
Below color LED on each channel button indicates the following status

GREEN

: Indicates Monitoring

ORANGE

: indicates Alarming

BLUE

: indicates Relay operation

(7) Menu & directional button

SEARCH

: Search the recorded image data at Playback mode

MENU

: PTZ Control or Setup Menu function

HELP

: Indicate each video data(Date, Channel name, HDD status etc.)

EXIT/LOCK

: Move upper menu at Setup or Screen Lock

PALY

: Use as ENTER button during Menu operating, and use as PLAY button when
playback the recorded video data

Directonal
Key

: Playback function at Playback mode, or else to move direction indicate

REW

: Each press of the button will increase reverse playback speed gradually
(x1, x2, x4, x8, x16, x32, x64)

FFW

: Each press of the button will increase playback speed gradually
(x1, x2, x4, x8, x16, x32, x64)

PAUSE

: To pause Live/replaying

11

STOP

: To stop replaying

싱글/분할 모드에서 다음 채널 또는 분할 모드에 맞는 채널 그룹으로

전환 합니다.

2.2. Rear Part

2.2.1. MD1600H rear part

(1) Audio In/Out

4 Audio input & 1 output
(2) Ehternet
(3) Power connector
(4) Video Input & Loop back

16 video input & Loop back terminal
(5) Video Output

4 Video output (1 Normal, 3Spot)

1 VGA output
(6) Serial & DIO port

Sensor In

: 16 Sensor input terminal block

Relay Out

: 4 Relay output terminal block

COM1

: RS232 9Pin D-Sub connector

COM2

: RS485 terminal block

STORAGE

: RJ45 connector

IEE1394

: 2 connection port

eSATA

: 2 connection port

(7) FAN

(3) Power connector

(4) Video input &

Loop back

(1) Audi In/Out

(5) Video

(2) Ethernet(6) Serial & DIO Port

(7) FAN

12

2.3. Summery of Installation

- Camera connection

- Monitor connection

- Ethernet connection (for remote connection)

- Audio connection

- Power connection & Operation

<Note>

Extension through NVS04, IEEE 1394b will be supported later.
For the details, please contact to local distributor.

13

Basic Structure

3. Monitoring

All analog video image channels connected to eDVR is displayed to screen by Power connection. It is to
utilize all monitoring mode of eDVR MD1600 series.

<Attention>

MD1600H support Quad monitor(1~4) and Monitor 1~4 supports all following functions.
Therefore, the following functions explains base on all Monitor 1~4.

3.1. Basic Screen monitoring

- After Power connection, MD1600H
operates on automately.

- It boots with LED on.

- After booting, 16 channel screens are
displayed.

※ If there is user password set,

Password input window will be
displayed.

3.2. Single full screen mode

- Press the channel number wanted.

- Press [MULTI] button to return
divisional screen.

3.3. Multi screen mode

- Press [MULTI] for multi channel
display.

- Press [MULTI] button every time,
screen mode is changed to 4 / 9 / 16
division mode.

14

3.4. Manual Recording

By the press [REC] button for user recording, it records as long time as it set the time. It is prior to
Normal Rec, Event Rec. And it records by user recording set in disregard for any recording setup when
user recording starts.

3.5. Auto Switch mode

There are System Standard modes and User Defined mode in Auto Switch mode. And Users Sequence
mode operates by the press [SEQ] button 1 sec longer.

<Attention>

System stardard mode is capable to use when channel division is more than the number camera
connected. Namely, single at 2 or more cameras, 4 division modes at more than 5 cameras should be
connected. 16 division mode does not support auto switch function.

15

3.5.1. System Standard mode

- By [SEQ] button, it can monitor auto switching of all channels.

- Press [MENU] for the setting switching term.

- Move to “Monitor”from OSD menu.

- Press [▷] to move from “Monitor”to “Monitor 1”.

- Select “Seq. Switching(sec)” and set value from 1 sec. to 60 sec. At OFF set, auto switch mode
does not operate.

- Auto Switch mode can be set in every division mode by the press [SEQ] button.

- Press [SEQ] button once more to leave from Auto Switch mode.

16

3.5.2. User Sequence mode

- Press [SEQ] button longer than 1 sec.

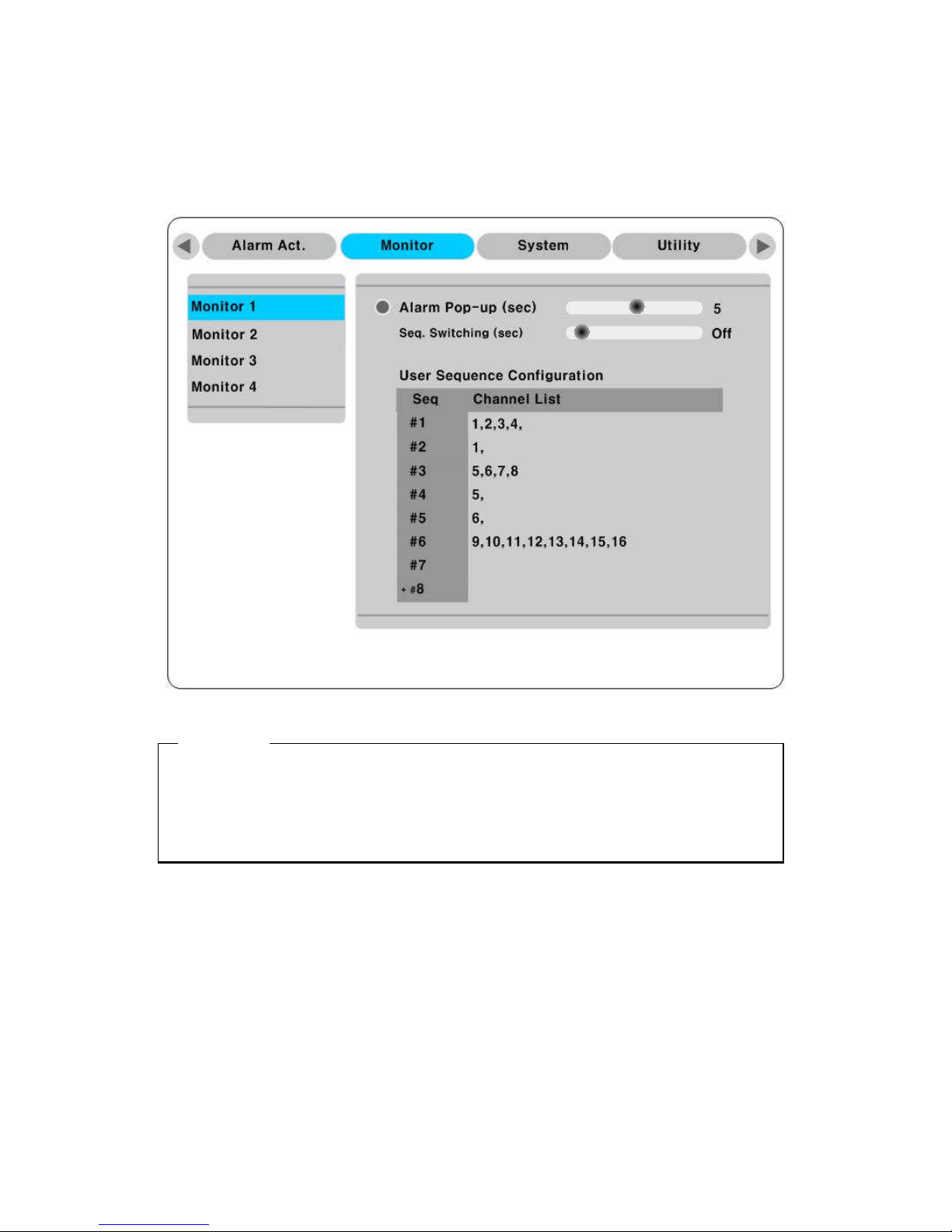

- User Sequence is to set User Sequence Configuration from “Monitor 1” in OSD menu.

<Attention>

1. User mode can define max. 16 channels.

2. The above picture defines 6 Sequence, and it is displayed in order as 4 division(1,2,3,4)  Full
screen(1)  4 division(5,6,7,8)  Full screen(5)  Full screen(6)  9
division(9,10,11,12,13,14,15,16).

17

3.6. Alarm mode

- It can be set to Pop-up automatically relevant screen when alarming.

- Set pop-up period can be set into “Alarm Pop-up (sec)” inferior to “Monitor” menu.

- At the simultaneous alarming in several channels, it displays the division as many channel as
alarmed. For example, when 3 channels alarm, 4 divisions is displayed on screen. And press any
button to return orginal channel.

<Attention>

1. IfAlarm Pop-up Hold (sec) set to Off, Alarm Pop-up will not operate.

2. IfAlarm Pop-up Hold (sec) set to Keep, it does not return to previous screen before press any button.

3.7. Zoom Screen mode

- At single full screen mode, press [ZOOM] to monitor 2x image size.

- Default zoom screen locates to main center when press [ZOOM] button. Zoom image can shift
left-right in 18 steps and top-buttom in 12 steps.

- Use directonal key button to screen move

- Press [ZOOM] one more to return to original screen.

3.8. Pause Live screen

- Live screen can pause like PlayBack.

- Press [PAUSE] to pause live screen and press [▷] to return live screen.

18

3.9. PTZ Control

Connect PTZ controller to eDVR and set relevant protocol from “Serial Setup” menu, then PTZ can
operate while monitoring live images.

- Press [SELECT] button first.

- Channel select icon is on the screen,

- Shift to channel to control PTZ with directional key. (Press [SELECT] at single screen mode)

- Press [MENU] at channel selection icon displayed to view PTZ (Pan/Tilt, Zoom/Focus, Load
Preset, Save Preset).

- Select any wanted menu from them and press [ENTER].

3.9.1. Pan/Tilt Control

This menu is used to control Pan & Tilt function at real-time monitoring mode.

- Press [SELECT] button and select Channel.

- Press [MENU], then select ‘Pan/Tilt’from OSD.

- Control Pan/Tilt through directional key at front part.

3.9.2. Zoom/Focus Control

This menu is used to control Zoom & Focus function at real-time monitoring mode.

- Press [SELECT] button and select Channel.

- Press [MENU], then select ‘Zoom/ Focus’from OSD.

- Control Zoom/Focus through directional key at front part.

3.9.3. Utilizing Load Preset

This menu is used to shift to Preset Set at real-time monitoring mode.

- Press [SELECT] button and select Channel.

- Press [MENU], then select ‘Load Preset’from OSD.

- Press relevant Number button of Preset set.

19

3.9.4. Utilizing Save Preset

This menu is used to set new Preset at real-time monitoring mode.

- Control camera location using ‘Pan/Tilt’and ‘Zoom/Focus’menu.

- Press [SELECT] button and select Channel.

- Press [MENU], then select ‘Save Preset’from OSD.

- Press relevant Number button to set in Preset.

3.9.5. Utilizing Clear Preset

This menu is used to initialize Preset at real-time monitoring mode.

- Press [SELECT] button and select Channel.

- Press [MENU], then select ‘Clear Preset’from OSD

- Press relevant Number button to initialize Preset.

3.9.6. Utilizing Auxiliary On

This menu is used to utilize specific function in PTZ device at real-time monitoring mode.

- Press [SELECT] button and select Channel.

- Press [MENU], then select “Auxiliary On” from OSD

- Press relevant Number button of specific function (Aux function is available to max 16 functions.)

3.9.7. Utilizing Auxiliary Off

This menu is used to stop operation of specific function of PTZ device.

20

3.10. Relay control

The function to Relay On/Off. (MD1600H supports 4 Relay Output.)

- Press [RELAY] button to display “Relay On” icon on screen.

- Then Relay Out signal is out by pressing the relevant number of Relay among 1~4 number button.

- Press [RELAY] to Relay Off.

- Display “Relay On” icon while Relay On is working.

- Then “Relay Off” icon is displayed on when press [RELAY] button once more.

- Rress relevant Relay button to Relay Off.

3.11. Screen Lock control

The function to prevent unauthorized user operating the menu at will.
Set “User Password” first to use this function.

Press [EXIT/LOCK] button over 3 sec. to operate Lock mode with message “Screen Locked” on the
bottom of screen. When “User Password” is Off, the message “Enable user password first” is on the
screen.

At the Lock mode, any button does not work. It must release to operate function button. At Lock mode,

21

window for user password input will be displayed at any button press. And Lock mode will be released
with correct password input.

3.12. Utilizing Quad monitor

3.12.1. Monitoring

Monitor 1 monitors several video channels, and Monitor 2 is for bigger screen of channel 1. Also Monitor
3 for Sequence mode and Monitor 4 is capable of monitoring Alarm Pop-up images. Every Monitor 1~4
can be set in following conditions separately.

Monitor 1 Monitor 2 Monitor 3 Monitor 4

Multi Monitor Single Monitor Sequence Monitor Alarm Pop-up Monitor

Single Monitor Sequence Monitor Alarm Pop-up Monitor Sequence Monitor

Sequence Monitor Alarm Pop-up Monitor Multi Monitor Single Monitor

Alarm Pop-up Monitor Multi Monitor Single Monitor Sequence Monitor

22

3.12.2. Monitoring & Playback

Monitor 1~4 are capable of searching several video/playback in single & divided sreen. Namely, several
channels can be monitored and playback separately and simultaneously. But Playback can be monitored
in 1 monitor among Monitor 1~4, and the rest 3 monitors for monitoring.

23

4. Playback

4.1. Various Playback mode(Playback)

4.1.1. Playback on standard monitor (16 division)

- Press Playback button [▷] at Monitoring mode.

- It playback images with initial 1x speed.

<Attention>

At Monitor mode, Playback buttom will play the recorded image from Channel 1.
Namely, it will always start playback of channel 1 from 30sec. ago.
At the time, the data of image will be shown at the bottom of screen. And the one on top indicates
images for 30 min. and the bottom indicates 12hrs.
It also playback video images of the channel that input the wanted channel number.

4.1.2. Playback to divided Channel(4/9/16)

- Press [MULTI] button at single playback screen mode. (Pressing [MULTI] button every time, it is
changed 4, 9 16 channel division.)

- Channel 1~4 images is playback in 4 channel division.

- Select channel number to playback single channel playback mode.

4.1.3. Playback channel no. 5~16 at 4/9 channel division

Press [SEQ] button or playback the wanted channel on divisional channel.

- Press [SELECT] button at 4/9 divisional channel.

- Select divisional channel by direction key.

- Playback the images to the location appoint for selected channel number.

4.1.4. Zoon Playback screen

- Press [ZOOM] button at single screen playback mode to displays 2x zoom playback image.

- Pressing [ZOOM] button will locate zoomed images to the center of screen. Zoomed image can
shift left-right & top-bottom at 10 and 7 grades.

- Screen shift is carried by direction key button.

- Press [ZOOM] one more to return original screen mode.

24

4.1.5. Various Playback functions

▷ (PLAY)

: Playback 1x speed.
Press [▷]playback button at single monitor mode will playback recorded
images of monitoring channel.
Press [▷]playback button at multi monitor mode will always playback
recorded images of no. 1 channel.
When the execute playback by pressing [▷] playback button, it playback
from the time when user connects to playback lately.

STOP

: Stop Playback.

PAUSE

: Pause Playback.

FFW

: Change Playback speed at every button pressing.(x1, x2, x4, x8, x16, x32,
x64)

REW

: Reverse playback speed at every button pressing. (x1, x2, x4, x8, x16, x32,
x64)
If press REW button at Monitor mode, it will reverse playback from the last
recorded section, and it will forward play from 1 min. previous if press FFW
button.

STEP FORWARD

: Playback by each frame with [▷, PLAY] or [, FAST FORWARD] button
at PAUSE. Press [, STOP] and then [▷, PLAY] or [, FAST FORWARD]
to return normal playback.

STEP REWIND

: At PAUSE, press [, FAST REWIND] to playback one by one fram in
reverse. To return to normal playback, press [, STOP] and then [▷, PLAY]
or [, FAST FORWARD].

25

4.2. Search mode

This menu is to playback specific time data from the time frame and searching log at Playback mode.

From for the time to start recorded data, To indicates the last time. Select From/To and press [ENTER] to
move to the relevant time.

<Order of Button Input>

- Press [SEARCH] at Playback mode.

- Input Date/Time or select relevant Log from Log Browser.

- Press [▷] button.

- Playback searched image.

- Press [EXIT] to exit from Search mode.

<Note> How to use Log Browser

1. Shift each page with Left/Right key.

2. Shift to previous Log block by Up key at first page and first log.

3. Shift next Log block with Down key at last page and last Log.

26

4.3. Copy / Backup / Delete

This menu describes how to copy/backup/delete recorded images.

- Press [SELECT] and [MENU] in order and Playback mode.

4.3.1. Copy Image

Use USB Memory Stick etc to copy selected channel images in some part.

Time

Slect the range of Copy. Range of image can set 1sec.~1hrs. from present playback location.

Select Disk

Slect the target of Copy.

27

4.3.2. Backup Data

Start Date & Time / End Date & Time

Slect the range of backup.

Select Disk

Select the disk to use backup device.

<Note>

Uncompleted backup file 100% can not be played normally in PC

<Note>

It does not support USB device as backup.
It supports CD-R/DVD-R, and over (CD-R Media 700MB / DVD R Media 4G) in CD-R Media.
It creates re4 in HDD re4, in CD-R vfs4.

<Note>

It supports only DVD backup. CD backup will be supported later.
For the details, please contact to local distributor.

28

4.3.3. Delete Data

The menu to delete specific rage of data in present HDD recorded. Delected data is limited to present
HDD used, and it does not affect to backup disk.
The range of delete data is from oldest data to the data that the time selected.

<Note>

The size of block in eDVR file system is 64MB and delect data is carried in block. So Delete data
does not define the accurate time data.

29

5. Configuration

5.1. Quick Setup

There are 3 methods in Video recording setup - Quick Setup, Recording, Alarm Recording menu. Quick
Setup is the menut to set recording easily in same condition of all analog channels. Recording is to set
recording in more various conditions by time period or channel. Alarm Recording is to set the recording
with alarm. Also, Quick Setup includes Time Set menu.

5.1.1. Tim Set(Date/Time)

Factory set of eDVR comes to “UTC 00:00 Dublin” as Time set.
First set in eDVR setup is to set time of relevant area. Time Set is very important to protect recorded data.
Change of the time of eDVR[Date/Time] can influence to images recording. And it could make the HDD
format.

<Button Input order>

- Press [MENU] at the front of eDVR

- Shift to “Quick Setup” menu

- Shift to “Date/Time” of “Quick Setup” using direction key at Front panel, and press [ENTER]
button.

- Normal operation of button in order will make the display following screen.

- Press [ENTER] to shift to each inferior menu after select menu with direction key.

30

Time Zone

Select the times using left-right directional key from eDVR front. Every time pressing direction changes
the time zone. (Press [EXIT] to return to previous menu. It is as same as OSD menu.)

Daylight Saving(Summer Time applied)

This menu is linked to Time zone set menu. Namely, it is activated when selected summer time zone is set
from Tim Zone set menu. Summer Time Zone is programmed to apply the time zone from existing MS
Windows. At these stages, when eDVR is installed to DST area apply, set Left & Right key whether it
applies relevant Summer Time.

Sync with NTP

Select whether synchronize NTP(Network Time Protocol) and Time.

<Note>

Refer to “NTP Settings”from Network Setup in detail relate to NTP.

Time Format

31

Selet the method of Time Format. Using Legt-Right key set Time Formate “MM/DD/YYYY” or
“YYYY/MM/DD”.

Date/Time

Using Left, Right key will shift Year, Month, Date menu, and select each menu with Upper & Lower
button.

Apply Date/Time

To apply Date/Time value, press “Apply Date/Time” button to display the following window.

<Note>

Other setup can be saved automatically by closing setup menu completely, but “Date” & “Time” does
not because it can affect HDD recording File System critically. To save and apply changed data, it must
press [Apply Date/Time] button manually..

32

5.1.2. Recording Setup

Quick Setup is to set same conditions to all analog channels in every hour.

<Button Input>

- Select “Recording” menu inferior to “Quick Setup”.

Configuration Status

It just indicates the setup status of recording only. If user sets recording condition to Quick Setup, it is
indicated to “Macro Setup” and “Custom Setup” when any set has changed from Recording menu.

<Note>

“Macro Setup” indicates the same of schedule recording of all channels.

33

Channel Status

Set whether it activates all analog channels. Defult value is “On”.

Recording Speed/Quality

There are all 5 setup conditions. (No Rec./Low/Standard/High/Custom).
The conditional Setup except “Custom” comes to auto synchronize with “Speed(ips)”and “Quality”,
Quality can set the each separately. At the setup condition of “Alarm Recording”, “Standard”와 “Pre/Post
Alarm” is set to each 1 second.

Resolution

recording resolution of all cameras [CIF /Half D1/ Full D1].

Audio Recording

It sets Audio recording. In case of Audion recording set to “On”, “Audio Synch with” is set to “All”and it
synchronizes all channels when playback.

Apply

To apply Setup, press “Apply” button, and move to previous menu pressing [EXIT] to start eDVR
recording based on the setup condition of recording.

34

5.2. Camera Setup

This is to setup the condition of every camera. At Quick Setup menu, it sets every camera to the same
condition.
Set values are applied in same at monitoring & recording mode.

<Button Input order>

- After pressing [MENU], shift to “Cam # 1~Cam #16” inferior menu of “Camera”.

Name

Set Camera name.
Press [ENTER] to display the letter set menu.

35

<TIP>

Display Letter input window to input characters.
According to menu, letter input window can be different, but Set is the same.

- Use direction key for letter input.

- Select letter using [▲ /▼ ] button.

- Press [► ] to input after select the input letter.

- Press [◄ ] to Shift back and delete.

- Avaiable letters

Digit : 1 2 3 4 5 6 7 8 9 0
Capital letter : AB C D E F G H I J K L M N O P Q R S T U V W X Y Z
Small letter : a b c d e f g h i j k l m n o p q r s t u v w x y z
Special letter :( ) - . $ # @

Status

Press “On/Off” using [◄ ] or [► ] button after pressing [ENTER] button. To raise frame rate while
recording or network monitoring, turn off the unusing channels, Refer to Recording section.

Type

This is shown the video signal(NTSC/PAL) input only, and its setup is carried through Jumper in
MD1600H. When booting MD1600H, it will automatically recognize video signal from first recognized
video signal set by examing from ch 1 to 16. If there is no video input connection, it will follow Jumper
set.

Color

Set “Color / B/W” using [◄ ] or [► ] button after pressing [ENTER] button.

AGC (Auto Gain Control)

Set “Enable/Disable” using [◄ ] or [► ] buttong after pressing [ENTER].

36

Brightness/Contrast

Select the value from “–9” and “+9”using [◄ ] or [► ] buttong after pressing [ENTER].

Covert

Covert On will hide the channel at Monitoring mode.
Select “A / B / Both / Off” using [◄ ] or [► ] buttong after pressing [ENTER].

PTZ Home/PTZ Idle Time

Shift to Preset assigned if it has no movement in certain time while PTZ control
Set Preset number and Time using [◄ ] or [► ] buttong after pressing [ENTER].

PTZ Port

Set PTZ port connected to relevant channel by using [◄ ] or [► ] buttong after pressing [ENTER].

Address

When press [ENTER], Letter Input window will be displayed to set base address of PTZ device.

37

5.3. Manual Recording setup

This menu is to set video recording condition by user when pressing [REC] button. If manual recording
starts, Normal Rec & Event Rec is ingored and it records based on user recording setup.

Recording Speed/Quality

There are all 4 setup conditions. (No Rec/Low/Standard/High/Custom). Setup condition except “Custom”
will synchronize “Speed(ips)” and “Quality” automatically, Speed(ips) and Quality can be set each
separately.

PreAlarm (sec)

It can set max. 5 seconds.

Post Alarm (sec)

It can set Continuous or maximum 60 seconds.

38

<Note>

1.

In case of set ‘No Rec.’ in Schedule Rec., it records as a set of Pre Alarm. While Schedule
Recording, it records Pre Alarm section in speed(ips) of a set Schedule Rec.

2.

When Post Alarm is set to Latched, it maintains user recording continuously till the stop
pressing [REC] button by user.

5.4. Schedule Recording Setup

This recording is to set the recording conditions by Channel and Time schedule. After “Quick Setup” set,
it is changed to new set value from previous value set if the set is changed at this manu.

5.4.1. Global Setup

It is similar to Quick Setup recording, and it set to same conditions of all analog channels at every hours.

39

<Note>

1. The difference of recording setup in Quick Setup is that there is no audio recording setup, and sets
whether Special Time Recrding & Event Recording sets or not.

2. What Alarm Recording Off is set, Alarm Rec. menu is not available. To set Alarm Rec. menu, Alarm
Recording of Recording menu should be set to “On”and press “Apply” to complete setup.

4. Refer to the following Setup by Channel how to set in detail.

5.4.2. Setup by Channel

Time Schedule

It sets recording condition based on every time schedule. Time period can be set 4 districted areas, Full
Time, Weekday (Day)/Weekday (Night)/Weekend (Day)/Weekend (Night). Day & Night, Weekday &
Weekend can be set from “System”menu.

40

<Time Schedule Setup>

Shift to“System” menu to set Time Schedule.

Weekday Start/End

Set Time zone from Monday to Sunday using Left, Right key button. The unset zoon can be set to
Weekend time zone.

Day Start/End

Set Day time zone using Up, Down button. The unset zoon can be set to Night time zone.

Recording Speed/Quality

There are all 5 setup conditions. (No Rec./Low/Standard/High/Custom).
Setup condition except “Custom” will synchronize “Speed(ips)” and “Quality” automatically,Speed(ips)
and Quality can be set each separately.

41

Resolution

There are all 3 conditions. (CIF/HALF/D1).
At this menu, resolution set is applied to every User recording, Event recording.

- CIF : 360x240 @ NTSC, 360x288 @ PAL

- HALF : 720x240 @ NTSC, 720x288 @ PAL (HALF D1)

- D1 : 720x480 @ NTSC, 720x576@ PAL (FULL D1)

Special Time Recording

This menu is to differenciate recording conditions by setup of specific time zone. Namely, if it sets to day
time in workday, it can record according to 2 type setup condition. Specific time sets from ‘System’menu.

There are 5 setup conditions; No Rec./Low/Standard/High/Same as above(Apply same value with
“Recording Speed/Quality” value. ).

< Specific Time Zone Setup >

Shift to“System” menu to set Specific Time zone.

Max. 4 specific time zones can be set.

42

Event Recording

After pressing [ENTER] button, set “On/Off” using [◄ ] or [► ] button. Detailed Alarm recording
conditions sets from “Alarm Recording” menu. Here only can set recording according to alarm recording
setup.

5.5. Alarm Recording Setup

This menu is to set Alarm Recording condition. After setup Recording condition, “Event recording” menu
from “Recording” must be “On”to setup Alarm recording in eDVR. Also, before setup Alarm recording,
“Alarm Source” must be set.

5.5.1. Sensor Setup

This menu is to set existence of sensor and type of sensor. It support 2 type sensors, Normal Open(N.O.)
과 Normal Close(N.C.)

Global

It set all sensors same together. After select among Off/N.O./N.C., and press “Apply” to activate.

43

Configuration

It can set 16 sensors (S1~S16) separately.

5.5.2. Motion Detection Setup

This menu is to set MD of each channel. Global sets all channels (Cam #1~Cam#16) in the same together,
and setup can differ separately.

Motion Detection

It sets 4 different sensitivity of MD; Off, Lowest, Low, Std, High, Highest.

MD Area

It sets MD zone. 64(width 8 x height 8) zone is selected by “Set All” and release it with “Clear All”.

<Note>

To set Global, press “Apply”. Other will be not applied.

44

5.5.2.1. Motion Detection Setup by Channel

MD setup by channel is same as Global setup. And it can set MD zone additionally when MD sets by
channel.

Custom Area

It sets MD zone by user NTSC 22x15, PAL22x18
First default value is set to “SelectAll”. If “Custom Area” pressed, Window for MD zone setup is opened.

45

< MD Zone Setup >

It can set MD zone by user directly.

If “Custom Area” is pressed, sell NTSC 22x15, PAL22x18 for setup is displayed. Selected MD zone
is in grey color. To select MD zone, use direction key for the wanted zone and press“ENTER” to
apply.After selection, press “EXIT” to return previous menu.

46

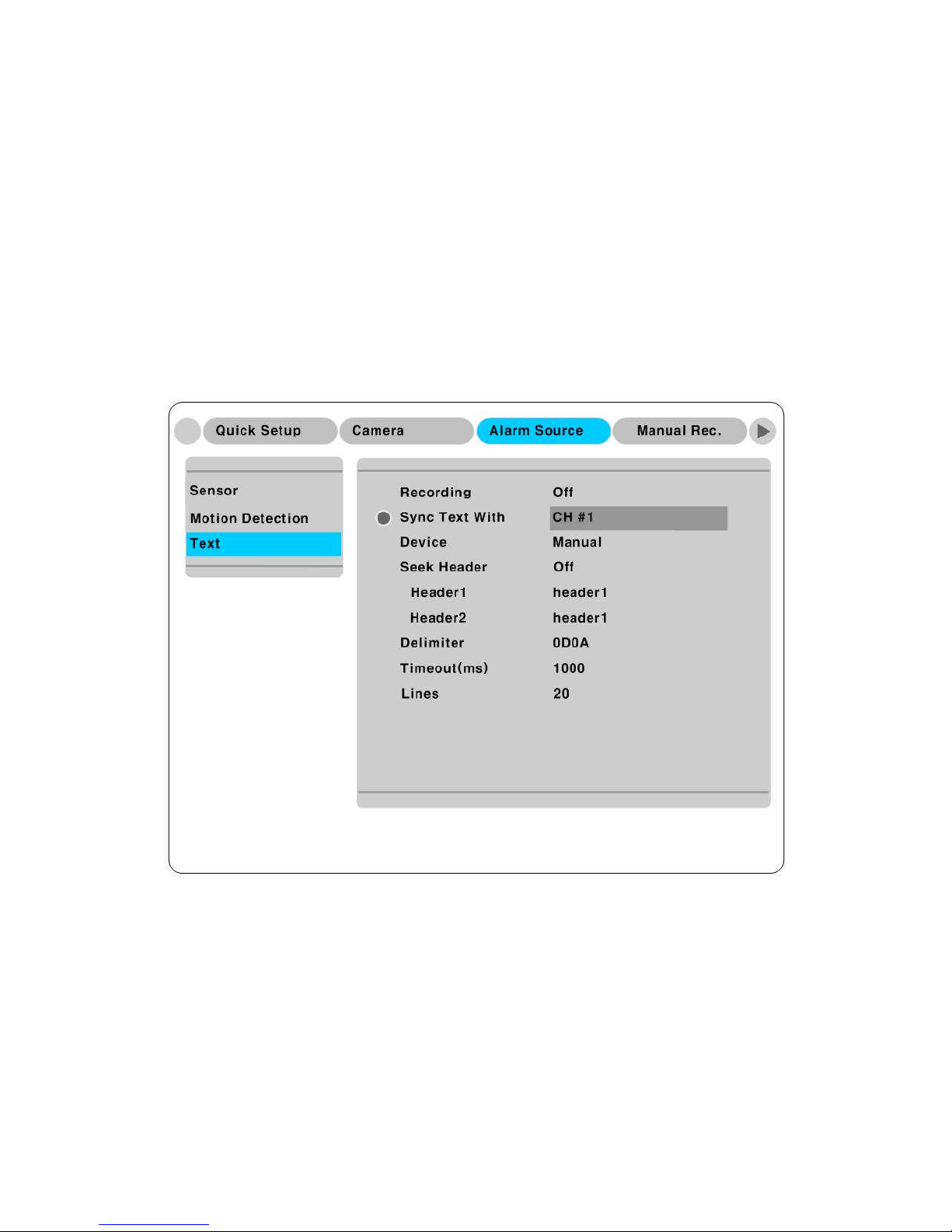

5.5.3. Text Setup

This menu is to set text data input. It has to be set COM1 part from “System -> Serial Setup” menu on
OSD.

Recording

It is On or Off to save the Text input.

Sync Text With

Select the channel synchronize with Text data.

Seek Header

It has the various type of data input from the external device (Access Control, POS, ATM etc). Like Star
Finger 007, it is not needed when the protocol of these device have implemented on the device. If not, this
is the parameter to analyze how the one of data is constructed from the text data that is input continuously.
Namely, all data has the first and the end. Header indicates the information that already inserts to inform
its starting. Therefore, Header information is defined here to acknowledge its starting of a data. The
reason of 2 Header is to detect maximum 2 data out because each device can output various datas.

47

Delimiter

Value of Delimiter can be different according to every device. Refer to their manual or inquire it to
purchasing stores of its model.

Timeout(ms)

Following lines defined here means maximum number of text line from one data. Even if there is
standized data, there can be a short and long data. For example, there are 3 lines to write names on ATM.
But some may need only First name & Last name to register. Which it means requires only 1 shorter than
other ATM users. It is to decide the last line of the one data register as final complete data to save after an
hour’s consideration of register later because eDVR can not recognize it automatically.

Lines

It defines how maximum many lines is structed by a data.

48

5.5.4. Global Alarm Recording

Set all analogue channels in same condition.

Sensor/MD

Set synchronizing with Sensor/MD.
Pairing means 1:1 synchronization between the channel and Sensor/MD.

Text

When set “On”, it deals text input of relevant channe as Alarm Event and is saved.

<Note>

1. To apply Global setup, press “Apply”button.

2. Refer to following Setup by channel for the details.

49

5.5.5. Setup by Channel

Alarm Source (*=All)

- ThroughAlarm Source, 4 Sensors and 1 MD, Text input is selectable.

- Selection of Sensor is set by pressing relevant number button.

- Selection of MD, Text can be On/Off by direcitional key.

- Select Preset of PTZ by relevant Alarm input.

<Note>

1. * : Press ▷ button.

2. – or # : Press number 0 button.

Recording Speed/Quality

There are all 4 conditional setup (No Rec/Low/Standard/High/Custom).
Except “Custom”, Setup condition will synchronize “Speed(ips)” and “Quality” automatically, Speed(ips)
and Quality can be set each separately.

PreAlarm (sec)

It can set max. 5 second.

50

Post Alarm (sec)

It can set max. 60 seconds.

<Note>

1.

In case of set ‘No Rec.’ in Schedule Rec., it records as a set of Pre Alarm. While Schedule
Recording, it records Pre Alarm section in speed(ips) of a set Schedule Rec.

2.

When Post Alarm is set to Latched, it maintains user recording continuously till the stop
pressing [REC] button by user.

Alarm Recording Status

It can check ON/OFF of Alarm Recording menu in Schedule Recording setup.

51

5.6. Alarm Action Setup

According each Time schedule, it sets Relay action. It sets to 5 different time period, Full Time,
Weekday(Day), Weekday(Night), Weekend(Day), Weekend(Night). After Schedule setup, it sets Relay,
Buzzer, Email etc to operate Alarm action.

5.6.1. Schedule

Select Action Source

Sensor and MD can be set max 4 or ANY for Relay1~Relay4, Buzzer, E-mail. Video Loss and Text can be
set On/Off. Selection of Sensor/MD is done by pressing relevant number button.

<Note>

1. ANY : Press ▷ button.

Special Time

It selects whether it apply specific time period that is set.

<Note>

1. Global Setup is to apply Time Schedule to all at same.

2. Press “Apply” to apply Global setup.

52

5.6.2. Setup

Relay Configuration

Set the use or not for R1~R4.

Buzzer

Set the use of Buzzer or not.

E-mail Addr.

Input E-mail address to inform Alarm.

SenderAddr.

Input “Sender” address in the typr of who@where.

Mail Duration (min)

E-mail notification is to send message in terms of Mail Duration set, but not every time that Alarm is
occurred. It can be set from 1 to 30 minutes.

53

<Note>

Network setup is set to DNS for E-mail notification.

5.6.3. System Alarm

5.6.3.1. System Alarm Setup

It is to set ON/OFF of Alarm for the notification of system faulty.

HDD Fail

Alarm action is operated when HDD disconneced or abnormal action.

HDD Almost Full

It operates alarm action when connected HDD is almost full.

Fan Fail

It operates Alarm action when malfunction of FAN connected to eDVR.

54

Password Fail

It operates Alarm when wrong User or Admin password input.

WRS Reg. Fail

It operates Alarm when disconnection of WRS.

5.6.3.2. Alarm Method Setup

It is to set ON/OFF of Alarm when system alarm is occurred.

Warning Message

When setup this menu, it display warning message through pop-up.
Warning Message remains On always..

Beep

When set this menu, it sounds Beep.

Send E-Mail

When this menu is sest, it sends email to the address input.

Select Relay

It operates Relay selected from 1~4 relay.

55

5.7. Monitor Setup

It sets the monitor for the display of video from monitor 1 to 4. Available meni for monitor 1~4 are all
same.

Alarm Pop-up (sec)

It sets auto Pop-up display for the alarm. Pop-up display time can be set from 5~10 second. If it sets to
“Keep”, it keeps to display Pop-up image and press any button to release Keep mode.

Seq. Switching(sec)

It sets auto switching from 1 to 60 seconds.

Anti-Flicker OSD

It can On/Off Anti-Flicker OSD menu. When it is On, it soften Menu and Text on screen and no trembling.
But when it is Off, the letter will be cleared and trembles. Set On/Off based on the condition of the user’s
monitor.

<Note>

If no. 2 channel pop-up again within a few time passed after no. 1 channel pop-up, it is changed to 4
division and shows 1, 2 channels. And the holding time from the last pop-up time is extended
automatically. (Max. 8channels)

56

User Sequence Configuration

It can edit Auto transmit function for user mode.

<Attention>

1. It can define all 16 user mode.

2. The picture for example defines 6 Sequences in order as shown 4 division(1,2,3,4)  Full mode(1)
 4 divisions(5,6,7,8)  Full mode(5)  Full mode(8)  9 divisions(9,10,11,12,13,14,15,16).

5.8. System Setup

5.8.1. Audio Setup

MD1600H supports 4channel Audio recording. But it operates with any channel when video playback.

Recording

It sets whether Audio records or not.

Audio Gain

It is possible to set from -7 to +8.

Sync Audio with

When playback recorded image, it sets which it works together.

57

5.8.2. Time Schedule Setup

It sets the time period from Week & Weekend, Day and Night.

Weekday Start/End

Using Left, Right key sets the time period from Weekday. Other unassigned time is for the Weekend.

Day Start/End

Using Up, Down button sets Day time period. Other time is applicable to the Night time.

58

5.8.3. Special Time

It can set another specific time zone in each time zone(Week day, Week night, Weekend day and night),
For example, various conditions setting separately such as mealtime or meeting time is applicable.

It used for the set of regular exceptial time. Max. 4 different specific time can set.

Exception Days

It used for the setup of irregular exceptional time, max. 30 time zones.

- Start Date&Time : Set Starting time.

- Duration : Set an interval of Exceptional time.

- Profile : Set the value of exceptional time zone.
(No Rec, Week day & night, Weekend day & night)

59

5.8.4. Security Setup

5.8.4.1. Local Password

User Password

It is only capable of monitoring and playback only with user registery. Default set is “1111”.

Admin Password

Authorized administrator can control every function. Default set is “9999”.

60

5.8.4.2. Remote Users

Admin ID setup

Admin ID “admin” cannot be changed.
Password of admin is set and has all rights and unchangeable.

User ID setup

Max. 10 user’s ID can be set.
To register the user, change Use’s value to “Y” and input ID & password.
Basic value is available for all monitoring/playback/Relay.

61

5.8.5. Disk Setup

Auto Deletion

When no HDD space left for recording, it deletes the recorded data automatically.

Backup Reminder

This menu is to inform backup time by everyday, every week, every month.

Day/Date/Time

It applies the value of setup differently according to value of “Backup Reminder”.

Block PlayBack

This menu is to playback the recorded images from HDD in limited time. It can set from Day 1 to 31.

62

5.8.6. Network Setup

There are 5 Sub menus. ; Network, xDSL, WRS, Port Setting, NTP Setting

5.8.6.1. Network

When eDVR connects to network, it is to set relevant network information.

Type

It sets the type(Ethernet/xDSL) of network line connected to eDVR. It sets ‘Ethernet’at the connection of
network through leased line, Cable model or LAN based connection.

It sets to ‘xDSL’when eDVR is connected to xDSL line of PPPoE method. But it sets to ‘Ethernet’if it is
not PPPoE method even if it is xDSL line.

DHCP

DHCP (Dynamic Host Configuration Protocol) is to manage HOST address in network. All Host connect
to LAN using such network protocol can jointly own public IP address that is limited. Another means that
all Host allocates public IP address temporary from DHCP server. If LAN has DHCP server and activates
DHCP menu, DHCP server allocates public IP address to eDVR.

63

‘DHCP’is used in LAN that DHCP server works. Nornally, in mid or large scale, it operates DHCP server
via LAN but generally use NAT(Network Address Translation) function via HUB in small.

IP Address, NetMask, and Gateway Address, DNS, Port, Bandwidth limit

It sets IP address, Network Mask, Broadcast address, Gateway , DNS address, and Port, Bandwidth limit.

5.8.6.2. xDSL

When eDVR is with xDSL line and PPPoE method, ID & Password should be setup.

User ID/Password

Set ID & Password for eDVR in xDSL connection.

Status

It indicates the connection of eDVR.

64

5.8.6.3. WRS

If eDVR is connected to Cable modem or xDSL modem, IP address is changed at every connection to ISP.
In this case, changed IP address can not be known. If eDVR using static IP register into WRS server,
changed IP address can be known easily when it connects to eDVR.

To register Static IP to WRS, please refer the following to set.

WRS Interval

For continuous registery, register inverval should be set to ‘WRS Interval’. According to set value of
static IP address, it renews the information in WRS server regularly. If user registers the interval ‘0’or
eDVR does not transmit any data for 2 days, the data is removed from WRS.

WRS URL

This menu is to set server address to register. WRS addresses that WebGate operates now are
www.webgateinc.com or mycam.to.

65

<Attention>

1. If domain address such as www.webgateinc.com or mycam.to is input in WRS URL, DNS server IP
should be noted on “System  Network  DNS1”.

2. DHCP line such as Cable/DSL receives DNS address automatically and does not require an entry.

Group ID

Group ID is to set group name that eDVR registered. It recommends uneasy Group name to avoid same
Group name registered.

Status

It indicates the status of eDVR registry.

66

5.8.6.4. NTP Setting

NTP(Network Time Protocol) synchronizes the time of every devices connected to network. It consists of
Server that offers standard time on network, and Client for synchronization that receives the time from
server connected.

Sync With NTP

It can On/Off NTP function.

NTP Mode

It sets NTP mode of eDVR operating in Client or both.

NTP Server Loc.

It enables when NTP Mode is set to Client. It sests whether NTP server is in Local Network or
Internet(Public).

NTP Local Server IP

It enables when NTP Server Loc. is set to Local, and set Server IP.
Input IP of NTP server in local network or eDVR IP that NTP mode is set to Server.

67

Interval (min)

It sets interval (min.) of Time synchronization.

<Note>

When NTP Mode is Client, Sync with NTP must be set to On.

5.8.7. Serial Setup

MD1600H can set all 4 COM port.

Device

Set external device connected.

Interface

This menu is to set which interface can use among RS485 from “RS485” menu.
COM1, COM3 is fixed to RS232 and COM2, COM4 is fixed to RS485.

Baud rate/Parity/Stop (bit)/Data (bit)

In put suitable value according to external device.

68

5.8.8. Status Overview

It shows status & temperature of HDD relevant to video recording and Fan speed.

Earliest / Latest Recording

It shows intial starting time and last time of the recorded file.

Disk Capacity

It shows total HDD capacity installed.

Used Space

It shows HDD capacity recordable.

HDD Temp

It shows HDD temperature installed.

HDD SMART

It indicated HDD status installed in GOOD & BAD.

69

FANRPM

It shows FAN speed installed in eDVR.

5.8.9. Miscellaneous

<Order of Button input>

- After press [MENU] button, move to “Miscellaneous” inferior to “System”.

Remote Control ID

Max 16 controller ID can set up and contril via 1 remote controller. Set to Off if it is not used.

<How to register Remote Controller>

- Face Remote controller toward eDVR.

- Press “ID”button on controller when eDVR is responding.

- If ID of Controller does match with ID of eDVR, all Alarm LED of eDVR is ON and sounds.

- It is capable to use after ID match.

- Refer to “Installation Guide” for the details.

70

Keyboard Control Addr

This menu is to set Keyboard address when all functions of eDVR is controllered by Keyboard button.
Default value is set to “1”. If several eDVRs connect to a keyboard, 32 channel can clash. Then set to the
other address of keyboard.

DVR ID

This menu is set the name of eDVR.

Record No Video

If this is “On”, it records video image which is not input.

Interpolation

Interpolation On/Off

The “Interpolation mode” only runs when the recording resolution is in Full D1.
In case of enable it, the Full D1 image with Pause condition the picture will have less tremor.

Language

OSD menu is supported in multi languages. Select the wanted language.

H/W Version

It indicates H/W version of the system.

S/W Version

It indicates F/W version of the system.

MAC Address

It indicates Mac address of the system.

Serial Number

It indicates Serial number of the system.

System Logs

It is used to view System Log. Press “System Logs” button to view System Logs.

Reset Values

It is used to set system to initial factory setup. Press “Reset Values” button to set factory setup mode.

71

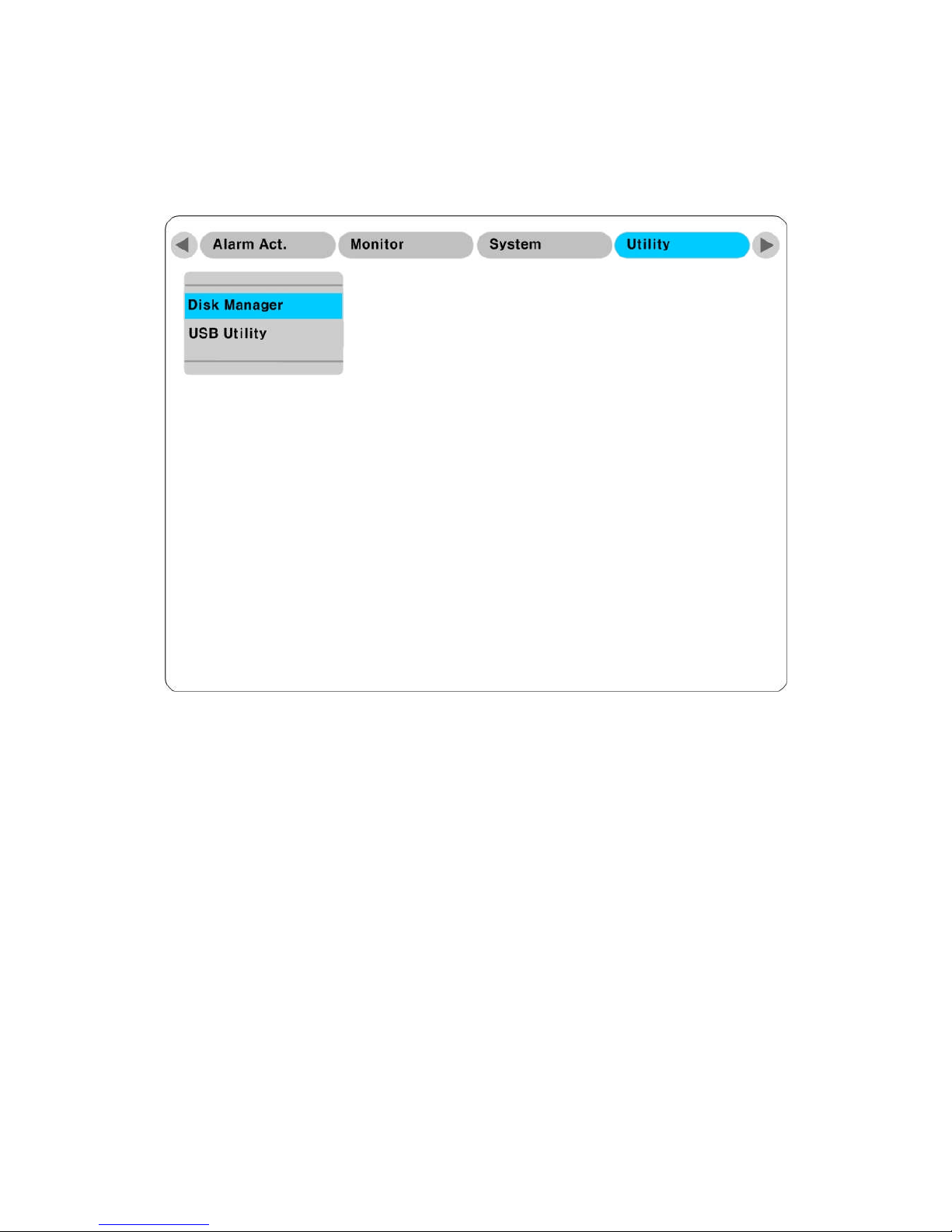

5.9. Disk Manager (Utility)

It explains adding or formatting internal, external Hard disk. eDVR supports various external storage.

< Order of Button input>

- After press [MENU] button, move to “Utility” inferior to “System”.

72

5.9.1. Disk Manager

Installed Hard disk is automatically recognized.

Select Disk

Select disk to set.

Action

Select wanted work among the menus, “Add/Remove/ Confirm Removed/Add used”.

[Add]

: Add Disk. Use disk that there is no partion table. Partion table can be removed

from PC. When adding HDD, “Alarm Partition” menu is activated to set up.
“Alarm Partition” indicates dividing 1 HDD to Recording part and Alarm
Recording part.

[Remove]

: Remove present HDD used logically. Later it is possible to use it through ‘Add

used’without formatting.

[Confirm Removed]

: Complete removal from the lists when it remains in the list after HDD removal

from eDVR.

[Add used]

: Adding HDD again without formatting that is used

< Compatible File System> Disk that is used in eDVR reusable again without

73

deleting data through Add Used.

FAT32 Format

FAT32 Format when connecting external Hard disk.
Execute FAT32 Format for Backup/Copy in partition of under 250GB. For
execution of FAT32 format, creat partition through disk manager of PC first. If
HDD size is over 250GB, create several partitions smaller than 250GB and
execute FAT32 formate in each partition.

Type

Followings indicate the type of HDD.

[R]

: It is recordable by completion of HDD format.

[V]

: It is being connected and formatted to eDVR file system. It is changed to [R] through

‘Add used’. It does not ‘Format’.

[F]

: It is connected, but it is required to change to [R] using ‘Add’due to the difference of File

System in eDVR (FAT/FAT32 File System).

[X]

: HDD connection cable is not connected or problem in HDD. Check the cable and reboot

the system or remove it from the list executing ‘Confirm Removed’.

[C]

: Usable when backup to external CD-Writer

< Compatible File System >

How to Use.

- After upgrading DVR, HDD that recorded in previous version is indicated to [V] in Disk Manager.

- Select HDD in ‘Select Disk’.

- Press ‘Apply’after selection of ‘Add Used’at Action.

- Press OK at ‘NOTICE - Disk reused for recording’.

- Convert with messege ‘Converting files from old version may take a few minutes’at lower screen.

- If Type is changed to [R], it indicates HDD usable with completion.

Attention

- If it upgrades system, HDD that is recorded in previous version is signed [V]. It must do Add Used
for the reusable.

- Based on HDD size, it can take 10 second to a few minutes to Add Used.

- Playback from HDD recorded in previous version can not be operated smoothly and CD backup is
not available.

- Previous recorded data section does not support Watermark or Smart Search.

- It is designed to be compatible file system. But there is the limit in the function/ backup as above. It
recommends backup in advance before the upgrading.

74

5.9.2. USB Utility

It supports firmware upgrading and setup saving & sending, Text file saving for printing set value through
USB.

Update F/W

After saving upgrade firmware for USB use to USB device, connect eDVR and press ‘Update F/W’for
firmware upgrading. Upgrade firmware for USB use is supplied in “~.date”file.

Print Settings(.txt)

Function to save Set value for printing into USB device in Text file. Saved data file can be opend through
Text editor like Notepad to print and check set value saved.

<List of setup data files saved in TEXT >

- Camera setup data

- Recording setup data

- Alarm Recording setup data

- Network setup data

- Audio setup data

75

Load Settings

Set the system as set value saved in USB device.

Save Settings

Save present set value to USB device.

76

Extension

6. External device connection

External device connection is based on the standard of MD1600H

6.1. Using Text device

There are 4 essential setups to use Text devices; Text menu, RS232 menu of Serial Setup, Alarm Rec.
menu, Recording menu.

6.1.1. Setup in Text

Set Recording & Monitoring menu to all ‘On’and set Sync channel to the wanted value. If connectable
devuce is Star Finger 007, set the relevant device only. And et other products to Manual and set all
inferior menus.

77

6.1.2. Setup in RS232 menu of Serial Setup

Set connectable device in COM1 of Serial Setup menu, and also set Baud Rate, Parity, Stop, Data with
relevant value.

78

6.1.3. Setup in Alarm Rec

If there is video channel want to record with Text sync., set Text Event from Off to On.

79

6.1.4. Setup in Recording

If any channel like to record with Text, set Alarm recording to ‘On’. Full Time is to set all Week day &
night, Weekend day & night, and change menu to set Weekday and Weekend differently.

<Attention >

Every pressing ‘Help’ button, it differ the step of showing video data. Default value at Monitoring
shows channel number only. And whenever pressing ‘Help’, it changes to channel name & text sign
stage, event status sign, HDD status sign. In opposite, default value at Playback changes in stages of all
data sign, channel name and text sign, event status sign, channel numbe sign. So to view text data when
Monitoring or Playback, press Help button at once for the stage of channel name & text sign.

80

6.2. Using Keyboard

There are 2 essential setups to use Keyboard; RS232 menu of Serial Setup, PTZ menu of Serial Setup

6.2.1. Setup in COM1 menu of Serial Setup

Set connectable device in RS232 in Serial Setup menu to Keyboard. Also set Baud Rate, Parity, Stop,
Data with relevant value.

6.2.2. Setup in PTZ menu of Serial Setup

Set communication between eDVR and camera to control via Keyboard & other devices.
Inquire to seller for the detailed information about Setup with other products.

81

APPENDIX

APPENDIX

APPENDIX

82

#1. Technical Specifications

General

CPU

32bit RISC Processor

Flash memory

32MB

Main memory

256MB

OS

Embedded LINUX

Video channel

16Ch. analog video inputs via BNC connector
NTSCorPALvideo formataresupported(Auto detect)

Storage device

Int.: 4 HDD bays including 2 hot swap-bay
Ext: 2 IEEE 1394b (FireWire) connection ports*

2 eSATA connection ports

1 Network Storage port (RJ45)*
Supports Disk management tool for all disks.
Total manageable capacity: 8 TB

Intelligent file system

Data-loss protection against power failure

* under development

Image compression and Recording

Technology

MPEG-4, JPEG(Remote monitoring only)

Image quality level

5 Level (Q1 ~ Q5)

Recording speed

Max. 480ips(NTSC) / 400ips(PAL) @ D1 Resolution

(Playback speed)

Total 60ips(NTSC)/50ips(PAL)

monitor

(Performance)

1/4/9/16ch
1x, 2x, 4x, 8x, 16x, 32x, 64x (Forward/Reverse playback)

Resolution

CIF : 352 x 240 / 352 x 288
Half D1 : 704 x 240 / 704 x 288
D1 : 704 x 480 / 704 x 576

Motion Detection Grid

22x15(NTSC)/22x18(PAL)

Playback search

Instant Playback by time and event
Step-forward, Step-reverse playback

Alarm trigger

Motion detection, Sensor input or Text input

Alarm log record

Log search
Log monitoring via OSD & Network

Pre/Post alarm

Pre : 0~5 seconds
Post : 0~60 seconds

83

Schedule recording

Daily : Day / Night / Four-segment time frame
Weekly : Weekdays / Weekends, Exception days
Conditions : Normal / Event

Text Data recording

POS/ATM transaction information archived along with
corresponding video data

Manual recording

Manual(Emergency) record triggered by font key

Audio Recording & Playback

Recording level

-7~8 (16 step) recording level

Monitoring

Support remote monitoring and two way audio

Network

Program

Control Center Lite-D (Bundle)
Support Control Center series CMS S/W and WESP SDK

Protocol

TCP/IP, ARP, ICMP, DHCP, PPPoE

Connection 1

10/100Mbps Ethernet (RJ-45)

Connection 2

10/100/1000 Gigabit Ethernet for storage expension

S/W upgrade

Firmware upgrade via Network and USB

Simultaneous users

Monitoring : Max. 5 users
Playback : Max. 2 users

Security

Password (User or Administrator authentication)

Monitor Output

Monitor 1

Max. 960 field/sec
1ch, 4ch, 9ch, 16ch , Auto & User Defined Sequence
1 CVBS and 1 VGA output
True color OSD

Monitor 2~4

Max. 960 field/sec
1ch, 4ch, 9ch, 16ch , Auto & User Defined Sequence
1 CVBS output
True color OSD

Alarm Pup-up

Triggered by recording event

Digital zoom

2x (Live mode)

84

Environment

Operation temperature

5 ~ 45℃

Storage temperature

-10 ~ 55℃

Operation humidity

30~80%, free of condensation

Storage humidity

93% below, free of condensation

Data Backup/Expansion/Copy

Data backup

External HDD(via 1394b or eSATA)
Internal CD-R/DVD-R

Backup reminder

5~ 95% alarm

AVI Copy

External USB memory disk(USB 1.1 compatible) on USB port

Input/Output

Video Output

4 CVBS main monitor
1 VGA
16 Loop out

Audio

4 Input : Line-in, 1 Vpp
1 Output : Line-out, 1Vpp

Buzzer

Software-controlled 1 internal buzzer

Digital output

Software-controlled 4 relay outputs(Max 125VAC/60VDC)

Digital output schedule

Daily : Day / Night / Four-segment time frame
Weekly : Weekdays / Weekends
Conditions : MD, Sensor, Text inputs

Sensor input

Software-controlled 16 sensor inputs (Support dry contact)

Serial port

RS232(2),RS485(2)

PTZ control

Control method (local)

Front panel button & IR remote controller

Control method (remote)

On-the-screen PTZ control on PC
Return home position support

Preset mode

16 points preset per channel
16 auxiliary function

Electricity

Power (applied adaptor)

AC free volt (100~240VAC)

85

Power consumption

Max. 85W
Typical 60W

Mechanical

Dimension (WⅹDⅹH)

430.0 x 362.0 x 88.0

Weight

5.5 kg (with one HDD)

86

#2. Utilizing IP address in Local network

#2.1. Outline

When internet uses, it connects to another server for acquisition of data or email communication through
IP address. So it is not connectable to Internet without IP address.
At present, authorized IP has limits to use in worldwide. And there are 5 grades from A to E in network
that possesses many IP. Most common used network is C grade network.

#2.2. IP structure and Network grade

1) IP Structure

((xxx: 0 – 255)

2) Network Class
Class A: All networks that are IP addressed in X1 from 0 to 127.

- Network ID: X1

- Host ID: X2, X3, X4

- Total 128 in worldwide is available in grade A.

Class B : All network that is IP addressed in X1 from 128 to 191.

- Network ID: X1, X2

- Host ID: X3, X4

- Available Grade B network in worldwide is totally 65,534.

Class C : All network that is IP addressed in X1 from 192 to 223.

- Network ID: X1, X2, X3

- Host ID: X4

- It is the most general IP address and available Grade B network in worldwide is totally
2,097,152.

Class D : All network that is IP addressed in X1 from 224 to 239.

The network is for Multicast use, but not for general use.

Class E : All network that is IP addressed in X1 from 240 to 255.

The network is withheld to use.

#2.3. Network Class

1) Address feature

xxx xxx xxx xxx

X1 X2 X3 X4

87

IP address : 3 numbers in X4 indicates Host ID that is addressed from 0 to 255. But, generally, 0 & 255

is used to network ID & Broadcast address, but 1 to 244 IP address used in practical.

Network ID: As Local network ID, the address indicates network identity in Internet. Generally, it
addresses most superior number in local network.

Gateway address: It is IP address for Router connecting internet and local network, and the path of
connecting local network that is ID assigned ID and internet. Generally, next number of local network ID
is addressed.

Broadcast address: It is for the broadcasting of all devices connected to local network and is the address
of last destination. This address is produced by calculation and all devices connected to network have
same Broadcast address.

Subnet Mask address: It is the address to make differential network(Remote network) by dividing local

network smaller and indicates the size of one network(number of IP included). Number of Subnet Mask
address has been fixed (0, 4, 8, 16, 32, 64, 128, 192).

2) Network Structure
(1) When structure 1 network,

Network ID: xxx.xxx.xxx.0
Gateway Address: xxx.xxx.xxx.1
Subnet Mask: 255.255.255.0
Broadcast Address: xxx.xxx.xxx.255
IPAddresses: xxx.xxx.xxx.2 – xxx.xxx.xxx.254

88

(2) When structure 2 networks in same size (1/2 + 1/2),

Sub-Network ID: xxx.xxx.xxx.0
Gateway Address: xxx.xxx.xxx.1
Subnet Mask: 255.255.255.128
Broadcast Address: xxx.xxx.xxx.127
IPAddresses: xxx.xxx.xxx.2 – xxx.xxx.xxx.126

Sub-Network ID: xxx.xxx.xxx.128
Gateway Address: xxx.xxx.xxx.129
Subnet Mask: 255.255.255.128
Broadcast Address: xxx.xxx.xxx.255
IPAddresses: xxx.xxx.xxx.130 – xxx.xxx.xxx.254

(3) When structure 3 networks (1/2 + 1/4 + 1/4)

Sub-Network ID: xxx.xxx.xxx.0
Gateway Address: xxx.xxx.xxx.1
Subnet Mask: 255.255.255.192
Broadcast Address: xxx.xxx.xxx.63
IPAddresses: xxx.xxx.xxx.2 – xxx.xxx.xxx.62

Sub-Network ID: xxx.xxx.xxx.64
Gateway Address: xxx.xxx.xxx.65
Subnet Mask: 255.255.255.192
Broadcast Address: xxx.xxx.xxx.127
IPAddresses: xxx.xxx.xxx.66 – xxx.xxx.xxx.126

Sub-Network ID: xxx.xxx.xxx.128
Gateway Address: xxx.xxx.xxx.129
Subnet Mask: 255.255.255.128
Broadcast Address: xxx.xxx.xxx.255
IPAddresses: xxx.xxx.xxx.130 – xxx.xxx.xxx.254

89

(4) When structure 4 networks (1/4 + 1/4 + 1/4+1/4)

Sub-Network ID: xxx.xxx.xxx.0
Gateway Address: xxx.xxx.xxx.1
Subnet Mask: 255.255.255.192
Broadcast Address: xxx.xxx.xxx.63
IPAddresses: xxx.xxx.xxx.2 – xxx.xxx.xxx.62

Sub-Network ID: xxx.xxx.xxx.64
Gateway Address: xxx.xxx.xxx.65
Subnet Mask: 255.255.255.192
Broadcast Address: xxx.xxx.xxx.127
IPAddresses: xxx.xxx.xxx.66 – xxx.xxx.xxx.126

Sub-Network ID: xxx.xxx.xxx.128
Gateway Address: xxx.xxx.xxx.129
Subnet Mask: 255.255.255.192
Broadcast Address: xxx.xxx.xxx.191
IPAddresses: xxx.xxx.xxx.130 – xxx.xxx.xxx.190

Sub-Network ID: xxx.xxx.xxx.192
Gateway Address: xxx.xxx.xxx.193
Subnet Mask: 255.255.255.192
Broadcast Address: xxx.xxx.xxx.255
IPAddresses: xxx.xxx.xxx.194 – xxx.xxx.xxx.254

PelikanCam

555 W Lambert Rd SteA

Brea, CA 92821

Tel : [phone]

Fax : [phone]

[e-mail]

www.PelikanCam.com

The contents of this manual can be modified in accordance with Firmware or Software upgrade. In the
interest of continually improving products, approval & outlook can be modified without prior notice
