WEBER MT CR-4 I User manual

Operating and
Maintenance Manual

CR 4 i

Yanmar L 70

Weber Maschinentechnik GmbH

Im Boden 5 - 8, 10

57334 Bad Laasphe-Rückershausen / Germany

Telephone [phone] / 398-0

Fax [phone] / 398-101

E-Mail: [email protected]

0715 /englisch/Übersetzung der Original-Betriebsanleitungl

CR 4i 1

Web: www.webermt.de

2 CR 4i

Table of contents

Introduction 4

Safety guidelines 5

Graphic presentation 8

Device description 9

Technical data 10

Activities prior to starting work 12

Starting 13

Driving and compacting 14

Shutting down 14

Maintenance overview 15

Maintenance work 16

Operating uids and ll levels 19

Troubleshooting 19

Storage 20

Contact addresses 23

CR 4i 3

Introduction

This operating and maintenance manual is designed to facilitate familiarization with your soil
compactor, and to enable you to maintain the compactor and use it for its intended purpose.
When complying with the instructions in the operating and maintenance manual you help avoid
hazards, reduce repair and downtime costs, and increase the reliability and service life of
your compactor.
This operating and maintenance manual must always be available at the implementation site of
the soil compactor.
If necessary you can obtain additional information from your authorized WEBER dealer,
or you can obtain information from one of the contact addresses on the last page.

The valid conformity declaration is enclosed with every machine delivery.
You can obtain information on the assembled Yanmar diesel engine at www.yanmarindustrial.eu.

4 CR 4i

Safety guidelines
General

All safety instructions must be read and complied with, non-compliance results in
– Danger to life and limb of the user

– Impairments to the machine or other property.
In addition to the operating manual, the accident-prevention regulations in the country where

the appliance is used must be complied with.

Intended use

The soil compactor should only be used if it is in a technically faultless condition, as intended,
in a safety-conscious and hazard-conscious manner, in compliance with the instructions in the
operating manual. Malfunctions that impair safety must be eliminated without delay.
The CR 4 soil compactor is designed exclusively for compacting

– sand
– gravel
– crushed rock
– semi-cohesive mixed material
– concrete paving stone.
Any other use of the soil compactor is considered to be improper use for which the owner shall

be exclusively responsible. All liability is rejected if damage occurs due to non-compliance
with this provision. This risk is borne solely by the user.

Easily foreseeable misuse

Any use for which the machine is not intended.

Operation

Soil compactors are only permitted to be operated by suitable persons of or above the age of
eighteen. Personnel must be instructed in how to guide the compactor by the owner or by the
owner’s assigned personnel.

The machine operator must comply with trafc regulations. If instructions that affect safety are given

by third parties, then the operator must be authorized to reject these instructions.

Unauthorized persons are forbidden from being in the area of the soil compactor during
the compacting process.

Protective equipment

This machine is capable of exceeding the permissible sound level of 80 dB(A). The owner might also
face additional dangers when using the machine. Precautionary action must, therefore, be taken.

Protective equipment includes:

Hearing protection

Hard hat

Safety shoes

Protective gloves

CR 4i 5

Operation

Prior to starting work the owner of the compactor must be familiar with the work environment.

The work environment includes obstacles in the work and trafc area, the bearing capacity of the

ground, as well as the necessary safeguarding of the construction site in the area adjacent to

public trafc; and it includes compliance with trafc regulations.
The soil compactor should only be operated when the protective xtures are mounted. The protective
xtures must all be in functional condition.

At least once per shift the compactor must be checked for apparent defects. If there are apparent
defects then operation of the compactor must be stopped immediately, and the responsible person
must be informed. Prior to restarting, compactor malfunctions that have occurred must be corrected.

Always maintain adequate clearance to the edges of pits and embankments.
Do not drive at ninety degrees to slopes to prevent the compactor from tipping over.
After work has been concluded secure the compactor in accordance with statutory regulations,

particularly in the area of public trafc surfaces.

Operation under difcult conditions

Never inhale the exhaust gas; it contains carbon monoxide, a colorless and odorless gas that

is extremely hazardous, which, if inhaled even briey, can cause unconsciousness and death.

Therefore, never operate the engines in enclosed areas or in areas that are poorly ventilated
(tunnels, caves, etc.). Exercise particular caution when operating the engine in the vicinity of
people and livestock.

Maintenance and repair work

Only use original Weber spare parts to ensure reliable and safe operation for maintenance or
repair work.
Hydraulic hose lines must be checked at regular intervals in accordance with standard engineering
practice, or they must be replaced at appropriate intervals, even if no signs of safety-relevant
defects are present.
Adjusting tasks, maintenance tasks, and inspection tasks must be carried out on schedule as

specied in this operating and maintenance manual. These activities should only be executed by

instructed personnel.

For repair, service, or inspection work the engine of the compactor must be safeguarded against
unintentional starting.
All pressurized lines, particularly hydraulic lines and lines of the injection system of the drive motor
must be depressurized before performing maintenance or repair tasks.
For maintenance and repair tasks the compactor must be parked on a level and stable substrate
and must be secured from rolling off or tipping over.
Heavy components and assemblies must be secured to and lifted by hoisting machines that can
bear their weight when they are replaced. Ensure that no hazard is caused by raising components
or assemblies.
Do not position yourself or work under suspended loads.

If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact
with the skin, clean affected skin with suitable cleaning agent without delay.

6 CR 4i

Inspection

Compactors must be inspected in accordance with the corresponding implementation conditions
and operating conditions, as needed; however an inspection to ensure operationally safe status
must be performed by an expert at least once a year. The results of the inspection must be recorded
in writing and must be stored at least until the next inspection.

Cleaning work

Prior to cleaning the compactor with a high-pressure cleaner, protect all accessible energized
switches, cable connections, etc. against water penetration by masking them off.

Cleaning tasks should only be executed in areas that are suitable and have been approved for
this purpose (oil separator amongst others).

Disposal

All operating uids and auxiliary materials must be disposed of in an environmentally-compatible
manner in accordance with country-specic regulations.

Important information for operating and maintenance personnel is marked by pictograms.

Warning against irritants or materials hazardous to health

Warning against a hazardous place

Warning against a suspended load

Wear ear protection

General regulation

Environmental protection

Hard hat

Safety shoes

Protective gloves

CR 4i 7

Graphic presentation

2

8

4

10

3

6

1

9

5

7

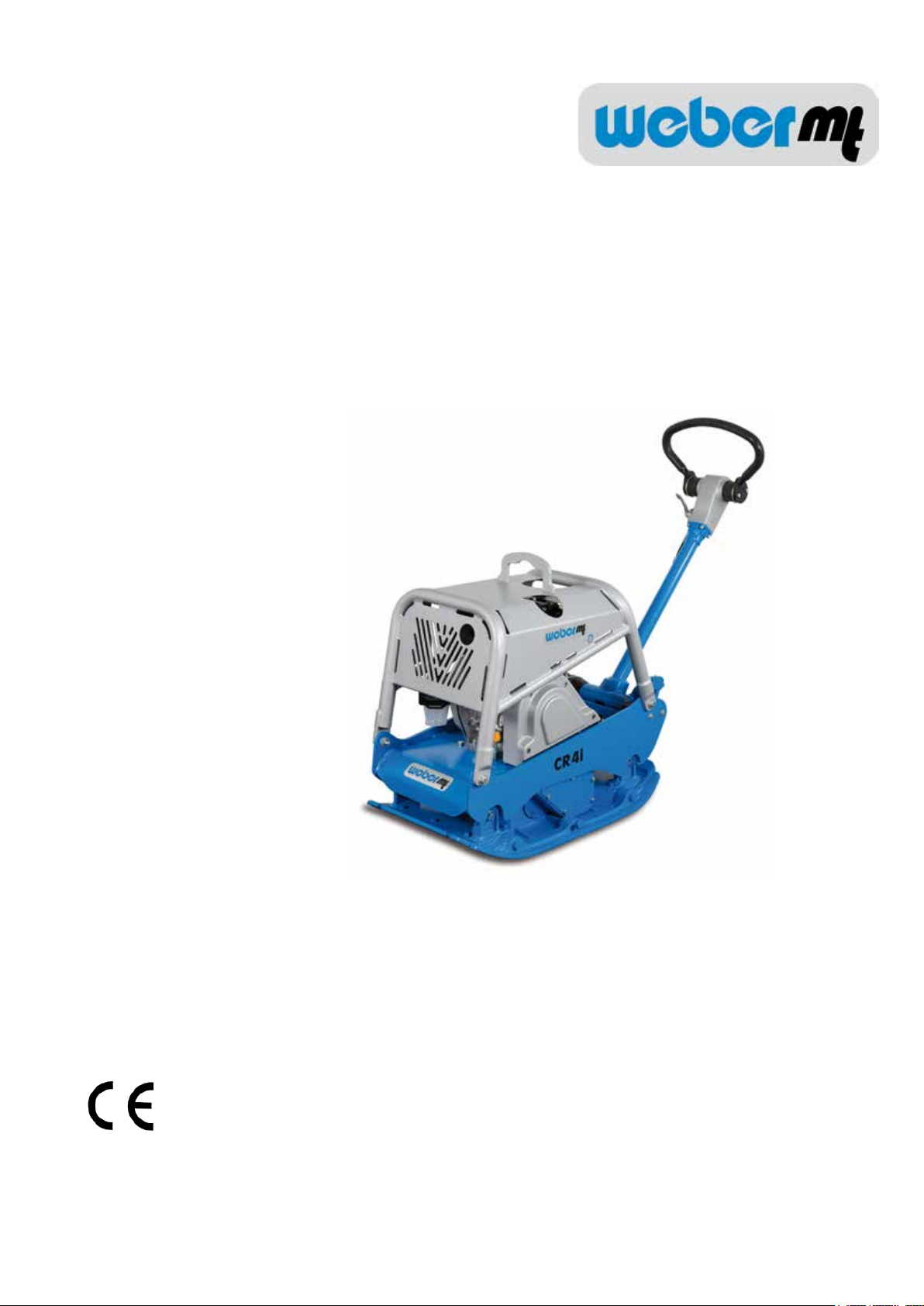

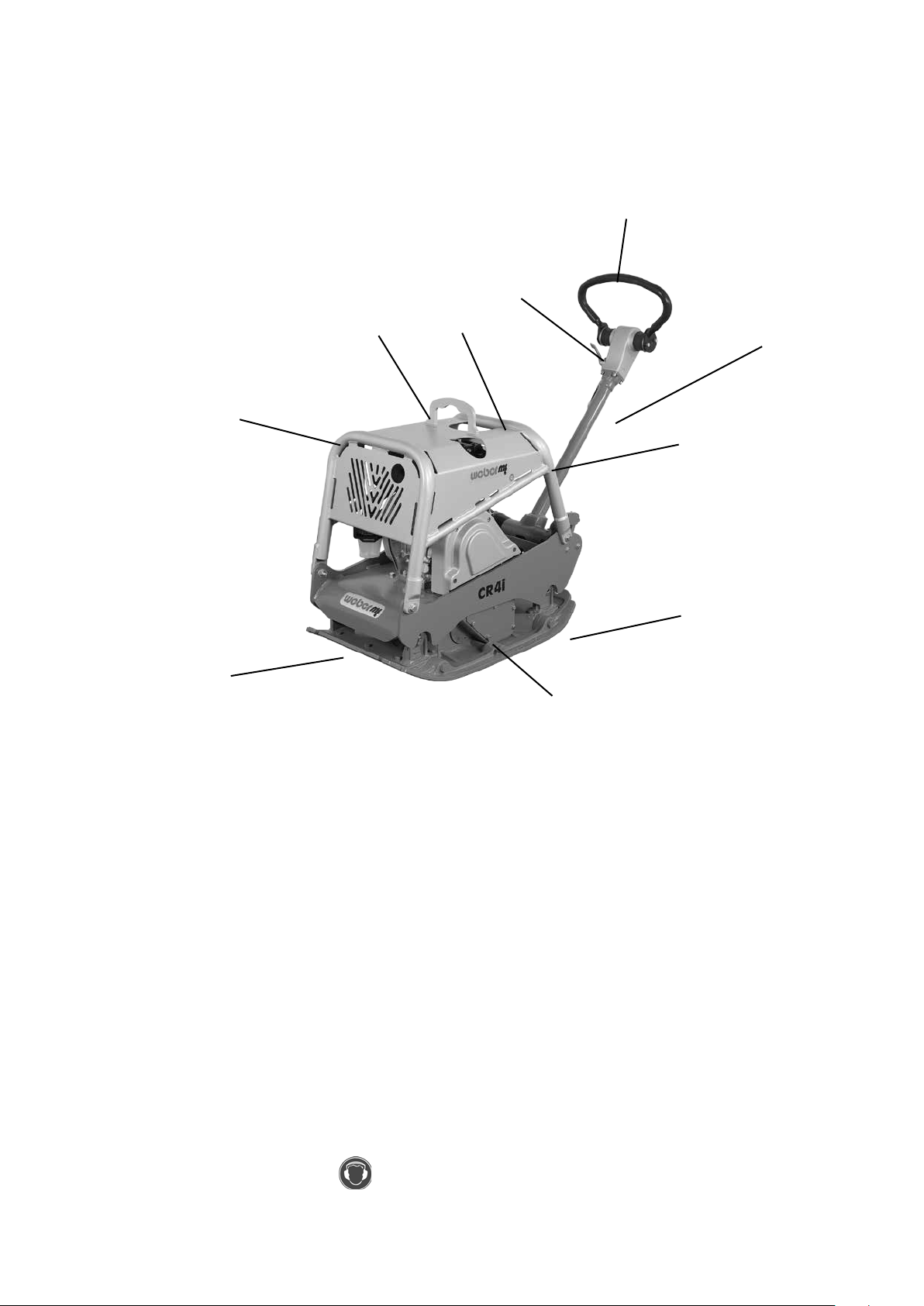

Overall view CR 4

1 Engine
2 Drive lever
3 Manual guidance rod
4 Lifting ring
5 Base plate
6 Protective frame
7 Exciter
8 Gas lever
9 Attachment plates
10 Hearing protection (sticker)

8 CR 4i

Device description

The CR 4 compactor is used for road-building and landscaping compaction tasks.

Drive

The compactor is propelled by an air-cooled Yanmar diesel engine.

Force is transferred to the exciter mechanically via a V-belt.

Operation

Start the Yanmar diesel engine with the attached reversing starter.
After starting, vibration is switched on via the centrifugal clutch attached to the engine.
Use the gas lever to vary the engine speed between idle and full throttle.

Forward and reverse is variably controlled via the handle attached to the manual
guidance rod.

CR 4i 9

Technical data

CR 4 i

Weight

Operating weight CECE in kg (basic device)

281

Dimensions

Overall length (in mm)
Overall width / with attachment plates (in mm)
Height with folded manual guidance rod (in mm)
Base plate length (base in mm)
Pressure surface (in mm)

1480

550 / 700

1090

250

250 x 700

Drive

Engine manufacturer
Type

Performance at operating speed in accordance
with ISO 3046-1 (kW)

Yanmar

L 70

4.6

Combustion process 4-stroke diesel
Operating speed (m/min) 3300
Operating speed (ground-dependent in m/min) 25
Incline capacity (ground-dependent in %) 35
Area capacity / with attachment plates (in m²/h) 726 / 900

Vibration

System Two-wave vibrator
Drive concept Mechanical
Frequency (in Hz) 75
Centrifugal force (in kN) 40

CR 4 i

Noise emissions in accordance with 2000/14/EC

Sound pressure level L
ascertained in accordance with EN 500, in dB (A)

Sound power level L

PA

88

WA

ascertained in accordance with EN ISO 3744 and
EN 500, in dB (A)

108

Vibration values

Root-mean-square acceleration value for
hand-arm vibration ascertained in accordance
with EN 500 in m/s²

3,6

In accordance with directive 2006/42/EC,
complying with the vibration values is the
owner’s responsibility.

10 CR 4i

1

2

3 4

5

1 Description 2 TYPE

................................................................ .................................................................

3 Serial number 4 Year of construction

................................................................ .................................................................

5 Mass 6 Rated power kW

................................................................ .................................................................

6

CR 4i 11

Activities prior to starting work

Transport

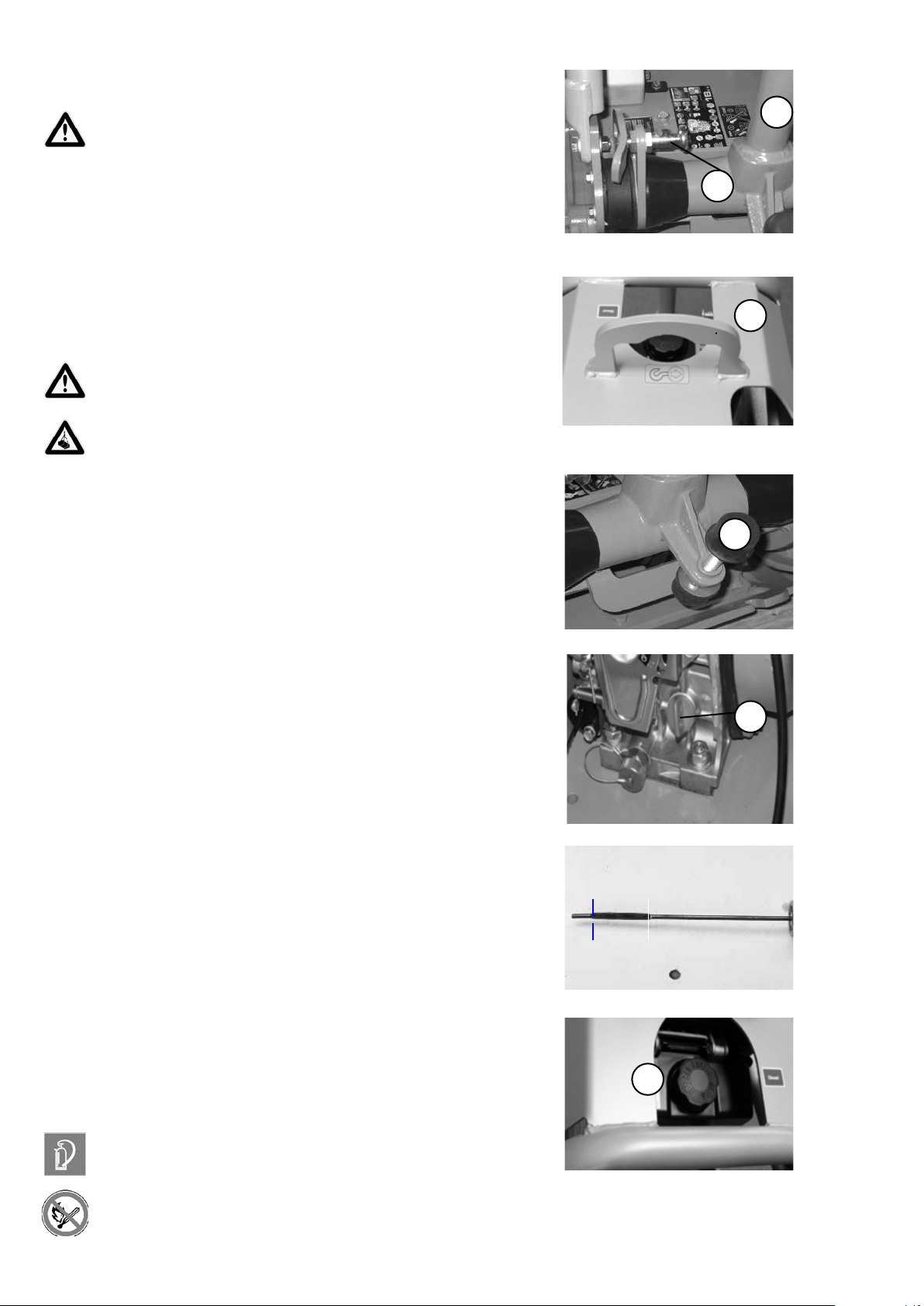

When transporting the soil compactor on a vehicle,
secure it with suitable restraints.

1

Arrest the manual guidance rod (1) with the spring bolt (2).

Fit the crane hook into the lifting ring (1) and lift the machine
onto the desired means of transport.

Only use lifting machines with a minimum bearing
capacity of 350 kg.

Do not step under suspended loads.

Adjusting the manual guidance rod

Adjust the desired work height of the manual guidance rod
with the set screw (1).

2

1

1

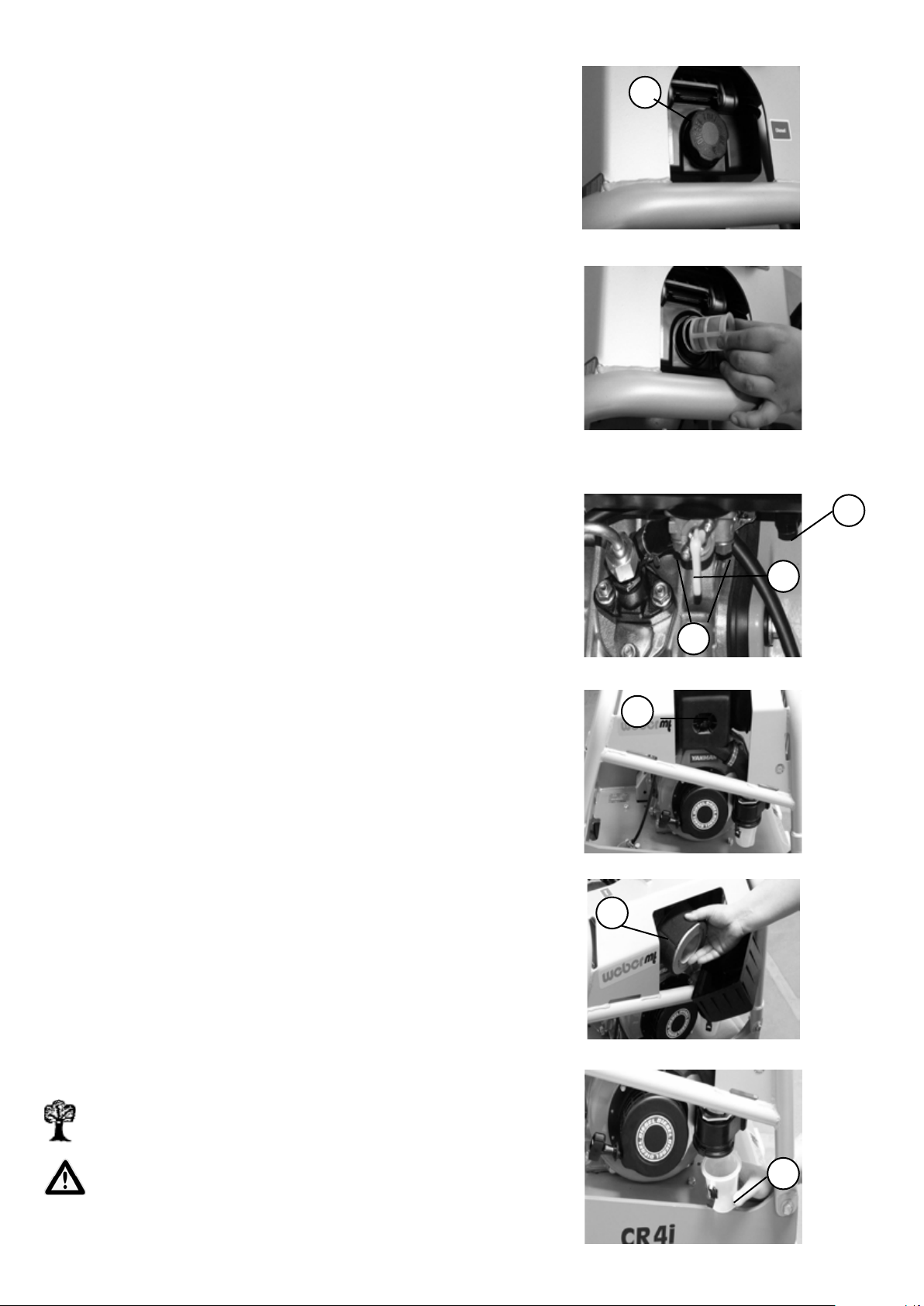

Checking the engine oil level

Pull the oil dip stick (1) out of the crankcase.

The correct oil level is between the min. and max. marks.

Check the fuel level

Open and remove the gas cap (1), check the ll level, if

necessary top off with clean diesel fuel to the lower edge

of the ller neck.

1

min max

1

For work at the fuel system, have a suitable re-

extinguishing agent at the ready.

Fire, naked light, and smoking is forbidden!

12 CR 4i

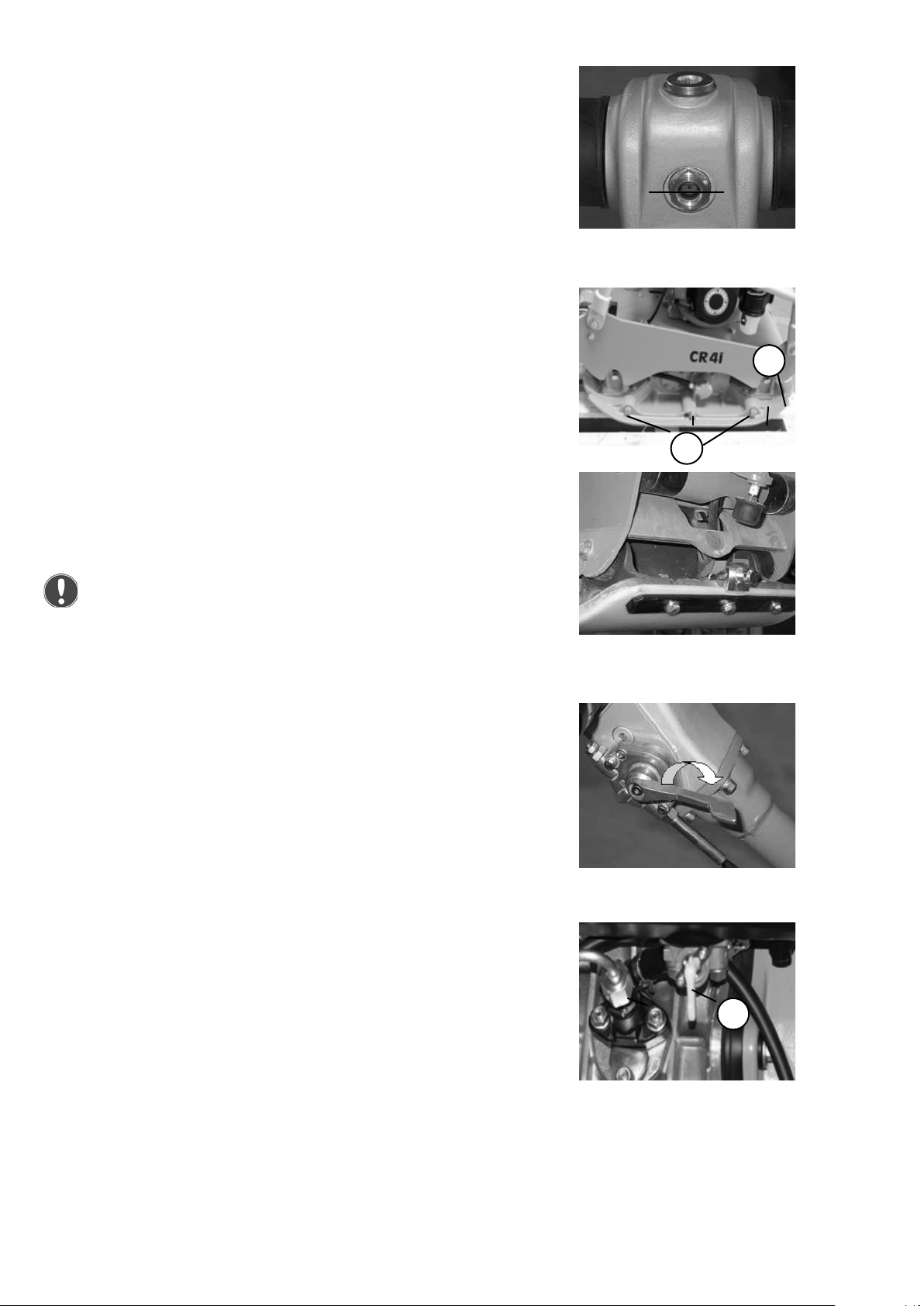

Check the hydraulic oil level

Check the hydraulic oil level when the machine is at operating
temperature. The correct oil level is reached when the oil is in
the middle of the view glass.

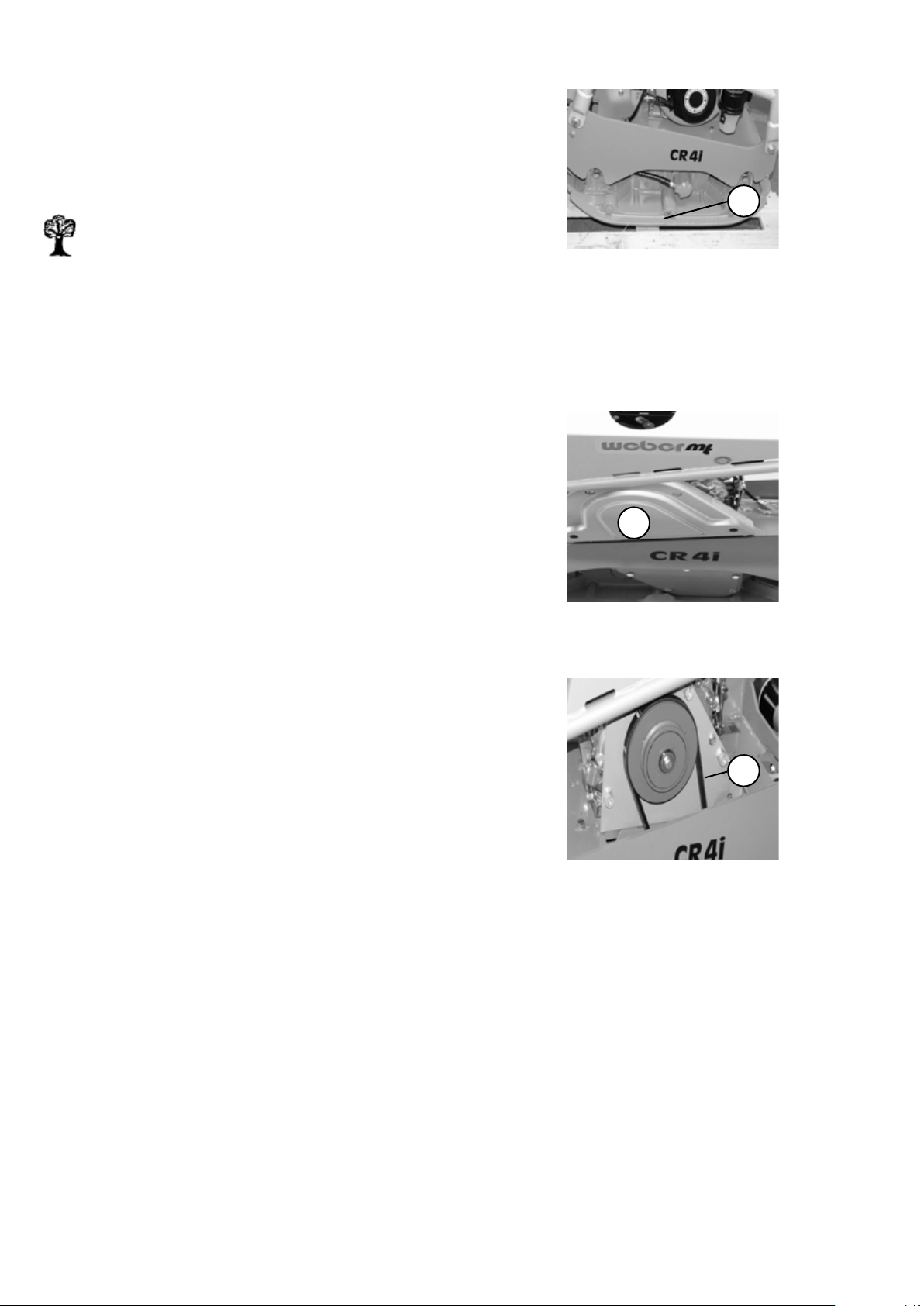

Mounting the attachment plates

Tighten the screws (1) of the attachment plates (2) with
a torque of 310 Nm.

Installing the protective mat

2

1

Fasten the protective mat with holder, screws, spring-lock
washers and nuts on the base plate front and rear

Ensure that the protective mat rests under the base plate.

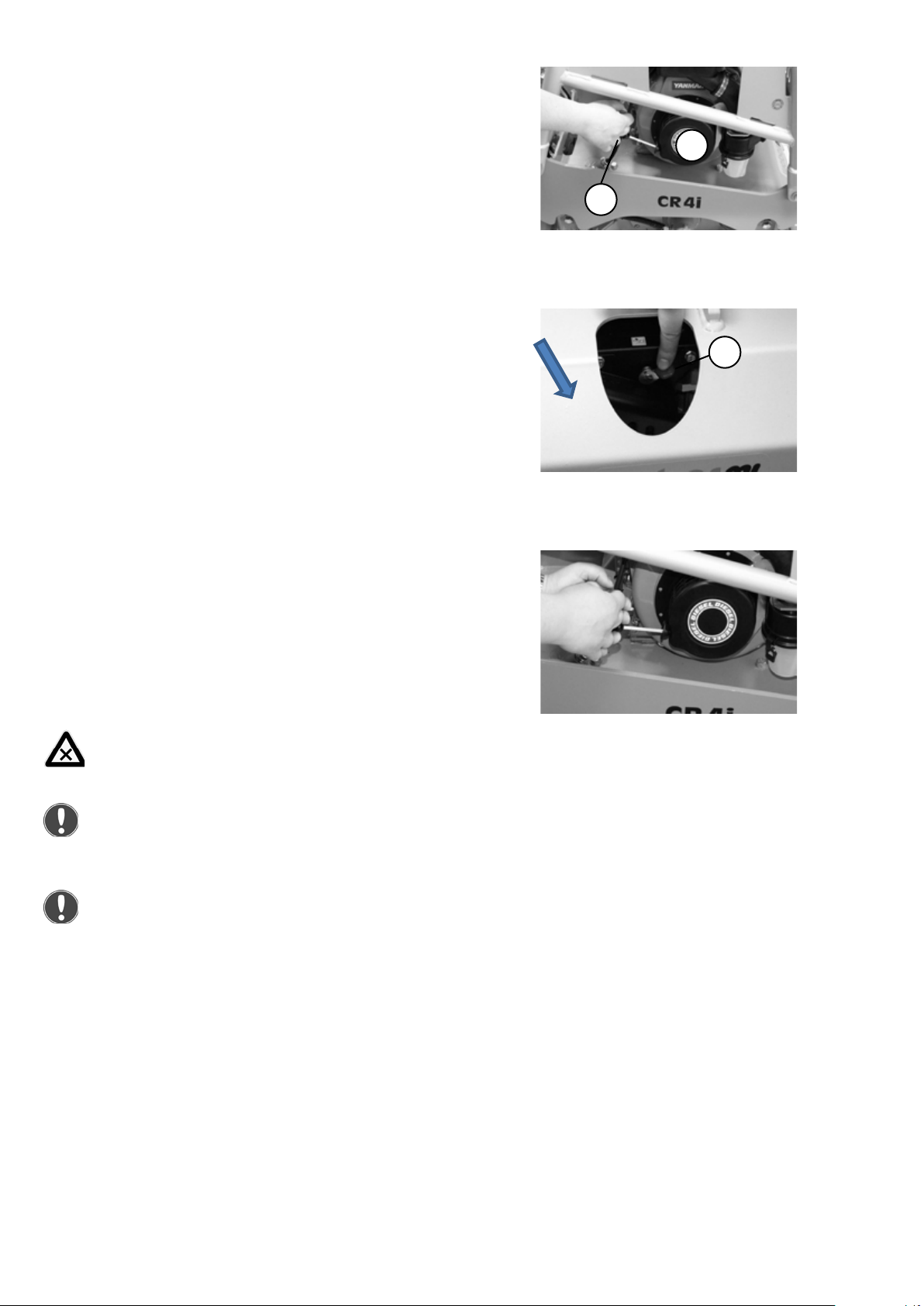

Starting

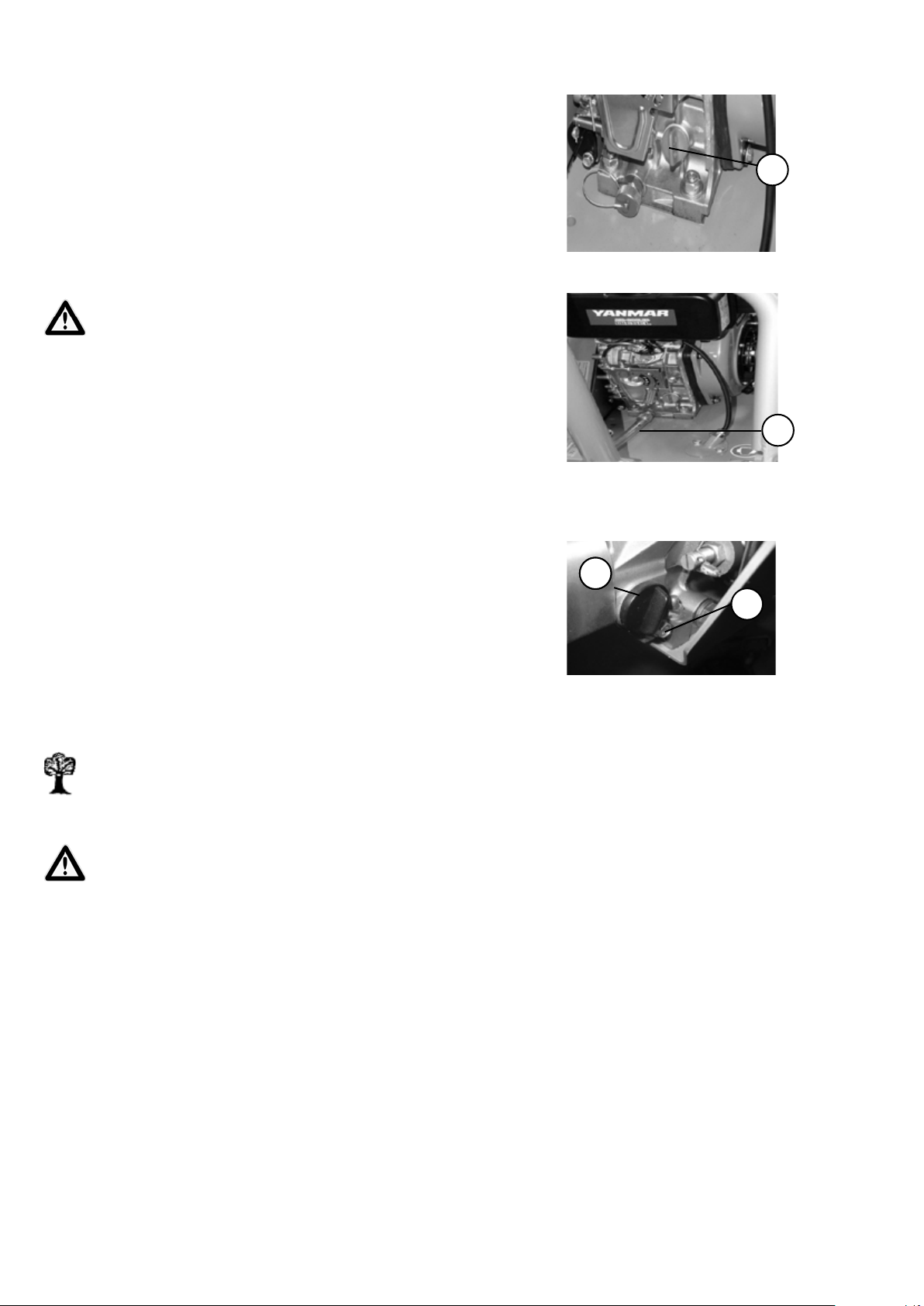

Bring the gas lever into full-throttle position.

Open the fuel cock (1).

.

1

CR 4i 13

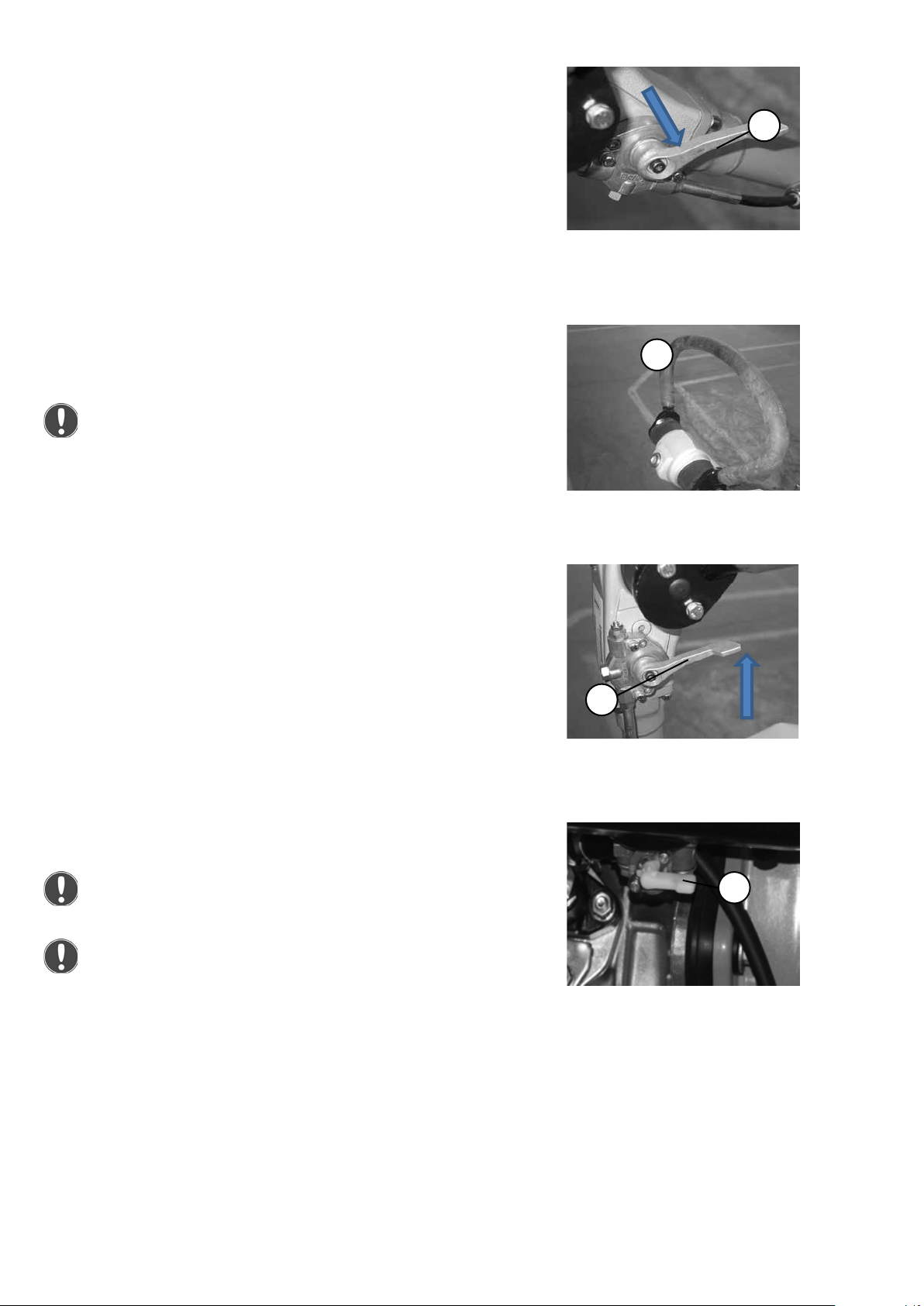

Slowly tighten the handle (1) of the reversing starter (2)
until resistance is noticeable.

Allow the handle (1) to glide back into the initial position.

Push down the decompression lever (1) of the Yanmar
diesel engine.

Completely pull through the starter.
Allow the engine to warm up for a few minutes.

2

1

1

When starting in enclosed spaces ensure adequate
ventilation – danger of suffocation.

If temperatures are below minus 5 degrees Celsius,
comply with the instructions in the operating manual
provided by the engine manufacturer.

Never use any starter spray.

14 CR 4i

Compacting

Bring the gas lever (1) into full-throttle position.

Control drive speed and direction of travel with the handle (1).

Only run machine within reach of the manual
guidance rod.

1

1

Shutting down

Bring the gas lever (1) into idle position.

Close the fuel cock (1).

During breaks – even if they are short – the machine
must be shut down.

Parked devices that represent an obstacle must be
safeguarded against through conspicuous measures.

1

1

CR 4i 15

Maintenance overview

Maintenance interval Maintenance point Maintenance activity

After the rst

25 operating hours

Every 8 operating
hours / daily

Every 150 operating
hours / every 6 months

Every 150 operating
hours / every year

Engine – Change the engine oil

– Re-tighten all accessible

threaded connections

Air lter – Clean air lter insert,

check for damage,
replace if necessary

Engine – Change the engine oil

– Change the fuel oil

– Change the oil lter

Transmission

Exciter

– Change oil

– Change oil

The regulations of the engine manufacturer must be complied with in addition to the above main­tenance overview!

Work must be carried out using regulation tools, and the operating and maintenance manual must
be complied with for all work.

All maintenance work: select a collection vessel that is large enough to prevent oil from spill­ing onto the ground. Dispose of waste oil in an environmentally friendly manner (regulation on
waste oils).

Dispose of oils, greases, cloths soaked in oil, and replaced parts with oil on them in an environ­mentally friendly manner.

If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact
with the skin, clean affected skin with suitable cleaning agent without delay.

If accessible during maintenance, check the condition and stability of all screws.

16 CR 4i

Maintenance work

Change the engine oil

Open the screw cap (1) of the oil ller neck.

Screw the oil drain pipe (1) onto the engine drain valve and
drain off the oil.

Only drain engine oil when at operating temperature.

After emptying completely, unscrew the oil drain pipe

from the drain valve and ll with oil in accordance with the
specication.

1

1

Clean the engine oil lter

Drain engine oil.

Remove screw (2) and engine oil lter (1).
Wash out engine oil lter in gasoline
Screw in engine oil lter (1) and secure screw (2).
Top off engine oil in accordance with the specication.

Check engine oil level.

Dispose of oils, greases, cloths soaked in oil, and
replaced parts with oil on them in an environmentally
friendly manner.

If lubricating oils and fuel come into contact with skin,
they can cause skin cancer. Upon contact with the
skin, clean affected skin with suitable cleaning agent
without delay.

11

2

CR 4i 17

Change the fuel lter

Remove the gas cap (1).

Remove the sieve (1) from the tank and clean sieve.

Unscrew the drain screw (1) from the tank and drain all diesel
fuel from the tank.

1

1

Remove the fuel shut-off valve (2) from the tank by loosening
both screws (3).

Pull the interior lter out through the tank opening (using long­nose pliers) and renew the lter.
Proceed in reverse order to ret the lter.

Clean/change air lter cartridge

Unscrew the air lter cover (1).

Remove the air lter insert (1) from the air lter enclosure.
Clean air lter insert as specied by the engine manufacturer

if there is damage or if it is extremely dirty.

2

3

1

1

Take off, clean and ret the collection container (1).

Dispose of oils, greases, cloths soaked in oil, and replaced
parts with oil on them in an environmentally friendly manner.

If lubricating oils and fuel come into contact with skin, they
can cause skin cancer. Upon contact with the skin, clean
affected skin with suitable cleaning agent without delay.

18 CR 4i

1

Changing the oil in the exciter

Remove the oil drain screw (1) and drain oil.

To ll – tilt the machine slightly and ll with fresh oil through
the drain opening in accordance with the ll level table.

Select a collection vessel that is large enough to pre­vent oil from spilling on the ground. Dispose of waste
oil in an environmentally friendly manner (regulation on
waste oils).

Wipe up / off oil slick and oil residue and dispose of fuel­soaked cleaning cloths in an environmentally responsible
manner.

Checking the V-belt

Remove the V-belt guard (1).

1

Check the V-belt (1) for cracks, damaged anks, and wear.

If there is excessive wear – replace the V-belt as specied

in the repair manual.

1

1

CR 4i 19

Operating uids and ll levels

Assembly Operating material Quantity

Summer Winter CR 4 i

Quality

Engine

Engine oil

SAE 10 W 40

(– 10 ~ + 50 °C)

API – CD CE-CF-CG

or SHPD

or CCMC – D4 – D5 – PD2

Fuel tank Diesel

Diesel in accordance with

DIN 51601-DK

or BS2869-A1/A2

or STM D975-1D/2D

Vibrator Fully-synthetic transmission uid

API GL-5/GL-4

First lling Fuchs Titan SINTOPOID

LS SAE 75W-90

Transmission Transmission uid

DEXRON II-D-ATF

First lling

Fuchs Titan ATF 3000

or equivalent

1.1 l

4.6 l

0.75 l

as necessary

Troubleshooting

Fault Possible cause Remedy

Soil compactor
does not start

Operating error

Lack of fuel

Fuel lter fouled

Air lter fouled

Execute start process
as prescribed

Check the fuel level

Change the fuel lter

Clean / change air lter

cartridge

No vibration / no

Vibrator V-belt defective Change vibrator V-belt

forward motion

or insufcient

forward motion

Soil compactor
does not switch

Wrong hydraulic oil
level in the manual

Check oil level
Correct oil level

guidance rod

20 CR 4i

Actions to be taken before long-term storage (longer than a month)

Entire soil compactor – Clean thoroughly

– Check for leaks

– If there are leaks, correct defects

Fuel tank – Empty fuel and ll with clean fuel

up to the lower edge of ller neck

Engine – Check oil level, if necessary

ll to upper oil-level mark

– Check air lter, clean, replace

if necessary

All bare parts / accelerator / accelerator
control cable / fastening bolts

If the machine is to be stored for longer than six months, then contact the Weber service
organization to discuss additional measures.

– Check fuel lter, change

if necessary

– Oil / grease

CR 4i 21

22 CR 4i

Weber Maschinentechnik GmbH

For problems, questions and further information refer to one of the following addresses:

in Germany WEBER Maschinentechnik GmbH

Im Boden 5 – 8, 10

57329 Bad Laasphe - Rückershausen

in France WEBER Technologie SARL

14’ rue d’ Arsonval

69680 Chassieu

in Poland WEBER Maschinentechnik

Sp. zo.o.

Ul. Grodziska 7

05-830 Stara Wies

In Tschechien WEBER MT s.r.o.

V Piskovne 2054

278 01 Kralupy nad Vitavou

Telefon
Telefax

E-Mail

Telefon
Telefax

E-Mail

Telefon

Telefax

E-Mail

Telefon

E-Mail

+ 49 (0) 2754 - 398-0
+ 49 (0) 2754 - 398101-switchboard
+ 49 (0) 2754 - 398102- spare parts-
directlinie

[email protected]

+ 33 (0) 472 -791020
+ 33 (0) 472 – 791021

[email protected]

+ 48 (0) 22 - 739 70 - 80
+ 48 (0) 22 - 739 70 - 81
+ 48 (0) 22 - 739 70 – 82

[email protected]

+ 42 (0) 776 222 216
+ 42 (0) 776 222 261

[email protected]

in

USA and

Canada

in South -

America

CR 4i 23

WEBER Maschinentechnik do Brasil

93310-405 Novo Hamburgo /RS

WEBER MT, Inc.

45 Dowd Road

Bangor, ME 04401

Rua João Werno Erhart, 4691

Bairro Rincão

Brasil

Telefon
Telefax

E-Mail

Telefon
Telefax

E-Mail

+ 1(207) - 947 - 4990
+ 1(207) - 947 – 5452

[email protected]
[email protected]

+ 55 (0) 51- 587 3044
+ 55 (0) 51- 587 2271

[email protected]

> Vibration plates

> Vibrating tampers

> Vibration rollers

> Joint cutters

> Internal vibrators and converters

> Rollers

Weber MASCHINENTECHNIK GmbH

Im Boden

57334 Bad Laasphe-Rückershausen

Telephone [phone] / 398-0 – Fax [phone] / 398-101

24 CR 4i
