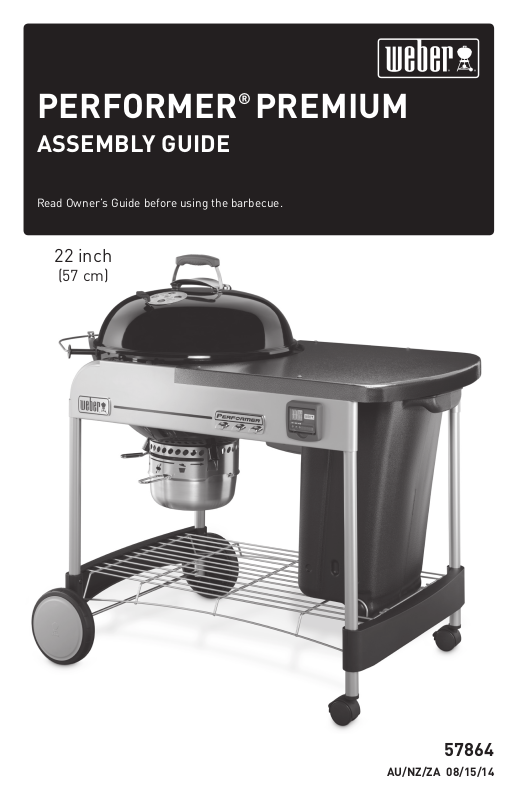

PERFORMER® PREMIUM
ASSEMBLY GUIDE
Read Owner’s Guide before using the barbecue.
22 inch
(57 cm)
57864
AU/NZ/ZA 08/15/14

Performer®_Premium_w/GBS™_XV_AU_053014
EXPLODED VIEW
1
10
2
3
4
5
6
7
6
8
9
22
23
24
25
26
27
28
29
11
12
13
14
15
16
17
18
19
20
21
30
31
32
33
34
35
2

EXPLODED VIEW LIST
1. Lid Handle Assembly
2. Lid
™
3. GBS
Hinged Cooking Grate
4. Char-Baskets
™
5. Charcoal Grate
6. One Touch
7. Tuck-Away
™
Cleaning System
™
Lid Holder &
Lower Support Assembly
8. Ash Catcher Ring
9. Ash Catcher Handle
13. Wheel Spacer
14. Wheel
15. Hub Cap
16. Wheel Cover
17. Front Panel
18. Logo Plate
19. Tool Holders
20. Digital Cook Timer
21. Timer Mount
25. Table
26. CharBin
™
Retention Chain
27. Rear Panel
28. CharBin
29. CharBin
™
Hardware
™
30. Leg Frame
31. Caster Inserts
32. Locking Casters
33. Leg Frame Bracket Clamp
10. High Capacity Ash Catcher
11. Axle
12. Leg Frame Bracket
22. Lid Damper Assembly
23. Thermometer Assembly
24. Bowl
34. Bottom Rack
35. Disposable Drip Pan
WWW.WEBER.COM
®
3

6
7
m IMPORTANT:
Make sure
to insert
the wheel
spacer before
continuing.
1 -
m IMPORTANT: Make
sure to insert the
wheel spacer before
continuing.
1 -
8

9
10
m Finger Tighten Only.
Do not fully tighten any of the screws before
both the table and bowl assembly have been
installed.
10
4 - 4 -

15
16
A
m Finger Tighten Only.
B
C
4 -
Fully tighten all
eight screws.
WWW.WEBER.COM
®
13

17
18
30lb bag
Charcoal
30lb / 13.7kg
m Maximum 30 lb. / 13.7 kg. bag of
charcoal. Bag of charcoal should
be placed directly in CharBin™
Storage Container.
2 -
14

16
33 lbs. (15Kg) Maximum
Table Load

A - Clear ashes B - Vents closed C - Vents open
m WARNING: When using liquid starters always check ash catcher before lighting. Fluid can collect in the ash
catcher and could ignite, resulting in a fire below the bowl. Remove any starting fluid from the ash catcher
before lighting charcoal.
USING CHAR-BASKET™ CHARCOAL HOLDERS
To set up for indirect cooking, prepared charcoal are set on
either side of the food. Leave enough room for a drip pan
between the coals. Position the Char-Basket™ Charcoal
holders opposite the kettle handle(s), so that the charcoal
will be away from the handle(s).
WWW.WEBER.COM
®
17

TIMER OPERATION
This water-resistant digital cook timer provides both countup and
countdown features in hours, minutes, and seconds.
To set the time to countdown:
• Press the Start / Stop: button to turn on the
backlight.
• Press the HR button (1) to set the number of hours. Hold
the button down to fast forward digits (maximum setting: 99
hours) (4).
• Press the MIN button (2) to set the number of minutes. Hold
the button down to fast forward digits (maximum setting: 59
minutes) (5).
• When the time is set, press the Start / Stop:
(3) to start the countdown.
• When the time is up, the alarm will sound for 30 seconds and
automatically restart countdown from previous time setting.
button
IMPORTANT
When the timer has over an hour left on the countdown,
H and M (Hours and Minutes) will flash on and off;
numbers will countdown every minute. When the timer
has less than an hour of time left, H and M turn to M and
S (Minutes and Seconds) and the seconds countdown;
numbers will start to countdown every second.
To clear the time:
• Press the Start / Stop: button to turn on the
backlight.
• Press the HR and MIN:
To set the time to countup:
• Press the Start / Stop: button to turn on the
backlight.
• Press the Start / Stop:
countup. While counting up, display will show the reading in
hour/minute and minute/second formats.
• Press the Start / Stop:
The countup will stop after 99 hours (4), 59 minutes (5).
buttons simultaneously (1)(2).
button again to start
button twice to stop timer.
Automatic shut off:
• To save battery life, the backlight turns off after 10 seconds.
The timer will turn completely off after 10 minutes of
inactivity.
Note: If using the timer in an environment that subjects it to
electrostatic discharge (static electricity) the time setting may be
lost. If this happens, reset the timer.
Battery installation:
• Use a Phillips screwdriver to unlock the battery compartment
on the back of the timer (6) by turning the screw clockwise.
• Remove the battery cover from the back of the timer (7).
• Add or replace the AAA batteries (8).
• Replace the battery cover.
• Lock the battery cover by turning the screw counterclockwise
with a Phillips screwdriver.
• After the batteries are installed, (
LCD screen.
0000) will display on the
Maintenance:
• Do not clean the timer with an abrasive or corrosive
compound. Doing so may scratch it or corrode the electronic
circuits.
• Do not subject the timer to excessive force, shock, dust, or
expose it to excessive temperatures or humidity. Doing so
may result in it malfunctioning, shorter electronic life span,
battery damage, or distorted parts.
• Do not tamper with the internal components of the timer.
Doing so will invalidate the timer’s warranty and may cause
unnecessary damage to the battery and internal parts.
• Do not subject the timer to excessive exposure to direct
sunlight or heavy rain.
• Do not immerse the timer in water.
For best performance, it is recommended to bring
the timer indoors while not in use.
18
