weber LP Gas Grill User Manual
GENESIS
LP Gas Grill Owners Guide
®
YOU MUST READ THIS OWNERS GUIDE
BEFORE
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
Leaking gas may cause a fire or explosion
which can cause serious bodily injury or
death, or damage to property.
1. Do not store spare liquid propane
cylinder within 10 feet (3m) of this
appliance.
2. Do not store or use gasoline or other
flammable liquids or vapors within 25
feet (8m) of this appliance.
OPERATING YOUR GAS GRILL
DANGER
WARNING
#
WARNING: Follow all leak-check
procedures carefully in this manual prior to
barbecue operation. Do this even if the
barbecue was dealer-assembled.
NOTICE TO INSTALLER: These instructions
must be left with the owner and the owner
should keep them for future use.
THIS GAS APPLIANCE IS DESIGNED FOR
OUTDOOR USE ONLY.
WARNING: Do not try to light this
appliance without reading the “Lighting”
Instructions section of this manual
A303_LP.a
Ba302.a
B303_LP.a
C300_LP.a
D200_LP.b
E200.a
A-1
55547 10/01/03
Premium LP
US English
Dangers & Warnings
DANGER
Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual may result in
serious bodily injury or death, or in a fire or an explosion causing damage to property.
WARNINGS
Do not store a spare or disconnected liquid propane cylinder under or near this barbecue.
Improper assembly may be dangerous. Please carefully follow the assembly instructions in this
manual.
After a period of storage, and/or nonuse, the Weber® gas barbecue should be checked for gas leaks
and burner obstructions before use. See instructions in this manual for correct procedures.
Do not operate the Weber
Do not use a flame to check for gas leaks.
Combustible materials should never be within 24 inches of the top, bottom, back or sides of your
®
Weber
gas barbecue.
Do not put a barbecue cover or anything flammable on, or in the storage area under the barbecue.
Your Weber
®
gas barbecue should never be used by children. Accessible parts of the barbecue may
be very hot. Keep young children away while it is in use.
You should exercise reasonable care when operating your Weber® gas barbecue. It will be hot during
cooking or cleaning and should never be left unattended, or moved while in operation.
Should the burners go out while in operation, turn all gas valves off. Open the lid and wait five
minutes before attempting to relight, using the lighting instructions.
Do not use charcoal or lava rock in your Weber® gas barbecue.
Never lean over open grill or place hands or fingers on the front edge of the cooking box.
Should a grease fire occur, turn off all burners and leave lid closed until fire is out.
Do not enlarge valve orifices or burner ports when cleaning the valves or burners.
The Weber® gas barbecue should be thoroughly cleaned on a regular basis.
Liquid propane gas is not natural gas. The conversion or attempted use of natural gas in a liquid
propane unit or liquid propane gas in a natural gas unit is dangerous and will void your warranty.
Do not attempt to disconnect any gas fitting while your barbecue is in operation.
Use heat-resistant barbecue mitts or gloves when operating barbecue.
Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.
Combustion byproducts produced when using this product contain chemicals known to the state of
California to cause cancer, birth defects, or other reproductive harm.
Do not use this barbecue unless all parts are in place. The unit must be properly assembled
according to the instructions outlined in the “Assembly Instruction” section of the Owner’s Guide.
®
gas barbecue if there is a gas leak present.
LIQUID PROPANE GAS UNITS ONLY:
Use the regulator that is supplied with your Weber® gas barbecue.
Do not attempt to disconnect the gas regulator or any gas fitting while your barbecue is in operation.
A dented or rusty liquid propane cylinder may be hazardous and should be checked by your liquid
propane supplier. Do not use a liquid propane cylinder with a damaged valve.
Although your liquid propane cylinder may appear to be empty, gas may still be present, and the
cylinder should be transported and stored accordingly.
If you see, smell or hear the hiss of escaping gas from the liquid propane cylinder:
1. Move away from liquid propane cylinder.
2. Do not attempt to correct the problem yourself.
3. Call your fire department.
A-2
Contents
Danger & Warnings ..................................................................................A-2
Warranty ..................................................................................................A-4
Storage and Nonuse .................................................................................A-5
Cooking ...................................................................................................A-6
Cleaning .................................................................................................. A-6
Exploded View .........................................................................................A-7
Parts List ...................................................................................................A-9

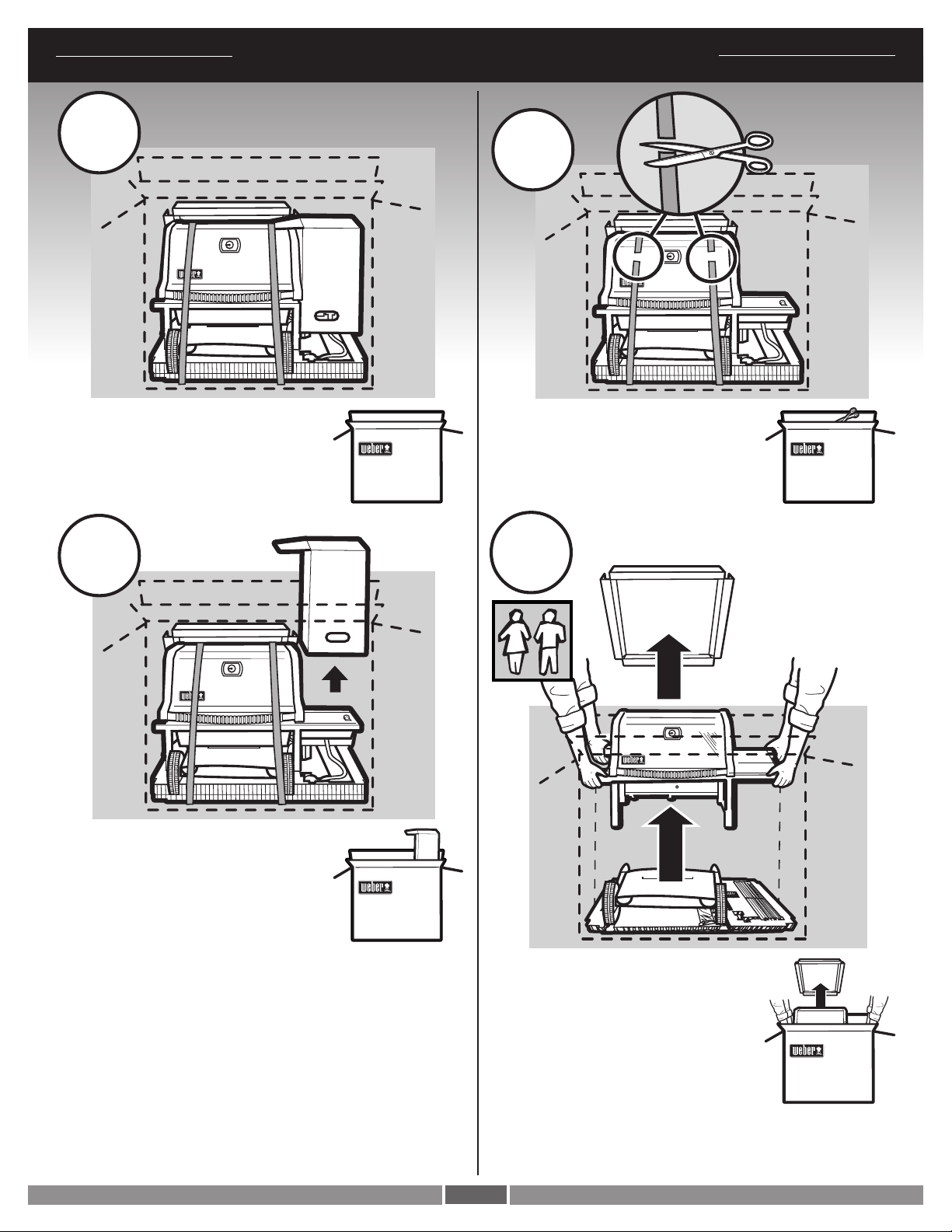

Unpacking ...............................................................................................A-10

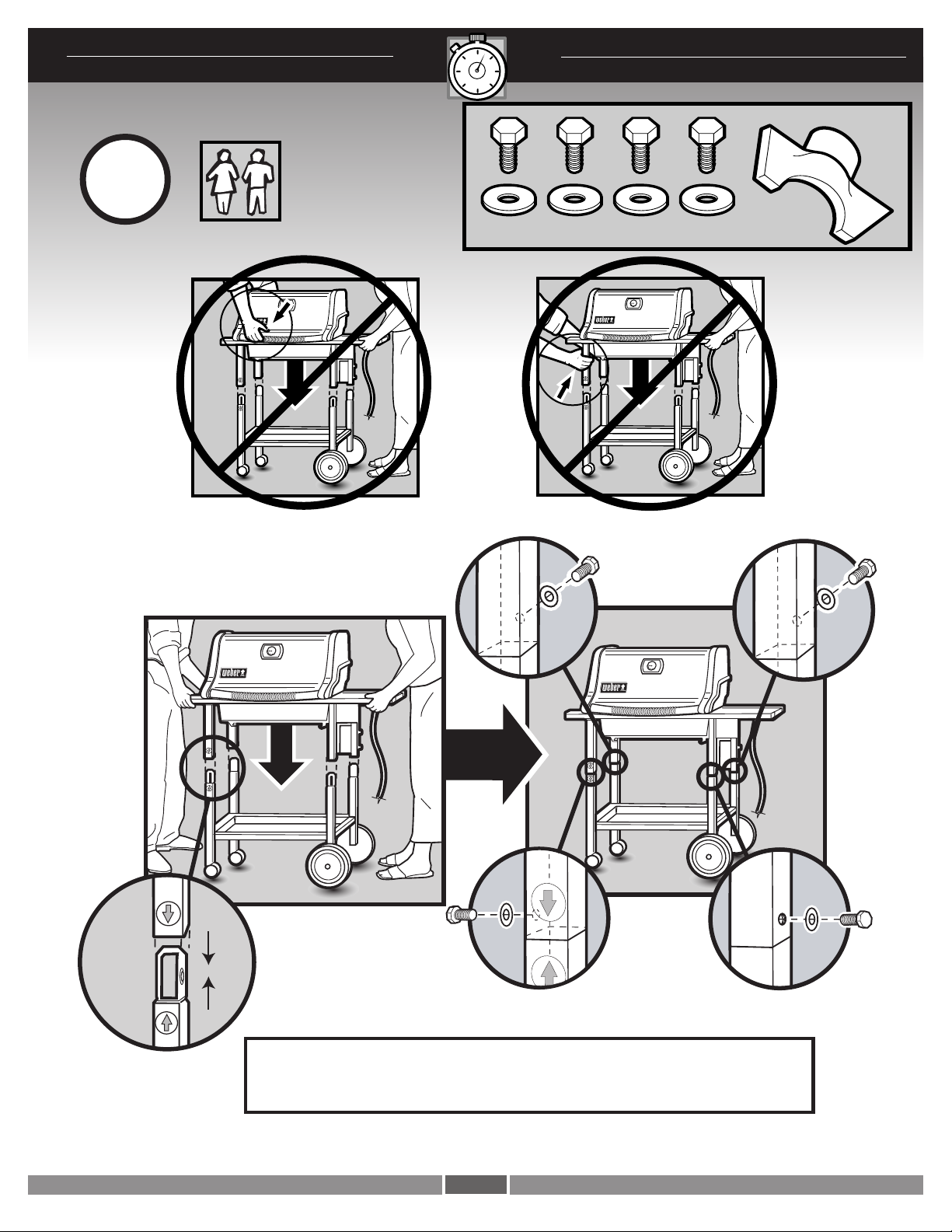

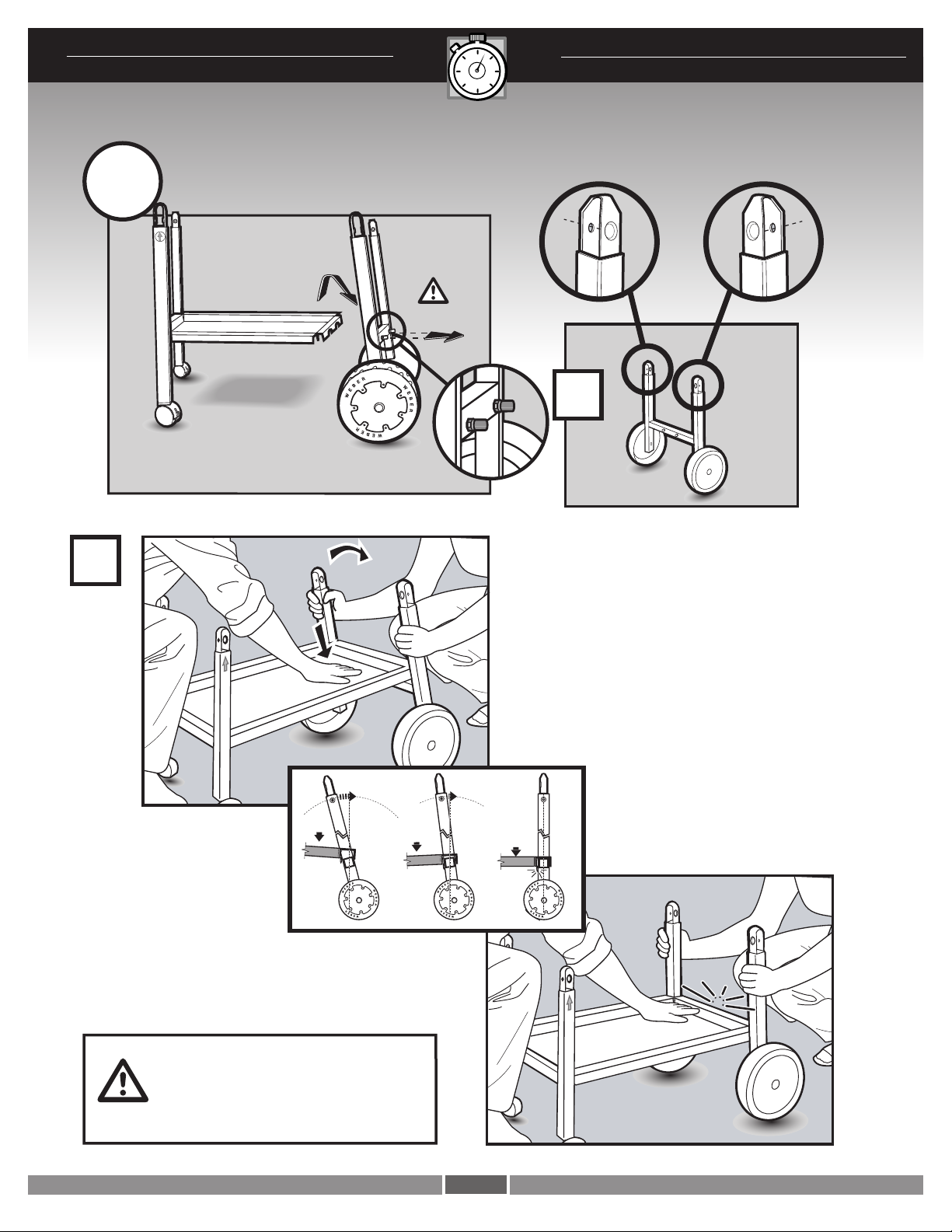

Assembly Instructions............................................................................... B-a
Gas Instructions ....................................................................................... C-1
Leak Checking ......................................................................................... C-3
Refilling the LP Cylinder........................................................................... C-4
Safe handling tips for LP Gas ....................................................................C-5
Operating................................................................................................. D-1
Lighting ....................................................................................................D-1
Manual Lighting .......................................................................................D-2
Troubleshooting .......................................................................................D-3
General Maintenance............................................................................... E-1
Replacing Main Burners ...........................................................................E-2
Crossover® Ignition System Operations .....................................................E-2
A-3
Warranty
Weber-Stephen Products Co. (Weber) hereby warrants to
the ORIGINAL PURCHASER of this Weber
will be free of defects in material and workmanship from
the date of purchase as follows:
Aluminum Castings, lifetime, 1 year paint
Porcelain Hood Section, 25 years
Burners, 10 years
Igniter, 3 years
Porcelain Enameled
Cooking Grates, 3 years no rust
through
Porcelain Enameled Cast Iron
Cooking Grates, 5 years no rust
through
Stainless Steel Cooking Grates, 7 years no rust
through
Porcelain Enameled
Flavorizer® Bars, 1 year no rust
through
Stainless Steel
Flavorizer® Bars, 5 year no rust
through
Thermoplastic/Thermoset Parts, 10 years Excluding
fading
All Remaining Parts, 5 years
®
gas grill that it
There are no other express warrants except as set forth
herein and any applicable implied warranties of
merchantability and fitness are limited in duration to the
period of coverage of this express written Limited Warranty.
Some regions do not allow limitation on how long an
implied warranty lasts, so this limitation may not apply to
you.
Weber® is not liable for any special, indirect or
consequential damages. Some regions do not allow the
exclusion or limitation of incidental or consequential
damages, so this limitation or exclusion may not apply to
you.
Weber® does not authorize any person or company to
assume for it any other obligation or liability in connection
with the sale, installation, use, removal, return, or
replacement of its equipment; and no such representations
are binding on Weber®.
This Warranty applies only to products sold at retail.
WEBER-STEPHEN PRODUCTS CO.
Customer Service Center
1890 Roselle Road, Suite 308
Schaumburg, IL 60195
USA
www.weber.com
when assembled and operated in accordance with the
printed instructions accompanying it.
Weber may require reasonable proof of your date of
purchase. THEREFORE, YOU SHOULD RETAIN YOUR
SALES SLIP OR INVOICE.
This Limited Warranty shall be limited to the repair or
replacement of parts that prove defective under normal
use and service and which on examination shall indicate,
to Weber’s satisfaction, they are defective. Before returning
any parts, contact the Customer service representative in
your region using the contact information sheet provided
with your manual. If Weber
approves the claim, Weber® will elect to replace such parts
without charge. If you are required to return defective
parts, transportation charges must be prepaid. Weber® will
return parts to the purchaser, freight or postage prepaid.
This Limited Warranty does not cover any failures or
operating difficulties due to accident, abuse, misuse,
alteration, misapplication, vandalism, improper installation
or improper maintenance or service, or failure to perform
normal and routine maintenance, including but not limited
to damage caused by insects within the burner tubes, as
set out in this owner’s manual.
Deterioration or damage due to severe weather conditions
such as hail, hurricanes, earthquakes or tornadoes,
discoloration due to exposure to chemicals either directly
or in the atmosphere, is not covered by this Limited
Warranty.
®
confirms the defect and

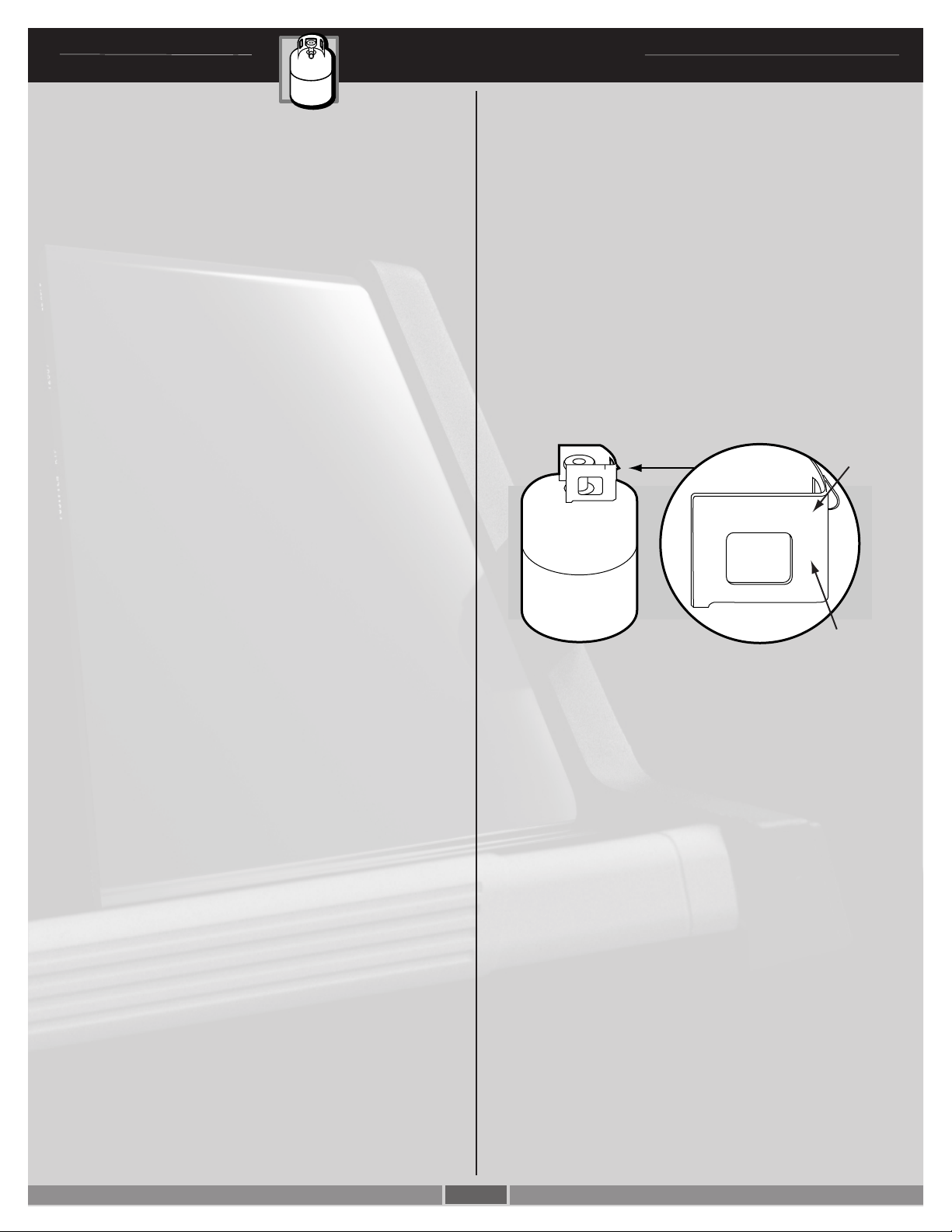

LP Cylinder
The LP cylinder manufacturer is responsible for the
materials, workmanship and performance of the cylinder.
If the cylinder has a defect, malfunctions, or you have
a question regarding the cylinder, call the cylinder
manufacturer’s customer service center. The phone
number is on the warning label, which is permanently
attached to the cylinder. If the cylinder manufacturer has
not resolved the issue to your satisfaction, then call
Weber-Stephen Products Co., Customer Service Center.
A-4
General Instructions
Your Weber® gas barbecue is a portable outdoor cooking
appliance. With the Weber® gas barbecue you can grill,
barbecue, roast and bake with results that are difficult to
duplicate with indoor kitchen appliances. The closed lid
and Flavorizer® Bars produce that “outdoor” flavor in the
food.
The Weber® gas barbecue is portable so you can easily
change its location in your yard or on your patio. Portability
means you can take your Weber® gas barbecue with, if you
move.
Liquid Propane (LP) gas supply is easy to use and gives
you more cooking control than charcoal fuel.
• These instructions will give you the minimum requirements for assembling your Weber® gas barbecue.
Please read the instructions carefully before using
your Weber® gas barbecue. Improper assembly can be
dangerous.
• Not for use by children.
• If there are local codes that apply to portable gas grills,
you will have to conform to them. If there are no local
codes, you must conform to the latest edition of the
National Fuel Gas Code: ANSI Z 223.1/NFPA54.
• The pressure regulator supplied with the Weber® gas
barbecue must be used. This regulator is set for 10.5
inches of water column (pressure).
• This Weber® gas barbecue is designed for use with
liquid propane (LP) gas only. Do not use with natural
(piped in city) gas. The valves, orifices, hose and
regulator are for LP gas only.
• Do not use with charcoal fuel.
• Check that the area under the control panel and the
bottom tray are free from debris that might obstruct the
flow of combustion or ventilation air.
• The areas around the LP cylinder must be free and
clear from debris.
For Installation in Canada
These instructions, while generally acceptable, do not
necessarily comply with the Canadian Installation codes,
particularly with piping above and below ground. In
Canada the installation of this appliance must comply with
local codes and/or Standard CAN/CGA-B149.2 (Installation Code for Propane Burning Appliances and Equipment).
Storage and/or Nonuse
• The gas must be turned off at the liquid propane cylinder
when the Weber® gas barbecue is not in use.
• When the Weber® gas barbecue is stored indoors, the
gas supply must be DISCONNECTED and the LP
cylinder stored outdoors in a well-ventilated space.
• LP cylinder must be stored outdoors in a well -ventilated
area out of reach of children. Disconnected LP cylinder
must not be stored in a building, garage or any other
enclosed area.
• When the LP cylinder is not disconnected from the
Weber® gas barbecue, the appliance and LP tank must
be kept outdoors in a well-ventilated space.

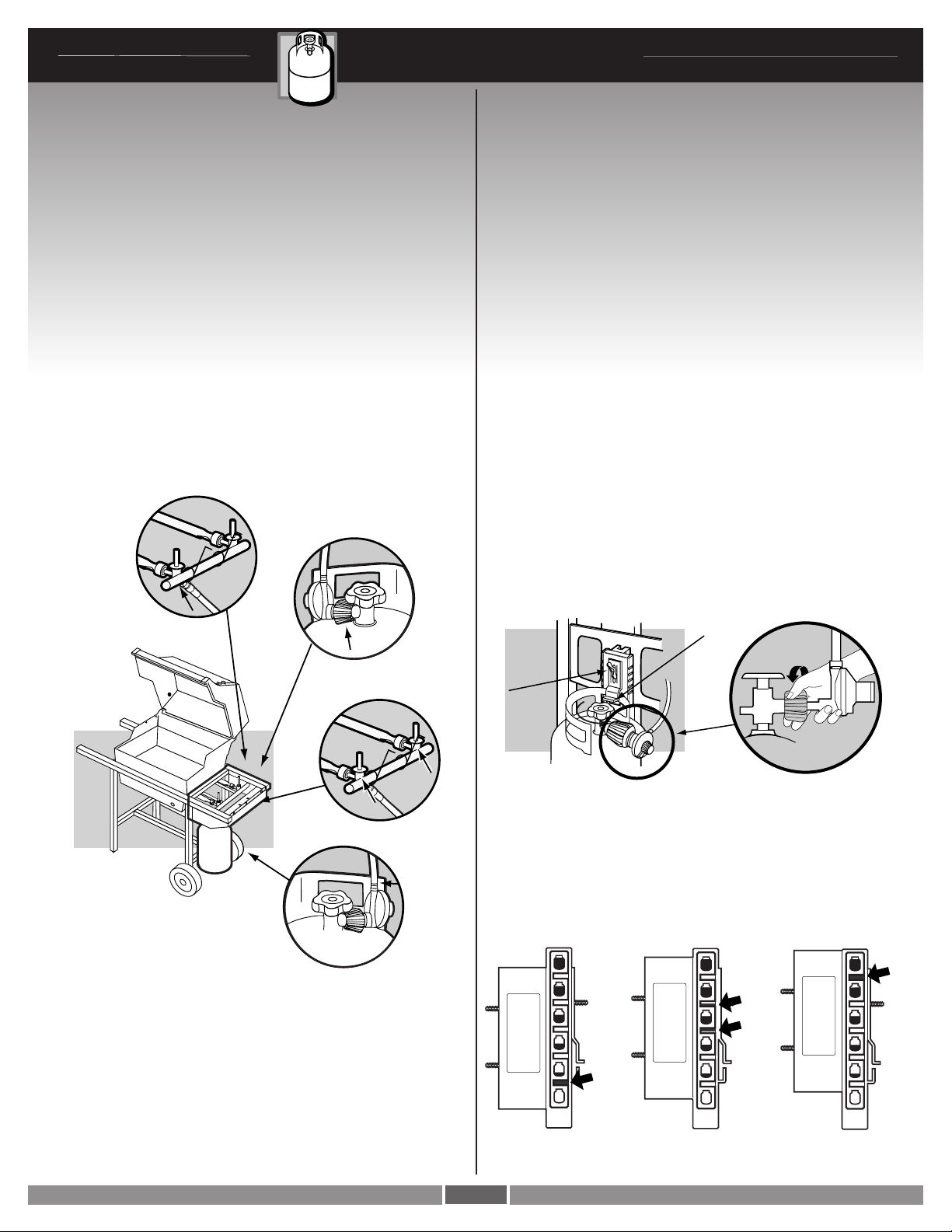

• The Weber® gas barbecue should be checked for gas
leaks and any obstructions in the burner tubes before
using. (See Sections: “General Maintenance and Annual
Maintenance.”)
• Check that the areas under the control panel and the
slide out bottom tray are free from debris that might
obstruct the flow of combustion or ventilation air.
• The Spider /Insect Screens should also be checked for
any obstructions. (See Section: “Annual Maintenance.”)
Operating
WARNING: Only use this barbecue outdoors in a
well-ventilated area. Do not use in a garage, building, breezeway or any other enclosed area.
WARNING: Your Weber® gas barbecue shall not be
used under an unprotected combustible roof or
overhang.
WARNING: Your Weber® gas barbecue is not in-
tended to be installed in or on recreational vehicles
and/or boats.
WARNING: Do not use the barbecue within 24
inches of combustible materials, top, bottom, back
or sides of the grill.
WARNING: The entire cooking box gets hot when in
use. Do not leave unattended.
WARNING: Keep any electrical supply cord and the
fuel supply hose away from any heated surface.
WARNING: Keep the cooking area clear of flam-
mable vapors and liquids such as gasoline, alcohol,
etc., and combustible materials.
WARNING: Never store an extra (spare) LP cylinder
under or near the Weber® gas barbecue.
A-5
General Instructions

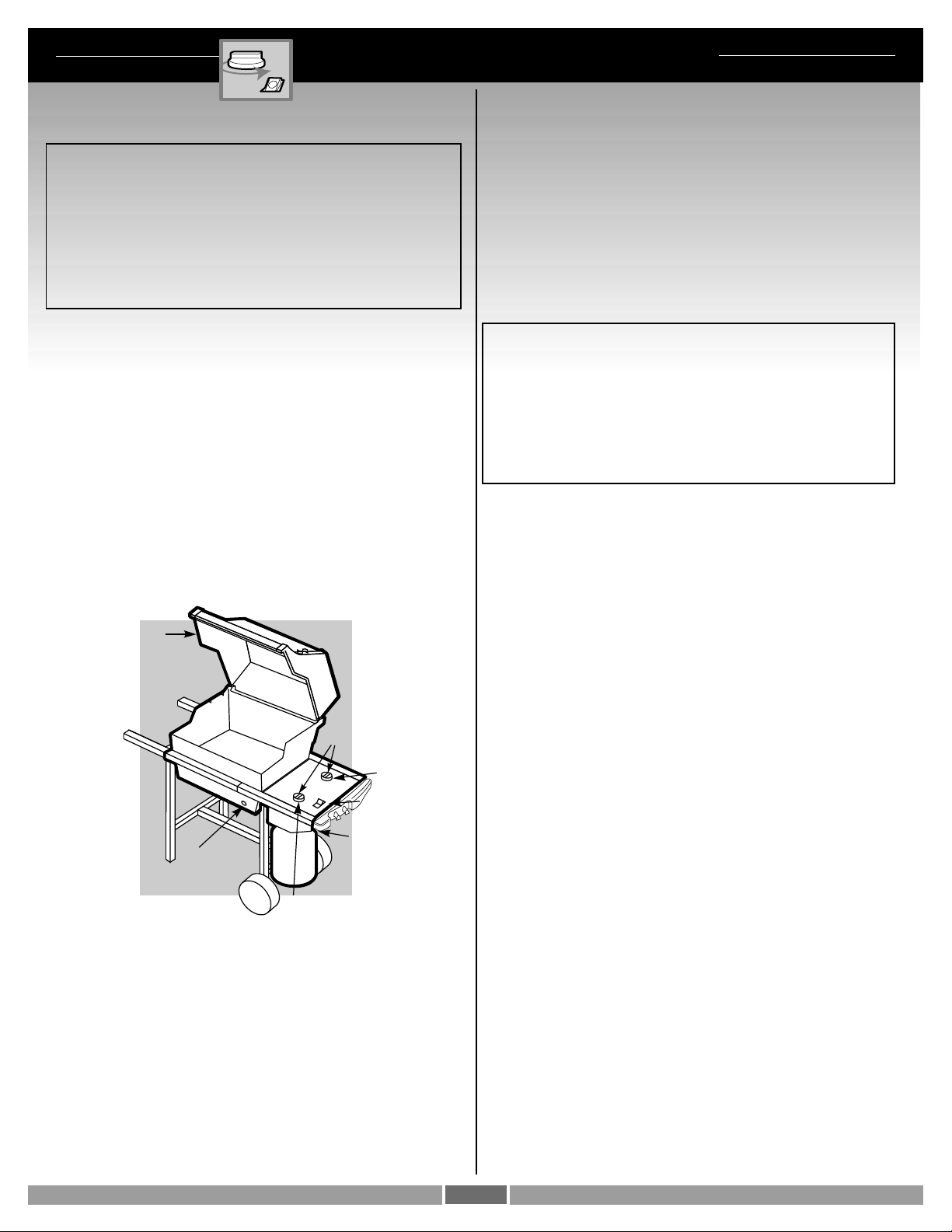

Cooking
WARNING: Do not move the Weber® gas barbecue
when operating or while barbecue is hot.
You can adjust the FRONT and BACK burners as desired.
The control settings: High (H), Medium (M), Low (L), or Off
(O) are described in your Weber® cookbook. The cookbook
uses these notations to describe the settings of the
FRONT and BACK burners. For example, to sear steaks,
you would set all burners at H (high). Then to complete
cooking, you would set FRONT and BACK at M (medium).
Refer to your Weber® cookbook for detailed cooking
instructions.
Note: The temperature inside your cooking box for the first
few uses, while surfaces are still very reflective, may be
hotter than those shown in your cookbook. Cooking
conditions. Such as wind and weather, may require the
adjustment of the burner controls to obtain the correct
cooking temperatures.
CAUTION: Replace thermometer in lid when not in
use. Do not leave thermometer in food while
cooking.
If burners go out during cooking, open lid, turn off all
burners and wait five minutes before relighting.
Preheating - Your Weber® gas barbecue is an energy-
efficient appliance. It operates at an economical low BTU
rate. To preheat: after lighting, close lid and turn all burners
to high (HH). Preheating to between 500° and 550° F (260°
and 290° C) will take 10 to 15 minutes depending on
conditions such as air temperature and wind.
Drippings and grease - The Flavorizer® bars are
designed to “smoke” the correct amount of drippings for
flavorful cooking. Excess drippings and grease will
accumulate in the catch pan under the slide out bottom
tray. Disposable foil drip pans are available that fit the catch
pan.
WARNING: Check the bottom tray for grease build-
up before each use. Remove excess grease to avoid
a grease fire in the slide out bottom tray.
Cleaning
WARNING: Turn your Weber® gas barbecue OFF and
wait for it to cool before cleaning.
CAUTION: Do not clean your Flavorizer® bars or
cooking grates in a self-cleaning oven.
For availability of replacement cooking grates and
Flavorizer® bars contact the
Customer Service Representative in your region using
the contact information sheet
provided with your manual.
Outside surfaces - Use a warm soapy water solution to
clean, then rinse with water.
CAUTION: Do not use oven cleaner, abrasive
cleansers (kitchen cleansers) cleaners that contain
citrus products, or abrasive cleaning pads on
barbecue or cart surfaces.
Slide out Bottom tray - Remove excess grease, then
wash with warm soapy water, then rinse
Flavorizer
suitable brass bristle brush. As needed, remove from grill
and wash with warm soapy water, then rinse with water.
Catch pan - Disposable foil trays are available, or you can
line the catch pan with aluminum foil. To clean the catch
pan, wash with warm soapy water, then rinse.
Thermometer - Wipe with warm soapy water; clean with
plastic scrub ball. Do not put in dishwasher or submerge in
water.
Inside cooking module - Brush any debris off of burner
tubes. DO NOT ENLARGE BURNER PORTS
(OPENINGS). Wash inside of cooking box with warm
soapy water and a water rinse.
Inside Lid - While lid is warm, wipe inside with paper towel
to prevent grease build-up. Flaking built-up grease
resembles paint flakes.
®
bars and Cooking grates - Clean with a
Stainless steel surfaces - Wash with a soft cloth and a
soap and water solution. Be careful to scrub with the grain
direction of the stainless steel.
Thermoset surfaces - Wash with a soft cloth and a soap
and water solution.
Do not use cleaners that contain acid, mineral spirits
or xylene. Rinse well after cleaning.
Thermoset work surfaces are not to be used as cutting
boards.
A-6
Exploded View
10
11
12
13
14
15
16
17
18
19
Genesis¤ Silver-B Prem. LP
1
2
3
4
5
6
7
8
9
092403
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
34
20
21
22
23
24
25
26
47
48
49
50
51
52
A-7
Exploded View List
1. Hinge Pin
2. Left Endcap
3. Shroud
4. Handle
5. Warming Rack
6. Warm-Up™ Basket
7. Cooking Grates
8. Flavorizer® Bars
9. Cooking Box
10. 1/4-20 keps nut
11. Slide Out Bottom Tray
12. Work Surface
13. Catch Pan Holder
14. Left Trim Rear Assembly Arm
15. 1/4 - 14 x 5/8 inch bolt
16. Left Trim Piece
17. Left Trim Front Assembly Arm
18. 1/4 - 20 x 2-1/4 inch bolt
19. Side Swing-Up Table
20. 1/4 - 20 x 1 inch bolt
21. Nylon Washer
22. Caster Frame
23. Caster
24. Bottom Rack
25. Wheel
26. Hubcap
27. Hair Pin Cotter
28. Right Endcap
29. Thermometer Bezel Assembly
30. Thermometer Assembly
31. Handle Hardware
32. Warm-Up™ Basket
33. Control Panel Knobs
34. Control Panel
35. Control Panel Hardware
36. Crossover® Ignition Button
®
37. Crossover
38. Front / Rear Burner
39. Manifold Hardware
40. Manifold, Hose and regulator (assembled)
41. Catch Pan
42. Disposable Drip Pan
43. Fuel Gauge Hardware
44. Igniter
45. Top Frame Assembly
46. Fuel Gauge
47. Right Trim Piece
48. Condiment Basket
49. Cylinder Glides
50. Wheel Frame
51. LP Tank
52. 1/4 - 20 x 1 3/4 inch bolt
tube
A-8
Parts List
Cooking Box Assembly - 1
Caster Frame - 1
Wheel Frame - 1
Flavorizer® Bars - 5
Warm-Up™ Basket - 1
Warming Rack - 1
Cooking Grates - 2
Bottom Tray - 1
Catch-Pan Holder - 1
Side Table - 1
Bottom Rack - 1
Condiment basket - 1
Left Trim Assembly - 1
Catch-Pan - 1
Disposable Drip Pans - 2
1 inch Bolts (1/4 x 20 x 1 inch Bolt) - 6
Nylon Washer - 6
Wrench - 1
7/16” Inch Wrench - 1
Side Table - 1
Right Trim Piece - 1
LP Tank - 1
A-9
Loading...
