E210™ • E310™ • E410™ • SE410™ • E610™ NG OWNER’S MANUAL

LET’S GRILL

Unlock grilling happiness: Register your Genesis® II gas grill and receive special content to make you the ultimate backyard hero.

Registration is easy and we only ask a few quick questions. In less than two minutes, activate your unique WeberID, and unlock a lifetime of Weber knowledge and guidance. Stay inspired along the way.

PHONE

800-446-1071

Keep this Owner’s Manual for future reference, thoroughly read through it, and if you have any questions please contact us todayyou can ﬁnd our number at the back of this manual or email us at support@weberstephen.com.

73208_Gen_II_NG_080116_US.indd 1 8/15/16 10:12 AM

MOBILE

weber.com

/register

support@

weberstephen.com

ONLINE

weber.com

/register

FOR LIFE

welcome to

THE WORLD OF

WEBER

Welcome to Weber

We are so glad that you have joined us on the journey to backyard happiness. Pleasetake some time to read through this Owner’s Manual to ensure that you are up and grilling quickly and easily. We want to be with you for the life of your grill, so please take just a couple of minutes to re gister yourgrill. Wepromise that we will never sell your information or spam you with unnecessary emails. What we do promise is to be by your side, every step of the way. By signing up for your WeberID, as part of your registration, we will deliver special content just for you and your grill to enjoy.

So, come along and join us online, on the phone, or however else you'd like to stay in touch.

Thank you for choosing Weber. We are happy you are here.

Important SafetyInformation

DANGER, WARNING, and CAUTION statements are used throughout this Owner's Manual to emphasize critical and important information. Read and follow these statements to help ensure safety and prevent property damage. Thestatements are deﬁned below.

m DANGER: Indicates a hazardous

situation which, if not avoided, will result in death or seriousinjury.

m WARNING: Indicates a hazardous

situation which, if not avoided, could result in death or seriousinjury.

m CAUTION: Indicates a hazardous

situation which, if not avoided, could result in minor or moderateinjury.

If you smell gas:

• Shut o gas to the appliance

• Extinguish any open ﬂame.

• Open lid.

• If odor continues, keep away

USE OUTDOORS ONLY. READ THE INSTRUCTIONS BEFORE USING

THE APPLIANCE (GRILL).

m DANGER

(grill).

from the appliance (grill) and immediately call your gas supplier or your ﬁre department.

m WARNING

• Do not store or use gasoline or other ﬂammable liquids or vapors in the vicinity of this (grill) or any other appliance.

• An LP cylinder (tank) not connected for use shall not be stored in the vicinity of this (grill) or any other appliance.

NOTICE TO INSTALLER: These instructions must be left with the consumer.

NOTICE TO CONSUMER: Retain these instructions for future reference.

73208_Gen_II_NG_080116_US.indd 2 8/15/16 10:12 AM

Installation and Assembly

m DANGER: This grill is not intended to be installed in

or on recreational vehicles or boats.

m WARNING: Do not use this grill unless all parts

are in place and the grill was properly assembled according to the assembly instructions.

m WARNING: Do not build this model of grill in any

built-in or slide-in construction.

m WARNING: Do not modify the appliance (grill). Liquid

propane gas is not natural gas. The conversion or attempted use of natural gas in a liquid propane gas unit or liquid propane gas in a natural gas unit is unsafe and will void your warranty.

m WARNING: Do not route the ten-foot hose under a

deck. The hose must be visible.

• WE RECOMMEND THAT THE INSTALLATION OF THIS NATURAL GAS GRILL BE PERFORMED BY A PROFESSIONAL.

• Conﬁrm that the branch supply line from the house to the grill is properly installed before using the grill.

• In the United States, installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/ NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, B149.2; or the Standard for Recreational Vehicles, ANSI A119.2/NFPA 1192, and CSA Z240 RV Series, Recreational Vehicle Code, as applicable.

• InCanada, the installation of this grill must comply with local codes and/or the latest edition of Standard CAN/CSA-B149.2 (Propane Storage and Handling Code). These instructions, while generally acceptable, do not necessarily comply with the Canadian installation codes, particularly with piping above and below ground.

• In Mexico, if there are local codes that apply to portable gas appliances, you must comply with the latest edition of Ocial Mexican Standard (NOM).

• If an external electrical source is utilized (such as a rotisserie) it must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, Part 1, CSA C22.1.

Operation

m DANGER: Only use the grill outdoors in a well-

ventilated area. Do not use in a garage, building, breezeway, tent, any other enclosed area, or beneath overhead combustibleconstruction.

m DANGER: Do not use the grill in any vehicle or in any

storage or cargo area of any vehicle. This includes, but is not limited to, cars, trucks, station wagons, mini-vans, sport utility vehicles, recreational vehicles, andboats.

m DANGER: Do not use the grill within 24 inches

(61cm) of combustible materials. This includes the top, bottom, back and sides of the grill.

m DANGER: Keep the cooking area clear of ﬂammable

vapors and liquids such as gasoline, alcohol, etc., and combustible materials.

m DANGER: This appliance (grill) must be kept away

from ﬂammable materials during use.

m DANGER: Do not put a grill cover or anything

ﬂammable on, or in the storage area under the grill while it is in operation or is hot.

m DANGER: Should a grease ﬁre occur, turn o all

burners and leave lid closed until ﬁre is out.

m WARNING: Accessible parts may be very hot.

Keepyoung children away.

m WARNING: The use of alcohol, prescription drugs,

non-prescription drugs, or illegal drugs may impair the consumer’s ability to properly and safely assemble, move, store, or operate thegrill.

m WARNING: Never leave the grill unattended during

pre-heating or use. Exercise caution when using this grill. The entire cookbox gets hot when in use.

m WARNING: Do not move the appliance (grill)

duringuse.

m WARNING: Keep any electrical supply cord and the

fuel supply hose away from any heated surfaces.

• Do not use charcoal or lava rock in the grill.

• This natural gas grill is factory built to operate using natural gas only. Never attempt to operate your grill on gases other than the type speciﬁed on the grill ratingplates.

Storage and/or Nonuse

m WARNING: Turn o the gas at the natural gas supply

valve when the grill in not in use.

m WARNING: After a period of storage and/or nonuse,

the grill should be checked for gas leaks and burner obstructions before use.

• Storage of the grill indoors is permissible only if the grill is disconnected from the gas supply.

California Proposition 65

m WARNING: Combustion byproducts produced when

using this product contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm.

m WARNING: Handling the brass material on this

product exposes you to lead, a chemical known to the state of California to cause cancer, birth defects, or other reproductive harm. Wash hands after handling thisproduct.

The grills illustrated in this Owner’s Manual may vary slightly from the model purchased.

Welcome to Weber

TABLE OF CONTENTS

2 Welcome to Weber

Important SafetyInformation

4 Product Features

The GS4™ GrillingSystem Genesis® II Features

6 Tips and Hints

The Flame - Direct or Indirect Grilling Do's and Don'ts

8 The Weber Promise

Warranty

9 Getting Started

Important Information about

NaturalGas & Gas Connections

Hose Connection & LeakChecking

12 Operation

The Very First Time You Grill Every Time You Grill Igniting the Grill

14 Product Care

Cleaning and Maintenance

16 Troubleshooting 18 Grilling Guide

3719

ALWAYS

HAVE THE

LATEST AND

GREATEST

The most recent version of this

Owner’s Manual can be

found online.

73208_Gen_II_NG_080116_US.indd 3 8/15/16 10:12 AM

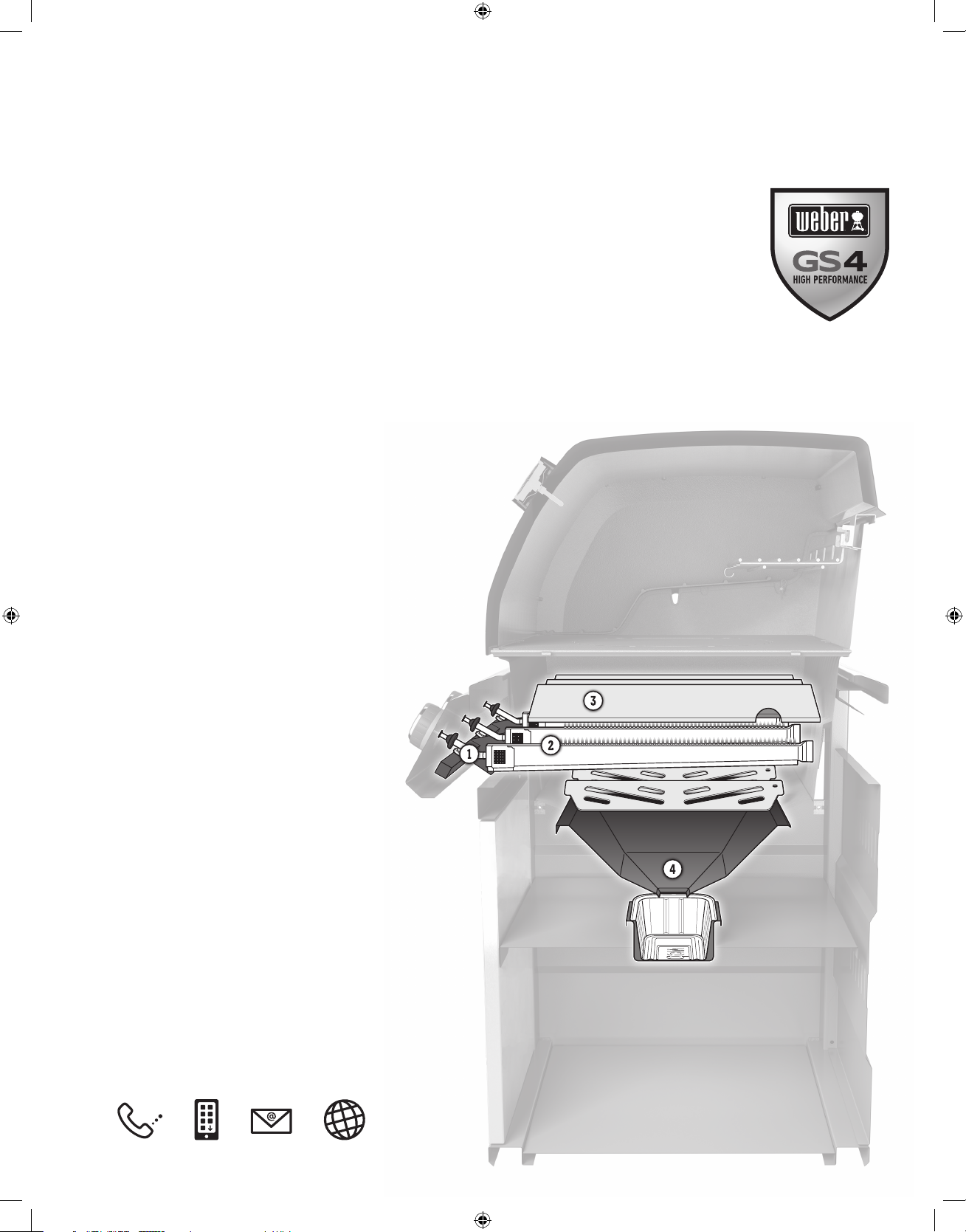

THE GS4™ GRILLING SYSTEM

The GS4™ High Performance Grilling System sets a new standard in the world of backyard cuisine, and lands the Genesis® II and Genesis® II LX series of gas grills in a class of their own. Thisinnovative grilling system is based on over 30 years of grilling experience, culinary expertise, and most importantly, avidly considering the wants and needs of the people who matter most – thegrilling community.

Each component of GS4™ was uniquely designed for ease-of-use and to provide an unequaled satisfaction to your backyard grilling experience. Promising burners that are ensured to ignite

Product Features

every time, smoke infused food that grills evenly and consistently regardless of where it’s placed on the cooking grate, and hassle free cleanup, so that you are able to focus on what it’s is all about– bringing people together around the grill.

The GS4™ grilling system is composed of four key components: The E2i™ Electronic Ignition, High Performance Burners, Flavorizer™ Bars, and Grease Management System. These components ensure that every aspect of your grilling experience is easy and reliable; from the moment the burners are lit to the general maintenance of your grill. Andtogether, create the strongest grilling engine within every Genesis® II and Genesis® II LX grill.

1 E2i™ Electronic Ignition

The E2i™ Electronic Ignition is ensured to ignite every time. Backed by a generous warranty, rest assured that you’ll be up-and-grilling the ﬁrst time, every time.

2 High Performance Burners

The unique, tapered shape delivers a consistent gas ﬂow from front to back. This provides ultimate heat distribution, ensuring that food grills evenly and consistently anywhere on the cooking grate.

3 Flavorizer™ Bars

The classic Weber® Flavorizer™ bars are angled just right to catch drippings that smoke and sizzle, adding that irresistible smoky ﬂavor that we all know and love to your food. Any drippings not vaporized follow the slope and are funneled away from the burners, down into the grease management system.

4 Grease Management System

The grease management system helps with the removal of grease while reducing the risk of ﬂare-ups. Drippings that are not vaporized by the Flavorizer™ bars are funneled away from the burners into the disposable drip tray, located within the catch pan under the cookbox. Simply remove the catch pan and replace the drip tray as needed.

73208_Gen_II_NG_080116_US.indd 4 8/15/16 10:12 AM

TAKES LESS THAN TWO MINUTES

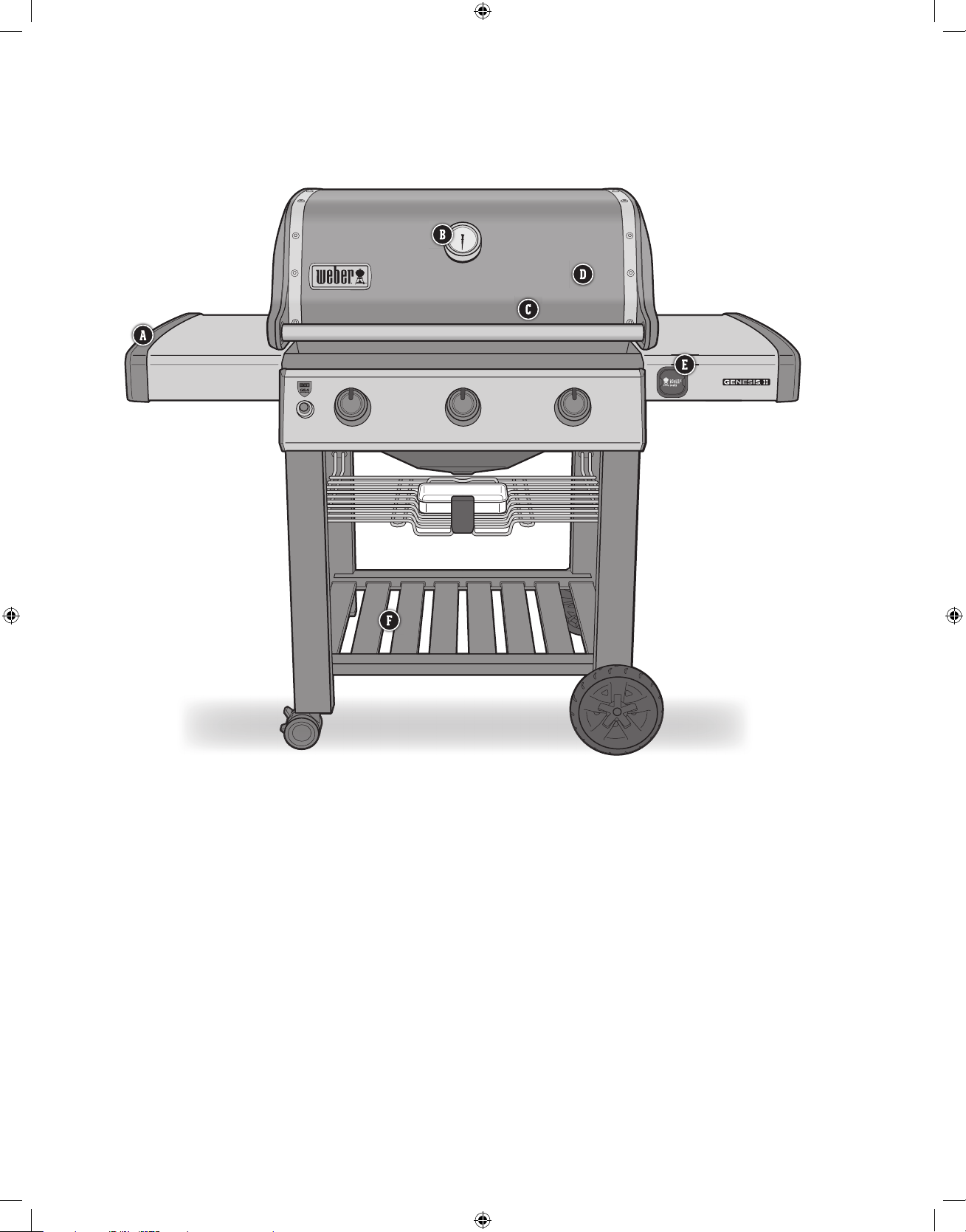

Genesis® II FEATURES

Product Features

A Side Tables with Integrated Tool Hooks

Use the side tables to keep platters, seasonings, and tools within arm’s reach. Hang your essential grilling tools on the hooks for easy access and organization of your backyard workspace. The side table folds down in models equipped with two and three burners.

B Built-In Thermometer

Being aware of the temperature inside of your grill allows you to adjust the heat when needed.

C Porcelain-Enameled,

Cast Iron Cooking Grates

The reversible cooking grates empower you to be even more creative with your dish. The thin side of the cooking grate is ideal for delicate food such as ﬁsh and shrimp, while the wider side creates a thick sear mark enhancing the ﬂavor of your food.

(SE-410™ equipped with stainless ste el grates)

D Tuck-Away™ Warming Rack

The Tuck-Away™ warming rack keeps food warm or toasts burger buns, as the main meal grills below. Theunique Tuck-Away™ feature allows you to fold it down when not in use, providing optimal grilling space and convenient in-the-grill storage.

E iGrill™3 Ready

The newest grilling essential- the iGrill™ 3 digital Bluetooth thermometer monitors your food from beginning to end, displaying the real-time temperature on your mobile device. Once you’ve downloaded the Weber iGrill™ app, connect the iGrill™ to Bluetooth, and run up to four thermometer probes from your grill to the food. (Sold separately.)

F Open Cart Design

The sleek open-cart design provides additional room and accessibility of your grilling tools.

73208_Gen_II_NG_080116_US.indd 5 8/15/16 10:12 AM

The Flame-

START/HIGH

OFF

MEDIUM

Direct or Indirect

INDIRECT HEAT

Tips and Hints

HIGH

SETUP

OFF

MEDIUM

DIRECT HEAT

SETUP

Use the indirect method for larger cuts of meat that require 20 minutes or more of grilling time, or for foods so delicate that direct exposure to the heat would dry them out or scorch them, such as: roasts, bone-in poultry pieces, whole ﬁsh, delicate ﬁsh ﬁllets, whole chickens, turkeys, and ribs. Indirect heat can also be used for ﬁnishing thicker foods or bone-in cuts that have been seared or browned ﬁrst over direct heat.

With indirect heat, the heat is on both sides of the grill, or o to one side of the grill. The food sits over the unlit part on the cooking grate.

Use the direct method for small, tender pieces of food that take less than 20 minutes to cook, suchas: hamburgers, steaks, chops, kabobs, boneless chicken pieces, ﬁsh ﬁllets, shellﬁsh, and slicedvegetables.

With direct heat, the ﬁre is right below the food. It sears the surfaces of the food, developing ﬂavors, texture, and delicious caramelization while cooking the food all the way to thecenter.

73208_Gen_II_NG_080116_US.indd 6 8/15/16 10:12 AM

REGISTRATION IS IMPORTANT

GrillingDo’s andDon’ts

Tips and Hints

Preheat each and every time.

If the cooking grates aren’t hot enough, food will stick, and you will likely never have a chance of searing properly or developing those handsome grill marks. Even if a recipe calls for medium or low heat, always preheat the grill on the highest setting ﬁrst. Open the lid, turn up the heat, close the lid, and then let the cooking grate heat up for about ten minutes or until the lid thermometer reads 500° F (260° C).

Don't grill on dirty grates.

Tossing food onto the cooking grates before they have been cleaned is never a good idea. Leftover “stu” on the grates acts like glue, binding it to the grates and your new food. To avoid tasting last night’s dinner on today’s lunch, make sure you are grilling on a clean cooking grate. Once the grates are preheated, use a stainless steel bristle grill brush to make a clean, smooth surface.

Be present in the process.

Before ﬁring up your grill, make sure that everything you need is within arm’s reach. Don’t forget your essential grilling tools, already oiled and seasoned food, glazes or sauces, and clean cooking platters for cooked food. Having to run back to your kitchen not only means missing out on the fun, but could also result in burning your food. French chefs call this “mise en place” (meaning, “put in place”). We call it “being present”.

Create a little elbow room.

Packing too much food onto the cooking grates restricts your ﬂexibility. Leave at least one-quarter of the cooking grates clear, with plenty of space between each food item, in order to get your tongs in there and easily move the food around. Sometimes grilling involves split-second decisions and the ability to jockey food from one area to another. Sogive yourself enough room to operate.

Try not to peek.

The lid on your grill is for more than just keeping the rain out. Most importantly, it’s for preventing too much air from getting in, and too much heat and smoke from getting out. When the lid is closed, the cooking grates are hotter, the grilling times are faster, the smoky tastes are stronger, and the ﬂare-ups are fewer. So put a lid on it!

Only flip once.

What’s better than a juicy steak with a deep sear and plenty of beautifully caramelized bits? The key to accomplishing these results is to keep your food in place. Sometimes we have the tendency to ﬂip our food before it reaches the desirable level of color and ﬂavor. In nearly all cases, you should turn food just once. If ﬁddling with it more than that, you are probably also opening the lid too much, which causes its own set of problems. So step back and trust the grill.

Know when to tame the flame.

When grilling, sometimes the most important thing to know is when to stop. The most reliable way to test doneness of your food is to invest in an instant-read thermometer. This slim little gem will help you pinpoint that critical moment when your food is at its best.

Don’t be afraid to experiment.

Back in the 1950s, grilling meant one thing: meat (and only meat) charred over open ﬂames. The modern day backyard chef doesn’t need a kitchen in order to prepare a full course meal. Use your grill to make chargrilled appetizers, sides, and even desserts. Register your grill to receive special content that will inspire you along the way. We’d love to join you on your grilling adventures.

•

SPATULA

Look for a long-handled spatula

designed with a bent (oset) neck

so that the blade is set lower

than the handle. This makes it

easier to lift food o the

•

cookinggrates.

•

Avoid the disappointment of torching

your dinner by simply setting a timer.

Nothing fancy needed—just one

•

that is reliable and easy

•

TIMER

to use.

•

73208_Gen_II_NG_080116_US.indd 7 8/15/16 10:12 AM

The Weber Promise

At Weber, we pride ourselves on two things: making grills that last and providing a lifetime of excellent customer service.

Warranty

Thank you for purchasing a Weber product. WeberStephen Products LLC, 1415 S. Roselle Road, Palatine, Illinois 60067 (“Weber”) prides itself on delivering a safe, durable, and reliable product.

This is Weber’s Voluntar y Warranty provided to you at no extra charge. It contains the information you will need to have your Weber product repaired in the unlikely event of a failure or defect.

The Weber Promise

Pursuant to applicable laws, the customer has several rights in case the product is defective. Those rights include supplementary performance or replacement, abatement of the purchasing price, and compensation. In the European Union, for example, this would be a two-year statutory warranty starting on the date of the handover of the product. These and other statutory rights remain unaected by this warranty provision. In fact, this warranty grants additional rights to the Owner that are independent from statutory warranty provisions.

Weber’s Voluntary Warranty

Weber warrants, to the purchaser of the Weber product (or in the case of a gift or promotional situation, the person for whom it was purchased as a gift or promotional item), that the Weber product is free from defects in material and workmanship for the period(s) of time speciﬁed below when assembled and operated in accordance with the accompanying Owner’s Manual. (Note: If you lose or misplace your Weber Owner’s Manual, a replacement is available online at www.weber.com, or such country-speciﬁc website to which Owner may be redirected.) Under normal, private single family home or apartment use and maintenance, Weber agrees within the framework of this warranty to repair or replace defective parts within the applicable time periods, limitations, and exclusions listed below. TO THE EXTENT ALLOWABLE BY APPLICABLE LAW, THIS WARRANTY IS EXTENDED ONLY TO THE ORIGINAL PURCHASER AND IS NOT TRANSFERABLE TO SUBSEQUENT OWNERS, EXCEPT IN THE CASE OF GIFTS AND PROMOTIONAL ITEMS AS NOTED ABOVE.

Owner’s Responsibilities Under thisWarranty

To ensure trouble-free warranty coverage, it is important (but it is not required) that you register your Weber product online at www.weber.com, or such country-speciﬁc website to which Owner may be redirected. Please also retain your original sales receipt and/or invoice. Registering your Weber product conﬁrms your warranty coverage and provides a direct link between you and Weber in case we need to contact you.

The above warranty only applies if the Owner takes reasonable care of the Weber product by following all assembly instructions, usage instructions, and preventative maintenance as outlined in the accompanying Owner’s Manual, unless the Owner can prove that the defect or failure is independent of noncompliance with the above mentioned obligations. If you live in a coastal area, or have your product located near a pool, maintenance includes regular washing and rinsing of the exterior surfaces as outlined in the accompanying Owner’sManual.

Warranty Handling / Exclusion of Warranty

If you believe that you have a part which is covered by this Warranty, please contact Weber Customer Service using the contact information on our website (www.weber.com, or such country-speciﬁc website to which Owner may be redirected). Weber will, upon investigation, repair or replace (at its option) a defective part that is covered by this Warranty. In the event that repair or replacement are not possible, Weber may choose (at its option) to replace the grill in question with a new grill of equal or greater value. Weber may ask you to return parts for inspection, shipping charges to be pre-paid.

This WARRANT Y lapses if there are damages, deteriorations, discolorations, and/or rust for which Weber is not responsible caused by:

• Abuse, misuse, alteration, modiﬁcation, misapplication, vandalism, neglect, improper assembly or installation, and failure to properly perform normal and routine maintenance;

• Insects (such as spiders) and rodents (such as squirrels), including but not limited to damage to burners and/or gas hoses;

• Exposure to salt air and/or chlorine sources such as swimming pools and hot tubs/spas;

• Severe weather conditions such as hail, hurricanes, earthquakes, tsunamis or surges, tornadoes or severe storms.

The use and/or installation of parts on your Weber product that are not genuine Weber par ts will void this Warranty, and any damages that result hereby are not covered by this Warranty. Any conversion of a gas grill not authorized by Weber and performed by a Weber authorized ser vice technician will void this Warranty.

Product Warranty Periods

Cookbox:

10 years, no rust through/burn through (2 years paint excluding fading or discoloration)

Lid assembly:

10 years, no rust through/burn through (2 years paint excluding fading or discoloration)

Stainless steel burners:

10 years, no rust through/burn through

Stainless steel cooking grates:

10 years, no rust through/burn through

Stainless steel Flavorizer™ bars:

10 years, no rust through/burn through

Ignition system (module, electrode assembly, wiring, and switch):

10 years, ignition start (excluding battery and battery damage)

Grease management system (slide-out grease tray and catch pan):

10 years, no rust through/burn through

Porcelain-enameled cast iron cooking grates:

5 years, no rust through/burn through

Porcelain-enameled Flavorizer™ bars:

5 years, no rust through/burn through

All remaining parts:

2 years

Disclaimers

APART FROM THE WARRANTY AND DISCLAIMERS AS DESCRIBED IN THIS WARRANTY STATEMENT, THERE ARE EXPLICITLY NO FURTHER WARRANTY OR VOLUNTARY DECLARATIONS OF LIABILIT Y GIVEN HERE WHICH GO BEYOND THE STATUTORY LIABILITY APPLYING TO WEBER. THE PRESENT WARRANTY STATEMENT ALSO DOES NOT LIMIT OR EXCLUDE SITUATIONS OR CL AIMS WHERE WEBER HAS MANDATORY LIABILITY AS PRESCRIBED BY STATUTE.

NO WARRANTIES SHALL APPLY AFTER THE APPLICABLE PERIODS OF THIS WARR ANTY. NO OTHER WARRANTIES GIVEN BY ANY PERSON, INCLUDING A DE ALER OR RETAILER, WITH RESPECT TO ANY PRODUCT (SUCH AS ANY “EXTENDED WARRANTIES”), SHALL BIND WEBER. THE EXCLUSIVE REMEDY OF THIS WARRANTY IS REPAIR OR REPLACEMENT OF THE PART OR PRODUCT.

IN NO EVENT UNDER THIS VOLUNTARY WARRANT Y SHALL RECOVERY OF ANY KIND BE GREATER THAN THE AMOUNT OF THE PURCHASE PRICE OF THE WEBER PRODUCT SOLD.

YOU ASSUME THE RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO YOU AND YOUR PROPERTY AND/OR TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE MISUSE OR ABUSE OF THE PRODUCT OR FAILURE TO FOLLOW INSTRUCTIONS PROVIDED BY WEBER IN THE ACCOMPANYING OWNER’S MANUAL.

PARTS AND ACCESSORIES REPLACED UNDER THIS WARRANTY ARE WARRANTED ONLY FOR THE BALANCE OF THE ABOVE MENTIONED ORIGINAL WARRANTY PERIOD(S).

THIS WARRANTY APPLIES TO PRIVATE SINGLE FAMILY HOME OR APARTMENT USE ONLY AND DOES NOT APPLY TO WEBER GRILLS USED IN COMMERCIAL, COMMUNAL OR MULTI-UNIT SETTINGS SUCH AS RESTAURANTS, HOTELS, RESORTS, OR RENTAL PROPERTIES.

WEBER MAY FROM TIME TO TIME CHANGE THE DESIGN OF ITS PRODUCTS. NOTHING CONTAINED IN THIS WARRANTY SHALL BE CONSTRUED AS OBLIGATING WEBER TO INCORPORATE SUCH DESIGN CHANGES INTO PREVIOUSLY MANUFACTURED PRODUCTS, NOR SHALL SUCH CHANGES BE CONSTRUED AS AN ADMISSION THAT PREVIOUS DESIGNS WERE DEFECTIVE.

WEBER-STEPHEN PRODUCTS LLC Customer Service Center

1415 S. Roselle Road Palatine, IL 60067 U.S.A.

For replacement parts, call:

1-800-446-1071

PROTECT

YOUR

INVESTMENT

Shield your grill from the

elements with a heavy-duty

premiumgrillcover.

73208_Gen_II_NG_080116_US.indd 8 8/15/16 10:12 AM

REGISTRATION = WARRANTY

Important Information about NaturalGas & Gas Connections

What is Natural Gas?

Natural gas (NG) is a combustible, gaseous mixture of simple hydrocarbon compounds, usually found in deep underground reservoirs formed by porous rock. It is a fossil fuel composed almost entirely of methane. Natural gas is delivered by your local utility through an underground pipeline system.

General Specifications

• Two burner and three burner grills are designed to operate at 7" of water column pressure (.2526 psi).

• Four burner and six burner grills are designed to operate at 4" of water column pressure (.1444 psi).

• The quick-disconnect ﬁtting can be installed horizontally or pointing downward, but never pointing upward. Installing it with the open end pointing upward can result in water and debris collecting in the quickdisconnect ﬁtting.

• The dust covers (plastic plugs supplied with your grill) help keep the open ends of the quick-disconnect ﬁtting clean while disconnected.

Hose Requirements

• The grill is equipped with a model speciﬁc hose that was attached during the manufacturing process. This speciﬁc hose must be used for proper performance.

• If the hose becomes worn or damaged, contact the Customer Service Representative in your area using the contact information on our website.

Pressure Testing the Gas Supply

• Disconnect the gas grill when the gas supply is being tested at high pressures. This appliance and its individual shuto valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa).

• Turn o the gas grill when the gas supply is being tested at low pressures. This appliance must be isolated from the gas supply piping system by closing its individual manual shuto valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2psig (3.5 kPa).

Typical NG Grill Pipe Installation

INSIDE HOUSE

Gas supply

Shuto

OUTSIDE HOUSE

Quick-disconnect

3/8" pipe nipple

Reducing coupling

1/2" pipe nipple

Locking shuto

Local codes may require dierent installations.

Flare ﬁttings should never be used.

Getting Started

•

Look for a basting brush with heat-

resistant silicone bristles and a long

handle, and a mop with long, cotton

BRUSH

AND MOP

threads that sop up the thinner,

•

vinegar-based sauces.

•

Designed for food that is either too

small or too delicate for the cooking

GRILLINGPAN

grates, a perforated grilling pan

keeps food right where it ought

tobe—on the grill,

•

not in it.

•

73208_Gen_II_NG_080116_US.indd 9 8/15/16 10:12 AM

Hose Connection & LeakChecking

Connect the Hose to the GasSupply

A quick-disconnect device connects your grill to the gas supply. Gas will not ﬂow unless the quickdisconnect is properly engaged.

1) Check that all burner control knobs are in the o position. Check by pushing in and turning knobs

clockwise (A).

2) Slide the collar of the quick-disconnect back (B).

3) Push male ﬁtting of the hose into the quick-

disconnect and maintain pressure. Slide the collar

Getting Started

closed (C). If it does not engage or lock, repeat procedure. Proceed to ”CHECKING FOR GAS LEAKS”.

73208_Gen_II_NG_080116_US.indd 10 8/15/16 10:12 AM

UNLOCK GRILLING HAPPINESS

What is a Leak Check?

Once the hose is properly connected, it is necessary to perform a leak check. A leak check is a reliable way to verify that gas is not escaping after you connect the hose to the gas supply. The ﬁtting where the regulator connects to the tank should be tested each time a tank is reﬁlled and reinstalled.

Checking for Gas Leaks

1) Wet ﬁttings shown (D) with a soap and water

solution, using a spray bottle, brush or rag. You can make your own soap and water solution by mixing 20% liquid soap with 80% water; or, you can purchase leak check solution in the plumbing section of any hardware store.

2) Turn the gas supply valve on.

3) If bubbles appear there is a leak (E). Turn o the

gas. DO NOT OPERATE THE GRILL. Contact the Customer Service Representative in your area using the contact information on our website.

4) If bubbles do not appear, leak checking is complete. Turn gas supply valve o and rinse connections withwater.

NOTE: Since some leak test solutions, including soap and water, may be slightly corrosive, all connections should be rinsed with water after checking for leaks.

Additional Leak Check Precautions

The fuel system in your grill features other connections and ﬁttings. These factory-made connections have been thoroughly checked for gas leaks and the burners have been ﬂame-tested. However, it is recommended that a thorough leak check be performed annually. Instructions for this can be found online at weber.com.

Disconnect the Hose from the GasSupply

A quick-disconnect device connects your grill to the gas supply. Gas will not ﬂow unless the quickdisconnect is properly engaged.

1) Push the collar back and pull out the plug. Thisautomatically shuts o the gas.

Getting Started

•

m DANGER: Do not use a ﬂame to check for gas

leaks. Besure there are no sparks or open ﬂames in the area while you check for leaks.

m DANGER: Leaking gas may cause a ﬁre or

explosion.

m DANGER: Do not operate the grill if there is a

gas leak present.

73208_Gen_II_NG_080116_US.indd 11 8/15/16 10:12 AM

•

Consider these to be an extension

should have an eortless tension

•

TONGS

of your hand. The best tongs

mechanism, comfortable hand

grips, and a lock to keep

themcompact.

•

The Very First Time You Grill

Perform an Initial Burn-Off

Heat the grill on the highest setting, with the lid closed, for at least 20 minutes prior to grilling for the ﬁrsttime.

Every Time You Grill

Operation

Meal-to-Meal Maintenance

The Meal-To-Meal Maintenance plan includes the following simple, yet important, steps that should always be performed prior to grilling.

Check for Grease

Your grill was built with a grease management system that funnels grease away from food and into a disposable container. As you cook, grease is channeled down the slide-out grease tray and into a disposable drip tray that lines the catch pan. This system should be cleaned each and every time you grill to prevent ﬁres.

1) Conﬁrm that the grill is o and cool.

2) Remove the slide-out grease tray by pulling the tray

out of the cabinet (A). Remove excess grease with a plastic scraper.

3) Remove the catch pan by pressing down on the

catch pan latch (B). Check for excessive amounts of grease in the disposable drip tray that lines the catch pan. Discard disposable drip pan when necessary and replace with a new one.

4) Reinstall all components.

Inspect the Hose

Routine inspection of the hose is necessary.

1) Conﬁrm that the grill is o and cool.

2) Check hose for any signs of cracking, abrasions, or

cuts(C). If the hose is found to be damaged in any way, do not use the grill.

Preheat the Grill

Preheating the grill is critical to successful grilling. Preheating helps to prevent food from sticking to the grate and gets the grate hot enough to sear properly. Italso burns o residue of a previously cooked meal.

1) Open the grill lid.

2) Ignite your grill according to the ignition instructions in this Owner's Manual.

3) Close lid.

4) Preheat the grill with all burners on the start/

position for 10 to 15 minutes or until

high thermometer registers 500° F (260° C)(D).

Clean the Cooking Grate

After preheating, any bits of food or debris left over from previous use will be easier to remove. Cleaned grates will also prevent your next meal from sticking.

1) Brush the grates with a stainless steel bristle grill brush immediately after preheating (E).

73208_Gen_II_NG_080116_US.indd 12 8/15/16 10:12 AM

GET FREE SPECIAL CONTENT

m DANGER: Do not line the slide-out grease tray

or cookbox with aluminum foil.

m DANGER: Check the slide-out grease tray and

catch pan for grease build-up before each use. Remove excess grease to avoid a grease ﬁre.

m WARNING: Use heat-resistant barbecue mitts

or gloves when operating grill.

m WARNING: Grill brushes should be checked for

loose bristles and excessive wear on a regular basis. Replace brush if any loose bristles are found on cooking grates or brush. Weber recommends purchasing a new stainless steel bristle grill brush at the beginning of every spring.

m WARNING: If the hose is found to be damaged

in any way, do not use the grill. Replace using only Weber authorized replacement hose.

Igniting the Grill

Using the Electronic Ignition System to Ignite the Grill

Each control knob operates an individual burner, and each burner ignites independently. Ignite the burners starting from left to right. All burners should be lit for preheating, however, all burners do not have to be lit while grilling.

1) Open the grill lid (A).

2) Check that all burner control knobs are in the o position. Check by pushing in and turning knobs

clockwise (B).

3) Turn the gas supply valve on (C).

4) Begin with the burner furthest to the left. Push the

burner control knob in and turn it counterclockwise to the start/high

position (D).

5) Push and hold the electronic ignition button (E).

Youwill hear it ticking.

6) Check that the burner is lit by looking through the

cooking grates and through the half-circle cutout in the Flavorizer™ bar.

7) If the burner does not ignite, turn burner control

knob to the o

position and wait ﬁve minutes to allow the gas to clear before attempting to light the burner again.

8) If the burner ignites, repeat steps 4 through 6 to light the remaining burners.

Should the burners fail to ignite using the electronic ignition, refer to the TROUBLESHOOTING section. Thereyou will ﬁnd instructions on igniting the grill with a match to help determine the exact problem.

To Extinguish Burners

1) Push each burner control knob in and then turn clockwise all the way to the o position.

2) Turn gas supply valve o.

Operation

m WARNING: Open lid during ignition.

m WARNING: Do not lean over open grill while

igniting or cooking.

m WARNING: Each burner must be ignited

individually by pushing the electronic ignition button.

m WARNING: If ignition does not occur within

four seconds of attempting to light the ﬁrst burner, turn the burner control knob to the o position. Wait ﬁve minutes to allow accumulated gas to dissipate, and then repeat the lighting procedure.

•

73208_Gen_II_NG_080116_US.indd 13 8/15/16 10:12 AM

FOILPANS

Perfect for lining the

catchpan to make cleanup

convenient and easy.

•

When in doubt, wear them. The good

BARBECUE

ones are insulated and protect

•

both hand and forearm.

•

MITTS

•

Cleaning and Maintenance

Cleaning the Inside of the Grill

Over time, the performance of your grill can diminish if it has not been maintained properly. Low temperatures, uneven heat, and food sticking to cooking grates are all signs that cleaning and maintenance are overdue. When your grill is o and cool, start by cleaning the inside, from the top down. A thorough cleaning is recommended at least twice a year. Consistent use may warrant quarterly cleanings.

Product Care

Cleaning the Lid

From time to time you may notice “paint-like” ﬂakes on the inside of the lid. During use, grease and smoke vapors slowly change into carbon and deposit on the inside of your lid. These deposits will eventually peel, and looks very similar to paint. These deposits are non-toxic, but the ﬂakes could fall onto your food if you do not clean the lid regularly.

1) Brush the carbonized grease from the inside of the

lid with a stainless steel bristle grill brush (A). To minimize further build-up, the inside of the lid can be wiped with a paper towel af ter grilling while the grill is still warm (nothot).

Cleaning the Cooking Grates

If you have been cleaning your cooking grates as recommended, the debris on your grates should be minimal.

1) With grates installed, brush the debris o your cooking grate with a stainless steel bristle grill brush(B).

2) Take the grates out and set aside.

Cleaning the Flavorizer™Bars

Flavorizer™ bars catch drippings that smoke and sizzle, adding ﬂavor to your food. Any drippings that are not vaporized by the Flavorizer™ bars are funneled away from the burners. This helps prevent ﬂare-ups inside of your grill, and protects the burners from getting clogged.

1) Scrape the Flavorizer™ bars with a plastic scraper(C).

2) If necessary, brush the Flavorizer™ bars with a stainless steel bristle grill brush.

3) Remove Flavorizer™ bars and set aside.

Cleaning the Burners

Two areas on the burners that are key to optimum performance are the ports (small raised openings running along the length of the burners) and the spider/insect screens on the ends of the burner. Keeping these areas clean is essential for safe operation.

Cleaning the Burner Ports

1) Use a clean stainless steel bristle grill brush to clean the outside of the burners by brushing across the top of the burner ports (D).

2) When cleaning the burners, avoid damaging the ignition electrode by carefully brushing around it(E).

Cleaning the Spider Screens

1) Locate the ends of the burners on the underside of the control panel where they meet the valves.

2) Clean the spider/insect screens on each of the burners using a soft bristle brush (F).

m WARNING: Turn your grill o and wait for it to

cool before thoroughly cleaning.

m WARNING: Over time, the development of

rough surfaces can form on the Flavorizer™ bars. Wearing gloves is recommended when handling. Do not clean Flavorizer™ bars or cooking grates in a sink, dishwasher, or selfcleaning oven.

m WARNING: When cleaning the burners, never

use a brush that has already been used to clean the cooking grates. Never put sharp objects into the burner port holes.

m CAUTION: Do not place any grill components

onto the side tables as they may scratch the paint or stainless steel surfaces.

m CAUTION: Do not use any of the following

to clean your grill: abrasive stainless steel polishes or paints, cleaners that contain acid, mineral spirits or xylene, oven cleaner, abrasive cleansers (kitchen cleansers), or abrasive cleaning pads.

73208_Gen_II_NG_080116_US.indd 14 8/15/16 10:12 AM

UNLOCK A LIFETIME OF GUIDANCE

Cleaning the Heat Deflectors

Located under the burners, the heat deﬂectors distribute heat evenly throughout the cookbox while cooking. Keeping heat deﬂectors clean will enhance the cooking performance of your grill.

1) Scrape the heat deﬂectors with a plastic

scraper(G).

2) If necessary, brush the heat deﬂectors with a stainless steel bristle grill brush.

3) Remove heat deﬂectors and set aside.

Cleaning the Cookbox

Look inside the cookbox for any grease accumulation or leftover food particles. Excessive accumulation can cause a ﬁre.

1) Use a plastic scraper to scrape debris o the sides and bottom of the grill into the opening in bottom of the cookbox(H). This opening leads debris into the slide-out grease tray.

Cleaning the Grease ManagementSystem

The grease management system consists of an angled slide-out grease tray and a catch pan. These components were designed to be easily removed, cleaned, and replaced; an essential step every time you prepare to grill. Instructions on inspecting the grease management system can be found in MEAL-TOMEAL MAINTENANCE.

Cleaning the Outside of theGrill

The outside of your grill may include stainless steel, porcelain-enameled, and plastic surfaces. Weber recommends the following methods based on the surfacetype.

Cleaning Stainless Steel Surfaces

Clean stainless steel using a non-toxic, non-abrasive stainless steel cleaner or polish designed for use on outdoor products and grills. Use a microﬁber cloth to clean in the direction of the grain of the stainless steel. Donot use paper towels.

Note: Do not risk scratching your stainless steel with abrasive pastes. Pastes do not clean or polish. They will change the color of the metal by removing the top chromium oxide ﬁlm coating.

Cleaning Painted, Porcelain-Enameled Surfaces and PlasticComponents

Clean painted, porcelain-enameled and plastic components with warm soapy water, and paper towels or cloth. After wiping down the surfaces, rinse and dry thoroughly.

Cleaning the Outside of Grills that are in Unique Environments

If your grill is subject to a particularly harsh environment, you will want to clean the outside more often. Acid rain, pool chemicals, and salt water can cause surface rusting to appear. Wipe down the outside of your grill with warm soapy water. Follow up with a rinse and thorough dr ying. Additionally, you may want to apply a stainless steel cleaner weekly to prevent surface rust.

•

THERMOMETER

Small and relatively inexpensive,

this gadget is essential for quickly

gauging the internal temperature

of the meat when grilling.

•

Product Care

•

A must-use before you even dream

of grilling. A quick once-over on hot

grates prevents the charred remains

GRILLBRUSH

of meals past from sticking to

•

your meals present.

•

73208_Gen_II_NG_080116_US.indd 15 8/15/16 10:12 AM

GRILL WILL NOT IGNITE

SYMPTOM

• Burner does not ignite when following the electronic ignition instructions in the “Operation” section of this Owner's Manual.

CAUSE SOLUTION

There is a problem with gas ﬂow. If the grill will not ignite, the ﬁrst step is to determine if there is gas ﬂowing to the burners. Tocheck this,

There is a problem with the electronic ignition system. If the grill will not ignite, the ﬁrst step is to determine if there is gas ﬂowing to the burners. Tocheck this,

follow the instructions below for “Using a Match to Determine if there is Gas Flow to the Burners.” If match lighting IS NOT successful, follow the gas ﬂow troubleshooting suggestions on the next page.

followthe instructions below for “Using a Match to Determine if there is Gas Flow to the Burners.” If match lighting IS successful, follow the instructions below for “Checking the Components of the Electronic

IgnitionSystem.”

Troubleshooting

Using a Match to Determine if there is Gas Flow to the Burners

1) Open the grill lid.

2) Check that all burner control knobs are in the position. Check by pushing in and turning

o knobs clockwise.

3) Turn the gas supply valve on.

4) Begin with the burner furthest to the left. Put

match in the matchstick holder and strike match. (Matchstick holder is located under right side table.) Insert lit match down through the cooking grates, past the Flavorizer™ bars and next to the burner(A).

5) Push the burner control knob in and turn it

counterclockwise to the start/high

6) Check that the burner is lit by looking through the

cooking grates and through the half-circle cutout in the Flavorizer™ bar.

7) If the burner does not ignite within 4 seconds,

turn burner control knob to the o wait ﬁve minutes to allow the gas to clear before attempting to light the burner again. If repeated attempts fail, follow the gas ﬂow troubleshooting instructions on the next page.

8) If the burner ignites, the problem lies in the ignition

system. Follow the instructions for “Checking the Components of the Electronic Ignition System.”

9) Replace the matchstick holder by hanging

underneath right side table (B).

position.

position and

Checking the Components of the Electronic Ignition System

When pressing the ignition button you should hear a ticking sound. If you cannot hear the ticking sound, check the battery, then check the wires.

Checking the Battery

There are three potential issues with the battery that supplies the power to your ignition module that need to be checked:

1) Some batteries have a plastic protective wrap around them. (Do not confuse this plastic with the battery label.) Check that this plastic wrap is removed.

2) Conﬁrm that the battery is installed correctly (C).

3) If the battery is old, replace it with a new battery.

Checking the Wires

There are two potential trouble spots that need to be checked:

1) Check that the ignition wires are connected securely to the terminals on the ignition button under the control panel.

2) Make sure the ignition wires are properly attached to the ignition module. The wire terminals are colour coded to correspond with the terminals on the ignition module. The number of wires will vary per model. Refer to Assembly Manual for details on correct wire installation.

CALL

CUSTOMER

SERVICE

If you are still experiencing any

problems, contact the CustomerService

Representative in your area using

REPLACEMENT

PARTS

To obtain replacement parts,

contact the local retailer

in your area or log onto

weber.com.

the contact information on

weber.com.

73208_Gen_II_NG_080116_US.indd 16 8/15/16 10:12 AM

GAS FLOW

SYMPTOM

• Grill does not reach desired temperature or heatsunevenly.

• One or more of the burners fail to ignite.

• Flame is low when burner is on high position.

• Flames do not run the whole length of the burner.

• Burner flame pattern is erratic.

CAUSE SOLUTION

Fuel hose is bent or kinked. Straighten fuel hose.

Burner ports are dirty. Clean burner por ts. Refer to “Cleaning the

BurnerPorts.”

SYMPTOM

• Gas is smelled in conjunction with burner flames that appear yellow andlazy.

CAUSE SOLUTION

Spider screens on the burners are obstructed. Clean spider screens. Refer to “Cleaning the Spider

Screens” in the Product Care section. Also refer to the illustrations and information in this section about proper ﬂame pattern and spiderscreens.

GREASY GRILL (Peeling Paint & Flare-Ups)

SYMPTOM

• Inside of lid appears to have the appearance of peelingpaint.

CAUSE SOLUTION

The ﬂakes you see are accumulated cooking vapors that have turned into carbon.

This happens over time after repeated use of your grill. This is not a defect. Clean the lid. Refer to the “Product Care” section.

Troubleshooting

Proper Burner Flame Pattern

The burners in your grill were factory set for the correct air and gas mixture. When the burners are performing correctly, you will see a speciﬁc ﬂame pattern. The tips may occasionally ﬂicker yellow (A), with a descending light blue (B) to dark blue ﬂame (C).

Spider Screens

The combustion air openings of the burners(D) are ﬁtted with stainless steel screens to prevent spiders and other insects from spinning webs and building nests inside the burners. Additionally, dust and debris can accumulate on the outside of the spider/insect screen and obstruct the oxygen ﬂow to the burners.

SYMPTOM

• Experiencing flare-ups when grilling or preheating.

CAUSE SOLUTION

There is leftover food from the previous meal. Always preheat the grill with all burners on start/high

position for 10 to 15 minutes.

The inside of the grill needs to be cleaned thoroughly. Follow the steps in the "Cleaning and Maintenance"

section to clean the grill inside from the top down.

m WARNING: Do not attempt to make any

repair to gas carrying, gas burning, ignition components or structural components without contacting Weber-Stephen Products LLC, Customer Service Department.

m WARNING: Failure to use genuine Weber-

Stephen parts for any repair or replacement will void all warranty protection.

73208_Gen_II_NG_080116_US.indd 17 8/15/16 10:12 AM

+ 39 hidden pages
