SUMMIT GAS GRILL

LP Gas Grill Owner’s Guide

#38008

YOU MUST READ THIS OWNERS GUIDE

BEFORE OPERATING YOUR GAS GRILL

 DANGER

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open ﬂ ames.

3. Open lid

4. If odor continues, keep away from the appliance and immediately call your gas supplier or your ﬁ re department.

Leaking gas may cause a ﬁ re or explosion which can cause serious bodily injury or death, or damage to property.

 WARNING

1. Do not store spare liquid propane cylinder within 10 feet (3m) of this appliance.

2. Do not store or use gasoline or other ﬂ ammable liquids or vapors within 25 feet (8m) of this appliance.

 WARNING: Follow all leak-check

procedures carefully in this manual prior to barbecue operation. Do this even if the barbecue was dealerassembled.

NOTICE TO INSTALLER: These instructions must be left with the owner and the owner should keep them for future use.

THIS GAS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY.

WARNING: Do not try to light this

appliance without reading the "Lighting" Instructions section of this manual.

38008 US 04/12/05

US ENGLISH

DANGERS AND WARNINGS

DANGER

Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual may result in serious bodily injury or death, or in a ﬁ re or an explosion causing damage to property.

WARNINGS

 Do not store a spare or disconnected liquid propane cylinder under or near this barbecue.  Improper assembly may be dangerous. Please follow the assembly instructions carefully.  After a period of storage, and/or nonuse, the Weber® gas barbecue should be checked for gas leaks and burner

obstructions before use. See instructions in this manual for correct procedures.

 Do not operate the Weber® gas barbecue if there is a gas leak present.  Do not use a ﬂ ame to check for gas leaks.  Combustible materials should never be within 24 inches of the top, bottom, back or sides of your Weber® gas

barbecue.

 Do not put a barbecue cover or anything ﬂ ammable on, or in the storage area under the barbecue.  Your Weber® gas barbecue should never be used by children. Accessible parts of the barbecue may be very hot.

Keep young children away while it is in use.

 You should exercise reasonable care when operating your Weber® gas barbecue. It will be hot during cooking or

cleaning and should never be left unattended, or moved while in operation.

 Should the burners go out while in operation, turn all gas valves off. Open the lid and wait ﬁ ve minutes before

attempting to relight, using the lighting instructions.

 Do not use charcoal or lava rock in your Weber® gas barbecue.  Never lean over open grill or place hands or ﬁ ngers on the front edge of the cooking box.  Should a grease ﬁ re occur, turn off all burners and leave lid closed until ﬁ re is out.  Do not enlarge valve oriﬁ ces or burner ports when cleaning the valves or burners.  The Weber® gas barbecue should be thoroughly cleaned on a regular basis.  Liquid propane gas is not natural gas. The conversion or attempted use of natural gas in a liquid propane unit or

liquid propane gas in a natural gas unit is dangerous and will void your warranty.

 Do not attempt to disconnect any gas ﬁ tting while your barbecue is in operation.  Use heat-resistant barbecue mitts or gloves when operating barbecue.  Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.  Combustion byproducts produced when using this product contain chemicals known to the state of California to

cause cancer, birth defects, or other reproductive harm.

 Do not use this barbecue unless all parts are in place. The unit must be properly assembled according to the

instructions outlined in the “Assembly Instructions”.

LIQUID PROPANE GAS UNITS ONLY:

 Use the regulator that is supplied with your Weber® gas barbecue.  Do not attempt to disconnect the gas regulator or any gas ﬁ tting while your barbecue is in operation.  A dented or rusty liquid propane cylinder may be hazardous and should be checked by your liquid propane

supplier. Do not use a liquid propane cylinder with a damaged valve.

 Although your liquid propane cylinder may appear to be empty, gas may still be present, and the cylinder should

be transported and stored accordingly.

 If you see, smell or hear the hiss of escaping gas from the liquid propane cylinder:

1. Move away from liquid propane cylinder.

2. Do not attempt to correct the problem yourself.

3. Call your ﬁ re department.

WARRANTY

Weber-Stephen Products Co. (Weber) hereby warrants to the ORIGINAL PURCHASER of this Weber® gas grill that it will be free of defects in material and workmanship from the date of purchase as follows:

when assembled and operated in accordance with the printed instructions accompanying it.

Aluminum Castings, lifetime, 1 year paint

Stainless Steel Hood Section, 25 years Porcelain Hood Section, 25 years Burners, 10 years Igniter, 3 years Porcelain Enameled Cooking Grates, 3 years no rust through Porcelain Enameled Cast Iron Cooking Grates, 5 years no rust through Stainless Steel Cooking Grates, 7 years no rust through Porcelain Enameled Flavorizer® Bars, 1 year no rust

There are no other express warrants except as set forth herein and any applicable implied warranties of merchantability and ﬁ tness are limited in duration to the period of coverage of this express written Limited Warranty. Some regions do not allow limitation on how long an implied warranty lasts, so this limitation may not apply to you. Weber is not liable for any special, indirect or consequential damages. Some regions do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you. Weber does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on Weber. This Warranty applies only to products sold at retail.

WEBER-STEPHEN PRODUCTS CO. Customer Service Center 1890 Roselle Road, Suite 308 Schaumburg, IL 60195 USA

For replacement parts call:

1-800-446-1071 www.weber.com

through Stainless Steel Flavorizer® Bars, 5 year no rust through Thermoplastic/Thermoset Parts, 10 years Excluding fading Rotisserie and all related components, 1 year All Remaining Parts, 5 years

Weber may require reasonable proof of your date of purchase. THEREFORE, YOU SHOULD RETAIN YOUR SALES SLIP OR INVOICE. This Limited Warranty shall be limited to the repair or replacement of parts that prove defective under normal use and service and which on examination shall indicate, to Weber’s satisfaction, they are defective. Before returning any parts, contact the Customer Service Representative in your area using the contact information on our website. If Weber conﬁ rms the defect and approves the claim, Weber will elect to replace such parts without charge. If you are required to return defective parts, transportation charges must be prepaid. Weber will return parts to the purchaser, freight or postage prepaid. This Limited Warranty does not cover any failures or operating difﬁ culties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or service, or failure to perform normal and routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this owner’s manual. Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, discoloration due to exposure to chemicals either directly or in the atmosphere, is not covered by this Limited Warranty.

©2003 The following trademarks are registered in the name of Weber-Stephen Products Co., an Illinois corporation, located at 200 East Daniels Road, Palatine, Illinois 60067 U.S.A. Australia; Smokey Joe, Weber, Kettle Silhouette Grill Conﬁ guration, Botswana; Weber, Canada; Smokey Joe, Genesis, China; Kettle Silhouette France; Kettle Silhouette Smokey Joe, Weber, Japan; Smokey Joe, Weber, Korea; Smokey Joe, Weber, New Zealand; Weber, Smokey Joe, Nigeria; Weber, Norway; Smokey Joe, Weber, Portugal; Weber, South Africa: Smokey Joe, Weber, Kettle Conﬁ guration, Spain; Smokey Joe, Weber, Sweden; Kettle Silhouette Joe, Weber, United Kingdom; Smokey Joe, Weber, Weber One-Touch, U.S.A..; Kettle Conﬁ guration, Kettle Silhouette where, U.S.A.;Kettle Conﬁ guration, Kettle Silhouette, Genesis, Flavorizer, Crossover, Flamgo, Performer, Rapidﬁ re, Tuck ‘N Carry, Jumbo Joe, Bar-B-Kettle, Master-Touch, Spirit, Grill Out, Summit, Platinum, 1-800-Grill-Out, Ranch, Matchless Flame, Zimbabwe; Weber, Kettle Conﬁ guration, Kettle Silhouette

, Smokey Joe, Weber, One-Touch, Germany; Smokey Joe, Weber, One-Touch, Greece; Smokey Joe, Ireland; Kettle Silhouette®, Smokey Joe, Italy;

, Genesis, Austria; Kettle Silhouette®, Smokey Joe, Weber, Benelux; Kettle Silhouette®, Smokey Joe, Weber, Compact

, Denmark; Kettle Silhouette®, Smokey Joe, Weber, Finland; Smokey Joe,

, Smokey Joe, Switzerland; Kettle Silhouette®, Smokey

, Smokey Joe, Weber, One-Touch, Firespice, Go-Any-

GENERAL INSTRUCTIONS

Your Weber® gas barbecue is a portable outdoor cooking appliance. With the Weber® gas barbecue you can grill, barbecue, roast and bake with results that are difﬁ cult to duplicate with indoor kitchen appliances. The closed lid and Flavorizer® Bars produce that “outdoor” ﬂ avor in the food. The Weber® gas barbecue is portable so you can easily change its location in your yard or on your patio. Portability means you can take your Weber® gas barbecue with, if you move. Liquid Propane (LP) gas supply is easy to use and gives you more cooking control than charcoal fuel.

• These instructions will give you the minimum requirements for assembling your Weber® gas barbecue. Please read the instructions carefully before using your Weber® gas barbecue. Improper assembly can be dangerous.

• Not for use by children.

• If there are local codes that apply to portable gas grills, you will have to conform to them. If there are no local codes, you must conform to the latest edition of the National Fuel Gas Code: ANSI Z 223.1/NFPA 54, or CAN/CGA-B149.1, Natural Gas and Propane Installation Code.

• The pressure regulator supplied with the Weber® gas barbecue must be used. This regulator is set for 10.5 inches of water column (pressure).

• This Weber® gas barbecue is designed for use with liquid propane (LP) gas only. Do not use with natural (piped in city) gas. The valves, oriﬁ ces, hose and regulator are for LP gas only.

• Do not use with charcoal fuel.

• Check that the area under the control panel and the bottom tray are free from debris that might obstruct the ﬂ ow of combustion or ventilation air.

• The areas around the LP cylinder must be free and clear from debris.

• Replacement pressure regulators and hose assemblies must be those speciﬁ ed by the outdoor cooking gas appliance manufacturer.

FOR INSTALLATION IN CANADA

These instructions, while generally acceptable, do not necessarily comply with the Canadian Installation codes, particularly with piping above and below ground. In Canada the installation of this appliance must comply with local codes and/or Standard CAN/CGA-B149.2 (Installation Code for Propane Burning Appliances and Equipment).

STORAGE AND/OR NONUSE

• The gas must be turned off at the liquid propane cylinder when the Weber®

gas barbecue is not in use.

• When the Weber® gas barbecue is stored indoors, the gas supply must be

DISCONNECTED and the LP cylinder stored outdoors in a well-ventilated space.

• LP cylinder must be stored outdoors in a well -ventilated area out of reach

of children. Disconnected LP cylinder must not be stored in a building, garage or any other enclosed area.

• When the LP cylinder is not disconnected from the Weber® gas barbecue,

the appliance and LP tank must be kept outdoors in a well-ventilated space.

• The Weber® gas barbecue should be checked for gas leaks and any

obstructions in the burner tubes before using. (See Sections: “General Maintenance and Annual Maintenance.”)

• Check that the areas under the control panel and the slide out bottom tray

are free from debris that might obstruct the ﬂ ow of combustion or ventilation air.

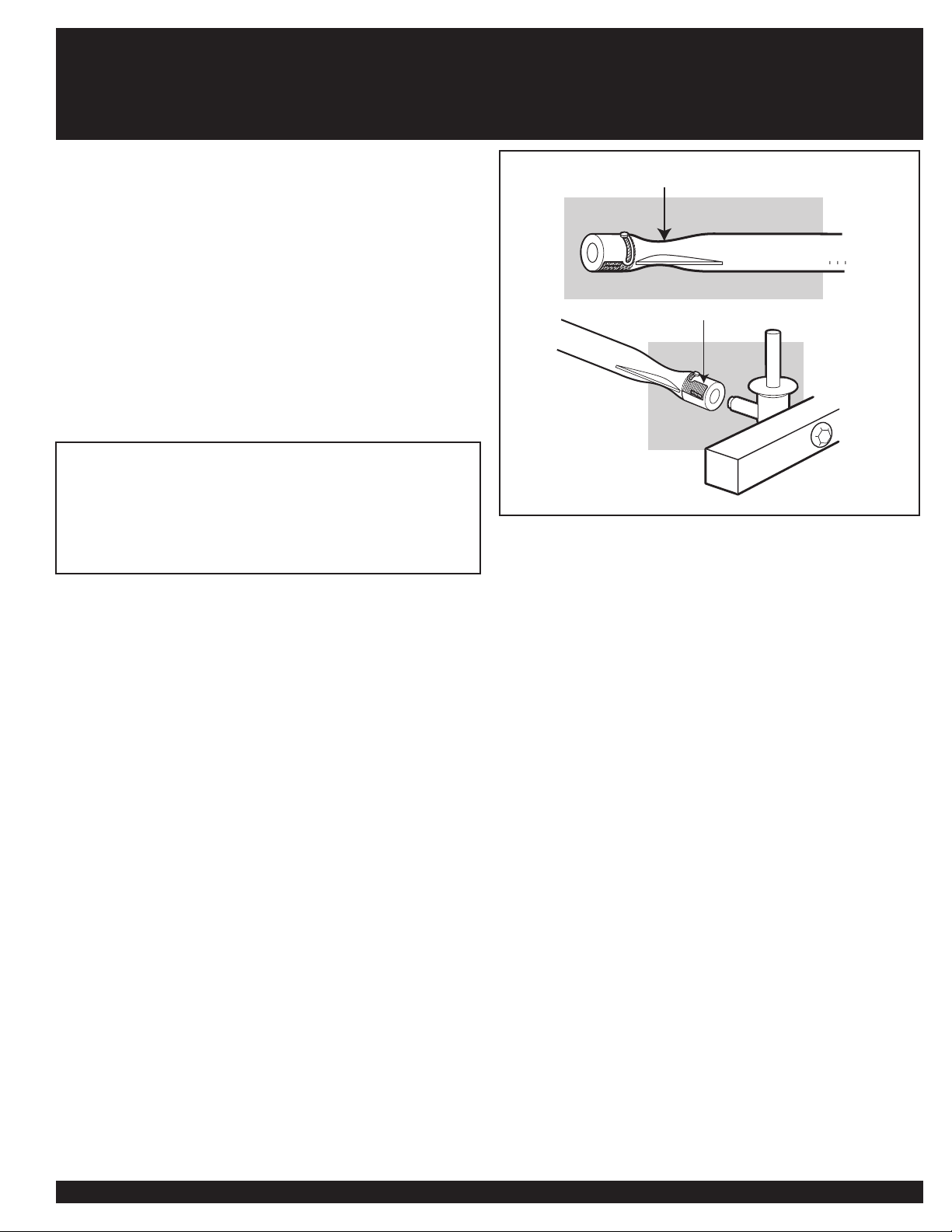

• The Spider /Insect Screens should also be checked for any obstructions.

(See Section: "Annual Maintenance.")

OPERATING

 WARNING: Only use this barbecue outdoors in a

well-ventilated area. Do not use in a garage, building, breezeway or any other enclosed area.

 WARNING: Your Weber® gas barbecue shall not be

used under overhead combustible construction.

 WARNING: Your Weber® gas barbecue is not intended

to be installed in or on recreational vehicles and/or boats.

 WARNING: Do not use the barbecue within 24 inches

of combustible materials, top, bottom, back or sides of the grill.

 WARNING: The entire cooking box gets hot when in

use. Do not leave unattended.

 WARNING: Keep any electrical supply cord and the

fuel supply hose away from any heated surface.

 WARNING: Keep the cooking area clear of ﬂ ammable

vapors and liquids such as gasoline, alcohol, etc., and combustible materials.

 WARNING: Never store an extra (spare) LP cylinder

under or near the Weber

gas barbecue.

 WARNING: The LP cylinder used with your barbecue

must be with an OPD (Overﬁ lling Prevention Device) and a QCC1 or Type 1 (CGA810) cylinder connection. The cylinder connection must be compatible with the barbecue connection.

GENERAL INSTRUCTIONS

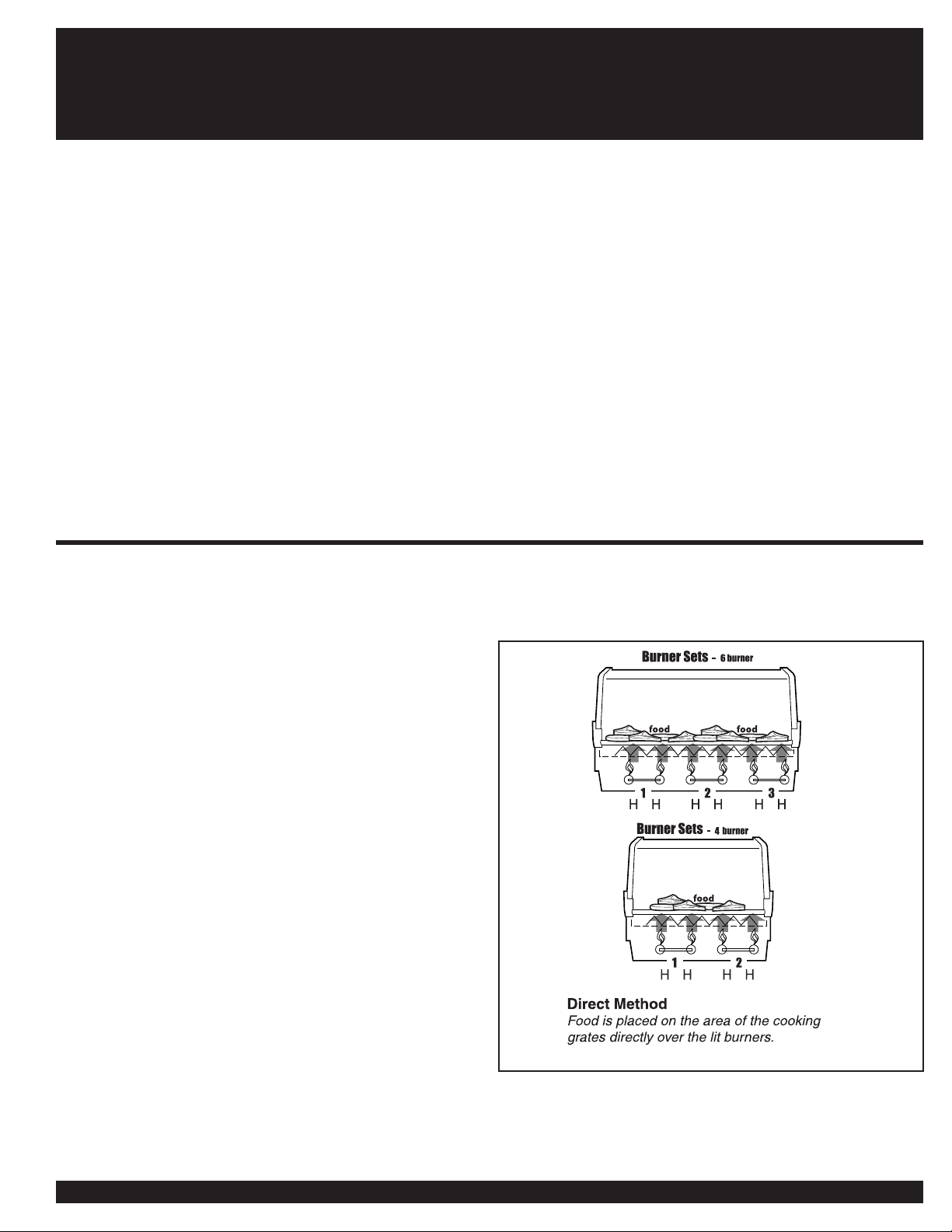

GRILLING METHODS

NOTE: If grill looses heat while cooking refer to the troubleshooting section of this manual.

 WARNING: Do not move the Weber® gas barbecue

when operating or while barbecue is hot.

You can adjust the Left and Right burners in each burner set as desired. The control settings are High (H), Medium (M), Low (L), or Off (O).

Note: The temperature inside your cooking box for the ﬁ rst few uses, while surfaces are still very reﬂ ective, may be hotter than those shown in your cookbook. Cooking conditions. Such as wind and weather, may require the adjustment of the burner controls to obtain the correct cooking temperatures.

If burners go out during cooking, open lid, turn off all burners and wait ﬁ ve minutes before relighting. Preheating - Your Weber® gas barbecue is an energy-efﬁ cient appliance. It

operates at an economical low BTU rate. To preheat: after lighting, close lid and turn all burners to high (HH). Preheating to between 500° and 550° F (260° and 290° C) will take 10 to 15 minutes depending on conditions such as air temperature and wind. Drippings and grease - The Flavorizer® bars are designed to “smoke” the correct amount of drippings for ﬂ avorful cooking. Excess drippings and grease will accumulate in the catch pan under the slide out bottom tray. Disposable foil drip pans are available that ﬁ t the catch pan.

 WARNING: Check the bottom tray for grease build-up

before each use. Remove excess grease to avoid a grease ﬁ re in the slide out bottom tray.

CLEANING

 WARNING: Turn your Weber® gas barbecue OFF and

wait for it to cool before cleaning.

 CAUTION: Do not clean your Flavorizer

bars or

cooking grates in a self-cleaning oven.

For availability of replacement cooking grates and Flavorizer® bars contact the Customer Service Representative in your area using the contact information on our website. Log onto www.weber.com

Outside surfaces - Use a warm soapy water solution to clean, then rinse

with water.

 CAUTION: Do not use oven cleaner, abrasive

cleansers (kitchen cleansers) cleaners that contain citrus products, or abrasive cleaning pads on barbecue or cart surfaces.

Slide out Bottom tray - Remove excess grease, then wash with warm

soapy water, then rinse

Flavorizer® bars and Cooking grates - Clean with a suitable brass bristle brush. As needed, remove from grill and wash with warm soapy water, then rinse with water.

Catch pan - Disposable foil trays are available, or you can line the catch pan with aluminum foil. To clean the catch pan, wash with warm soapy water, then rinse.

Thermometer - Wipe with warm soapy water; clean with plastic scrub ball.

Inside cooking module - Brush any debris off of burner tubes. DO NOT ENLARGE BURNER PORTS (OPENINGS). Wash inside of cooking box with

warm soapy water and a water rinse.

Inside Lid - While lid is warm, wipe inside with paper towel to prevent grease build-up. Flaking built-up grease resembles paint ﬂ akes.

Stainless steel surfaces - Wash with a soft cloth and a soap and water solution. Be careful to scrub with the grain direction of the stainless steel.

Thermoset surfaces - Wash with a soft cloth and a soap and water solution.

Do not use cleaners that contain acid, mineral spirits or xylene. Rinse well after cleaning.

Thermoset work surfaces are not to be used as cutting boards.

Preserve Your Stainless Steel

Your grill or its cabinet, lid, control panel and shelves may be made from stainless steel. To keep the stainless steel looking its best is a simple matter. Clean it with soap and water, rinse with clear water and wipe dry. For stubborn particles, the use of anon-metallic brush can be used.

IMPORTANT: Do not use a wire brush or abrasive cleaners on the stainless steel surfaces of your grill as this will cause scratches.

IMPORTANT: When cleaning surfaces be sure to rub/wipe in the direction of the grain to preserve the look of your stainless steel.

GAS INSTRUCTIONS

IMPORTANT LP CYLINDER INFORMATION

Failure to follow these DANGER statements exactly may result in a ﬁ re causing death or serious injury.

 DANGER

 NEVER store a spare LP Cylinder under or near this

barbecue.  NEVER ﬁ ll the tank beyond 80% full.

Your Weber® gas grill is equipped for a cylinder supply system designed for vapor withdrawal.

 WARNING: Only use this grill outdoors in a well-

ventilated area. Do not use in a garage, building, breezeway or any other enclosed area.

CONNECTING THE LIQUID PROPANE CYLINDER

 WARNING: Make sure that the LP cylinder valve is

closed. Close by turning valve clockwise.

The proper ﬁ lling methods for the ﬁ lling of your cylinder are by weight or volume, as described in NFPA 58. Please make sure your ﬁ lling station ﬁ lls your LP cylinder by weight or volume. Ask your ﬁ lling station to read purging and ﬁ lling instructions on the LP cylinder before attempting to ﬁ ll.

LEAK CHECK PREPARATION

CHECK THAT ALL BURNER VALVES ARE OFF

Valves are shipped in the OFF position, but you should check to be sure that they are turned OFF. Check by pushing down and turning clockwise. If they do not turn, they are off. Proceed to the next step. If they do turn continue

 DANGER

Do not use an open ﬂ ame to check for gas leaks. Be sure there are no sparks or open ﬂ ames in the area while you check for leaks. Sparks or ﬂ ames will result in a ﬁ re or explosion which can cause serious bodily injury or death, and damage to property.

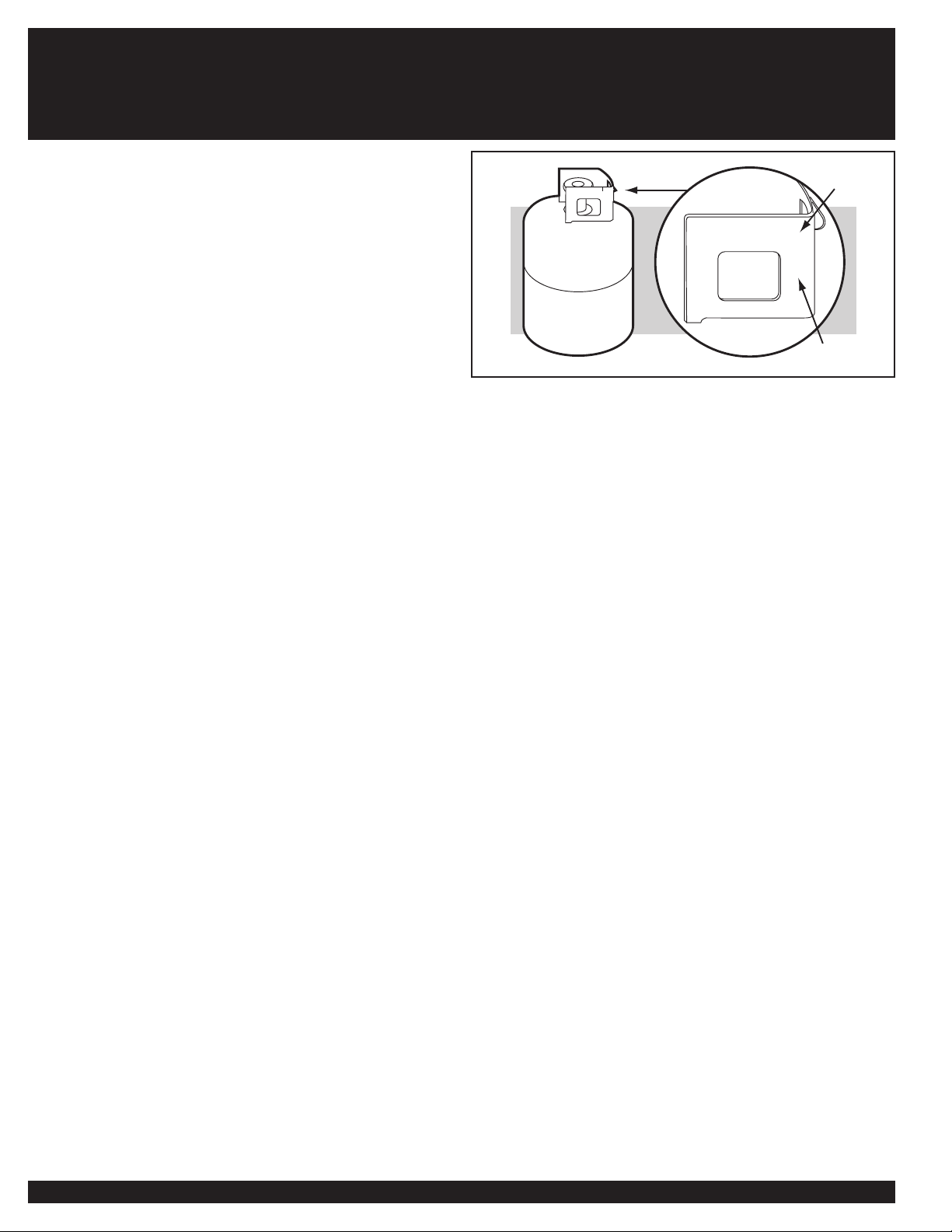

Some LP tanks have differing top collar assembles. (The top collar is the metal protective ring around the valve.) One series of tanks mount with the valve facing front. The other tanks mount with the valve facing away from the fuel scale. These types of tanks are illustrated below.

You will need: LP cylinder, a soap and water solution and a rag or brush to apply it.

1) Turn the LP cylinder so the opening of the valve is either to the front, side or rear of the Weber® gas barbecue. Lift and hook the cylinder onto the fuel gauge.

2) Loosen the cylinder lock wing nut. Swing the cylinder lock down. Tighten the wing nut.

To Connect the hose to the cylinder:

3) Remove the plastic dust cover from the valve.

4) Screw the regulator coupling onto the tank valve, clockwise, or to the right. Hand-tighten only.

GAS INSTRUCTIONS

Note: This connection tightens clockwise and will not allow gas to ﬂ ow unless the connection is tight. The connection requires tightening by hand only.

 WARNING: Do not use a wrench to tighten the

connection. Using a wrench could damage the regulator coupling and could cause a leak.

5) Mix soap and water.

6) Turn on the cylinder valve.

7) Check for leaks by wetting the ﬁ tting with the soap and water solution and watching for bubbles. If bubbles form, or if a bubble grows, there is a leak.

If there is a leak, turn off the gas and tighten the ﬁ tting. Turn the gas back on and recheck with the soap and water solution.

If leak does not stop, Contact the Customer Service at 1-800-446-1071 or locate the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com®. Do not use the barbecue.

8) When leak checking is complete, turn gas supply OFF at the source and rinse connections with water.

CHECK FOR GAS LEAKS

WARNING : The gas connections of your Summit

gas grill have been factory tested. We do however recommend that you leak check all gas connections before operating your Summit

REMOVE CONTROL PANEL

Part required: Phillips Screwdriver.

Remove the burner control knobs (1). The screws (2) need to be removed from the control panel (3) before the control panel is removed from the grill.

gas grill.

(1)

(2)

(3)

GAS INSTRUCTIONS

Put your ﬁ ngers under the front edge of the control panel and lift off. Completely remove the control panel (4) from the cooking box assembly exposing the valves, burners, igniter, and manifold. Remove the Front Panel by sliding the panel up and out of the slots.

(2)

(4)

CHECK FOR GAS LEAKS

 DANGER

Do not use an open ﬂ ame to check for gas leaks. Be sure there are no sparks or open ﬂ ames in the area while you check for leaks. Sparks or open ﬂ ames will result in a ﬁ re or explosion, which can cause serious bodily injury or death and damage to property.

 WARNING: You should check for gas leaks every time

you disconnect and reconnect a gas ﬁ tting.

Note - All factory-made connections have been thoroughly checked for gas leaks. The burners have been ﬂ ame-tested. As a safety precaution however, you should recheck all ﬁ ttings for leaks before using your Weber Gas Barbecue. Shipping and handling may loosen or damage a gas ﬁ tting.

 WARNING: Perform these leak checks even if your

barbecue was dealer or store assembled.

You will need: a soap and water solution, and a rag or brush to apply it. Note - Since some leak test solutions, including soap and water, may be slightly corrosive, all connections should be rinsed with water after checking for leaks.

Make sure side burner is OFF.

To perform leak checks: open cylinder valve by turning the cylinder valve hand-wheel counterclockwise.

 WARNING: Do not ignite burners when leak checking.

Check for leaks by wetting the connections with the soap and water solution and watching for bubbles. If bubbles form or if a bubble grows, there is a leak.

GAS INSTRUCTIONS

Check:

1) Hose connection.

2) Gas line to manifold connections.

 WARNING: If there is a leak at connection (1, or 2),

retighten the ﬁ tting with a wrench and recheck for

leaks with soap and water solution. If a leak persists after re-tightening the ﬁ tting, turn OFF the gas. DO NOT OPERATE THE GRILL. Contact

the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com

3) Regulator to cylinder connection.

4) Hose to regulator connection.

5) Valves to manifold connections.

 WARNING: If there is a leak at connections (3,4, or 5), turn OFF the gas. DO NOT OPERATE THE GRILL. Contact

the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com

When leak checks are complete, turn gas supply OFF at the source and rinse connections with water.

SUMMIT® A

(2)

(5)

(4)

(1)

(3)

Check:

1) Hose connection.

2) Gas line to manifold connections.

3) I.R. Burner gas line connection.

 WARNING: If there is a leak at connection (1,2, or 3),

retighten the ﬁ tting with a wrench and recheck for

leaks with soap and water solution. If a leak persists after re-tightening the ﬁ tting, turn OFF the gas. DO NOT OPERATE THE GRILL. Contact the

Customer Service Representative in your area using the contact information on our web site. Log onto www. weber.com®.

4) Side burner hose to manifold connection

5) Side burner hose to side burner connection, and sideburner valve to

oriﬁ ce

6) Regulator to cylinder connection.

7) Hose to regulator connection.

8) Valves to manifold connections.

 WARNING: If there is a leak at connections (4,5,6,7, or 8), turn OFF the gas. DO NOT OPERATE THE GRILL.

Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com®.

When leak checks are complete, turn gas supply OFF at the source and rinse connections with water.

*The grill illustrated may have slight differences than the model purchased.

SUMMIT

(2)

(3)

B, C, D

(8)

(1)

(4)

(6)(7)

*The grill illustrated may have slight differences than the model purchased.

GAS INSTRUCTIONS

REINSTALL CONTROL PANEL

Parts required: control panel, screws, and burner control knobs.

Place the control panel back onto the control panel brackets on either side of the front of the cooking box. Line up screws with screw holes on both the control panel and control panel brackets. Tighten screws. Reinstall burner control knobs & igniter wires (if necessary). Place corresponding control knobs down onto the valve stems. From the underside of the control panel, replace the two wires (1, 2) of each igniter.

GRILLING METHODS

NOTE: If grill looses heat while cooking refer to the troubleshooting section of this manual.

You can adjust the Left and Right burners in each burner set as desired. The control settings are High (H), Medium (M), Low (L), or Off (O).

If burners go out during cooking, turn off all burners and wait 5 minutes before relighting.

WARNING: Check the bottom tray and catch pan for grease build-up before each use. Remove excess grease to avoid a grease ﬁ re in the bottom tray.

Gold A4

(1)

(2)

Gold B4

Preheating

Preheating the grill before grilling is important. Light your Summit® gas grill according to the instructions in this Owner’s Manual. Turn both burners

in each burner set to High (HH), close the lid, and preheat grill with the lid down until grill thermometer reaches 550ºF (260˚-288˚C).This is the recommended broiling temperature. This will take approximately

10 to 15 minutes, depending on outside temperatures.

Covered cooking

All grilling is done with the lid down to provide uniform, evenly circulated heat. With the lid closed, the Summit® gas grill cooks much like a convection oven. The thermometer in the lid indicates the cooking temperature inside the grill. All preheating and grilling is done with the lid down. No peeking — heat is lost every time you lift the lid.

Flavorizer® system

When meat juices drip from the food onto the specially angled Flavorizer® bars, they create smoke that gives foods an irresistible barbecued ﬂ avor. Thanks to the unique design of the burners, Flavorizer® bars and the ﬂ exible temperature controls, uncontrolled ﬂ are-ups are virtually eliminated, because YOU control the ﬂ ames. Because of the special design of the Flavorizer® bars and burners, excess fats are directed through the funnel-shaped bottom tray into the grease catch pan.

a = Yellow Tab with Black Wire b = White Tab with Black Wire

Gold C4

a = Blue Tab with Black Wire b = Yellow Tab with Black Wire c = White Tab with Black Wire d = Solid White Wire

a = Yellow Tab with Black Wire b = White Tab with Black Wire c = Solid White Wire d = Grounding Wire

Gold D4

a = Blue Tab with Black Wire b = Yellow Tab with Black Wire c = White Tab with Black Wire d = Solid White Wire e = Solid Blue Wire f = Grounding Wire

GAS INSTRUCTIONS

REFILLING THE LIQUID PROPANE CYLINDER

We recommend that you reﬁ ll the LP cylinder before it is completely empty.

Removal of the LP cylinder

1) Close cylinder valve (turn clockwise).

2) Unscrew regulator coupling by turning counterclockwise, by hand only.

3) Loosen cylinder lock wing nut and turn cylinder lock up out of the way.

4) Lift cylinder off. To reﬁ ll, take LP cylinder to a “Gas Propane” dealer.

 WARNING: We recommend that your LP cylinder be

ﬁ lled at an authorized LP gas dealer, by a qualiﬁ ed

attendant, who ﬁ lls the cylinder by weight. IMPROPER

FILLING IS DANGEROUS.  CAUTION: When transporting the LP cylinder make

sure the plastic dust cover is in place over the valve.

This will keep dust and dirt from the threaded portion

of the valve.

(1)

(3)

(2)

CHECKING THE FUEL LEVEL IN YOUR TANK

Check the fuel level by viewing the color indicator level line on the side of the tank scale.

1) Empty

2) Medium

3) Full

SAFE HANDLING TIPS FOR LIQUID PROPANE GAS CYLINDERS

• Liquid Propane (LP) gas is a petroleum product as are gasoline and

natural gas. LP gas is a gas at regular temperatures and pressures.

Under moderate pressure, inside a cylinder, LP gas is a liquid. As the

pressure is released, the liquid readily vaporizes and becomes gas.

• LP gas has an odor similar to natural gas. You should be aware of this

odor.

• LP gas is heavier than air. Leaking LP gas may collect in low areas and

prevent dispersion.

• To ﬁ ll, take the LP cylinder to an RV center, or look up “gas-propane” in

the phone book for other sources of LP gas.

 WARNING: We recommend that your LP cylinder be

ﬁ lled at an authorized LP gas dealer, by a qualiﬁ ed

attendant, who ﬁ lls the tank by weight. IMPROPER

FILLING IS DANGEROUS.

• Air must be removed from a new LP cylinder before the initial ﬁ lling. Your

LP dealer is equipped to do this.

• The LP cylinder must be installed, transported and stored in an upright

position. LP cylinders should not be dropped or handled roughly.

• Never store or transport the LP cylinder where temperatures can reach

125° F (too hot to hold by hand - for example: do not leave the LP

cylinder in a car on a hot day).

Note - A reﬁ ll will last about 20 hours of cooking time at normal use. The fuel scale will indicate the propane supply so you can reﬁ ll before running out. You do not have to run out before you reﬁ ll.

(1)

(2)

(3)

+ 25 hidden pages
