Weber 100, 200, 220, 120, 827020 User Manual 2

LP Gas Grill Owner’s Guide

ESNA

Guía del Propietario del Asador de Gas Propano Licuado - Pg. 17

• Assembly - Pg. 8

Ensamblaje - Pg. 8 Mode d'Emploi du Grill à Gaz PL - Pg. 29

Assemblage - Pg. 8

PLACE STICKER HERE

#59779

m DANGER

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, keep away from the appliance and immediately call your fire department.

Failure to follow these instructions could

result in fire or explosion, which could

cause property damage, personal injury or death.

THIS GAS APPLIANCE IS INTENDED FOR OUTDOOR USE ONLY.

m This instruction manual contains important information necessary for the proper assembly

and safe use of the appliance.

m Read and follow all warnings and instructions before assembling and using the appliance. m Follow all warnings and instructions when using the appliance. m Keep this manual for future reference.

1. Never operate this appliance unattended.

2. Never operate this appliance within 10

ft (3 m) of any structure, combustible material or other gas cylinder.

3. Never operate this appliance within 25 ft (7.5 m) of any flammable liquid.

4. If a fire should occur, keep away from the appliance and immediately call your fire

department. Do not attempt to extinguish

an oil or grease fire with water.

Failure to follow these instructions could

result in fire, explosion or burn hazard,

which could cause property damage, personal injury or death.

m DANGER

59779 09/01/11 LP

US - ENGLISH

DANGERS AND WARNINGS

m Follow all leak-check procedures carefully in this manual

prior to barbecue operation. Do this even if the barbecue was dealer-assembled.

m Do not store a spare or disconnected propane cylinder

under or near this barbecue.

m Improper assembly may be dangerous. Please carefully

follow the assembly instructions in this manual.

m After a period of storage, and/or nonuse, the Weber® gas

barbecue should be checked for gas leaks and burner

obstructions before use. See instructions in this manual for

correct procedures.

m Do not operate the Weber® gas barbecue if there is a gas

leak present.

m Do not use a flame to check for gas leaks. m Combustible materials should never be within 24 inches

(63.5cm) of the back or sides of your Weber

m Your Weber

gas barbecue should never be used by

gas barbecue.

children. Accessible parts of the barbecue may be very hot.

Keep young children away while it is in use.

m You should exercise reasonable care when operating your

Weber

gas barbecue. It will be hot during cooking or

cleaning and should never be left unattended, or moved

while in operation.

m Should the burner go out while in operation, turn the

gas valve off. Open the lid and wait five minutes before

attempting to relight, using the ignition instructions.

m Do not use charcoal or lava rock in your Weber® gas

barbecue.

m Never lean over an open grill or place hands or fingers on

the front edge of the cookbox.

m Should a grease fire occur, turn off the burner and leave lid

closed until fire is out.

m Do not enlarge valve orifice or burner ports when cleaning

the valve or burner.

m The Weber® gas barbecue should be thoroughly cleaned on

a regular basis.

m Use the regulator that is supplied with your Weber® gas

barbecue.

m Propane gas is not natural gas. The conversion or attempted

use of natural gas in a propane unit or propane gas in a

natural gas unit is dangerous and will void your warranty.

m Do not attempt to disconnect any gas fitting while your

barbecue is in operation.

m Use heat-resistant barbecue mitts or gloves when operating

the barbecue.

m Keep any electrical supply cord away from any heated

surfaces.

m Combustion byproducts produced when using this product

contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm.

m Do not use this barbecue unless all parts are in place.

The unit must be properly assembled according to the

instructions outlined in the “Assembly” instruction section

of the Owner’s Guide.

m Do not use the Weber

® Q®

grill in a vehicle trunk, station wagon, mini-van, sport utility vehicle (SUV), or recreational vehicle (RV).

m Do not attempt to disconnect the gas regulator or any gas

fitting while your barbecue is in operation.

m Do not build this model of grill in any built-in or slide in

construction. Ignoring this Warning could cause a fire or an explosion that can damage property and cause serious

bodily injury or death.

m Proposition 65 Warning: Handling the brass material on

this product exposes you to lead, a chemical known to the state of California to cause cancer, birth defects or other reproductive harm. (Wash hands after handling this

product.)

m If you see, smell or hear the hiss of escaping gas from the

propane cylinder:

1. Move away from propane cylinder.

2. Do not attempt to correct the problem yourself.

3. Call your fire department.

TAbLE oF coNTENTS

DANGERS AND WARNINGS ............................2

TAbLE oF coNTENTS .................................3

EXPLoDED VIEW Q100 ................................4

EXPLoDED VIEW Q120 ................................5

EXPLoDED VIEW Q200 ................................6

EXPLoDED VIEW Q220 ................................7

PARTS LIST .........................................8

ASSEmbLY ..........................................8

WARRANTY .........................................9

GENERAL INSTRUcTIoNS .............................9

CANADIAN INSTALLATION ..........................................9

OPERATING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

STORAGE AND/OR NONUSE ........................................9

GAS INSTRUcTIoNS .................................10

ATTACH THE PROPANE CYLINDER .................................. 10

CHECK FOR GAS LEAKS .......................................... 10

bEFoRE USING THE bARbEcUE .......................11

CATCH PAN AND DISPOSABLE DRIP PAN ............................ 11

IGNITER INSPECTION FOR MODELS WITH ELECTRONIC IGNITION ...... 11

IGNITIoN INSTRUcTIoNS .............................12

IGNITION .......................................................12

TO EXTINGUISH .................................................12

MANUAL IGNITION ...............................................13

TO EXTINGUISH .................................................13

GRILLING TIPS & HELPFUL HINTS .....................13

PREHEATING THE BARBECUE ..................................... 13

COOKING ......................................................13

TRoUbLESHooTING .................................14

mAINTENANcE .....................................14

CLEANING ...................................................... 14

SPIDER/INSECT SCREENS ................................14

WEBER

BURNER TUBE CLEANING OR REPLACEMENT ....................... 15

PUSH-BUTTON IGNITION SYSTEM OPERATIONS (Q100 & Q200) .........16

ELECTRONIC IGNITION SYSTEM OPERATIONS (Q120&Q220) ........... 16

ELECTRONIC IGNITION SYSTEM REPLACEMENT ..................... 16

ANNUAL MAINTENANCE ..........................................16

WWW.WEbER.com

EXPLoDED VIEW Q100

2 3

• DIAGRAmA DE DESPIEcE Q100 • VUE EcLATEE Q100

1. Lid

Q100_US_LP_090111

Tapa Couvercle

2. Handle Spacer

Espaciador del asa Ecarteur de poignée

3. Handle

Asa Poignée

4. Cooking Grate

Rejilla de cocción Grille de cuisson

5. Igniter Electrode Assembly

Ensamble del electrodo encendedor Assemblage de l’électrode de l’allumeur

6. Burner Tube

Tubo del quemador Tube du brûleur

7. Cookbox

Caja de cocción Boîtier de cuisson

8. Carrying Handle

Asa de carga Poignée de transport

9. Rear Cradle

Jaula posterior Berceau arrière

10. Front Cradle

Jaula delantera Berceau avant

11. Igniter

Encendedor Allumeur

12. Valve and Regulator Assembly

Ensamble de la válvula y regulador Assemblage valve et régulateur

13. Disposable Drip Pan

Bandeja de goteo desechable Egouttoir jetable

14. Catch Pan

Plato recolector Egouttoir

15. Control Panel

Tablero de control Panneau de commande

16. Control Knob

Perilla de control Bouton de commande

EXPLoDED VIEW Q120

3 4

• DIAGRAmA DE DESPIEcE Q120 • VUE EcLATEE Q120

1. Lid

Q120_US_LP_090111

Tapa Couvercle

2. Thermometer

Termómetro Thermomètre

3. Handle Spacer

Espaciador del asa Ecarteur de poignée

4. Handle

Asa Poignée

5. Cooking Grate

Rejilla de cocción Grille de cuisson

6. Igniter Electrode Assembly

Ensamble del electrodo encendedor Assemblage de l’électrode de l’allumeur

7. Left Side Table

Mesa lateral izquierda Tablette latérale gauche

8. Right Side Table

Mesa lateral derecha Tablette latérale droite

9. Burner Tube

Tubo del quemador Tube du brûleur

10. Cookbox

Caja de cocción Boîtier de cuisson

11. Carrying Handle

Asa de carga Poignée de transport

12. Rear Cradle

Jaula posterior Berceau arrière

13. Front Cradle

Jaula delantera Berceau avant

14. Igniter Button/Igniter Module

Módulo del botón encendedor/encendedor Bouton de l’allumeur/Module de l’allumeur

15. Valve and Regulator Assembly

Ensamble de la válvula y regulador Assemblage valve et régulateur

16. Disposable Drip Pan

Bandeja de goteo desechable Egouttoir jetable

1 7. Catch Pan

Plato recolector Egouttoir

18. Control Panel

Tablero de control Panneau de commande

19. Control Knob

Perilla de control Bouton de commande

WWW.WEbER.com

EXPLoDED VIEW Q200

2 3

• DIAGRAmA DE DESPIEcE Q200 • VUE EcLATEE Q200

1. Lid

Q200_US_LP_090111

Tapa Couvercle

2. Handle Spacer

Espaciador del asa Ecarteur de poignée

3. Handle

Asa Poignée

4. Cooking Grate

Rejilla de cocción Grille de cuisson

5. Igniter Electrode Assembly

Ensamble del electrodo encendedor Assemblage de l’électrode de l’allumeur

6. Left Side Table

Mesa lateral izquierda Tablette latérale gauche

7. Right Side Table

Mesa lateral derecha Tablette latérale droite

8. Burner Tube

Tubo del quemador Tube du brûleur

9. Cookbox

Caja de cocción Boîtier de cuisson

10. Carrying Handle

Asa de carga Poignée de transport

11. Rear Cradle

Jaula posterior Berceau arrière

12. Front Cradle

Jaula delantera Berceau avant

13. Igniter

Encendedor Allumeur

14. Valve and Regulator Assembly

Ensamble de la válvula y regulador Assemblage valve et régulateur

15. Disposable Drip Pan

Bandeja de goteo desechable Egouttoir jetable

16. Catch Pan

Plato recolector Egouttoir

1 7. Control Panel

Tablero de control Panneau de commande

18. Control Knob

Perilla de control Bouton de commande

EXPLoDED VIEW Q220

3 4

• DIAGRAmA DE DESPIEcE Q220 • VUE EcLATEE Q220

1. Lid

Q220_US_LP_090111

Tapa Couvercle

2. Thermometer

Termómetro Thermomètre

3. Handle Spacer

Espaciador del asa Ecarteur de poignée

4. Handle

Asa Poignée

5. Cooking Grate

Rejilla de cocción Grille de cuisson

6. Igniter Electrode Assembly

Ensamble del electrodo encendedor Assemblage de l’électrode de l’allumeur

7. Left Side Table

Mesa lateral izquierda Tablette latérale gauche

8. Right Side Table

Mesa lateral derecha Tablette latérale droite

9. Burner Tube

Tubo del quemador Tube du brûleur

10. Cookbox

Caja de cocción Boîtier de cuisson

11. Carrying Handle

Asa de carga Poignée de transport

12. Rear Cradle

Jaula posterior Berceau arrière

13. Front Cradle

Jaula delantera Berceau avant

14. Igniter Button/Igniter Module

Módulo del botón encendedor/encendedor Bouotn de l’allumeur/Module de l’allumeur

15. Valve and Regulator Assembly

Ensamble de la válvula y regulador Assemblage valve et régulateur

16. Disposable Drip Pan

Bandeja de goteo desechable Egouttoir jetable

1 7. Catch Pan

Plato recolector Egouttoir

18. Control Panel

Tablero de control Panneau de commande

19. Control Knob

Perilla de control Bouton de commande

WWW.WEbER.com

PARTS LIST

• LISTA DE PARTES • LISTE DES PIEcES

Cotter Pin - 2

Clavija hendida - 2 Goupille fendue - 2

Lid - 1

Tapa - 1 Couvercle - 1

Disposable Drip Pan - 1

Bandeja de goteo desechable - 1 Egouttoir jetable - 1

Handle - 1

Asa - 1 Poignée - 1

Control Knob - 1

Perilla de control - 1 Bouton de commande - 1

Catch Pan - 1

Plato recolector - 1 Egouttoir - 1

Cooking Grate - 1

Parrilla de cocción - 1 Grille de cuisson - 1

Thermometer - 1

Termómetro - 1 Thermomètre - 1

Stainless Steel Pan Head Phillips Screw (¼-20 x 1 ½" Screw) - 2

Tornillo de cabeza plana Phillips de acero inoxidable (tornillo de ¼-20 x 1 ½”) - 2

Vis à tête cylindrique large en acier inoxydable (Vis de ¼-20 x 1 ½") - 2

Wing Nut - 1

Tuerca de mariposa - 1 Ecrou à oreilles - 1

ASSEmbLY • ENSAmbLAJE • ASSEmbLAGE

Handle Spacer - 2

Separador del asa - 2 Ecarteur de poignée - 2

Hinge Pin - 2

Pasador de bisagra - 2 Axe - 2

Electronic Ignition Button - 1

Botón de encendido electrónico - 1 Bouton d’allumage électronique - 1

2 -

1 -

2 -

1 -

2 -

1 -1 -

1 -

WARRANTY

Weber-Stephen Products LLC (Weber®) hereby warrants to the ORIGINAL PURCHASER of this Weber® gas grill that it will be free of defects in material and workmanship from the date of purchase as follows:

Aluminum Castings 5 years, 2 years paint excluding fading or discoloration

Thermoplastic/Thermoset Parts 5 years excluding fading Stationary Cart 2 years All Remaining Parts 2 years Weber may require reasonable proof of your date of purchase. THEREFORE, YOU

SHOULD RETAIN YOUR SALES RECEIPT OR INVOICE. This Limited Warranty shall be limited to the repair or replacement of parts that prove

defective under normal use and service and which on examination shall indicate, to Weber’s satisfaction, they are defective. Before returning any parts, contact the Customer Service Representative in your region using the contact information sheet provided with your manual. If Weber confirms the defect and approves the claim, Weber will elect to replace such parts without charge. If you are required to return defective parts, transportation charges must be prepaid. Weber will return parts to the purchaser, freight or postage prepaid.

This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or service, or failure to perform normal and routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this Owner’s Guide.

GENERAL INSTRUcTIoNS

Your Weber® gas grill is a portable outdoor cooking appliance. With the Weber® gas grill you can grill, roast and bake with results that are difficult to duplicate with indoor kitchen appliances. The closed lid produces that “outdoor” flavor in the food.

The Weber your patio. Portability means you can take your Weber® gas grill with, if you move.

Propane gas supply is easy to use and gives you more cooking control than charcoal fuel.

• Theseinstructionswillgiveyoutheminimumrequirementsforassemblingyour

• Notforusebychildren.

• Iftherearelocalcodesthatapplytoportablegasgrills,youwillhavetoconform

• ThepressureregulatorsuppliedwiththeWeber® gas grill must be used. This

• ThisWeber® gas grill is designed for use with propane gas only. Do not use with

• Donotusewithcharcoalfuel.

• ThisWeber® gas grill is not intended for commercial use.

• Theuseofalcohol,prescriptionornon-prescriptiondrugsmayimpairtheconsumers

• ThisWeber® gas grill is not intended for and should never be used as a heater.

• DonotleavetheWeber® gas grill unattended. Keep children and pets away from the

• Checkthattheareaunderthecontrolpanelandthecatchpanarefreefromdebris

CANADIAN INSTALLATION

These instructions, while generally acceptable, do not necessarily comply with the Canadian Installation codes, particularly with piping above and below ground. In Canada the installation of this appliance must comply with local codes and/or Standard CAN/CGA-B149.1 Natural Gas and Propane Installation Code.

gas grill is portable so you can easily change its location in your yard or on

gas grill. Please read the instructions carefully before using your Weber® gas

Weber grill. Improper assembly can be dangerous.

to them. If there are no local codes, you must conform to the latest edition of the National Fuel Gas Code: ANSI Z 223.1/NFPA54.

regulator is set for 11 inches of water column (pressure).

natural (piped in city) gas. The valve and regulator is for Propane gas only.

ability to properly assemble or safely operate the appliance.

Weber® gas grill at all times.

that might obstruct the flow of combustion or ventilation air.

◆

Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, discoloration due to exposure to chemicals either directly or in the atmosphere, is not covered by this Limited Warranty.

There are no other express warrants except as set forth herein and any applicable implied warranties of merchantability and fitness are limited in duration to the period of coverage of this express written Limited Warranty. Some regions do not allow limitation on how long an implied warranty lasts, so this limitation may not apply to you.

Weber is not liable for any special, indirect or consequential damages. Some regions do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.

Weber does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on Weber

This Warranty applies only to products sold at retail.

WEBER-STEPHEN PRODUCTS LLC Customer Service Center 1890 Roselle Road, Suite 308 Schaumburg, IL, USA 60195

In order to validate your warranty, please register your grill online. Visit www.weber.com

◆

OPERATING m WARNING: Only use this grill outdoors in a well-ventilated

area. Do not use in a garage, building, breezeway or any other enclosed area.

m WARNING: Your Weber® gas grill shall not be used under

any overhead combustible construction.

m WARNING: Your Weber® gas grill is not intended to be

installed in or on recreational vehicles and/or boats.

m WARNING: Do not use the grill within 24 inches of

combustible materials.

m WARNING: The entire cookbox gets hot when in use. Do not

leave unattended.

m WARNING: Keep any electrical supply cord away from any

heated surface.

m WARNING: Keep the cooking area clear of flammable vapors

and liquids such as gasoline, alcohol, etc., and combustible

materials.

m WARNING: Never store an extra (spare) Propane cylinder

under or near the Weber® gas grill.

m WARNING: When cooking, the appliance must be on a level,

stable surface in an area clear of combustible material. An

asphalt surface (blacktop) may not be acceptable for this purpose.

◆

STORAGE AND/OR NONUSE

• WhentheWeber® gas grill is not in use, the propane cylinder must be

DISCONNECTED and the propane cylinder stored outdoors in a well-ventilated space. Place dust caps on cylinder valve outlets when cylinder is not in use.

• TheWeber® gas grill should be checked for gas leaks and any obstructions in the

burner tubes before using. Refer to “MAINTENANCE.”

• TheSpider/Insectscreenshouldalsobecheckedforanyobstructions.Referto

“MAINTENANCE.”

◆

WWW.WEbER.com

GAS INSTRUcTIoNS

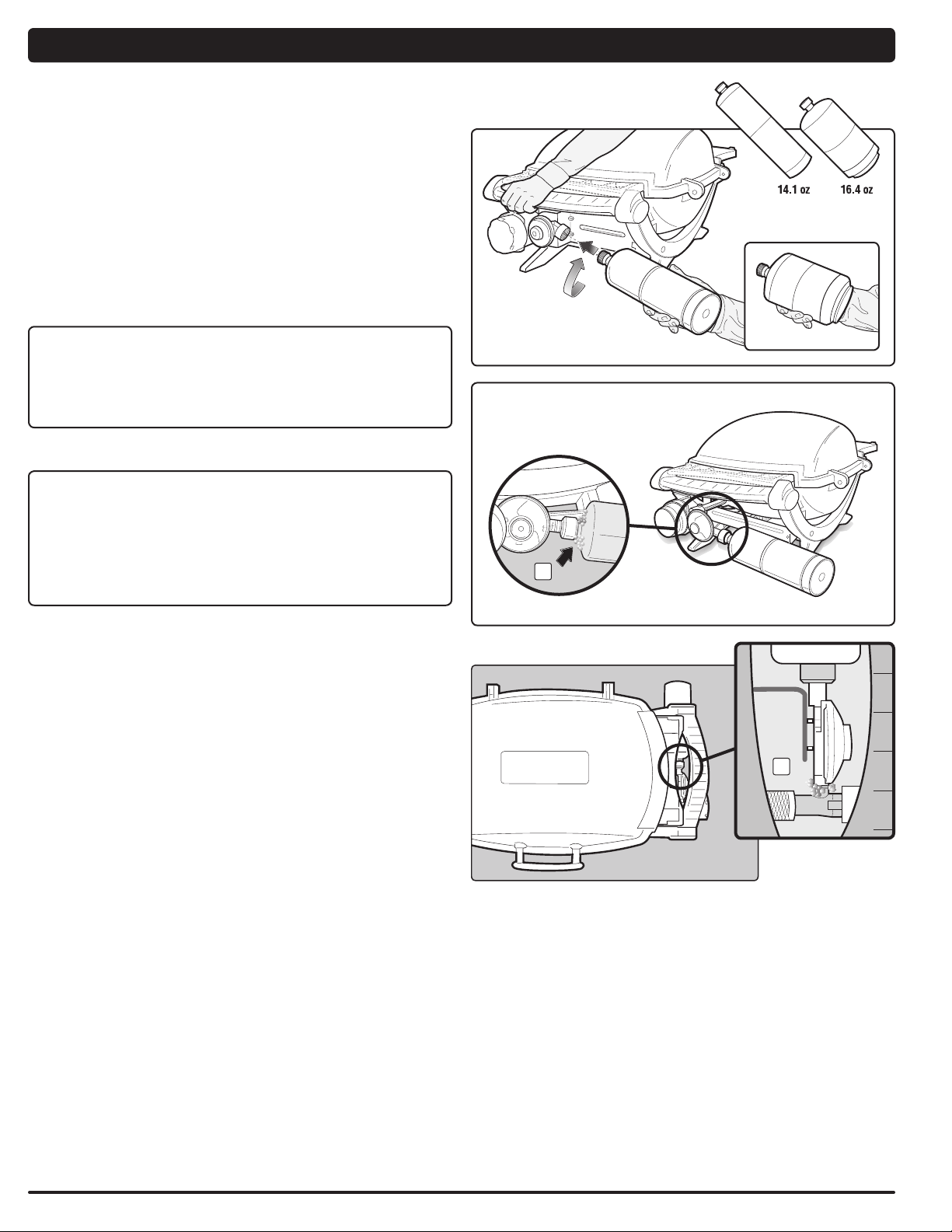

ATTACH THE PROPANE CYLINDER

Use disposable propane cylinders with a capacity of either 14.1 oz. or 16.4 oz. equipped with a CGA #600 connection.

m CAUTION: Use cylinders that are marked “Propane fuel”

only.

Note: Your Weber® gas grill is equipped with a cylinder supply system designed for vapor withdrawal.

Make sure the Burner is in the off position. While holding carrying handle closest to propane cylinder with one hand, push propane

cylinder into regulator and turn clockwise until tight.

m WARNING: Do not use a wrench to tighten the connection.

Using a wrench could damage the regulator coupling and could cause a leak.

m DANGER

Do not store a spare LP-gas cylinder under or near this appliance. If the instructions are not followed exactly, a fire

causing death or serious injury may occur.

CHECK FOR GAS LEAKS

m DANGER

Do not use an open flame to check for gas leaks. Be sure there are no sparks or open flames in the area while you

check for leaks. Sparks or flames will result in a fire or explosion which can cause serious bodily injury or death,

and damage to property.

◆

Note: All factory-made connections have been thoroughly checked for gas leaks. The burners have been flame tested. As a safety precaution however, you should recheck all fittings for leaks before using your Weber® gas grill. Shipping and handling may have loosened or damaged a gas fitting.

m WARNING: Perform these leak checks even if your grill was

dealer or store assembled.

You will need a soap and water solution and a rag or brush to apply it. To perform leak checks make sure the Burner is in the off position.

m WARNING: Do not ignite burner while leak checking.

Check for leaks by wetting the connections with the soap and water solution and watching for bubbles. If bubbles form, or if a bubble grows, there is a leak.

Check

A) Regulator-to-propane cylinder connection (1).

m WARNING: If there is a leak at connection (1), remove

propane cylinder. Do not operate grill. Use a different propane cylinder and recheck for leaks with soap and water solution. If a leak persists after retightening the propane

cylinder, remove propane cylinder. DO NOT OPERATE THE GRILL. Contact the Customer Service Representative in

your area using the contact information on our web site.

Log onto www.weber.com

B) Valve-to-regulator connections (2).

m WARNING: If there is a leak at connection (2), remove

propane cylinder. DO NOT OPERATE THE GRILL. Contact the Customer Service Representative in your area

using the contact information on our web site.

Log onto www.weber.com®.

C) When leak checks are complete, rinse connections with water.

Note: Since some leak test solutions, including soap and water, may be slightly corrosive, all connections should be rinsed with water after checking for leaks.

m WARNING: You should check for gas leaks every time you

disconnect and reconnect a gas fitting.

◆

bEFoRE USING THE bARbEcUE

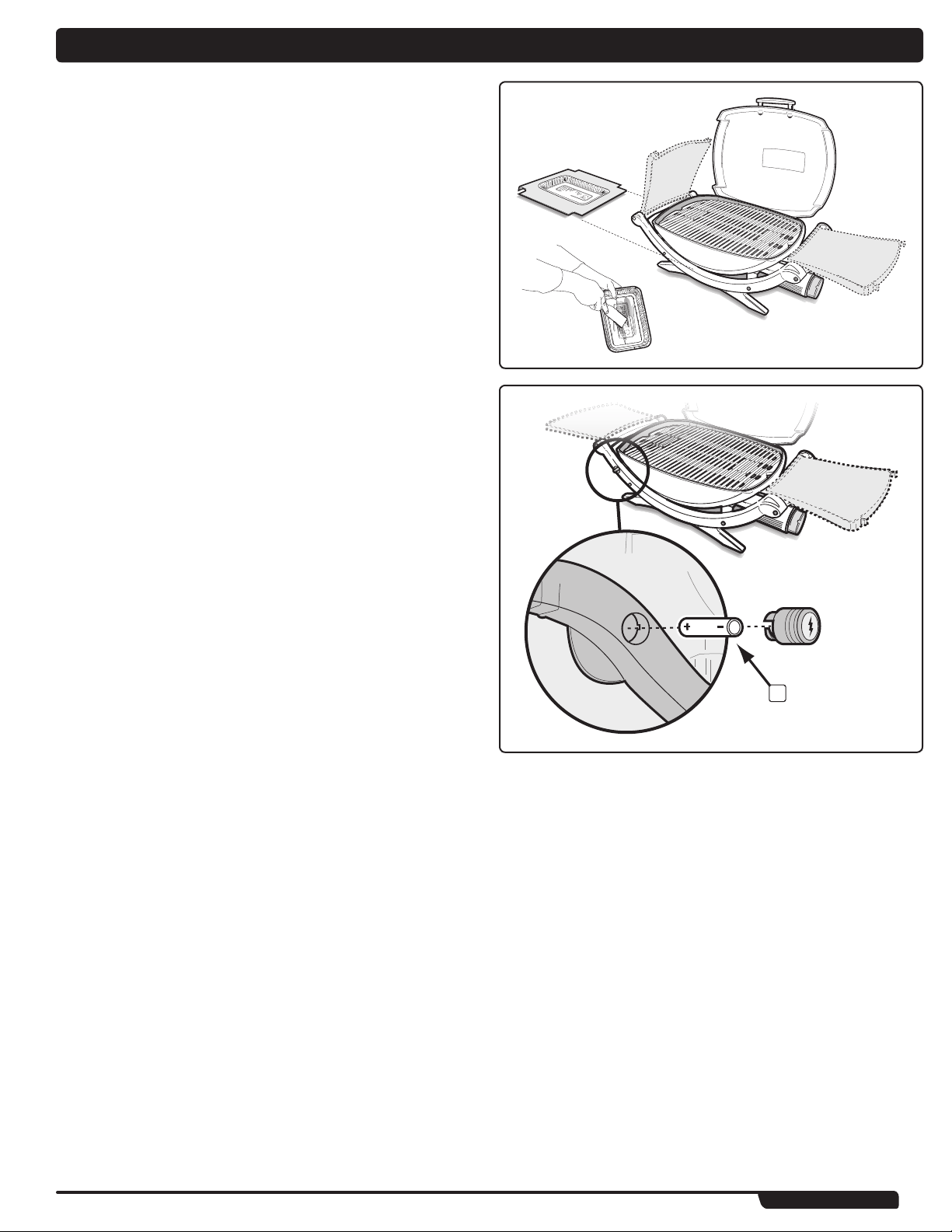

CATCH PAN AND DISPOSABLE DRIP PAN

Your grill was built with a grease collection system. Check the catch pan and disposable drip pan for grease build-up each time you use your grill.

Remove excess grease with a plastic spatula; see illustration. When necessary, wash the catch pan and drip pan with a soap and water solution, and then rinse with clean water. Replace the disposable drip pan as needed.

m WARNING: Check the catch pan and disposable drip pan for

grease build-up before each use. Remove excess grease to avoid a grease fire. A grease fire can cause serious bodily

injury or damage to property.

m CAUTION: Do not line the cookbox with aluminum foil.

IGNITER INSPECTION FOR MODELS WITH ELECTRONIC IGNITION

Verify that your AAA battery is in good condition and that it is installed correctly (1). Some batteries have a plastic protective wrap around them. This plastic must be removed. Do not confuse this plastic protective wrap with the battery label.

◆

WWW.WEbER.com

IGNITIoN INSTRUcTIoNS

IGNITION

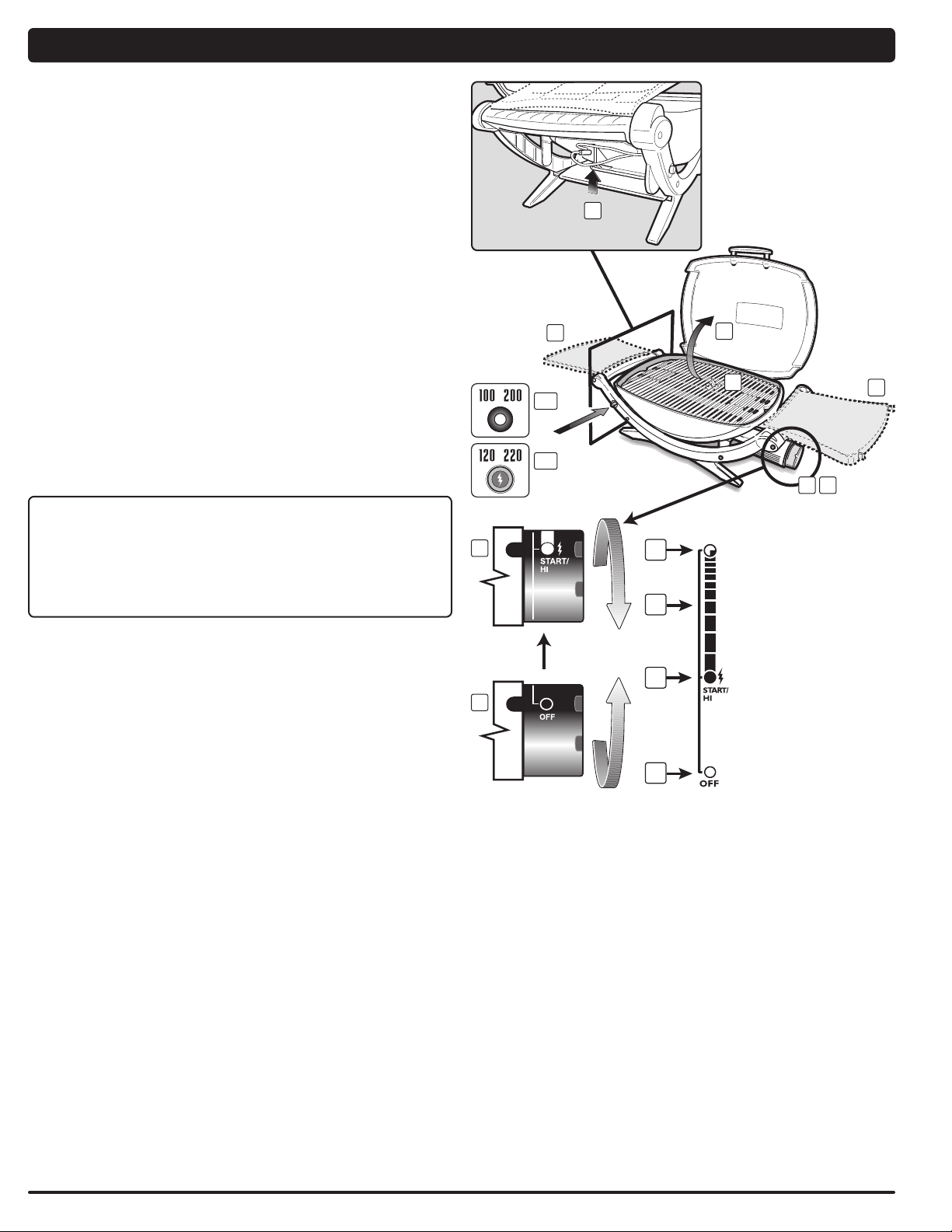

Summary lighting instructions are on the fold-out side table (Q120, 200, 220).

A) Open the lid (1). B) Unfold the side tables (2) (Q120, 200, 220). C) Make sure the control knob is turned OFF (3).

(Push control knob in and turn clockwise to ensure that it is in the OFF position.)

m WARNING: Do not lean over the open barbecue. Keep

your face and body at least 30 cm (12 in) away from the

matchlight hole when lighting the barbecue (4).

D) Push burner control knob in and turn to START/HI (5). E) Push the red ignition button several times, so it clicks each time (6a) (Q100, 200). F) Push the electronic ignition button several times.

You will hear it spark (6b) (Q120, 220).

G) Check that the burner is lit by looking down through the cooking grate. You should

see a flame (7).

m WARNING: If the burner does not light, turn the burner

control knob to OFF and wait five minutes to let the gas clear

before you try again or before you try to light with a match.

m CAUTION: Do not fold in side tables until barbecue is cold

(Q120, 200, 220).

m DANGER

Failure to open the lid while igniting the grill’s burner, or not

waiting five minutes to allow the gas to clear if the grill does not light, may result in an explosive flare-up which can cause

serious bodily injury or death.

TO EXTINGUISH

Push in and turn burner control knob clockwise to the OFF position.

◆

LOW

MEDIUM

START/HIGH

OFF

IGNITIoN INSTRUcTIoNS

MANUAL IGNITION

A) Open the lid (1). B) Unfold the side tables (2) (Q120, 200, 220). C) Make sure the control knob is turned OFF (3). D) Strike a match and put the flame into the matchlight hole under the igniter (4).

m WARNING: Do not lean over the open grill. Keep your face

and body at least one foot away from the matchlight hole when lighting the grill (4).

E) Push burner control knob in and turn to START/HI (5). F) Check that the burner is lit by looking down through the cooking grate. You should

see a flame (6).

m WARNING: If the burner does not light, turn the burner

control knob to OFF and wait five minutes to let the gas clear

before you try again or before you try to light with a match.

m CAUTION: do not fold in side tables until barbecue is cold

(Q120, 200, 220).

m DANGER

Failure to open the lid while igniting the barbecue’s burner,

or not waiting 5 minutes to allow the gas to clear if the barbecue does not light, may result in an explosive flare-up, which can cause serious bodily injury or even death.

TO EXTINGUISH

Push in and turn burner control knob clockwise to the OFF position.

◆

3 5

GRILLING TIPS & HELPFUL HINTS

PREHEATING THE BARBECUE

Light the Weber® Q® according the ignition instructions in this Owner’s Guide. Close the lid and turn the burner control knob to START/HI. Preheat the grill for 5 to10 minutes (depending on conditions such as air temperature and wind). Once the grill is preheated, set the burner control knob to the setting specified in the recipe.

m WARNING: Do not move the Weber® Q® when operating or

while the grill is hot.

Note: Wind and weather may require adjustment of the burner control knob to obtain the correct cooking temperature.

If the burner goes out during cooking, open the lid, turn off the burner, and wait five minutes before relighting.

◆

COOKING

A light coating of oil will help brown your food evenly and keep it from sticking to the cooking grate. Always brush or spray oil onto your food, not directly onto the cooking grate.

We suggest that you barbecue with the lid down. Why? Because it reduces the chance of flare-ups, and cooks your food faster and more evenly.

When using a marinade, sauce or glaze with a high sugar content or other ingredients that burn easily, only brush it onto the food during the last 5 to 10 minutes of barbecuing.

Don’t forget to regularly brush off your cooking grate and clean out the drip pan under the barbecue.

◆

For more barbecuing tips and recipes, visit www.weber.com

WWW.WEbER.com

TRoUbLESHooTING

PRobLEm cHEcK SoLUTIoN

Burner burns with a yellow or orange flame, in conjunction with the smell of gas.

Burner does not light, or flame is low in HI position. Is propane cylinder fuel low or empty? Replace propane cylinder.

Burner does not light when you push the igniter button.

Experiencing flare-ups:

m CAUTION: Do not line the cookbox

with aluminum foil.

Burner flame pattern is erratic. Flame is low when burner is on HI. Flames do not run the whole length of the burner tube.

Inside of lid appears to be “peeling.” (Resembles paint peeling.)

If problems cannot be corrected using these methods, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com

Inspect Weber® Spider/Insect screen for possible obstructions. (Blockage of holes).

Be sure that there is gas flow to the burners by attempting to match light your burners. Refer to “MANUAL IGNITION”.

Is there is a fresh battery installed? Verify that the battery is in good condition and installed

Are the wires connected properly to the ignition box? Be sure that wires are correctly inserted into terminals on

Is there plastic wrapping around the new battery? Remove plastic wrapping. Do not confuse this with the

Is burner tube positioned too far away from the igniter electrode?

Are you preheating barbecue in the prescribed manner? All burners on HI for 10 to 15 minutes for preheating.

Is the cooking grate heavily coated with burned-on grease?

Is the cookbox dirty and not allowing grease to flow into catch pan?

Are burners clean? Clean burner. Refer to “MAINTENANCE.”

The inside of the lid is Cast Aluminum, and is not painted. It cannot “peel”. What you are seeing is baked on grease that has turned to carbon and is flaking off.

THIS IS NOT A DEFECT.

Clean Weber® Spider/Insect screen. Refer to “ANNUAL MAINTENANCE.”

Refer to “GAS INSTRUCTIONS.”

If match lighting is successful, the problem lies in the ignition system. Refer to “MAINTENANCE.”

correctly. Refer to “BEFORE USING THE BARBECUE.”

ignition box. Refer to “MAINTENANCE.”

battery label.

Check that the burner tube is positioned correctly to the igniter electrode. Refer to “MAINTENANCE.”

Clean thoroughly. Refer to “CLEANING.”

Clean cookbox. Refer to “CLEANING.”

Clean thoroughly. Refer to “CLEANING.”

mAINTENANcE

CLEANING m WARNING: Turn your Weber® gas barbecue OFF and wait for

it to cool before cleaning.

Outside surfaces - Use a warm soapy water solution to clean, then rinse with water.

m CAUTION: Do not use oven cleaner, abrasive cleaning

products (kitchen cleaning products), cleaners that contain

citrus products, or abrasive cleaning pads on barbecue.

Cooking grate - Clean with a suitable stainless steel bristle brush. As needed, remove

from barbecue and wash with warm soapy water, then rinse with water. For availability of replacement cooking grate contact the Customer Service

Representative in your region using the contact information on our web site. Log onto www.weber.com

Catch pan - Disposable foil trays are available, or you can line the catch pan with aluminum foil. To clean the catch pan, wash with warm soapy water, then rinse.

Inside cookbox - Brush any debris off burner tubes. DO NOT ENLARGE BURNER PORTS (OPENINGS). Wash the inside of cookbox with warm soapy water and rinse

with water. Inside lid - While lid is warm, wipe inside with paper towel to prevent grease build-up.

Flaking built-up grease resembles paint flakes.

Side tables (Q120, 200, 220) - Wash with a soft cloth and a soap-and-water solution. Do not use cleaners that contain acid, mineral spirits or xylene. Rinse well after cleaning. Side tables (Q120, 200, 220) are not to be used as cutting boards.

◆

WEBER® SPIDER/INSECT SCREENS

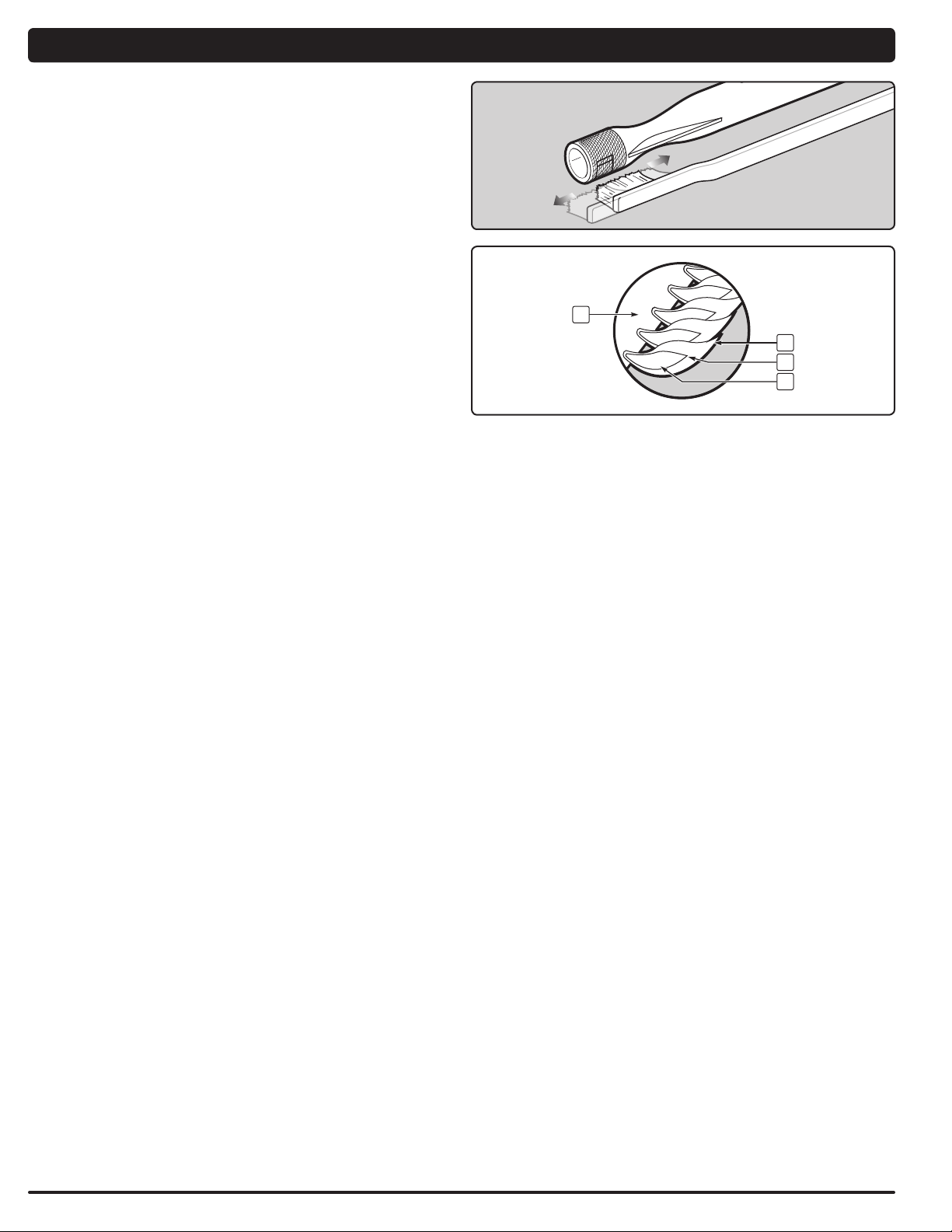

Your Weber® gas grill, as well as any outdoor gas appliance, is a target for spiders and other insects. They can nest in the venturi section (1) of the burner tube. This blocks the normal gas flow, and can cause the gas to flow back out of the air shutter. This could result in a fire in and around the air shutter, causing serious damage to your grill.

The burner tube air shutter is fitted with a stainless steel screen (2) to prevent spiders and other insects access to the burner tube through the air shutter openings.

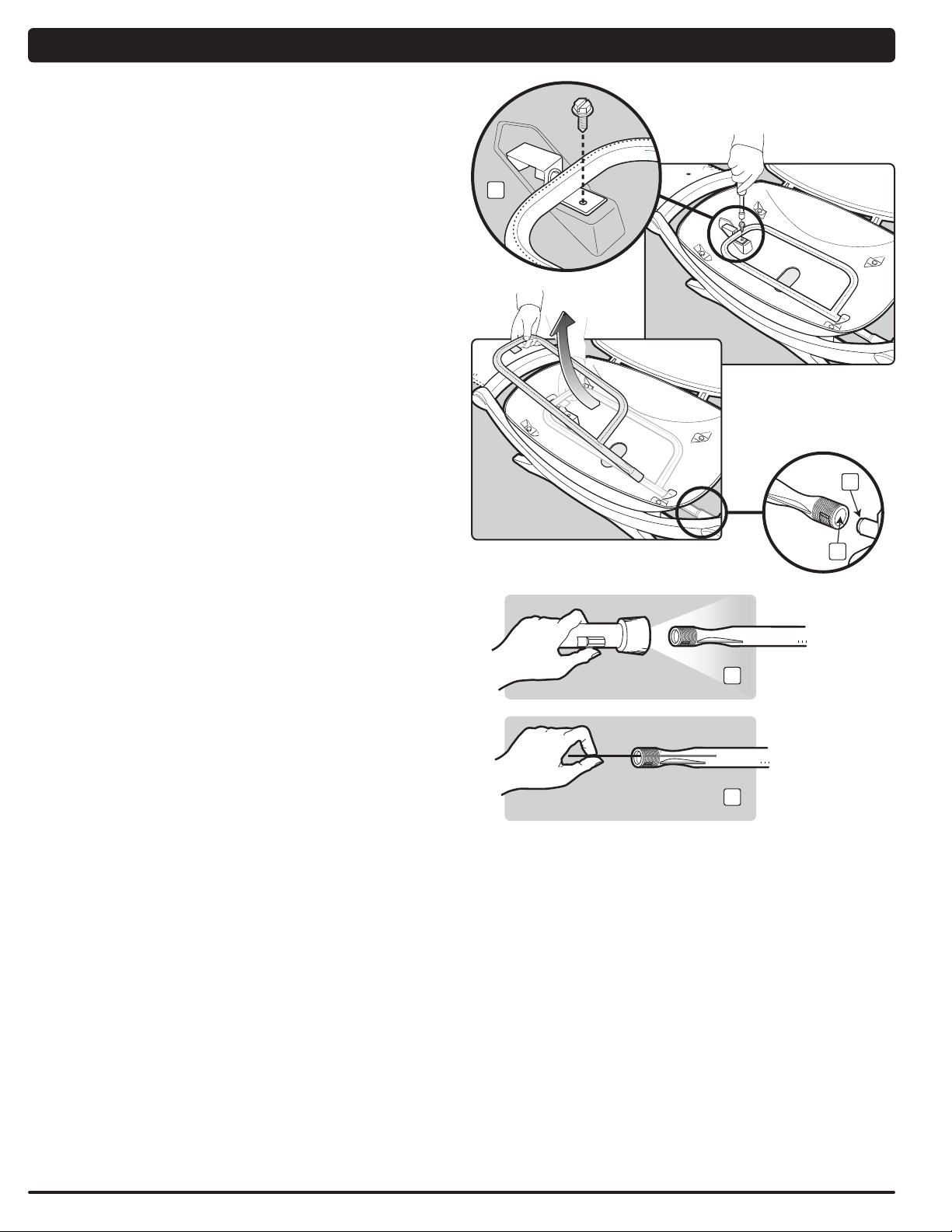

We recommend that you inspect the spider/insect screen at least once a year. Refer to “ANNUAL MAINTENANCE.” Also inspect and clean the the spider/insect screen if any of the following symptoms should ever occur:

A) Gas is smelled in conjunction with burner flames that appear yellow and lazy. B) Grill does not reach temperature. C) Grill heats unevenly. D) Burner does not ignite.

m DANGER

Failure to correct the above-mentioned symptoms may result

in a fire, which can cause serious bodily injury or death, and cause damage to property.

◆

+ 30 hidden pages
