Weber 1520 Go Anywhere Gas, 1530 Go Anywhere Gas Installation Instruction

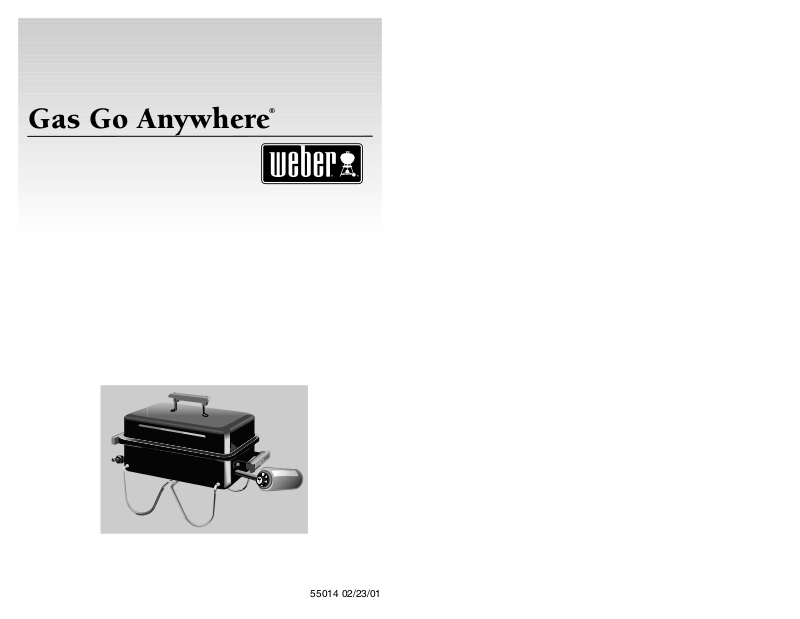

Gas Go Anywhere
®
55014 02/23/01
FOR OUTDOOR USE ONLY
This grill does not include an LP fuel tank.
Check Package Contents
You should have received the parts listed below. While
we give much attention to out product, unfortunately an occasional error
may occur. If a part is missing, do not go back to the store. Call WeberStephen Products Customer Service Center toll free 1-800-446-1071 to
receive immediate assistance.
1 - Bottom unit assembly
1 - Lid assembly
1 - Cooking grate
1 - Flavorizer Bar
1 - Burner tube
1 - Regulator assembly
1 - Retaining clip (on regulator)
2 - Legs
2
1 - Leg Lock
1 - 1/4-20 wing nut
1 - 5/16” Washer
1 - 1/4-20 x 1/2 bolt
2 - 10-24 screws
2 - 10-24 wing nuts
6 - 1/4” Flat washers
1 - Igniter
3
1
2
3
1
2
3
Install Legs
Place washers on leg ends and insert ends into holes in bottom unit. Be
careful not to scratch the porcelain finish while installing the legs. Repeat
with other leg.
Install Leg Lock
Position curved end of leg lock at corner of the straight portion of the leg, as
shown. Push until it snaps on.
Position legs and secure leg lock
Swing legs around so that the rounded part sets on the ground and the bottom
of the cooking box rests on the straight part of the legs.
To lock the legs in place turn the leg lock around clipping it over the opposite
leg. (Unlock the legs by unlatching this clip in the reverse direction.)
4
