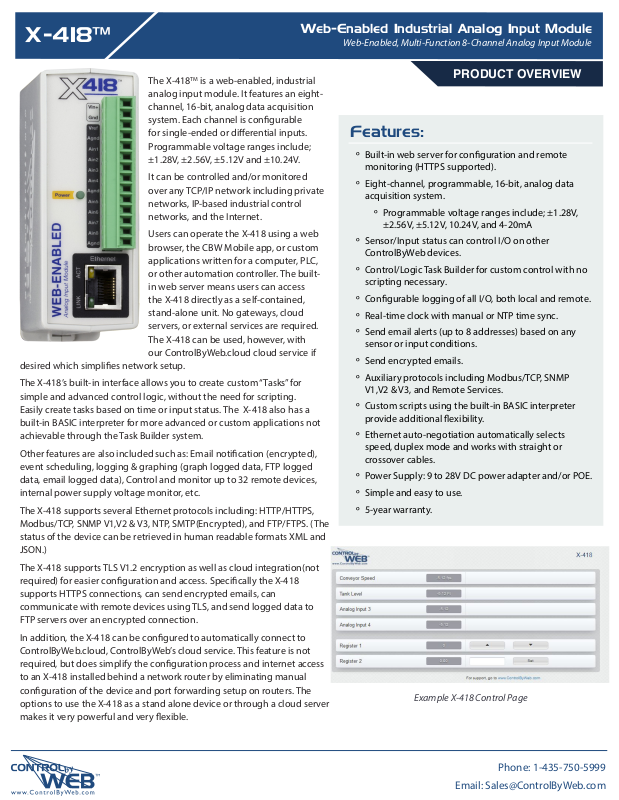

X-418™

Web-Enabled Industrial Analog Input Module

Web-Enabled, Multi-Function 8-Channel Analog Input Module

The X-418TM is a web-enabled, industrial
analog input module. It features an eight­channel, 16-bit, analog data acquisition
system. Each channel is congurable
for single-ended or dierential inputs.
Programmable voltage ranges include;
±1.28V, ±2.56V, ±5.12V and ±10.24V.

It can be controlled and/or monitored
over any TCP/IP network including private
networks, IP-based industrial control
networks, and the Internet.

Users can operate the X-418 using a web
browser, the CBW Mobile app, or custom
applications written for a computer, PLC,
or other automation controller. The built­in web server means users can access
the X-418 directly as a self-contained,
stand-alone unit. No gateways, cloud
servers, or external services are required.
The X-418 can be used, however, with
our ControlByWeb.cloud cloud service if

desired which simplies network setup.

The X-418’s built-in interface allows you to create custom “Tasks” for
simple and advanced control logic, without the need for scripting.
Easily create tasks based on time or input status. The X-418 also has a
built-in BASIC interpreter for more advanced or custom applications not
achievable through the Task Builder system.

Other features are also included such as: Email notication (encrypted),
event scheduling, logging & graphing (graph logged data, FTP logged
data, email logged data), Control and monitor up to 32 remote devices,
internal power supply voltage monitor, etc.

The X-418 supports several Ethernet protocols including: HTTP/HTTPS,
Modbus/TCP, SNMP V1,V2 & V3, NTP, SMTP(Encrypted), and FTP/FTPS. (The
status of the device can be retrieved in human readable formats XML and
JSON.)

PRODUCT OVERVIEW

Features:

º Built-in web server for conguration and remote

monitoring (HTTPS supported).

º Eight-channel, programmable, 16-bit, analog data

acquisition system.

º Programmable voltage ranges include; ±1.28V,

±2.56V, ±5.12V, 10.24V, and 4-20mA

º Sensor/Input status can control I/O on other

ControlByWeb devices.

º Control/Logic Task Builder for custom control with no

scripting necessary.

º Congurable logging of all I/O, both local and remote.

º Real-time clock with manual or NTP time sync.

º Send email alerts (up to 8 addresses) based on any

sensor or input conditions.

º Send encrypted emails.

º Auxiliary protocols including Modbus/TCP, SNMP

V1,V2 & V3, and Remote Services.

º Custom scripts using the built-in BASIC interpreter

provide additional exibility.

º Ethernet auto-negotiation automatically selects

speed, duplex mode and works with straight or
crossover cables.

º Power Supply: 9 to 28V DC power adapter and/or POE.

º Simple and easy to use.

º 5-year warranty.

The X-418 supports TLS V1.2 encryption as well as cloud integration(not
required) for easier conguration and access. Specically the X-418
supports HTTPS connections, can send encrypted emails, can
communicate with remote devices using TLS, and send logged data to
FTP servers over an encrypted connection.

In addition, the X-418 can be congured to automatically connect to
ControlByWeb.cloud, ControlByWeb’s cloud service. This feature is not
required, but does simplify the conguration process and internet access
to an X-418 installed behind a network router by eliminating manual
conguration of the device and port forwarding setup on routers. The
options to use the X-418 as a stand alone device or through a cloud server
makes it very powerful and very exible.

Example X-418 Control Page

Phone: [phone]

Email: [e-mail]

X-418™

APPLICATIONS & SPECS

Potentiometer Position Sensor Monitoring

Web-Enabled Industrial Analog Input Module

Web-Enabled, Multi-Function 8-Channel Analog Input Module

Additional Applications

I/O Extender



POE weather station



Process Controller



Monitor uid level



Monitor temperature



Monitor water level





IP Network

Power Requirements

• Voltage:

• X-418-I: 9-28 VDC

• X-418-E: POE and/or 9-28VDC

• Max Current: 152mA

Analog Inputs

• Number of Inputs: 8

• Resolution: 16-bit, SAR

• Type:

• Channels 1-4: Single ended, dierential or

4-20mA (0-20mA)

• Channels 5-8: Single ended or dierential

• Channels 1-8: Pseudo digital input

• Input Range (Programmable): ±1.28V, ±2.56V,

±5.12V, ±10.24V, ±20.48V (dierential)

• Max Input Voltage (Vin): -12.5V < Vin < +12.5V

• Input Impedance (Zin): > 500Meg Ohm

• Channel O Leakage: ±0.6nA (typ)

• Input Common Mode Rejection: >100dB

• Total Unadjusted Error: -9LSB (min), +9LSB (max)

• Voltage Reference Drift: ±5 ppm/°C

• Internal 4-20mA input shunt: 200-ohm, ±0.1%,

25ppm (uses ±5.12V range)

• Logging Rate: 25 Hz

• Sample Rate: 50 Hz

Pseudo Digital Inputs

• Number: Programmable option, channels 1 to 8

• Vih (high-level input voltage): 3.5V

• Vil (low-level input voltage): 1.5V

• Sample Rate: 50 Hz

Real-Time Clock

• Manual or NTP(Network Time Protocol) setup

• NTP Sync Period: Once, Daily, Weekly, On Power-up

• Auto Daylight Savings Adjustment

Capacitor Power Backup

• Backup Functions: Retain Real-Time Clock, External
Variables, Relay State, and Counters

• Backup Duration: 2-weeks min

Network

• Type: 10/100 Base-T Ethernet Port

• Setup: Static IP address assignment. TCP port

selectable

Connectors

• Power/Input/Relays: 14-Position, 3.81mm,
Removable

• Network: 8-pin RJ-45

LED Indicators

• Number of LEDs: 3

• Power on

º Network linked

º Network activity

Physical

• Operating Temperature: -40°F to 150°F (-40°C to

65.5°C)

• Size:

º 1.41in (35.7mm) wide

º 3.88in (98.5mm) tall

º 3.1in (78mm) deep (not including connector)

• Weight: 5 oz (142 grams)

• Enclosure Material: Lexan 940 Polycarbonate Plastic

• Enclosure Flame Rating: UL94 V0

Protocols

• HTTP, HTTPS, SSL, XML, Modbus TCP/IP, SNMP, SMTP,
Remote Services

Logging

• Log File Size: 3072K (up to 50,688 log entries
depending on conguration)

• Storage: Nonvolatile Flash

• Buer Architecture: Circular Buer

• Log data can be periodically read and stored on a
computer

Advanced Features

• Task Builder

• BASIC interpreter

• Remote services

Password Settings

• Password protection on setup page: Yes

• Password protection on control page: Optional

• Password Encoding: Base 64

• Max Password Length: 18 Characters

Electromagnetic Compliance

• IEC CISPR 22, CISPR 24

• EU EN55024, EN55022

• X-418-I: FCC 47CFR15 (Class B)

• X-418-E: FCC 47CFR15 (Class A)

Product Safety Compliance

• IEC 61010-1
