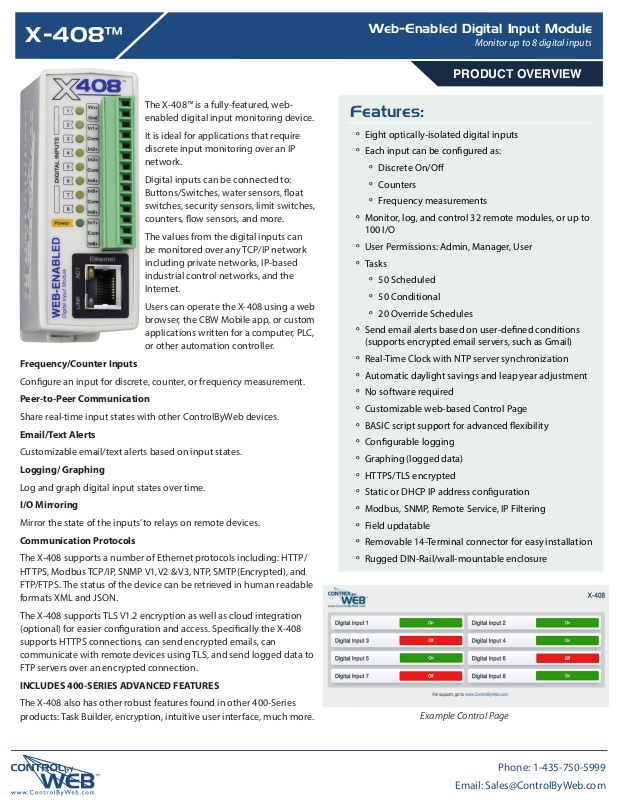

X-408™

Web-Enabled Digital Input Module

Monitor up to 8 digital inputs

PRODUCT OVERVIEW

The X-408™ is a fully-featured, web­enabled digital input monitoring device.

It is ideal for applications that require
discrete input monitoring over an IP
network.

Digital inputs can be connected to:
Buttons/Switches, water sensors, oat
switches, security sensors, limit switches,
counters, ow sensors, and more.

The values from the digital inputs can
be monitored over any TCP/IP network
including private networks, IP-based
industrial control networks, and the
Internet.

Users can operate the X-408 using a web
browser, the CBW Mobile app, or custom
applications written for a computer, PLC,
or other automation controller.

Frequency/Counter Inputs

Congure an input for discrete, counter, or frequency measurement.

Peer-to-Peer Communication

Share real-time input states with other ControlByWeb devices.

Email/Text Alerts

Customizable email/text alerts based on input states.

Logging/ Graphing

Log and graph digital input states over time.

I/O Mirroring

Mirror the state of the inputs’ to relays on remote devices.

Communication Protocols

The X-408 supports a number of Ethernet protocols including: HTTP/
HTTPS, Modbus TCP/IP, SNMP V1,V2 & V3, NTP, SMTP(Encrypted), and
FTP/FTPS. The status of the device can be retrieved in human readable
formats XML and JSON.

Features:

º Eight optically-isolated digital inputs

º Each input can be congured as:

º Discrete On/O

º Counters

º Frequency measurements

º Monitor, log, and control 32 remote modules, or up to

100 I/O

º User Permissions: Admin, Manager, User

º Tasks

º 50 Scheduled

º 50 Conditional

º 20 Override Schedules

º Send email alerts based on user-dened conditions

(supports encrypted email servers, such as Gmail)

º Real-Time Clock with NTP server synchronization

º Automatic daylight savings and leap year adjustment

º No software required

º Customizable web-based Control Page

º BASIC script support for advanced exibility

º Congurable logging

º Graphing (logged data)

º HTTPS/TLS encrypted

º Static or DHCP IP address conguration

º Modbus, SNMP, Remote Service, IP Filtering

º Field updatable

º Removable 14-Terminal connector for easy installation

º Rugged DIN-Rail/wall-mountable enclosure

The X-408 supports TLS V1.2 encryption as well as cloud integration
(optional) for easier conguration and access. Specically the X-408
supports HTTPS connections, can send encrypted emails, can
communicate with remote devices using TLS, and send logged data to
FTP servers over an encrypted connection.

INCLUDES 400-SERIES ADVANCED FEATURES

The X-408 also has other robust features found in other 400-Series
products: Task Builder, encryption, intuitive user interface, much more.

Example Control Page

Phone: [phone]

Email: [e-mail]

X-408™

APPLICATIONS & SPECS

Web-Enabled Digital Input Module

Monitor up to 8 digital inputs

I/O Mirroring using the X-408 and other ControlByWeb Products

Power Requirements

• Voltage:

• X-408-I: 9-28 VDC

• X-408-E: POE and/or 9-28VDC

• Max Current: 240mA

Real-Time Clock

• Manual or NTP(Network Time Protocol) setup

• NTP Sync Period: Once, Daily, Weekly, On Power-up

• Auto Daylight Savings Adjustment

Digital Inputs

• Number of Inputs: 8

• Type: Optically-Isolated

• Voltage Range: 4-26 VDC

• Current: 950uA @ 4V, 8.5mA @ 26V

• Minimum Hold Time: 20mS

• Input Functions: Monitor State, Control Relays,

Control Remote Relays, Scalable Counter, On Timer,
Total On Timer, Frequency

• Maximum Count: 24-bit

• Max Count Rate: 20Hz Max (Dependent on

Conguration)

• Edge Trigger: Rising, Falling or Both

Capacitor Power Backup

• Backup Functions: Retain Real-Time Clock, External
Variables, Relay State, and Counters

• Backup Duration: 3 days minimum

Network

• Type: 10/100 Base-T Ethernet Port

• Setup: Static IP address assignment. TCP port

selectable

Connectors

• Power/Input/Relays: 14-Position, 3.81mm,
Removable

• Network: 8-pin RJ-45

LED Indicators

• Number of LEDs: 3

º Power on

º Network linked

º Network activity

Physical

• Operating Temperature: -40°F to 150°F (-40°C to

65.5°C)

• Size:

º 1.41in (35.7mm) wide

º 3.88in (98.5mm) tall

º 3.1in (78mm) deep (not including connector)

• Weight: 5 oz (142 grams)

• Enclosure Material: Lexan 940 Polycarbonate Plastic

• Enclosure Flame Rating: UL94 V0

Protocols

• HTTP, HTTPS, SSL, XML, Modbus TCP/IP, SNMP, SMTP,
Remote Services

Logging

• Log File Size: 512K (up to 8,448 logs)

• Storage: Nonvolatile Flash

• Buer Architecture: Circular Buer

• Log data can be periodically read and stored on a
computer

Advanced Features

• Task Builder

• BASIC interpreter

• Remote services

Password Settings

• Password protection on setup page: Yes

• Password protection on control page: Optional

• Password Encoding: Base 64

• Max Password Length: 18 Characters

Electromagnetic Compliance

• IEC CISPR 22, CISPR 24

• EU EN55024, EN55022

• X-408-I: FCC 47CFR15 (Class B)

• X-408-E: FCC 47CFR15 (Class A)

Product Safety Compliance

• IEC 61010-1
