1

SM001 Android Box
User’s Guide

2

Contents

1. Safety Information, P3-4

1.2 Precautions, P3

1.3 Handling Cautions, P4

2. Introduction, P5-7

2.1 Package Contents, P5

2.2 Product Features, P5

2.3 Panel Introduction, P6

2.4 Remote Controller, P6

2.5 Setup Connection, P7

2.6 Display when Power Up, P7

3. Settings, P8-15

3.1 WiFi, P8

3.2 Ethernet, P8

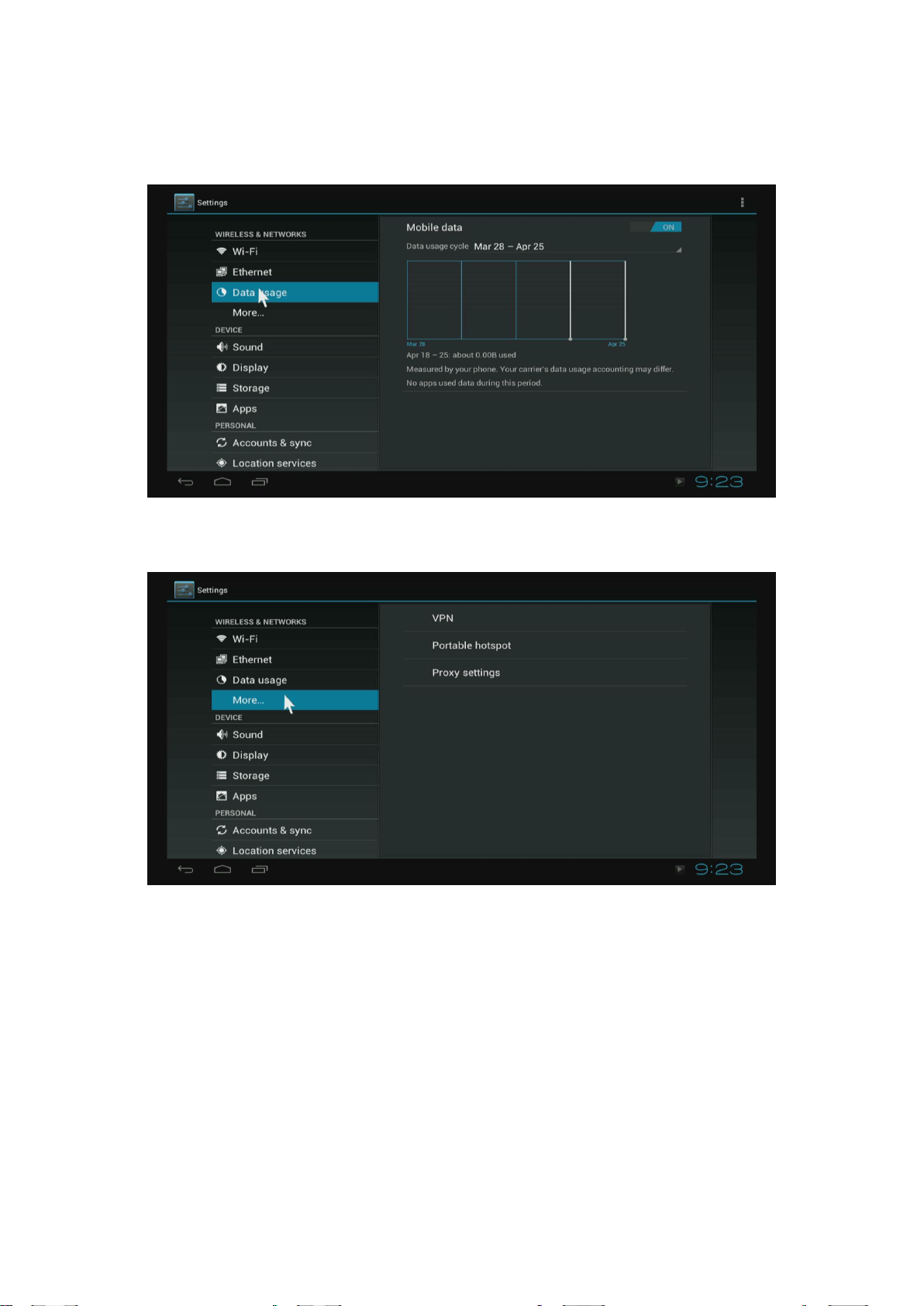

3.3 Date Usage, P9

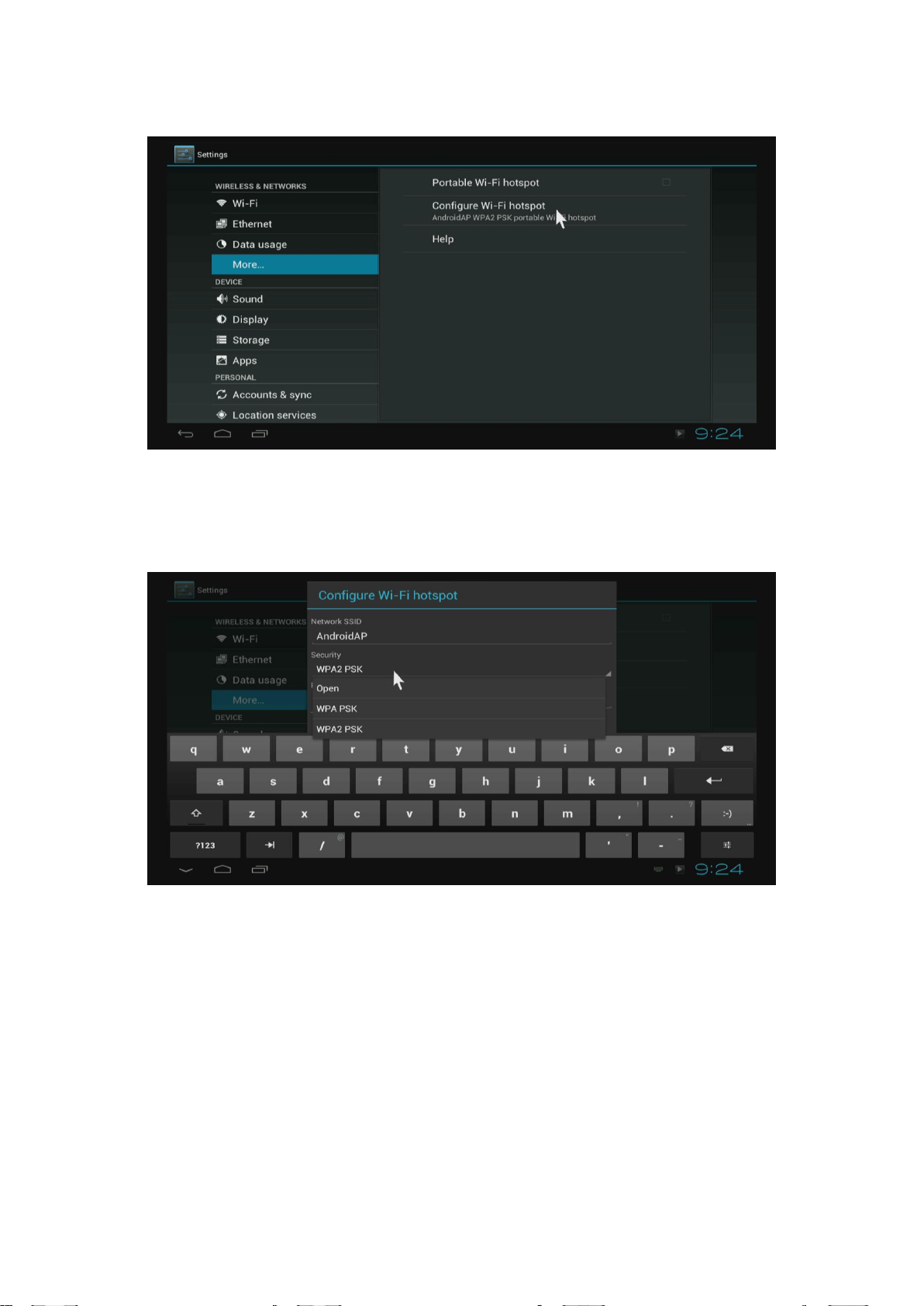

3.4 More..., P9

3.5 Sound, P10

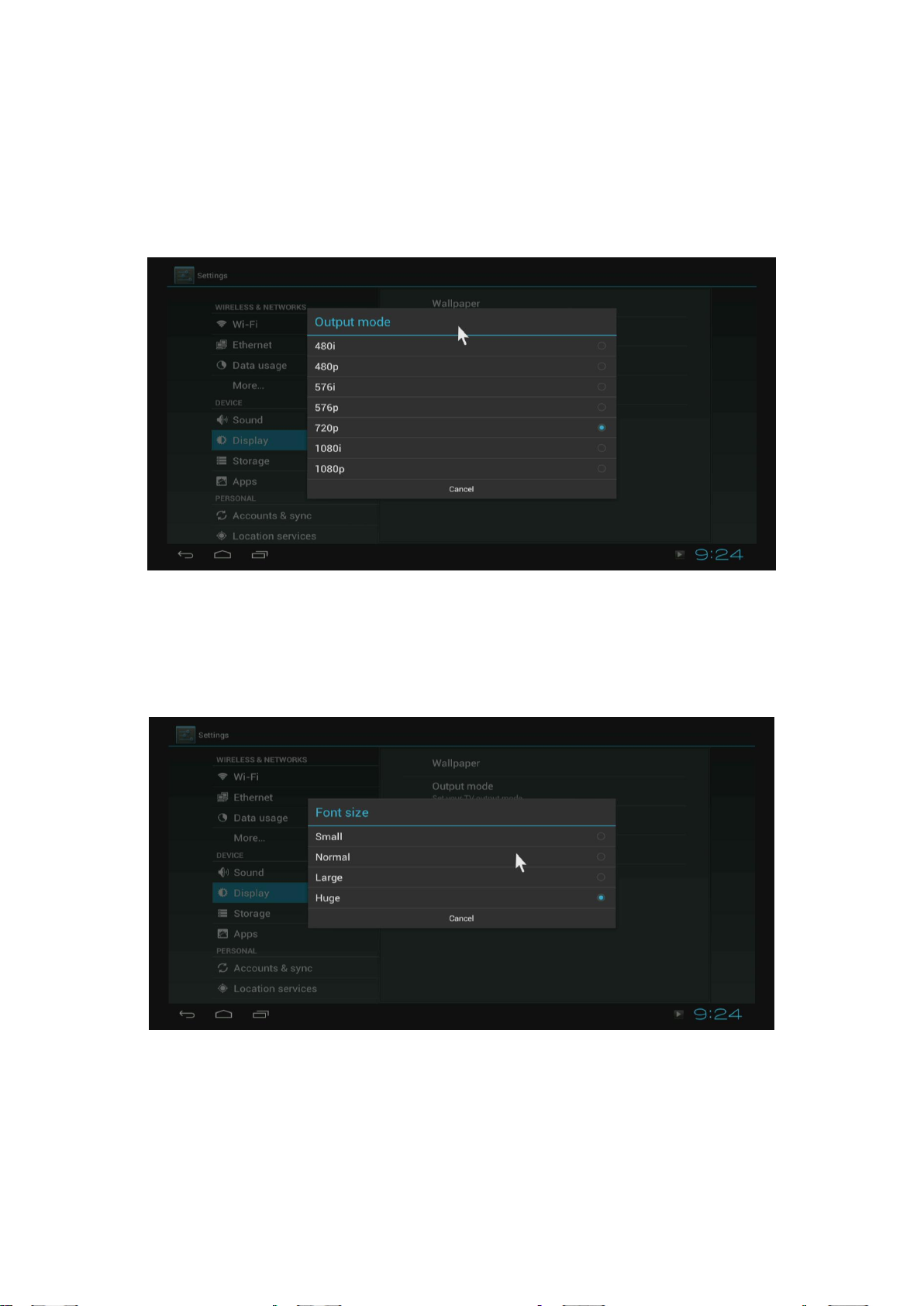

3.6 Display, P11

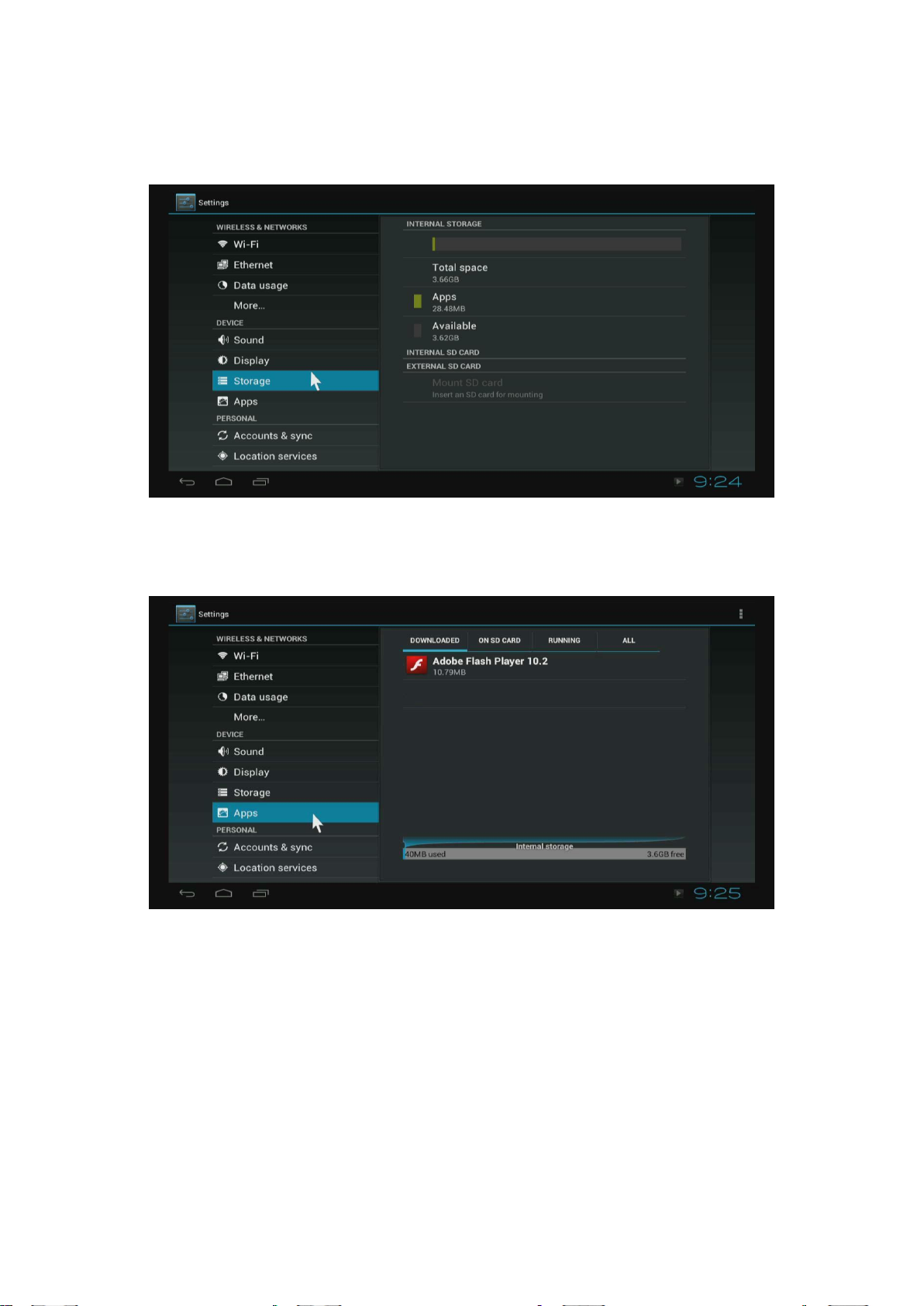

3.7 Storage, P12

3.8 Apps, P12

3.9 Accounts & sync, P12

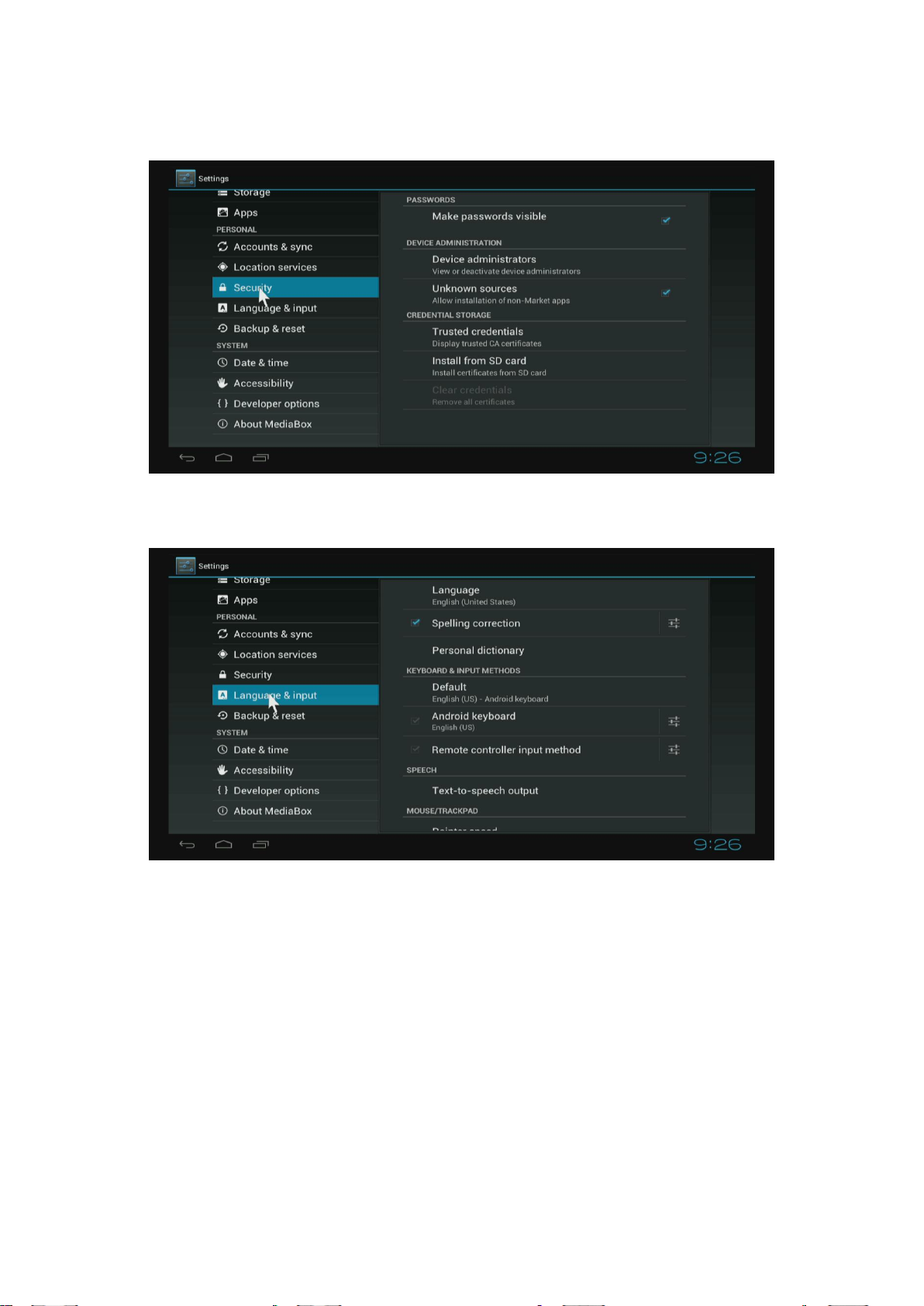

3.10 Security, P13

3.11 Language & input, P13

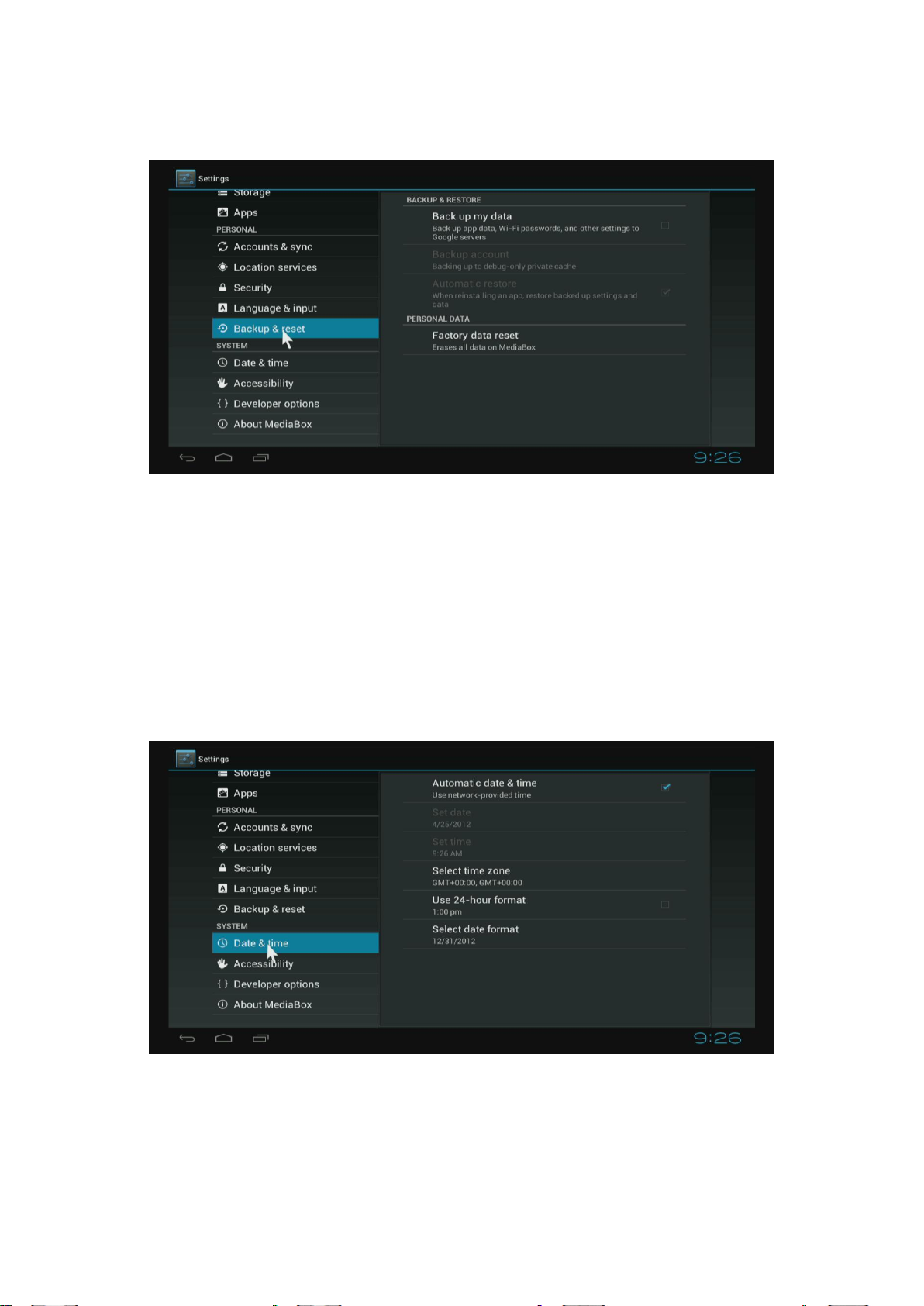

3.12 Backup & reset, P14

3.13 Date & time, P14

3.14 Accessibility, P14

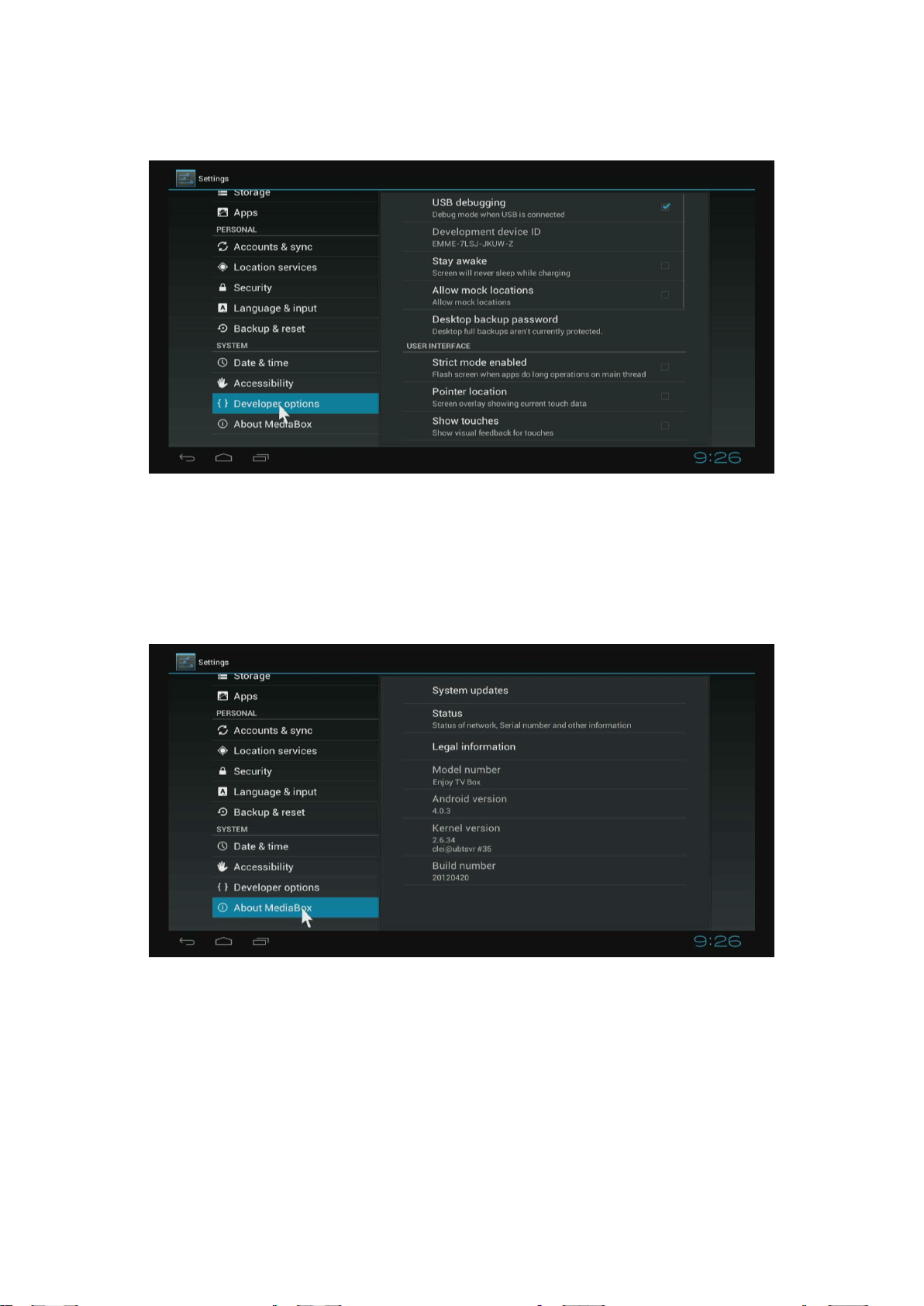

3.15 Developer options, P15

3.16 About MadiaBox, P15

4. Apps Install & Uninstall, P16

5. Firmware Update, P17

6. Trouble Shooting/FAQ, P18

7. Repairs, P19

8. Specification, P20

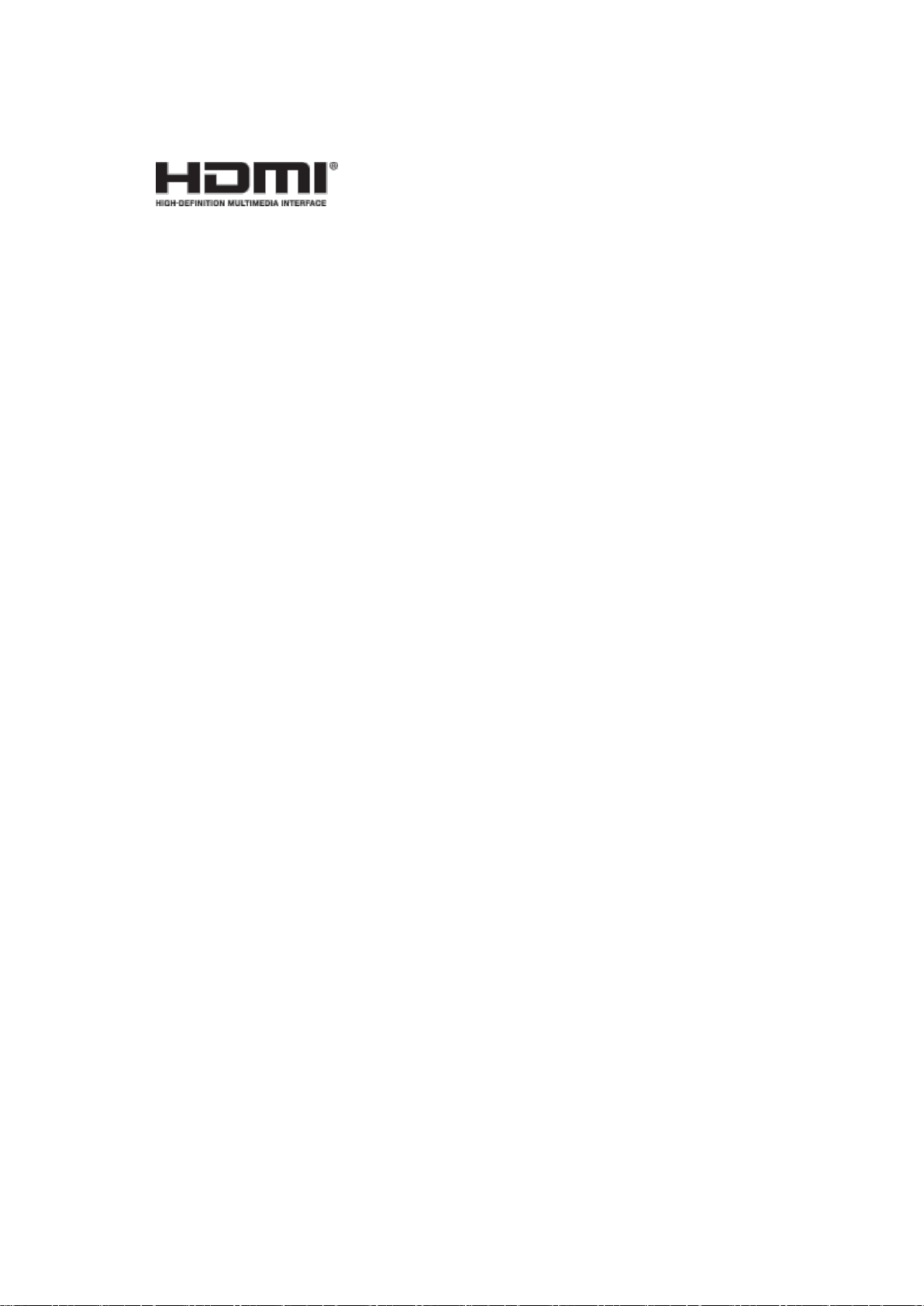

9. Trademark Notice, P21

3

1. Safety Information

Read and understand all instructions before using this product. If damage is caused
by failure to follow the instructions, the warranty does not apply.

1.2 Precautions

Important Safety Instructions
Read these operating instructions carefully before using the unit. Follow all the
safety instructions listed below.
Keep these operating instructions handy for future reference.

1.2.1 Read these instructions.

1.2.2 Keep these instructions.

1.2.3 Heed all warnings.

1.2.4 Follow all instructions.

1.2.5 DO NOT use this apparatus near water.

1.2.6 DO NOT clean with any chemical detergent. Clean only with a dry cloth.

1.2.7 DO NOT block any ventilation openings. Install in accordance with the
manufacturer’s instructions.

1.2.8 DO NOT install near any heat sources such as radiators, heat registers, stoves,
or other apparatus that produce heat.

1.2.9 Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where it exits the apparatus.

1.2.10 Only use attachments/accessories specified by the manufacturer.

1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used , use caution when
moving the cart/apparatus combination to avoid injury from tip-over.

1.2.12 Unplug this apparatus during lightning storms or when unused for long
period of time.

1.2.13 Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as when the power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.

1.3 Handling Cautions

1.3.1 DO NOT expose this apparatus to dripping or splashing. Do not put objects
filled with liquids, such as vases on the apparatus.

1.3.2 To turn this apparatus off completely, you must pull the power plug out of the
wall socket. Consequently, the power plug must be easily and readily accessible at
all times.

1.3.3 DO NOT plug multiple electric devices into the same wall socket.

4

Overloading a socket can cause it to overheat, resulting in a fire.

1.3.4 Before connecting other components to this player, be sure to turn them off.

1.3.5 If the product makes an abnormal noise or produces a burning smell or smoke,
turn off the power switch immediately and disconnect the power plug from the wall
outlet. Then, contact the nearest customer service center for technical assistance. Do
not use the product. Using the product as it is may cause a fire or an electric shock.

5

2. Introduction

2.1 Package Contents

Smartee Dual Core
User’s Guide
HDMI Cable
Optional Cable RJ45 Network Cable
IR Remote Controller (IR RC)
Optional Remote Controller

2.4G wireless Remote Controller
USB wire/wireless Mouse & Keyboard

Power Adapter, Input: AC100 ~ 240V, 50/60Hz, Output: 5V/2A

2.2 Product Features

 ARM CORTEX A9 x 2, 1.5GHz, RAM 1G, built in 4G flash memory

 Powered by Android 4.1 OS

 802.11b/g/n WIFI module, wireless Internet access

 2 USB interfaces, support mobile HDD, wired/wireless mouse and keyboard

operation

 RJ45 10/100M Ethernet interface

 Support 1080P video playback

 HDMI video output, connect to HDTV for HD video playback

 Support weather, calendar, and desktop clock gadgets

 Support 2.4G wireless motion Remote Controller

 Support Flash Player 10.2 for hardware decoding, Flash 11.1 for software

decoding , playback online video

 Support music player, picture player and more family entertainment

 Support Google Chrome browser and virtual private network access

 App Installer for application installation from USB/SD card

6

2.4 Remote Controller

Note: Button Battery 2025 3V insert with correct polarity (+/-).

2.5 Setup Connection

Place ATV520E on a flat platform near the TV, and make sure nothing block the
remote control signal.

2.6 Display when Power Up

7

2.6.1 After power up, the TV will first show a green robot then change to “android”
logo during loading. When loading is finished, it will go to Home screen.

2.6.2 Home Screen display.

3. Settings

Using Navigation (4 directions), OK, EXIT, and Menu keys of Remote Controller
to select the options, the option selected will be highlighted and confirmed by
pressing OK key. Same operation for text input if needed.

Select icon then press OK key.

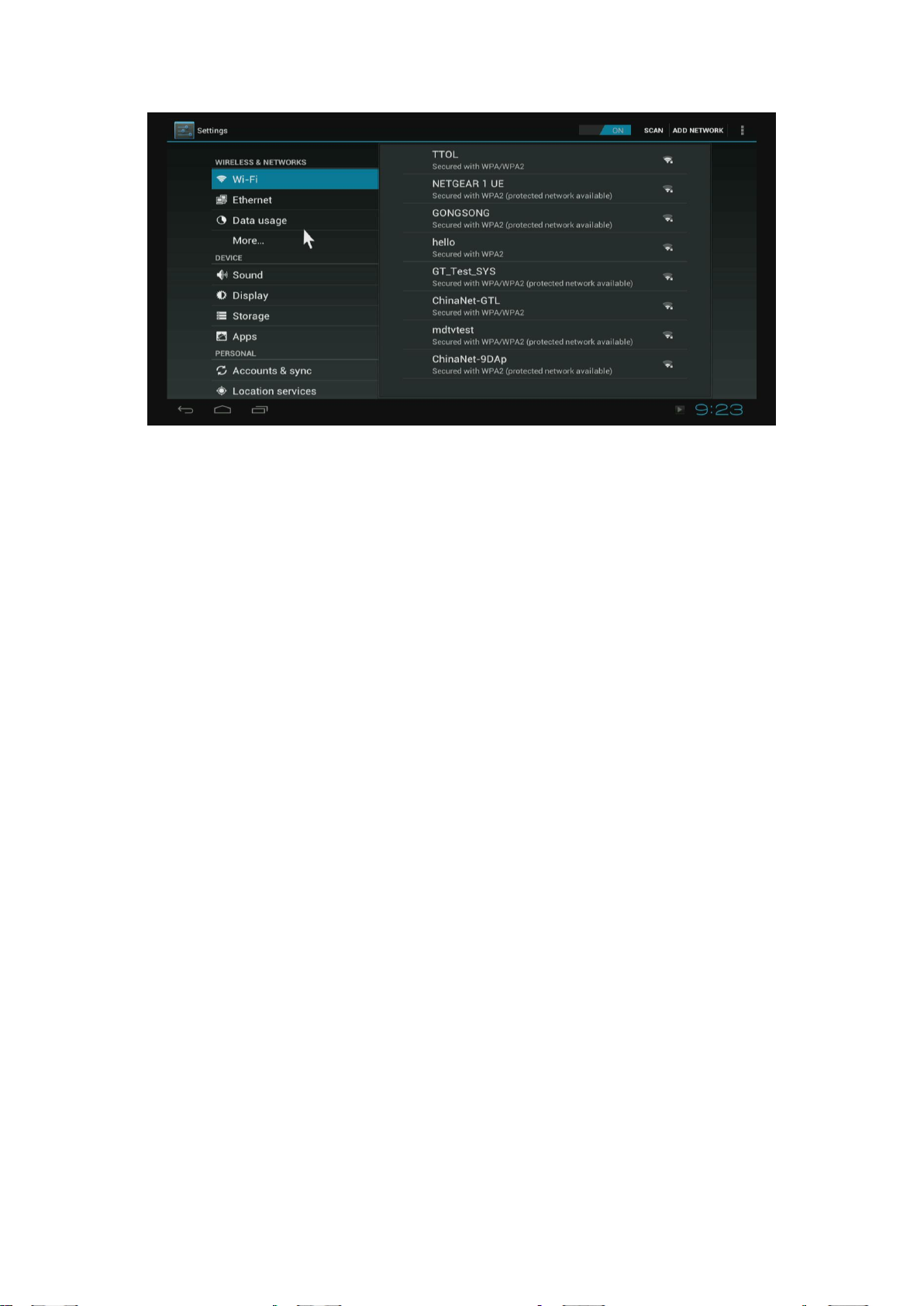

3.1 WiFi

3.1.1 It will automatically scan ambient WiFi networks when select “ON”.

3.1.2 Connect an available WiFi network. If connect a secured WiFi network,
corresponding password will be input firstly. Or fail to connect and need reset
password.

3.1.3 Once build up the connection with a certain WiFi network successfully,
ATV520E will connect this WiFi network automatically when restart.
Note: If factory reset, the password of WiFi network have to be reset.
