WebDT SA1000 Quick Start Manual

SA1000 Quick Start Guide

Released: 11/26/2007

Page 2

2

WebDT Web Content Manager SA1000 Quick Start Guide

SA1000 Quick Start Guide

Thank you for evaluating this fully integrated hardware and software solution which enables the delivery of
compelling digital content throughout the enterprise network in a timely fashion. Version 2.0 provides the

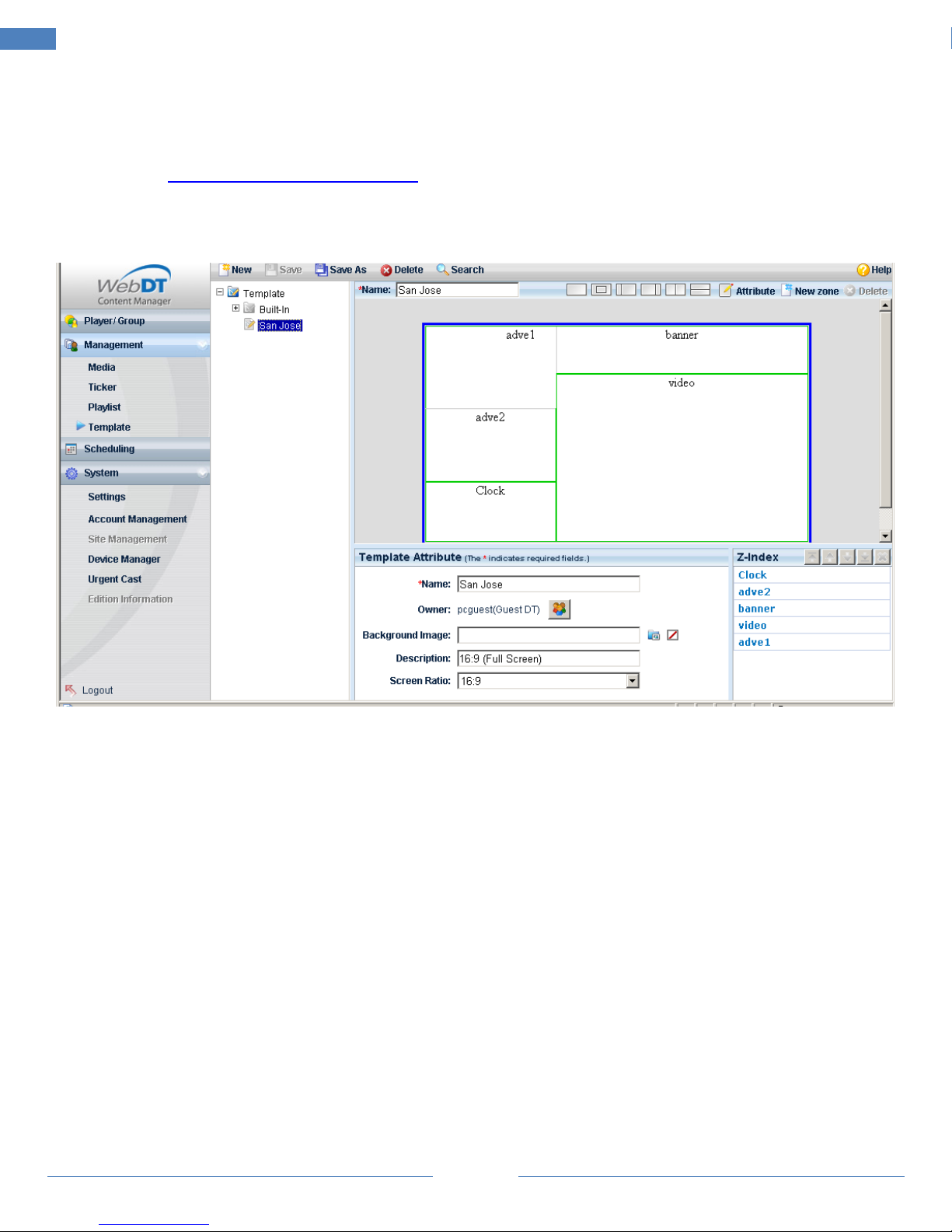

multi-zone layout feature, providing up to eight zones to play various media files on one display. In addition to
templates, users can also customize their own templates for efficient and targeted deployment.

----------------------------------------------------------------------------------------------------------------------------------------------

Before going through with the SA1000 evaluation, please make sure that you follow the requirements below:

Required equipments:

(1) Internet connection
(2) SA1000 appliance
(3) 17” or above LCD monitor (preferably wide screen to show 16 x 9 aspect ratio presentation)
(4) PC or Laptop to connect to Content Manager Server on the web through Internet Explorer

You should have also received the following information from your reseller or DT Research Account
Representative:

(1) UserID
(2) Password
(3) Organization

The SA1000 product evaluation box contains the following:

(1) 1 x SA1000 player appliance
(2) 1 x DVI to VGA connector
(3) 1 x Power adapter

----------------------------------------------------------------------------------------------------------------------------------------------

Connecting your SA1000 Appliance

The SA1000 comes with built in DVI connectors for most regular LCD monitors in the market today. If your
LCD monitor only has a VGA connector then please use the included DVI to VGA connector as shown below.

Proceed to hook up a USB mouse and Keyboard to the unit (There are a total of 4 USB ports on the SA1000).
Then hook up your RJ-45 Internet Cable to the SA1000 and finally hook up the Power Supply Adapter to the
unit last. (Picture shown next page shows you an example)

Page 3

3

WebDT Web Content Manager SA1000 Quick Start Guide

-------------------------------------------------------------------------------------------------------------------------------------

**Note**
If you have previously connected an LCD monitor through the VGA port and then later on decide to utilize
the DVI port, please follow the steps below in order to enable the DVI port on the SA1000 again.

1. First connect the SA1000 back to the original VGA LCD monitor and proceed to press

Control+Shift+Space to exit the software screen.

2. Move your mouse to the bottom right corner of the screen and right click on the S3TrayPlus Utility

Icon. (Picture shown below).

Page 4

4

WebDT Web Content Manager SA1000 Quick Start Guide

3. Select “Display Properties Settings” and then proceed to select “Advanced”.

4. Proceed to click on “S3Display” and check the “DVI” box and then hit “Apply” followed by

clicking on “OK” when presented with a window.

5. Next click on the “Monitor” tab and proceed to uncheck “Hide modes that this monitor cannot

display” and keep the Screen refresh rate at 60 Hertz. Hit apply and press “Ok” to accept the setting.

Page 5

5

WebDT Web Content Manager SA1000 Quick Start Guide

-------------------------------------------------------------------------------------------------------------------------------------

Now proceed to boot up the SA1000. You will see the following Player Registration screen when the system is
booted up properly.

If you don’t see the Player Registration screen, please use the mouse to launch the program by following these

steps: Start -> All Programs –> DT Research –> WCM Player –> Register Player Again

Please register with the following information (Again, note they are all case sensitive):
Player Name: Leave it at default or change it to a meaningful name

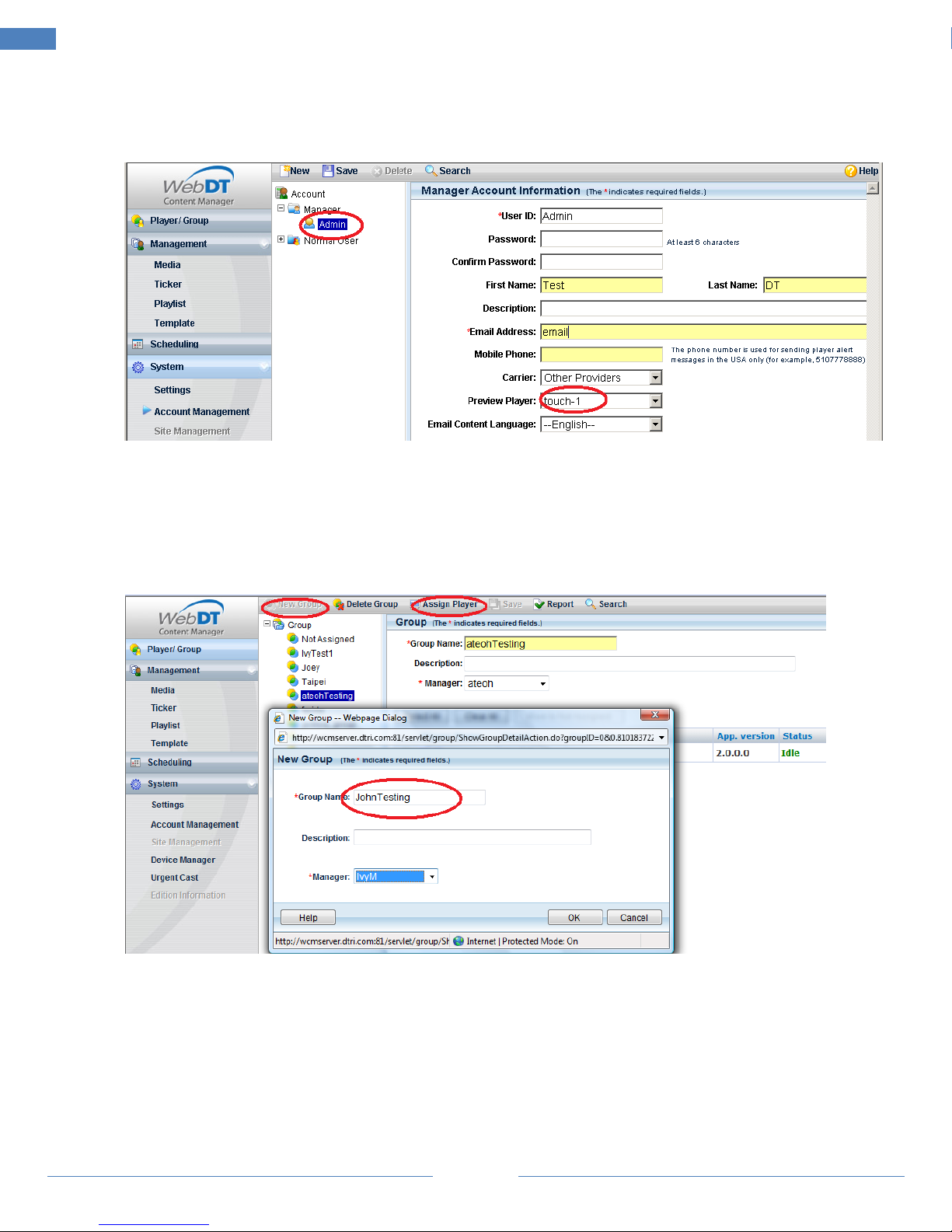

Group Name: You can leave this blank for now (the group name will be created in Step 2 below)
Organization Name: Same as “Organization” from The DTRI email you received
Password: 123456
Publish Server URL: http://signage.dtri.com/publish (This is just an example. Don’t change the default)

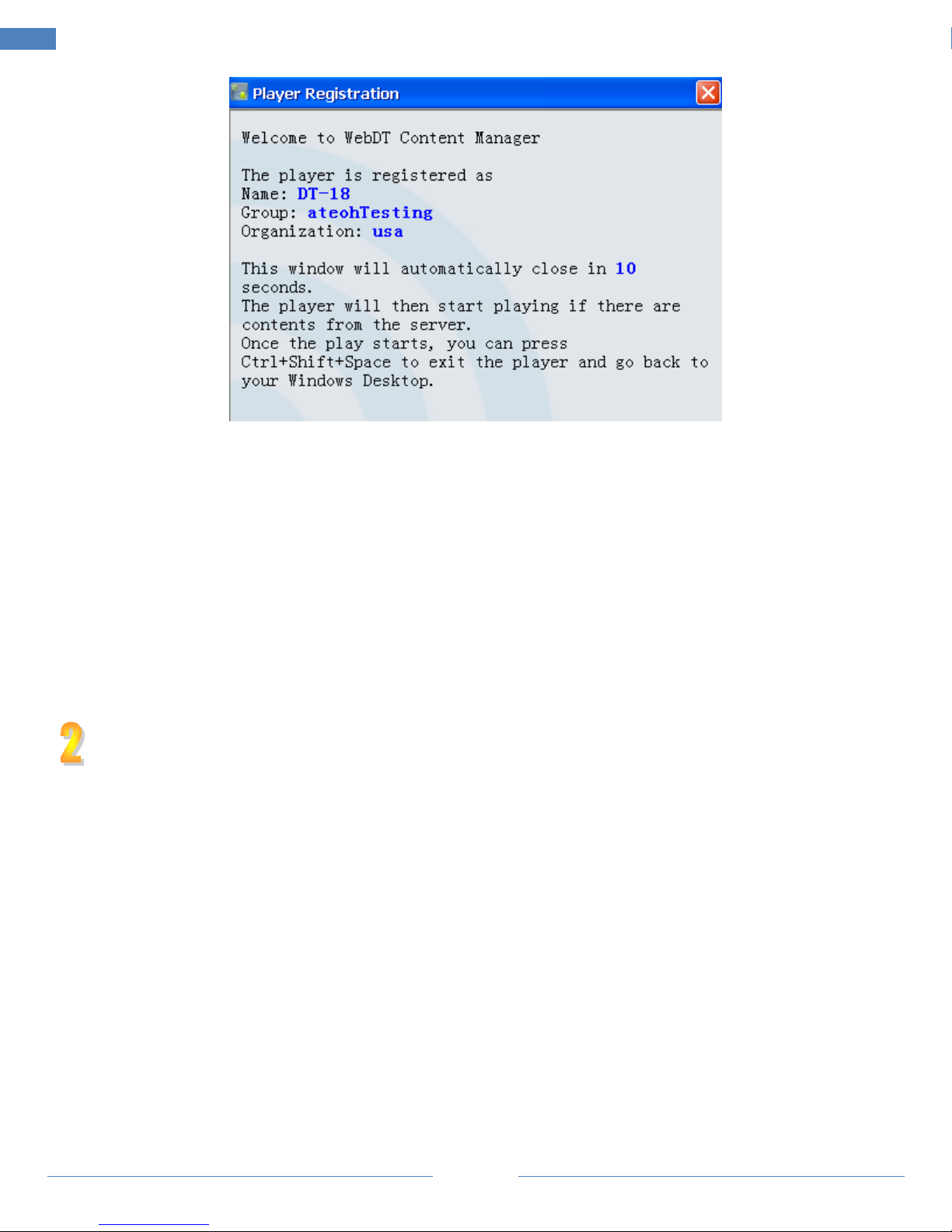

If the Player registration is successful, you will get the following status screen below, please note the “Player
Name” because you will need this for the next step.
