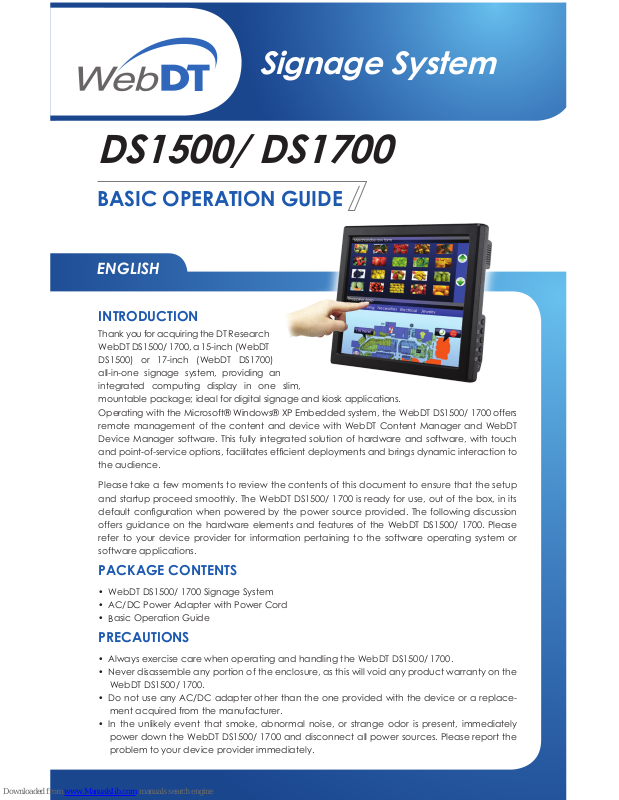

ENGLISH
BASIC OPERATION GUIDE
DS1500/ DS1700
Signage System
INTRODUCTION
Thank you for acquiring the DT Research
WebDT DS1500/ 1700, a 15-inch (WebDT
DS1500) or 17-inch (WebDT DS1700)
all-in-one signage system, providing an
integrated computing display in one slim,
mountable package; ideal for digital signage and kiosk applications.
Operating with the Microsoft® Windows® XP Embedded system, the WebDT DS1500/ 1700 offers
remote management of the content and device with WebDT Content Manager and WebDT
Device Manager software. This fully integrated solution of hardware and software, with touch
and point-of-service options, facilitates efcient deployments and brings dynamic interaction to
the audience.
Please take a few moments to review the contents of this document to ensure that the setup
and startup proceed smoothly. The WebDT DS1500/ 1700 is ready for use, out of the box, in its
default conguration when powered by the power source provided. The following discussion
offers guidance on the hardware elements and features of the WebDT DS1500/ 1700. Please
refer to your device provider for information pertaining to the software operating system or
software applications.
PACKAGE CONTENTS
W
• ebDT DS1500/ 1700 Signage System
A
• C/DC Power Adapter with Power Cord
B
• asic Operation Guide
PRECAUTIONS
Always exercise care when operating and handling the WebDT DS1500/ 1700.•
Never disassemble any portion of the enclosure, as this will void any product warranty on the •
WebDT DS1500/ 1700.
Do not use any AC/DC adapter other than the one provided with the device or a replace-•
ment acquired from the manufacturer.
I
• n the unlikely event that smoke, abnormal noise, or strange odor is present, immediately
power down the WebDT DS1500/ 1700 and disconnect all power sources. Please report the
problem to your device provider immediately.
Page 2
THE DS1500/ DS1700
ENGLISH
2
Packaging
The WebDT DS1500/ 1700 is packaged with recyclable •
materials and designed for maximum protection in
transportation and handling.
When possible, please save the packaging carton and •
protective inserts for re-use if there is ever a need to ship
the WebDT DS1500/ 1700.
I/O Panels
Side I/O Panel
The WebDT DS1500/ 1700 has two (2) USB 2.0 ports
located and easily accessible along the right edge of
the display unit.
Lower I/O Panel
The WebDT DS1500/ 1700 has a comprehensive set of
I/O ports. The following ports are located along the
lower rear edge of the display unit.
Two (2) USB 2.0 ports1.
Serial port2.
Audio-out jack3.
Microphone-in jack4.
Line-in jack5.
Video-in RCA jack6.
S-Video input port7.
Ethernet port (RJ45)8.
18.5V/ 3.5A DC-in jack9.
Side Panel Function Buttons
The side panel of the WebDT
DS1500/ 1700 features power, utility,
soft keyboard and programmable
buttons.
1 2 3 4 5 6 7 8 9
10
11
Page 3
3
ENGLISH
Button Description
10. Programmable
The four buttons are intended to be user programmable via software
in applicable operating systems.
11. Power
M
• ay be congured to perform different functions, depending on
the software operating system.
D
• epending on the OS, a brief, rm push will trigger software-enabled
entry into Shutdown or Standby modes. Push in similar manner to
Restart or to exit Standby mode.
P
• ush and hold for over 4 seconds to forcefully shut down the device.
This method of powering off should only be used when proper
shutdown through software is not possible.
Rear Mounting
The WebDT DS1500/ 1700 is designed to be secured to VESA-compliant mounting arms or
stands. This is accomplished by detaching the standard metal base from the rear of the
display unit. The VESA-compliant mounting holes at the rear of the device will mate with
VESA mounts or arms to meet the requirements of the deployment.

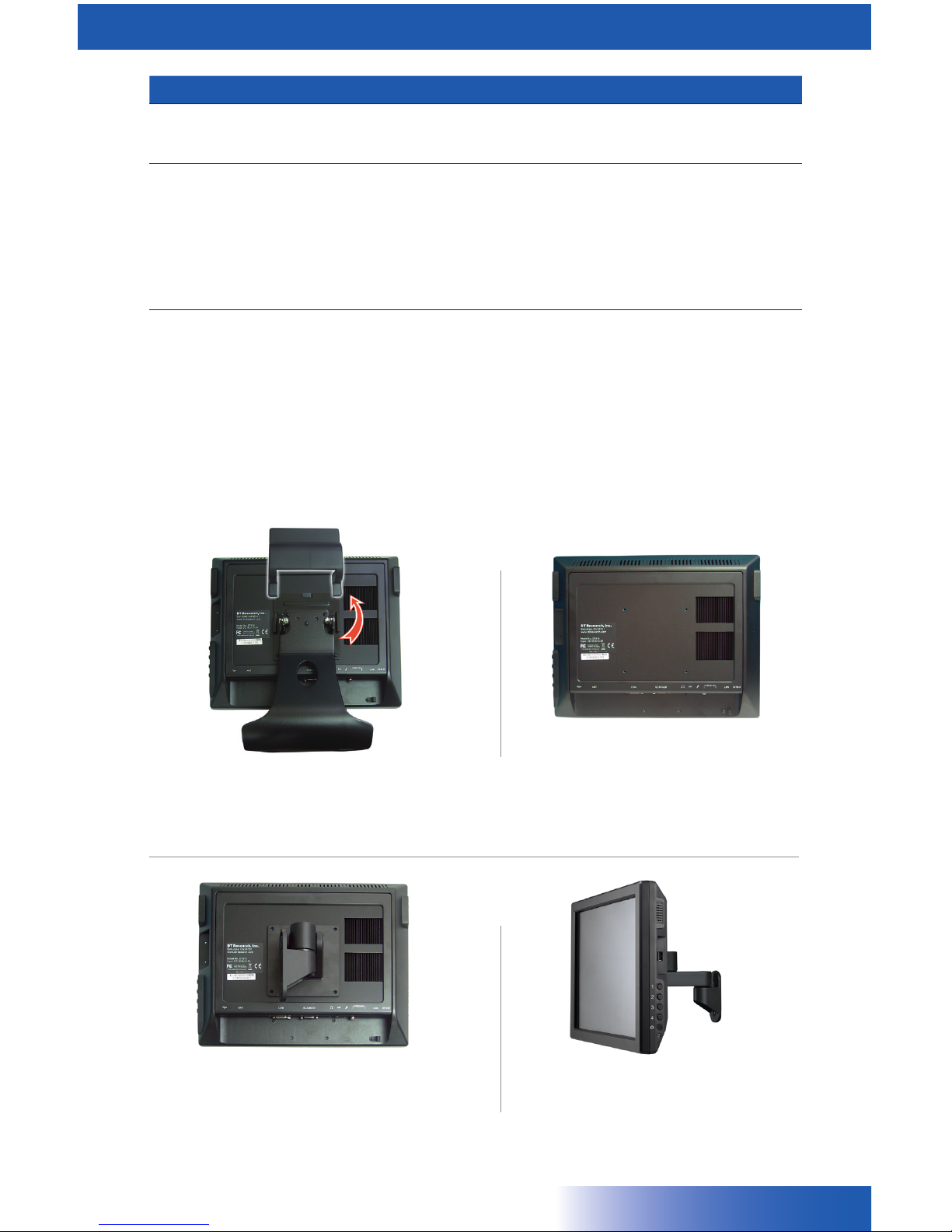

Remove the detachable base by pressing 1.
upward to remove the cover, then
unscrewing the four screws attaching the
base to the display.
Attach the new VESA-compliant mounting 3.
device or stand to the display.
The display without the base.2.
The display successfully mounted on a 4.
VESA-compliant mounting arm.
Page 4
THE DS1500/ DS1700
ENGLISH
4
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131 http://www.dtresearch.com I http://signage.dtri.com
Copyright©2008, DT Research, Inc. All Rights Reserved. DT Research and WebDT are registered trademarks of DT Research, Inc.
SPECIFICATIONS
Display DS1500: 15” or DS1700: 17” TFT LCD; 50,000 hours lamp life
Display Resolution DS1500: 1024 x 768 (XGA); DS1700: 1280 x 1024 (SXGA)
Processor 1.5 GHz or 2 GHz, x86 processor
Memory (RAM) 1 GB
Storage: 2GB, 4GB or 8GB ash module; 2.5” S-ATA HDD
Operating Systems Microsoft® Windows® XP Embedded, or Windows® XP Professional
Display Enclosure ABS + PC plastic
Base or Pedestal Detachable aluminum construction; VESA-compliant mounting
Control Buttons Five (5) side buttons: Power (1), Programmable (4)
Input/Output Ports
USB 2.0 ports (4); Serial port; Audio-out; Microphone-in; Line-in;
Video-in RCA jack; S-Video input port; RJ45 connector for Ethernet;
18.5V / 3.5A DC-in jack
Network Interface Ethernet 10/100 MB Base-T LAN; 802.11 a/b/g WLAN
AC/DC adapter Input: 100~240V AC, 50/60 Hz; Output: 18.5V, 3.5A
Power Cords North America, EU, UK, China
Dimensions
(H x W x D)
DS1500: 10.9 x 13.9 x 2.5 in, 278 x 354 x 63 mm
DS1700: 12.6 x 15.3 x 2.7 in, 320 x 388 x 68 mm
Base Weight DS1500: 10.8 lbs (4.9 kg); DS1700: 13.4 lbs (6.2 kg)
Regulatory FCC Class B, CE, UL, C-tick, RoHS compliant
Operating
Temperature
0° – 40°C
Humidity 0% – 90% non-condensing
OPTIONS
The WebDT DS1500/ 1700 has a number of optional congurations in both software and
hardware. These include:
Hard-disk drive1.
IR Touch screen display2.
Magnetic card reader3.
Built-in 802.11a/b/g WLAN support4.
