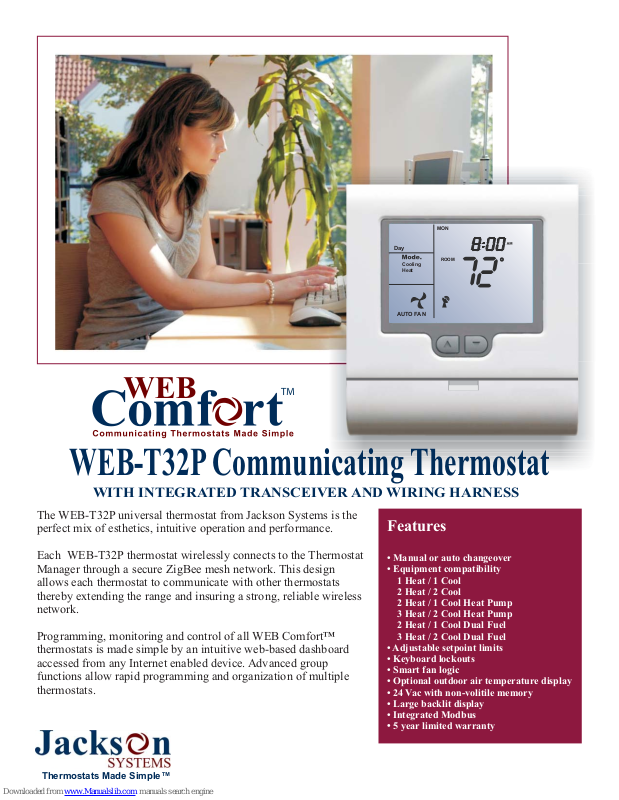

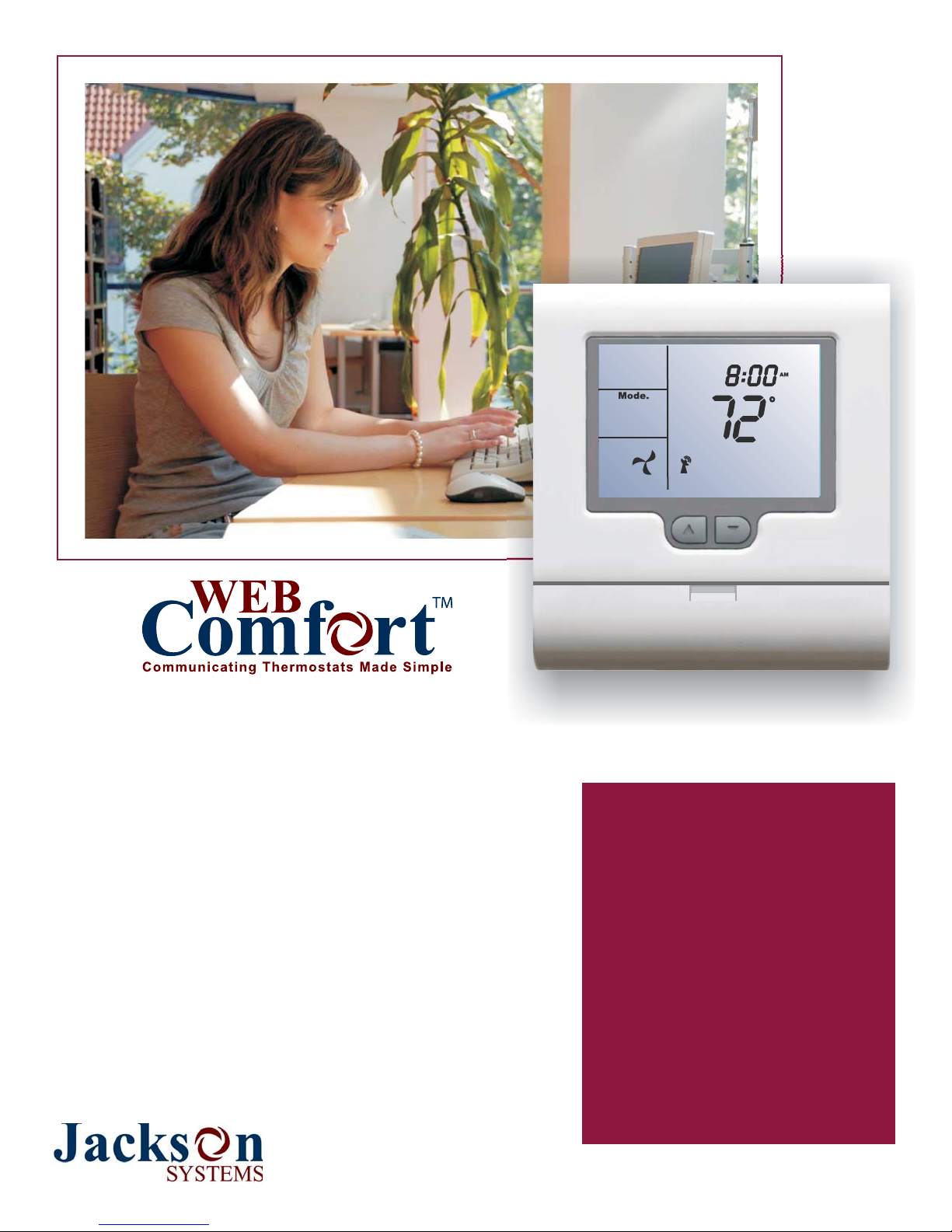

WEB-T32P Communicating Thermostat
WITH INTEGRATED TRANSCEIVER AND WIRING HARNESS
The WEB-
T32P universal thermostat from Jackson Systems is the
perfect mix of esthetics, intuitive operation and performance.
Each WEB-T32P thermostat wirelessly connects to the Thermostat
Manager through a secure ZigBee mesh network. This design
allows each thermostat to communicate with other thermostats
thereby extending the range and insuring a strong, reliable wireless
network.
Programming, monitoring and control of all WEB Comfort
thermostats is made simple by an intuitive web-based dashboard
accessed from any Internet enabled device. Advanced group
functions allow rapid programming and organization of multiple
thermostats.
Thermostats Made Simple™
™
Features
• Manual or auto changeover
• Equipment compatibility
1 Heat / 1 Cool
2 Heat / 2 Cool
2 Heat / 1 Cool Heat Pump
3 Heat / 2 Cool Heat Pump
2 Heat / 1 Cool Dual Fuel
3 Heat / 2 Cool Dual Fuel
• Adjustable setpoint limits
• Keyboard lockouts
• Smart fan logic
• Optional outdoor air temperature display
• 24 Vac with non-volitile memory
• Large backlit display
• Integrated Modbus
5 year limited warranty•
Page 2
WEB-T32P Communicating Thermostat
INTEGRATED TRANSCEIVER WITH
FACTORY WIRING HARNESS

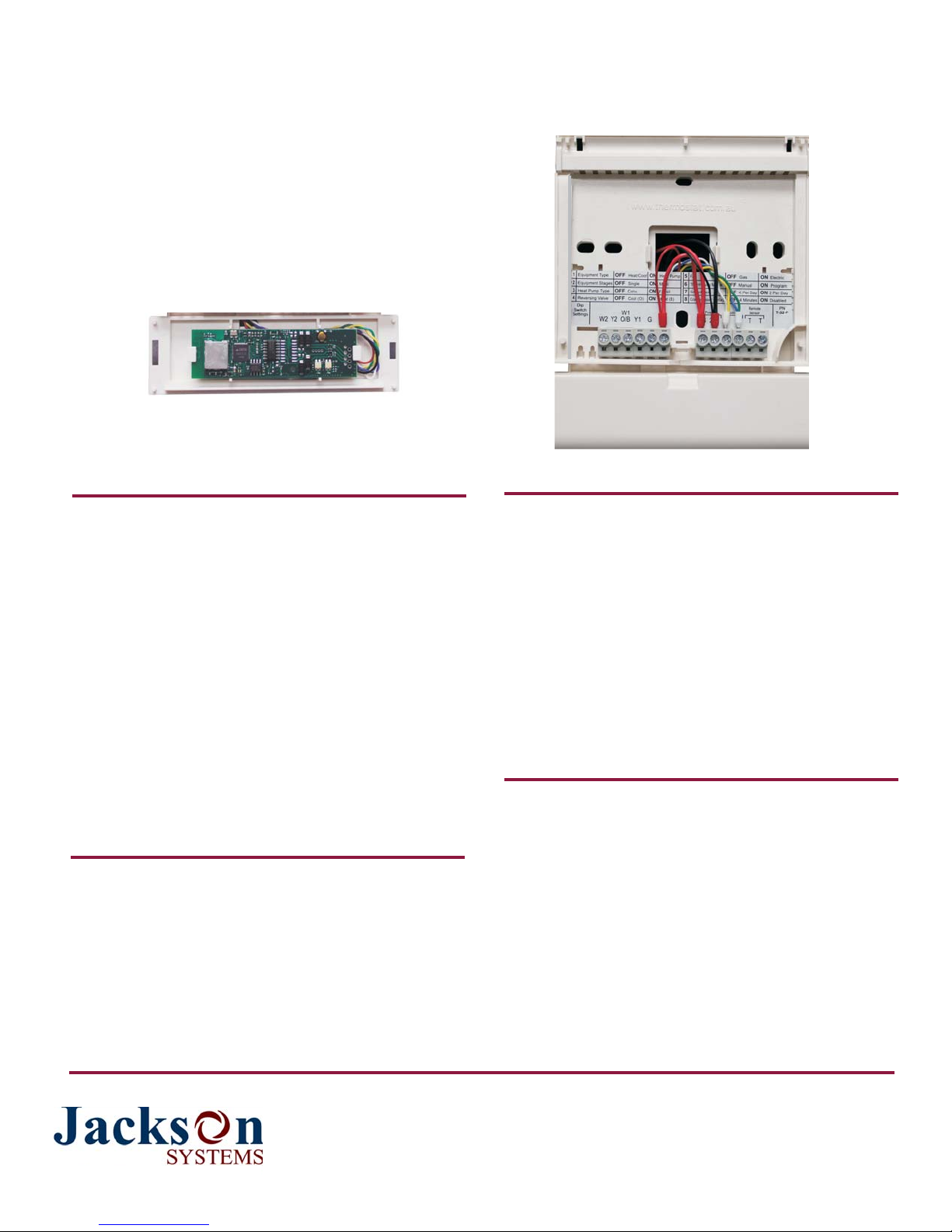

The integrated transceiver with factory wiring harness
reduces installation time and eliminates mis-wiring.
Additionally, it provides easy access for transceiver
diagnostics without having to remove the thermostat subbase.
Transceiver Front Access
CONFIGURATIONS
Keyboard Lockout Multiple level selection
Heating Setpoint Range 41° F to 120° F
Cooling Setpoint Range 43° F to 122° F
LCD Display Units C or F
Internal Sensor Calibration +/- 9° F
Time Display 12 or 24 hour
Adjustable Heating Limit 41° F to 120° F
Adjustable Cooling Limit 43° F to 122° F
Advanced Fan Options Manual
Adjustable Purge Cycle 0 - 5 minutes
Mode Manual Heat / Cool
TT Terminal Function Outdoor temperature sensor
Adjustable High Balance Point 32° F to 122° F or Off
Adjustable Low Balance Point 14° F to 77° F or Off
Auto
Intelligent Fan
Cooling Only
Heating Only
Auto Changeover
Indoor remote sensor
Temperature averaging
DIP SWITCH FUNCTIONS
SWITCH NUMBER OFF ON
1 Not used
2 Equipment
3 Equipment Stages
4 Fan Mode or
Reversing Valve
5 Short Cycle Timer
6 Thermostat Operation
7 Minimum Run Time
8 Setpoints
Leave OFF ------Heat / Cool Heat Pump
Single Stage Multi-stage
Gas Electric
‘O’ ‘B’
4 Minutes Disabled
Leave OFF ------Leave OFF -------
------- Leave ON
TERMINAL DESIGNATIONS
W2 Second Stage Heating or Auxiliary Heat
Y2 Second Stage Compressor
W1 - O/B First Stage Heating or Reversing Valve
Y1 First Stage Compressor
G Fan Relay
R 24 Volt Hot (jumpered to ‘24’)
24 24 Volt Hot (jumpered to ‘R’)
24C 24 Volt Common
B Modbus Communications
A Modbus Communications
T Remote Sensor
T Remote Sensor
SPECIFICATIONS
Input Voltage 24VAC 50/60 Hz +/- 15%
Relay Rating 24VAC @ 1 Amp maximum per relay
Operating Temperature 32° F to 122° F
Operating RH 0-95% (non-condensing)
Storage Temperature 32° F to 150° F
Overall Size 4.375” W x 5.50” H x 1” D
Display Size 2.75” W x 1.875” H
Accuracy +/- 0.3° @ 77° F
Temperature Sensor(s) 10K NTC type 3
Short Cycle Protection 4 minutes or OFF
Display Resolution 1.0° F
Control Range 41
Outdoor Temp Display Range -10 140° F
Backlight Blue EL (Electro Luminescent)
Backlight Life 3,000 hours to half brightness
Optimized Start/Stop Time vs. temp differential - updating
Wireless Communications ZigBee
Protocol Modbus
Approvals FCC Part 15 (pending) C-tick
° F to 122° F
°Fto
Thermostats Made Simple™
5418 Elmwood Avenue, Indianapolis, IN 46203-6025
Toll Free: 888.652.9663 Fax: 317.227.1034
www.jacksonsystems.com
04-1057-052311
