Petrol Walk Behind Vacuum & Blower
WEWBVAC
1938267001
en - Original Instructions
ASSEMBLY REQUIRED
Minimum Two Persons
Sales & Support: 01793 333212
Before use please read & understand this manual; paying particular attention to the safety instructions before use.
Whilst every eff ort has been made to ensure the accuracy of information contained in this manual, our policy of continuous improvement
Incorrect use of the product could put the operator or machine in danger.
determines the right to make modifi cations without prior warning.
Images are used for illustration purposes only.
Page 2
INSTRUCTION MANUAL
11 Sep 2020
Copyright Notice
Copyright © Handy Distribution
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other form or means without
written permission from Handy Distribution.
In all cases this copyright notice must remain intact.
2
Page 3
CONTENTS
INTENDED USE
SAFETY INSTRUCTIONS
SPECIFICATIONS
KNOW YOUR MACHINE
ASSEMBLY
ACCESSORIES
PRE-OPERATION
OPERATION
MAINTENANCE, CLEANING & STORAGE
TROUBLE SHOOTING

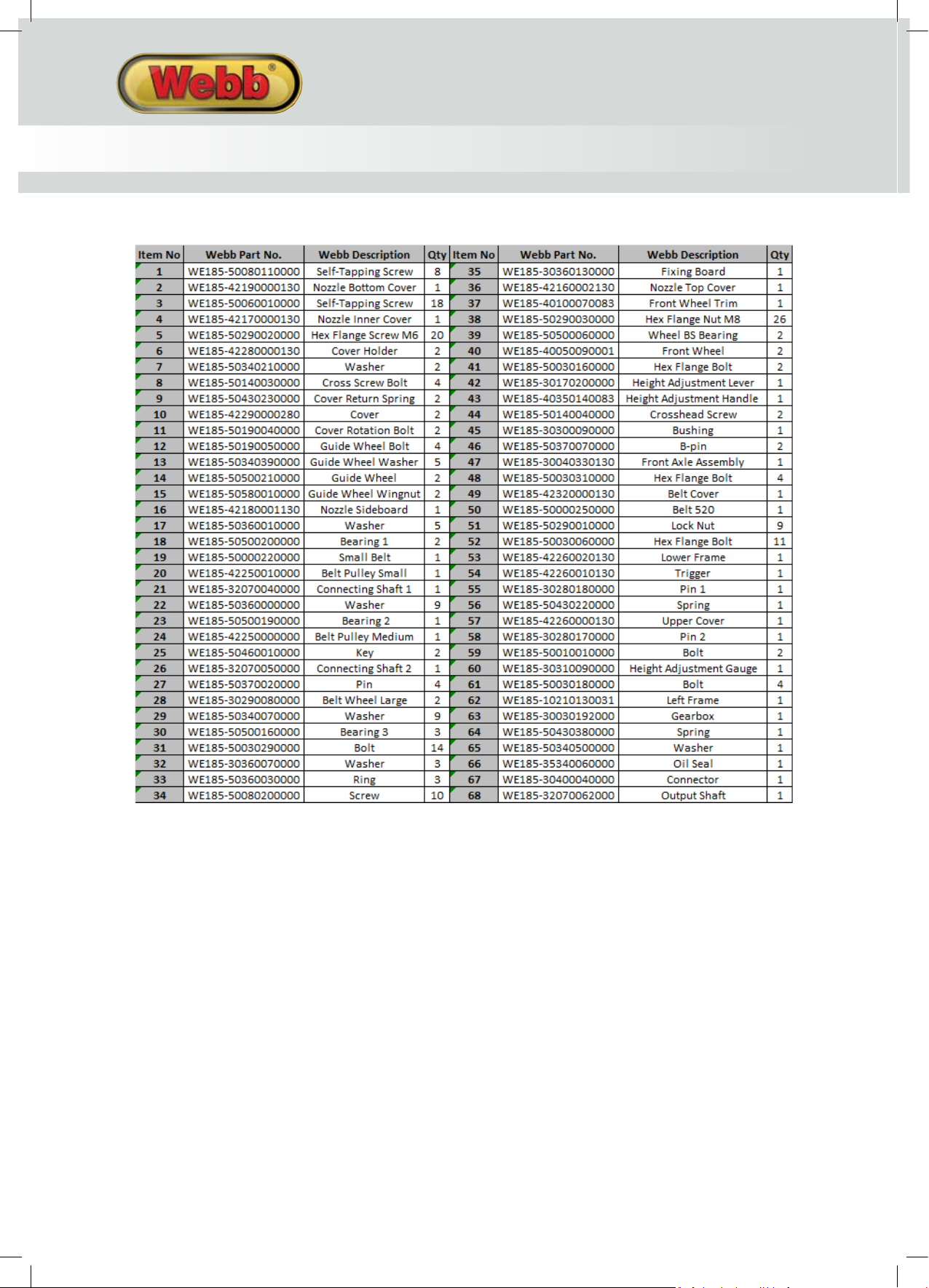

PARTS DIAGRAM & LIST
DECLARATION OF CONFORMITY
WARRANTY
INTENDED USE
The basic version of the equipment is a petrol walk behind vacuum & blower intended for private use, i.e. for
use in home and gardening environments. It is designed to collect or blow garden debris in medium to large
lawns.
The vacuum & blower is for private use, whose annual operating time generally does not exceed 50 hours.
Public facilities, sporting halls, and agricultural / forestry applications are excluded.
Please read this entire manual prior to operating the equipment. It instructs you how to safely and easily set
up, operate and maintain your machine. Please be sure that you, and any other persons who will operate the
machine, carefully follow the recommended safety practices, at all times. Failure to do so could result in
personal injury or property damage.
TO THE OWNER
All information in this manual is relative to the most recent product information available at the time of
printing. Review this manual frequently to familiarise yourself with the machine, its features and operation.
Please be aware that this Instruction Manual may cover a range of product specifications for various models.
Characteristics and features discussed and/or illustrated in this manual may not be applicable or exact to all
models.
We reserve the right to change product specifications, designs and equipment without notice and without
incurring obligation. If you have any problems or questions concerning the machine, phone your local
authorised service dealer or ourselves. Throughout this manual, all references to right and left side of the
machine are observed from the operating position
WARNING
For safety reasons, the vacuum & blower may not be used as a drive unit for other equipment or toolkits of
any kind, unless specifically advised to do so by the manufacturer. The equipment is to be used only for its
prescribed purpose. Any other use is deemed to be a case of misuse. The user/operator and not the
manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial
applications. Our warranty will be 90 days from the original date of sale for commercial, trade or industrial
businesses or for equivalent purposes.
3
Page 4
GENERAL SAFETY RULES
WARNING
Before you put the machine into operation, you must read this instruction manual.
When using this machine, observe the following safety instructions to exclude the risk of personal injury or
material damage. Please also observe the special safety instructions in the respective chapters. Where
applicable, follow the legal directives or regulations for the prevention of accidents in relation to the use of
this machine.
When using petrol tools, basic safety precautions, including the following, should always be followed to
reduce the risk of serious personal injury and/or damage to the unit.
GENERAL OPERATION
1. Read this instruction manual carefully in its entirety before attempting to assemble this machine. Read,
understand, and follow all instructions on the machine and in the manual(s) before operation. Keep this
manual in a safe place for future and regular reference and for ordering replacement parts.
2. Be completely familiar with the controls and the proper use of this machine before operating it.
3. This machine is a precision piece of power equipment, not a plaything. Therefore, exercise extreme
caution at all times. This machine has been designed to perform one job: to cut out moss and weeds from
the root. Do not use it for any other purpose.
4. Never allow children under 16 years of age to operate this machine. Children 16 and over should read and
understand the instructions and safe operation practices in this manual and on the machine and should be
trained and always supervised by an adult.
5. Only responsible individuals who are familiar with these rules of safe operation should be allowed to use
this machine.
6. Thoroughly inspect the area where the equipment is to be used. Remove all stones, sticks, wire, bones,
toys and other foreign objects, which could be tripped over or picked up and thrown by the machine.
Thrown objects can cause serious personal injury.
7. Plan your operating pattern to avoid discharge of material toward roads, pathways, bystanders and the
like. Also, avoid discharging material against a wall or obstruction, which may cause discharged material to
ricochet back toward the operator.
8. To help avoid tine contact or a thrown object injury, stay in operator zone behind handles and keep
children, bystanders, helpers and pets at least 20 metres from machine while it is in operation. Stop
machine if anyone enters area.
9. Always wear safety glasses or safety goggles during operation and while performing an adjustment or
repair to protect your eyes. Thrown objects which ricochet can cause serious injury to the eyes.
10. Wear sturdy, rough-soled work shoes and close-fitting trousers and shirts. Shirts and trousers that cover
the arms and legs and steel-toed shoes are recommended. Never operate this machine in bare feet,
sandals, slippery or light- weight (e.g. canvas) shoes.
11. Do not put hands or feet near or under rotating parts. Always keep clear of discharge area, as the rotating
tines can cause injury.
12. Never operate the machine without proper shields, guards, control lever or other safety protective devices
in place and working.
13. Never operate the machine with damaged safety devices. Failure to do so, can result in personal injury.
14. Many injuries occur as a result of the tines being pulled over the foot during a fall caused by slipping or
tripping. Do not hold on to the machine if you are falling; release the handle immediately.
15. Never pull the machine back towards you while you are walking. If you must back the machine away from
a wall or obstruction, first look down and behind to avoid tripping and then follow these steps:
A. Step back from the machine to fully extend your arms.
B. Be sure you are well balanced with sure footing.
C. Pull the machine back slowly, no more than halfway towards you.
D. Repeat these steps as needed.

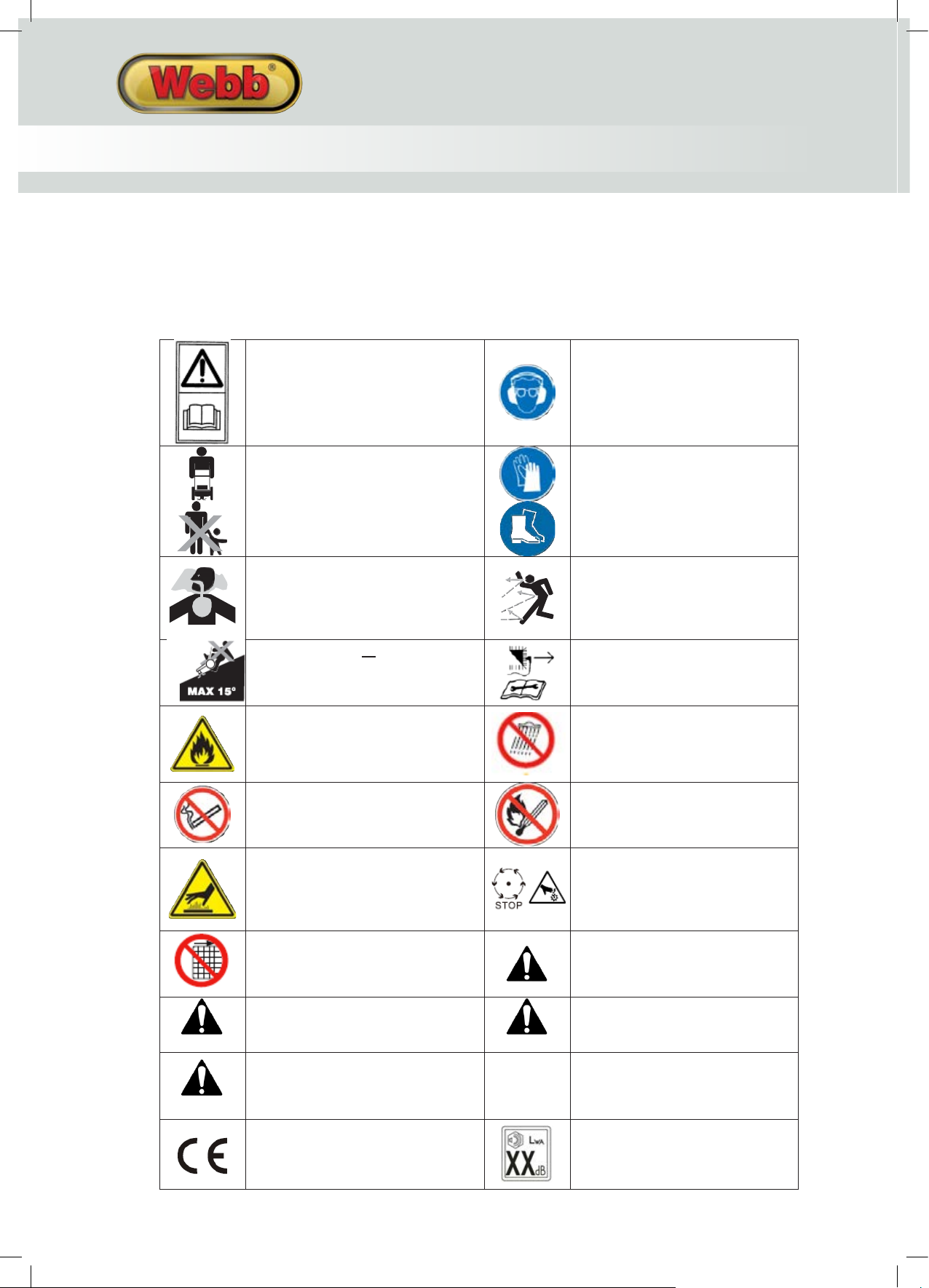

WARNING — CARBON MONOXIDE
and deadly gas.
WARNING— HOT SURFACE
touching.
Moving Parts
severe laceration can result
Safety alert symbol. Used to alert you
this symbol to avoid possible injury.
DANGER
WARNING
Used without the safety alert symbol
result in property damage.
INSTRUCTION MANUAL
SAFETY INSTRUCTIONS
Read and understand the owner’s manual and labels affixed to the machine. Learn its application and
limitations as well as the specific potential hazards. Retain these instructions for future reference. The
operator is responsible for following the warnings & instructions in this manual and on the product.
4
CAUTION
Read & understand operator’s manual
before using the machine. Failure to
follow instructions could result in death
or serious injury.
Please keep in a safe place for future
reference.
and ear protection when operating
DANGER
Keep all bystanders & animals away
from the machine during operation. If
approached, stop the machine
immediately.
Never run an engine indoors or in a
poorly ventilated area. Engine exhaust
contains carbon monoxide, an odorless
DANGER — SLOPES
Use extra caution on slopes. Do not trim
on slopes greater than 15°.
WARNING — PETROL IS FLAMMABLE
Allow the engine to cool at least two
minutes before refueling.
No smoking
Engine parts, especially the muffler,
become extremely hot during operation.
Allow engine and muffler to cool before
Keep guards in place and in working
order. Replace damaged, missing or
failed parts before using it.
Indicates an imminently hazardous
situation which, if not avoided, will
result in serious injury
Indicates a potentially hazardous
situation which, if not avoided, may
result in minor or moderate injury.
CE Marking - the product meets demand
and regulations set by the EU
CAUTION
Always wear gloves to protect your
hands. Wear foot protection or
sensible shoes when using the
DANGER — THROWN DEBRIS
Remove objects that can be thrown by
the machine in any direction.
Always remove the spark plug lead
from the spark plug before performing
any maintenance, inspection or repair.
Do not expose to rain or damp
Do not use near a flame, or sparks
Rotating parts can contact or entangle
hands, feet, hair, clothing or
accessories. Traumatic amputation or
to potential personal injury hazards.
Obey all safety messages that follow
Indicates a potentially hazardous
situation which, if not avoided, could
indicates a potentially hazardous
situation which, if not avoided, may
Noise Level 105dB - See label on
Always wear safety eye
this machine.
machine
conditions.
result in serious injury
machine for full details
Page 5
GENERAL SAFETY RULES
WARNING
Before you put the machine into operation, you must read this instruction manual.
When using this machine, observe the following safety instructions to exclude the risk of personal injury or
material damage. Please also observe the special safety instructions in the respective chapters. Where
applicable, follow the legal directives or regulations for the prevention of accidents in relation to the use of
this machine.
When using petrol tools, basic safety precautions, including the following, should always be followed to
reduce the risk of serious personal injury and/or damage to the unit.
GENERAL OPERATION
1. Read this instruction manual carefully in its entirety before attempting to assemble this machine. Read,
understand, and follow all instructions on the machine and in the manual(s) before operation. Keep this
manual in a safe place for future and regular reference and for ordering replacement parts.
2. Be completely familiar with the controls and the proper use of this machine before operating it.
3. This machine is a precision piece of power equipment, not a plaything. Therefore, exercise extreme
caution at all times. This machine has been designed to perform one job: to cut out moss and weeds from
the root. Do not use it for any other purpose.
4. Never allow children under 16 years of age to operate this machine. Children 16 and over should read and
understand the instructions and safe operation practices in this manual and on the machine and should be
trained and always supervised by an adult.
5. Only responsible individuals who are familiar with these rules of safe operation should be allowed to use
this machine.
6. Thoroughly inspect the area where the equipment is to be used. Remove all stones, sticks, wire, bones,
toys and other foreign objects, which could be tripped over or picked up and thrown by the machine.
Thrown objects can cause serious personal injury.
7. Plan your operating pattern to avoid discharge of material toward roads, pathways, bystanders and the
like. Also, avoid discharging material against a wall or obstruction, which may cause discharged material to
ricochet back toward the operator.
8. To help avoid tine contact or a thrown object injury, stay in operator zone behind handles and keep
children, bystanders, helpers and pets at least 20 metres from machine while it is in operation. Stop
machine if anyone enters area.
9. Always wear safety glasses or safety goggles during operation and while performing an adjustment or
repair to protect your eyes. Thrown objects which ricochet can cause serious injury to the eyes.
10. Wear sturdy, rough-soled work shoes and close-fitting trousers and shirts. Shirts and trousers that cover
the arms and legs and steel-toed shoes are recommended. Never operate this machine in bare feet,
sandals, slippery or light- weight (e.g. canvas) shoes.
11. Do not put hands or feet near or under rotating parts. Always keep clear of discharge area, as the rotating
tines can cause injury.
12. Never operate the machine without proper shields, guards, control lever or other safety protective devices
in place and working.
13. Never operate the machine with damaged safety devices. Failure to do so, can result in personal injury.
14. Many injuries occur as a result of the tines being pulled over the foot during a fall caused by slipping or
tripping. Do not hold on to the machine if you are falling; release the handle immediately.
15. Never pull the machine back towards you while you are walking. If you must back the machine away from
a wall or obstruction, first look down and behind to avoid tripping and then follow these steps:
A. Step back from the machine to fully extend your arms.
B. Be sure you are well balanced with sure footing.
C. Pull the machine back slowly, no more than halfway towards you.
D. Repeat these steps as needed.
5
Page 6
INSTRUCTION MANUAL
16. Do not operate the machine while under the influence of alcohol or drugs.
17. The OPC/Brake lever is a safety device. Never attempt to bypass its operation. Doing so makes the safety
device inoperative and may result in personal injury. The OPC/Brake lever must operate easily in both
directions and automatically return to the disengaged position when released.
18. Never operate the machine in wet grass. Always be sure of your footing. A slip and fall can cause serious
personal injury. If you feel you are losing your footing, release the OPC/Brake lever immediately and the
spindle will stop rotating within three seconds.
19. Operate only in daylight or good artificial light. Walk, never run.
20. Stop the engine when crossing gravel or stone areas.
21. If the machine starts to vibrate abnormally, stop the engine and check immediately for the cause.
Vibration is generally a warning of trouble.
22. Shut the engine off and wait until the engine comes to a complete stop before cleaning the discharge
area. Some components continue to rotate for a few seconds after the OPC/Brake lever is released. Never
place any part of the body in the machine area until you are sure the machine has stopped, and the spark
plug cap removed from the spark plug and contact cannot be made between the two.
23. Never operate the machine without proper shields, discharge cover, OPC/Brake lever or other safety
protective devices in place and working. Never operate with damaged safety devices. Failure to do so can
result in personal injury.
24. Muffler and engine can become hot and cause burns. Do not touch!
25. Only use parts and accessories made for this machine by the manufacturer. Failure to do so can result in
personal injury.
26. When starting the engine, pull cord slowly until resistance is felt, then pull rapidly. Rapid retraction of
starter cord (kickback) will pull hand and arm towards engine faster than you can let go. Broken bones,
fractures, bruises or sprains could result.
27. If situations occur which are not covered in this manual, use care and good judgement. Contact your
nearest Approved Service Dealer for assistance
SLOPE OPERATION
Slopes are a major factor related to slip and fall accidents, which can result in severe injury. Operation on
slopes requires extra caution. If you feel uneasy on a slope, or it is greater than 15 degrees, do not scarify on it.
Do:
1. Scarify across the face of slopes; never up and down. Exercise extreme caution when changing direction
on slopes.
2. Watch for holes, ruts, rocks, hidden objects, or bumps which can cause you to slip or trip. Tall grass can
hide obstacles.
3. Always be sure of your footing. A slip and fall can cause serious personal injury. If you feel you are losing
your balance, release the OPC/Brake lever immediately and the tines will stop rotating within three (3)
seconds.
Do Not:
1. Do not operate near drop-offs, ditches or embankments, you could lose your footing or balance.
2. Do not operate on slopes greater than 15 degrees.
3. Do not operate on wet grass. Unstable footing could cause slipping.
CHILDREN
Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted
to the machine and the activity. They do not understand the dangers. Never assume that children will remain
where you last saw them.
1. Keep children out of the scarifying area and under care of a responsible adult other than the operator.
2. Be alert and turn the machine off if a child enters the area.
3. Before and while moving backwards, look behind and down for small children.
4. Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that may
obscure your vision of a child who may run into the machine.
5. Keep children away from hot or running engines. They can suffer burns from a hot muffler.
6. Never allow children under 16 years of age to operate this machine. Children 16 and over should read and
understand the instructions and safe operation practices in this manual and on the machine and be
trained and supervised by an adult.
6
Page 7
SERVICE
Safe Handling of Petrol:
1. To avoid personal injury or property damage use extreme care in handling petrol. Petrol is extremely
flammable, and the vapors are explosive. Serious personal injury can occur when petrol is spilled on
yourself or your clothes, which can ignite. Wash your skin and change clothes immediately.
2. Use only an approved petrol container.
3. Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place
containers on the ground away from your vehicle before filling.
4. Remove petrol-powered equipment from the truck or trailer and refuel it on the ground. If this is not
possible, then refuel such equipment on a trailer with a portable container, rather than from a petrol
dispenser nozzle.
5. Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is
complete. Do not use a nozzle lock-open device.
6. Extinguish all cigarettes, cigars, pipes and other sources of ignition.
7. Never fuel machines indoors because flammable vapors will accumulate in the area.
8. Never remove petrol cap or add fuel while engine is hot or running. Allow engine to cool at least two
minutes before refueling.
9. Never over fill fuel tank. Fill tank up to 80% capacity to allow for expansion.
10. Replace petrol cap and tighten securely.
11. If petrol is spilled, wipe it off the engine and equipment. Move machine to another area. Wait 5 minutes
before starting engine.
12. Never store the machine or fuel container near an open flame, spark or pilot light on petrol appliances.
13. To reduce fire hazard, keep machine free of grass, leaves, or other debris build-up. Clean up oil or fuel
spillage and remove any fuel-soaked debris.
14. Allow machine to cool at least 5 minutes after use, before storing.
General Service:
1. Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an
odorless and deadly gas.
2. Before cleaning, repairing, or inspecting, make certain the tines and all moving parts have stopped.
Disconnect the spark plug wire and ground against the engine to prevent unintended starting.
3. Check the machine and engine mounting bolts at frequent intervals for proper tightness. Also, visually
inspect for damage. Replace with the original equipment manufacture’s (O.E.M.) parts only, listed in this
manual. “Use of parts which do not meet the original equipment specifications may lead to improper
performance and compromise safety!”
4. Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition.
5. Never tamper with safety devices. Check the correct operation regularly.
6. After striking or vacuuming a foreign object, stop the engine, disconnect the spark plug wire and ground
against the engine. Thoroughly inspect the machine for any damage. Repair the damage before starting
and operating the machine.
7. Machine components, guards and shields are subject to wear and damage which could expose moving
parts or allow objects to be thrown. For safety protection, frequently check components and replace
immediately with original equipment manufacturers (O.E.M.) parts only, listed in this manual. “Use of
parts which do not meet the original equipment specifications may lead to improper performance and
compromise safety!”
8. Do not change the engine’s governor setting or over-speed the engine. The governor controls the
maximum safe operating speed of the engine.
9. Check fuel line, tank, cap, and fittings frequently for cracks or leaks. Replace if necessary.
10. Do not crank engine with spark plug removed.
11. Maintain or replace safety and instruction labels, as necessary.
12. Observe proper disposal laws and regulations. Improper disposal of fluids and materials can harm the
environment.
DO NOT MODIFY THE ENGINE
To avoid serious injury or death, do not modify the engine in any way. Tampering with the governor setting
can lead to a runaway engine and cause it to operate at unsafe speeds. Never tamper with factory setting of
engine governor. Please refer to the Briggs & Stratton engine manual, before undertaken any inspection,
repair or maintenance.
7
Page 8
KNOW YOUR MACHINE
* Image may vary from actual machine

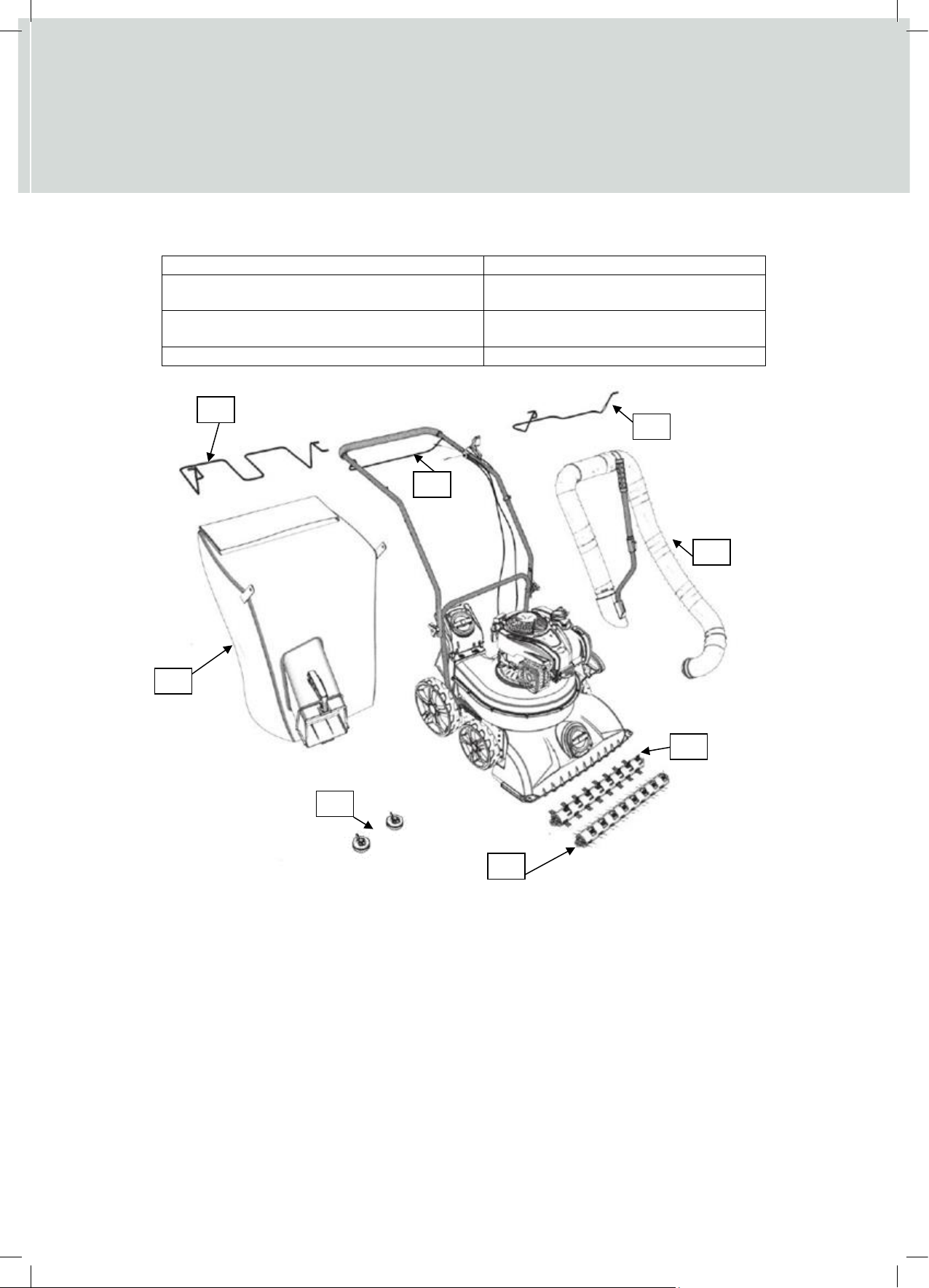

1. Collection Bag Fixing Bracket
2. Collection Bag
3. Cleaning Brush
(Not Included - Accessory WEWBVACBRUSH)
4. Scarifier
(Not Included - Accessory WEWBVACSCAR)
5. Auxiliary Hose with Baffle Board
(Not Included - Accessory WEWBVACHOSE)
6. OPC/Brake Lever
7. Self-Propelled Lever
8. Guide Wheels
6
2
1
7
5
4
3
7
INSTRUCTION MANUAL
PERSONAL SAFETY
1. This machine is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the machine by a person responsible for their safety.
2. Children should be supervised to ensure that they do not use or play with the machine.
3. Stay alert, watch what you are doing and use common sense when operating this machine.
4. Do not use this machine while you are tired, ill or under the influence of drugs, alcohol, or medication. A
moment of inattention while operating this machine can cause you to lose control & may result in series
personal injury.
5. Use safety equipment. Always wear eye protection. Safety equipment such as a dust mask, non-skid safety
shoes, hard hat, or hearing protection used for appropriate condition will reduce personal injuries.
6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing & gloves away from
moving parts and vacuuming inlet. Loose clothes, jewellery or long hair can be caught in moving parts or
the vacuum inlet.
7. Prolonged use of the machine may lead to disorders of blood circulation in hands caused by vibration.
These effects can be worsened by low ambient temperatures and/or by gripping the handgrips excessively
tightly. Period of use you can extend with appropriate gloves or regular breaks. Take frequent work
breaks. Limit the amount of exposure per day.
SPECIFICATIONS
Model No. WEWBVAC
Product No. 1938267001
Engine B&S 500e
Engine Power 2.03 kW
Engine No-Load Speed 3400 r/min
Engine Displacement 140 cm
Fuel Capacity 0.8 L
Oil Capacity 0.47 L
Self-Propelled Speed 3.4 km/h
Working Width 58 cm (23”)
Collector Capacity 150 L
Suction Height 15-60 mm
Measured Sound Power Level LWA: 105 dB(A)
The manufacturer reserves the right to change the product specification and livery according to continued
Max Air Speed 270 km/h (167 mph)
Max Air Volume 18m3 /Min
Recommended Spark Plug Refer to B&S engine manual
Vibration Level: 4.2 m/s
Weight: Net 38 kg - Gross 41 kg
product improvements.
3
2
8
Page 9
1. Collection Bag Fixing Bracket
2. Collection Bag
3. Cleaning Brush
(Not Included - Accessory WEWBVACBRUSH)
4. Scarifier
(Not Included - Accessory WEWBVACSCAR)
5. Auxiliary Hose with Baffle Board
(Not Included - Accessory WEWBVACHOSE)
7. Self-Propelled Lever
8. Guide Wheels
6
2
1
7
5
4
3
7
KNOW YOUR MACHINE
6. OPC/Brake Lever
* Image may vary from actual machine
9
Page 10
UPPER HANDLE

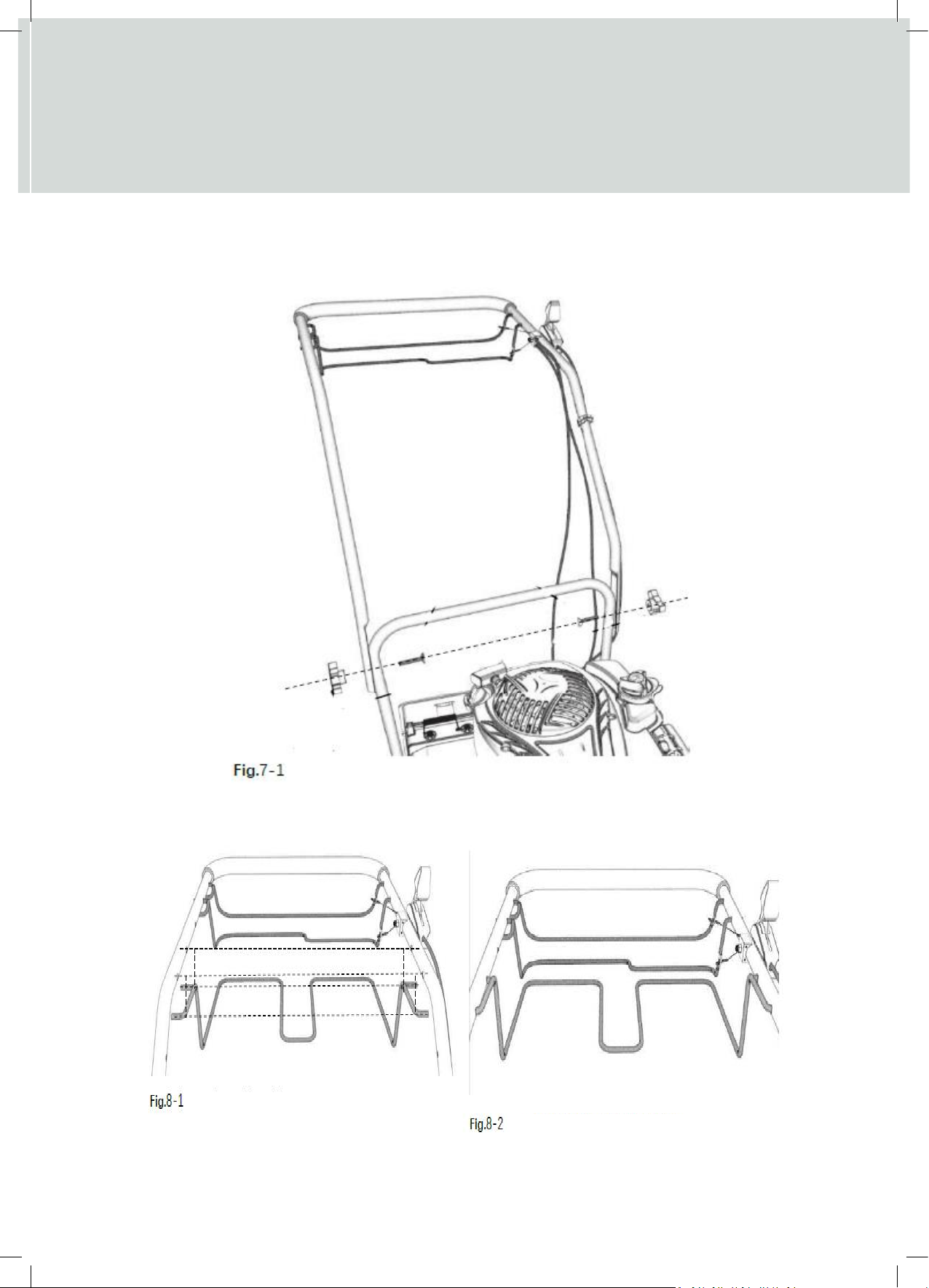

1. Place the upper handle onto the outside of the lower handle and line up the fixing hole of both handles.
2. Secure with the 2x upper handle bolts M8x46 and 2x M8 wing knobs. The wing knobs should sit on the
outside of the handle assembly. Tighten until finger tight. (fig. 7-1)
COLLECTION BAG BRACKET
1. Insert the left and rights ends of the collection bag bracket into the 4x fixing holes of the upper handle.
INSTRUCTION MANUAL
ASSEMBLY
Remove the machine and contents from the carton. Be sure the carton is empty before discarding.
If you require assistance with regards to the contents or operation of the machine, please contact us:
Tel: 01793 333212
Email: [email protected]
Opening hours weekdays: February to October 8:30am - 5:30pm / November to January 8:30am - 5:00pm
(Closed Bank Holidays)
IMPORTANT INFORMATION
NOTE: This product is a 4-stroke engine powered machine. It cannot be used immediately after it has been
removed from the carton. Assembly is required and THE ENGINE IS SHIPPED WITHOUT PETROL OR OIL.

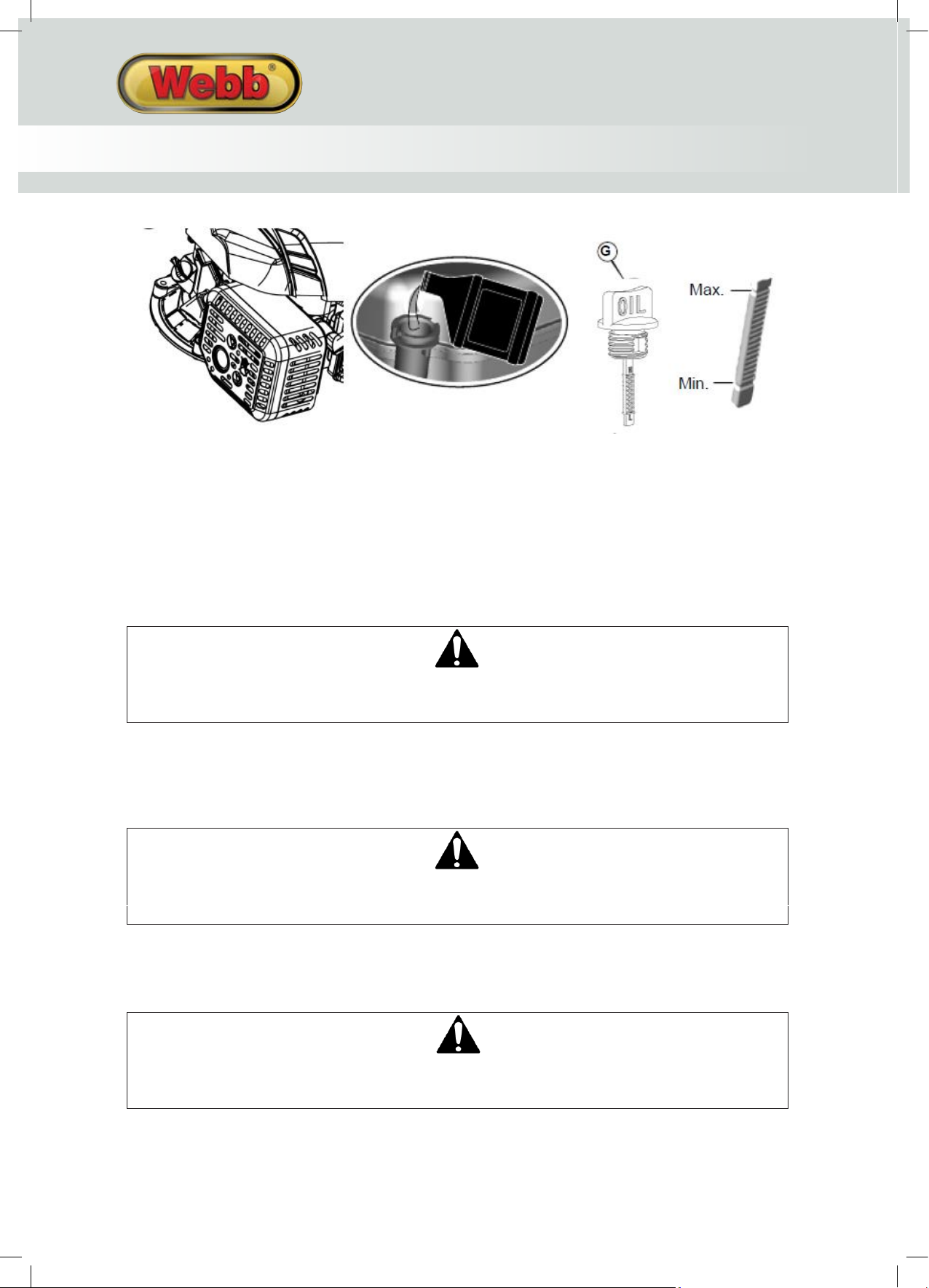

You MUST fill with the engine with recommended 4-stroke SAE30 or 10W/30 air cooled lawnmower engine
oil BEFORE starting. Please follow the steps in the Briggs & Stratton engine manual on filling the engine.
Fresh (Under 30 days old from the date of purchase) unleaded petrol must be used in this unit. DO NOT use
Ethanol based fuels. DO NOT mix oil with fuel.
WARNING
Stop the engine and unplug the spark plug before any repairs or maintenance operations.
DO NOT attempt to start this machine without it first being FULLY assembled.
DO NOT attempt to start this mower without first adding 4-stroke SAE30 or 10W/30 air cooled lawnmower
engine oil to the engine.
SELF-PROPELLED & ROLLER LEVERS

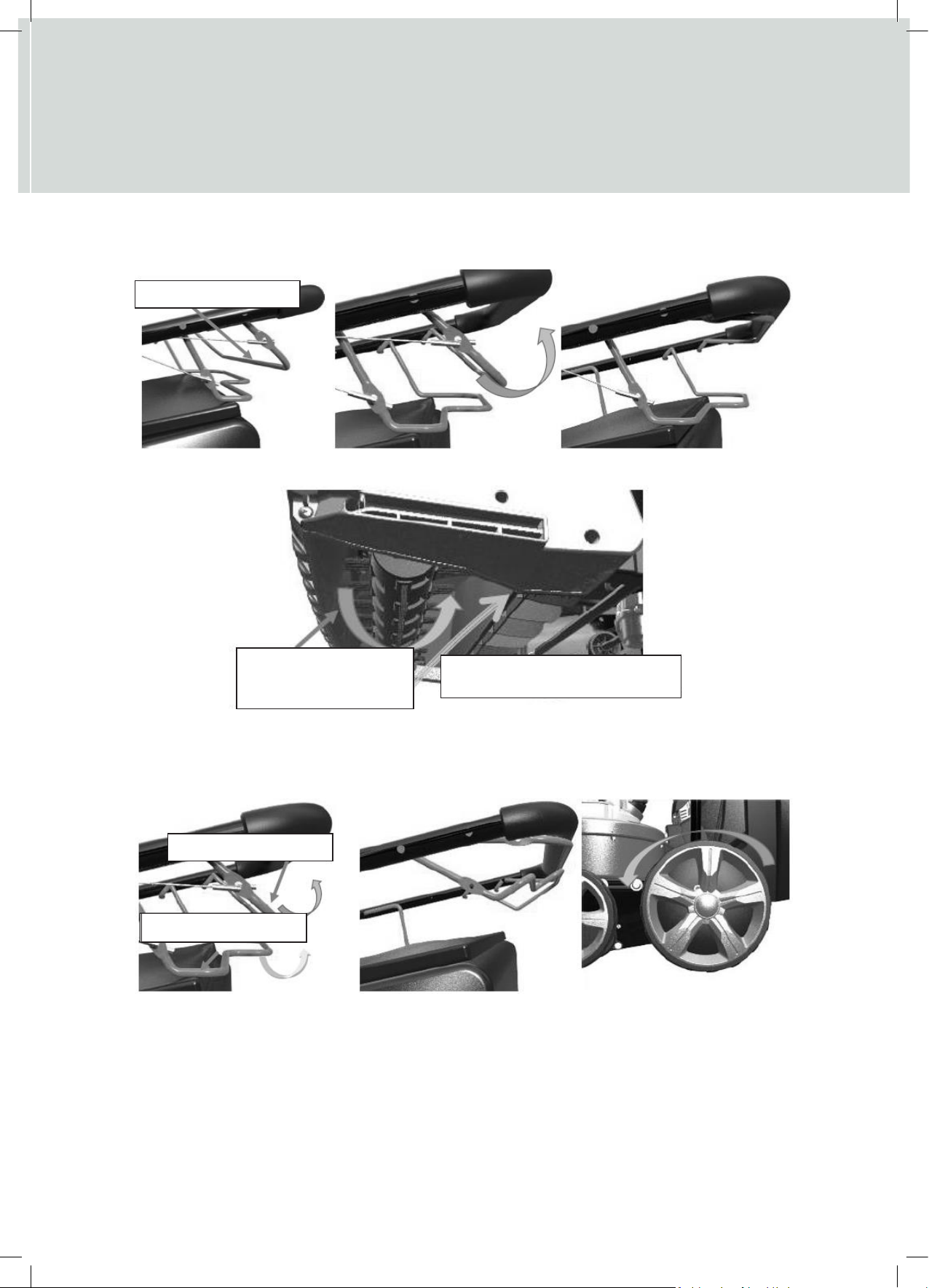

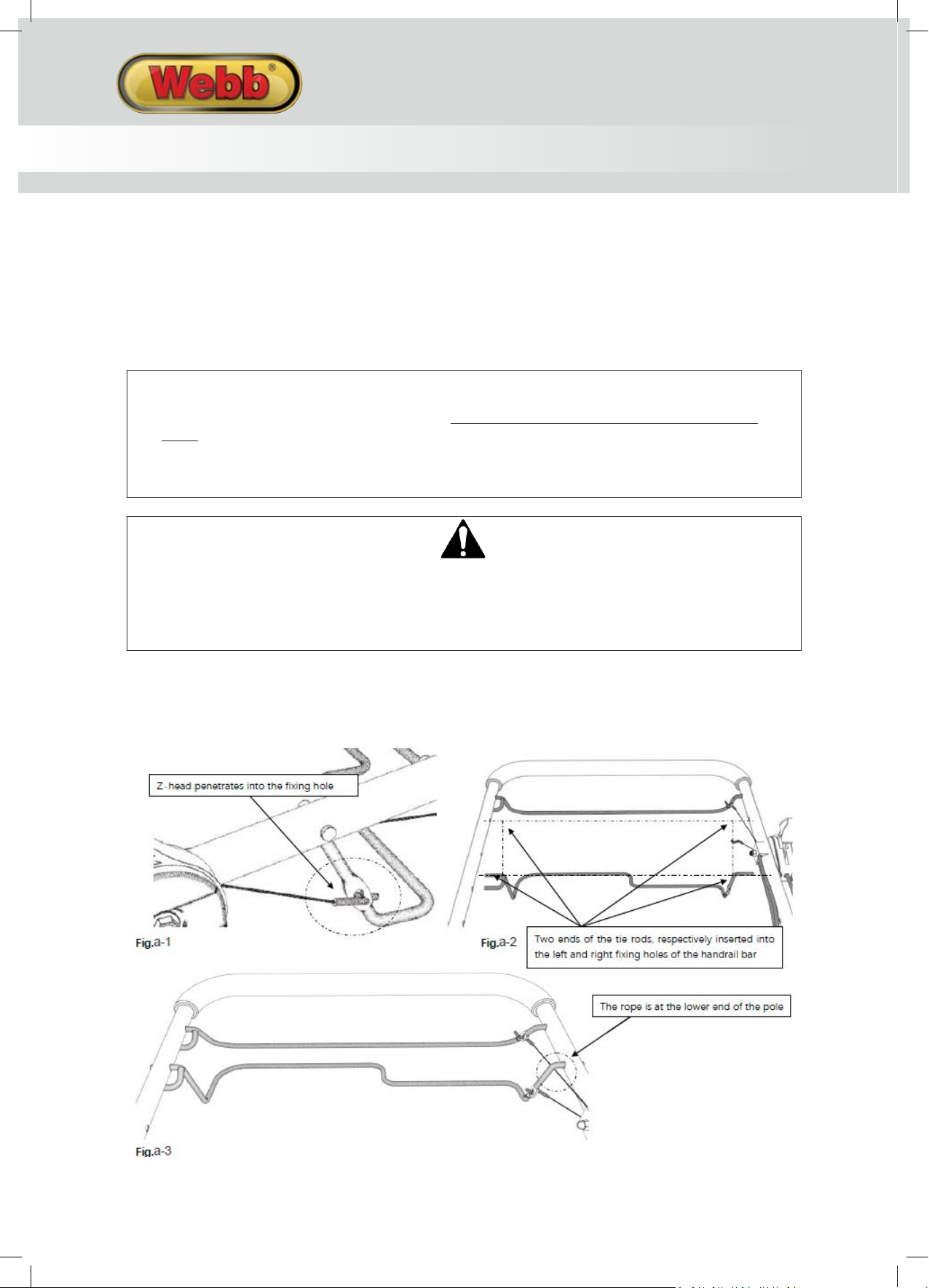

1. Insert the cable Z-head into the roller drive lever. (fig a-1)
2. Insert the roller drive lever into the left and right fixing holes of the upper handle (fig. a-2)
3. Insert the self-propelled cable into the self-propelled lever. (fig. a-3)
10
Page 11
UPPER HANDLE
1. Place the upper handle onto the outside of the lower handle and line up the fixing hole of both handles.
2. Secure with the 2x upper handle bolts M8x46 and 2x M8 wing knobs. The wing knobs should sit on the
outside of the handle assembly. Tighten until finger tight. (fig. 7-1)
COLLECTION BAG BRACKET
1. Insert the left and rights ends of the collection bag bracket into the 4x fixing holes of the upper handle.
11
Page 12
Baffle
Buckle
INSTRUCTION MANUAL
HOSE BRACKET
1. Insert the left and right ends of the hose bracket into the fixing holes of the upper handle.
COLLECTION BAG

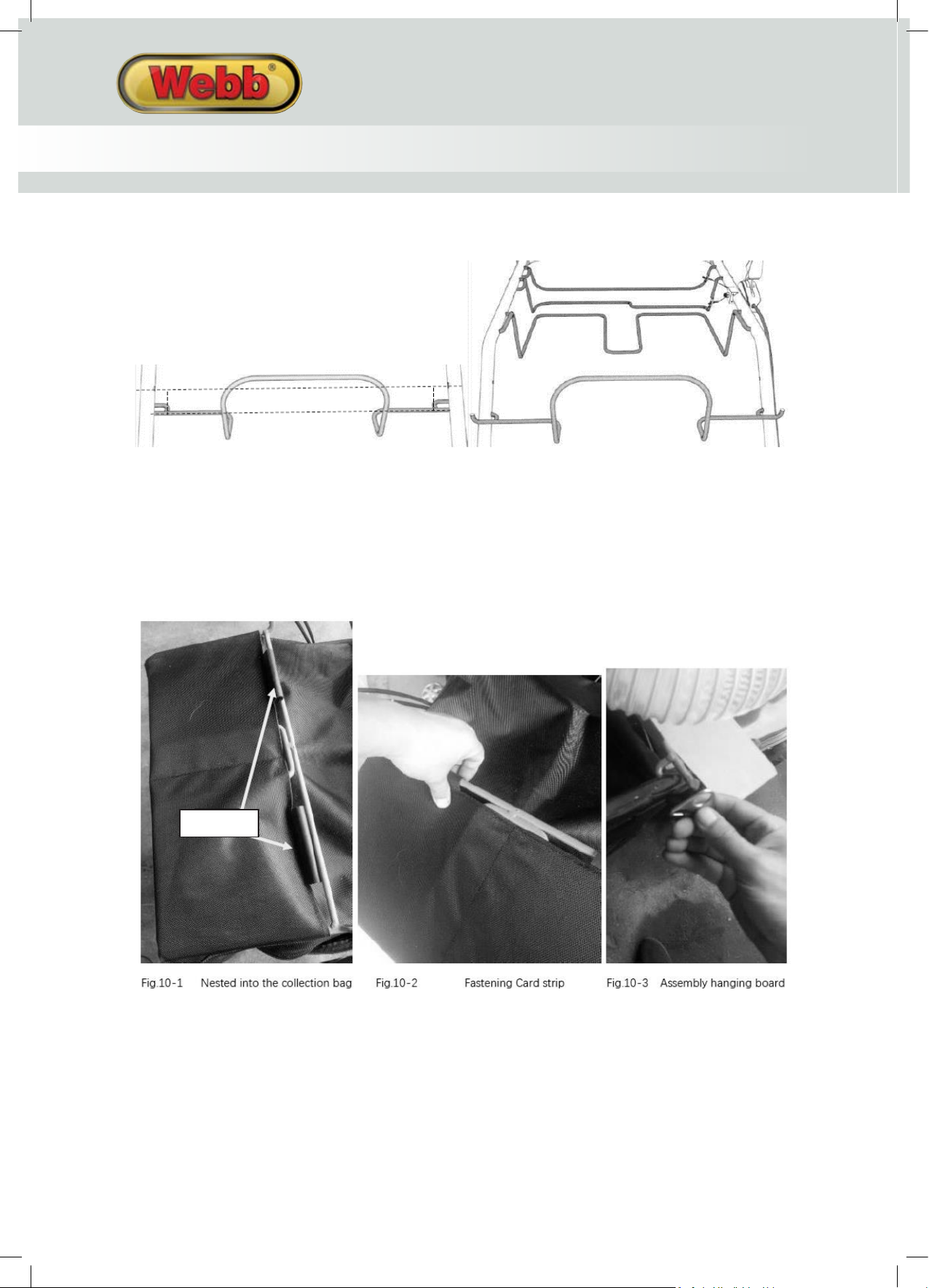

Important: Before you attach the collector, please ensure that the engine is switched off any accessory
cassette fitted are not rotating.

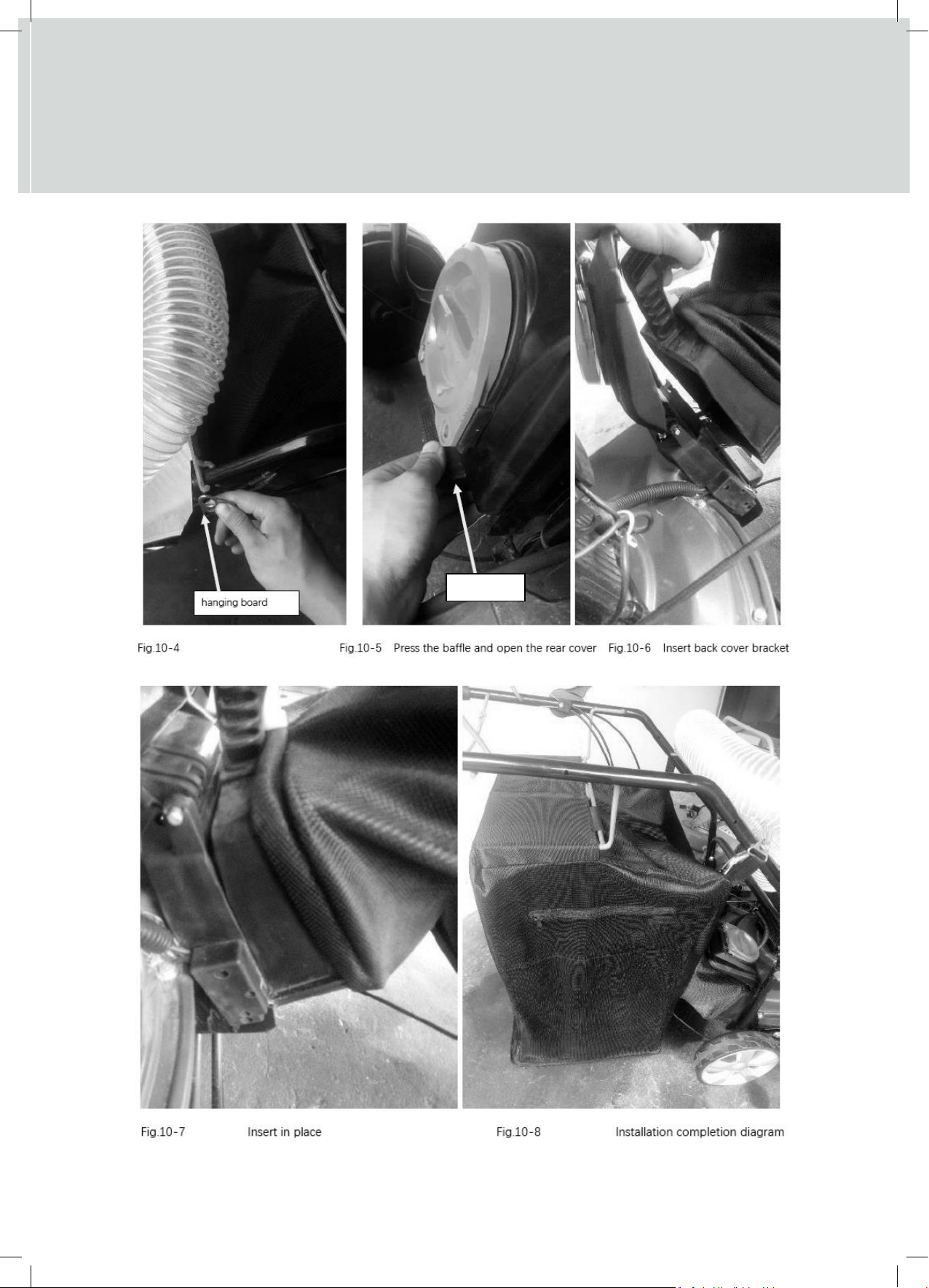

1. Put the upper section of the collection bag onto the collection bag bracket. Secure by wrapping the plastic
hooks over the bracket. (fig. 10-1 & 10-2)
2. Hang the left and right hanging plates on the end of the hose bracket. (fig. 10-3 & 10-4)

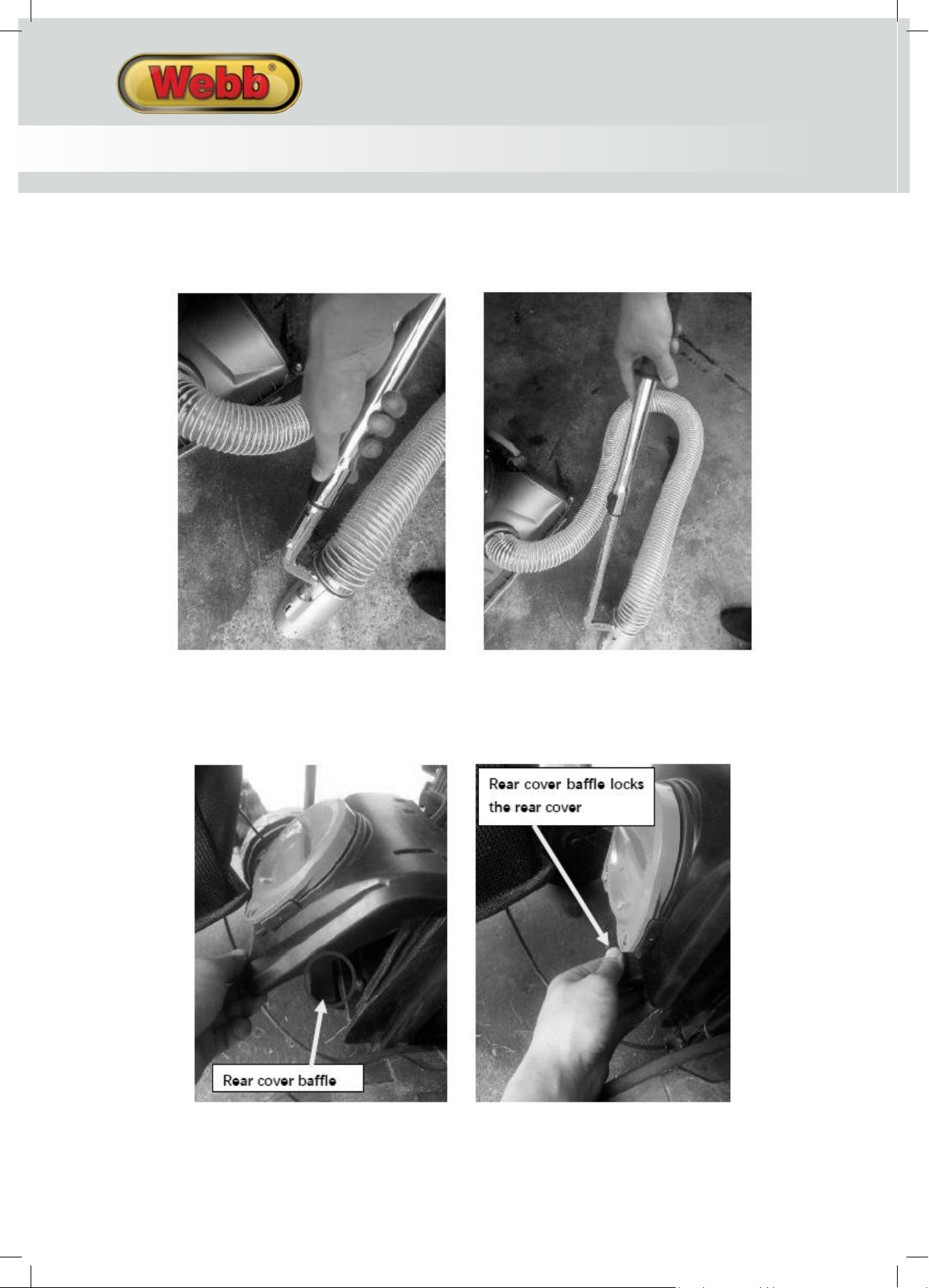

3. Press the baffle located under the hose inlet and open the rear cover. (fig. 10-5).
4. Insert the collection bag inlet into the rear cover (fig. 10-6).
12
Page 13
Baffle
13
Page 14
HOSE & BAFFLE PLATE

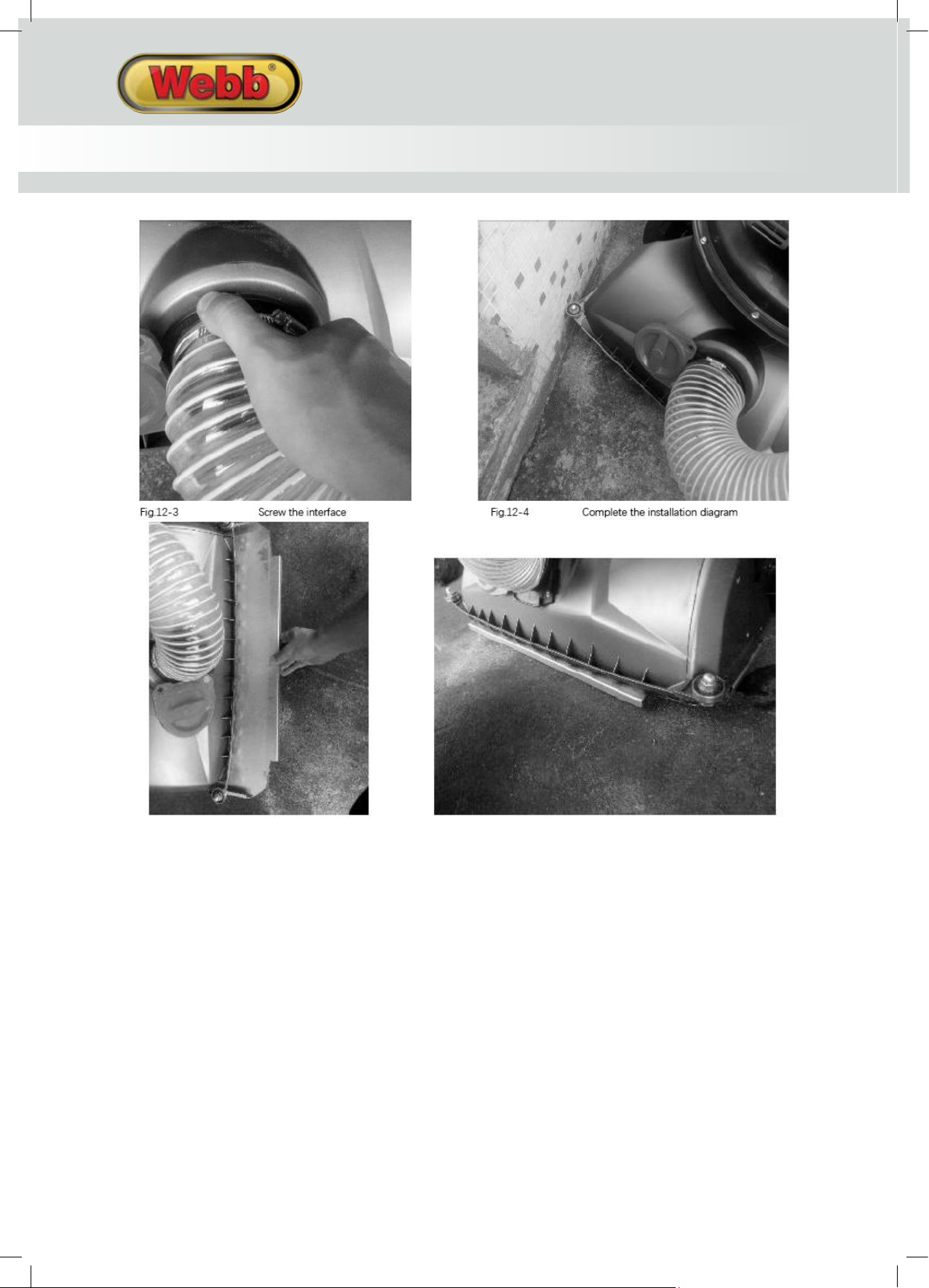

1. Open the front hose cover.
2. Align the end of the hose connector with the front hose inlet.
3. Insert the hose connector.
4. Rotate the hose connector clockwise to lock.
5. Insert the suction inlet baffle to block the inlet and provide full suction power to the hose.
INSTRUCTION MANUAL

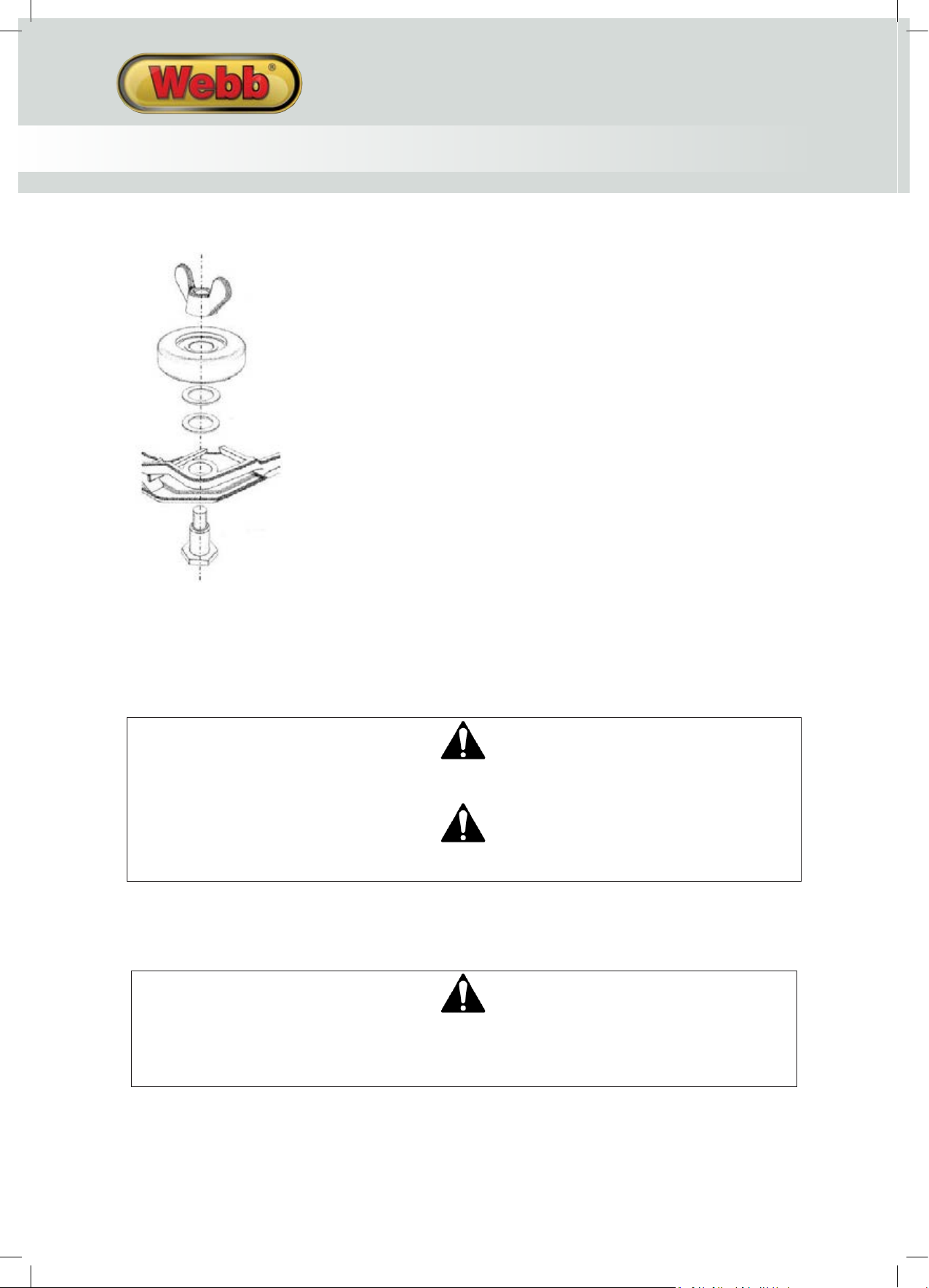

GUIDE WHEELS
The guide wheels are fitted to the front corners of the suction housing. Fit in the following order:
ACCESSORIES

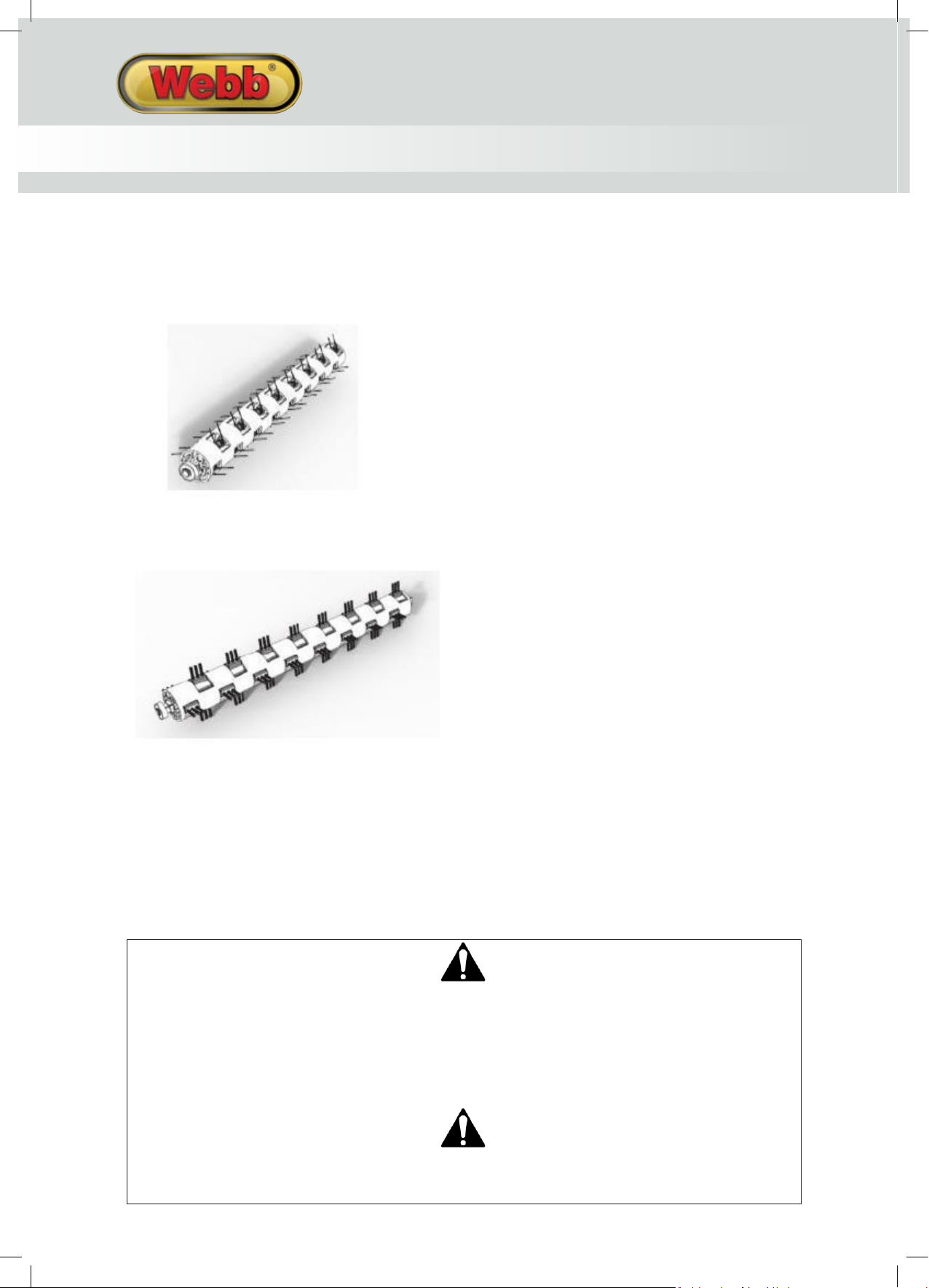

BRUSH OR SCARIFIER - MINIMUM TWO ADULT ACTION
The equipment can be assembled with the Dethatching (blades) or Scarifying (Spring Tines) cylinders. Only
replace the cylinder with an original Webb product, to ensure top performance & safety. To change the
cylinder, proceed as follows. We recommend this is undertaken by a minimum of two adults and that suitable
hard-wearing gloves are worn at all times.
WARNING
When changing the cassette, ensure suitable hard-wearing gloves are worn at all times

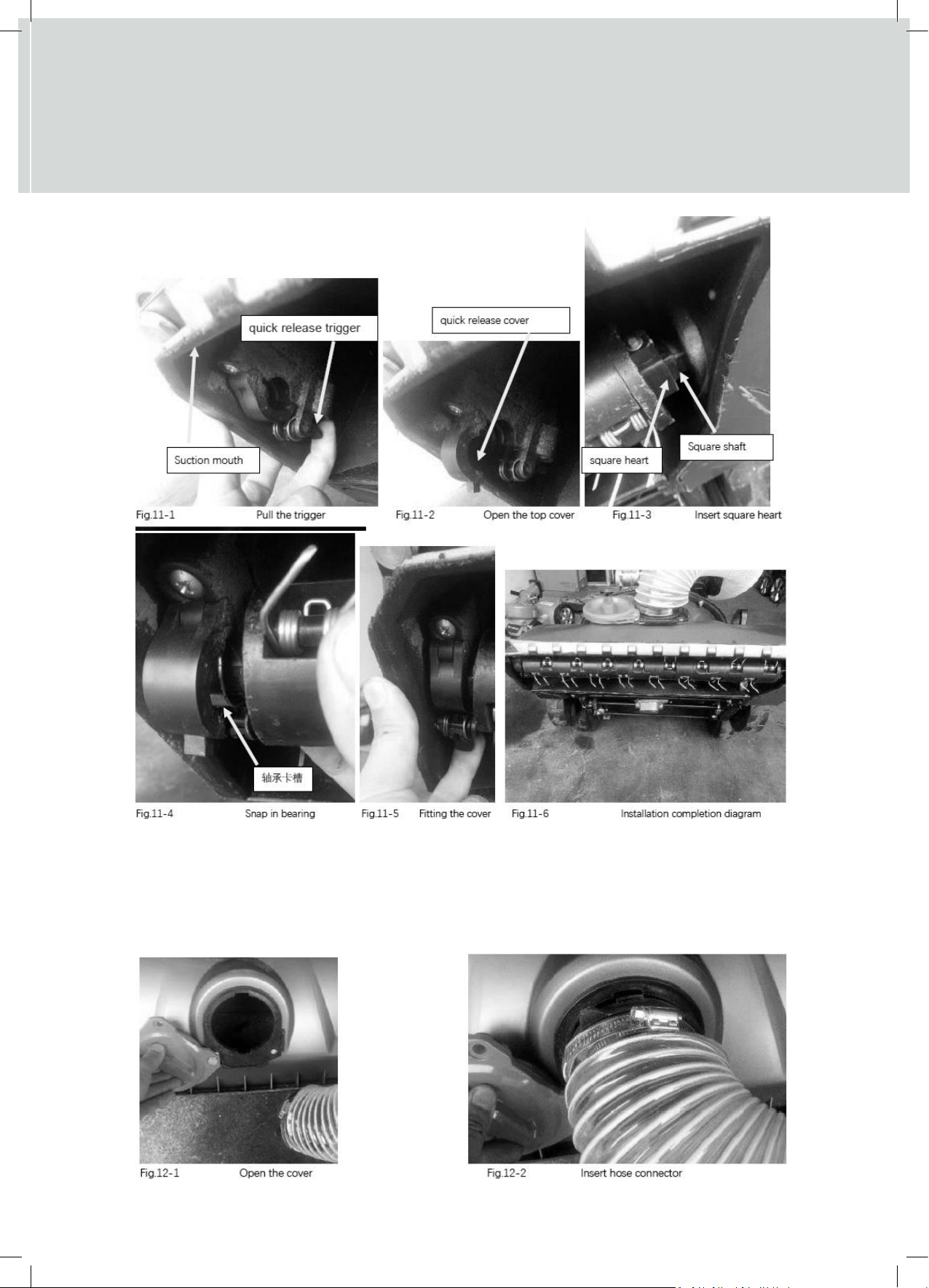

1. Tip the machine backwards.
2. Pull the quick release trigger and open the quick release cover.
3. Align the square end of the accessory cassette into the square housing of the machine.
4. Insert the bearing end of the accessory cassette into the quick release bracket bearing mounting position.
5. Pull the quick release trigger and fasten the upper cover.
Only use genuine cassettes with this machine.
Before Installing, it is necessary to turn the engine off.
The quick release cover must be snapped into place. Pull the roller firmly without pulling the trigger. Please
check if the cassette will fall out.
CAUTION
WARNING
14
Page 15
HOSE & BAFFLE PLATE
1. Open the front hose cover.
2. Align the end of the hose connector with the front hose inlet.
3. Insert the hose connector.
4. Rotate the hose connector clockwise to lock.
5. Insert the suction inlet baffle to block the inlet and provide full suction power to the hose.
15
Page 16
PRE-OPERATION
FUEL & OIL
WARNING
YOUR MACHINE IS SUPPLIED WITHOUT ENGINE OIL OR UNLEADED PETROL
Operating the engine with insufficient oil can have catastrophic consequences. Any failure caused by
insufficient oil, will not be covered by the manufacturer’s warranty.
Read instructions carefully.
Fuel & its vapors are very flammable. Do not use or fuel the machine near a flame, sparks or while smoking.
Allow the engine to cool for more than 3 minutes, before re-fueling. Never fuel the machine with the engine
running. Fuel the engine at least 15 metres away from your work area. Always fuel your machine outdoors.
IMPORTANT:
Fuel which is older than 30 days old can become stale and cause acid & gum deposits in the fuel system or
essential carburettor components. This could result in starting issues which would not be covered by the
manufacturer’s warranty.
Ensure that any stored petrol is clearly marked in a separate appropriate canister for a maximum of 30 days
if not mixed with a fuel additive. If the machine is not going to be used for a long period, drain the petrol
from the fuel tank, start the engine and drain the carburetor of any remaining fuel.
To keep fuel fresh, refer to instructions from the engine manual supplied with this machine. A fuel additive
which you add to your fuel, can help make your machine easier to start, extend the shelf life of your fuel for up
to two years, keeping the carburettor & engine clean, plus reducing emissions and increasing fuel economy.
ADD FUEL & OIL
IMPORTANT:
Oil and fuel specifications and levels are referred to in the Briggs & Stratton engine manual supplied with
this machine. Do not attempt to use the machine if you are missing the Briggs & Stratton engine manual,
please contact us.
INSTRUCTION MANUAL
16
Page 17
PRE-OPERATION
FUEL & OIL
WARNING
YOUR MACHINE IS SUPPLIED WITHOUT ENGINE OIL OR UNLEADED PETROL
Operating the engine with insufficient oil can have catastrophic consequences. Any failure caused by
insufficient oil, will not be covered by the manufacturer’s warranty.
Read instructions carefully.
Fuel & its vapors are very flammable. Do not use or fuel the machine near a flame, sparks or while smoking.
Allow the engine to cool for more than 3 minutes, before re-fueling. Never fuel the machine with the engine
running. Fuel the engine at least 15 metres away from your work area. Always fuel your machine outdoors.
IMPORTANT:
Fuel which is older than 30 days old can become stale and cause acid
essential carburettor components. This could result in starting issues which would not be covered by the
manufacturer’s warranty.
Ensure that any stored petrol is clearly marked in a separate appropriate canister for a maximum of 30 days
if not mixed with a fuel additive. If the machine is not going to be used for a long period, drain the petrol
from the fuel tank, start the engine and drain the carburetor of any remaining fuel.
To keep fuel fresh, refer to instructions from the engine manual supplied with this machine. A fuel additive
which you add to your fuel, can help make your machine easier to start, extend the shelf life of your fuel for up
to two years, keeping the carburettor & engine clean, plus reducing emissions and increasing fuel economy.
ADD FUEL & OIL
IMPORTANT:
Oil and fuel specifications and levels are referred to in the Briggs & Stratton engine manual supplied with
this machine. Do not attempt to use the machine if you are missing the Briggs & Stratton engine manual,
please contact us.
& gum deposits in the fuel system or
17
Page 18
5. Grab the recoil starter handle and pull lightly until resistance is felt, then pull rapidly.
NOTE: Before you pull the recoil starter handle, please be aware of your surroundings.
6. Allow the engine to warm up briefly and then adjust the throttle lever accordingly.
STARTING THE ENGINE - WARM
1. Check the engine oil. See Check Oil Level section within engine manual.
2. Make sure the rocker arm microswitch is in the closed position.
3. Move the throttle lever to the engine start position.
4. Grab the recoil starter handle and pull lightly until resistance is felt, then pull rapidly.
NOTE: Before you pull the recoil starter handle, please be aware of your surroundings.
5. Allow the engine to warm up briefly and then adjust the throttle lever accordingly.
CAUTION
Do not allow the starter grip to snap back against the engine. Return it gently to prevent damage to the
starter.
WARNING
Accessory cassettes begin to rotate as soon as the engine is started.
Never open the collector flap when the engine is running. A rotating cutting unit can cause injuries.
INSTRUCTION MANUAL
OPERATION
IMPORTANT:
The engine does not come with oil in it. Therefore, be sure to add oil before starting the engine. The oil level
in the engine must be checked each time before operating.
IMPORTANT:
Before starting, please check if the accessories used are attached correctly.
STARTING THE ENGINE - COLD
1. Check the engine oil. See Check Oil Level section within engine manual.

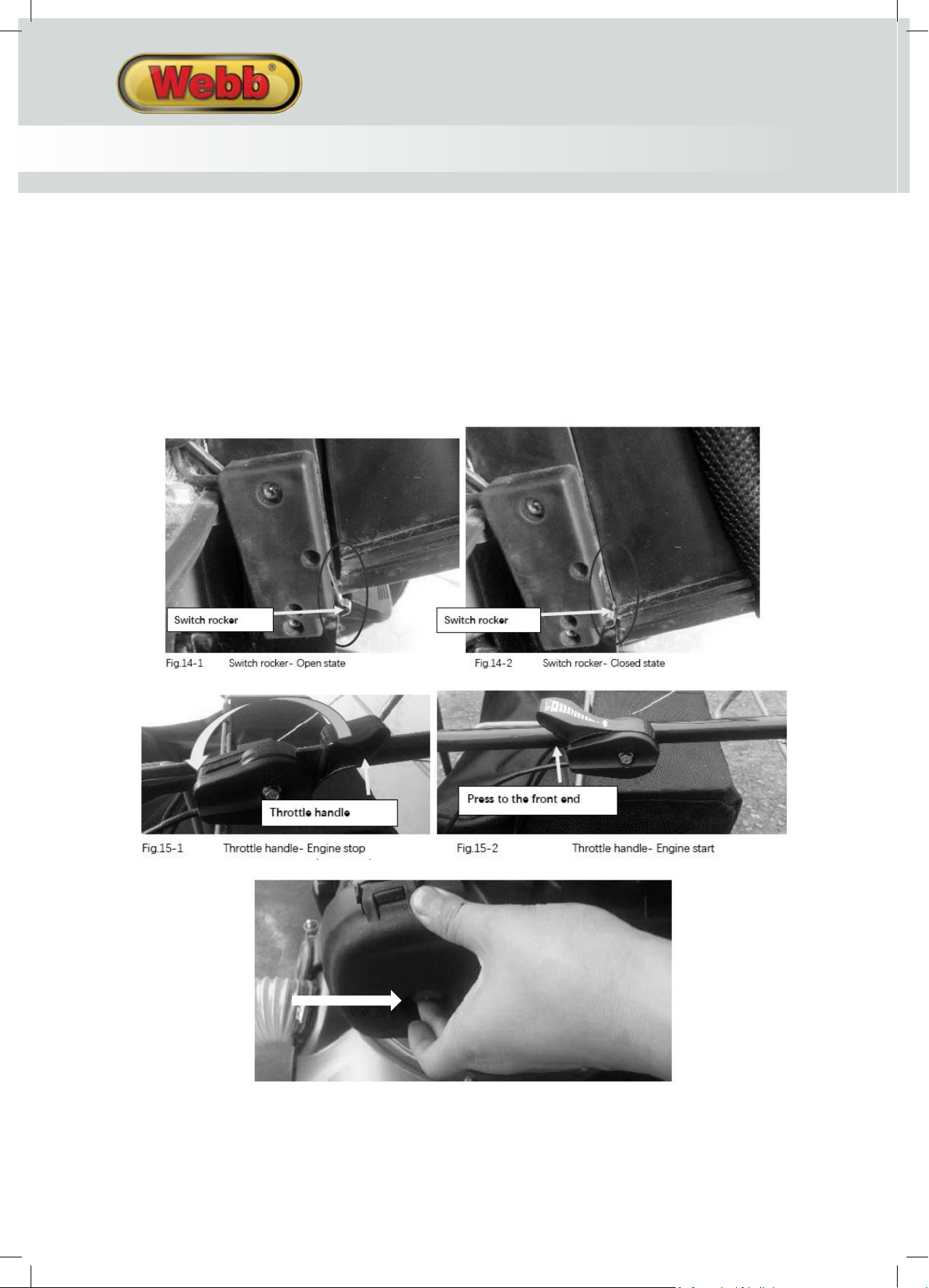

2. Make sure the rocker arm microswitch is in the closed position. This is located at the rear, towards the
bottom of the machine.
18
3. Move the throttle lever to the engine start position.
4. Press the Red engine primer bulb 3-5 times.
Page 19

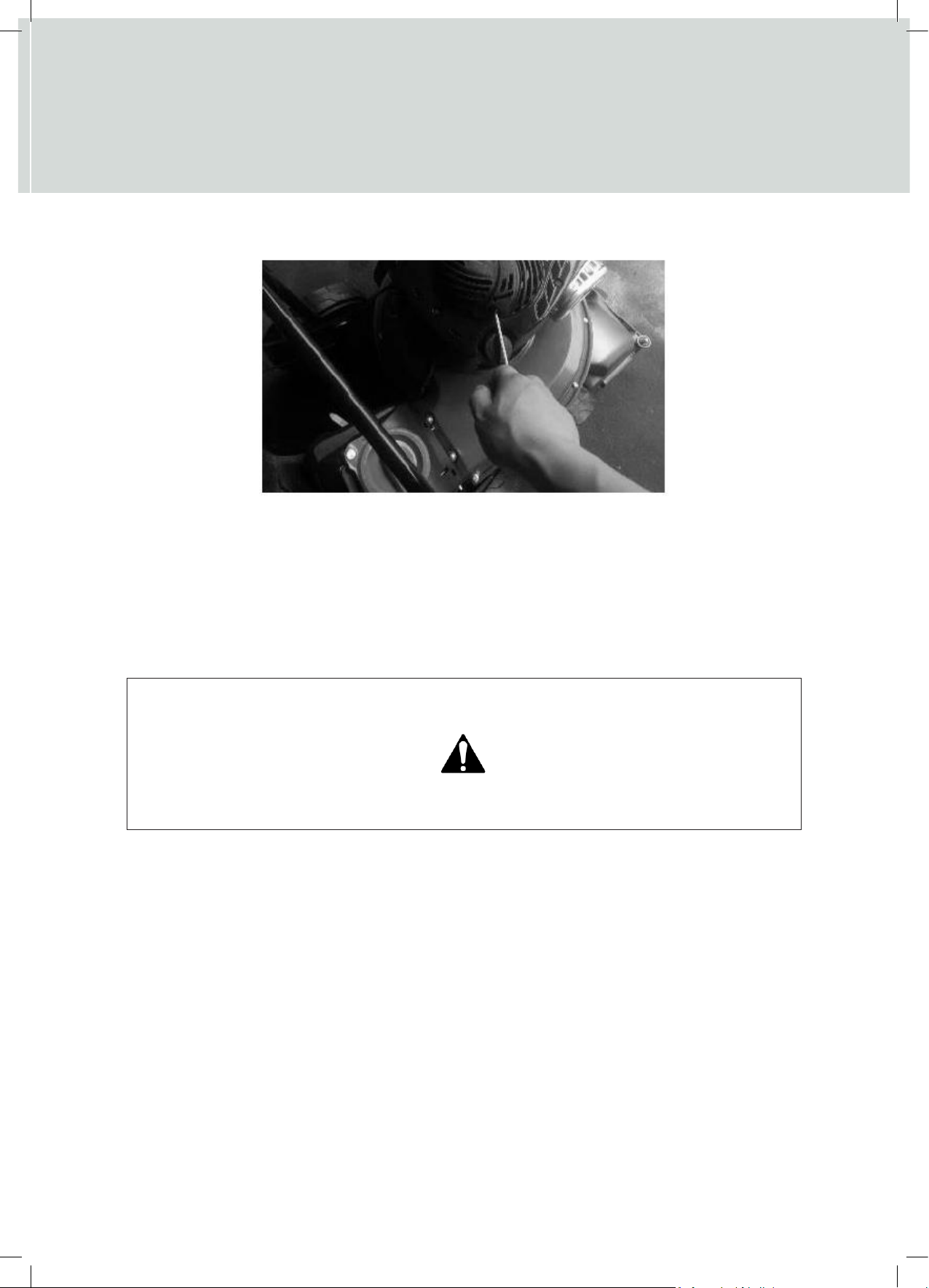

5. Grab the recoil starter handle and pull lightly until resistance is felt, then pull rapidly.
NOTE: Before you pull the recoil starter handle, please be aware of your surroundings.
6. Allow the engine to warm up briefly and then adjust the throttle lever accordingly.
STARTING THE ENGINE - WARM
1. Check the engine oil. See Check Oil Level section within engine manual.
2. Make sure the rocker arm microswitch is in the closed position.
3. Move the throttle lever to the engine start position.
4. Grab the recoil starter handle and pull lightly until resistance is felt, then pull rapidly.
NOTE: Before you pull the recoil starter handle, please be aware of your surroundings.
5. Allow the engine to warm up briefly and then adjust the throttle lever accordingly.
CAUTION
Do not allow the starter grip to snap back against the engine. Return it gently to prevent damage to the
starter.
WARNING
Accessory cassettes begin to rotate as soon as the engine is started.
Never open the collector flap when the engine is running. A rotating cutting unit can cause injuries.
19
Page 20
GUIDE WHEEL

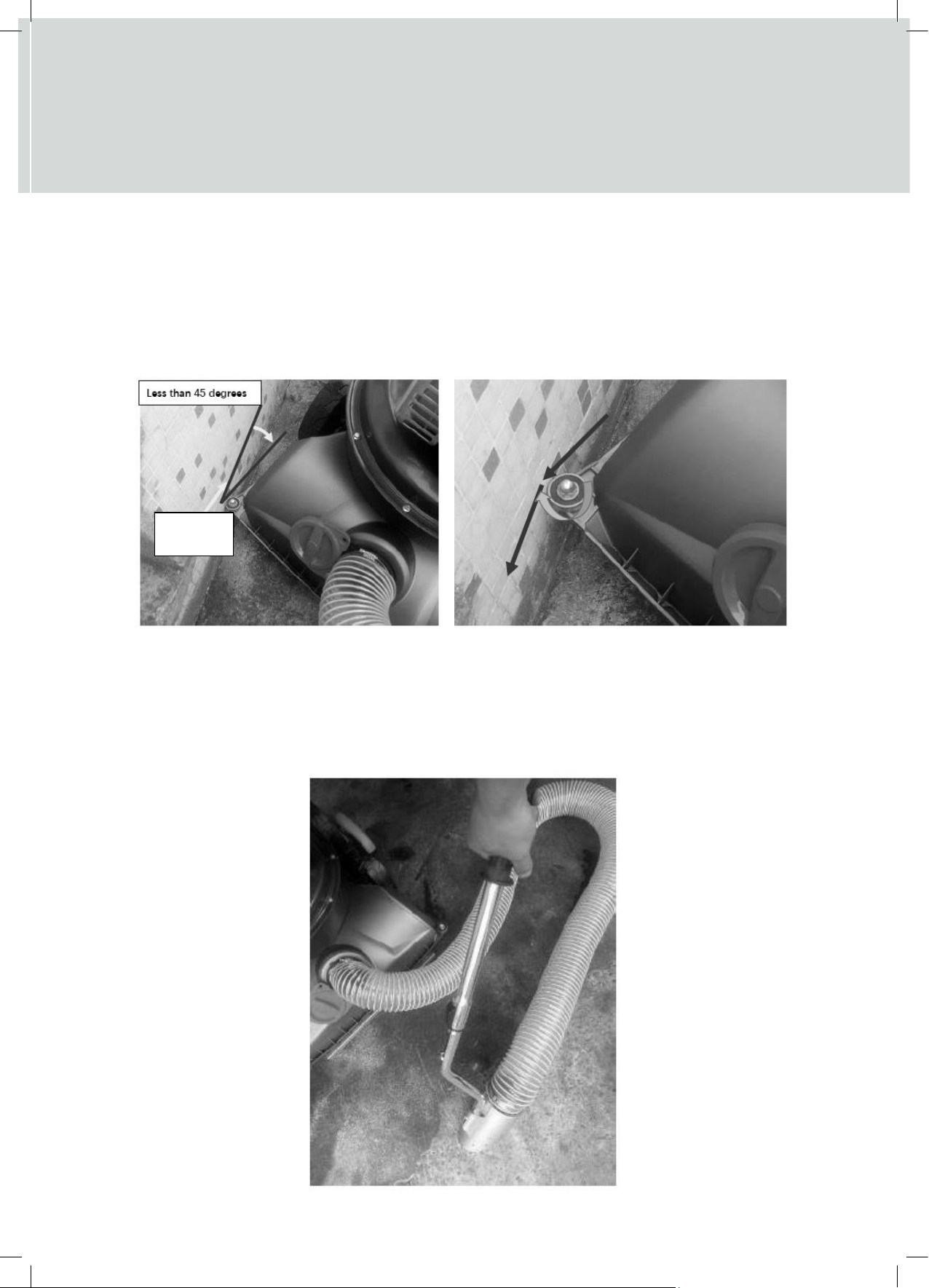

1. During Normal speed (3.4km/h). Impact at an angle of less than 45 degrees and to fixed hard objects.
2. The guide wheel will rub against a hard object, causing the direction of travel to change. Thereby
avoiding the hard object and preventing the machine from being damaged.
NOTE: Do not exceed the normal self-propelled speed and an impact angle of less than 45 degrees. Such
operation will cause the guide wheel to lose its function and the suction inlet to be damaged.
NOTE: This function is an auxiliary function that protects the suction inlet against accidental damage. DO
NOT intentionally test its strength. Concentrate on operating the machine, slow down in advance and
change direction to avoid hard objects.
HOSE & BAFFLE
1. The engine is off.
2. Assemble the hose and baffle to the machine, following the instructions from the Accessories section of
this instruction manual.
3. Start the machine. Point the end of the hose to the debris to be collected .
NOTE: When fitting or removing the hose and baffle, ensure the engine is off.
NOTE: The suction inlet baffle can only be used with the hose is fitted and in use.
Guide
Wheel
60mm
15mm
INSTRUCTION MANUAL
STOPPING THE ENGINE
1. Move the throttle to the stop position
IMPORTANT:
Any accessory cassette fitted will rotate for a few seconds after the motor is switched off. Never attempt
to stop the cassette yourself. In the event that the cassette strikes an object, immediately switch off the
machine and wait for the cassette to come to a complete stop. Inspect the condition of the cassette.
Replace any parts that are damaged.
HEIGHT ADJUSTMENT
Turn the engine off, prior to making any height adjustment.

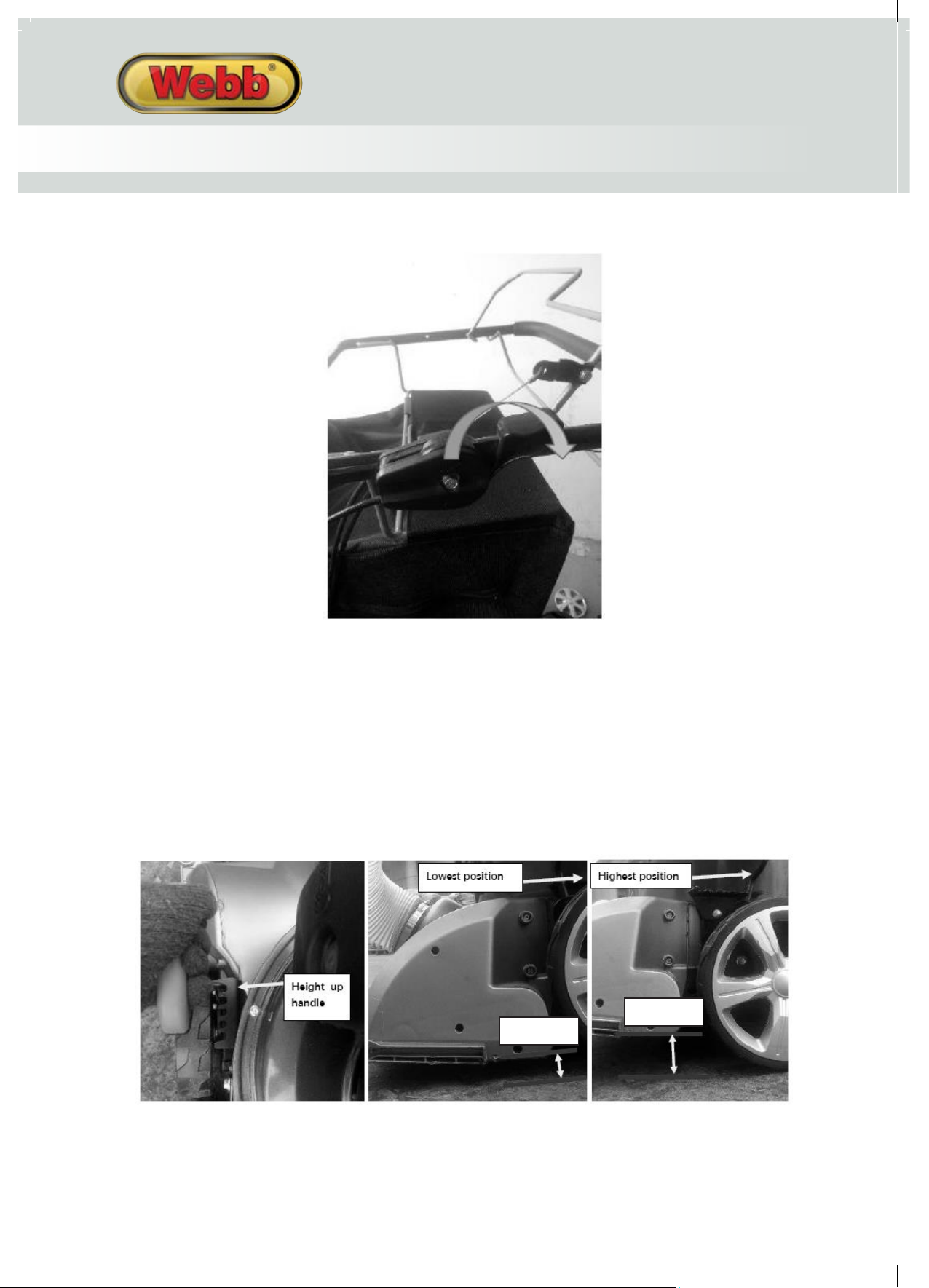

1. The height adjustment handle is located on the left hand side of the machine, as you stand in the
operating position.
2. Pull the height adjustment handle away from the deck and move up or down to relocate in your chosen
operating height.
3. Select according to the area and it’s surroundings.
20
Page 21
Guide
Wheel
GUIDE WHEEL
1. During Normal speed (3.4km/h). Impact at an angle of less than 45 degrees and to fixed hard objects.
2. The guide wheel will rub against a hard object, causing the direction of travel to change. Thereby
avoiding the hard object and preventing the machine from being damaged.
NOTE: Do not exceed the normal self-propelled speed and an impact angle of less than 45 degrees. Such
operation will cause the guide wheel to lose its function and the suction inlet to be damaged.
NOTE: This function is an auxiliary function that protects the suction inlet against accidental damage. DO
NOT intentionally test its strength. Concentrate on operating the machine, slow down in advance and
change direction to avoid hard objects.
HOSE & BAFFLE
1. The engine is off.
2. Assemble the hose and baffle to the machine, following the instructions from the Accessories section of
this instruction manual.
3. Start the machine. Point the end of the hose to the debris to be collected .
NOTE: When fitting or removing the hose and baffle, ensure the engine is off.
NOTE: The suction inlet baffle can only be used with the hose is fitted and in use.
21
Page 22

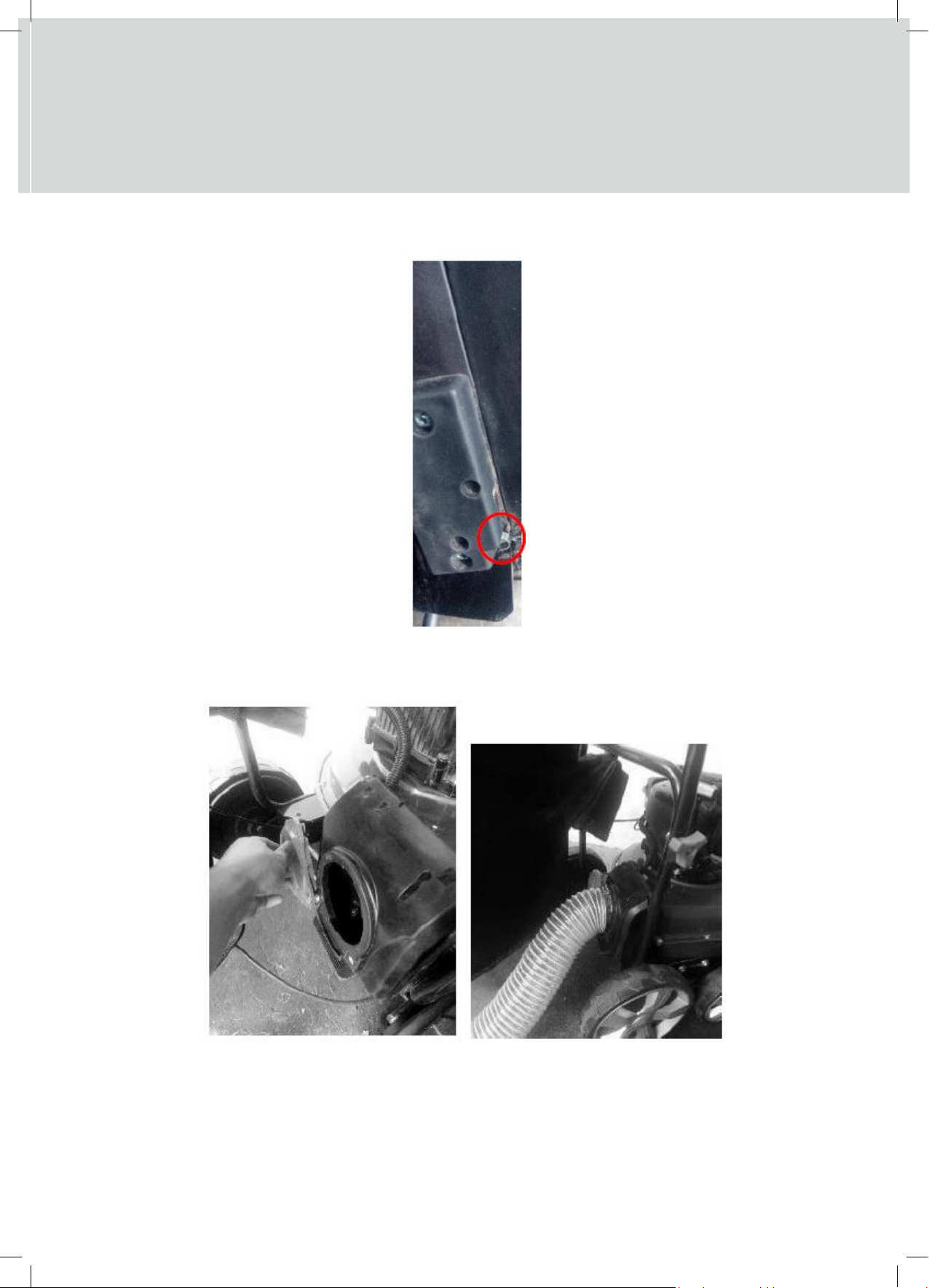

3. Make sure the rocker arm microswitch is in the closed position. This is located at the rear, towards the
bottom of the machine.
4. Open the rear hose cover.
5. Align the end of the hose connector with the rear hose inlet.
6. Insert the hose connector.
7. Rotate the hose connector clockwise, to lock.
NOTE: Please understand the parameters of the hose before use.
NOTE: When working, try to straighten the hose and work it to ensure maximum suction and wind speed.
NOTE: It is strictly forbidden to point the hose to others or any non-working area during work.
NOTE: It is strictly forbidden to load and unload the hose interface when the engine is running and
machine started.
NOTE: Do not pull the hose to move the machine forward or backward.
NOTE: Do not align the hose head with liquids, fire, and hazardous gases.
NOTE: Do not pick up the debris which is larger than the hose opening.
NOTE: When the hose is blocked, stop the machine and clear the obstruction.
NOTE: Keep the hose away from the engine and muffler.
INSTRUCTION MANUAL
HOSE TELESCOPIC HANDLE
1. Telescopic handle of the hose can be adjusted for different handle heights.
2. Push the lock pin in with your thumb, adjusting the height of the handle, up or down to the required
height.
22
HOSE BLOWER
The accessory hose can be fitted to the machine, to enable leaves and debris to be blown to a safe vacuum
area.
1. Separate the collection bag from the rear baffle.
2. Ensure the rear baffle is in the closed position.
Page 23
3. Make sure the rocker arm microswitch is in the closed position. This is located at the rear, towards the
bottom of the machine.
4. Open the rear hose cover.
5. Align the end of the hose connector with the rear hose inlet.
6. Insert the hose connector.
7. Rotate the hose connector clockwise, to lock.
NOTE: Please understand the parameters of the hose before use.
NOTE: When working, try to straighten the hose and work it to ensure maximum suction and wind speed.
NOTE: It is strictly forbidden to point the hose to others or any non-working area during work.
NOTE: It is strictly forbidden to load and unload the hose interface when the engine is running and
machine started.
NOTE: Do not pull the hose to move the machine forward or backward.
NOTE: Do not align the hose head with liquids, fire, and hazardous gases.
NOTE: Do not pick up the debris which is larger than the hose opening.
NOTE: When the hose is blocked, stop the machine and clear the obstruction.
NOTE: Keep the hose away from the engine and muffler.
23
Page 24
ACCESSORY CASSETTE ROTATION
1. Please assemble the accessory cassette, according to the Accessories section of this manual.
2. After starting the engine, pull the roller lever up to the top handle.
SELF-PROPELLED
1. After starting the machine, pull the roller lever up to the top handle.
2. Then pull the self-propelled lever up to the top handle.
3. The rear wheels should be rotate, propelling the machine forwards.

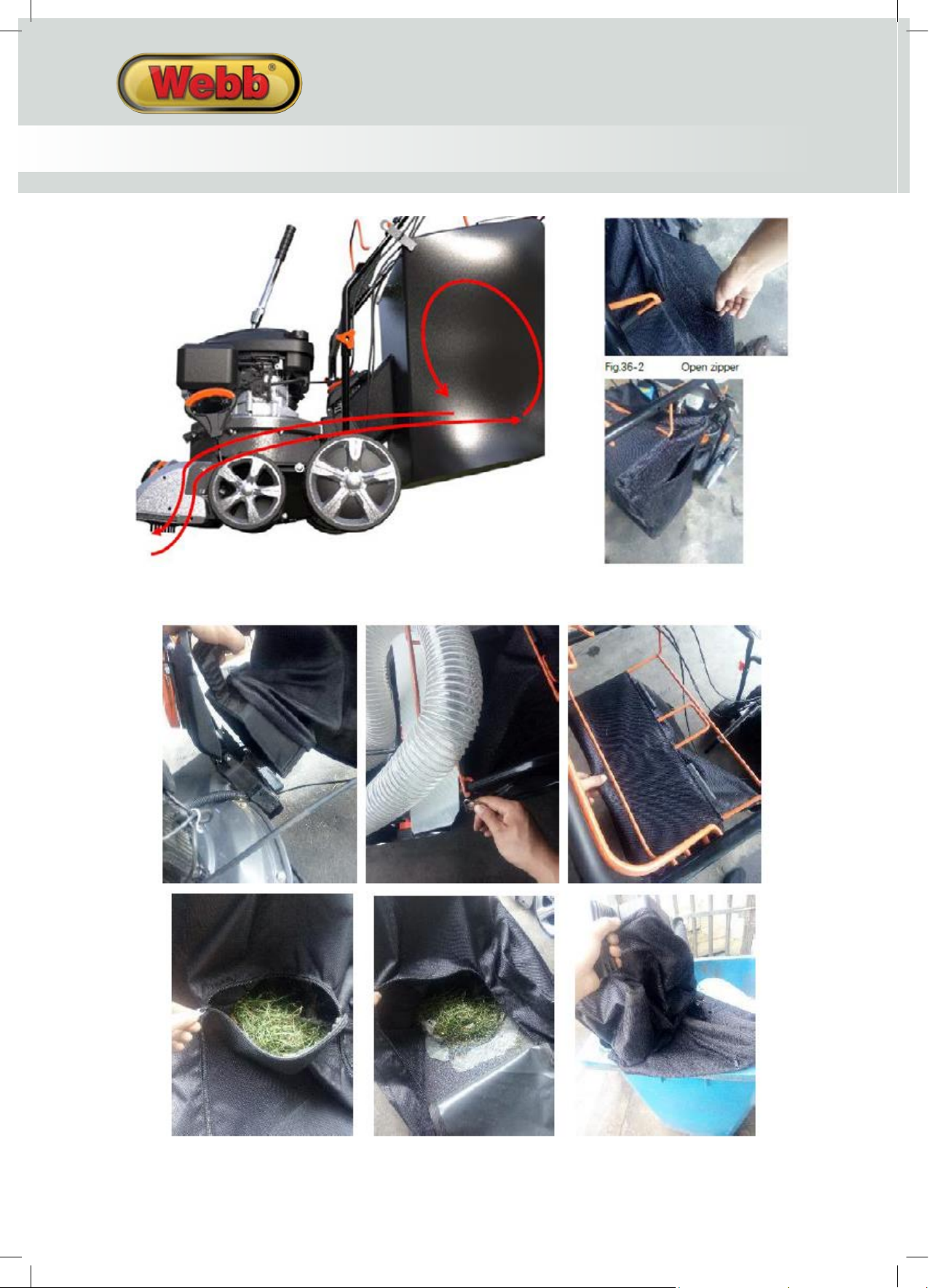

COLLECTION BAG
1. Assemble the collection bag, as per the Assembly section of this Instruction Manual.
2. During machine use, the debris collected by the machine may cause the venting holes of the collection
bag to become blocked or cause the air to return when the collection bag is full. Should this occur, open
the side vent zip’s of the collection bag to allow ventilation and also check if the bag is full.
Roller lever
Accessory cassette rotation
direction
Debris swept into direction of collection
bag.
Roller lever
Self-propelled lever
INSTRUCTION MANUAL
BRUSH OR SCARIFIER CASSETTE
SCARIFIER - Only to be used on the lawn!
The cassette rotates and combs the lawn or aerates the slightly mossy areas. The removed moss is conveyed
into the collector. During aeration the surface of the ground is scratched; this improves water drainage and
facilitates the absorption of oxygen. We recommend scarifying the lawn during the entire growing period as
and when required.
BRUSH - When you encounter rubbish, wet leaves etc stuck on the ground and difficult to handle, use the
brush cassette. This does not damage the ground. Not to be used for collecting stones, metal cans, plastic,
wire and other debris which may damage the machine or engine.
Be sure the working area is clear of stones, sticks, wire, or other objects which could damage the machine or
engine. Such objects could be accidently thrown by the machine or accessory cassette in any direction and
cause serious personal injury to the operator and others.
Always ensure that a safe distance (provided by the handles) is maintained between the user and the
housing. Be especially careful when scarifying and changing direction on slopes and inclines. Maintain a solid
footing and wear sturdy, non-slip footwear and long trousers.
Do not work on excessively steep slopes, a maximum slope of 15 degrees is recommended. If a slope is
difficult to stand on, do not work. Do not trim on slopes when the ground is slippery or wet. Work across the
face of a slope, not up and down. Use special caution when backing up and pulling the machine backwards
(tripping hazard)!
The operation of any accessory cassette can result in foreign objects being thrown into eyes, which can
cause severe damage. Always wear safety glasses or goggles while operating the accessory cassette, or
Shut the engine off and wait until the accessory cassette comes to a complete stop before cleaning the
discharge area. The accessory cassette continues to rotate for a few seconds after throttle lever is moved
While operating the scarifier cassette, do not allow the tines to contact concrete, tarmac or gravel
24
WARNING
while performing any adjustments or repairs on it.
to the Stop position.
CAUTION
surfaces. Doing so will result in premature wear.
Page 25
Roller lever
Accessory cassette rotation
Debris swept into direction of collection
bag.
Roller lever
Self-propelled lever
ACCESSORY CASSETTE ROTATION
1. Please assemble the accessory cassette, according to the Accessories section of this manual.
2. After starting the engine, pull the roller lever up to the top handle.
direction
SELF-PROPELLED
1. After starting the machine, pull the roller lever up to the top handle.
2. Then pull the self-propelled lever up to the top handle.
3. The rear wheels should be rotate, propelling the machine forwards.
COLLECTION BAG
1. Assemble the collection bag, as per the Assembly section of this Instruction Manual.
2. During machine use, the debris collected by the machine may cause the venting holes of the collection
bag to become blocked or cause the air to return when the collection bag is full. Should this occur, open
the side vent zip’s of the collection bag to allow ventilation and also check if the bag is full.
25
Page 26
COLLECTION BAG PRECAUTIONS
NOTE: When encountering backflow, please check:
1. if the venting hole of the collecting bag is blocked.
2. Whether the collection bag is full.
3. Stop the machine and check if the collection bag interface is blocked.
NOTE: When loading and unloading the collection bag, please make sure the machine has been turned off.
NOTE: Before starting the machine, please ensure the collection bag is closed.
NOTE: It is strictly forbidden to open the collection bag when the machine is working.
NOTE: When cleaning the collection bag, do not tap the collection bag with a tool.
TRANSPORT
When moving the machine to and from the work area, always ensure the engine is turned off and the height
adjustment lever is placed in the highest cutting height to ensure the accessory cassette is not in contact
with the ground.
MAINTENANCE, CLEANING & STORAGE
WARNING
Improper maintenance & storage of the machine may void your warranty. Keep the machine clean for better
and safer performance.
Turn off the engine before performing any maintenance. If the engine must be run, make sure the area is
well ventilated. The exhaust emits dangerous carbon monoxide gases.
MAINTENANCE
General Recommendations
1. Always observe safety rules when performing any maintenance.
2. The manufacturers warranty does not cover items that have been subjected to operator abuse or
negligence. To receive full value from the warranty, the operator must maintain the machine as
instructed.
3. Changing of the engine-governed speed will void engine warranty.
4. All adjustments should be checked at least once each season.
WARNING
Always stop engine, disconnect spark plug, and ground the spark plug cap against the engine before
performing any type of maintenance on your machine.
Lubrication
1. Lubricate pivot points on the levers at least once a season with general maintenance spray. This control
must operate freely in both directions.
2. Lubricate the wheel ball bearings, shafts, drive cogs and pins once a year with multi-purpose grease.
3. All engine lubrication information, will be available in the engine separate engine manual supplied with
your machine.
Check/Add Oil - (Always refer to the Briggs & Stratton Engine Manual)
1. Remove the dipstick and wipe with a clean cloth.
2. Insert the dipstick into the filler neck without screwing it in.
3. Remove the dipstick and check the oil level. The oil level should be in between the MIN. and MAX. levels
on the dipstick.
4. If low, add oil slowly into the engine oil fill tube (the use of a funnel will aid the filling). Do not overfill.
After adding oil wait one minute and then recheck the oil level.
5. Replace and tighten the dipstick.
INSTRUCTION MANUAL
26
3. When the collection bag is full, stop the machine, remove the collection bag and empty the debris to a
controlled area.
Page 27
COLLECTION BAG PRECAUTIONS
NOTE: When encountering backflow, please check:
1. if the venting hole of the collecting bag is blocked.
2. Whether the collection bag is full.
3. Stop the machine and check if the collection bag interface is blocked.
NOTE: When loading and unloading the collection bag, please make sure the machine has been turned off.
NOTE: Before starting the machine, please ensure the collection bag is closed.
NOTE: It is strictly forbidden to open the collection bag when the machine is working.
NOTE: When cleaning the collection bag, do not tap the collection bag with a tool.
TRANSPORT
When moving the machine to and from the work area, always ensure the engine is turned off and the height
adjustment lever is placed in the highest cutting height to ensure the accessory cassette is not in contact
with the ground.
MAINTENANCE, CLEANING & STORAGE
WARNING
Improper maintenance & storage of the machine may void your warranty. Keep the machine clean for better
and safer performance.
Turn off the engine before performing any maintenance. If the engine must be run, make sure the area is
well ventilated. The exhaust emits dangerous carbon monoxide gases.
MAINTENANCE
General Recommendations
1. Always observe safety rules when performing any maintenance.
2. The manufacturers warranty does not cover items that have been subjected to operator abuse or
negligence. To receive full value from the warranty, the operator must maintain the machine as
instructed.
3. Changing of the engine-governed speed will void engine warranty.
4. All adjustments should be checked at least once each season.
WARNING
Always stop engine, disconnect spark plug, and ground the spark plug cap against the engine before
performing any type of maintenance on your machine.
Lubrication
1. Lubricate pivot points on the levers at least once a season with general maintenance spray. This control
must operate freely in both directions.
2. Lubricate the wheel ball bearings, shafts, drive cogs and pins once a year with multi-purpose grease.
3. All engine lubrication information, will be available in the engine separate engine manual supplied with
your machine.
Check/Add Oil - (Always refer to the Briggs & Stratton Engine Manual)
1. Remove the dipstick and wipe with a clean cloth.
2. Insert the dipstick into the filler neck without screwing it in.
3. Remove the dipstick and check the oil level. The oil level should be in between the MIN. and MAX. levels
on the dipstick.
4. If low, add oil slowly into the engine oil fill tube
(the use of a funnel will aid the filling). Do not overfill.
After adding oil wait one minute and then recheck the oil level.
5. Replace and tighten the dipstick.
27
Page 28
Deck Care
Clean underside of the machine after each use to prevent build-up of debris. Follow steps below:
1. Disconnect the spark plug cap. Drain petrol from the engine with a suction pump. Alternatively, tip the
machine so that it rests on its side. Keep the side with the air filter housing facing up. Drain all fuel from
fuel tank into proper receptacle for storage. Secure the machine.
WARNING
Never tip the machine more than 90 degrees in any direction and do not leave the machine tipped for any
excessive length of time. Oil can drain into the upper part of the engine causing a starting problems.
2. Scrape and clean the underside of the machine with a suitable tool. Do not spray with water.
3. Put the machine back onto its wheels on the ground.
4. Clean the engine regularly with a cloth or brush. Keep the cooling system (blower housing area) clean to
permit proper air circulation which is essential to engine performance and life. Be certain to remove all
dust, dirt and combustible debris from exhaust area.
Collection Bag
Remove the collection bag from the machine and wash it with a garden hose or high-pressure cleaning
equipment. Allow the bag to dry completely before storing.
STORAGE & TRANSPORT
The following steps should be taken to prepare your machine for storage.
2. Empty the fuel tank. Disconnect the spark plug cap. Drain petrol from the engine with a suction pump.
Alternatively, tip the machine so that it rests on its side. Keep the side with the air filter housing facing up.
Drain all fuel from fuel tank into proper receptacle for storage. Secure the machine.
WARNING
Do not drain the petrol in enclosed spaces, in proximity of open fire, etc.
Do not smoke! Petrol fumes can cause explosion or fire.
3. While engine is still warm, change oil. See Engine Oil Change section of this manual.
4. Clean engine of surface debris, chaff or grass.
5. Remove spark plug. Place 1 teaspoon or 20 ml. of oil into spark plug hole.
6. Pull starter rope slowly 8-10 times to properly coat the cylinder bore and piston for storage.
7. Replace spark plug and tighten. Any residual oil may burn off in subsequent starts. This may
result in white smoke emission from muffler.
8. This machine may be stored in a variety of positions. It is best to store in horizontal position
with the spark plug up. Do not store or transport with the spark plug down.
NOTE: Storing or transporting with the spark plug down will result in hard starting and/or engine smoking.
• Store in a dry, clean and frost-protected place, out of reach of unauthorised persons.
• When removing unit from storage, only use fresh petrol. Perform operation checks (see
maintenance schedule) before starting engine.
9. Keep out of direct sunlight.
CAUTION
The engine must have completely cooled down before storing.
NOTE: When storing any type of power equipment in an unventilated or material storage shed,
• Care should be taken to rust-proof the equipment. Using a light oil or silicone, coat the equipment,
especially cables and all moving parts.
• Be careful not to bend or kink cables.
• If the starter rope becomes disconnected from rope guide on handle, disconnect and ground the spark
plug cap. Pull the OPC/brake lever up to and against the upper handle and pull the engine recoil starter
handle slowly out of the engine.
INSTRUCTION MANUAL
Air Filter - (Always refer to the Briggs & Stratton Engine Manual)
Under normal conditions, please maintain the air filter in accordance with the engine manufacturer engine
manual; clean it every few hours under extremely dusty conditions.
When the engine is not performing well or after being invaded by water, the air filter and carburettor should
normally be repaired.
To service the air filter, refer to the engine manual supplied with the unit.
Spark Plug - (Always refer to the Briggs & Stratton Engine Manual)
To ensure proper engine operation, the spark plug must be properly gapped and free of deposits.
1. Remove the spark plug cap.
WARNING
If the engine has been running, the exhaust (muffler) will be very hot. Be careful not to touch the exhaust
(muffler).
2. Visually inspect the spark plug. Discard it if the insulator is cracked or chipped.
3. Measure the spark plug gap with a feeler gauge. The gap should be 0.76, correct as necessary by bending
the side electrode.
4. Attach the plug washer, thread the plug in by hand to prevent cross-threading.
5. When mounting a new spark plug, you should screw 1/2 more thread with the wrench after the washer is
compressed. If you are mounting an old one, you should only screw 1/8-1/4 more thread.
The spark plug must be securely tightened. An improperly tightened plug can become very hot and possibly
CLEANING
Engine Care - (Always refer to the Briggs & Stratton Engine Manual)
Clean the engine regularly with a cloth or brush. Keep the top of the engine clean to permit proper air
circulation. Remove all grass, dirt and debris from the exhaust (muffler) area.
damage the engine. Never use a spark plug with an improper heat range.
CAUTION
28
CAUTION
Do not use a water hose or pressure washer to clean the engine. Water can damage the engine or
1. Engines stored for over 30 days need to have the fuel drain from the fuel tank or a fuel stabilizer applied
to prevent deterioration and gum forming in the fuel system or essential carburetor parts.
contaminate the fuel system.
Page 29
Deck Care
Clean underside of the machine after each use to prevent build-up of debris. Follow steps below:
1. Disconnect the spark plug cap. Drain petrol from the engine with a suction pump. Alternatively, tip the
machine so that it rests on its side. Keep the side with the air filter housing facing up. Drain all fuel from
fuel tank into proper receptacle for storage. Secure the machine.
WARNING
Never tip the machine more than 90 degrees in any direction and do not leave the machine tipped for any
excessive length of time. Oil can drain into the upper part of the engine causing a starting problems.
2. Scrape and clean the underside of the machine with a suitable tool. Do not spray with water.
3. Put the machine back onto its wheels on the ground.
4. Clean the engine regularly with a cloth or brush. Keep the cooling system (blower housing area) clean to
permit proper air circulation which is essential to engine performance and life. Be certain to remove all
dust, dirt and combustible debris from exhaust area.
Collection Bag
Remove the collection bag from the machine and wash it with a garden hose or high-pressure cleaning
equipment. Allow the bag to dry completely before storing.
STORAGE & TRANSPORT
The following steps should be taken to prepare your machine for storage.
2. Empty the fuel tank. Disconnect the spark plug cap. Drain petrol from the engine with a suction pump.
Alternatively, tip the machine so that it rests on its side. Keep the side with the air filter housing facing up.
Drain all fuel from fuel tank into proper receptacle for storage. Secure the machine.
WARNING
Do not drain the petrol in enclosed spaces, in proximity of open fire, etc.
Do not smoke! Petrol fumes can cause explosion or fire.
3. While engine is still warm, change oil. See Engine Oil Change section of this manual.
4. Clean engine of surface debris, chaff or grass.
5. Remove spark plug. Place 1 teaspoon or 20 ml. of oil into spark plug hole.
6. Pull starter rope slowly 8-10 times to properly coat the cylinder bore and piston for storage.
7. Replace spark plug and tighten. Any residual oil may burn off in subsequent starts. This may
result in white smoke emission from muffler.
8. This machine may be stored in a variety of positions. It is best to store in horizontal position
with the spark plug up. Do not store or transport with the spark plug down.
NOTE: Storing or transporting with the spark plug down will result in hard starting and/or engine smoking.
• Store in a dry, clean and frost-protected place, out of reach of unauthorised persons.
• When removing unit from storage, only use fresh petrol. Perform operation checks (see
maintenance schedule) before starting engine.
9. Keep out of direct sunlight.
CAUTION
The engine must have completely cooled down before storing.
NOTE: When storing any type of power equipment in an unventilated or material storage shed,
• Care should be taken to rust-proof the equipment. Using a light oil or silicone, coat the equipment,
especially cables and all moving parts.
• Be careful not to bend or kink cables.
• If the starter rope becomes disconnected from rope guide on handle, disconnect and ground the spark
plug cap. Pull the OPC/brake lever up to and against the upper handle and pull the engine recoil starter
handle slowly out of the engine.
29
Page 30
PARTS DIAGRAM - WEWBVAC 1938267001
PROBLEM
POSSIBLE CAUSES
REMEDIAL ACTION
Engine does not start
Engine does not start
Move throttle lever to correct
position
Fuel tank is empty.
Fill tank with fuel: refer to ENGINE
OWNERS MANUAL.
Spark plug loose.
Tighten spark plug.
Spark plug wire loose or
disconnected from plug.
Install spark plug cap on to spark
plug.
Spark plug gap is incorrect
Set correct gap between
OWNERS MANUAL.
Spark plug is defective.
Install new, correctly gapped
MANUAL.
Carburettor is flooded with fuel.
Remove air filter cover and air
and cover.
Engine speed drops off
Exit chute blocked
Turn off engine, let accessory
Air filter clogged
Clean air filter: refer to ENGINE
OWNERS MANUAL.
Poor scarification results
Depth of cut too small
Set to lower height adjustment
Worn cutting blades
Have cutting blades sharpened or
specialist.
Collector never fills
Collector is clogged
Stop machine. Clear blockage or
clean it
Ejector channel blocked
Turn off engine, let blade/tines
in exit chute. Refit collector.
Unusual noises
Bolts, nuts or other mounting
parts slack.
Tighten parts
Vibration
Cutting assembly is loose
Tighten blade
Cutting assembly is unbalanced
Have cutting blades sharpened or
specialist.
INSTRUCTION MANUAL
DO NOT STORE fuel for longer than 30 days. Fuel can become stale and cause damage to the engine
carburetor, which is not covered by the machines manufacturer’s warranty.
TROUBLE SHOOTING
electrodes: refer to ENGINE
plug: refer to ENGINE OWNERS
filter. Pull starter rope
continuously until carburetor
clears itself and install air filter
cassette stop rotating. Remove
spark plug cap. Remove collector
and empty. Lift rear baffle and
clear any debris in exit chute.
Refit collector.
replaced by garden machinery
30
stop rotating. Remove spark plug
cap. Remove collector and empty.
Lift rear flap and clear any debris
replaced by garden machinery
Page 31
PARTS DIAGRAM - WEWBVAC 1938267001
31
Page 32
PARTS LIST - WEWBVAC 1938267001
Spare Parts are available from our Spares Team. Please call 01793 333212, option 1 for assistance.
INSTRUCTION MANUAL
PARTS LIST - WEWBVAC 1938267001
32
Spare Parts are available from our Spares Team. Please call 01793 333212, option 1 for assistance.
Page 33

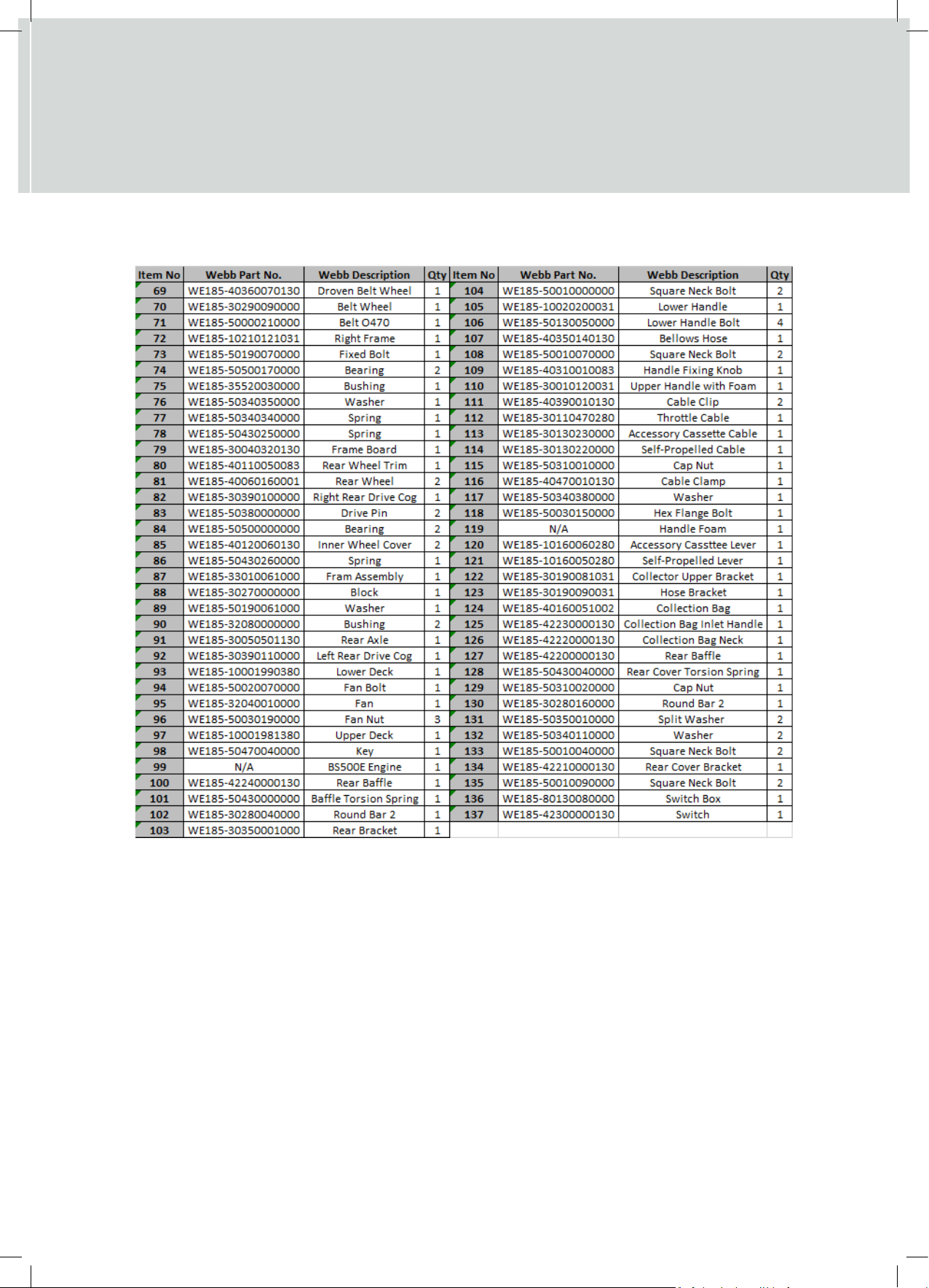

PARTS LIST - WEWBVAC 1938267001
Spare Parts are available from our Spares Team. Please call 01793 333212, option 1 for assistance.
33
Page 34
EC DECLARATION OF CONFORMITY
We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product:
Designation: Petrol Walk Behind Blower & Vacuum
Model(s): WEWBVAC
Product No.: 1938267001
Type/Serial No. As per rating label on machine
Engine Displacement: 140 cm
Rated Engine Power: 2.03kW
Working Width: 58cm
Complies with the following directives:
Machinery Directive 2006/42/EC
The conformity assessment procedure followed was in accordance with
EN 15503:2009+A2:2015, EN ISO 12100:2010, EN ISO 3744:1995, ISO 11904:1991, EN ISO 14982:2009
EMC Directive 2014/30/EU
ROHS Directive 2011/65/EU
Noise Directive 2000/14/EC
Guaranteed Sound Power Level LWA: 105 dB(A)
Vibration a
Notified Body:
Intertek Deutschland GmbH,
Authorised signatory and technical file holder
Date: 10/09/2020
: 4.2 m/s2
hv
3
Signature:
Name: Mr Simon Belcher
Position: Chairman
Company: Handy Distribution Ltd
Address: Murdock Rd, Swindon, Wiltshire, SN3 5HY.
Page 35
Notes
35
Page 36
INSTRUCTION MANUAL
Notes
36
Page 37
Notes
37
Page 38
1. Users Statement of Warranty
Each new machine is warranted against defective material or assembly of material under normal usage. The
warranty applies to the original purchaser, is not transferable and covers faulty parts and the labour involved in
replacing and repairing those parts, which are of original manufacture.
2. Period of Warranty - valid from 1 January 2020
Webb (excludes Dynamic, Legacy & Heritage), 2 year conditional warranty from the original date of sale to the fi rst
domestic user.
Webb (Dynamic, Legacy & Heritage) 1 year warranty from the original date of sale to the fi rst domestic user.
90 days from the original date of sale to the professional/commercial or for hire user.
Engine warranty as per the engine manufacturer’s warranty, which will be supplied with the machine.
90 days from the original date of sale for Replacement Spare Parts
All machines’ must be serviced within the fi rst 14 months from the original date of purchase, to qualify for a second
year parts & labour warranty, details of the service must be recorded in the service record within this manual.
A reduced warranty period of 90 days applies to those items which are subject to normal wear and tear and in
normal use, will need replacement or adjustment.
These items are chargeable after 90 days of ownership.
Filters
Tyres / Wheels
Drive chains and belts
Brake & clutch friction components
Control cable & starter cords
Fluids & lubricants
Spark plugs
Blades (Lawnmowers & Brushcutters)
Cutter bars (Hedgecutters)
Drive & clutch cable surfaces
Nylon Lines (Line Trimmers)
Carburettor cleaning
Bearings
Bushes
Electric cable
Grass collectors
3. Not covered by this warranty
(a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion,
lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident.
(b) The warranty policy does not cover any costs necessary for the standard periodic maintenance services
instructed by the operators manual, or service parts replacement which would include oil, fi lters, tyres, belts, brake
linings, fuses, blades, seals and other service parts unless it can be proven that the item has evidence of faulty
manufacture.
(c) The warranty policy will not cover failure or damage caused as a result of parts or accessories being modifi ed
without the written approval of GJ Handy & Co Ltd.
(d) The warranty policy will not cover the unit if non-genuine parts have been fi tted and as a result damage has
occurred to the unit.
(e) The warranty policy is non-transferable and is only applicable to the original purchaser.
4. Disclaimer
(a) This warranty is only a remedy for defect of products. GJ Handy & Co Ltd will never warranty in terms of the
merchantability or the fi tness for a particular purpose.
(b) No person is authorised to make any warranties, representations or promises, expressed or implied, on behalf of
GJ Handy & Co Ltd, or to modify the terms conditions or limitation of this warranty policy in any way.
INSTRUCTION MANUAL
This Service Book is provided with your Webb, to help you look after your purchase to our recommendations and
enable you to take advantage of the conditional manufacturer domestic warranty*.
Present this service book to your authorised Webb repair dealer, whenever a service or a warranty appraisal is
The booklet is applicable to the following products, in the UK only:
Petrol Rotary Lawnmowers
Petrol Hand Held Range
Please register your machine using the following pages or at www.webbgardenpower.co.uk. By registering your
machine, you agree to maintain the machine in accordance with the service schedules specifi ed in this manual and
services duly recorded. (Not applicable for Webb electric handheld machines). You may be asked to produce this
booklet as proof of servicing in the event of a claim. Proof of purchase should also be kept as a reference.

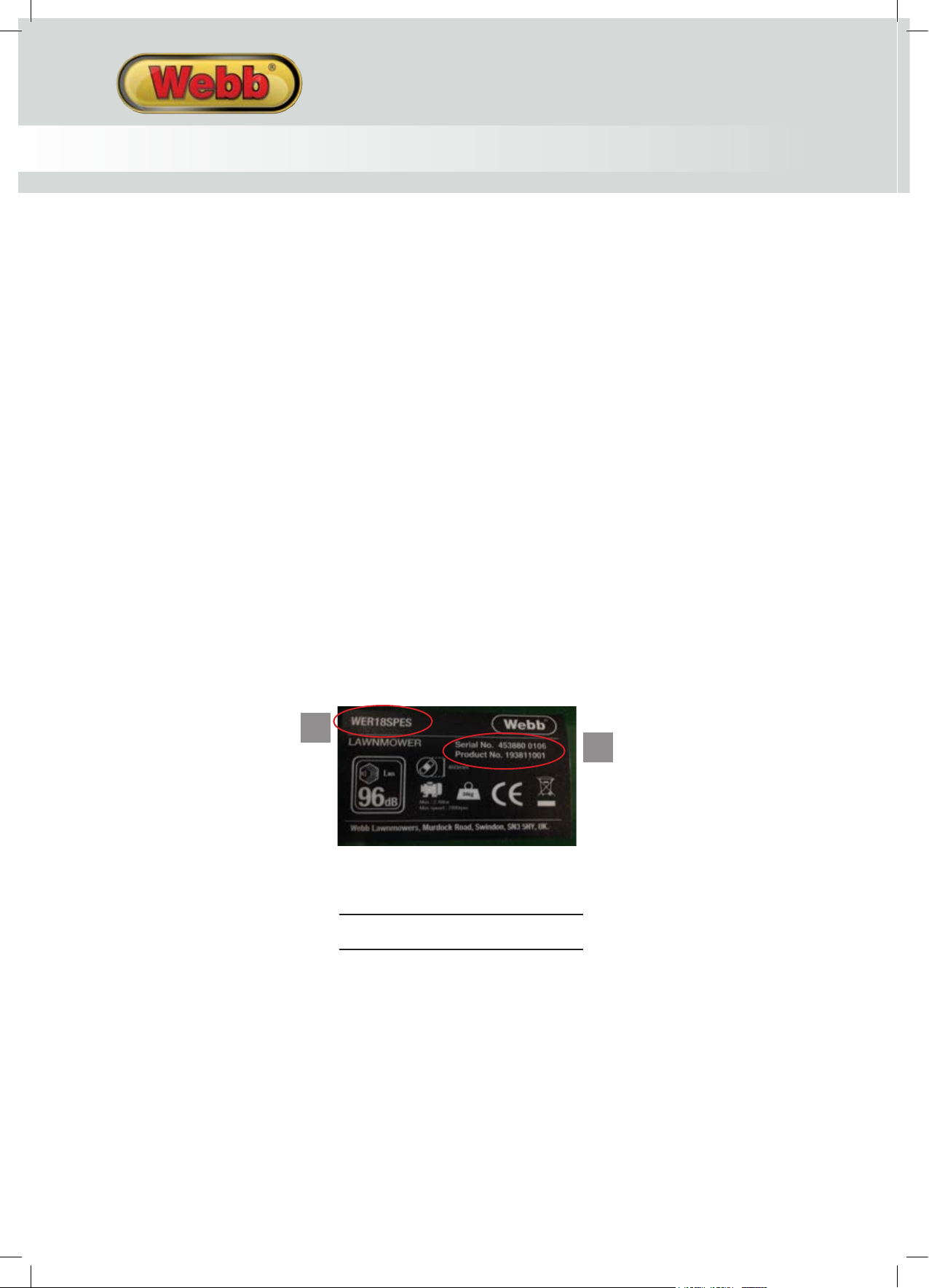

Ensure you have the following information available from your machine product label. The two examples below can
1
be found on your machine:
required.
Ride On Lawn Tractors
Cylinder Lawnmowers
2
38
1. Model Number
2. Serial & Product Number
Please complete using BLOCK CAPITALS.
Sections marked* must be completed to validate Warranty.
Page 39
SERVICE BOOK
1. Users Statement of Warranty
Each new machine is warranted against defective material or assembly of material under normal usage. The
warranty applies to the original purchaser, is not transferable and covers faulty parts and the labour involved in
replacing and repairing those parts, which are of original manufacture.
2. Period of Warranty - valid from 1 January 2020
Webb (excludes Dynamic, Legacy & Heritage), 2 year conditional warranty from the original date of sale to the fi rst
domestic user.
Webb (Dynamic, Legacy & Heritage) 1 year warranty from the original date of sale to the fi rst domestic user.
90 days from the original date of sale to the professional/commercial or for hire user.
Engine warranty as per the engine manufacturer’s warranty, which will be supplied with the machine.
90 days from the original date of sale for Replacement Spare Parts
All machines’ must be serviced within the fi rst 14 months from the original date of purchase, to qualify for a second
year parts & labour warranty, details of the service must be recorded in the service record within this manual.
A reduced warranty period of 90 days applies to those items which are subject to normal wear and tear and in
normal use, will need replacement or adjustment.
These items are chargeable after 90 days of ownership.
Filters
Tyres / Wheels
Drive chains and belts
Brake & clutch friction components
Control cable & starter cords
Fluids & lubricants
Spark plugs
Blades (Lawnmowers & Brushcutters)
Cutter bars (Hedgecutters)
Drive & clutch cable surfaces
Nylon Lines (Line Trimmers)
Carburettor cleaning
Bearings
Bushes
Electric cable
Grass collectors
3. Not covered by this warranty
(a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion,
lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident.
(b) The warranty policy does not cover any costs necessary for the standard periodic maintenance services
instructed by the operators manual, or service parts replacement which would include oil, fi lters, tyres, belts, brake
linings, fuses, blades, seals and other service parts unless it can be proven that the item has evidence of faulty
manufacture.
(c) The warranty policy will not cover failure or damage caused as a result of parts or accessories being modifi ed
without the written approval of GJ Handy & Co Ltd.
(d) The warranty policy will not cover the unit if non-genuine parts have been fi tted and as a result damage has
occurred to the unit.
(e) The warranty policy is non-transferable and is only applicable to the original purchaser.
4. Disclaimer
(a) This warranty is only a remedy for defect of products. GJ Handy & Co Ltd will never warranty in terms of the
merchantability or the fi tness for a particular purpose.
(b) No person is authorised to make any warranties, representations or promises, expressed or implied, on behalf of
GJ Handy & Co Ltd, or to modify the terms conditions or limitation of this warranty policy in any way.
39
Page 40
Warranty
Your servicing Webb approved dealer will stamp & date the below relevant sections, when the correct service actions
have been completed.
PLEASE ENSURE THE SERVICE BOOK IS AVAILABLE FOR THE DEALER, DURING SERVICE WORK.
1st Service
This must be stamped by an approved service dealer to
qualify for a free second year warranty.
(Excluding the Webb Electric Handheld machines)
24 Months
Date Date
36 Months
12 Months
Date
INSTRUCTION MANUAL
(c) Neither GJ Handy & Co Ltd nor any company affi liated with GJ Handy & Co Ltd shall be liable in any event or
manner whatsoever for incidental or consequential damages or injuries, including, but not limited to, loss of crops,
loss of profi t, out of pocket expenses or profi ts, rental of substitute equipment or other commercial losses.
5. General
(a) Most warrantable failures show up within the fi rst few weeks of use. These failures are usually straightforward
and warranty assessment is relatively easy.
(b) Failures relating to cutter decks and belts need careful investigation, as the cause may not always be
straightforward. Look for damage to blades and pulleys especially when the cutter belt or blade boss have snapped
or cracked as this could be due to impact damage.
(c) Customers should always refer to the operator/instruction manual when any disputed problem arises, you will
fi nd most areas covered within the manual.
Protecting your machine
Maintenance
Regular maintenance of your Webb machine is essential to ensure it operates, safely, effi ciently and therefore
reducing the environmental impact.
It is the owner’s responsibility to ensure that their Webb machine is maintained at specifi c intervals. Any approved
Webb service dealer can undertake a service, which are specialised in our products and will be aware of your
particular machine and any technical updates which will save valuable time & money.
If you are using your machine in dry, dusty or high temperatures, you will need to service the machine more
regularly.
Fuel (if applicable)
Due to ongoing eff orts by fuel companies to reduce emissions, unleaded petrol will oxidize & deteriorate in storage
overtime, leaving residue from detergent components.
Fuel deterioration problems may occur when petrol is stored for over 30 days. If you are planning to store fuel for
over 30 days, we recommend you add Handy Parts Sure-Start fuel stabilizer to fresh fuel after purchasing. Sure-
Start cannot reconstitute stale fuel.
Storage
When storing your machine for an extended period, we do recommend that you follow the instructions of engine
instruction manual.
Always store the fuel in a clean, approved and sealed container. If the container is steel, ensure it is not corroded.
If the container is not fi lled to its recommended capacity, air can accelerate fuel deterioration.
Always store fuel away from direct sunlight, in a dark, cool environment.
40
Page 41
SERVICE BOOK
Your servicing Webb approved dealer will stamp & date the below relevant sections, when the correct service actions
have been completed.
PLEASE ENSURE THE SERVICE BOOK IS AVAILABLE FOR THE DEALER, DURING SERVICE WORK.
1st Service
This must be stamped by an approved service dealer to
qualify for a free second year warranty.
(Excluding the Webb Electric Handheld machines)
24 Months
12 Months
Date
36 Months
Date Date
41
Page 42
Webb Lawnmowers privacy commitment to machine owners.
The information supplied, helps us to improve the products & services we provide, including information that we believe is relevant to your and/or
your machine. We value your trust by giving us this information about yourself and we are committed to protecting your privacy.
Webb, its associated companies, authorised dealers or third parties working on our behalf may wish to contact you regarding PRODUCT RECALLS
specifi c to your machine. Please advise how you wish to be contacted for this specifi c reason only:
Post Telephone Email
From time to time Webb, its associated companies, authorised dealers or third parties working on our behalf may wish to contact you regarding
our products, services, off ers or just opinions, which may be used for marketing, research or analysis purposes.
If you wish to be contacted by any of the following methods, please tick the relevant boxes:
Post Telephone Email
You may give Webb Lawnmowers notice in writing at any time that you no longer wish to receive direct marketing communications
*House Number *House Name
*Address 1
*Address 2
*Town
*County
*Postcode
Home Tel Mobile Tel
Email
If you have registered online, this form is not necessary.
PLEASE POST THIS COPY TO THE ADDRESS OVERLEAF
*Title *Forename *Surname
Age 18 to 25 26 to 35 36 to 45 46 to 60 61 to 80 81 & over
*Usage Domestic Use Commercial/Professional/Hire Use
Personal Information (* Compulsory)
*Model No:
*Product No:
*Serial No:
*Date of Purchase:
Product Information (* Compulsory)
*Dealer Stamp (if available)
*Dealer Name
*Dealer Address
*Date of Purchase
*Selling Retailer (If dealer stamp not available)
INSTRUCTION MANUAL
48 Months
60 Months
Date
72 Months
84 Months
Service Record
Date
96 Months
Date
108 Months
Date
120 Months
Date
Date
132 Months
Date
42
Date
Page 43
If you have registered online, this form is not necessary.
Product Information (* Compulsory)
PLEASE POST THIS COPY TO THE ADDRESS OVERLEAF
*Model No:
*Product No:
*Serial No:
*Date of Purchase:
Personal Information (* Compulsory)
*Title *Forename *Surname
*House Number *House Name
*Address 1
*Address 2
*Town
*County
*Postcode
Home Tel Mobile Tel
Email
Age 18 to 25 26 to 35 36 to 45 46 to 60 61 to 80 81 & over
*Usage Domestic Use Commercial/Professional/Hire Use
*Dealer Stamp (if available)
*Selling Retailer (If dealer stamp not available)
*Dealer Name
*Dealer Address
*Date of Purchase
Webb Lawnmowers privacy commitment to machine owners.
The information supplied, helps us to improve the products & services we provide, including information that we believe is relevant to your and/or
your machine. We value your trust by giving us this information about yourself and we are committed to protecting your privacy.
Webb, its associated companies, authorised dealers or third parties working on our behalf may wish to contact you regarding PRODUCT RECALLS
specifi c to your machine. Please advise how you wish to be contacted for this specifi c reason only:
Post Telephone Email
From time to time Webb, its associated companies, authorised dealers or third parties working on our behalf may wish to contact you regarding
our products, services, off ers or just opinions, which may be used for marketing, research or analysis purposes.
If you wish to be contacted by any of the following methods, please tick the relevant boxes:
Post Telephone Email
You may give Webb Lawnmowers notice in writing at any time that you no longer wish to receive direct marketing communications
Page 44
Webb Lawnmowers
Murdock Road
Dorcan
Swindon
Wiltshire
SN3 5HY
Loading...
