Please read & understand this manual, paying particular attention to the safety instructions, before use.
Operator’s Manual & Parts List
6 Nov 2015
193873001
30cm Self Adjusting
Hand Push Lawnmower
WEH30
CONTENTS
SPECIFICATIONS
SAFETY INSTRUCTIONS
MAINTENANCE & STORAGE
COMPONENTS
ASSEMBLY
OPERATION
TROUBLE SHOOTING
PARTS DIAGRAM & LIST
WARRANTY
DECLARATION OF CONFORMITY
For Spares or Support of your Webb product, please contact us:
Tel: 01793 333212
(Mon – Fri 8.30am to 5.00pm)
Email: customerservice@webblawnmowers.co.uk
To view the full range or find out more informaon go to
www.webblawnmowers.co.uk
SPECIFICATIONS
Model
WEH30
Product Number
193873001
Height of Cut
10mm-40mm
No. of Cung Heights
4
Number of Blades
6
Collector Capacity
17 ltr
Blade Material
Hardened Steel
Overall Dimensions (mm)
Weight
H-670, W-490, L-520
N.W 9.1kg - G.W 9.85kg
The manufacturer reserves the right to change product specificaon and livery according
to connued product improvements.
INSTRUCTION MANUAL
Read and understand the owner’s manual and labels axed to the machine. Learn its application
and limitations as well as the specic potential hazards. Retain these instructions for future
reference. The operator is responsible for followin g the warnings & instructions in this manual and
on the product.
Read & understand operator’s manual
before using the machine. Failure to
follow instrucons could result in
death or serious injury.
Danger
Always wear gloves to protect your
hands when unpackaging the machine
or working with the cung cylinder.
SHARP ROTATING BLADES
Wear foot protecon or sensible shoes
when using the lawnmower
Keep hands out of the way of all
moving parts.
6m
Keep all bystanders & animals at least 6
metres away from the machine during
operaon.
If approached, stop the machine
immediately.
Safety alert symbol. Used to alert you to potenal personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury.
DANGER
Indicates an imminently hazardous situaon which, if not avoided, will result in serious injury.
WARNING
Indicates a potenally hazardous situaon which, if not avoided, could result in serious injury
CAUTION
Indicates a potenally hazardous situaon which, if not avoided, may result in minor or moderate injury.
CAUTION
Used with
out the safety alert symbol indicates a potenally hazardous situaon which, if not avoided, may
result in property damage.
STAY ALERT
Do not operate the lawnmower while under the influence of drugs, alcohol, or any medicaon that could
affect your ability to use it properly. Do not use this lawnmower when you are red or distracted from the job
at hand. Be aware of what you are doing at all mes. Use common sense.
AVOID DANGEROUS CONDITIONS
Make sure there is adequate surr
ounding workspace. Cluered areas invite injuries.
Keep your work area clean with sufficient light. Keep area around the lawnmower clear of obstrucons,
stones, scks, wires and other debris or foreign bodies which could cause damage to the lawnmower.
SAFETY INSTRUCTIONS
INSPECT YOUR MACHINE
Check all bolts, nuts, and screws for ghtness before each use, especially those securing guards and drive
mechanisms. Vibra on during use may cause these to loosen.
Replace damaged, missing or failed parts before using.
Warning labels carry important informa n.
Replace any missing or damaged warning labels.
DRESS PROPERLY
Do not wear loose clothing, gloves, scarfs, neck es or jewelry (rings, wrist watches), which can be caught in
moving parts.
Wear protec
ve h
air covering to contain long hair, preven
ng it from ge ng caught in machinery.
DO NOT use whilst barefoot or wearing open toed footwear.
KEEP BYSTANDERS AND CHILDREN AWAY
Keep unauthorised persons a minimum distance of 6 metres away from the mower . Do not allow children to
handle, use, or climb on the lawnmower.
DO NOT OVERREACH
Keep proper foo
ng and balance at all mes, par ularly if using on slopes. The lawnmower should not be
used on steep slopes and always be sure of foo ng.
AVOID INJURY FROM UNEXPECTED ACCIDENT
Keep hands out of the way of moving parts, par
ularly the cu ng cylinder . When operang, do not pass hands
DO NOT FORCE TOOL
Always work within the rated capacity. Do not use the lawnmower for a purpose for which it was not
intended.
MAINTAIN YOUR MACHINE WITH CARE
Clean the lawnmower immediately
use. Keep the lawnmower clean to ensure it operates to it’s full and
safest performance. When maintaining this lawnmower, only the manufacturer’s original replacement parts
should be used. The use of non-original manufacturer parts may invalidate your warranty.
STORE IDLE EQUIPMENT
When not in use, the lawnmower should be stored in a dry loca on. Keep the
lawnmower away from children
and others not qualified to use it.
INSTRUCTION MANUAL
through the clearance between the frame, roller or cung cylinder. The hardened steel blades are very sharp.
WARNING
Improper maintenance & storage of the machine may void your warranty. Keep the machine clean
for better and safer performance.
MAINTENANCE
Before each use, check all nuts & bolts to be sure they are sufficiently ghtened.
We recommend only manufacturer original parts are used when maintaining this machine.
Failure to do so could invalidate your manufacturer’s warranty.
The cung cylinder blades should be sharpened every two years, or sooner when damaged by
foreign objects to maintain performance.
CLEANING
Keep your law
nmower clean.
Thoroughly clean the lawnmower at the end of each use, paying parcular aenon to grass
cungs in and around the wheels, roller and blades.
We suggest regular applicaon of mul-purpose oil or lubricant (i.e WD-40). This should be
applied to all cung surfaces and cung reel axle sha.
Never put hands inside the cylinder when it is rotating.
STORAGE
For years of trouble free service, make sure the lawnmower is clean and dry before storing.
Before storing, clean the lawnmower thoroughly as indicated above.
Store indoors or in a protected area during severe weather and winter months.
MAINTENANCE & STORAGE
Top Handle
Grass Collector
Centre Handle
Lower Handle
Height Adjuster
Rear Rollers
Cung Cylinder
INSTRUCTION MANUAL
It is recommended that think gardening gloves are worn, when unpacking, adjusting, assembling
and maintaining the lawnmower.
Remove the Mixer and contents from the carton. Be sure the carton is empty before discarding.
If you require any assistance with regards to the contents of the lawnmower contact us:
Tel: 01793 333212 - Mon – Fri 8.30am – 5.00pm (excl. Bank Holidays)
Email: customerservice@ webblawnmowers.co.uk
STEP 1 – FITTING THE HANDLE
CAUTION
This operation has t
o be done close to the cutting cylinder blade. We strongly recommend the use
of think gardening gloves on both hands and the lawnmower body is secured to stop the cutting
cylinder blade from rotating.
1. Align the holes on both of the upper handles with those on the middle handles.
2. Secure both handles together using wing nuts & bolts provided.
3. Repeat the process with the lower handle.
4. Locate the handle connect peg, posi
oned on the side plate on the lawnmower and slide the
appropriate lower handle over the peg.
5.
Now a
ach the upper & middle handle assembly to the lower handle.
6. Follow step 4 & 5 for the opposite side lower handle.
ASSEMBLY
STEP 2 – FITTING THE GRASS COLLECTOR
1. To fit the grass collector to your lawnmower, posion the grass catcher onto the front
protecon cover.
STEP 3 – ADJUSTING THE CUTTING HEIGHT
The lawnmower can be set to any cung height, between 10mm & 40mm. Depending on the height
of the grass you are cung; you may want to adjust the cung height, using the four cung
heights available.
1. To adjust the cung height, pull out the two adjust knobs located on the outside of the side
plate.
2. Move the knobs up or d
own to locate into the suitable cung height hole.
INSTRUCTION MANUAL
Before operating the machine, please ensure you are fully aware of the instructions, failure to do
so, could invalidate your manufacturer’s warranty.
1. For best results, place the lawnmower on the edge of the lawn, mow in a forward direcon.
2. Then at right angles at the end of each turn, slightly overlapping the previously cup strip.
3. The next me you mow the lawn, try to work at right angles to the previous cut. This will
help prevent unevenness in the soil surface, which can build up if you always mow in the
same direco
n.
TROUBLE SHOOTING
Problem
Answer
Fix
The lawnmower is not cung?
Grass is too high
Height adjustment required
Use suitable tool to reduce grass
height to below 40mm.
Adjust to suitable even height
Wheel does not turn?
Stone is lodged into gear of
wheel.
Foreign material between
cylinder & cuer bar.
Inspect & remove .
Wear gloves to protect hands
from blades and remove
material.
The cut is uneven?
The blade may be damaged
Height adjustment required
Visit your local Webb dealer to
have the blade inspected.
Adjust to suitable even height.
OPERATION

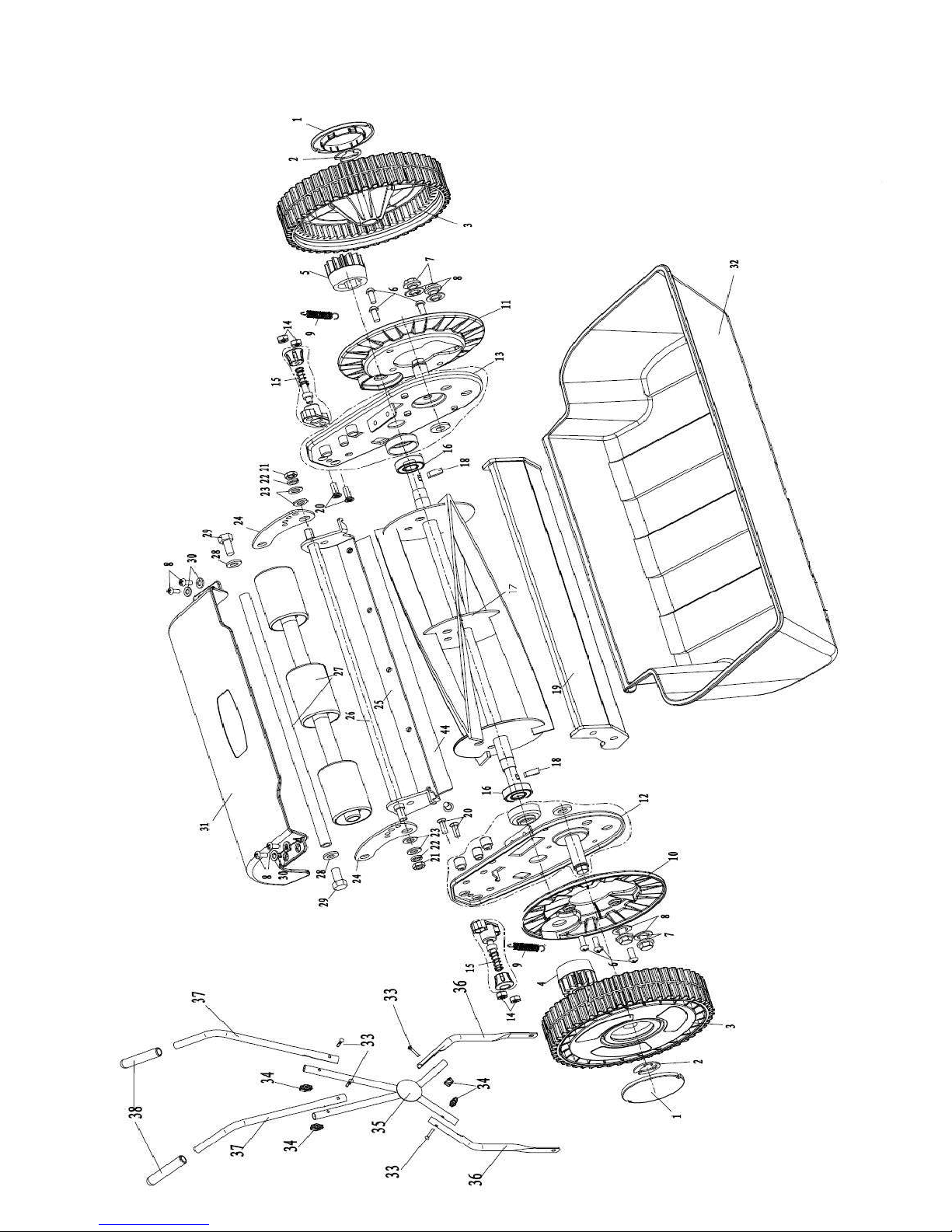

PARTS DIAGRAM
Item No. Webb Part No. Description Qty Item No. Webb Part No. Description Qty
1 WE05A16F04 Wheel Trim 2 20 WEM8M01 Sunk Screw M6x12 4
2 WE12J03 E-Clip 2 21 WEM8F03 Hex N ut M8 2
3 WE16A08F01 Wheel 2 22 WE8Q03 Spring w asher ￠8 2
4 WE05A16C06 Left Gear 1 23 WE8G03 Washer 4
5 WE05A16C07 Right Gear 1 24 WE16A08E07 Roller Bracket 2
6 WEM6D13 Screw M6x10 10 25 WE16A12D01 Cutter Bar Assembly 1
7 WE14A18L13
Hex Bolt M8x12.5 4 26 WE16A12D14 Cutter Torsion Bar 1
8 WE12.5G14A Washer ￠ 12.5X20X1 4 27 WE16A12E Roller Assembly 1
9 WE16A08G04-B Spring 2 28 WE10G03 Washer 10 2
10 WE16A08F07 Left Side Cover 1 29 WE14A18L17 Bolt 3/8-16X16 2
11 WE16A08F08 Right Side Cover 1 30 WE6G03 W asher ￠ 6 4
12 WE16A08A01 Left Side Plate 1 31 WE16A12C28-B Grass Delivery Plate 1
13 WE16A08A02 Right Side Plate 1 32 WESGG-007-12 Grass Catcher 1
14 WEM6E04 Lo ck N ut M6 4 33 TH133-45 Bolt M6x35 4
15 WE16A08E27 Roller Adjuster 2 34 TH133-46 Wing Nut 4
16 WEGB6002 Bearing 6002-2Z 2 35 TH133-47 Centre Handle 1
17 WE16A12C01 Cutting Cylinder 1 36 TH133-48 Lower Handle 2
18 WE05A16C05 Pawl 2 37 TH133-49 Top Handle 1
19 WE16A12B01 Protection Cover 1 38 WE108-50 Handle Grip 2
EC DECLARATION OF CONFORMITY
We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product:
Designation: Hand Push Lawn Mower
Model(s): WEH30
Type/Serial No. As per rang label on machine
Complies with the following directives:
Machinery Direcve as last amended by EEC direcve 2006/42/EC Annex
-VII
The conformity assessment procedure followed was in accordance with
EN ISO 12100:2010, EN ISO 13857:2008, EN 953: 1997+A1:2009, EN ISO 13849
-1:2008,
EN 1037: 1995+A
1:2008, EN ISO 14119:2013
Notied Body:
Global Tesng Services Co. Ltd
Addresses:
No. 968 Meilong West Road, Minhang District, Shanghai City 201104, (P.R China)
Authorised signatory and technical le holder
Date: 06/11/2015
Signature:
Name: Mr Simon Belcher
Position: Managing Director
Company: Handy Distribuon Ltd
Address: Murdock Rd, Swindon, Wiltshire, SN3 5HY.
NOTES
NOTES
NOTES
This Service Book is provided with your Webb, to help you look after your purchase to our recommendations and enable you
to take advantage of the 2 year manufacturer domestic warranty*.
* Commercial/Professional & Hire users receive a 90 day warranty
Present this service book to your authorised Webb repair dealer, whenever a service or a warranty appraisal is required.
The booklet is applicable to the following products, in the UK only:
Ride On Lawn Tractors
Petrol & Electric Cylinder Lawnmowers
Petrol Rotary Lawnmowers
Petrol Hand Held Range
Please register your machine using the following pages or at www.webblawnmowers.co.uk. By registering your machine, you
agree to maintain the machine in accordance with the service schedules specied in this manual and services duly recorded.
You may be asked to produce this booklet as proof of servicing in the event of a claim. Proof of purchase should also be kept
as a reference.
Ensure you have the following information available from your machine product label. The two examples below can be found
on your machine:
1
3
4
2
1. Model Number
2. Serial & Product Number
Please complete using BLOCK CAPITALS.
Sections marked* must be completed to validate Warranty.
Cylinder Mowers Only
3. Serial Number
4. Model Number
INSTRUCTION MANUAL
1. Users Statement of Warranty
Each new machine is warranted against defective material or assembly of material under normal usage. The warranty applies
to the original purchaser, is not transferable and covers faulty parts and the labour involved in replacing and repairing those
parts, which are of original manufacture.
2. Period of Warranty
2 year warranty from the original date of sale to the rst domestic user.
90 days from the original date of sale to the professional/commercial or for hire user.
Engine warranty as per the engine manufacturer’s warranty, which will be supplied with the machine.
90 days from the original date of sale for Replacement Spare Parts
All machines’ must be serviced within the rst 14 months from the original date of purchase, to qualify for a second year
parts & labour warranty, details of the service must be recorded in the service record within this manual.
A reduced warranty period of 90 days applies to those items which are subject to normal wear and tear and in normal use,
will need replacement or adjustment.
These items are chargeable after 90 days of ownership.
Filters
Tyres / Wheels
Drive chains and belts
Brake & clutch friction components
Control cable & starter cords
Fluids & lubricants
Spark plugs
Blades (Lawnmowers & Brushcutters)
Cutter bars (Hedgecutters)
Drive & clutch cable surfaces
Nylon Lines (Line Trimmers)
Carburettor cleaning
Bearings
Bushes
Electric cable
Grass collectors
3. Not covered by this warranty
(a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion, lack of
correct maintenance or operation, misuse, abuse, lack of transportation or accident.
(b) The warranty policy does not cover any costs necessary for the standard periodic maintenance services instructed by the
operators manual, or service parts replacement which would include oil, lters, tyres, belts, brake linings, fuses, blades, seals
and other service parts unless it can be proven that the item has evidence of faulty manufacture.
(c) The warranty policy will not cover failure or damage caused as a result of parts or accessories being modied without the
written approval of GJ Handy & Co Ltd.
(d) The warranty policy will not cover the unit if non-genuine parts have been tted and as a result damage has occurred to
the unit.
(e) The warranty policy is non-transferable and is only applicable to the original purchaser.
4. Disclaimer
(a) This warranty is only a remedy for defect of products. GJ Handy & Co Ltd will never warranty in terms of the
merchantability or the tness for a particular purpose.
(b) No person is authorised to make any warranties, representations or promises, expressed or implied, on behalf of GJ
Handy & Co Ltd, or to modify the terms conditions or limitation of this warranty policy in any way.
(c) Neither GJ Handy & Co Ltd nor any company afliated with GJ Handy & Co Ltd shall be liable in any event or manner
whatsoever for incidental or consequential damages or injuries, including, but not limited to, loss of crops, loss of prot, out
of pocket expenses or prots, rental of substitute equipment or other commercial losses.
SERVICE BOOK
5. General
(a) Most warrantable failures show up within the rst few weeks of use. These failures are usually straightforward and
warranty assessment is relatively easy.
(b) Failures relating to cutter decks and belts need careful investigation, as the cause may not always be straightforward.
Look for damage to blades and pulleys especially when the cutter belt or blade boss have snapped or cracked as this could be
due to impact damage.
(c) Customers should always refer to the operator/instruction manual when any disputed problem arises, you will nd most
areas covered within the manual.
Protecting your machine
Maintenance
Regular maintenance of your Webb machine is essential to ensure it operates, safely, efciently and therefore reducing the
environmental impact.
It is the owner’s responsibility to ensure that their Webb machine is maintained at specic intervals. Any approved Webb
service dealer can undertake a service, which are specialised in our products and will be aware of your particular machine
and any technical updates which will save valuable time & money.
If you are using your machine in dry, dusty or high temperatures, you will need to service the machine more regularly.
Fuel
Due to ongoing efforts by fuel companies to reduce emissions, unleaded petrol will oxidize & deteriorate in storage overtime,
leaving residue from detergent components.
Fuel deterioration problems may occur when petrol is stored for over 30 days. If you are planning to store fuel for over
30 days, we recommend you add Handy Parts Sure-Start fuel stabilizer to fresh fuel after purchasing. Sure-Start cannot
reconstitute stale fuel.
Storage
When storing your machine for an extended period, we do recommend that you follow the instructions of engine instruction
manual.
Always store the fuel in a clean, approved and sealed container. If the container is steel, ensure it is not corroded.
If the container is not lled to its recommended capacity, air can accelerate fuel deterioration.
Always store fuel away from direct sunlight, in a dark, cool environment.
INSTRUCTION MANUAL
Your servicing Webb approved dealer will stamp & date the below relevant sections, when the correct service actions have
been completed.
PLEASE ENSURE THE SERVICE BOOK IS AVAILABLE FOR THE DEALER, DURING SERVICE WORK.
24 Months
Date Date
36 Months
12 Months
Date
SERVICE BOOK
48 Months
Date
Date
Date
Date
Date
Date
Date
Date
72 Months
96 Months
120 Months
60 Months
84 Months
108 Months
132 Months
INSTRUCTION MANUAL
*House Number *House Name
*Address 1
*Address 2
*Town
*County
*Postcode
Home Tel Mobile Tel
Email
If you have registered online, this form is not necessary.
PLEASE POST THIS COPY TO THE ADDRESS OVERLEAF
*Title *Forename *Surname
Age 18 to 25 26 to 35 36 to 45 46 to 60 61 to 80 81 & over
*Usage Domestic Use Commercial/Professional/Hire Use
Personal Information (* Compulsory)
*Model No:
*Product No:
*Serial No:
*Date of Purchase:
Product Information (* Compulsory)
Webb Lawnmowers privacy commitment to machine owners: Thank you for completing this form. The information supplied, helps us to improve the
products & services we provide, including information that we believe is relevant to your and/or your machine. We value your trust by giving us this
information about yourself and we are committed to protecting your privacy. From time to time Webb, its associated companies, authorised dealers or third
parties working on our behalf may wish to contact you regarding our products, services, offers, technical improvements or just opinions, which may be used
for marketing, research or analysis purposes.
If you DO NOT wish to be contacted by either of the following methods, please tick the relevant box POST TELEPHONE
If you would like us to contact you be Email, please tick this box
You may give Webb Lawnmowers notice in writing at any time that you no longer wish to receive direct marketing communications
*Dealer Stamp (Complete Address)
*Dealer Name
*Dealer Address
*Date of Purchase
*Selling Retailer (If dealer stamp not available)
WARRANTY REGISTRATION
Webb Lawnmowers
Murdock Road
Dorcan
Swindon
Wiltshire
SN3 5HY
Loading...
