Warning! Read these instructions carefully, be familiar with the
controls and the proper use of the lawnmower.
Learn how to stop the lawnmower quickly in any emergency.

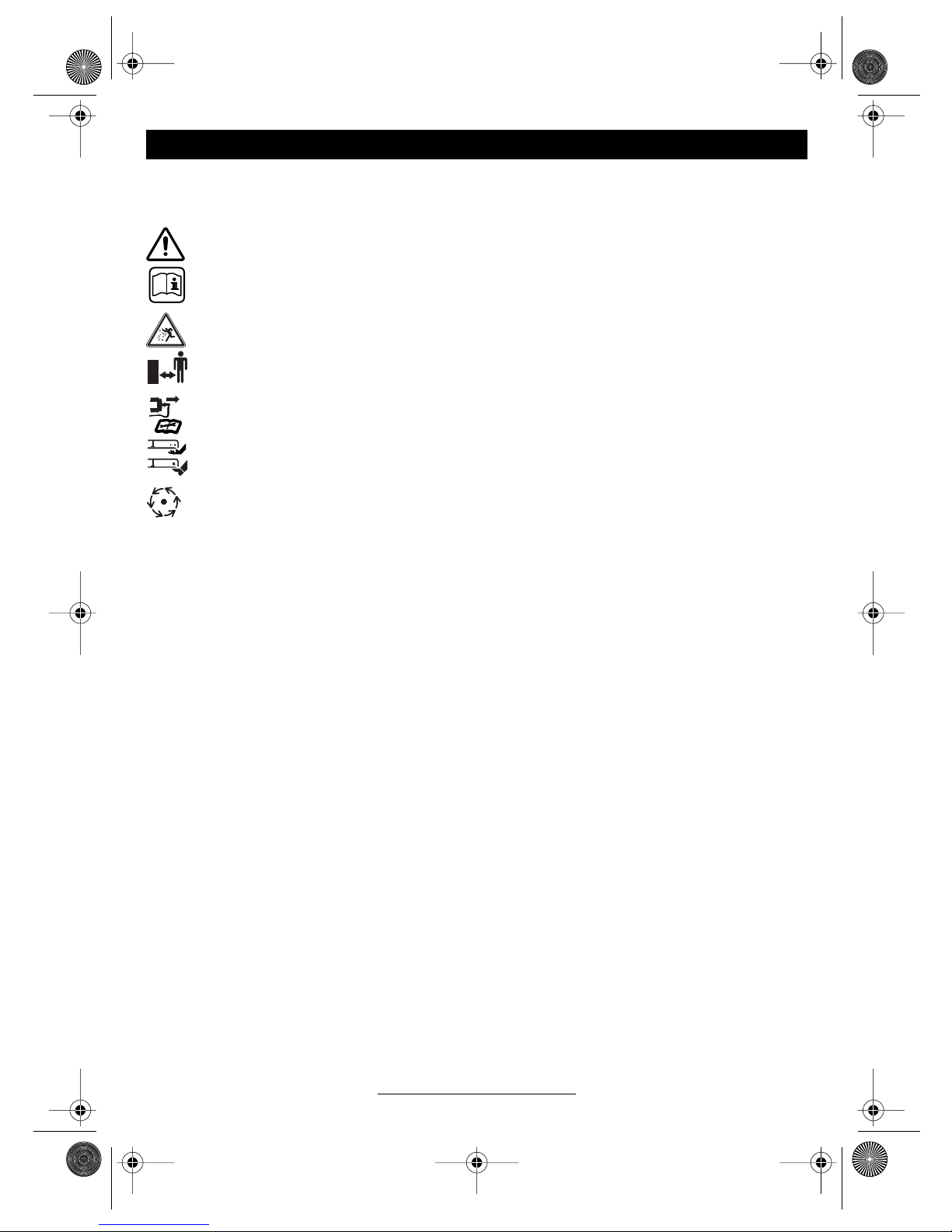

Explanation of symbols on the lawnmower
General hazard safety alert.
Read instruction manual.
Beware of thrown or flying objects to bystanders.
Keep bystanders a safe distance away from the machine.
Remove spark plug lead before maintenance.
Sharp blade(s). Beware of severing toes or fingers.
Wait until all machine components have completely
stopped before touching them. The blades continue
to rotate after the machine is switched off, a rotating
blade can cause injury.
Never allow children or people unfamiliar with these instructions
to use the lawnmower. Local regulations may restrict the age of
the operator.
Never mow while people, especially children or pets, are
nearby.
Never pick up or carry the lawnmower while the motor is running.
Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.
Whilst mowing, always wear substantial footwear and long trousers. Do not operate the equipment when barefoot or wearing
open sandals.
Wear appropriate protective clothing and equipment when
you are operating the lawnmower, such as safety glasses, long
trousers, substantial footwear and ear protection. Long Hair,
loose clothing or jewellery can get tangled in moving parts.
Thoroughly inspect the area where the lawnmower is to be used
and remove all objects that may be thrown by the machine.
WARNING – Petrol is highly flammable.
– Store fuel in containers specifically designed for this purpose.
– Refuel outdoors only and do not smoke while refuelling.
– Add fuel before starting the engine. Never remove the cap
of the fuel tank or add petrol whilst the engine is running or
when the engine is hot.
– If petrol is spilled, do not attempt to start the engine but
move the machine away
from the area of spillage and
avoid creating any source of ignition until petrol vapours
have dissipated.
– Replace the fuel tank and container caps securely.
– Replace faulty silencers.
– Do not operate the engine in a confined space where dan-
gerous carbon monoxide fumes can collect.
– Before using, always visually inspect to see that the blades,
blade bolts and cutter assembly are not worn or damaged.
On multi-bladed lawnmower, take care as rotating one
blade cause other blades to rotate.
Mow only in daylight or in good artificial light.
Avoid operating the lawnmower in wet grass, where feasible.
Always be sure of your footing on slopes.
Walk, never run.
Mowing on banks can be dangerous:
– Mow across the face of slopes - never up and down.
– Be particularly careful of your footing on slopes or wet grass.
Exercise extreme caution when changing direction on slopes.
Do not mow excessively steep slopes.
– Use extreme caution when stepping back or pulling the
lawnmower towards you. Never cut grass by pulling the
mower towards you.
Stop the blades if the lawnmower has to be tilted for transportation when crossing surfaces other than grass and when transporting the lawnmower to and from the area to be mowed.
Do not tilt the lawnmower when starting or switching on the motor, except if the lawnmower has to be tilted for starting in long
grass. In this case, do not tilt it more than absolutely necessary
and lift only the part which is away from the operator. Always
ensure that both hands are in the operating position before returning the mower to the ground.
Never operate the lawnmower with defective guards, or without the safety devices, for example deflectors and/or grass
catches, in place.
Do not change the engine governor settings or overspeed the
engine. Operating an engine
at excessive speed may increase
the hazard of personal injury.
Disengage all blade and drive clutches before starting the en-
gine.
Start the engine or switch on the motor carefully according to
instructions and with feet well away from the blade(s). Do not tilt
the mower when starting. Keep clear of the discharge opening
at all times. Never pick up or carry a lawnmower while the engine is running.
Do not put hands or feet near, or under, rotating parts while the
lawnmower is being operated.
Stop the engine and disconnect the spark plug lead:
– before checking, cleaning or working on the lawnmower
– after striking a foreign object. Inspect the lawnmower for
damage and make repairs before restarting and operating
the lawnmower.
– if the lawnmower starts to vibrate abnormally (check imme-
diately).
– before making height of cut adjustment
Stop the engine:
– whenever you leave the machine
– before refuelling
– before clearing blockages
– before making height of cut adjustment
Reduce the throttle setting during engine shut-down and if the
engine with a shut off valve, turn the fuel off at the conclusion
of mowing.
Keep all nuts, bolts and screws tight to be sure that the lawnmower is in safe working condition.
Replace worn or damaged blades and bolts in sets to preserve
balance.
Never store the lawnmower with petrol in the tank inside a building where fumes may reach open flame or spark.
Allow the engine to cool before storing in any enclosure.
To reduce the fire hazard, keep the engine, silencer, battery
compartment and petrol storage area free of grass, leaves or
excessive grease.
Check the grassbox/bag frequently for wear or deterioration.
Replace worn or damaged parts for safety.
Go slow when using a trailing seat.
If the fuel tank has to be drained, this should be done outdoors.
Be careful
during adjustment of the lawnmower to prevent entrapment of the feet and hands between moving blades and
fixed parts of the lawnmower.
Ensure replacement parts fitted are manufacturer’s original or
approved by the manufacturer.
Safety Notes
STOP
F016J10013A UK Page 7
2
Cylinder Mower
Part number
Engine size (cm
3)
Fuel Tank capacity (l)
Rated power [kW/Hp] 3600rpm
Blade width (cm)
Height of cut (mm)
Cuts per metre
Grassbox capacity (l)
Weight (kg)
Max overall width (mm)
Serial Number See rating details on machine
This product is intended for domestic lawn
mowing.
This manual gives instructions on the correct assembly and safe use of your machine. It is important that you read these instructions carefully.
When fully assembled the machine weighs approximately 38 kg – 41.5 kg. If necessary, obtain
assistance to remove from packaging.
Take care when transporting the mower to the
lawn, as the blades are sharp.
Carefully remove the machine from its packaging and check that you have all the following
items:
– Lawnmower with handle assembly
– Operating instructions
– Machine registration card
– Engine maintenance manual
– Hexagonal wrench
– Grassbox
– Grassbox cradle
When parts are missing or damaged, please
contact your dealer.

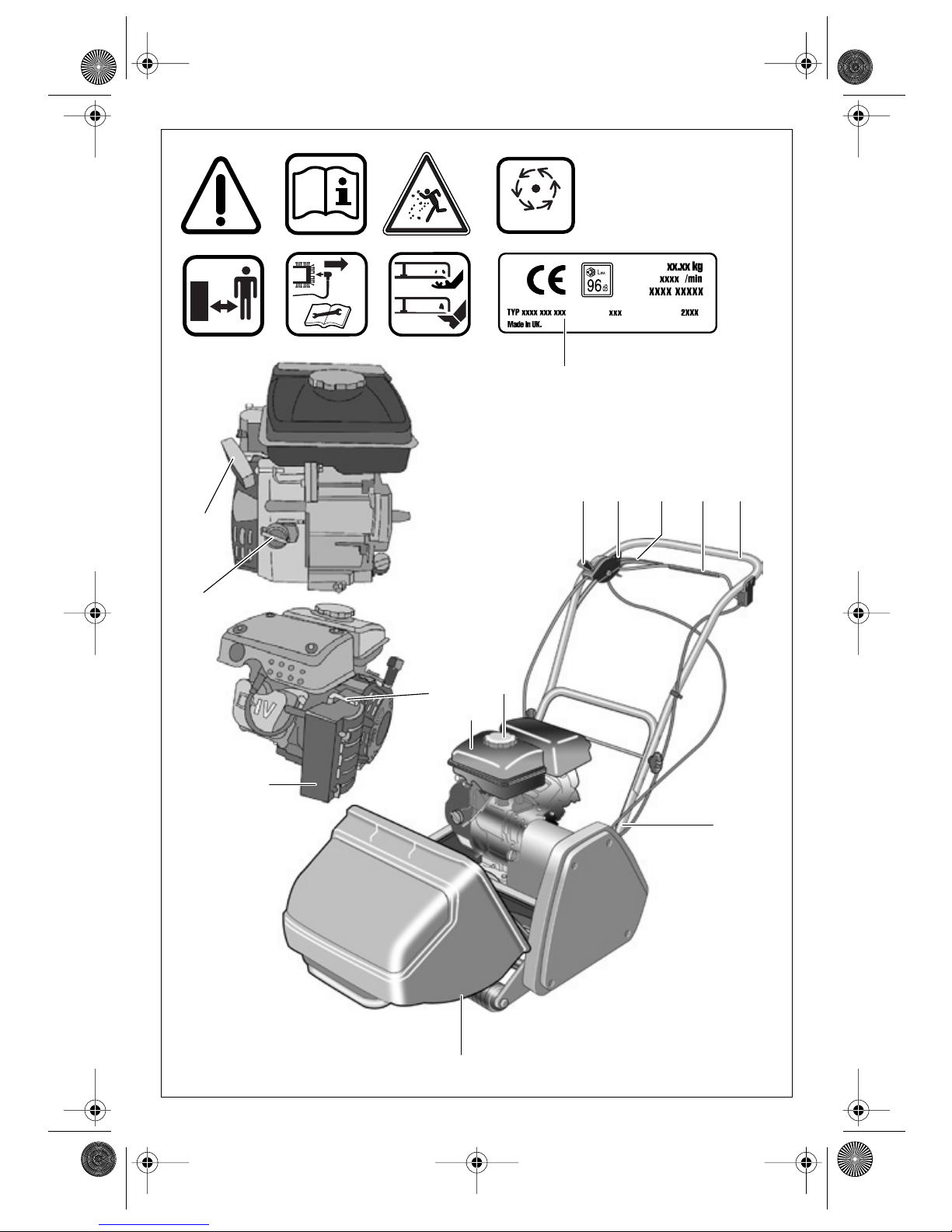

1 Throttle lever
2 Red safety latch
3 Cutter control lever
4 Drive control lever
5 Handle top
6 Engine cut-off switch
7 Petrol filler cap
8 Petrol tank
9 Handle bottom
10 Grassbox
11 Choke lever
12 Air cleaner
13 Recoil cord handle
30 Serial No
Not all of the accessories illustrated or described are
included as standard delivery.
Handles

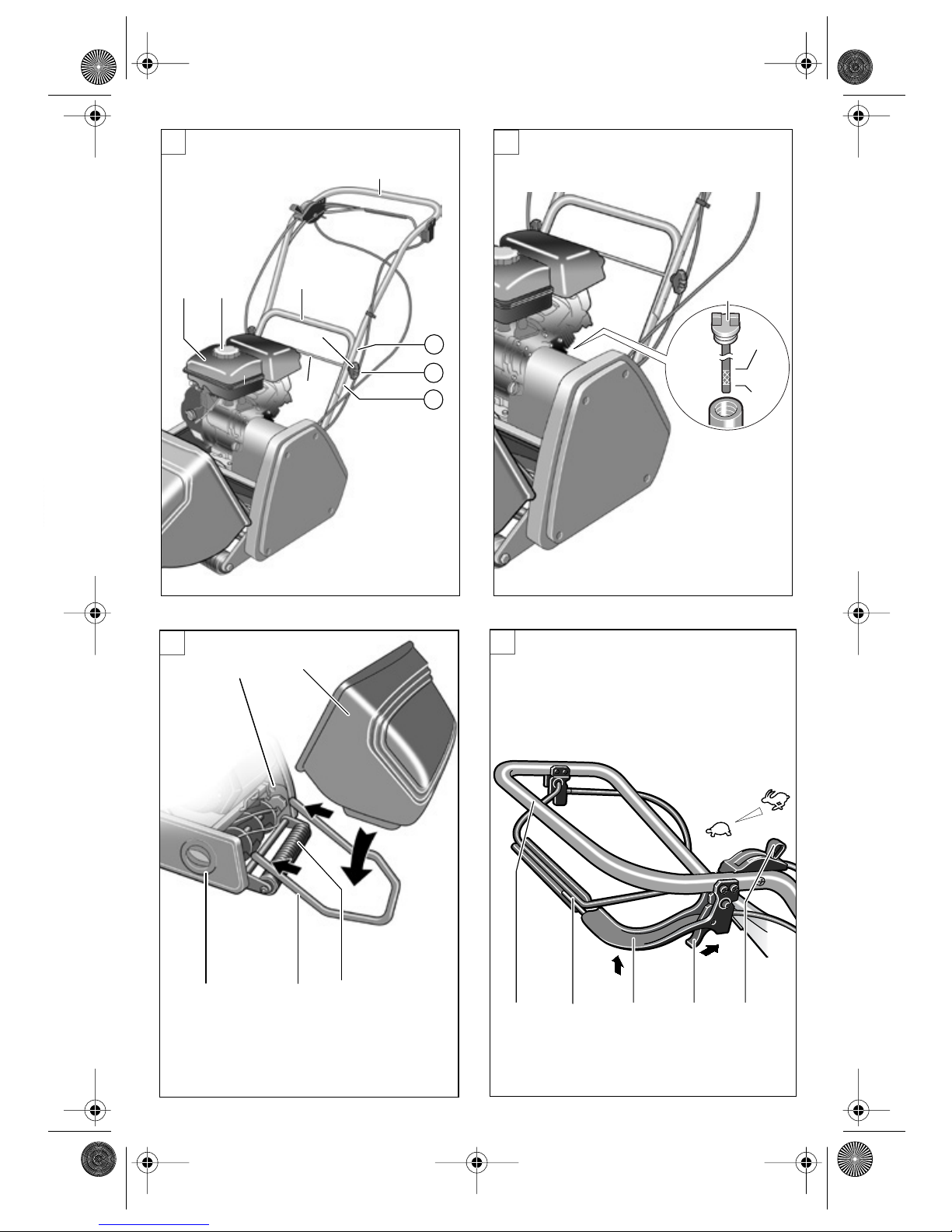

Unfold the handle top 5 and secure with wing
nut 15. Make sure the cables do not become
trapped between the handles.
The handle top is height adjustable. The spindle 16 can be repositioned in desired position I,
II or III .
Use cable clips to attach cables to bottom handle 9 and top handle 5.
Product Specification
Intended Use
Introduction
Delivered Items
Operating Controls
Assembly
A
C14L C17L
C14L C17L
87 87
1.6 1.6
1.6/2.2 1.6/2.2
35 43
9-32 9-32
72 72
32 40
38 41.5
530 605
F016J10013A UK Page 8
3
Petrol
Petrol deteriorates over time. Engine starting
may be difficult if you use petrol kept for more
than 30 days. Always run the fuel tank dry when
storing over 30 days.
1. Remove the petrol filler cap 7, slowly add unleaded petrol to the tank 8, fill to approx.
halfway up the fuel strainer.
2. Replace the petrol filler cap 7.
3. Wipe up any spilt petrol from the engine before starting the mower.
Engine Oil
The mower is not supplied with oil in the engine,
however it is possible that there is a small quantity in the engine. It is essential to fill with oil before starting the engine to avoid damage to
your engine. It is important to use the recommended oil to avoid damage to your engine.
1. With the mower standing on level ground,
unscrew and remove the oil filler dipstick 17.
2. Wipe the oil filler dip stick 17 clean; insert the
oil filler dip stick 17, then remove it again. Do
not screw it in. Check the oil level.
3. Add a good-quality SAE 10W-30 API SF in small
quantities at a time, allowing it to settle. Repeatedly add oil and check the level until it
reaches the max. position dip stick 17. The
engine may require up to 0.4 litres of oil.
4. Refit the oil fill dipstick 17.
Grassbox
D
Starting and Stopping
Starting from Cold
1. Move the throttle lever 1 to position .
2. Move the engine cut-off switch 6 to “1”
3.
Move the choke lever 11 to .
4. Pull the recoil cord handle 13. Allow the recoil
handle to return slowly after each pull.
5. Gradually turn the choke lever 11 to .
Starting from Hot
Follow “Starting from Cold” using steps 1,3 & 5
only.
If the engine does not start or will not continue
to run, follow the “Starting from Cold” procedure with choke 11 lever between the
and position.
Stopping
1. Move the throttle lever 1 to position .
2. Move the engine cut-off switch 6 to “0”.
Engaging cylinder cutter and rear roller
1. Start engine.
2. Push the red safety latch 2 forward and gradually squeeze the cutter control lever 3 towards the top handle 5.
3. Gradually squeeze the drive control lever 4
towards the top handle 5.
4. Release the safety button 2.
5. Adjust the speed as required by moving the
throttle lever 1 between and .
6. To stop, release both control levers 4 and 3.
B
C
Using Your mower
Spring the grassbox cradle 20 into pivot
holes 18.
Attach/remove the grassbox 10 as shown.
Height of cut adjustment
Your machine has six settings which give the following approximate height of cut:
1 = 9 mm 2 = 13 mm 3 = 18 mm
4 = 25 mm 5 = 32 mm S = Scarifier
Position “S” should only be used with the Scari-
fier Cartridge accessory (purchased separately).
To adjust the height of cut:
Tilt the mower to take the weight off the front
roller 21.
Push the height of cut knob 19 in and turn to the
desired position.
For the first cutting of the season, a high cutting
adjustment should be selected.
C
E
D
D
D
F016J10013A UK Page 9
4
Engaging rear roller only
1. Start engine.
2. Gradually squeeze the drive control lever 4
towards the top handle 5.
3. Adjust the speed as required by moving the
throttle lever 1 between and .
4. To stop, release the drive control lever 4.
Engaging cutters only
1. Start engine.
Push the red safety latch 2 forward and gradually squeeze the cutter control lever 3 towards
the top handle 5.
2. To stop, release the cutter lever 3.
Before mowing, check the engine oil level and
fill the petrol tank.
Toward the end of season, it is advisable to put
only as much fuel in the tank as you need for
each cut, since it should be completely used
before storing the mower.
For best results, place the lawnmower on
the edge of the lawn, mow in a forward direction. Then at right angles at the end of each
turn, slightly overlapping the previously cut strip.
The next time you mow the lawn, try to work at
right angles to the previous cut as this will help
prevent unevenness in the surface soil which
can build up if you always mow in the same direction.
Stop and remove spark plug cap.
Note: To ensure long and reliable service, carry
out the following maintenance regularly.
Regularly check for obvious defects such as a
loose, dislodged or damaged blade, loose fixings, and worn or damaged components.
Check that covers and guards are undamaged
and correctly fitted. Carry out necessary maintenance or repairs before using.
Clean the exterior of the machine thoroughly
using a soft brush and
cloth. Do not use water,
solvents or polishes. Remove all debris, especially from the air filter and engine fins.
If the mower should happen to fail despite the
care taken in manufacture and testing, repair
should be carried out by an authorised customer service agent for Webb Lawnmowers
garden products.
For all correspondence and spare parts orders,
always include the serial number 30 from
the nameplate of the machine!

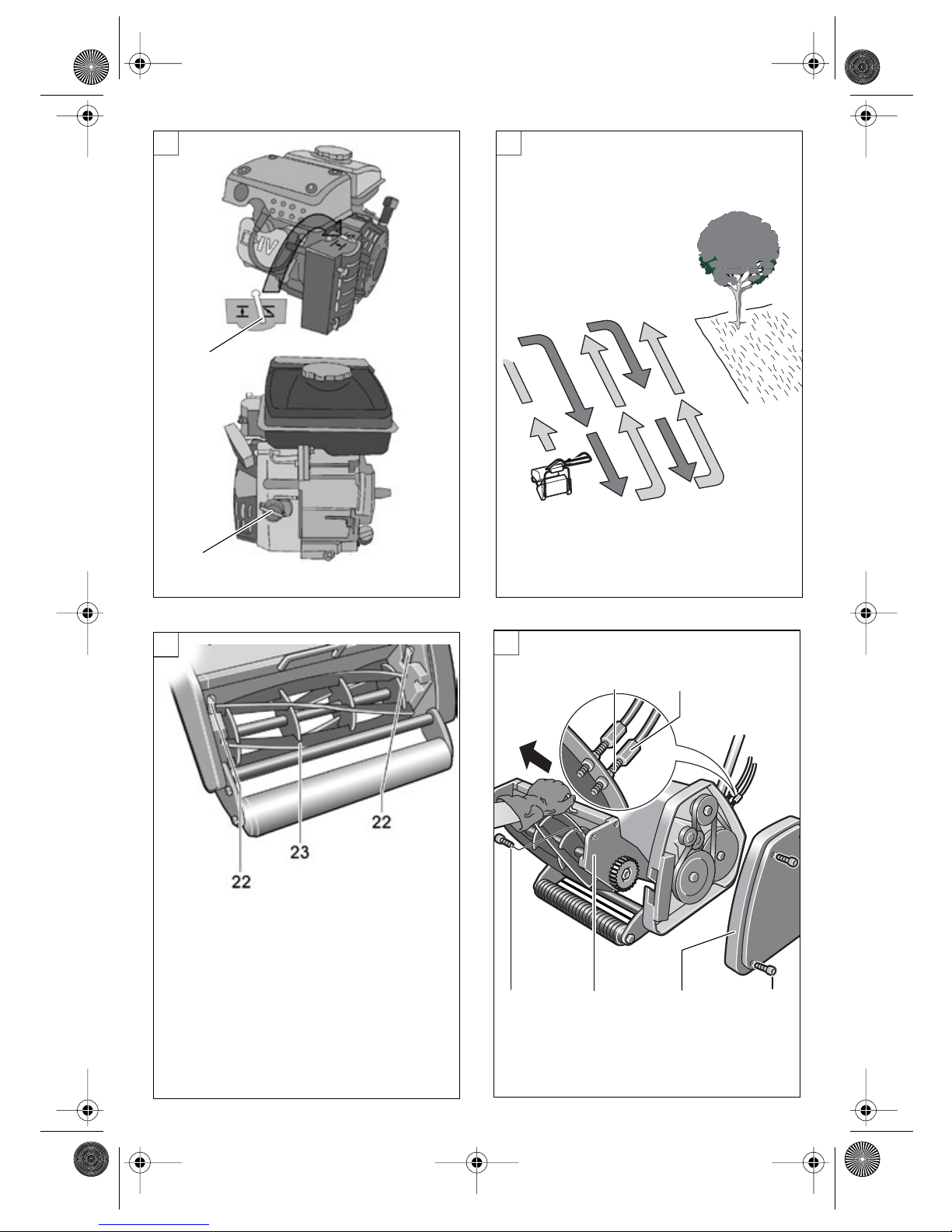

The cutter should be adjusted if the grass is not
cut cleanly and evenly.
1. Tilt the mower back and wedge securely.
2. Remove grassbox cradle 20.
3. Turn both adjuster screws 22 clockwise a little
at a time.
Note: The blades are correctly adjusted when
the cutting cylinder 23 lightly brushes the bottom blade across the full width as the cylinder is
turned.
The blades act like a pair of shears, as a test,
correctly adjusted blades will cut a piece of
good quality writing paper across the width of
the blade.
Once correctly adjusted refit grassbox cradle 20.
The mower is fitted with a Qc (quick
change) cartridge which can be removed and
taken to an Approved Service Agent for
sharpening. To remove the cartridge:
– It is advisable to wear a pair of gardening
gloves (not supplied).
– Remove grassbox cradle 20.
– Remove the drive cover 26 by removing
screws 27.
– Remove cartridge retaining screws 24 on both
sides.
– Pull the cutting cartridge unit 25 out using the
handle. Obtain assistance if required.
– Refit cartridge 25 following the above in re-
verse.
This method is the same for fitting or removing
cartridge accessories.
If the mower doesn’t drive adequately it may
be necessary to adjust the land drive cable as
follows, or contact a Webb Lawnmowers Approved
Service agent:
Mowing
Maintenance
G
Adjusting the Blade
Removing/replacing Qc Cylinder
Cartridge
Adjusting Land Drive Cable
C G
C H
E H
F016J10013A UK Page 10
5
– Slacken nut 28, turn adjuster 29 a few turns
anti-clockwise.
– Retighten nut 28.
When correctly adjusted, drive to the rear roller
is engaged when the drive control lever 4 is
squeezed against the handle top 5 or disengaged when released.
Changing oil:
Change the oil after 8 hours of use. The oil
should then be changed every 50 hours or at
the end of each season before storage, whichever is sooner.
(See engine manual for details.)
Note: It is important that you use the recom-
mended oil to avoid damage to your engine.
Cleaning Air filter (See engine manual for de-
tails).
General maintenance and Adjustments (See
engine manual for details).
1 litre SAE 10W-30 API SF Oil..............F016 S10258
Regular maintenance at the recommended
service intervals, replacing worn or damaged
parts as necessary and having the mower serviced by a Webb Lawnmowers Approved Service
Agent before winter storage will maximize the
life and reliability of the mower. Observe the following before storage:
1. Clean the mower down thoroughly. Remove
any grass debris especially around the engine cooling fins (also see engine manual).
2. Check the cutting action (see “Adjusting the
Blades”) and lightly oil the cutting edges.
3. Check that all nuts and bolts are tight.
4. Drain off any fuel in the petrol tank, see engine manual.
5. Clean fuel tap, see engine manual.
The following table gives checks and actions that you can perform if your machine does not operate
correctly. If these do not identify/remedy the problem, contact your service agent.
Warning: Switch off, remove spark plug cap before investigating fault.
Engine Maintenance
Accessories
Winter Storage/Storage over 30 days
Fault Finding
ydemeResuaC elbissoPmotpmyS
Mower leaves a ragged
finish
Cylinder not correctly adjusted Adjust the cylinder
Engine will not start Engine is flooded
Spark plug lead not connected
Spark plug dirty
No oil
Leave for 10– 15 minutes
Reconnect
See engine maintenance manual
Add oil
Engine stops No petrol
Engine speed too low for conditions
Cutting cylinder obstructed
Engine does not stop
Refill tank
Move throttle
Turn off engine and clear
obstruction
Throttle cable not correctly
adjusted. Stop engine by removing
spark plug lead and refer to the
engine maintenance manual.
Cutting cylinder does not
rotate
a
Webb Lawnmowers
tcatnoCtnemtsujda tcerrocnI
Approved Service Agent
Land drive does not
engage
Incorrect adjustment/cable damaged Contact a Webb Lawnmowers
Approved Service Agent
Excessive vibration/noise Blade(s) or/and cylinder bearing damaged
Engine fault
Contact a
Webb Lawnmowers
Approved Service Agent
See engine maintenance manual
F016J10012A UK Page 11
6
The guarantee period for domestic use is 1 year
for parts (1 year engine) and 1 year for labour
costs from date of purchase.
For the purpose of this guarantee:
Non-domestic use means all other uses includ-
ing, commercial, income producing, but excluding rental/hire use.
To obtain a repair under this guarantee:
– Take your lawnmower to a Webb Lawnmowers
Approved Service Agent.
– Show your dated proof of purchase.
– Show the guarantee page.
This guarantee does not apply if:
– you cannot provide a dated proof of pur-
chase.
– the product has been resold by original pur-
chaser (this does not apply in the Republic of
Ireland), or has been used under hire.
– the product has been modified to change
the manufacturer‘s specification, or if non-
genuine spares have been fitted.
– if any previous repair was undertaken by
anyone other than a Webb Lawnmowers
Service Agent.Approved
– the fault is due to maladjustment, abuse, ne-
glect or accidental damage.
– the fault is due to lack of lubrication or main-
tenance.
– damage to any part, particularly the drive or
cutting mechanism has been caused by al-
lowing the product to strike solid objects.
– The product develops a fault due to abnor-
mal use.
– Failure is due to normal wear. The following
parts are considered as wearing parts. Their
life is dependant on regular servicing and
they are not therefore, normally covered by
the guarantee:
Blades, drive belts, bearings, gears, rubber on
the rear roller and cables.
The cost of routine maintenance of the product
is not covered by the guarantee.
It is in your best interests to follow the Operating
Instructions for your mower/scarifier, as a properly cared for product should give many years
of excellent service.
Your statutory rights are not affected by this
guarantee.
Your product has
been manufactured under an
environmental management system using
where possible the most environmentally responsible material and processes, and with the
potential for recycling at the end of its life.
When the time comes to dispose of this product
please consider the environment and take it to
a recognised recycling facility.
(Please contact your Local Authority for location information.)
Service
Guarantee
Declaration of Conformity
We:
Of:
Declare that equipment: Category 32 petrol lawn trimmer/mower
conforms to the essential requirements of the following directives and their amendments:
2004/108/EC, 2006/42/EC, 2000/14/EC and has been designed and manufactured to the
following standards: BS EN 836.
Typically the A-weighted noise level of the product is:
Model
number
Sound
pressure
level
Sound
power
level
Uncertainty
(K)
Guar
anteed
sound power
level
2000/14/EC
14 81 dB(A) 91dB(A) 5 dB 96dB(A)
17 81 dB(A) 91dB(A) 5 dB 96dB(A)
Wear hearing protection!
Vibration emission values (triaxial vector sum) determined according to BS EN 836
Model
number
Vibration Uncertainty (K)
14 5 m/s2 2 m/s
2
17 5 m/s2 2 m/s
2
Notified body: AV Technology
Technical file at:
I hereby declare that the product described under “technical data” has been tested and
found to comply with the relevant sections of the above referenced specifications. The
unit complies with all essential requirements of the directives.
Place: Stafford, July 2011
Signature:
Position: Managing Director
Webb Lawnmowers
Hobley Drive
Swindon SN3 4NS
England
Helpline: 01793 333212
W
www.webblawnmowers.co.uk
eb helpline:
Webb Lawnmowers
Hobley Drive, Swindon, SN3 4NS
Webb Lawnmowers - Swindon - SN3 4NS
Webb Lawnmowers guarantee this product
against manufacturing defects.
We will repair [or replace at our option] if a
manufacturing defect occurs within the
guarantee period as long as it has not been
subject to rental or hire use. The engine fitted to
this mower is covered by the engine
manufacturer. See engine manual for details.
Should you require spares or parts aways insist
on Webb Lawnmower spares. Any damage
caused to the product through the fitting of
parts not made or approved by Webb
Lawnmowers is not covered by the Guarantee.
F016J10013A 12-12-11
Notes
Your nearest dealer
Webb Lawnmowers - Hobley Drive - Swindon - SN3 4NS
Loading...
