H300 USER MANUAL

English

Dear Madam, Sir,

Webasto Thermo & Comfort SE wishes you a lot of pleasure when driving
with your newly installed H300 sunroof. Your sunroof is a new generation
quality product from Webasto Thermo & Comfort Benelux. This new
generation sunroof is available in 2 models, ENTRY and COMFORT.
Below you will find all you need to know about this H300 tilting and
sliding sunroof. In order to obtain the maximum enjoyment from the
sunroof, please read these instructions carefully. Wishing you happy
motoring.

SWITCH

The sunroof can be operated by a 3 button switch with self explanatory
symbols. You can either tilt, slide or close the glass panel.
The switch for the ENTRY model comes in black only. The COMFORT
model switch comes in black with a metal accent and LED illuminated
symbols.

OPERATION

Ensure that your vehicle ignition is switched ON.

SLIDE OPEN (Entry version and Comfort version)

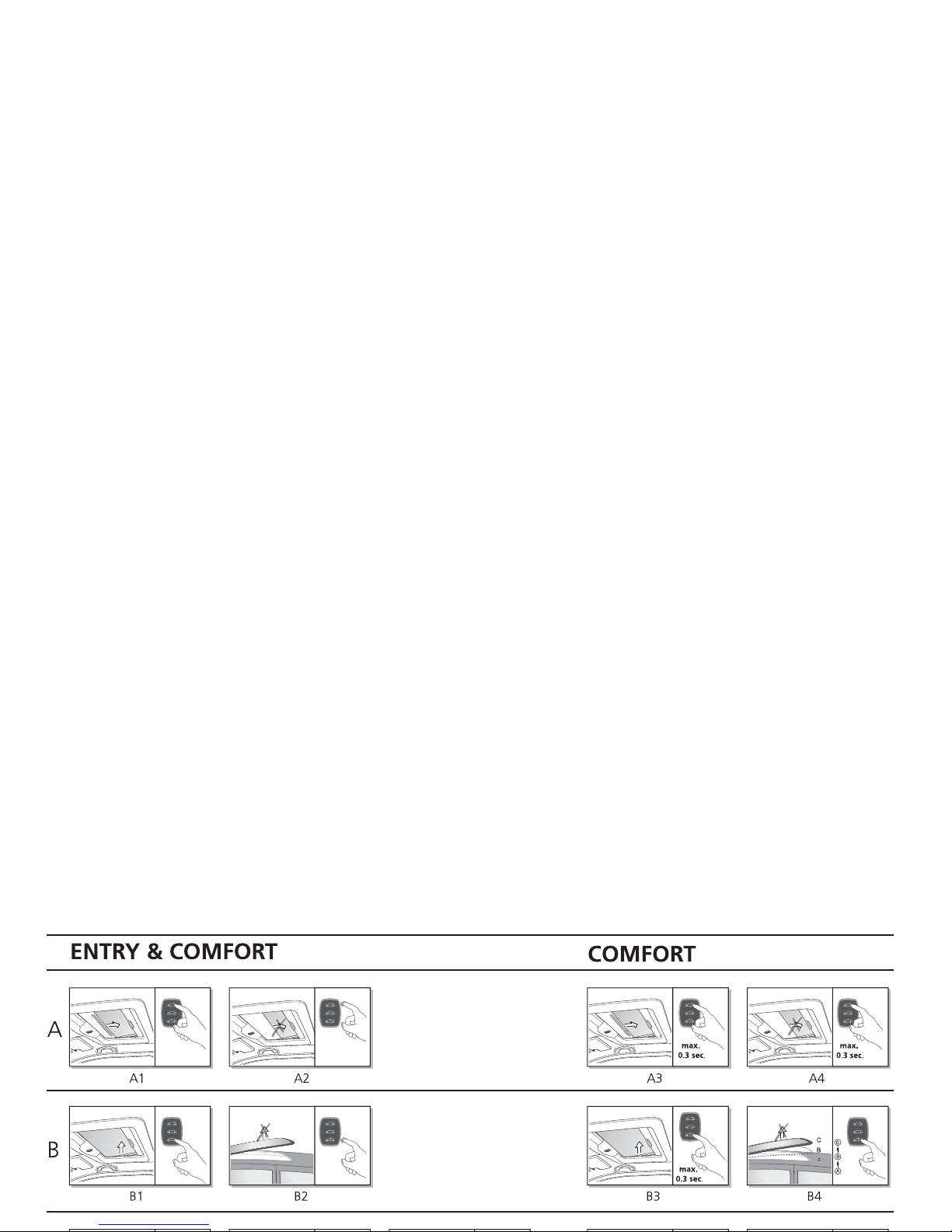

By continuously pressing the button the glass panel will move in
the OPEN direction (fig. A1). The movement of the panel continues as long
as the button is pressed. The panel stops when the button is released
(fig. A2) or the FULL SLIDE OPEN position is reached.

ONE TOUCH SLIDE OPEN (Comfort version only)

By pressing the button briefly (max. 0.3 seconds) the glass panel
will move automatically towards the FULL SLIDE OPEN position (fig. A3).
The panel stops when any of the buttons are pressed (fig. A4) or when the
FULL SLIDE OPEN position is reached.

TILT (Entry version only)

By continuously pressing the button the glass panel will move in
the TILT direction (fig. B1). The movement of the panel continues as long

USER MANUAL H300

ONE TOUCH TILT (Comfort version only)

By pressing the button briefly (max. 0.3 seconds) the glass panel
will move automatically towards FULL TILT position (fig. B3).
The panel stops when any of the buttons are pressed or when the FULL
TILT position is reached.

2 STEPS TILT (Comfort version only)

By continuously pressing the button the glass panel will move in
the TILT direction in 2 steps (fig. B4). The 2 step function allows the user
to find the most comfortable tilt position easily. The movement of the
panel continues as long as the button is pressed. The panel stops when
the button is released or the FULL TILT position is reached.

CLOSE (Entry and Comfort version)

By continuously pressing the button the glass panel will move
towards CLOSE position (fig. C1 and C2). The movement of the panel
continues as long as the button is pressed. The panel stops when the

ONE TOUCH CLOSE (Comfort version only)

By pressing the button briefly (max. 0.3 seconds) the glass panel
will move automatically towards the FULL CLOSE position (fig. C4 and C5).
The panel stops when any of the buttons are pressed or when the FULL
CLOSE position is reached.

NOTE

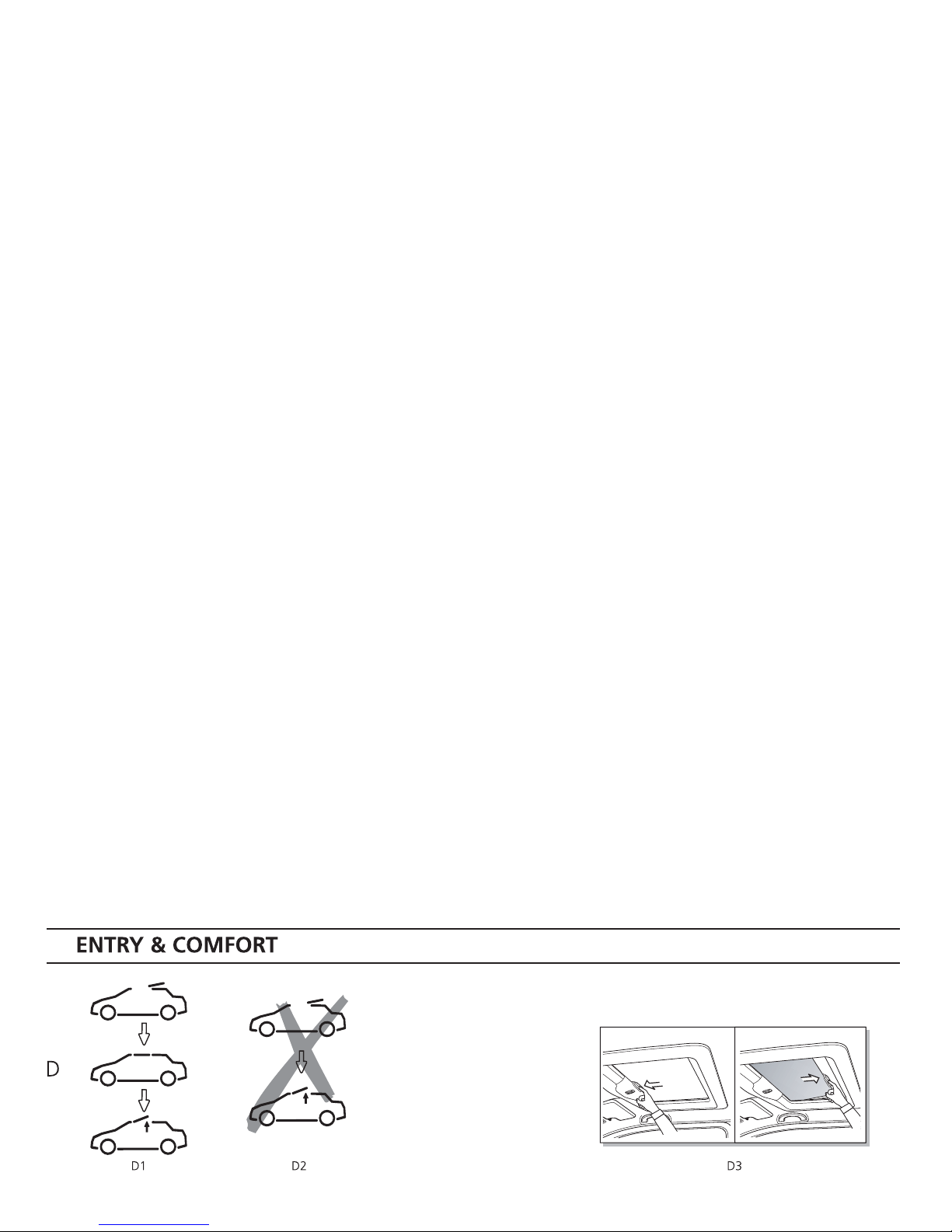

It is NOT possible to select TILT from SLIDE position directly (fig. D2). In
that case the glass panel will not move.
You should always press the button (CLOSE) first (fig. D1).

H300 USER MANUAL

English

ADDITIONAL FEATURES

JAMMING PROTECTION (Safety Feature)

Entry version:
Should the glass panel encounter an obstacle while closing from SLIDE
position, it automatically stops.

Comfort version:
The jamming protection becomes active when the sunroof is closed either
by CLOSE, ONE TOUCH CLOSE or AUTO-CLOSE.
Should the glass panel encounter an obstacle while closing, it
automatically opens again.

AUTO-CLOSE (Comfort version only)

When turning off your vehicles ignition, the AUTO-CLOSE will be
activated. After three seconds the sunroof will close automatically.
This counts only when the glass panel is in SLIDE position. In case the
panel is in TILT position, it will remain open to keep the ventilation
function.
Should you require the sunroof to stop, while closing, press any of the
buttons briefly. You can also prevent the panel from closing by pressing
any of the buttons within the three second interval.
When you switch the ignition on, the sunroof can be operated in the
normal manner.

ILLUMINATION (Comfort version only)

The switch is equipped with 4 colour LEDs (white, green, blue and red) to
allow for the best match with the factory set instrumentation colouring.
The default colour setting is white. If not already done you can ask your
installer to change the colour.

USER MANUAL H300

WIND DEFLECTOR (Comfort version only)

In order to reduce wind noise and buffeting the sunroof is equipped with
a wind deflector. The wind deflector will automatically pop up in SLIDE
position.

SUNROLLO (Comfort version only)

In case your roof is equipped with a sunrollo, it can be can be set by hand
to the desired position (open or closed).
When the sunrollo is closed, press the handle to release it from the frame
of the sunroof. Then, move the sunrollo backward (fig. D3).
When the sunrollo is open, move the sunrollo forward to close it. Click the
handle into the frame of the sunroof.

The sunrollo fabric is of an open mesh structure which enables a certain
level of air flow. This allows driving with the sunrollo closed for protection
against direct sunlight, while having the sunroof open to enjoy the fresh
air.
However, there is a limit to this. The air flow depends on the shape of the
vehicle and increases with the vehicle speed, while the maximum air flow
through the sunrollo is limited.
Due to this airflow the sunrollo will be lifted slightly and vibrate. This
phenomenon is normal and will become more noticeable with increasing
speed.
For this reason we recommend to open the sunrollo with the glass panel
in OPEN or TILT position, while driving at higher speeds (> 80 km/h).
Otherwise it might happen that air pressure dislocates the sunrollo.

H300 USER MANUAL

English

MAINTENANCE

Generally, no maintenance is required.

GLASS PANEL

To clean the glass panel use only a mild, non-abrasive detergent and a
brush or sponge. When starting your journey you are advised not to open
the sunroof during the first few minutes if there is moisture on the panel.
Webasto recommends first driving with the sunroof closed until all
moisture has evaporated.

WARRANTY

Webasto Thermo & Comfort SE warrants the quality and correct operation
of this H300 sunroof. The warranty covers both parts and labour and is
valid for three (3) years starting from the date of installation.
Installation, online product registration and /or service should be executed
by a Webasto Authorized Installer.

Defects caused by rough handling, incorrect use, accident and broken
glass are not covered by this warranty.
Transportation costs are at the responsibility of the owner.

Proof of original purchase and date of installation are required to receive
warranty service.

All obligations of Webasto Thermo & Comfort SE under this warranty shall
be terminated if:

• Installation and / or Service is performed by someone other than a
Webasto Authorized Installer.

In multilingual versions the English language is binding.
