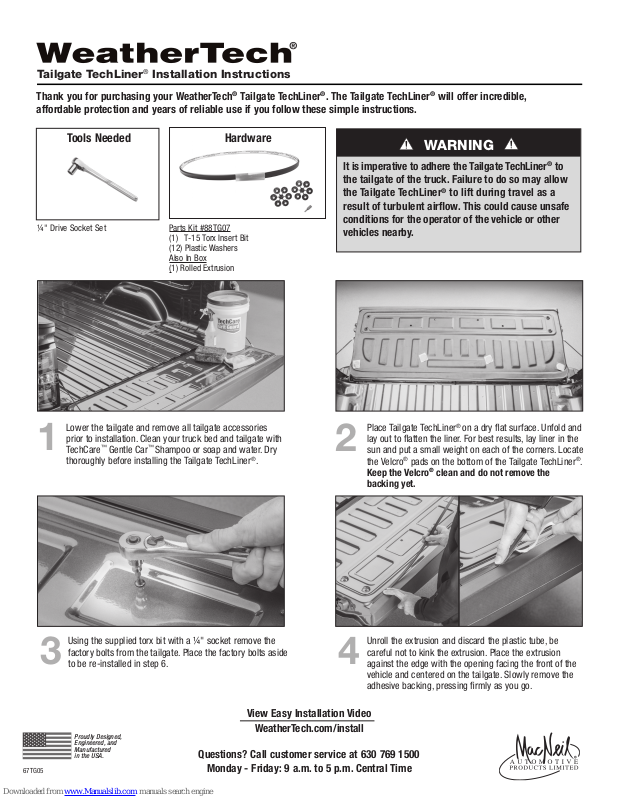

Tailgate TechLiner® Installation Instructions
Thank you for purchasing your WeatherTech® Tailgate TechLiner®. The Tailgate TechLiner® will offer incredible,
affordable protection and years of reliable use if you follow these simple instructions.
Tools Needed Hardware
¼" Drive Socket Set Parts Kit #88TG07
Lower the tailgate and remove all tailgate accessories
prior to installation. Clean your truck bed and tailgate with
1
TechCare™ Gentle Car™ Shampoo or soap and water. Dry
thoroughly before installing the Tailgate TechLiner®.
(1) T-15 Torx Insert Bit
(12) Plastic Washers
Also In Box
(1) Rolled Extrusion
WARNING
It is imperative to adhere the Tailgate TechLiner® to
the tailgate of the truck. Failure to do so may allow
the Tailgate TechLiner® to lift during travel as a
result of turbulent airflow. This could cause unsafe
conditions for the operator of the vehicle or other
vehicles nearby.
Place Tailgate TechLiner® on a dry flat surface. Unfold and
2
lay out to flatten the liner. For best results, lay liner in the
sun and put a small weight on each of the corners. Locate
the Velcro® pads on the bottom of the Tailgate TechLiner®.
Keep the Velcro® clean and do not remove the
backing yet.
Using the supplied torx bit with a ¼" socket remove the
factory bolts from the tailgate. Place the factory bolts aside
3 4
to be re-installed in step 6.
Proudly Designed,
Engineered, and
Manufactured
in the USA.
67TG05
Questions? Call customer service at 630 769 1500
Monday - Friday: 9 a.m. to 5 p.m. Central Time
Unroll the extrusion and discard the plastic tube, be
careful not to kink the extrusion. Place the extrusion
against the edge with the opening facing the front of the
vehicle and centered on the tailgate. Slowly remove the
adhesive backing, pressing firmly as you go.
View Easy Installation Video
WeatherTech.com/install
Page 2
Lay the Tailgate TechLiner® with the Velcro® pads facing
down, make sure the holes in the liner line up with with
5
the bolt holes.
With the Tailgate TechLiner® in place, re-install the
factory bolts over the Tailgate Techliner® using the
6
supplied plastic washers with the large diameter of the
washer against the underside of the fastener. Do not
over tighten.
Without shifting the position of the Tailgate TechLiner®,
bend the Tailgate TechLiner® backward to locate the first
7 8
Velcro® disc. Remove the backing from the Velcro®. Fold
the Tailgate TechLiner® back into place, and press down
firmly on the location of the Velcro® disc. Continue the
process in a clockwise direction.
Tailgate Parts Kit 5
Congratulations!
Your new WeatherTech® Tailgate
88TG07
Contains:
(1) T-15 Torx insert bit
(12) plastic shoulder washers
TechLiner
Your WeatherTech® Tailgate TechLiner® carries a three
year warranty from the date of purchase, against defects
in materials and workmanship when installed correctly.
Starting at one end, begin tucking the edge of the
Tailgate TechLiner® into the plastic extrusion that you
previously installed. Work your way down the entire
length of the tailgate.
®
has been installed!
Proudly Designed,
Engineered, and
Manufactured
in the USA.
67TG05
© 2014 by MacNeil IP LLC
Questions? Call customer service at 630 769 1500
Monday - Friday: 9 a.m. to 5 p.m. Central Time
View Easy Installation Video
WeatherTech.com/install
