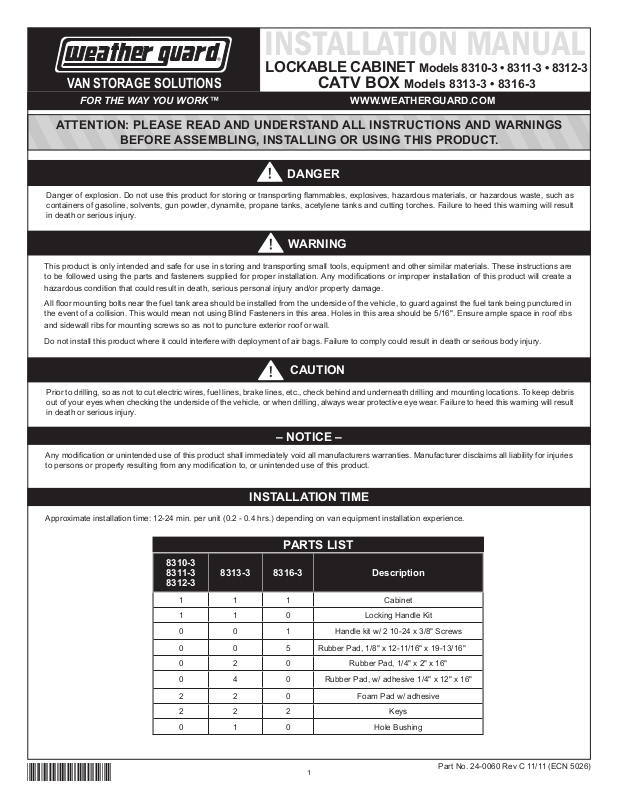

WEATHER GUARD 8316-3 User Manual
INSTALLATION MANUAL
LOCKABLE CABINET Models 8310-3 • 8311-3 • 8312-3
VAN STORAGE SOLUTIONS
FOR THE WAY YOU WORK™
ATTENTION: PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS AND WARNINGS
BEFORE ASSEMBLING, INSTALLING OR USING THIS PRODUCT.
DANGER
Danger of explosion. Do not use this product for stor ing or transporting ammables, exp losives, hazardous materials, or hazardous waste, such as
containers of gasoline, solvents, gun powder, dynamite, propane tanks, acetylene tanks and cutting torches. Failure to heed this warning will result
in death or serious injury.
WARNING
This product is only intended and safe for use in storing and transporting small tools, equipment and other similar materials. These instructions are
to be followed using the parts and fasteners supplied for proper installation. Any modications or improper installation of this product will create a
hazardous condition that could result in death, serious personal injury and/or property damage.
All oor mounting bolts near the fuel tank area should be installed from the underside of the vehicle, to guard against the fuel tank being punctured in
the event of a collision. This would mean not using Blind Fasteners in this area. Holes in this area should be 5/16". Ensure ample space in roof ribs
and sidewall ribs for mounting screws so as not to puncture exterior roof or wall.
Do not install this product where it could interfere with deployment of air bags. Failure to comply could result in death or serious body injury.
CATV BOX Models 8313-3 • 8316-3
WWW.WEATHERGUARD.COM
CAUTION
Prior to drilling, so as not to cut electric wires, fuel lines, brake lines, etc., check behind and underneath drilling and mounting locations. To keep debris
out of your eyes when checking the underside of the vehicle, or when drilling, always wear protective eye wear. Failure to heed this warning will result
in death or serious injury.
– NOTICE –
Any modication or unintended use of this product shall immediately void all manufacturers warranties. Manufacturer disclaims all liability for injuries
to persons or property resulting from any modication to, or unintended use of this product.
INSTALLATION TIME
Approximate installation time: 12-24 min. per unit (0.2 - 0.4 hrs.) depending on van equipment installation experience.
PARTS LIST
8310-3
8311-3
8312-3
1 1 1 Cabinet
1 1 0 Locking Handle Kit
0 0 1 Handle kit w/ 2 10-24 x 3/8" Screws
0 0 5 Rubber Pad, 1/8" x 12-11/16" x 19-13/16"
0 2 0 Rubber Pad, 1/4" x 2" x 16"
0 4 0 Rubber Pad, w/ adhesive 1/4" x 12" x 16"
2 2 0 Foam Pad w/ adhesive
2 2 2 Keys
0 1 0 Hole Bushing
8313-3
8316-3 Description
*24-0060*
1
Part No. 24-0060 Rev C 11/11 (ECN 5026)
TOOLS REQUIRED
• Screwdriver, phillips • Screwdriver, common • 7/16" Open or Box End Wrench (2)
• Electric Drill with 5/16" Drill Bit • 9/16" Open or Box End Wrench • Utility Knife
• Pencil or Marker
BOLT KITS
Bolt kit #32-0345 and #709 are provided with your Cabinets. Check these bolt kits to be sure the following parts are included:
1/4" Flat
Washer
BOLT KIT #709
1/4-20 x 1-1/4"
Hex Hd. Bolt
DESCRIPTION
1/4" Flat Washers 8
1/4-20 x 1/2" Screw, phillips 4
1/4-20 x 1-1/4" Hex Hd. Bolt 4
1/4-20 Nylon Lock Nut 4
Pad
QTY.
Locking
Handle
BOLT KIT #32-0345
DESCRIPTION
1/4-20 Blind Fastener 1
Installation Tool 1
1/4-20 x 2-1/4" Black
Oxide Bolt
1/4" Lock Washer 1
Door
8-32 x 1/4"
Screw
QTY.
1
Cam
Screw
Cam
8-32 x 1/4"
5/16" Hole
1/4" Flat
Washer
Figure 1. Locking Cabinet- Model 8310-3, 8311-3, 8312-3
Figure 1. Locking Cabinet - Model 8310, 8311 and 8312
Pad
1/4-20 Nylon Lock Nut
Figure 2. Handle/Lock fastening (all except Model 8316-3)
Figure 2. Handle/Lock fastening (all except Model 8316)
Screw
INSTALLATION INSTRUCTIONS
NOTE: Doors may be reversed so the door hinges from the right. Remove screws from door hinge and reverse door. Re-use
screws, bolt the door to the opposite side of the cabinet.
STEP 1: Place the Cabinet in position and mark through the holes in the oor of the cabinet.
STEP 2: Remove the cabinet and drill the locations with a 5/16" drill bit. Replace the cabinet.
NOTE: A 1/4-20 Blind Fastener, Installation Tool, 1/4-20 x 2-1/4" Black Oxide Bolt and a 1/4" Lock Washer have been
provided for use in areas where standard fasteners can't be used, such as heat shields and oor supports. If using Blind
Fastener, it will be necessary to re-drill the 5/16" holes with a 13/32" drill bit. See Blind Fastener installation instructions.
STEP 3: Fasten unit using hardware provided (See Figure 1.).
STEP 4: Fasten the Locking Handle to the door (See Figure 2.). See instructions on page 3 for 8316-3 Handle installation. Adhere
two small foam pads to the top and bottom of the door frame (See Figure 1.).
Installation of Model 8310-3, 8311-3, or 8312-3 is now complete. Follow the specic instructions for Model 8313-3 or 8316-3 on page 3.
NOTE: If stacking units, use 1/4-20 x 1/2" bolts (provided) in place of the 1/4-20 x 1-1/4" bolts. Model 8940 Accessory
Mounting Strap Kit is required if stacking units.
