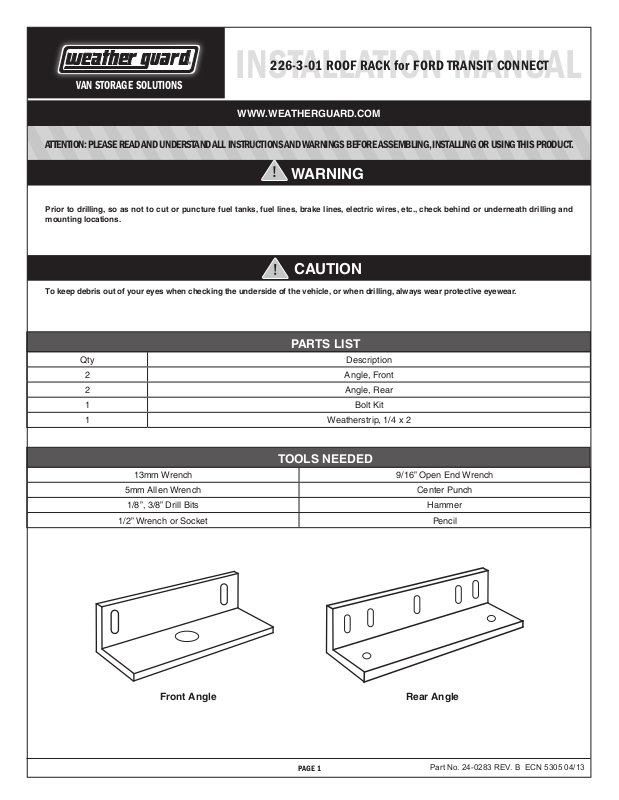

INSTALLATION MANUAL

226-3-01 ROOF RACK for FORD TRANSIT CONNECT

VAN STORAGE SOLUTIONS

WWW.WEATHERGUARD.COM

ATTENTION: PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS AND WARNINGS BEFORE ASSEMBLING, INSTALLING OR USING THIS PRODUCT.

WARNING

Prior to drilling, so as not to cut or puncture fuel tanks, fuel lines, brake lines, electric wires, etc., check behind or underneath drilling and mounting locations.

CAUTION

To keep debris out of your eyes when checking the underside of the vehicle, or when drilling, always wear protective eyewear.

PARTS LIST

Qty Description

2 Angle, Front 2 Angle, Rear 1 Bolt Kit 1 Weatherstrip, 1/4 x 2

TOOLS NEEDED

13mm Wrench 9/16” Open End Wrench

5mm Allen Wrench Center Punch

1/8”, 3/8” Drill Bits Hammer

1/2” Wrench or Socket Pencil

Front Angle Rear Angle

PAGE 1

Part No. 24-0283 REV. B ECN 5305 04/13

INSTALLATION INSTRUCTIONS

BoltKit(8).eps

3/16” x 9/16” Rivet

10-24 x 1/2" Countersunk

Phillips Head Screw

#10-24 x 1/2"

Hex Head Screw

#8-32 x 1/2"

Truss Head Screw

1/4-14 x 3/4” Self Drill Screw

3/8-16 x 1-1/2” Hex Hd. Bolt

3/8-16 x 2-1/2” Blk. Ox. Bolt

1/4-20 x 5/8” Carriage Bolt

1/4-20 x 5/8” HexHd.Bolt

Remove metric bolts from roof on Ford Transit

Connect.

PASSENGER SIDE FRONT ANGLE INSTALLATION SHOWN BELOW.

Metric Bolt

Cut and place weather strip pads on Bottom side

of Roof Angles.

FRONT OF VAN

For Rear angles use metric hex cap screw M8-

1.25 x 25mm and temporarily install angles on

roof. The upright part of the angle will be toward the outside of the van. The hole at the rear of van will require a blind fastener.

PASSENGER REAR ANGLE INSTALLATION SHOWN BELOW

Weather strip pad

Align rear angles so they are parallel with roof ribs front to rear, mark hole position through rear hole on roof. Remove

angles. Center punch hole, drill 1/8” pilot hole, then a 3/8” hole. Place a small amount of sealant around hole and install blind fastener. Apply small amount of sealant over and around blind fastener and the hole for metric bolt.

Lock Washer

Flat Washer

Apply Sealant

Vehicle Roof

CENTER OF VAN

Standard 2-1/4” Bolt

Metric Bolt

Lock Washer

Flat Washer

FRONT OF VAN

Weather strip pad

Existing Hole

Set angles in place over holes and install angles to roof. For installation of rack to angles use the stands only. The stands will bolt up directly to the angles with hardware supplied with the rack. The clamp bar, mounting bracket, roof mounting plate and mounting pad supplied with the roof rack will not be used.

Washer

Nut

PAGE 2

CENTER OF VAN

Vehicle Roof

Lock Washer

Flat Washer

Blind Fastener

Apply Sealant

Vehicle Roof

Carriage Bolt

9-3/4” Slot

Cross member

Stand

Carriage Bolt

Pad

Part No. 24-0283 REV. B ECN 5305 04/13

ATTENTION

Any modiﬁcation or unntended use of this product shall immediately void all manufacturers warranties. Manufacturer disclaims all liability for injuries to persons or property resulting from any modiﬁcation to, or unintended use of this product.

KNAACK LLC WEATHER GUARD® Limited Lifetime Warranty

Knaack LLC WEATHER GUARD Truck and Van Equipment Limited Lifetime Warranty

Knaack LLC “WEATHER GUARD Product”) will be free from defects in material and workmanship from the date of purchase and continuing for the expected lifetime of the WEATHER GUARD Product. A copy of the original sales receipt must be supplied to the Manufacturer at the time a warranty claim is made. This warranty terminates if the original purchaser transfers the WEATHER GUARD Product to any other person.

What is Covered

All WEATHER GUARD Products identified above that are purchased on or after January 1, 2009.

What We Will Do to Correct Problems Subject to the limitations and exclusions described in this limited warranty, the Manufacturer will remedy defects in materials or workmanship by providing one of the following remedies at its option and without charge to the original purchaser for parts or labor: (a) repairing the defective portion of the WEATHER GUARD Product or (b) replacing the entire WEATHER GUARD Product. In addition, the manufacturer may elect at its option, not to repair or replace the WEATHER GUARD Product, but rather issue to the original purchaser a refund equal to the purchase price paid for the WEATHER GUARD Product or a credit to be used toward the purchase of new WEATHER GUARD Product.

(the “Manufacturer”) warrants to the original purchaser only that WEATHER GUARD Truck and Van Products (the

What is Not Covered

This limited warranty expressly excludes:

Defects caused by normal wear and tear, cosmetic rust, scratches, accidents, unlawful vehicle operation, or modification to the product, or any types

•

or repair of a WEATHER GUARD Product other than those authorized or provided by the Manufacturer. Defects resulting from conditions beyond the Manufacturer’s control including, but not limited to misuse, overloading, or failure to assemble, mount• or use the WEATHER GUARD Product in accordance with the Manufacturer’s written instructions or guidelines included with the WEATHER GUARD Product or made available to the original purchaser. Damage to the contents of the box or vehicle.• TO THE EXTENT PERMITTED BY LAW, IN NO EVENT SHALL THE MANUFACTURER BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT,• OR CONSEQUENTIAL DAMAGES, INCLUDING ANY ECONOMIC LOSS, WHETHER RESULTING FROM NONPERFORMANCE, USE, MISUSE OR INABILITY TO USE THE WEATHER GUARD PRODUCT OR THE MANUFACTURER’S NEGLIGENCE.

No Other Express Warranty Applies

This Limited Lifetime Warranty is authorized to alter this warranty or make any other warranty on behalf of Knaack LLC

Notification Procedures

If the WEATHER GUARD Product does not conform with the terms of this limited warranty, the original owner must promptly notify the Manufacturer in writing upon discovery of the nonconformity. In order to receive the remedies under this limited warranty, the warranty claim must describe the nature of the nonconformity, and a copy of the original sales receipt, invoice, bill or other proof of purchase must accompany the claim. Repairs or modifications made to the WEATHER GUARD Product by other than the Manufacturer or its authorized agent will nullify this limited warranty. Coverage under this limited warranty is conditioned at all times upon the owner’s compliance with these required notification and repair procedures. Warranty claims must include reciprocal contact information and may be made via certified mail to:

is the sole and exclusive warranty for WEATHER GUARD products. No employee, agent, dealer, or other person

Product fits

Knaack LLC

ATTN: Warranty Claims

420 E. Terr

If you have any questions, please call toll

based on vehicle design available at the revision date. Vehicle manufacturers may change specs.

a Cotta Avenue Crystal Lake, IL 60014

PAGE 3

free at 1-800-456-7865.

Part No. 24-0283 REV. B ECN 5305 04/13
