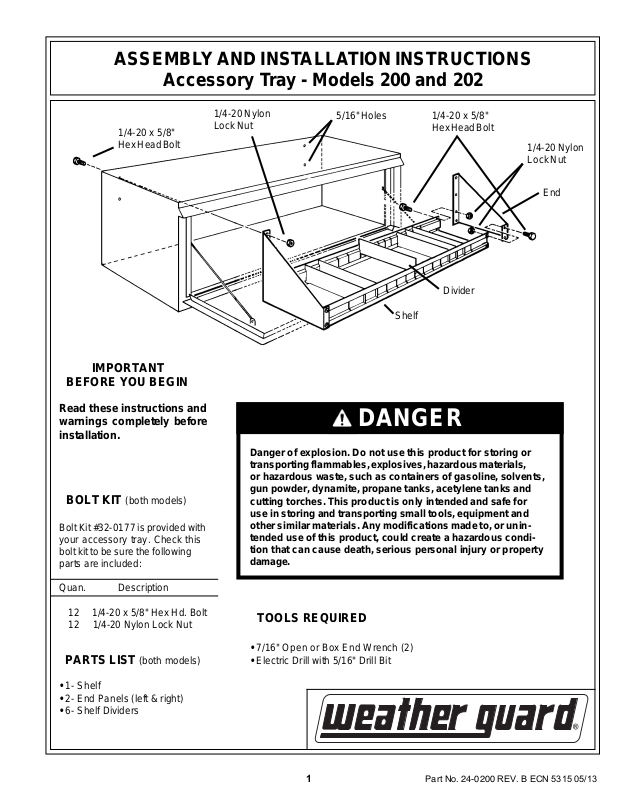

ASSEMBLY AND INST ALLA TION INSTRUCTIONS
Accessory Tray - Models 200 and 202
1/4-20 x 5/8"
Hex Head Bolt
IMPORTANT
BEFORE YOU BEGIN
1/4-20 Nylon
Lock Nut
5/16" Holes
1/4-20 x 5/8"
Hex Head Bolt
1/4-20 Nylon
Lock Nut
End
Divider
Shelf
Read these instructions and
warnings completely before
installation.
BOLT KIT (both models)
Bolt Kit #32-0177 is provided with
your accessory tray. Check this
bolt kit to be sure the following
parts are included:
Quan. Description
12 1/4-20 x 5/8" Hex Hd. Bolt
12 1/4-20 Nylon Lock Nut
PARTS LIST (both models)
• 1- Shelf
• 2- End Panels (left & right)
• 6- Shelf Dividers
DANGER
Danger of explosion. Do not use this product for storing or
transporting flammables, explosives, hazardous materials,
or hazardous waste, such as containers of gasoline, solvents,
gun powder, dynamite, propane tanks, acetylene tanks and
cutting torches. This product is only intended and safe for
use in storing and transporting small tools, equipment and
other similar materials. Any modifications made to, or unintended use of this product, could create a hazardous condition that can cause death, serious personal injury or property
damage.
TOOLS REQUIRED
• 7/16" Open or Box End Wrench (2)
• Electric Drill with 5/16" Drill Bit
1
Part No. 24-0200 REV. B ECN 5315 05/13
ASSEMBLY INSTRUCTIONS
1.Assemble the two End Panels to the
Shelf (nuts should be inside of shelf
area as shown).
2. Place the assembled shelf unit into
the Hi-Side box, centered in the door
opening and raised toward the top of
the box (so you will still have generous
storage space under it). Mark through
the two top mounting holes in each end
panel.
CAUTION
To keep debris out of your
eyes when drilling, always
wear protective eyewear.
3.Remove the shelf unit and drill the
hole locations.
4. Place the shelf unit into the side box
and fasten.
5. Slide the six Shelf Dividers into any
combination of shelf slots you find convenient to your needs.
-NOTICE-
Any modification or unintended use of this product shall immediately void all manufacturers warranties.
Manufacturer disclaims all liability for injuries to persons or property resulting from any modification to, or
unintended use of this product.
If you have any questions, please give us a call. Call Toll Free 1-800-456-7865
KNAACK LLC
420 E. TERRA COTTA AVENUE - CRYSTAL LAKE, ILLINOIS, 60014 - 815-459-6020
©1990 Knaack LLC
2
Part No. 24-0200 REV. B ECN 5315 05/13
