Page 1
P.1

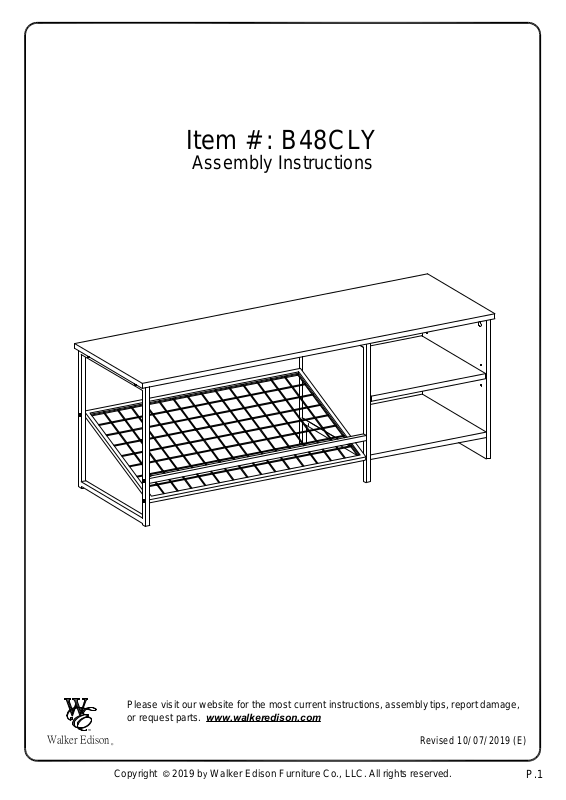

Item # : B48CLY
Copyright
©
201
9 by Walker Edison Furniture Co., LLC. All rights reserved.
Assembly Instructions
Please visit our website for the most current instructions, assembly tips, report damage,
or request parts. www.walkeredison.com
TM
Walker Edison
®
Revised 10/07/2019 (E)
Page 2
General Assembly Guidelines
I. Ensure that all parts and hardware are available before beginning assembly.
II. Follow each step carefully to ensure the proper assembly of this product.
III. Two people are recommended for ease in the assembly of this product.
IV. The three main types of hardware used to assemble this product are: wood
dowels, screws and bolts.
V. The provided glue is to secure wood dowels in place. When first inserting dowels,
locate the appropriate hole for the dowel, place a small amount of glue in the hole
and insert the dowel. Wipe away excess glue immediately.
21
In future assembly steps when dowels are necessary to attach assembly parts
together, place a small amount of glue on the end of the dowel before attaching
parts together. Wipe away excess glue immediately.
VI. A Phillips head screwdriver is required for the assembly of this product.
VII. Power tools should not be used to assemble this product.
VIII. Drill may be needed for securing product to wall.
Copyright © 2019, by Walker Edison Furniture Co., LLC. All rights reserved.
P.2
Page 3
P.3
Parts List
Copyright
©
201
9 by Walker Edison Furniture Co., LLC. All rights reserved.
1
3
9
10
3
2
7
6
5
8
4
Page 4
Hardware List
P.4
Copyright
©
201
9 by Walker Edison Furniture Co., LLC. All rights reserved.
A
B
C
D
E
F
G
J
K
L
M
Ø8x30mm
Ø15x11mm
Ø6x35mm
Ø30mm
M 4
Ø6x12mm
Ø6x25mm
Ø4x38mm
Ø3x17mm
Wooden dowel
Cam lock
Cam bolt
Sticker
Hex Key
Bolt
Bolt
Shelf support pin
Screw
Plastic wedge
Screw
4
4
4
4
1
2
12
4
2
3
3
pcs
pcs
pcs
pcs
pc
pcs
pcs
pcs
pcs
pcs
pcs
N
Glue tube
pc
1
Philips head screwdriver required for assembly
The hardware quantities listed above are required for proper assembly.
Some extra hardware may also have been included.
(not included)
Page 5
P.5
Copyright
©
2019
by Walker Edison Furniture Co., LLC. All rights reserved.
Step 1
Using cam bolt (C) secure part (1) with Philips head screwdriver as per diagram.
C
C
1
Page 6
P.6
Copyright
©
2019
by Walker Edison Furniture Co., LLC. All rights reserved.

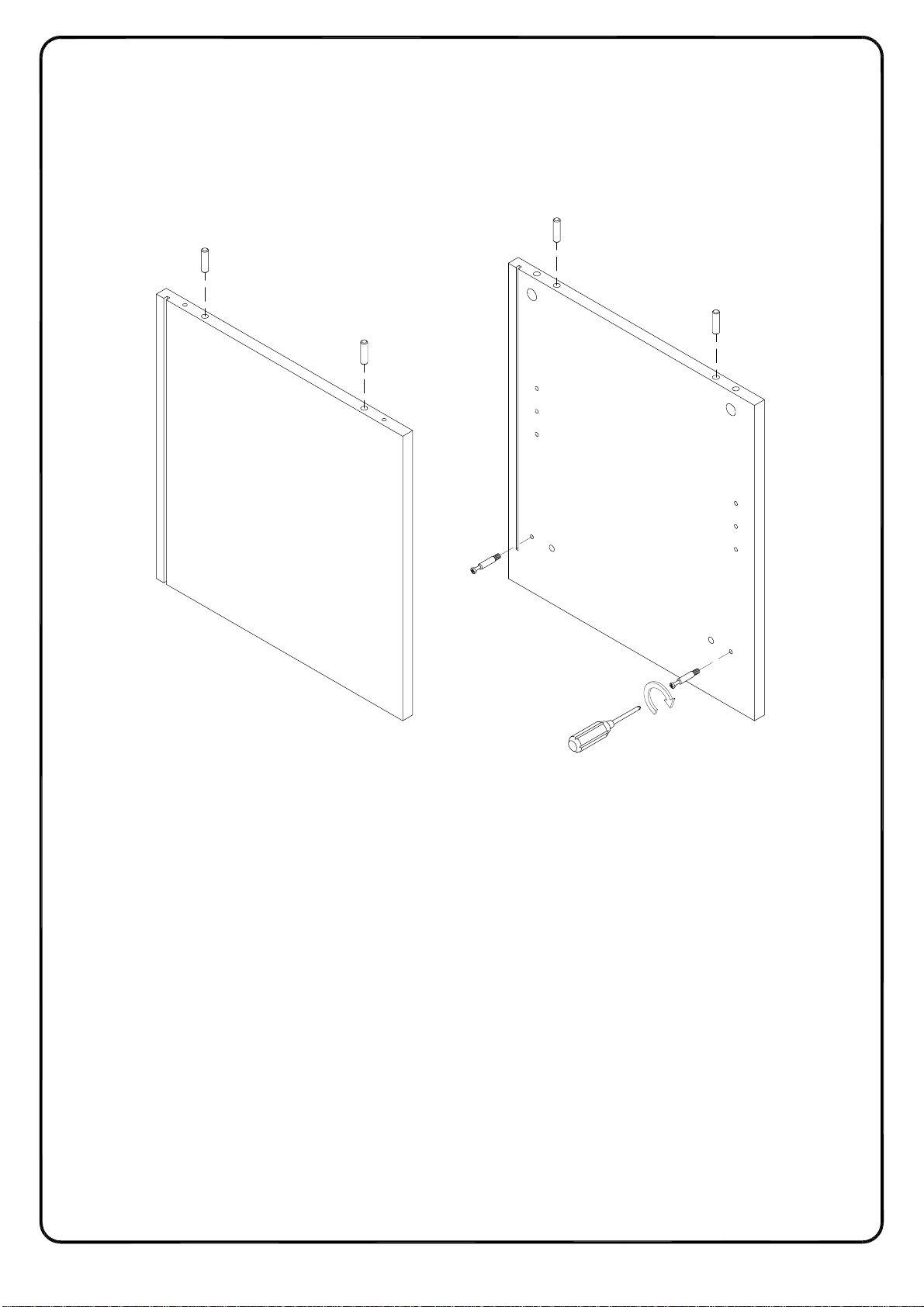

Step 2
Insert wooden dowel (A) into parts (6,8) and screw cam bolt (C) into designated hole on the
side panel as per diagram.
A
A
A
A
6
8
C
C
Page 7

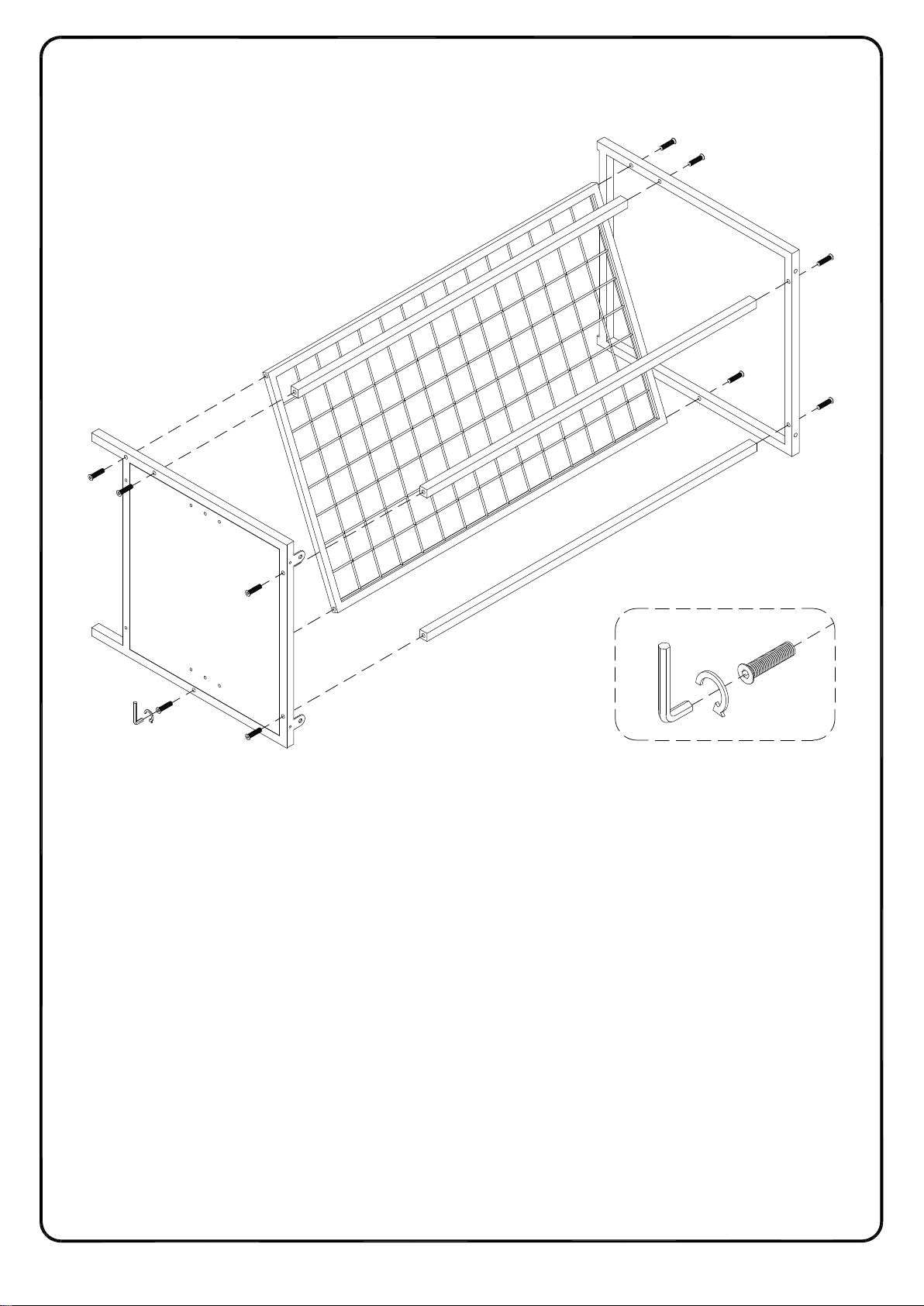

Step 3
Using bolt (G) secure parts (4,5) into parts (2,3,10 ) with hex key (E) as per diagram.
10
3
2
3
5
4
E
G
Copyright © 2019 by Walker Edison Furniture Co., LLC. All rights reserved.
P.7
Page 8

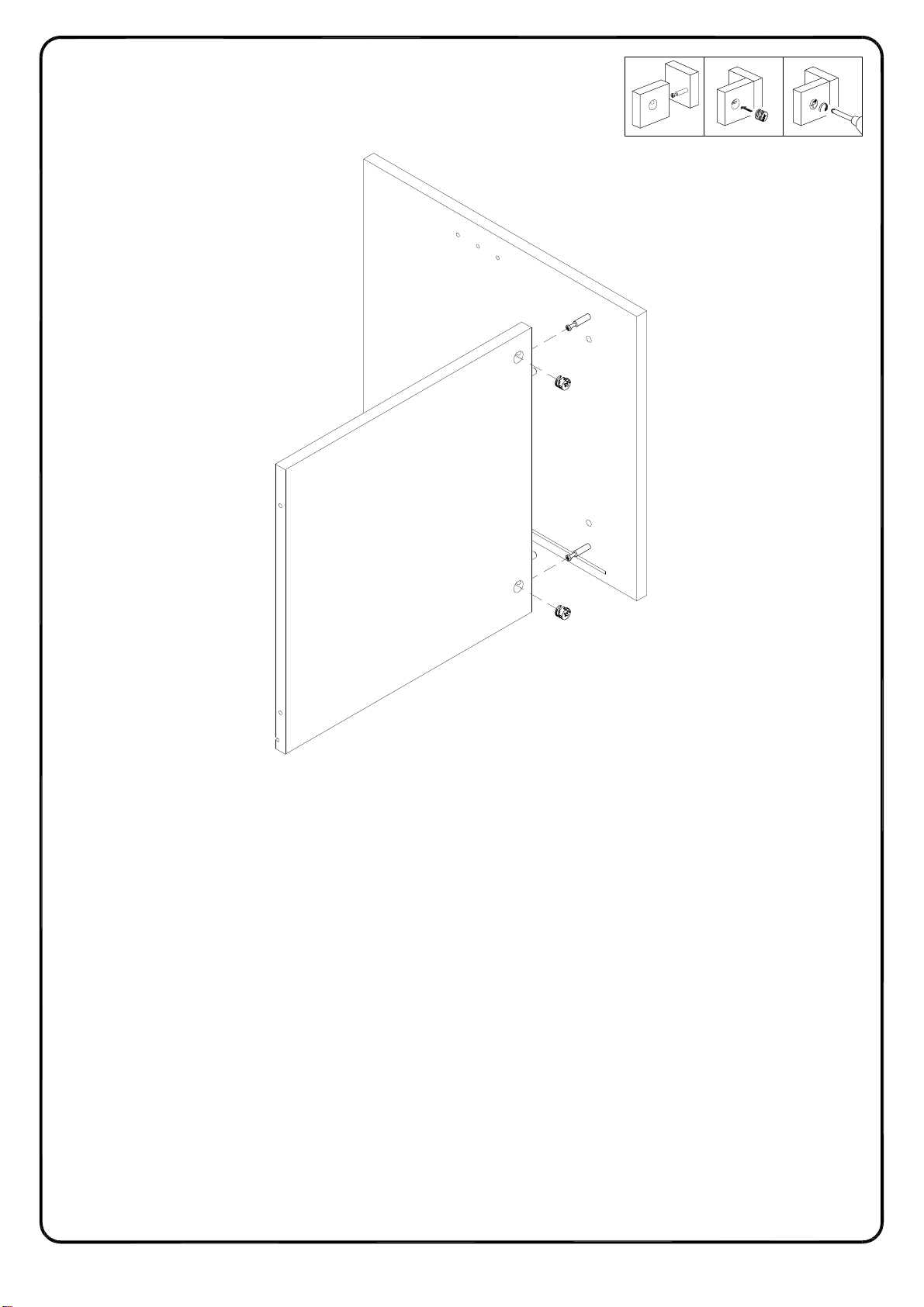

Step 4
P.8
Copyright
©
2019
by Walker Edison Furniture Co., LLC. All rights reserved.
Attach and align the bottom panel (8) to side panel (6) using cam lock (B).
21 3
6
B
8
B
Page 9
P.9
Copyright
©
2019
by Walker Edison Furniture Co., LLC. All rights reserved.

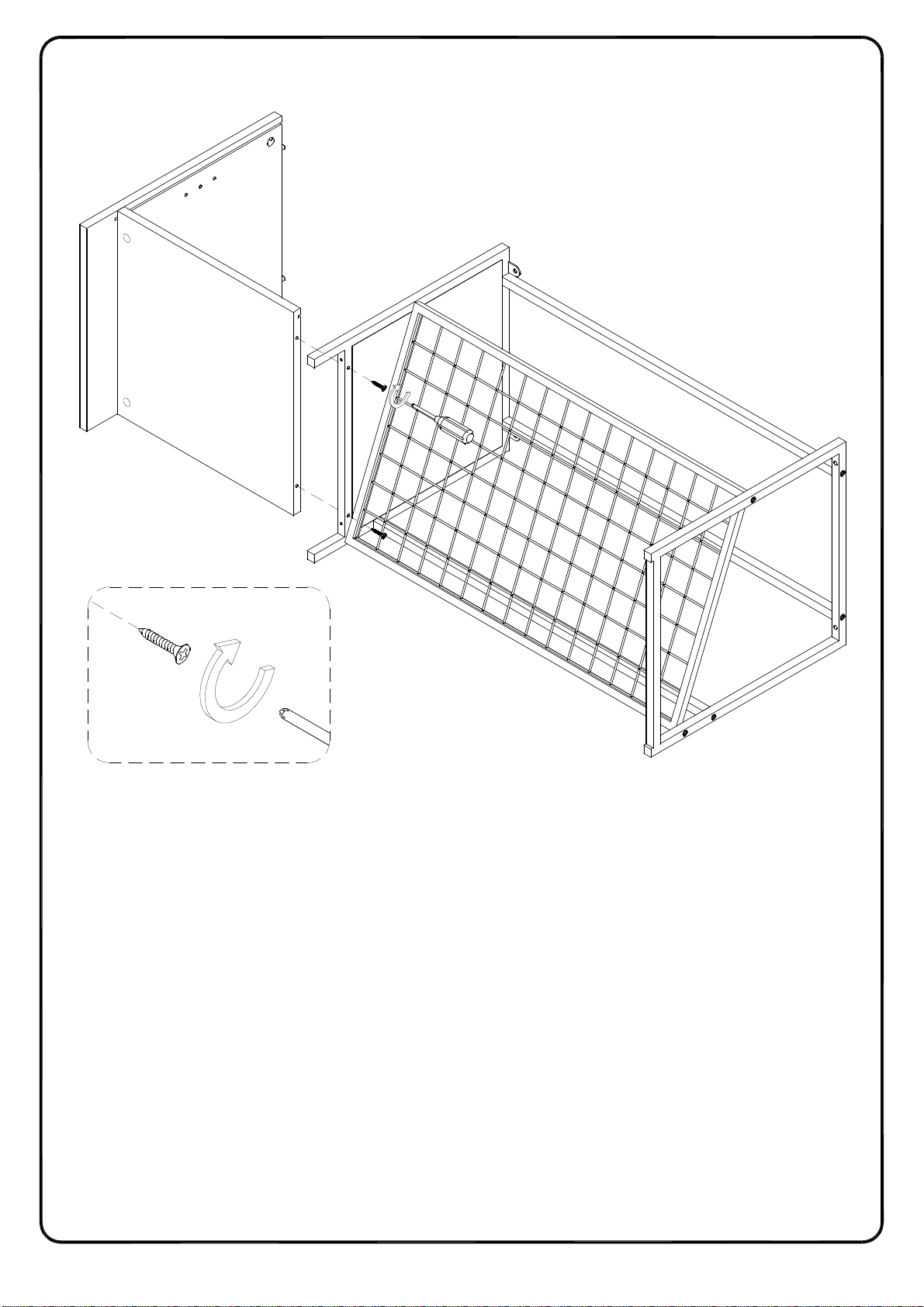

Step 5
Using screw (K) secure part (5) into part (8) with Philips head screwdriver as per diagram.
5
8
K
Page 10
P.10
Copyright
©
2019
by Walker Edison Furniture Co., LLC. All rights reserved.

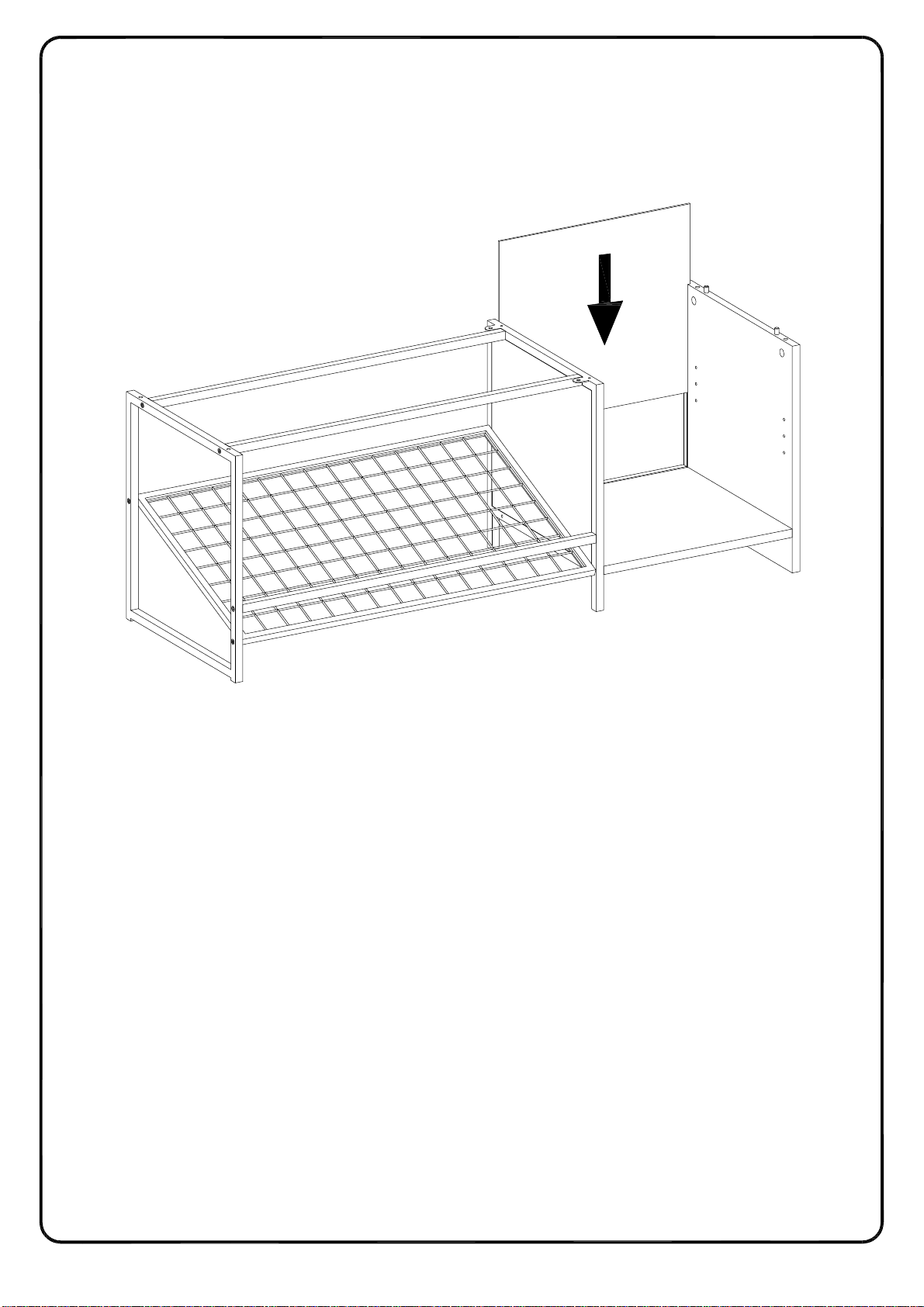

Step 6
Put part (9) into parts (5,6,8) as per diagram.
9
6
5
8
Page 11
P.11
Copyright
©
2019
by Walker Edison Furniture Co., LLC. All rights reserved.

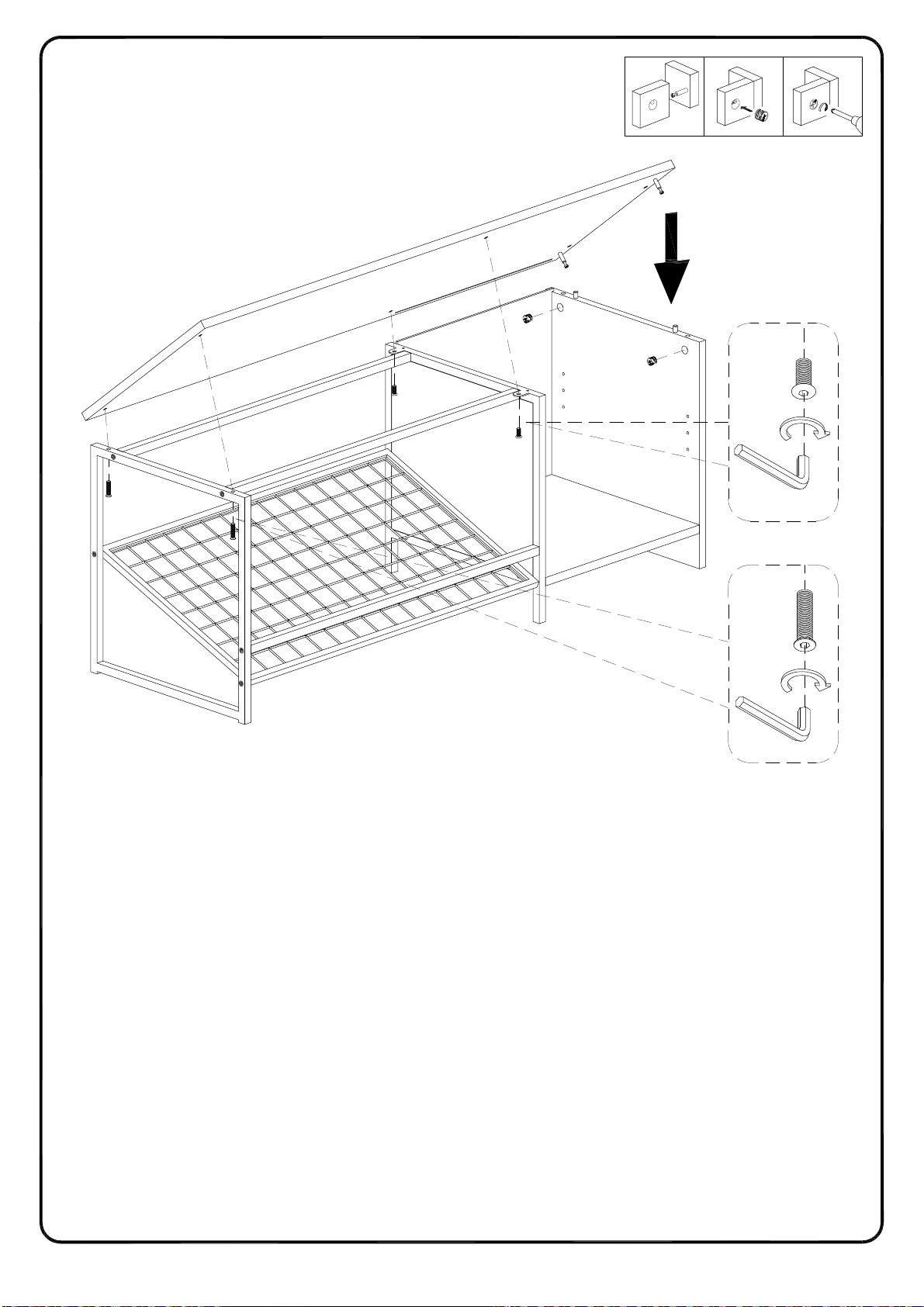

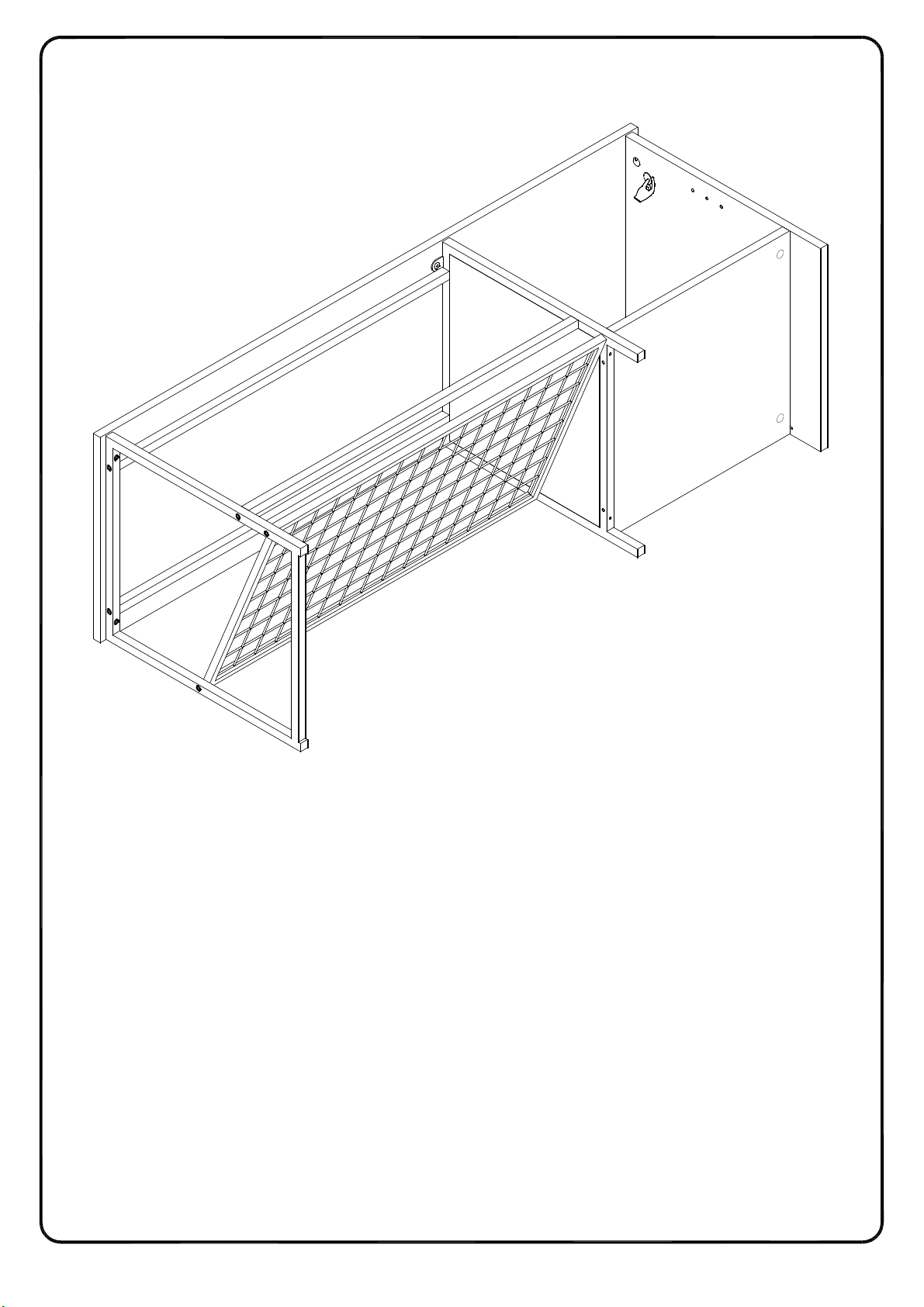

Step 7
Position the Top Panel (1) onto the inserted Wooden Dowels and fasten it in place with Cam
Lock (B) and Bolts (F, G) as per diagram.
21 3
1
B
5
6
B
F
E
G
E
Page 12

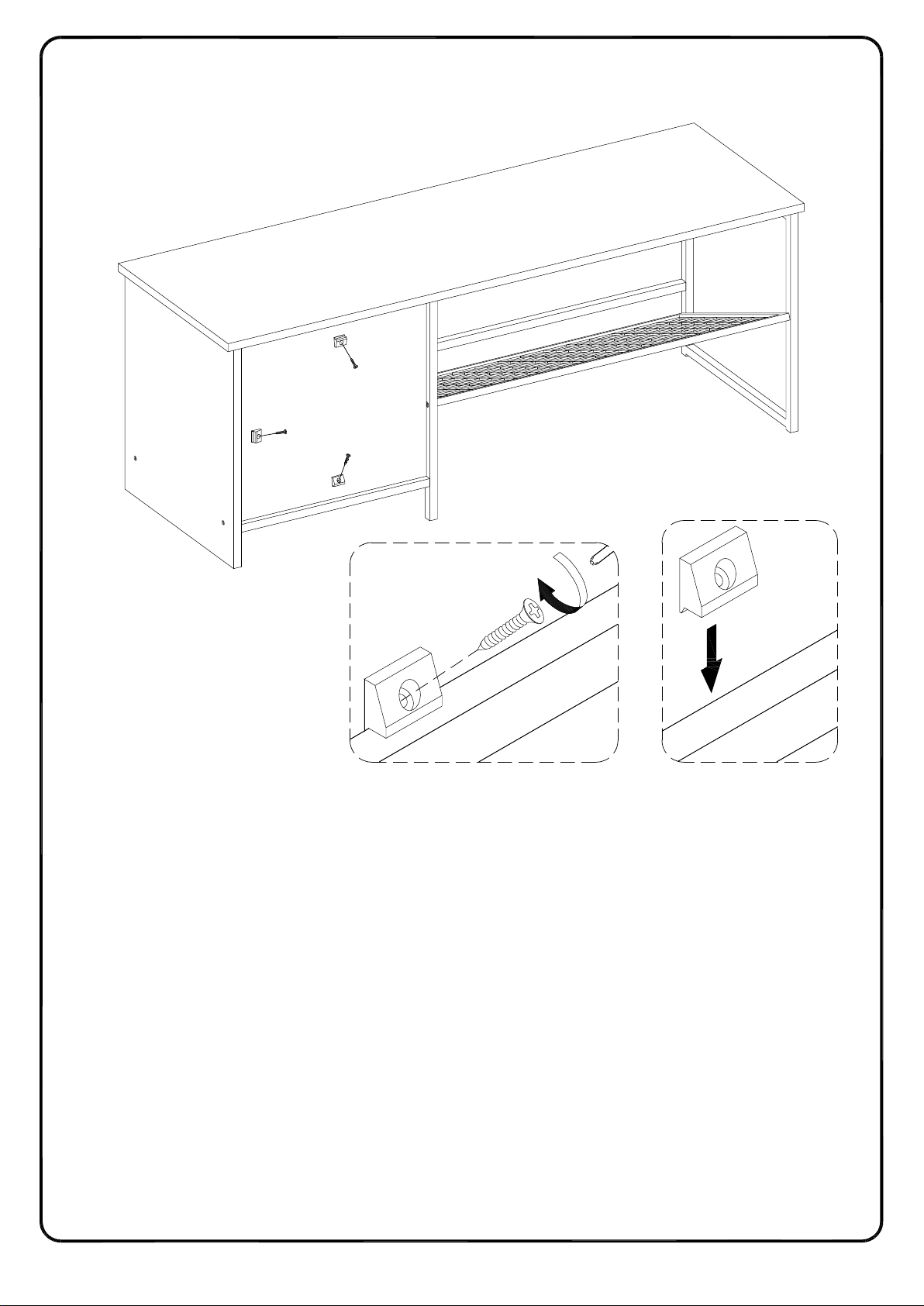

Step 8
Using screw (M) secure plastic wedge (L) with Philips head screwdriver as per diagram.
L
M
L
Copyright © 2019 by Walker Edison Furniture Co., LLC. All rights reserved.
P.12
Page 13
P.13
Copyright
©
2019
by Walker Edison Furniture Co., LLC. All rights reserved.
Step 9
Place sticker (D) cover the holes as per diagram.
D
Page 14

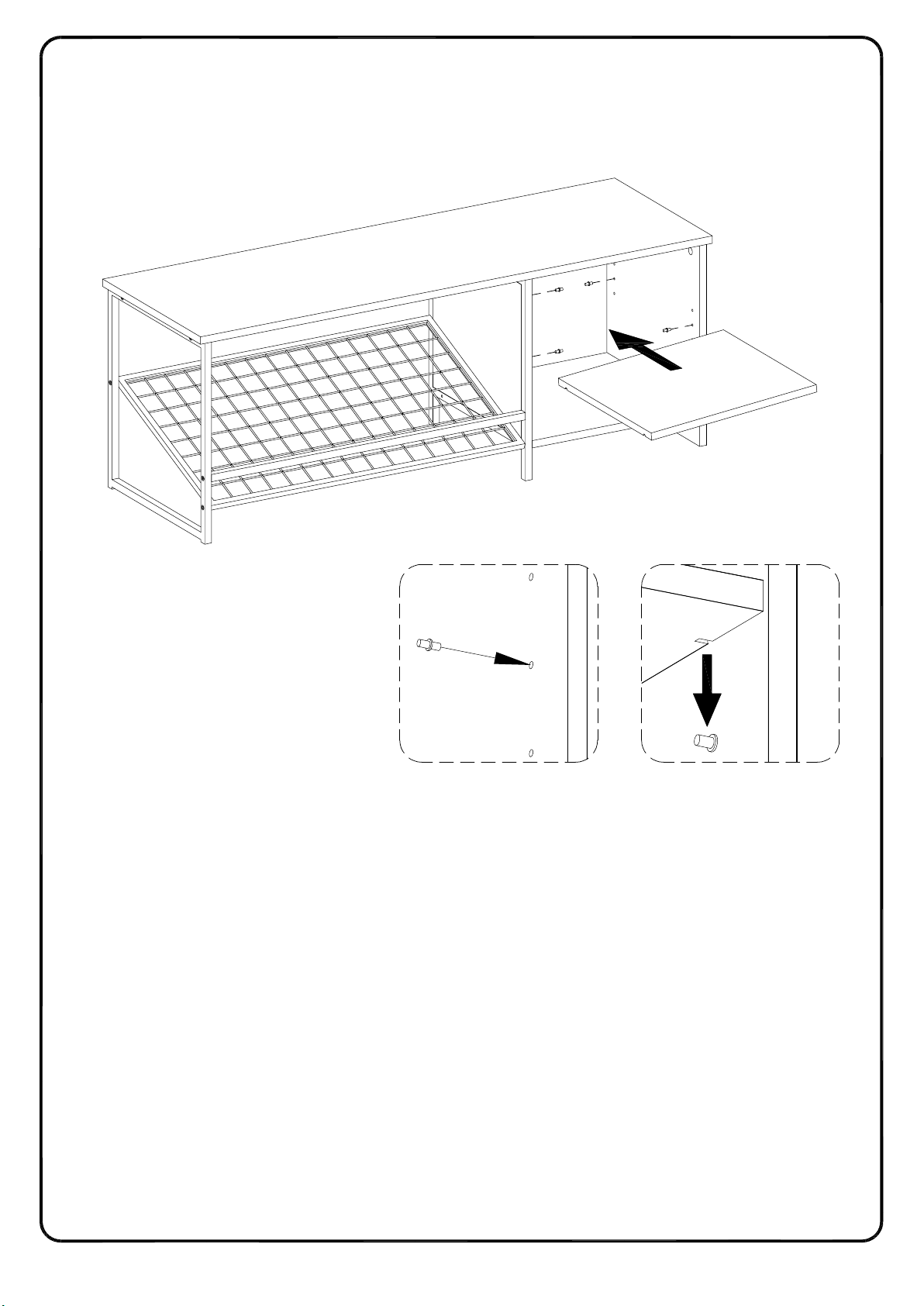

Step 10
Put shelf support pin (J) into parts (5,6) ,then put part (7) into cabinet as per diagram.
J
5
J
J
6
J
7
Copyright © 2019 by Walker Edison Furniture Co., LLC. All rights reserved.
P.14
Page 15

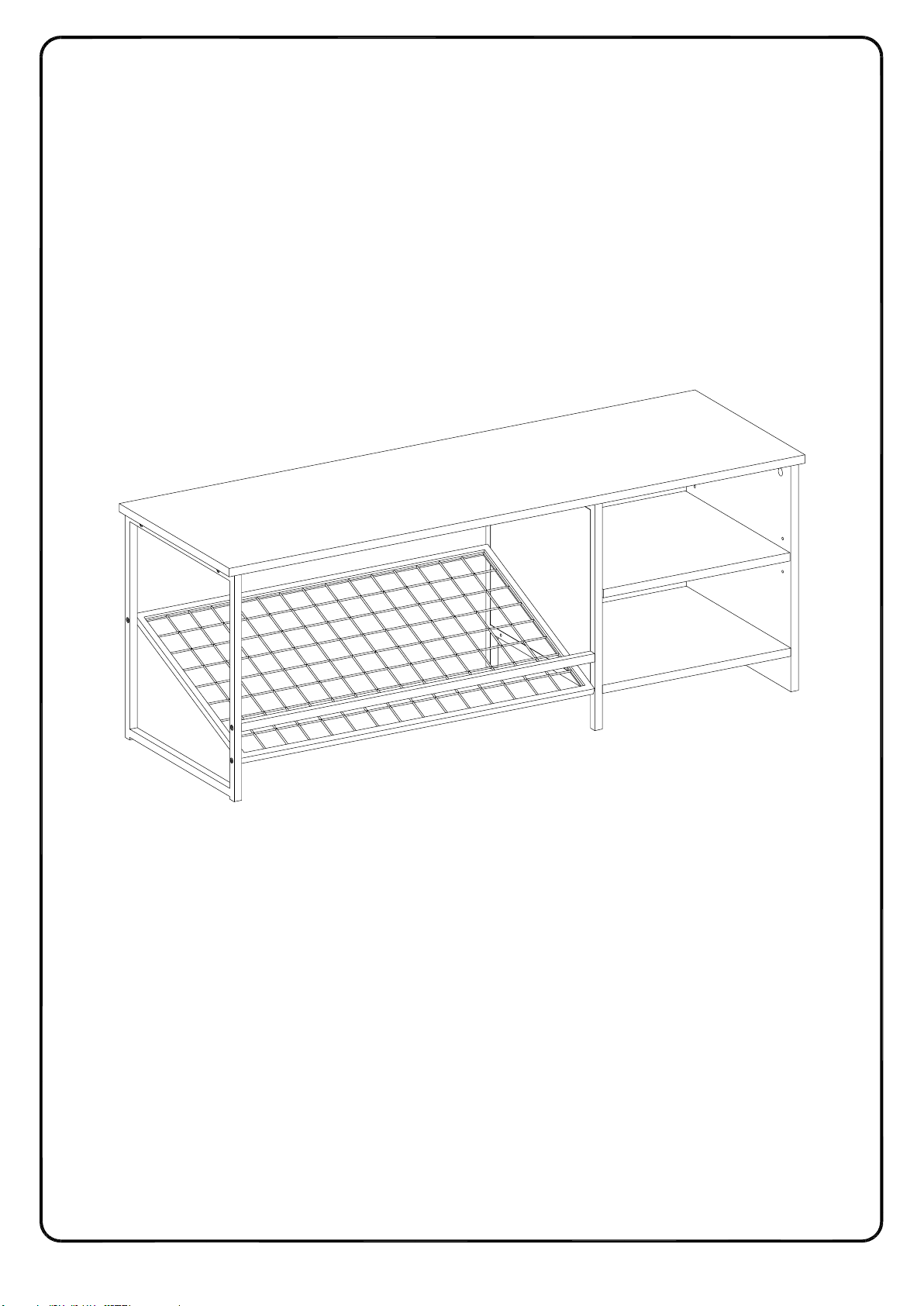

Step 11
Final Assembly
Copyright © 2019 by Walker Edison Furniture Co., LLC. All rights reserved.
P.15
