WD WDS192T1D0D, WDS768T1D0D, WDS384T1D0D, WDS960G1D0D Product Data Sheet

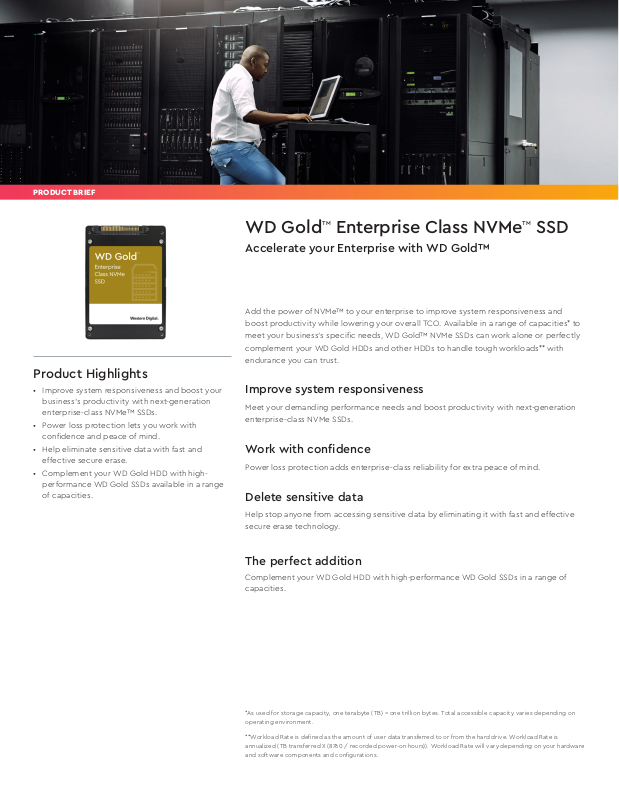

PRODUCT BRIEF
Product Highlights
• Improve system responsiveness and boost your
business’s productivity with next-generation
enterprise-class NVMe™ SSDs.
• Power loss protection lets you work with
confidence and peace of mind.
• Help eliminate sensitive data with fast and
effective secure erase.
• Complement your WD Gold HDD with highperformance WD Gold SSDs available in a range
of capacities.
WD GoldTM Enterprise Class NVMeTM SSD
Accelerate your Enterprise with WD Gold™
Add the power of NVMe™ to your enterprise to improve system responsiveness and
boost productivity while lowering your overall TCO. Available in a range of capacities* to
meet your business’s specific needs, WD Gold™ NVMe SSDs can work alone or perfectly
complement your WD Gold HDDs and other HDDs to handle tough workloads** with
endurance you can trust.
Improve system responsiveness
Meet your demanding performance needs and boost productivity with next-generation
enterprise-class NVMe SSDs.
Work with confidence
Power loss protection adds enterprise-class reliability for extra peace of mind.
Delete sensitive data
Help stop anyone from accessing sensitive data by eliminating it with fast and ef fective
secure erase technology.
The perfect addition
Complement your WD Gold HDD with high-performance WD Gold SSDs in a range of
capacities.
*As used for storage capacity, one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on
operating environment.
**Workload Rate is define d as the am ount of user data transferred to o r from th e hard drive. Workload Rate is
annualized (TB transferred X (8760 / rec orded power-on hou rs)). Workload Rate will v ary de pending on your hardware
and software components and configurations.
PRODUCT BRIEF
WD Gold™ Enterprise Class NVMe™ SSD
Specification
Interface U.2 7mm PCIe Gen3.1 x4
Formatted Capacity .96TB, 1.92TB, 3.84TB, 7.68TB
Performance² 0.96TB 1.92TB 3.84TB 7.68TB
Read Throughput (max MiB/s, Seq 128KiB) 3K 3.1K 3.1K 3.1K
Write Throughput (max MiB/s, Seq 128KiB) 1.1K 2K 1.8K 1.8K
Read IOPS (max, Rnd 4KiB) 413K 472K 469K 467K
Write IOPS (max, Rnd 4KiB) 44K 63K 63K 65K
Mixed IOPS (max, 70/30 R/W, 4KiB) 111K 194K 174K 187K
Latency (s, 4KiB Random Read QD1, 99%) 210 208 221 225
Maximum Petabytes Written 1.4 2.8 5.61 11.21
Endurance (DW/D) 0.8 0.8 0.8 0.8
Power
Requirement (DC, +/- 10%) +12V +12V +12V +12V
Operating Modes (W, Average) 10, 11, 12 10, 11, 12 10, 11, 12 10, 11, 12
Idle (W, Average) 4.6 4.62 4 .94 4 .95
Reliability
MTBF 2 2 2 2
Uncorrectable Bit Error Rate (UBER) 1 in 10
17
Limited Warranty 5 5 5 5
Physical Size
z-height (m m) 7.00 +0.2/-0.5
Dimensions (width x length, mm) 69.85 (+/- 0.25) x 100.45 69.85 (+/- 0.25) x 100.45 69.85 (+/- 0.25) x 100.45 69.85 (+/- 0.25) x 100.45
Weight (g. max) 95 95 95 95
(including labels)
(including labels)
Environmental
Operating Temperature 0°C to 70° C 0°C to 70° C 0°C to 70° C 0°C to 70°C
Non-operating Temperature -40°C to 85°C -40°C to 85°C -40°C to 85°C -40 °C to 85°C
Ordering Information 096TB 1.92TB 3.84TB 7.68TB
Model Numbers WDS960G1D0D WDS192T1D0D WDS3 84T 1D0D WDS768T1D0D
17
1 in 10
7.00 +0.2/-0.5
17
1 in 10
7.00 +0.2/-0.5
(including labels)
17
1 in 10
7.00 +0.2/-0.5
(including labels)
¹ As used for storage capacity, 1GB = 1 billion bytes and 1TB = one trillion bytes. Actual user capacit y may be less depending on operating environment.
² As used for transfer rate, 1 MB/s = 1 million bytes per second. Based on internal testing; performance may vary depending upon host device, usage conditions, drive cap acity,
and other factors.
³ Average read latency at 4KiB, QD=1.
⁴ Endura nce rating based on DW/D using 8KiB random write workload over 5 years.
⁵ MTBF spe cifications are based on a s ample p opulation and are estimated by statistical measurem ents an d acceleration algorithms under typical o perating conditions for this
drive model. MTBF ratings do not pre dict an individual drive’s reliability and do not constitute a warr anty.
⁶ The warranty for the product will expire on the earlier of (i) the date when the flash media has rea ched on e-percent (1%) of its remaining life or (ii) the expiration of the time
period associated with the product.
⁷ Composite temperature reading.
⁸ Values are based on ambient temperature. Avoid non-operational exposure to temperatures in excess of 40°C for periods exceeding three months.
5601 Great Oaks Parkway
San Jose, CA 95119, USA
US (Toll-Free): 80 0.275.4932
International: 408.717.6000
www.westerndigital.com
© 2020 Western D igital Corpor ation or it s affiliates. All r ights reserve d. Western Di gital, the Western D igital logo and WD G old are register ed trade marks or t radema rks
of Western D igital C orporat ion or its affili ates in the US a nd/or other co untries . The NVMe™ ma rk is a regis tered trademar k of NVM Express, In c. All other marks a re the
proper ty of their respe ctive owners. Pro duct spe cifications sub ject to cha nge without noti ce. Pictur es shown may vary fr om actua l produc ts.
02–01-WW-04–00068-A00 March 2020
