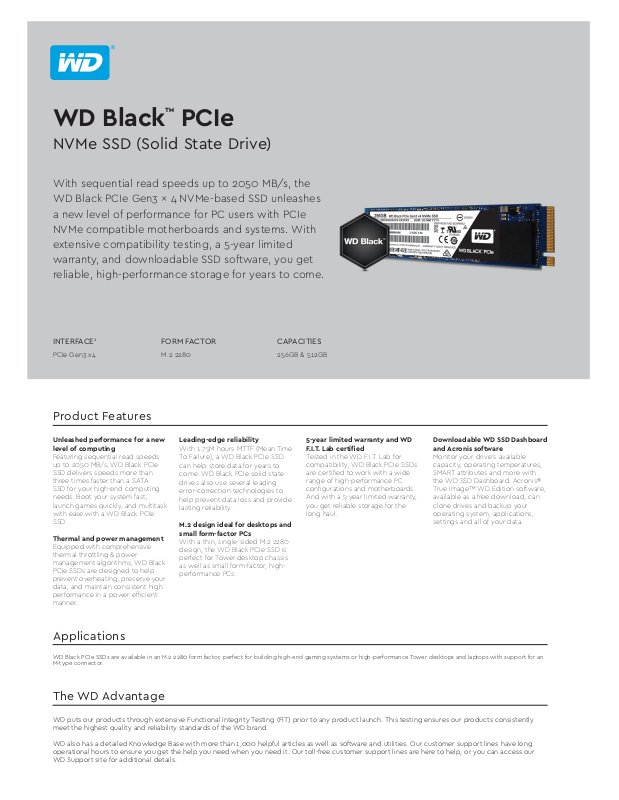

WD WDS512G1X0C Specification Sheet
WD Black™ PCIe
NVMe SSD (Solid State Drive)
With sequential read speeds up to 2050 MB/s, the
WD Black PCIe Gen3 × 4 NVMe-based SSD unleashes
a new level of performance for PC users with PCIe
NVMe compatible motherboards and systems. With
extensive compatibility testing, a 5-year limited
warranty, and downloadable SSD software, you get
reliable, high-performance storage for years to come.
INTERFACE
PCIe Gen3 x4
1
Product Features
Unleashed performance for a new
level of computing
Featuring sequential read speeds
up to 2050 MB/s, WD Black PCIe
SSD delivers speeds more than
three times faster than a SATA
SSD for your high-end computing
needs. Boot your system fast,
launch games quickly, and multitask
with ease with a WD Black PCIe
SSD.
Thermal and power management
Equipped with comprehensive
thermal throttling & power
management algorithms, WD Black
PCIe SSDs are designed to help
prevent overheating, preserve your
data, and maintain consistent high
performance in a power efficient
manner.
FORM FACTOR
M.2 2280
Leading-edge reliability
With 1.75M hours MTTF (Mean Time
To Failure), a WD Black PCIe SSD
can help store data for years to
come. WD Black PCIe solid state
drives also use several leading
error-correction technologies to
help prevent data loss and provide
lasting reliability.
M.2 design ideal for desktops and
small form-factor PCs
With a thin, single-sided M.2 2280
design, the WD Black PCIe SSD is
perfect for Tower desktop chassis
as well as small form-factor, highperformance PCs.
CAPACITIES
256GB & 512GB
5-year limited warranty and WD
F.I.T. Lab certified
Tested in the WD F.I.T. Lab for
compatibility, WD Black PCIe SSDs
are certified to work with a wide
range of high-performance PC
configurations and motherboards.
And with a 5-year limited warranty,
you get reliable storage for the
long haul.
Downloadable WD SSD Dashboard
and Acronis software
Monitor your drive’s available
capacity, operating temperatures,
SMART attributes and more with
the WD SSD Dashboard. Acronis®
True Image™ WD Edition software,
available as a free download, can
clone drives and backup your
operating system, applications,
settings and all of your data.
Applications
WD Black PCIe SSDs are available in an M.2 2280 form factor, perfect for building high-end gaming systems or high-performance Tower desktops and laptops with support for an
M-type connector.
The WD Advantage
WD puts our products through extensive Functional Integrity Testing (FIT) prior to any product launch. This testing ensures our products consistently
meet the highest quality and reliability standards of the WD brand.
WD also has a detailed Knowledge Base with more than 1,000 helpful articles as well as software and utilities. Our customer support lines have long
operational hours to ensure you get the help you need when you need it. Our toll-free customer support lines are here to help, or you can access our
WD Support site for additional details.
WD Black™ PCIe SSD
®
Specifications 256GB 512GB
1, 3
2
4
[4KB QD32]
6
11
5
2,050 2,050
80 160
4
135 135
1.75M hours 1.75M hours
9
10
32 °F to 158 °F (0 °C to 70 °C) 32 °F to 158 °F (0 °C to 70 °C)
-67 °F to 185 °F (-55 °C to 85 °C) -67 °F to 185 °F (-55 °C to 85 °C)
5 years 5 years
Model Numbers
WD Black PCIe SSD M.2 2280 WDS256G1X0C WDS512G1X0C
Interface
WD Black PCIe SSD M.2 2280 PCIe Gen3 8 Gb/s, up to 4 lanes PCIe Gen3 8 Gb/s, up to 4 lanes
Performance
PCMark 180 K 180 K
Sequential Read MB/s (Q=32, T=1)
Sequential Write MB/s (Q=32, T=1) 700 800
Random Read 4 KB IOPS (Q=32, T=4) 170 K 170 K
Random Write 4 KB IOPS (Q=32, T=4) 130 K 134 K
Endurance (TBW)
7
Power
Avg. Active Power (mW)
Supply Voltage 3.3 V ± 5% 3.3 V ± 5%
Peak Power 2.5 A (10 us) 2.5 A (10 us)
Low Power Mode PS3 (mW) 50 50
Low Power Mode PS4 (mW) 5.5 5.5
Reliability
8
MTTF
Environmental
Operating Temperatures
Non-operating Temperatures
Operating Vibration 5.0 gRMS, 10–2000 Hz, 3 axes 5.0 gRMS, 10–2000 Hz, 3 axes
Non-operating Vibration 4.9 gRMS, 7–800 Hz, 3 axes 4.9 gRMS, 7–800 Hz, 3 axes
Operating/Non-Operating Shock 1,500 G @ 0.5 ms half sine 1,500 G @ 0.5 ms half sine
Certifications FCC, UL, TUV, KC, BSMI, VCCI FCC, UL, TUV, KC, BSMI, VCCI
Limited Warranty
Physical Dimensions
Size: M.2 2280 22 ± 0.15 mm x 80 ± 0.15 mm x 2.23 mm 22 ± 0.15 mm x 80 ± 0.15 mm x 2.38 mm
Weight: M.2 2280 7.2 ± 0.5 g 7.2 ± 0.5 g
Specifications subject to change without notice.
1
Backward compatible to Gen2 and Gen1.
2
Not all products may be available in all regions of the world.
3
As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environ-
ment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabit per second (Gb/s) = one billion
bits per second. Effective maximum SATA 6 Gb/s transfer rate calculated according to the Serial ATA specification published by the SATA-IO organization as of the date of this specification sheet. Visit www.sata-io.org for
details.
4
Performance is based on the CrystalDiskMark benchmark using a 1000MB LBA range on ASUS Z170 desktop with Intel® i7–6700K 4.0GHz, 8GB 2133MHz DDR4. Windows 10 Pro 64-bit using Microsoft StorNVMe driver,
secondary drive.
5
Q=Queue, T=Thread.
6
TBW (terabytes written) values calculated using JEDEC client workload (JESD219) and vary by product capacity.
7
Measured using the MobileMark™ 2014 benchmark with ASPM (Active State Power Management) enabled.
8
MTTF = Mean Time To Failure based on internal testing using Telcordia stress part testing.
9
Operational temperature is measured by an on board temperature sensor.
10
Non-operational storage temperature does not guarantee data retention.
11
See http://support.wdc.com for regional specific warranty details.
Western Digital
3355 Michelson Drive, Suite 100
Irvine, California 92612
U.S.A.
For service and literature:
http://support.wdc.com
www.wdc.com
800.ASK.4WDC
(800.275.4932)
800.832.4778 Spanish
+86.21.2603.7560 Asia Pacific
00800.27549338 Europe
+31.880062100 Europe/Middle East/Africa
North America
(toll free where available)
CAN ICES-3 (B) / NMB-3 (B)
Western Digital, WD, the WD Logo, FIT Lab and WD Black are registered
trademarks or trademarks of Western Digital Corporation or its affiliates in the
U.S. and/or other countries. All other marks that may be mentioned herein are
the property of their respective owners. Pictures shown may vary from actual
products. Product specifications subject to change without notice.
© 2017 Western Digital Corporation or its affiliates. All rights reserved.
2879–800086-A00 Jan 2017
