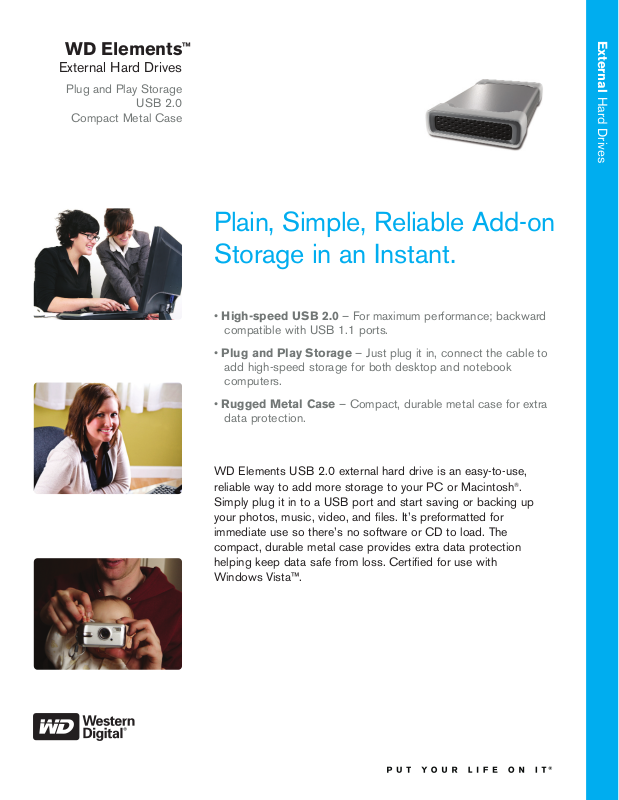

Page 1
WD Elements
External Hard Drives
Plug and Play Storage
USB 2.0
Compact Metal Case
External Hard Drives
™
Plain, Simple, Reliable Add-on
Storage in an Instant.
• High-speed USB 2.0 – For maximum performance; backward
compatible with USB 1.1 ports.
• Plug and Play Storage – Just plug it in, connect the cable to
add high-speed storage for both desktop and notebook
computers.
• Rugged Metal Case – Compact, durable metal case for extra
data protection.
WD Elements USB 2.0 external hard drive is an easy-to-use,
reliable way to add more storage to your PC or Macintosh®.
Simply plug it in to a USB port and start saving or backing up
your photos, music, video, and files. It’s preformatted for
immediate use so there’s no software or CD to load. The
compact, durable metal case provides extra data protection
helping keep data safe from loss. Certified for use with
Windows Vista™.
Page 2
WD Elements
External Hard Drives
EXternal Hard Drives
Product Specifications
Data transfer rate 480 Mb/s (maximum)
RoHS compliant
Limited warranty
1
2
Ye s
1 year
Environmental Specifications
Operating temperature 5°C to 35°C
Non-operating temperature –20°C to 65°C
Power Specifications
Physical Dimensions
Height 8.02 in (203.82 mm)
Length 1.42 in (36.14 mm)
Width 4.90 in (124.68 mm)
Weight 2.24 lb (1.02 kg)
AC input voltage 100–240V
AC input frequency 50–60 Hz
Packaging Specifications
Box English Metric
Retail package size 10.31 in x 5 in x 6.89 in 262 mm x 127 mm x 175 mm
Retail package weight 3.66 lb 1.66 kg
Master carton size 21.18 in x 10.55 in x 14.57 in 538 mm x 268 mm x 370 mm
Master carton weight 31.31 lb 14.2 kg
Pkgs. per master carton 8 8
Master cartons per pallet 24 24
Pallet load size 47.24 in x 43.31 in x 51.18 in 1200 mm x 1100 mm x 1300 mm
Pallet load weight 750 lb 340.8 kg
Retail UPC Codes
PAN AMERICA AUSTRALIA/NEW ZEALAND
Capacity3Order Number UPC Code Order Number UPC Code
250 GB
320 GB
400 GB
500 GB
WDE1U2500N 7 18037 11941 0 WDE1U2500A 7 18037 11966 3
WDE1U3200N 7 18037 11952 6 WDE1U3200A 7 18037 11967 0
WDE1U4000N 7 18037 11997 7 WDE1U4000A 7 18037 12000 3
WDE1U5000N 7 18037 11953 3 WDE1U5000A 7 18037 11968 7
UNITED KINGDOM HONG KONG/SINGAPORE/MALAYSIA
Capacity3Order Number UPC Code Order Number UPC Code
250 GB
320 GB
400 GB
500 GB
WDE1U2500U 7 18037 11956 4 WDE1U2500H 7 18037 11971 7
WDE1U3200U 7 18037 11957 1 WDE1U3200H 7 18037 11972 4
WDE1U4000U 7 18037 11998 4 WDE1U4000H 7 18037 12001 0
WDE1U5000U 7 18037 11958 8 WDE1U5000H 7 18037 11973 1
EUROPE CHINA
Capacity3Order Number UPC Code Order Number UPC Code
250 GB
320 GB
400 GB
500 GB
1
WD hard drive products manufactured and sold worldwide after June 1, 2006, meet or exceed Restriction of Hazardous Substances (RoHS) compliance requirements
as mandated by the European Union for electrical and electronic products. The RoHS Directive 2002/95/EC of the European Parliament, which is effective in the EU
beginning July 1, 2006, aims to protect human health and the environment by restricting the use of certain hazardous substances in new equipment, and consists of
restrictions on lead, mercury, cadmium, and other substances.
2
One-year limited warranty unless otherwise required by law.
3
One gigabyte (GB) = one billion bytes. One terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment.
WDE1U2500E 7 18037 11961 8 WDE1U2500C 7 18037 12012 6
WDE1U3200E 7 18037 11962 5 WDE1U3200C 7 18037 12013 3
WDE1U4000E 7 18037 11999 1 WDE1U4000C 7 18037 12014 0
WDE1U5000E 7 18037 11963 2 WDE1U5000C 7 18037 12015 7
For service and literature:
support.wdc.com
www.westerndigital.com
800.ASK.4WDC North America
949.672.7199 Spanish
+800.6008.6008Asia Pacific
+31.20.4467651 EMEA
Western Digital, WD, the WD logo, and
Put Your Life On It are registered
trademarks; and WD Elements is a
trademark of Western Digital Technologies,
Inc. Other marks may be mentioned herein
that belong to other companies. Product
specifications subject to change without
notice.
© 2007 Western Digital Technologies, Inc.
All rights reserved.
Western Digital
20511 Lake Forest Drive
Lake Forest, California U.S.A. 92630
4879-705016-A00 Sep 2007
