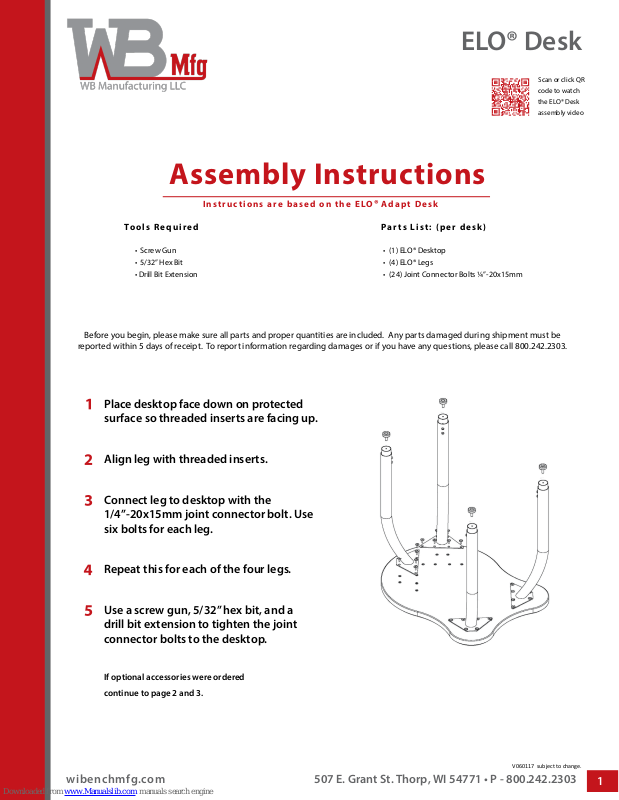

ELO® Desk
Assembly Instructions
Scan or click QR
code to watch
the ELO® Desk
assembly video
Instructions are based on the ELO
• Screw Gun
• 5/32” Hex Bit
• Drill Bit Extension
Before you begin, please make sure all parts and proper quantities are included. Any parts damaged during shipment must be
reported within 5 days of receipt. To report information regarding damages or if you have any questions, please call 800.242.2303.
® Adapt Desk
Parts List: (per desk)Tools Required
• (1) ELO® Desktop
• (4) ELO® Legs
• (24) Joint Connector Bolts ¼”-20x15mm
Place desktop face down on protected
surface so threaded inserts are facing up.
Align leg with threaded inserts.
Connect leg to desktop with the
1/4”-20x15mm joint connector bolt. Use
six bolts for each leg.
Repeat this for each of the four legs.
Use a screw gun, 5/32” hex bit, and a
drill bit extension to tighten the joint
connector bolts to the desktop.
If optional accessories were ordered
continue to page 2 and 3.
V060117 subject to change.
507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303wibenchmfg.com
1
ELO® Desk
with 2” Dual Wheel Locking Casters
or 2.5” Grand Hank Glides
Assembly Instructions
for Optional Accessories
Before you begin, please make sure all parts and proper quantities are included. Any parts damaged during shipment must be
reported within 5 days of receipt. To report information regarding damages or if you have any questions, please call 800.242.2303.
Tools Required
• 1/2” Wrench
Remove Nylon glide from leg by rotating
counterclockwise until glide is free.
Place stem of optional footing into the hole on
the leg. Rotate clockwise until fully inserted into
leg.
Tighten with a 1/2” Wrench.
Repeat for each caster or grand hank glide.
(only with the Dual Wheel Caster.)
Parts List: (per desk)
• (4) 2” Dual Wheel Locking Casters
• (4) 2.5” Grand Hank Gides
or
ELO® Desk
with Steel Book Box
• Screw Gun
• # R2 Square Bit
Place desktop face down on protected surface so
threaded inserts are facing up.
With legs installed, align tabs of the steel book box
with the pre-drilled pilot holes.
Use #10 screws to fasten each of the tabs of the
steel book box to the desktop.
Parts List: (per desk)Tools Required
• (1) Steel Book Box
• #10 3/4” Square Pan Screws
507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303wibenchmfg.com
2
ELO® Desk
with Tote Tray
Assembly Instructions
for Optional Accessories
Before you begin, please make sure all parts and proper quantities are included. Any parts damaged during shipment must be
reported within 5 days of receipt. To report information regarding damages or if you have any questions, please call 800.242.2303.
Tools Required
• Screw Gun
• 3mm Drill Bit
Connect the plastic runner to the mounting bracket by
inserting the runner’s tabs through the mounting bracket.
Bolt both ends of the plastic runner to the mounting bracket
with a ¼-20x5/8” at head cap screw and ¼-20 hex nut.
Complete for both the left and right rails.
Identify the appropriate pilot holes by aligning the mounting
brackets on the desktop. The mounting bracket will align
with at least three holes. Holes will vary depending on leg
and desk type.
After identifying the correct pilot holes, use number 10
screws to fasten the mounting brackets to the desktop.If tote
rails go over the leg plates, use provided rubber washers.
• (2) Mounting Brackets
• (2) Clear Plastic Runners
• (1) 3” Deep Clear Tote Tray
Parts List: (per desk)
• (4) 1/4-20x5/8” Flat Head Cap Screws
• (4) 1/4-20 Hex Nuts
• #10 3/4” Square Pan Screws
• Rubber Washers
ELO® Desk
• Screw Gun
• 5/32” Hex Bit
Place desktop face down on protected surface.
Align tabs of the Backpack Hook with the metal
inserts.
Use joint connector bolts to fasten both of the tabs
of the backpack hook to the desktop.
with Backpack Hook
Parts List: (per desk)Tools Required
• (1) Backpack Hook
• (2) Joint Connector Bolts ¼”-20x15mm
507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303wibenchmfg.com
3
Hardware List
Grand Hank Glide
Dual Wheel Locking Caster
Rubber Washer
Backpack Hook
1/4-20x15mm
Joint Connector Bolt
1/4-20 Hex Nut
#10 3/4” Square
Pan Screw
1/4-20x5/8
Flat Head Cap Screw
Mounting Brackets
Clear Plastic Runners
507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303wibenchmfg.com
4
