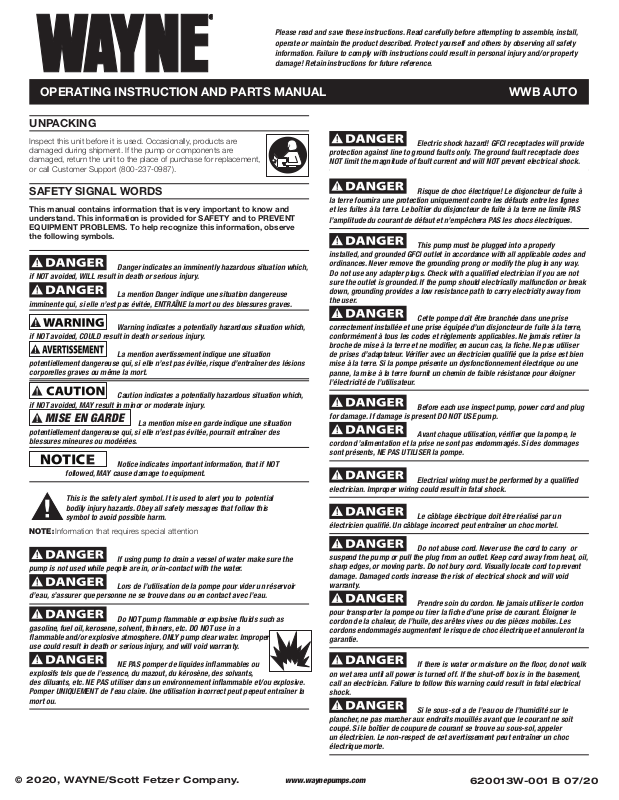

Wayne WWB AUTO Owners Manual

Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.

OPERATING INSTRUCTION AND PARTS MANUAL WWB AUTO

UNPACKING

Inspect this unit before it is used. Occasionally, products are
damaged during shipment. If the pump or components are
damaged, return the unit to the place of purchase for replacement,

or call Customer Support (800-237-0987).

protection against line to ground faults only. The ground fault receptacle does
NOT limit the magnitude of fault current and will NOT prevent electrical shock.

Electric shock hazard! GFCI receptacles will provide

SAFETY SIGNAL WORDS

This manual contains information that is very important to know and
understand. This information is provided for SAFETY and to PREVENT
EQUIPMENT PROBLEMS. To help recognize this information, observe
the following symbols.

if NOT avoided, WILL result in death or serious injury.

imminente qui, si elle n’est pas évitée, ENTRAÎNE la mort ou des blessures graves.

if NOT avoided, COULD result in death or serious injury.

potentiellement dangereuse qui, si elle n’est pas évitée, risque d’entraîner des lésions
corporelles graves ou même la mort.

if NOT avoided, MAY result in minor or moderate injury.

MISE EN GARDE

potentiellement dangereuse qui, si elle n’est pas évitée, pourrait entraîner des
blessures mineures ou modérées.

followed, MAY cause damage to equipment.

This is the safety alert symbol. It is used to alert you to potential

bodily injury hazards. Obey all safety messages that follow this
symbol to avoid possible harm.

NOTE: Information that requires special attention

Danger indicates an imminently hazardous situation which,

La mention Danger indique une situation dangereuse

Warning indicates a potentially hazardous situation which,

La mention avertissement indique une situation

Caution indicates a potentially hazardous situation which,

La mention mise en garde indique une situation

Notice indicates important information, that if NOT

la terre fournira une protection uniquement contre les défauts entre les lignes

Risque de choc électrique! Le disjoncteur de fuite à

et les fuites à la terre. Le boîtier du disjoncteur de fuite à la terre ne limite PAS
l’amplitude du courant de défaut et n’empêchera PAS les chocs électriques.

This pump must be plugged into a properly

installed, and grounded GFCI outlet in accordance with all applicable codes and
ordinances. Never remove the grounding prong or modify the plug in any way.
Do not use any adapter plugs. Check with a qualified electrician if you are not
sure the outlet is grounded. If the pump should electrically malfunction or break
down, grounding provides a low resistance path to carry electricity away from
the user.

Cette pompe doit être branchée dans une prise
correctement installée et une prise équipée d’un disjoncteur de fuite à la terre,
conformément à tous les codes et règlements applicables. Ne jamais retirer la
broche de mise à la terre et ne modifier, en aucun cas, la fiche. Ne pas utiliser
de prises d’adaptateur. Vérifier avec un électricien qualifié que la prise est bien
mise à la terre. Si la pompe présente un dysfonctionnement électrique ou une
panne, la mise à la terre fournit un chemin de faible résistance pour éloigner
l’électricité de l’utilisateur.

Before each use inspect pump, power cord and plug

for damage. If damage is present DO NOT USE pump.

Avant chaque utilisation, vérifier que la pompe, le
cordon d’alimentation et la prise ne sont pas endommagés. Si des dommages
sont présents, NE PAS UTILISER la pompe.

Electrical wiring must be performed by a qualified
electrician. Improper wiring could result in fatal shock.

Le câblage électrique doit être réalisé par un
électricien qualifié. Un câblage incorrect peut entraîner un choc mortel.

pump is not used while people are in, or in-contact with the water.

If using pump to drain a vessel of water make sure the

Lors de l’utilisation de la pompe pour vider un réservoir

d’eau, s’assurer que personne ne se trouve dans ou en contact avec l’eau.

Do NOT pump flammable or explosive fluids such as
gasoline, fuel oil, kerosene, solvent, thinners, etc. DO NOT use in a
flammable and/or explosive atmosphere. ONLY pump clear water. Improper
use could result in death or serious injury, and will void warranty.

NE PAS pomper de liquides inflammables ou
explosifs tels que de l’essence, du mazout, du kérosène, des solvants,
des diluants, etc. NE PAS utiliser dans un environnement inflammable et/ou explosive.
Pomper UNIQUEMENT de l’eau claire. Une utilisation incorrect peut pepeut entraîner la
mort ou.

© 2020, WAYNE/Scott Fetzer Company.

suspend the pump or pull the plug from an outlet. Keep cord away from heat, oil,
sharp edges, or moving parts. Do not bury cord. Visually locate cord to prevent
damage. Damaged cords increase the risk of electrical shock and will void
warranty.

pour transporter la pompe ou tirer la fiche d’une prise de courant. Éloigner le
cordon de la chaleur, de l’huile, des arêtes vives ou des pièces mobiles. Les
cordons endommagés augmentent le risque de choc électrique et annuleront la
garantie.

on wet area until all power is turned off. If the shut-off box is in the basement,
call an electrician. Failure to follow this warning could result in fatal electrical
shock.

plancher, ne pas marcher aux endroits mouillés avant que le courant ne soit
coupé. Si le boîtier de coupure de courant se trouve au sous-sol, appeler
un électricien. Le non-respect de cet avertissement peut entraîner un choc
électrique morte.

www.waynepumps.com

Do not abuse cord. Never use the cord to carry or

Prendre soin du cordon. Ne jamais utiliser le cordon

If there is water or moisture on the floor, do not walk

Si le sous-sol a de l’eau ou de l’humidité sur le

620013W-001 B 07/20

OPEARATING INSTURCTIONS AND PARTS MANUAL

AVERTISSEMENT

been tested for use in swimming pool or marine areas. NEVER place

Risk of electric shock! This pump has NOT

pump in pools while people are in the water.

Risque de choc électrique! Cette pompe N’a
PAS été testée pour une utilisation dans une piscine ou dans des aire marines. NE
JAMAIS placer la pompe dans les piscines pendant que les gens sont dans l’eau.

Do NOT handle a pump or pump motor with
wet hands or when standing on wet or damp surface or in water when
pump is connected to power source.

NE PAS manipuler une pompe our un
moteur de pompe avec des mains mouilée ou humide ou dans l’eau
lorsque la pompe est connectée a une source d’alimentation.

Do NOT use pump if ANY part is cracked, broken, or
missing.

NE PAS utiliser la pompe si une partie quelconque
du commutateur de boitier ou de la sonde de capteur est fissurée, brisée our
manquante.

Always disconnect electric supply before
attempting to install, service, relocate, or perform any maintenance.
Failure to do so could result in fatal electrical shock.

Toujours couper le courant avant d’essayer
d’installer, de déplacer toute opération de maintenance. Le non-respect
de ces instructions pourrait entrainer un choc électrique mortel.

Inspect extension cords for damage before use. Plug
into a GFCI outlet. Do not use extension cord for permanent installation. Do not
bury cord. Visually locate cord to prevent damage. Keep plug connection protected
from contact with water or snow. Plug connection must be kept dry and away
from moisture. Do not handle plug connector near water. Failure to follow these
instructions will result in death or serious injury.

Inspectez les rallonges avant de les utiliser. Branchez­le sur une prise GFCI. N’utilisez pas de rallonge pour une installation permanente.
Gardez la connexion de la prise protégée du contact avec l’eau ou la neige. La
connexion des fiches doit être maintenue sèche et à l’abri de l’humidité. Ne pas
manipuler le connecteur à proximité de l’eau. Le non-respect de ces instructions
entraînera la mort ou des blessures graves.

This product can expose you to chemicals, including DEHP, which is known
to the State of California to cause cancer, birth defects and reproductive

harm. For more information, go to www.P65Warnings.ca.gov.

Dress properly. Do not wear loose clothing or jewelry. Pull

back long hair. Keep your hair, clothing, and gloves away from moving parts. Loose
clothes, jewelry, or long hair can be caught in moving parts.

S’habiller correctement. Ne pas porter de vêtements amples
ou de bijoux. Attacher les cheveux longs. Garder les cheveux, les vêtements et les
gants éloignés des pièces mobiles. Les vêtements amples, les bijoux ou les cheveux
longs peuvent se prendre dans les pièces mobiles.

Do not overreach. keep proper footing and balance at all

times. Proper footing and balance enables better control in unexpected situations.

Ne pas trop se pencher. Maintenir, à tout moment, une
bonne assise et un bon équilibre permet de garder un meilleur contrôle dans des
situations imprévues.

Use safety equipment. Always wear eye protection. Dust
mask, non-skid safety shoes and hard hat must be used for appropriate conditions.

Utiliser un équipement de sécurité. Toujours porter
des lunettes de protection. Un masque anti-poussière, des chaussures de sécurité
antidérapantes et un casque doivent être utilisés selon les conditions appropriées.

If using pump to drain a vessel containing heated water,

allow time for water time to cool to ambient temperature before pumping the water.
Failure to do so may cause pump failure or property damage and will void warranty.

Lors de l’utilisation d’une pompe pour vider un réservoir
contenant de l’eau chaude, laisser l’eau refroidir jusqu’à température ambiante avant
de la pomper. Ne pas le faire peut entraîner une panne de la pompe ou des dégâts
matériels et annulera la garantie.

Never cut off grounding prong or use an adapter, this will

void warranty.

Ne jamais débrancher la broche de mise a la terre ou
utiliser un adaptateur, cel annulera la garantie.

Secure the discharge line before starting the pump. Pump

could restart automatically. An unsecured discharge line MAY whip. Personal injury
and/or property damage COULD result.

Fixer la conduite de décharge avant le démarrage de la
pompe. Toute conduite de décharge non fixée pourrait donner fouetter. Des blessures
corporelles et/ou des dégats matériels pourraient en résulter.

When servicing this pump, only identical WAYNE

replacement parts should be used. Failure to follow these steps may create risk of
flooding, property damage, fatal electrical shock, or other serious injury.

Ce produit peutvous exposer à des produits chimiques,
notamment du DOP, reconnus par l’État de Californie comme
étant cancérigènes et à l’origine d’anomalies congénitales et de
problèmes de l’appareil reproductif. Pour plus de renseignements,

visiter le site www.P65Warnings.ca.gov.

common sense when using this pump. DO not attempt to use this pump while
tired or under the influence of drugs, alcohol or medications. A moment of
inattention may result in serious personal injury.

Lors de l’utilisation de la pompe il faut rester vigilant,
être concentré sur ce qu’on fait et faire preuve de bon sens. Ne pas essayer
d’utiliser cette pompe en cas de fatigue ou sous l’influence de drogues, d’alcool
ou de médicaments. Un moment d’inattention peut entraîner des blessures

graves.

Stay alert, watch what you are doing, and use

rechange originales de WAYNE doivent éure utilisées. Le non-respect de ces étapes

Lors de l’entretien de cette pompe, seules des piéces de

peut entrainer un risque d’inondation, de dégats matériels, de choc électrique mortel
ou d’autres blessures graves.

This unit is NOT designed for use as a sump pump or in

sump applications, this will void warranty. This unit is NOT designed for use in septic
tanks or underground vaults to pump raw sewage or effluents. NEVER use in hazardous
or explosive locations.

Cette unité n’est PAS concue pour étre utilisée comme
pompe de puisard ou dans applications de puisard, cela annulera la garantie. Cette
unité n’est PAS concue pour étre utilisée dans des fosses septiques ou des enceintes
souterraines pour pomper les eaux usées ou les effluents. Ne JAMAIS utiliser dans des
environements dangereux ou explosifs.

2

OPEARATING INSTURCTIONS AND PARTS MANUAL

circuit protected by a Ground-Fault-Circuit-Interrupter (GFCI).

uniquement sur un circuit protégé par un disjoncteur de fuite à la terre (GFCI).

To reduce the risk of electric shock, install only on a

Pour réduire le risque de choc électrique, installez-le

The follwoing warning pertains only to the TSC130 pumps:

housed and protected from the elements.

uniquement, sauf si elle est à l’abri et protégée contre les intempéries.

This pump is designed for indoor use only, unless

Cette pompe est conçue pour une utilisation à l’intérieur

Most electric product-related incidents are caused by

failure to observe basic safety rules or precautions. WAYNE Water Systems is NOT
responsible for any bodily injury or property damage that may result from operation
outside of the normal operating conditions.

MISE EN GARDE

La plupart de incidents liès aux matèriels
èlectrique sont causès par le non-respect des règles de sècuritè our des
prècautions de base. WAYNE Water Systems N’EST PAS responsable des blessures
corporelles ou des dègats matèriels qui pourraient rèsulter d’une utilisation autre
que les conditions d’utilisation normales.

This pump has been evaluated for use with water only.

MISE EN GARDE

Cette pompe a été évaluée pour une utilisation
avec de l’eau uniquement.

gauge when necessary. Confirm the current (Amp) rating of the pump and the
length of the extension cord needed.

Current (Amps)

rating at 120V

Use an outdoor rated extension cord of the appropriate

Length of Cord (Feet)

up to 25 up to 50 up to 100

up to 4 18 gauge 18 gauge 16 gauge

up to 6 18 gauge 16 gauge 14 gauge

up to 10 16 gauge 14 gauge 12 gauge

AUTO UTILITY PUMPS ONLY

detector. The shaft seal depends on water for lubrication. Overriding this pump
feature can cause the pump to run dry and may damage the shaft seal and cause
pump failure and void warranty.

backflow. Without a check valve the pump may cycle continuously and potentially
wear out the pump components.

Do NOT alter the pump to override the automatic water

In small areas a check valve is required to prevent

This pump is not designed to handle salt water, brine,
laundry discharge, or any other application which may contain caustic chemicals,
highly chlorinated water, and/or foreign materials. This pump is not suitable for use
with aquatic life. Pump damage or failure could occur if used in these applications
and will void warranty.

When routing the electrical cord protect cord from
sharp objects, hot surfaces, oils, and chemicals. Do not kink cord, do not use with
damaged cord.

water for lubrication. Operating the pump without water will damage the shaft seal
and cause pump failure.

pumping limit, the water removal rate may slow, and the pump may become noisy.
This is due to air being drawn into the pump in addition to water. During this time
the pump may still remove water. Once water has stopped coming out of the hose
unplug pump to avoid running dry.

qualified repair personnel. ONLY use identical WAYNE replacement parts.

pump directly on clay, gravel, leaves or any loose or sandy surfaces. These surfaces
contain small stones, sand, or debris that may clog or damage the pump. This could
result in pump failure causing flooding and property damage.

Do not allow pump to run dry. The shaft seal depends on

When the water level is approaching the minimum

Service work on this pump must be performed by a

Do not suspend pump by discharge pipe. Do not place

The follwoing NOTE does not pertain to the TSC130 pumps:

NOTE: Acceptable for Indoor and Outdoor Use

3

OPEARATING INSTURCTIONS AND PARTS MANUAL

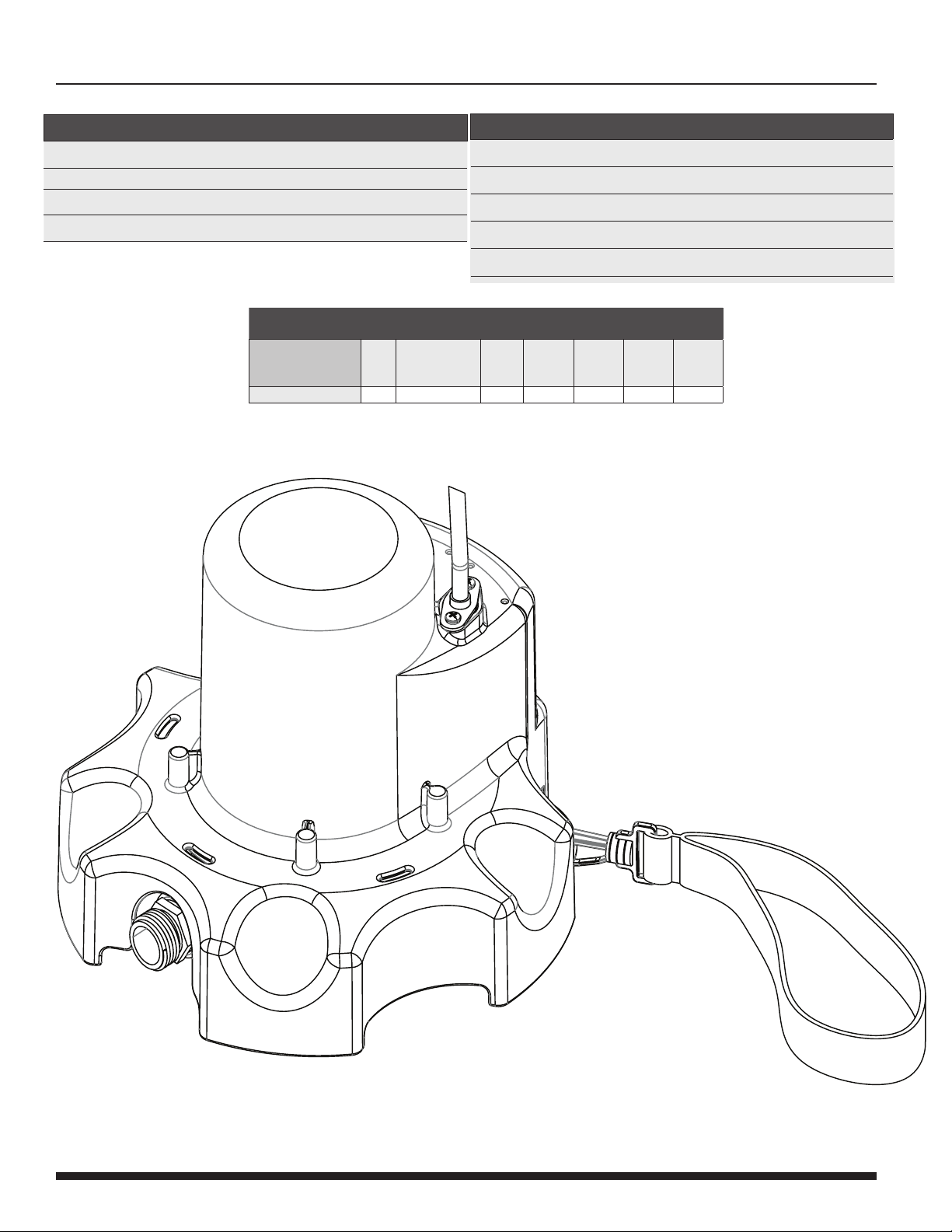

SPECIFICATIONS

POWER SUPPLY REQUIREMENTS
MOTOR Single Phase, Auto ON/OFF
HORSEPOWER

CIRCUIT REQUREMENT

120 V, 60 Hz

1/4 HP

15 A (minimum)

Model HP

WWB AUTO 1/4 Gal/hr 1900 1580 1250 850 350

CONSTRUCTION

MOTOR HOUSING Thermoplastic

MOTOR SHAFT Stainless Steel

IMPELLER Thermoplastic

VOLUTE Thermoplastic

PUMP DISCHARGE 3/4 in. Hose Threads

PERFORMANCE

Discharge Head 0 ft. 5 ft. 10ft. 15 ft. 20 ft.

4

OPEARATING INSTURCTIONS AND PARTS MANUAL

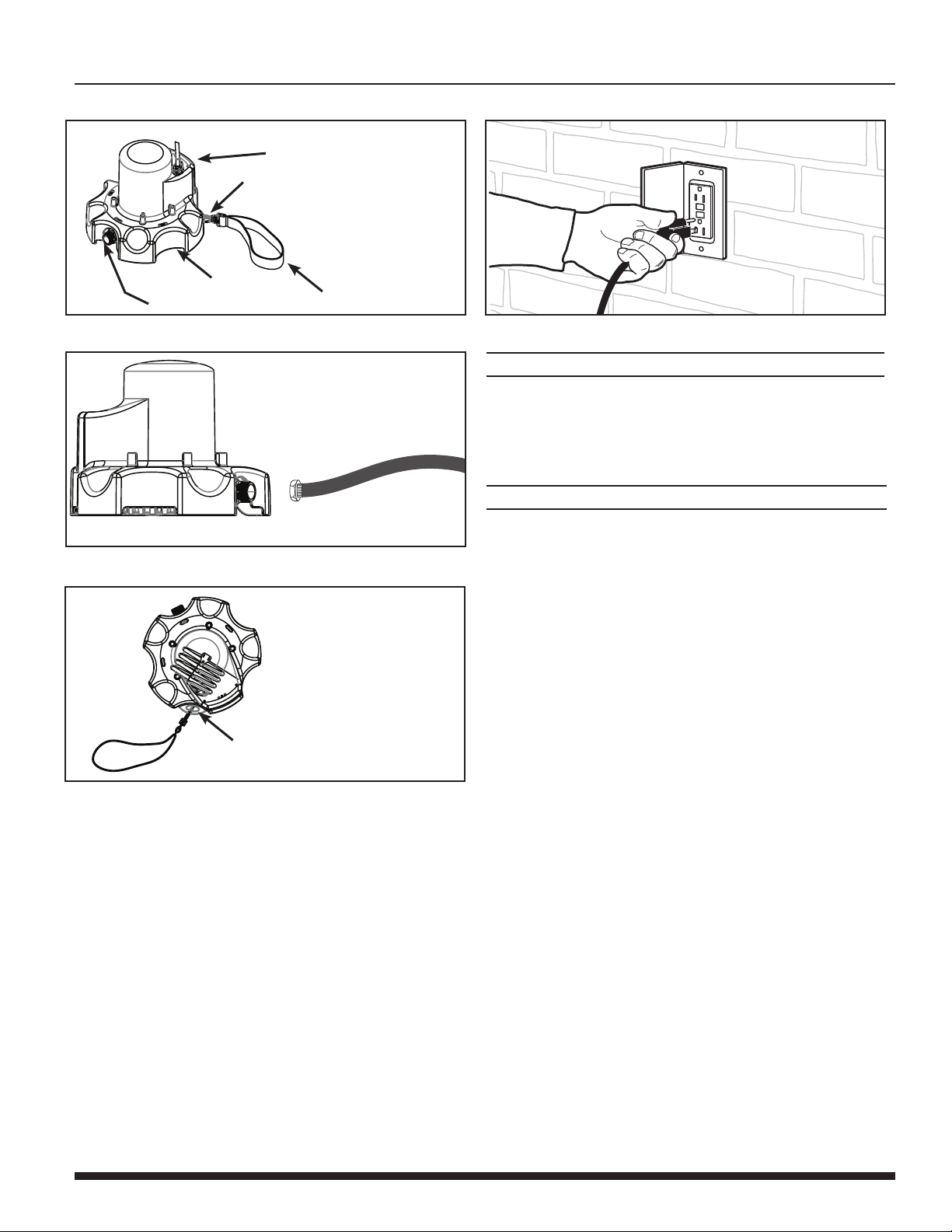

STEP 5 - PLUG INTO GFCI OUTLETSTEP 1 - VERIFY PACKAGE CONTENTS

POWER CORD

HANG LOOP

STAINER BASE

DISCHARGE

CARRYING
HANDLE

STEP 2 - CONNECT GARDEN HOSE

STEP 3 - PLACE IN WATER

REQUIRES 1-5/8” OF WATER
TO START PUMPING

REMOVES WATER DOWN TO
1/2” OF SURFACE

FEED ROPE THROUGH
LOOP ON HOUSING AND
SECURE WITH KNOT

DESCRIPTION

This portable, Auto On-Off Submersible Mult-Use Pump is designed
for automatic removal of water. The units are equipped with a 10 ft.
3-prong grounding type power cord and its 3/4 in. adapter can be
used for convenient attachment to a standard garden hose.

APPLICATION AND OPERATION

PUMPING HEIGHT

When water is pumped to an elevated position, any volume that has
not reached the discharge outlet can flow back through the pump
when the pump shuts off. This back-flow can cause the water level in
small areas to rise enough to re-start the pump.

1. This pump has been designed with a 3/4” garden hose discharge
connection. Thread the female end of the garden hose to the
male end of the garden hose adapter.

2. Use a hose washer (not included) on the garden hose for correct
pump operation.

3. For best pump performance, unwind the hose before starting the
pump. This will help remove any kinks or binds in the hose and
allow the unit to pump with less restriction.

4. With pump unplugged set the pump where water will collect. Do
not set the pump directly on mud, sand surfaces or in leaves. For
best results make sure the strainer base is making full contact
with a clean area. This will allow the strainer to properly filter
debris and help prevent clogging of the pump. If necessary clear
an area before placing the pump.

5. The water level must be at least 5/8 inches for the pump to prime,
and operate. Water levels less than 5/8 inches will not allow the
pump to prime, therefore no water will be moved.

6. Plug the pump into a properly grounded 120 volt GFCI protected
outlet. If the water level is greater than 5/8 inches the pump
will start once plugged in. A priming delay of 2 seconds is
programmed into the control to allow time for air to escape from
the pumping chamber.

5

OPEARATING INSTURCTIONS AND PARTS MANUAL

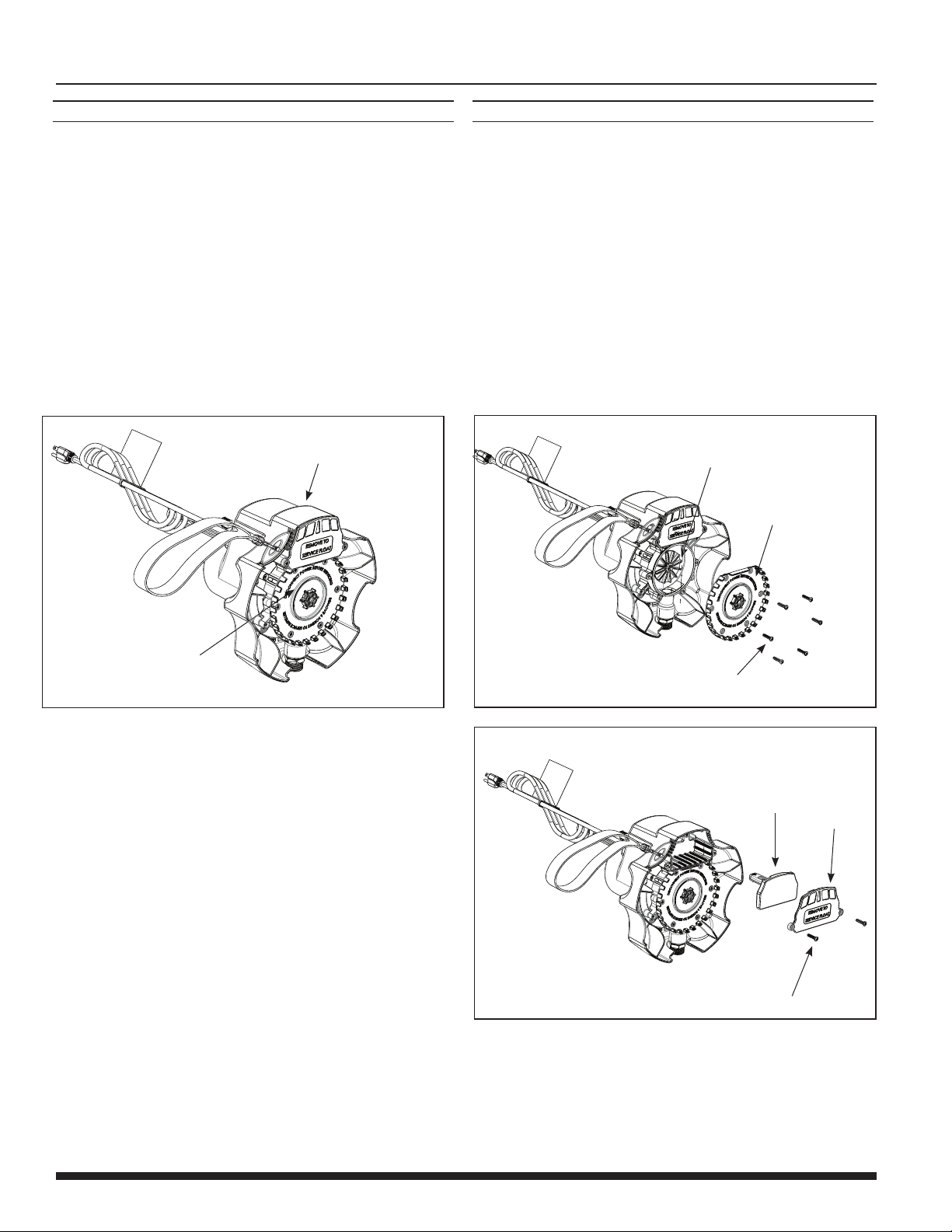

MAINTENANCE

NOTE: Minimal service is required for this pump. The motor

housing of the pump is completely sealed and requires no internal
service or lubrication.

1. Keep pump inlet clean and free of all foreign objects. Inspect
inlet at beginning of each use.

2. Periodic cleaning is required to maintain performance of

the pump.

Follow the cleaning steps listed below:

a. Disconnect pump from power source.
b. Remove debris collected around the inlet cover and inlet

plate.

c. Remove debris collected around the switch housing.

SWITCH HOUSING
STRAINER

TROUBLESHOOTING

1. To verify pump is operating correctly follow the steps below:

a. Disconnect pump from power source.

b. Follow periodic cleaning steps.

c. Set pump upright on a level surface.

d. Plug power cord into a grounded 120 Volt GFCI power

outlet. Pump should turn on, run for 2 seconds, and then
shut off.

NOTE: If pump does not turn on/off as indicated in step 1d follow
switch cleaning steps.

2. Verify pumping height does NOT exceed 23 feet (See Figure A).
If pumping height is greater than 23 feet, this pumps automatic
feature will not operate correctly.

3. Auto on, verify water depth is a minimum of 1-5/8 inches.

4. Pump prime, verify water depth is a minimum of 5/8 inches.

IMPELLER

INLET PLATE

INLET PLATE

Figure 1 - Periodic Cleaning

Figure1 - Inlet Assembly

Figure 2 - Float Switch Assembly

6 SCREWS

FLOAT

COVER

2 SCREWS

6

OPEARATING INSTURCTIONS AND PARTS MANUAL

TROUBLESHOOTING (CONT’D)

5. When temperatures drop below freezing, remove pump from

service and store indoors to protect pump from damage due to
ice. The pump has a unique protection circuit to protect the motor
from a locked impeller condition possibly caused by debris buildup
or from a “frozen” impeller situation caused by ice formation. When
the pump is activated and a locked impeller condition is detected
the unit will automatically shutdown to protect the motor from
overheating. The pump will continue this on/off cycle for a period
of time to attempt to “free” the impeller until eventually the unit
will remain off for a period of 12 hours checking twice a day for a
“freed” impeller. Once the pump is able to operate correctly the
pump will resume normal operation. To reset this delay without
waiting 12 hours momentarily unplug the pump.

TROUBLESHOOTING CHART

Symptom Possible Cause(s) Corrective Action

Pump will not start
or run

Pump starts and
stops too often

1. Tripped home electrical breaker

2. GFCI tripped

3. Low supply voltage

4. Defective motor

5. Stuck float

6. Impeller obstructed

7. Inlet clogged

8. Pump is sitting uneven

1. Backflow of water from piping

2. Pump is sitting uneven

1. Reset breaker

2. Check for damaged wiring or moisture

3. Contact electrician

4. Replace pump

5. Clean float switch (See Troubleshooting, Figure 2)

6. Remove inlet cover and inlet plate (See Troubleshooting, Figure 1) and check
for debris; clean

7. Follow periodic cleaning steps (See Maintenance, Figure 1)

8. Reposition pump so pump is upright and level

1. Install check valve

2. Reposition pump so pump is upright and level

Pump will not
shut off or runs
continuously

Pump operates
but delivers little or
no water

1. Stuck float

2. Discharge height exceeds capability

3. Pump is sitting uneven

1. Impeller obstructed

2. Obstructed hose

3. Discharge height exceeds capability

4. Inlet clogged

1. Clean float switch (See Troubleshooting, Figure 2)

2. Reduce discharge height

3. Reposition pump so pump is upright and level

1. Remove inlet cover and inlet plate (See Troubleshooting, Figure 1) and check
for debris; clean

2. Check for kinks, reposition hose or check for debris

3. Reduce discharge height

4. Follow periodic cleaning steps (See Maintenance, Figure 1)

LIMITED WARRANTY

For three year for WWB Auto model from the date of purchase, from an authorized dealer, Wayne Water Systems will repair or replace, at its option for the original
purchaser, any part or parts of its Multi-Use Pumps or Water Pumps (“Product”) found upon examination by Wayne Water Systems to be defective in materials or
workmanship. Please call Wayne Water Systems (800-237-0987) for warranty instructions. Be prepared to provide the model number and the serial number when
exercising this warranty. All transportation charges on Products or parts submitted for repair or replacement must be paid by purchaser.

This Limited Warranty does not cover Products which have been damaged as a result of accident, abuse, misuse, neglect, improper installation, improper maintenance,
or failure to operate in accordance with Wayne Water Systems’ written instructions.

THIS WARRANTY IS IN LIEU OF ANY AND ALL OTHER WARRANTIES, OBLIGATIONS OR AGREEMENTS, EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, AND ANY RIGHTS OR REMEDIES AGAINST ANY PERSON OR ENTITY UNDER THE UNIFORM
COMMERCIAL CODE OR OTHERWISE WITH RESPECT TO THE SALE OF THE PRODUCT. THE REMEDIES AND OBLIGATIONS STATED IN THIS WARRANTY ARE THE SOLE
AND EXCLUSIVE REMEDIES OF AND OBLIGATIONS TO THE OWNER FOR ANY AND ALL MATTERS ARISING WITH RESPECT TO OR IN ANY WAY CONNECTED WITH
THE PRODUCT, REGARDLESS OF THE SOURCE OR PROVIDER OF SUCH GOODS. IN NO EVENT, WHETHER AS A RESULT OF BREACH OF CONTRACT, WARRANTY TORT
(INCLUDING NEGLIGENCE) OR OTHERWISE, SHALL WAYNE WATER SYSTEMS OR ANY AFFILIATE BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES.

You MUST retain your purchase receipt along with this form. In the event you need to exercise a warranty claim, you MUST send a copy of the purchase receipt along
with the material or correspondence. Please call Wayne Water Systems (800-237-0987) for return authorization and instructions.

DO NOT MAIL THIS FORM TO Wayne Water Systems. Use this form only to maintain your records.

MODEL NO._____________________ SERIAL NO._________________________ INSTALLATION DATE __________________________

ATTACH YOUR RECEIPT HERE

7
