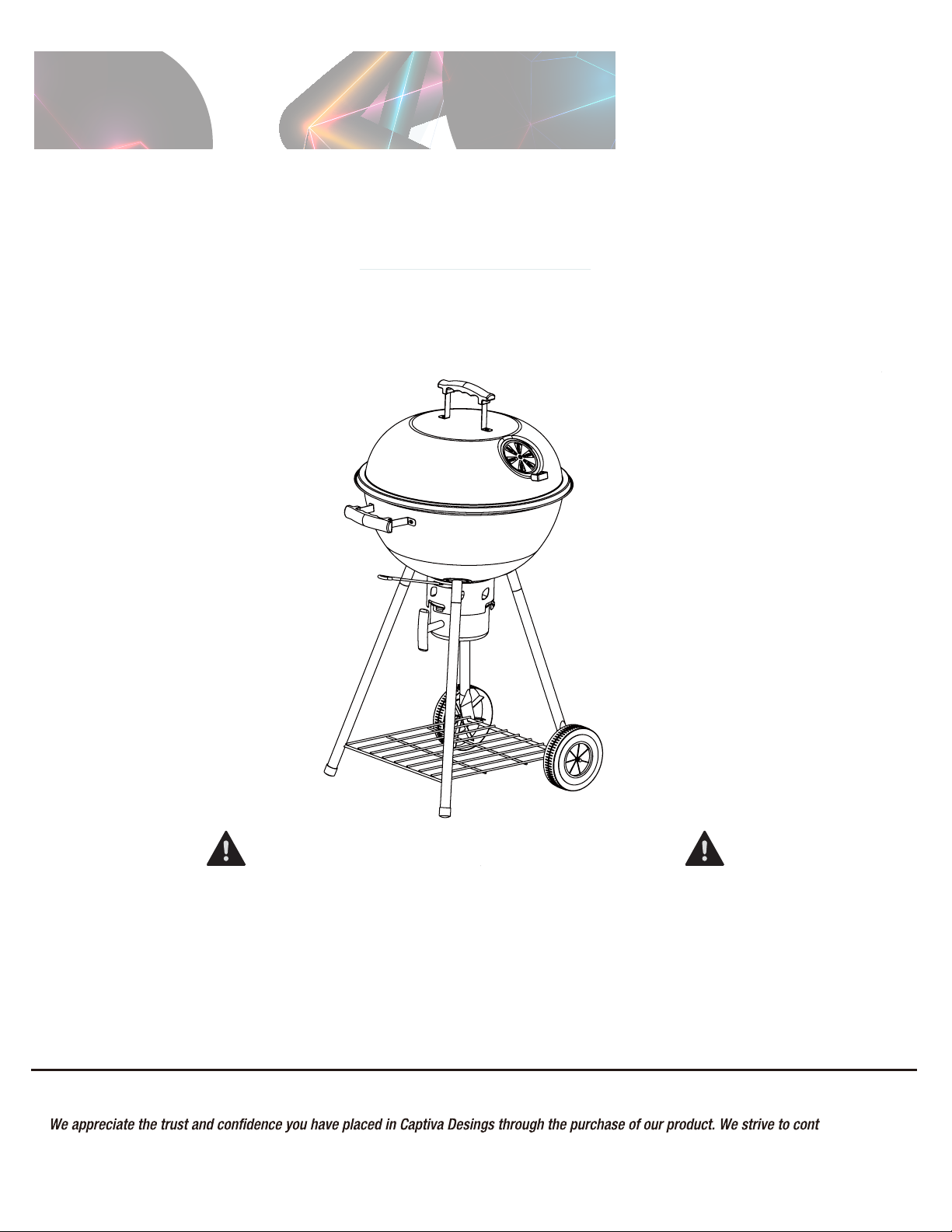

USE AND CARE GUIDE
Assembly, Care And Use Instructions
Read Carefully Important:Retain These
Instructions For Future Reference.
Questions, problems, missing parts? Before returning to the store,
please contact our Customer Service
This appliance is for Household use only.
This is not a commercial appliance.
THANK YOU
inually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Captiva Desings!
Page 2
Table of Contents
Safety Information
Warning
Preparation
Components

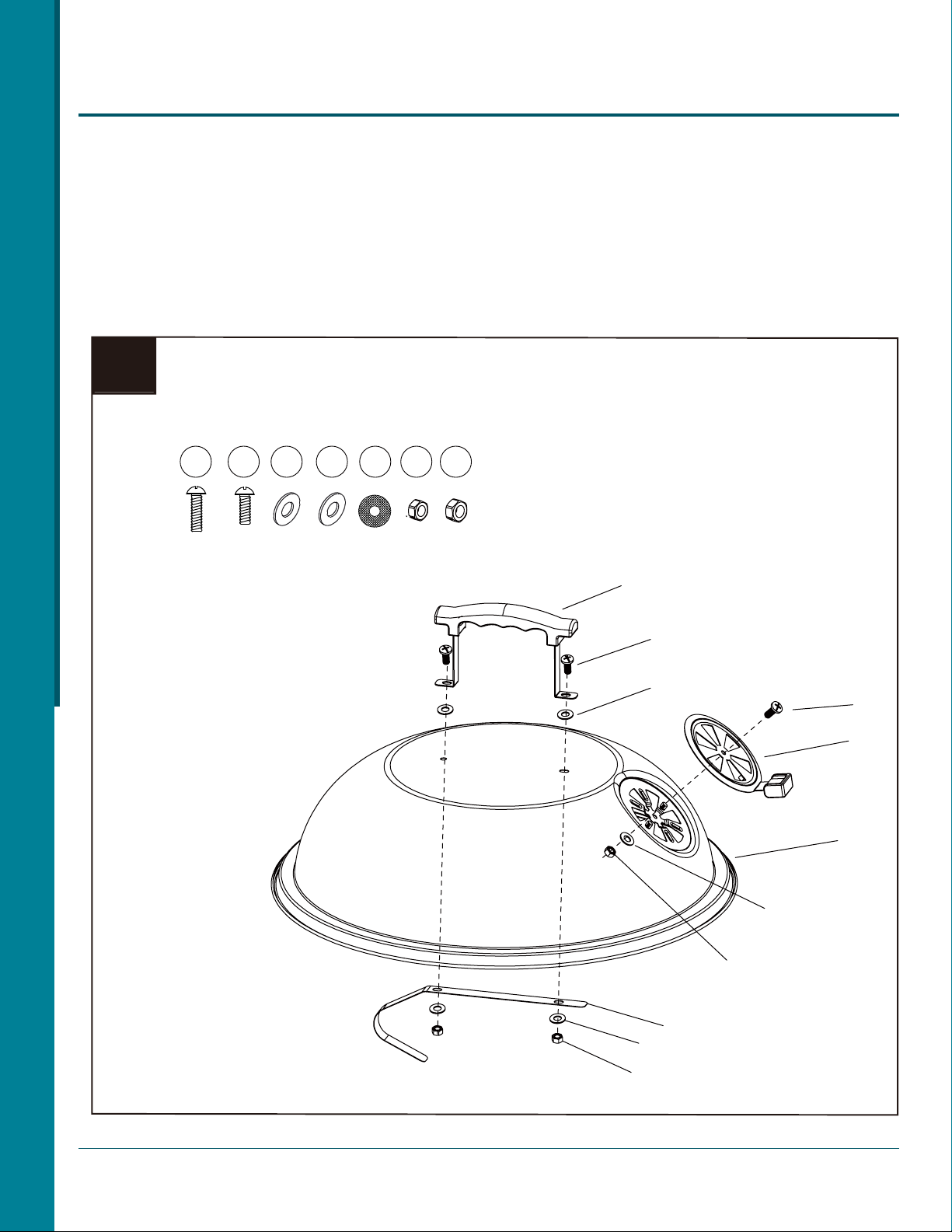

Assembly Instructions
2
4-5
6-9
Igniting the Fuel
Cleaning and Maintenance
3
Environmental Protection & Disposal
4
Warranty 11
Safety Information
Assembler/Installer
This instruction manual contains important information necessary for the proper assembly and safe
use of this appliance. Read and follow all warnings and instructions before assembling and using this
appliance.
Leave these instructions with the consumer.
10
10
10
Consumer/User
Follow all warnings and instructions when using this appliance. Keep these instructions for future
reference.
Proper Utilisation
The barbecue may only be used for preparing suitable foods. All requirements of this assembly and
operation manual must be complied with. Only for private domestic use!
Warning
Prop 65 Warning
This product can expose you to chemicals including Chromium (hexavalent compounds),which are
known to the State of California to cause cancer and birth defects or or other reproductive harm.
For more information visit www.P65Warnings. ca. gov.
2
Page 3
Warning
WARNING:
Risk of burning!
• Make sure that the barbecue is standing on a at and reproof surface that is not made of glass or
plastic.
WARNING:
This barbecue will become very hot, do not move it during operation!
• Always wear barbecue gloves when grilling or adjusting the vents as well as when using a chimney
starter.
• When preparing food, adjusting the vents, placing charcoal and using the thermometer or lid always
wear barbecue gloves.
• Grill gloves must be tested in accordance with local code.
• For grilling use only qualied barbecue charcoal or barbecue charcoal briquettes.
• Do not BBQ before the fuel has a coating of ash.
• Use grilling tongs with long, heat-resistant handles.
• Allow the barbecue to cool down completely before cleaning it.
WARNING:
DANGER to children and pets!
• Never leave the hot barbecue unattended.
• WARNING! Keep children and pets away!
WARNING:
• Do not use spirit or petrol for lighting or
re-lighting!
• Never use water to extinguish the charcoal.
WARNING:
Risk of carbon monoxide poisoning!
• Do not use indoors !
Information for safe operation of the barbecue
•The barbecue must be positioned in a stable and secure surface.
Do not use in enclosed areas or on covered areas.
•Only use safe lighting materials.
•The barbecue should be heated up and the fuel kept red hot at least 30 minutes before it is used for
the rst time.
•
When barbecue is in use, maintain clearance of 36” between the hot barbecue and any combustible
materials, such as beshes, trees, wooden decks, wooden fences, buildings, etc. Do not place hot barbecue
under roof overhang or in any other enclosed area.
3
Page 4
Preparation
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents
list and hardware contents above. If any part is missing or damaged, do not attempt to assemble the product.
Contact customer service for replacement parts.
Estimated Assembly Time: 30 minutes.
Tools Required for Assembly: Wrench (not included) and Phillips Screwdriver (not included)

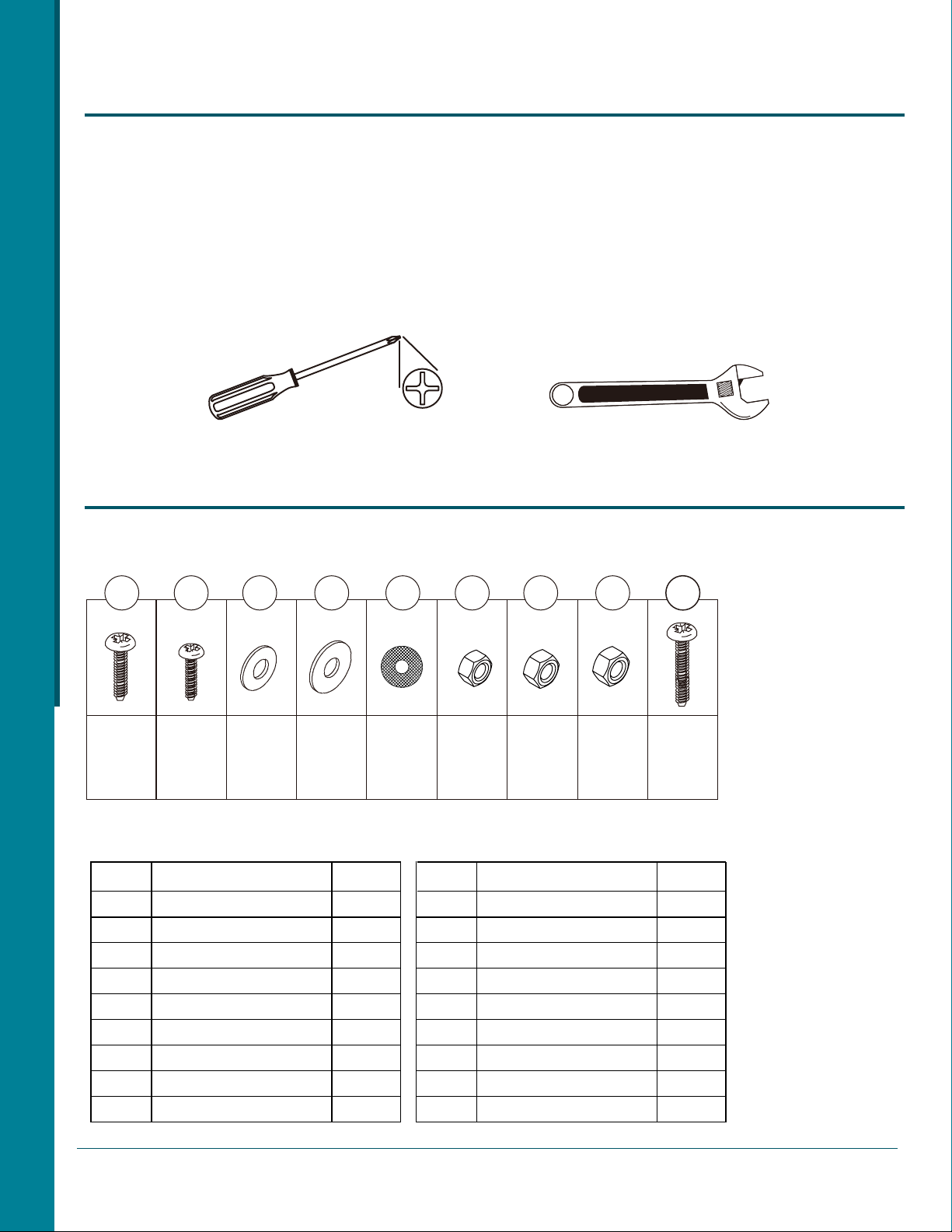

Components
Hardware Contents
A
M6x12
15x
B
M5x12
3x
C
Ø5xØ12
D
Ø6xØ12
19x3x
Package Contents
Part Description Quantity
1 lid handle 1
2 lid air vent 1
3 Lid 1
4 lid hook 1
5 cooking grill 1
6 charcoal grill 1
7 re bowl 1
8 re bowl handle 1
9 short leg 2
E F
Ø6xØ19
4x
G
M5
2x 2x
Part Description Quantity
10
11
12
13
14
15
16
17
18
M6 M8
15x
long leg
leg holder washer
leg holder
rebowl air vent
ash catcher holder
ash catcher handle
ash catcher
bottom wire
wheel
H
I
M6x60
4x
2
4
4
1
1
1
1
1
2
4
Page 5

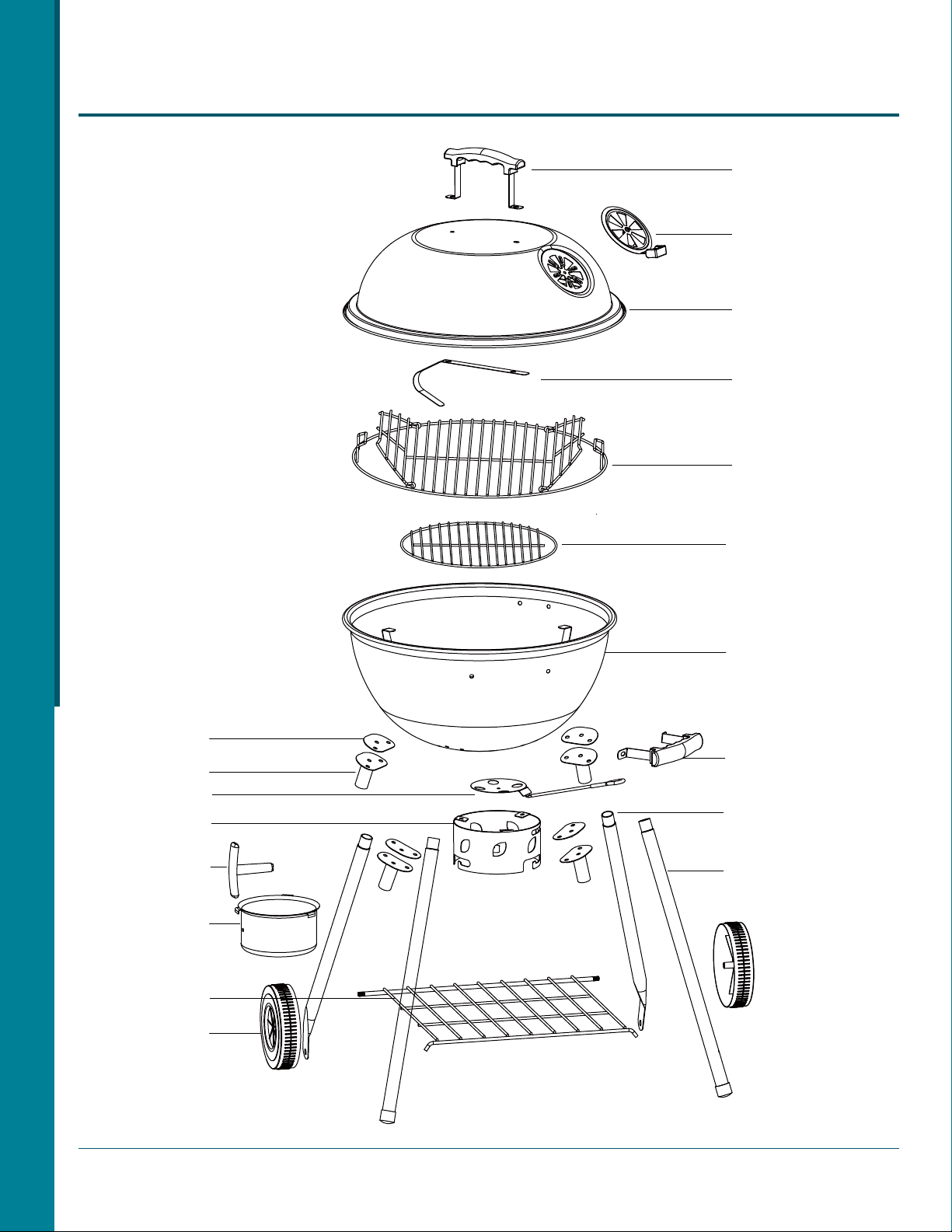

Components
1
2
3
4
5
6
11
12
13
14
15
16
17
18
7
8
9
10
5
Page 6

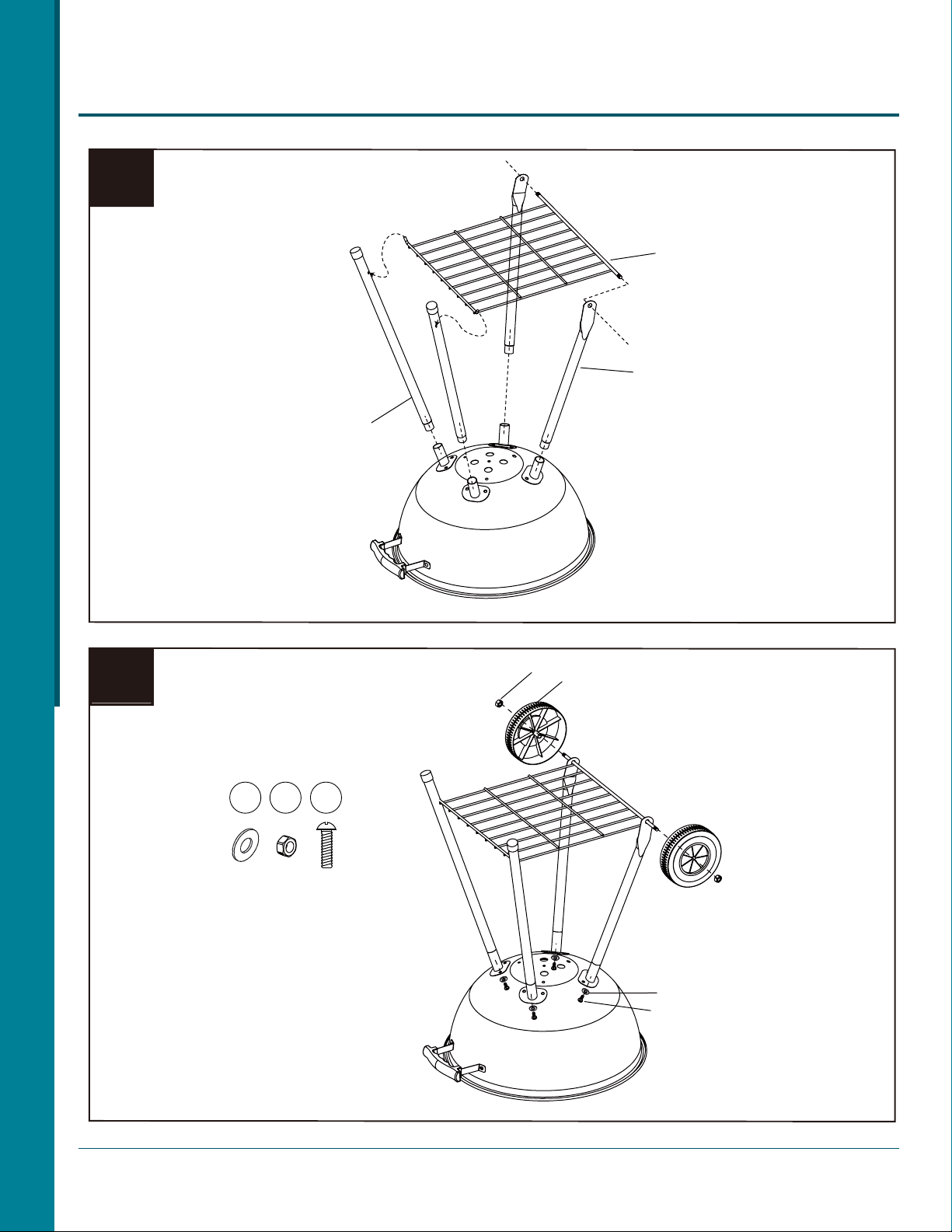

Assembly Instructions
Please read the assembly instructions carefully and follow the safety precautions. Allow sufcient time for
assembly. Before starting assembly, clear an area measuring approximately two to three square meters.
Remove the item from the packaging. Lay out all of the parts and any necessary tools so that they are within
easy reach.
1
A
M6x122xM5x12
B
1x
5X12
Ø
1x
C
D E F G
Ø6X12
Ø6X19
2x
2x
M5
1x
M6
2x
1
A
E
B
2
3
G
C
F
4
D
6
Page 7
Assembly Instructions
2
A
M6x12
10x
D E G
Ø6X12
10x
Ø6X19
2x
M6
10x
A
12
11
A
8
E
D
7
D
G
G
7
Page 8

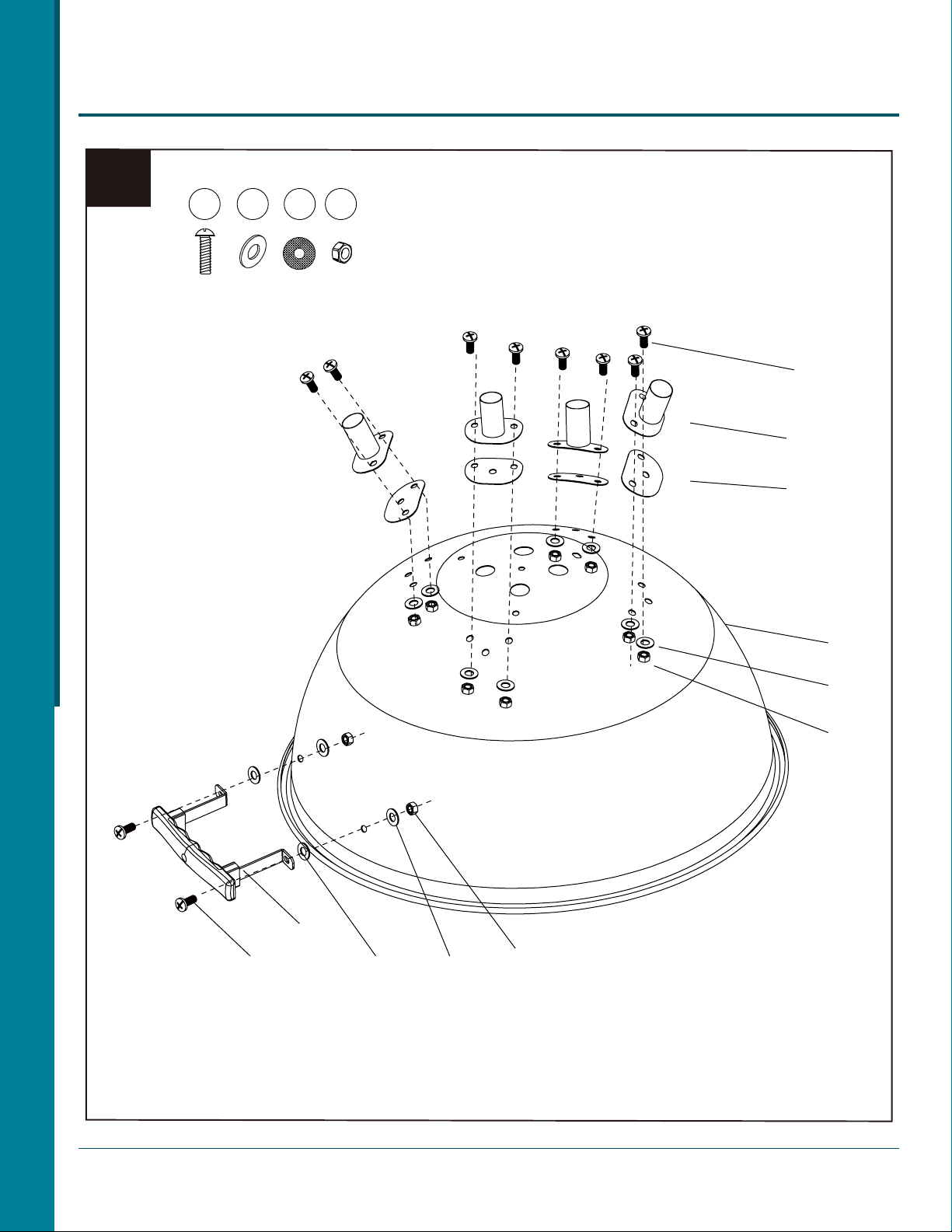

Assembly Instructions
3
10
17
9
4
Ø6x12
4x
M8
2x
ID H
M6x60
4x
H
18
D
I
8
Page 9

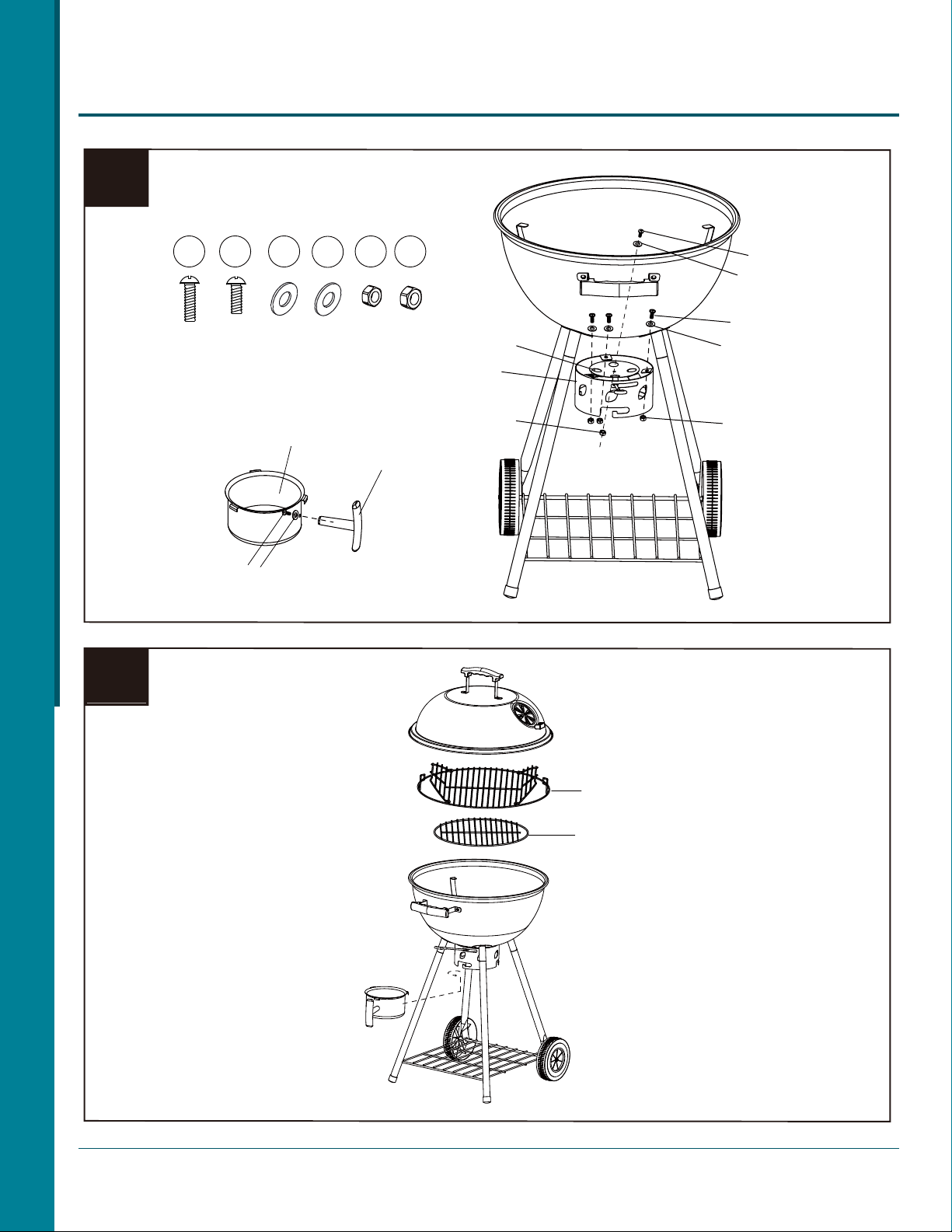

Assembly Instructions
5
B
A
C F G
D
B
C
6
M6x123xM5x12
2x
B
Ø5X12
C
2x
16
Ø6X12
3x
M5
1x
15
M6
3x
14
13
A
D
F
G
5
6
9
Page 10
Igniting the Fuel
WARNING:
3
Risk of burning!
When petrol or white spirits are ignited uncontrollable heat can develop as a result of deagration.
You should therefore only use harmless fuel.
1. Use quality products.
2. Stack some of the charcoal or briquettes on the charcoal grill (6).
3. Place one or two solid relighters on top of the layer of charcoal or briquettes. Ignite these relighters using
a long match.
4. Let the solid lighters burn for 2 to 4 minutes. Then ll the charcoal grill (6) slowly with more charcoal or
briquettes .The maximum amount of charcoal is 1.0 kg.
5. A white layer of ash should develop on the fuel after approximately 15 to 20 minutes. This indicates that the
optimal grilling condition has been reached. Distribute the fuel evenly on the charcoal grill (6) using a
suitable metal tool.
6. Insert the greased grill and then you can start barbecuing.
Cleaning and Maintenance
WARNING:
Risk of burning!
Allow the barbecue to cool down completely before cleaning it.
Never use water to quench the hot barbecue. This could result in burning or scalding.
Occasional cleaning is necessary to preserve the beautiful appearance of the barbecue. Do not use any
scouring agents.
1. A rinsing cloth and some water with a commercial detergent is sufcient for the normal cleaning process.
2. If the enamelled parts are heavily soiled, use a commercial enamel cleaning agent (oven cleaner). Observe
the manufacturer’s instructions for the cleaning agent being used.
3. Clean the grill using some washing-up liquid and a rust proof cleaning pad.
Environmental Protection & Disposal
Pay attention to cleanliness when using the barbecue and dispose of waste in a clean and safe manner. As a
general rule, only dispose of waste in designated metal or non-ammable containers. The local regulations for
disposal apply.
10
Page 11
Warranty
LIMITED WARRANTY
This warranty is a limited warranty, and applies to the original purchase is required. This is a residential
warranty and does not applyto commercial use. This collection carries a (1) year limited warranty and is valid
from original date of purchase to the original owner (proof of purchase required).
W
HAT IS COVERED
We warrant the frame to be free of Manufacturing defects to the original purchaser for one year.
3
WHAT IS NOT COVERED
This warranty does not cover commercial use, hardware, acts of nature, re, freezing and abusive.
In addition, purchased parts are not covered under this warranty.
We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in
production.
For a copy of our full limited warranty, please contact our customer service team below.
Questions, problems, missing parts? Before returning to the store
please contact our Customer Service
1-877-606-2818
11
