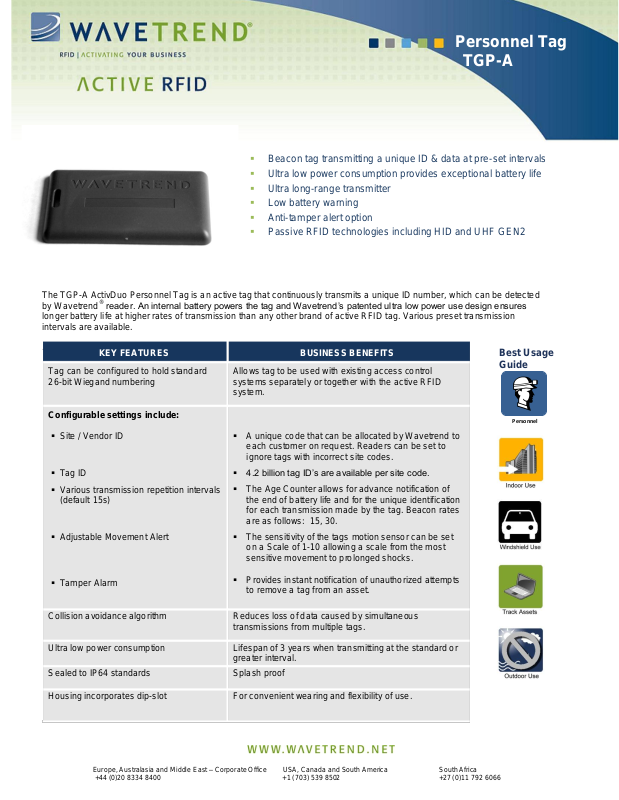

Wavetrend Technologies TGP-A Datasheet

Personnel Tag

The TGP-A ActivDuo Personnel Tag is an active tag that continuously transmits a unique ID number, which can be detected

KEY FEATURES

BUSINESS BENEFITS

Allows tag to be used with existing access control
systems separately or together with the active RFID
system.

Configurable settings include:

Various transmission repetition intervals











Collision avoidance algorithm

Reduces loss of data caused by simultaneous
transmissions from multiple tags.

Ultra low power consumption

Lifespan of 3 years when transmitting at the standard or
greater interval.

Sealed to IP64 standards

Splash proof

Housing incorporates dip-slot

For convenient wearing and flexibility of use.

Best Usage

Personnel

 Beacon tag transmitting a unique ID & data at pre-set intervals
 Ultra low power consumption provides exceptional battery life
 Ultra long-range transmitter
 Low battery warning
 Anti-tamper alert option
 Passive RFID technologies including HID and UHF GEN2

®

by Wavetrend
longer battery life at higher rates of transmission than any other brand of active RFID tag. Various preset transmission
intervals are available.

.

reader. An internal battery powers the tag and Wavetrend’s patented ultra low power use design ensures

Tag can be configured to hold standard
26-bit Wiegand numbering

 Site / Vendor ID

 Tag ID



(default 15s)

 Adjustable Movement Alert

 Tamper Alarm

A unique code that can be allocated by Wavetrend to
each customer on request. Readers can be set to
ignore tags with incorrect site codes.

4.2 billion tag ID’s are available per site code.
The Age Counter allows for advance notification of

the end of battery life and for the unique identification
for each transmission made by the tag. Beacon rates
are as follows: 15, 30.

The sensitivity of the tags motion sensor can be set
on a Scale of 1-10 allowing a scale from the most
sensitive movement to prolonged shocks.

Provides instant notification of unauthorized attempts
to remove a tag from an asset.

TGP-A

Guide

Europe, Australasia and Middle East – Corporate Office USA, Canada and South America South Africa
[phone] [phone] [phone]

Personnel Tag

The TGP-A Personnel Tag is generally used

TM

L-Series

TGP-A : Standard tag

TGP-A-G2 : With UHF Gen2 Inlay
TGP-A-DT : With HID Inlay

Typical Applications

Specifications

Operating temperature
Humidity

: -30°C to +60°C
: -40°C to +70°C
: 5% to 90% (non-condensing)

Physical

Size
Weight
Colour

: 85 x 54 x 6.5 mm
: 24 grams
:
:ABS (ultrasonically sealed) IP64

Radio Frequency

: 433.92 MHz
: 77 dB
: 1 to 100+ meters (actual range is determined by the

choice of reader & antenna used to detect the tag and

Electrical

: Internally powered by lithium battery

accessories

TA501

(All sold in packs of 10)
: Tag attachment kit
: Tamper alerting tag attachment kit

User definable data fields, allowing up
to 200 characters of user data to be
stored on the tag

Smart telemetry tag, that alert and log
the user if out of bounds conditions in
either temperature or humidity occur

Greater selection of tag beacon rates

offering greater tag of the reduction in
spurious transmissions.

L-Series+ tags can only be read by L-Series+
readers. L-Series readers can read both L­Series and L-Series+ tags.

* (from front page) Battery life calculations assume
operation at room temperature with the default
status transmission interval of 15 seconds, without
the anti-tamper circuit armed and without a motion
sensor fitted

our website.

FCC Statement of Conformity
Wavetrend , TGP-A Active Duo ,
FCC ID: 06XTGP-A

This device complies with Part 15 of the FCC rules subject to the following three conditions:

2) This device must accept all interference received, including interference that may cause

This device is for commercial use only and intended for use in a confined area with an

Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.

for security & safety applications requiring
people to carry a tag. The housing
incorporates a clip-slot for convenient
wearing for that purpose. However, it may
be used in other applications such as asset
monitoring. The mounting and affixing
method for the tag depends on the type of
application it is used in. The tag must not be
fixed directly onto metal surfaces.

The TGP-A-DT tag is a ‘dual technology’ tag
that incorporates a customer supplied
passive RFID PET e.g. the HID MicroProx
chip, allowing the tag to function on other
passive RFID systems such as a door

access control system.

Model Range

The tags can be ordered using the part

numbers listed below:

Environmental

Storage temperature

Material

Transmit Frequency
Power Output (avg.)
Range

Power

TGP-A

V/m @ 3m

the environment it is used in)

TA501-AT

Air Interface Protocols

L-Series’ refers to a proprietary
communication protocol used between
Wavetrend® tags and readers.

L-Series tags provide ultra long read range
and are ideal for use in low tag density (< 30
tags per reader) operations such as
personnel tracking, small asset
management applications and access
control systems.

Multiple classes, allowing the user to
select shorter messaging packets for high
speed or high density application

Ordering & Further Information

For more information on purchasing the
Active TGP-A Tag please email
Wavetrend’s Sales team:

[e-mail]

For more information on Wavetrend® visit

1) This device may not cause harmful interference.

undesired operation.
