Wave Multimedia YUNTAB706 Users manual
1
User Manual
Brand: YUNTAB
Model:E706
2
Content
User Manual .................................................................................................................................... 1
Content............................................................................................................................................. 2
1 Introduction .................................................................................................................................. 4
1.1 Acknowledgement ............................................................................................................ 4
1.2 Announcements ............................................................................................................... 4
1.3 Safety Instruction ............................................................................................................. 4
1.4 Abbreviation/Terminology ............................................................................................... 6
2 MID Introduction .......................................................................................................................... 7
2.1 MID Operation and Preparation ..................................................................................... 7
2.2 MID Status and Reminder ......................................................................................... 7
3 Quick Start Guide ........................................................................................................................ 9
3.1 Keys Function ................................................................................................................... 9
3.2 Startup and Shutdown .................................................................................................... 9
3.3 Open and Close of the Screen .................................................................................... 10
3.4 Usage of Touch Screen ................................................................................................. 10
3.5 Home Page ..................................................................................................................... 11
3.6 Visit Application Procedures ......................................................................................... 13
3.7 USB Connection ............................................................................................................ 13
3.8 Typing words .................................................................................................................. 14
3.9 Operation Technique ..................................................................................................... 16
4 Basic Setting .............................................................................................................................. 16
4.1 Wireless and Internet .................................................................................................... 16

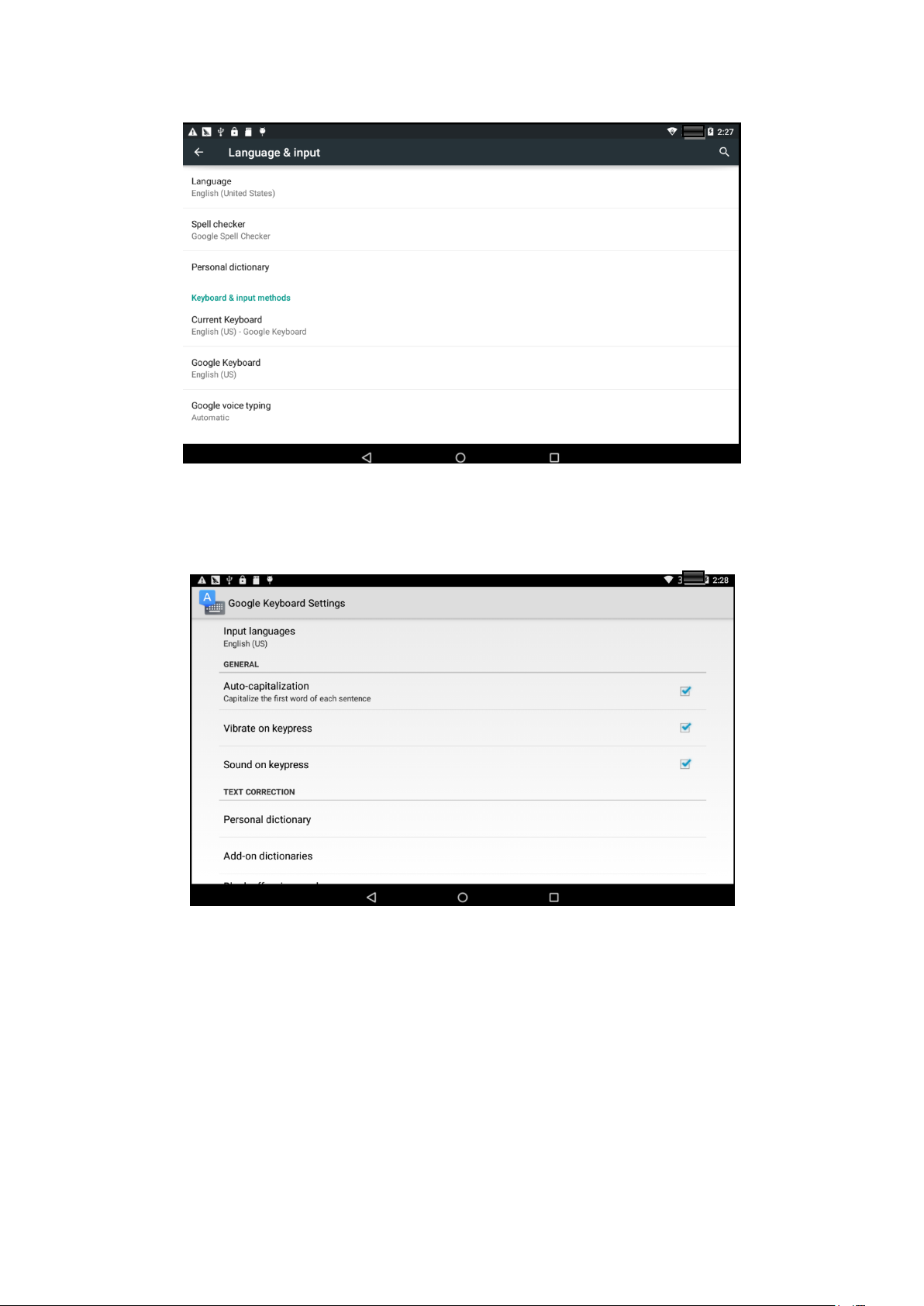

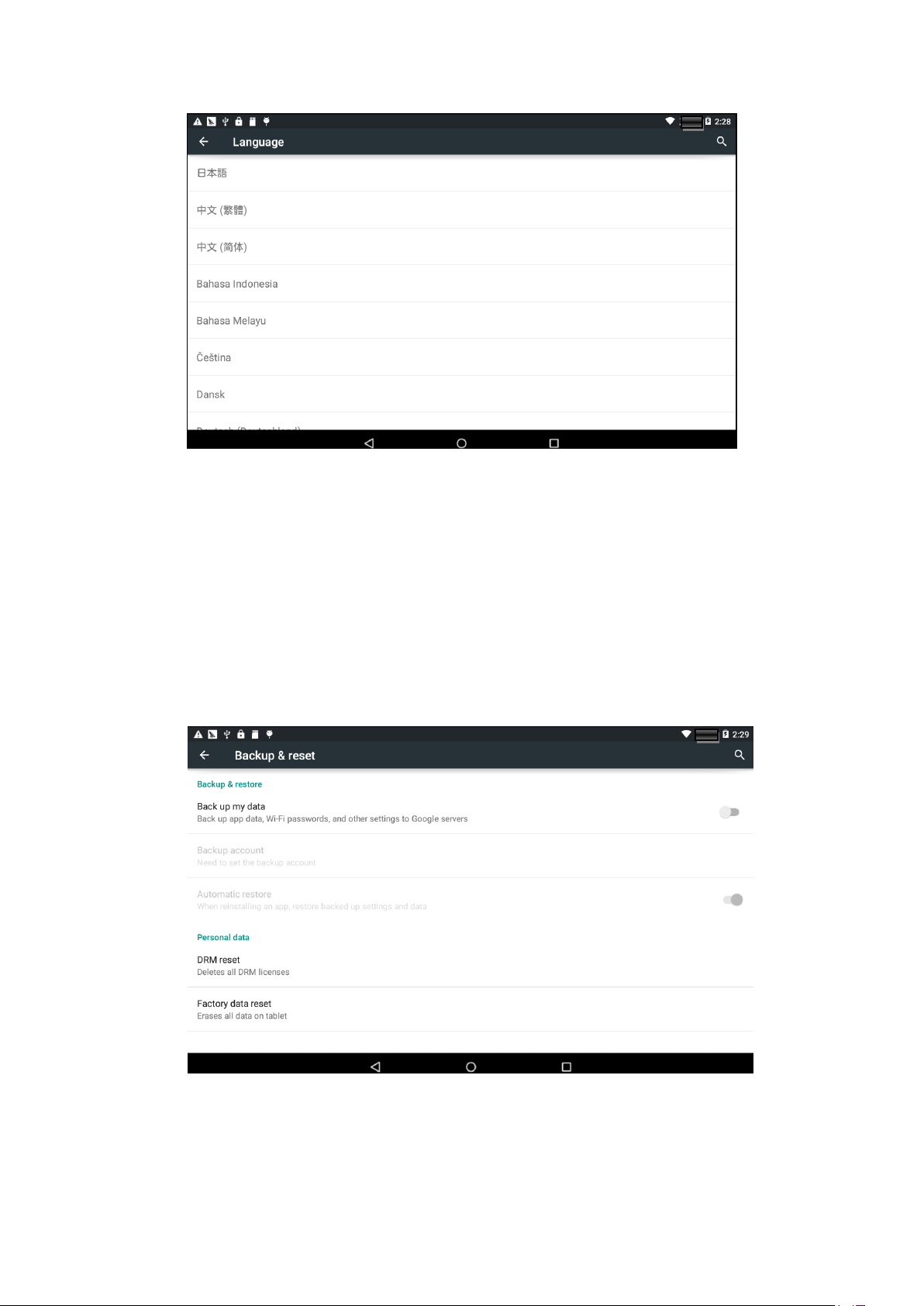

4.14 Language and Input Method ................................................................................... 33

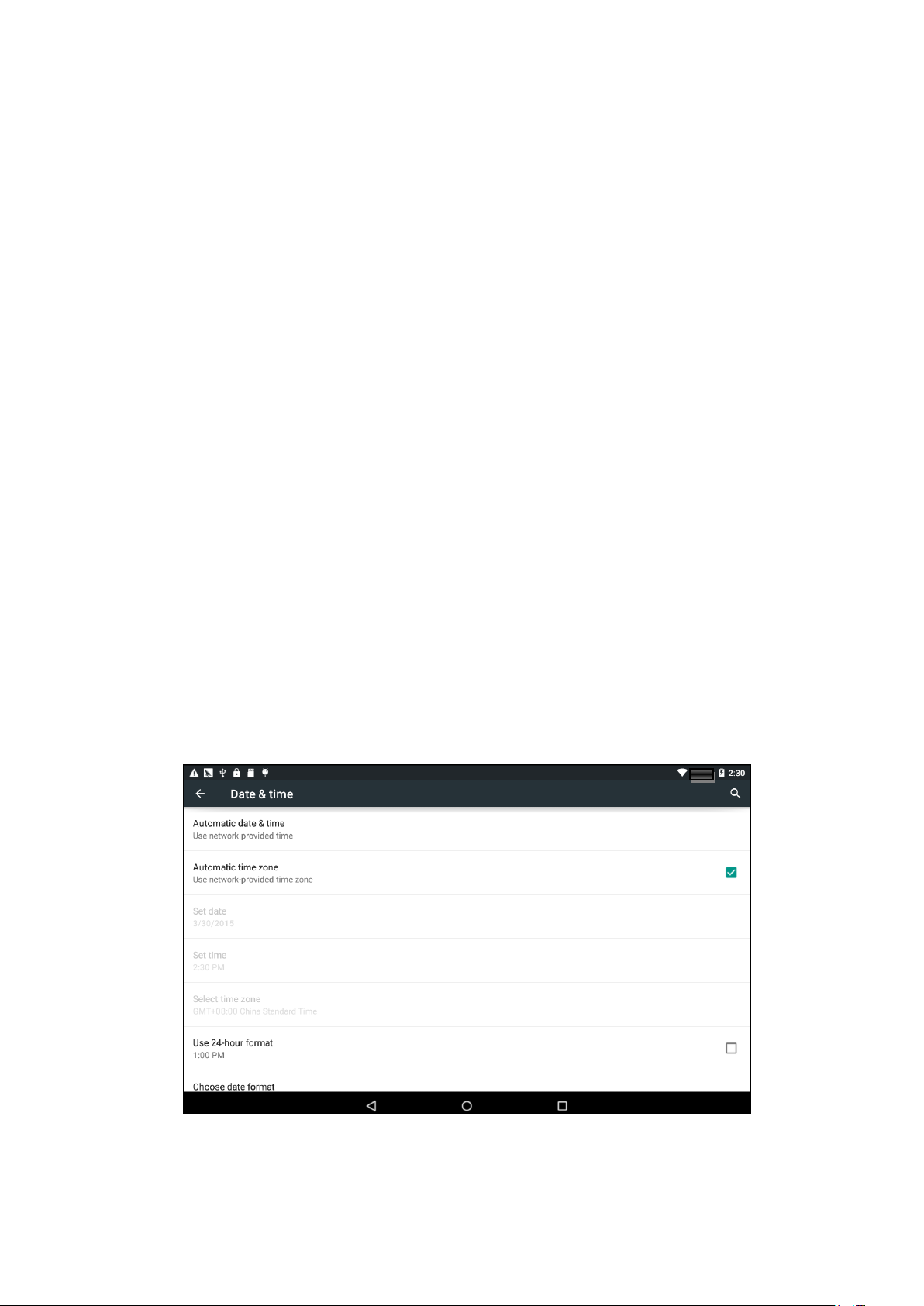

4.16 Date and Time .............................................................................................................. 36
5 Multi-Media ................................................................................................................................. 40
5.1 Music ............................................................................................................................... 40
5.2 Photo Gallery .................................................................................................................. 41
5.3 Camera ............................................................................................................................ 42
5.4 FM Radio ......................................................................................................................... 42
6 Communication Function ......................................................................................................... 45
6.2 Text Message ................................................................................................................. 45

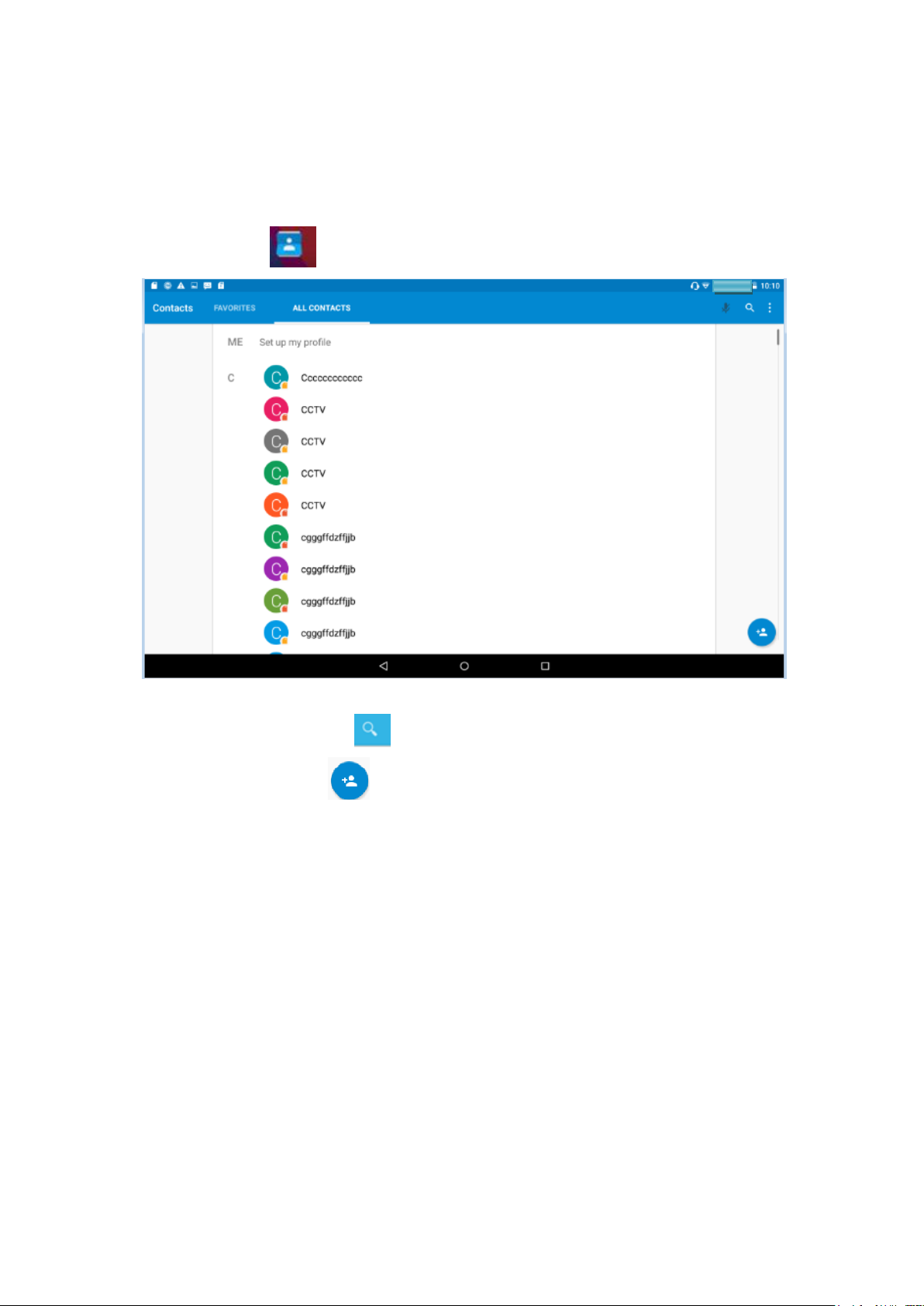

6.3 Contact List ..................................................................................................................... 46
7 Internet ........................................................................................................................................ 47

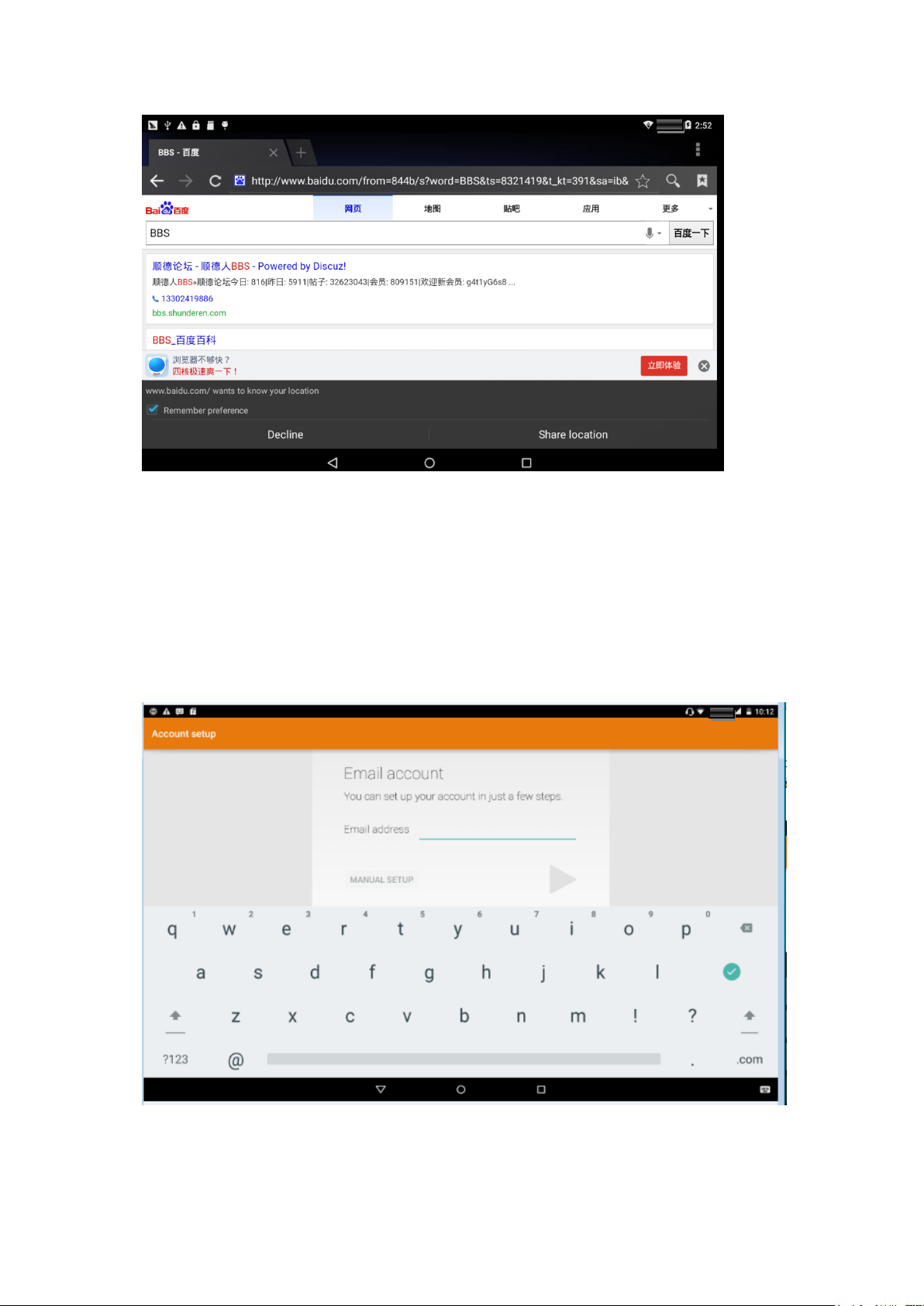

7.1 Browser ........................................................................................................................... 47

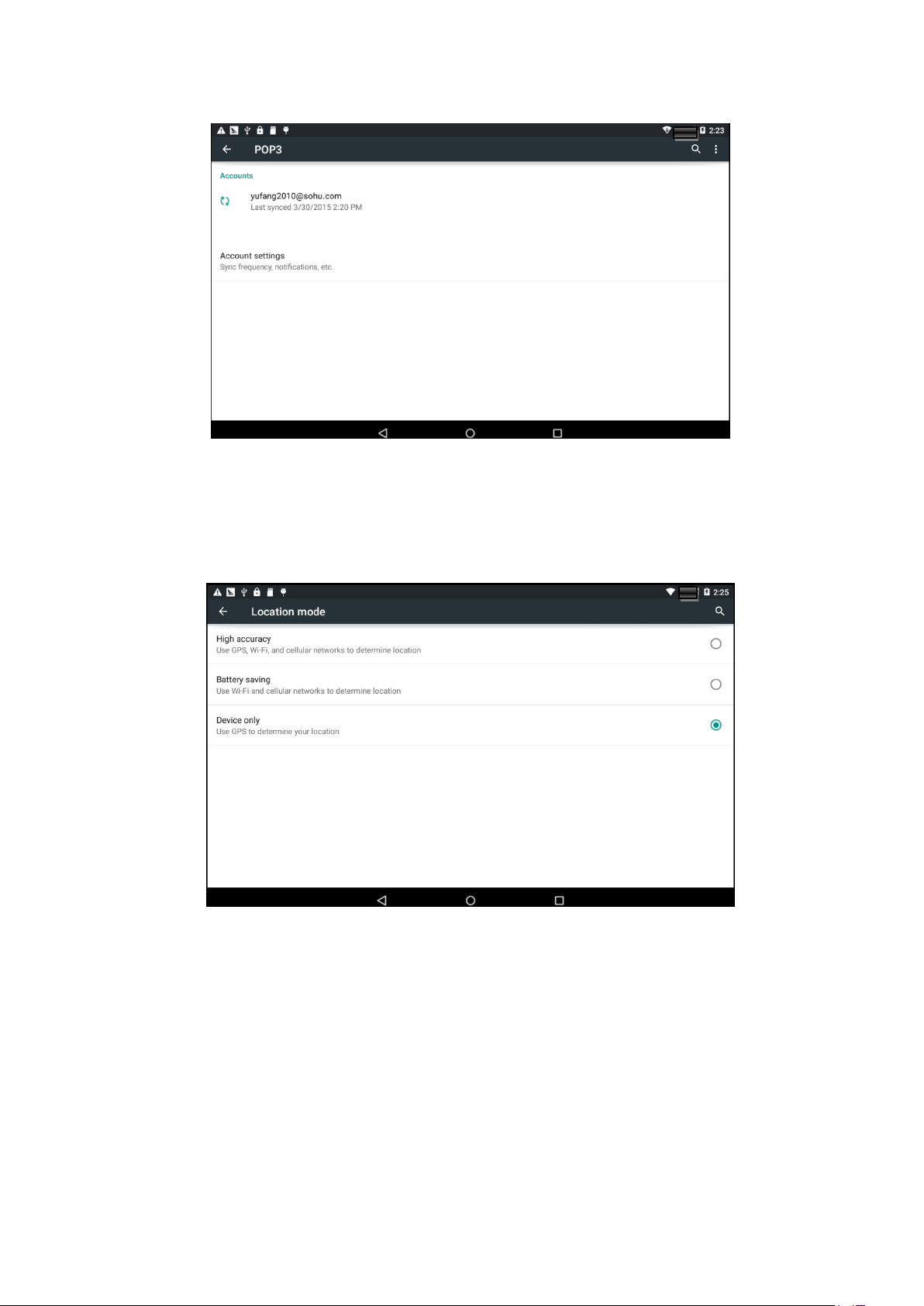

7.2 Email ................................................................................................................................ 48
8 Other Application Procedures ................................................................................................. 51
8.1 Clock ................................................................................................................................ 51
8.2 Calculator ........................................................................................................................ 51
8.3 File Manager ................................................................................................................... 52
9.4 Recorder ......................................................................................................................... 54
9 Installation of Procedures ........................................................................................................ 56
3
9.1 Installation ....................................................................................................................... 56
9.2 Uninstall ........................................................................................................................... 56
10 Troubles Shooting ................................................................................................................... 57
4
1 Introduction
1.1 Acknowledgement
Thanks for your purchase of our product. E706，is a 7 1inches high clear board
computer. Its CPU is MT8321, it is based on Android 5.1operation system, and easy to
expand the third application procedure.
The product is designed with various functions, including WIFI, so on. It is easy to
achieve wireless communication and internet, you have access to surf the internet
anytime and anywhere; so that it can be used for navigating through installing map
software. There are many sensors which offer you brand-new operation and
entertainment; besides, it has camera shooting, which leads electronic consumption to
enter into a fresh palm internet entertainment time.
The manual systemically introduces the functions, use techniques and
announcements, please read this manual carefully before your operation.
1.2 Announcements
Preventive maintainance
Please always keep the MID dry. To avoid the device short trouble, corrosion
fault and electric short, please prevent the device, battery and charger from
water and moisture, and don’t operate the device or charger by wet hand.
To avoid failure of device, battery and charger, please prevent the device,
battery, charger from violent shock or shake.
To avoid failure of device, battery and charger, please prevent the device,
battery, charger of all over heating or too cold circumstance
Never shock, throw, prod the MID, or drop, extrude, bend the MID.
Never disassemble the device and accessories arbitrarily, otherwise the device
and accessories are not in our company warranty scope.
1.3 Safety Instruction
Before the operation of the MID, please read this chapter and teach your kids about these
5
information. For further details, please refer to the safety instructions and announcement.
Never use the MID when driving car, in order to ensure safe driving.
In the medical area, please abide by related rules and regulations. Please
shut down the MID when it is near to the medical area.
To avoid the wireless signal to interrupt the plane- controlled signal, please
shut down the MID or using airplane mode when you are boarding a flight,
To avoid electronic equipment failure, please shut down the MID in the
vicinage of high-accuracy electronic equipments.
Please don’t disassemble the MID and accessories. Only authorized agent
has access to service the MID.
Please keep the MID far away from magnetic equipments, the radiation of
MID may erase the data stored in the magnetic equipments.
Never use the MID in the vicinage of high temperature, inflammable gas
( gas station).
Protect the MID and accessories from kids reach scope, and avoid the kids
to use the MID without parents’ supervision.
Please comply with related rules and regulations, and respect others’
privacy and legal rights while using the MID.
Please strictly adhere to related instructions in the manual when using USB
cable to ensure the safety of the MID or PC.
Never use the MID in bathroom or other humid environment, and please
protect the MID from liquid wash or wet.
6
Abbreviation/Terminolo
gy
Full Name
Description
MID
Mobile Internet Device
Mobile Internet Terminal
WIFI
Wireless Fidelity
Base on IEEE 802.11b standard
wireless LAN
T F
TransFlash
Alternative name Micro SD,super
miniature memory card
1.4 Abbreviation/Terminology
7
New email
Airplane Mode on
USB connected
USB debugging connected
Return button
Downloading
Display recently-used
application
Home button
Current electric
volume.
WIFI connected, internet is
available
2 MID Introduction
2.1 MID Operation and Preparation
Battery Charging
If this navigator is first used, please use AV adaptor to fully charge it.
1. Apply the power adptor to charge for MID.
2.2 MID Status and Reminder
Reminder icons
When some remind message appears in your reminder window, please click column
and slip the screen to open the reminder list. Choose the menu you need, and confirm the
information. Then you can close the reminder window through clicking the column to slide
up. Please refer to below status icons:
Reminder board
Reminder icons will work while receiving emails, WIFI is open, you can open the
reminder board to view the detailed information.
Open the reminder board
8
When the reminder column shows new reminder icon, please hold the column and slip
down your finger, then the reminder board is opened.
9
Power button
Short press to sleep/wake up, long press to startup
and shutdown.
Volume +（up）
increase the volume
Volume -（down）
decrease the volume
HOME button （ home ）
Click it in any interface will return to main interface.
Back button（back）
click it in any interface will return to previous menu
Menu button
This button will display in menu interface.
Setting button
display recently browsed history
3 Quick Start Guide
3.1 Keys Function
Keys Funcction Description：
3.2 Startup and Shutdown
Startup
Long press POWER key for three seconds, you can enter into startup picture. The
system enters into screen lock status, please unlock it.
Shutdown
1． Long press POWER, it will popoup shutdown window.
2． Shutdowm window contains mute mode, airplane mode,reboot mode and
shutdown four options.
3． Click Shutdown is the last step.
10
3.3 Open and Close of the Screen
Screen will be closed on its own when no operation happens.
1. Screen will be closed on its own if no operation happens for some time to save
battery power
2. When screen is open, press POWER key, the screen will be closed
immediately.
Open the screen when it is closed.
If the screen is closed, short press POWER to open the screen. The screen will be
locked open it, it will show the picture as below picture, left slide to unlock and enter into
camera, right slide the unlock icon to unlock the screen.
Picture 3.1
3.4 Usage of Touch Screen
MID operating methods
There are below methods to view the main screen, menu and application procedure in
your MID.
Click
When you want to use the screen keyboard typing or choose application in the main
interface, you only need to touch it by your finger.
Press on
11
display recently browsed
history
Home
return
time
Batty volume
Notice
column
If you want to open some item( textbox or the link in the webpage), or shortcut and main
procedure move, you can press on this item.
Quickly slide or slide
Quickly slide or slide indicates make quick vertical or horizoncial movement by finger.
Pull
Before you pull, you need to hold the it with strenghth until you pull it into the position you
want.
Rotate
For most pictures, you only need to retate the MID sidewise to change the screen
direction from horizoncial to vertical. For instance, when you are typing wods, and
watching movies.
3.5 Home Page
Main interface as below picture 3.2, long press the blank and it will popup windows to set
wallpaper, folder, widgets, and shortcut.
Picture 3.2
The extended home page
The home page can be extended beyond the wideness of screen to provide more
12
space, which you can put new-added shortcuts and widgets. Click the blank space
in home page then slide right or left to extend to the right or left of the screen. In the
home page, there are two extended pictures, as Picture 3.3.
Picture 3.3
The shortcut icons management in desktop application.
Create folder icon in desktop
1. Drag the icons need to be put together on one icon(can also overlay
several icons)as Picture 3.4.
2. Then click the overlayed icons, the applications can be folded, as Picture
3.5.
Click the unnamed folder in the black box, it will popup the hidden keyboard, the folder
name can be renamed (this is similiar with Apple IOS system), the icons position can be
changed through long press.
Picture 3.5
Remove the icons in desktop
1. Long press the icons need to be remove, then on the right above of the
screen, it will appear icons.
2. Drag the icon to the above of the remove icon, till the icon become red, then
move your finger to delete the icon.
Change the wallpaper of desktop
13
Return to
home page
1． In home page, long press any blank space in main screen, it will popup a
window to change the wallpaper.
2． Click the gallery or wallpaper gallery to select the wallpaper.
3.6 Visit Application Procedures
Click in right top of Picture 3.2, enter into main interface as Picture 3.6,
choose the application procedure you want to visit.
Picture 3.6
3.7 USB Connection
MID storage configuration
Before transmitting documents, you have to conduct storage configuration for your MID:
1. Connect the MID and computer by USB cable, the reminder column will show the
remind information.
2. Open the reminder board; please view the MID status and reminder to learn how
to open the board.
3. In the reminder board, click the “USB Connected”, it will as below Picture 3.4,
then click “open USB storage configuration”.
4. Now the USB is connected successfully.
14
Picture 3.7
Copy the document into memory card
1. Connect the MID to computer with USB cable.
2. As MID storage configuration, it is connected with computer successfully.
3. Open the “My computer” in your computer, check the items in “removable disc”.
4. Copy the documents you need into “removable disc”.
5. After copying finishes, click “shutdown the USB storage configuration” to uninstall.
Notice: When the MID is connected with USB cable, and you open the USB storage
configuration, you can’t view the memory card through the MID. Only after you detach
the USB cable, you can view the memory card in the MID.
3.8 Typing words
Use the screen keyboard
When you start the procedure or choose the words or numbers edition, it will show
the screen keyboard. The keyboard contains below typing options:
1. Android keyboard
2. Google Pinyin
Choose the typing method you want
1. Click Setting pocedure application.
15
1
switch the capital and small letter
2
switch the mode of words input
3
click to insert the space
4
click input to execute
5
delete the character in the left of cursor, click and hold to delete
all the characters in the left og the cursor.
①
②
③
⑤
④
2. Click Language and Keyboard.
3. In the text setting area will reveal all the installed words-typing methods in your
MID.
4. Tick the typing method you want.
Use and switch of input method
Picture 3.8
16
3.9 Operation Technique
Enter widgets interface
In the application interface,click widgets on the above of screen, or slide the
screen, it will swtich into widgets interface. Long press any widget to create its
shortcut, then you can enter into the application through the shortcut icon.
Create application shortcut icons in the desktop
In the application interface or widgets interface, long press any icon to switch
into desktop automatically, drag and hold the icon, you can move to any
position in the desktop.
Remind: If the target position has no space, the widget won’t be add in the main
screen.
4 Basic Setting
4.1 Wireless and Internet
1. Connect Wi-Fi
1) In the main menu or interface, choose setting application procedure.
2) Click WLAN, open wifi, MID will automatically search the available Wifi
wireless internet. As Picture 4.3
3) Choose the Wi-Fi internet you want to connect, if it has password, it will
popup the password window, enter password, click connect.
17
Picture 4.3
2. Add Network
1) Click icon in right top, as Picture 4.4
Picture 4.4
2) Input network SSID, the wireless network name, click save.
3) Click user name already saved, click connect to use network, as Picture
4.5
18
Picture 4.5
3. Network Notice
If you open Network Notice, when WIFI signal appears, the right bottom will
remind you available WLAN network, as Picture 4.3
4. Keep WI-FI on during sleep..
1. Click icon in right top of Picture 4.6, select advanced.
2. Click Keep WI-FI on during sleep, as Picture 4.7
Picture 4.7
Loading...
