WaveMark SW1500 User Manual

WaveMark SmartWand SW1500 RFID/Barcode Reader

WaveMark SmartWand

Power Supply

Tether

Plug Kit

Power slide switch

The WaveMark SmartWand SW1500 Portable RFID/Barcode Reader Kit comprises the following
components:

1. WaveMark SmartWand (WaveMark 01-0029-R)

2. Power Supply/charger (WaveMark 90-0094-R)

3. International Plug kit for Power Supply (WaveMark 90-0095-R)

4. Tether strap (WaveMark 90-0096-R)

5. Software (please see your WaveMark representative for appropriate software applications)

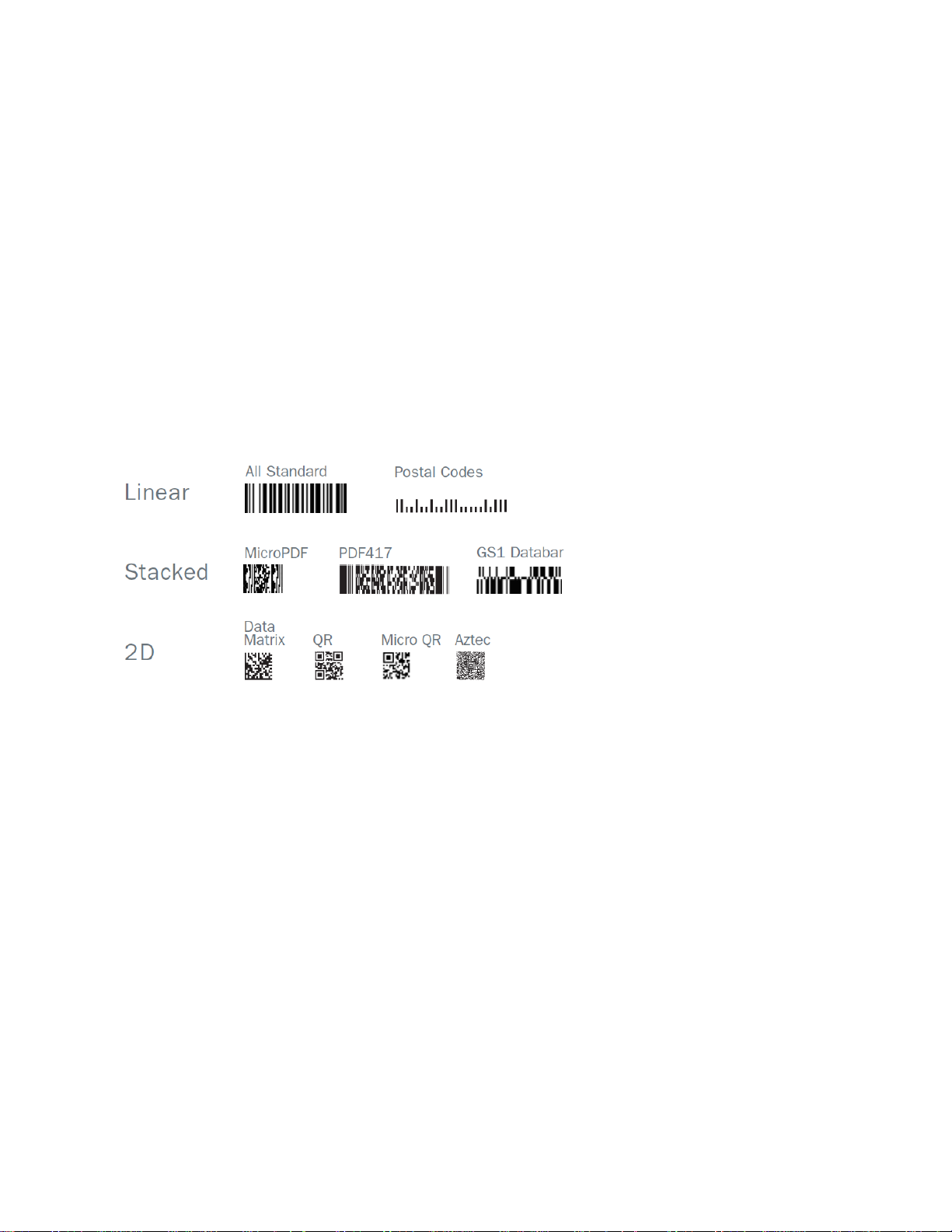

The WaveMark SmartWand is a battery-operated RFID/Barcode reader and is equipped with a
rechargeable battery pack that is capable of running the reader for one 8-hour shift (50% RFID
duty-cycle) on a full charge. The battery pack is based upon Lithium Ion cells, nominally 7.4VDC.
The SmartWand battery pack is shipped to the customer pre-installed in the WaveMark
SmartWand and is partially charged when shipped.

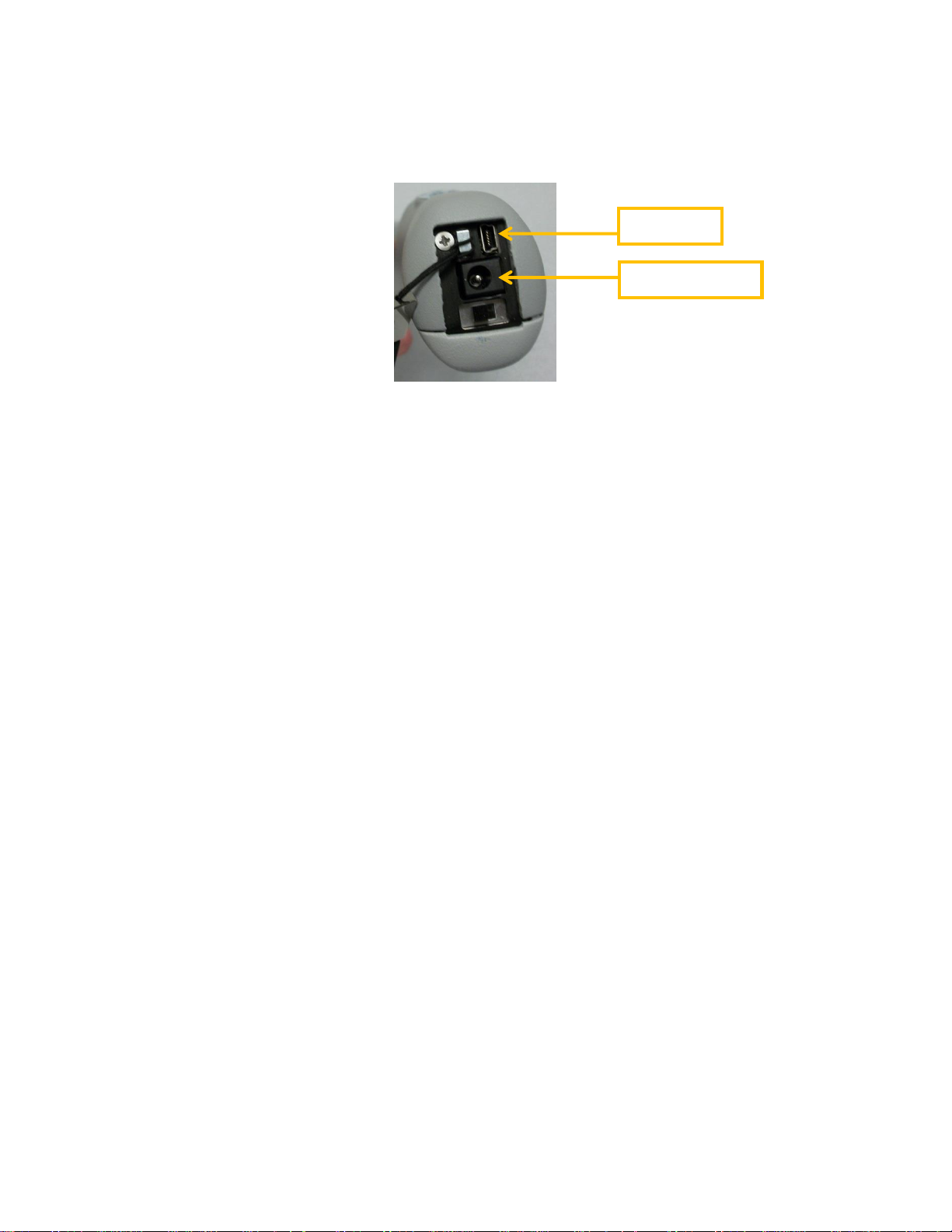

The WaveMark SmartWand has a power slide switch on the back.

WaveMark Document 97-0009 Rev B

When the switch is in the left position, the WaveMark SmartWand is off. Slide the switch to the

Power Light

Bluetooth® Light

RFID Light

right to turn it on. A green or orange power light on the control panel will light if the device is on:

 Steady Green power light: WaveMark SmartWand is charged to over 50%.
 Steady Orange power light: WaveMark SmartWand is charged to between 20% and 50%.
 Flashing Orange power light: WaveMark SmartWand is operating on low charge (less than

20%).

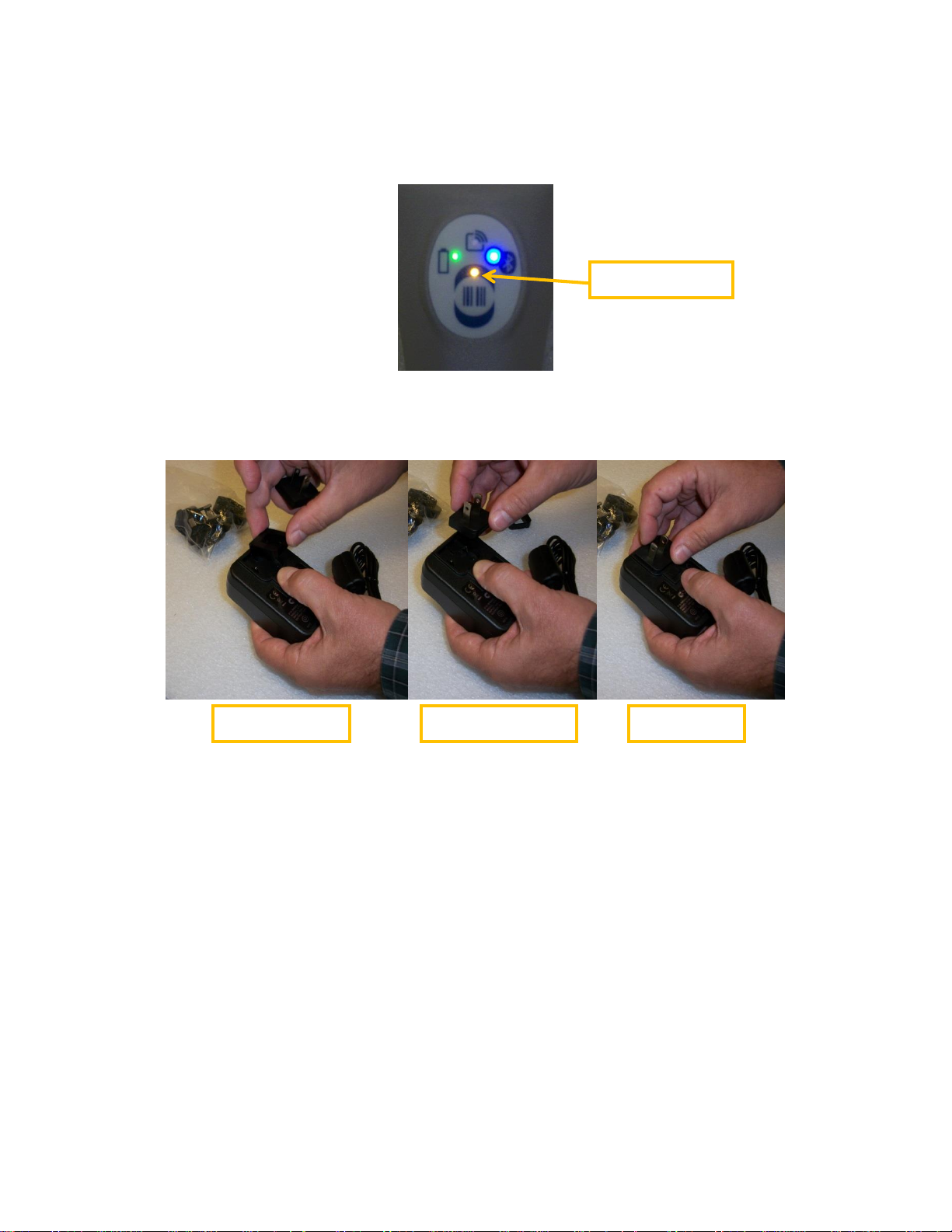

The control panel has 3 other lights:

 Bluetooth® blue light (solid blue when device is paired to a host, brief flash when

communication to host is in process).

 Yellow RFID light (solid yellow when RFID reader function is operational and seeking RFID

tags, brief flash when RFID tags are read).

WaveMark Document 97-0009 Rev B
