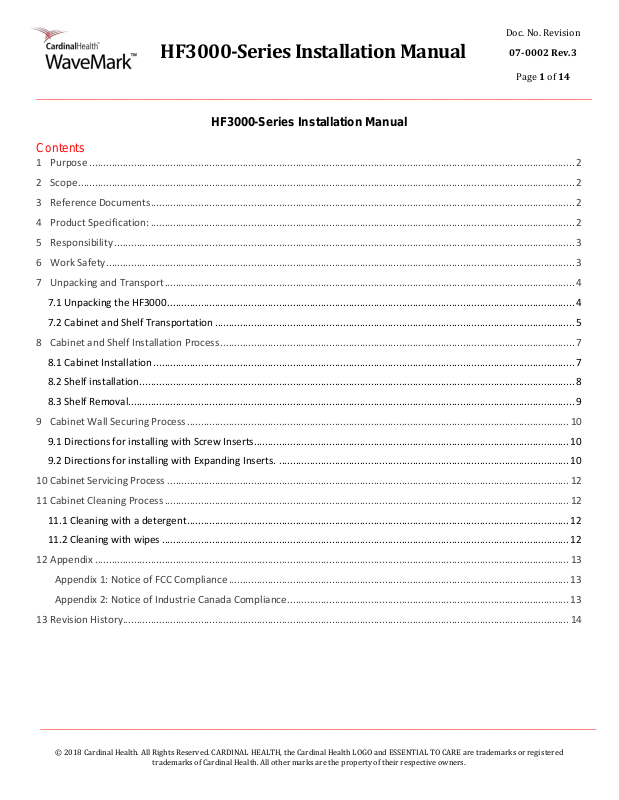

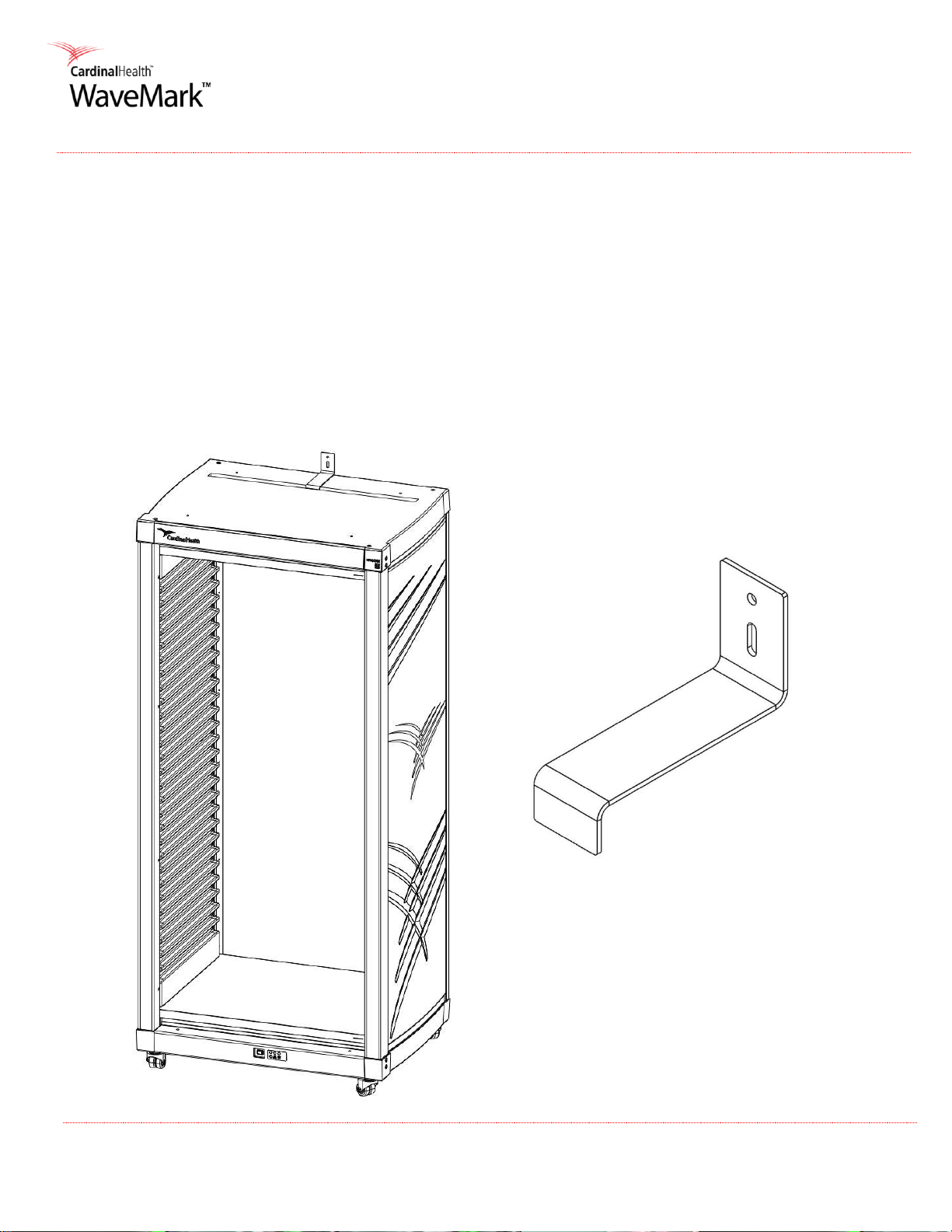

WaveMark HF3000 User Manual
HF3000-Series Installation Manual
Doc. No. Revision
07-0002 Rev.3
Page 1 of 14
HF3000-Series Installation Manual
Contents
1 Purpose .............................................................................................................................................................................. 2
2 Scope .................................................................................................................................................................................. 2
3 Reference Documents ........................................................................................................................................................ 2
4 Product Specification: ........................................................................................................................................................ 2
5 Responsibility ..................................................................................................................................................................... 3
6 Work Safety ........................................................................................................................................................................ 3
7 Unpacking and Transport ................................................................................................................................................... 4
7.1 Unpacking the HF3000 .................................................................................................................................................. 4
7.2 Cabinet and Shelf Transportation ................................................................................................................................. 5
8 Cabinet and Shelf Installation Process ............................................................................................................................... 7
8.1 Cabinet Installation ....................................................................................................................................................... 7
8.2 Shelf installation ............................................................................................................................................................ 8
8.3 Shelf Removal................................................................................................................................................................ 9
9 Cabinet Wall Securing Process ......................................................................................................................................... 10
9.1 Directions for installing with Screw Inserts................................................................................................................. 10
9.2 Directions for installing with Expanding Inserts. ........................................................................................................ 10
10 Cabinet Servicing Process ................................................................................................................................................ 12
11 Cabinet Cleaning Process ................................................................................................................................................. 12
11.1 Cleaning with a detergent ......................................................................................................................................... 12
11.2 Cleaning with wipes .................................................................................................................................................. 12
12 Appendix .......................................................................................................................................................................... 13
Appendix 1: Notice of FCC Compliance .......................................................................................................................... 13
Appendix 2: Notice of Industrie Canada Compliance ..................................................................................................... 13
13 Revision History ................................................................................................................................................................ 14
© 2018 Cardinal Health. All Rights Reserved. CARDINAL HEALTH, the Cardinal Health LOGO and ESSENTIAL TO CARE are trademarks or registered
trademarks of Cardinal Health. All other marks are the property of their respective owners.
HF3000-Series Installation Manual
Doc. No. Revision
07-0002 Rev.3
Page 2 of 14
Power Brick
100-240 VAC, 1.5A Max, 50-60 Hz, power supply is rated to IEC/EN/UL-62368-1
and IEC/EN/UL-60601-1 (medical grade).
Cabinet Power
AC Cable
12.5V DC, 7.2A
The cabinet is supplied with a power cable.
Fuse
None
Environment
Operating environment between 50 and 90 degrees F (10C – 32C), noncondensing; must be installed in an environment free of corrosive agents and
excessive dust
Size
78 inches high by 36 inches wide by 27 inches deep
Weight
Weight in lbs.
Without Doors
With Doors
Base Cabinet with 2 shelves
160
220
Cabinet with 3 shelves
175
235
Cabinet with 4 shelves
190
250
Cabinet with 5 shelves
205
265
Cabinet with 6 shelves
220
280
Cabinet with 7 shelves
235
295
Cabinet with 8 shelves
250
310
Cabinet with 9 shelves
265
325
Cabinet with 10 shelves
280
340
Cabinet with 11 shelves
295
355
Weight Capacity
The weight capacity of each shelf if 25 lbs.
Network
Auto-select 10/100Mbps Ethernet
1 PURPOSE
This procedure describes the specifications, installation steps, and regulatory information for
the HF3000-series SmartCabinet.
2 SCOPE
This procedure applies to installation of HF3000-series SmartCabinets
3 REFERENCE DOCUMENTS
None
4 PRODUCT SPECIFICATION:
© 2018 Cardinal Health. All Rights Reserved. CARDINAL HEALTH, the Cardinal Health LOGO and ESSENTIAL TO CARE are trademarks or registered
trademarks of Cardinal Health. All other marks are the property of their respective owners.
HF3000-Series Installation Manual
Doc. No. Revision
07-0002 Rev.3
Page 3 of 14
Activity
Responsible Party
Shipping
WaveMark
Receiving
Customer
Unpacking
Customer
Moving Cabinet and Shelves from Receiving to Department
Customer
Training on shelf installation and shelf movement
WaveMark
Shelf Installation
Customer
Placing Inventory on shelves
Customer
Connecting cabinet to power and Ethernet
Customer
Installing wall bracket
Customer
In order to assure that equipment is installed in a safe manner and in compliance
with installation guidelines only trained personnel are authorized to activate or
service cabinets. This product contains no user-serviceable components.
5 RESPONSIBILITY
6 WORK SAFETY
It is our highest priority that all field installations comply with the company’s installation and safety
procedures and any safety procedures in place at the location of installation.
© 2018 Cardinal Health. All Rights Reserved. CARDINAL HEALTH, the Cardinal Health LOGO and ESSENTIAL TO CARE are trademarks or registered
trademarks of Cardinal Health. All other marks are the property of their respective owners.
HF3000-Series Installation Manual
Doc. No. Revision
07-0002 Rev.3
Page 4 of 14
Step 1
Prior to unpacking the cabinets, inspect all packing for shipping damage. Take pictures of
any observed damage and immediately report to WaveMark Customer Support toll free at
877.492.8362 or email support@wavemark.com. Include all relevant pictures, a brief
description of damage, as well as cabinet serial number.
Note: Side marked “Ramp” must be facing out with 10ft (3 meters) of clearance to
accommodate ramp and cabinet unloading.
Step 2
Cut and remove strapping. Remove outer layers of packaging and discard. Be careful not
to damage the cabinet when cutting the packaging.
Step 3
Lower ramp:
1. Remove packing foam from ramp.
2. Lift the wooden ramp out of the groove and position ramp by inserting pin on the
ramp into the hole on the pallet. The edge of the ramp should sit flat against the
crate edge.
Step 4
With one person holding each side of the cabinet, guide cabinet down the ramp to the floor.
Step 5
Inspect the cabinet for damage. Take pictures of observed damage and immediately
report to WaveMark Customer Support toll free at 877.492.8362 or email
support@wavemark.com. Include all relevant pictures, a brief description of damage, as
well as cabinet serial number.
Don’t proceed with the installation of any damaged cabinet.
Step 6
If required, clean the cabinet exterior following procedure in Section 11.
7 UNPACKING AND TRANSPORT
NOTE: Two people are required to move the cabinet from the shipping container to its final location.
Cabinet contains sensitive electronic components. Take care in moving the cabinet from the
shipping container.
7.1 Unpacking the HF3000
© 2018 Cardinal Health. All Rights Reserved. CARDINAL HEALTH, the Cardinal Health LOGO and ESSENTIAL TO CARE are trademarks or registered
trademarks of Cardinal Health. All other marks are the property of their respective owners.
HF3000-Series Installation Manual
Doc. No. Revision
07-0002 Rev.3
Page 5 of 14
Step 1
Identify cabinet location and locate nearest electrical outlet and network jack.
Confirm that the cabinet location is free from airborne corrosive agents, excessive dust or
dripping water. The floor should be level and dry
Step 2
Before moving a cabinet to its location, walk the route to identify obstructions such as signs,
door frames, or flooring issues such as elevator thresholds that might be a problem for the
cabinet wheels.
The cabinet is designed to be rolled over smooth flooring; the cabinet should never
be tilted, placed on its side, or rolled across parking lots.
Step 3

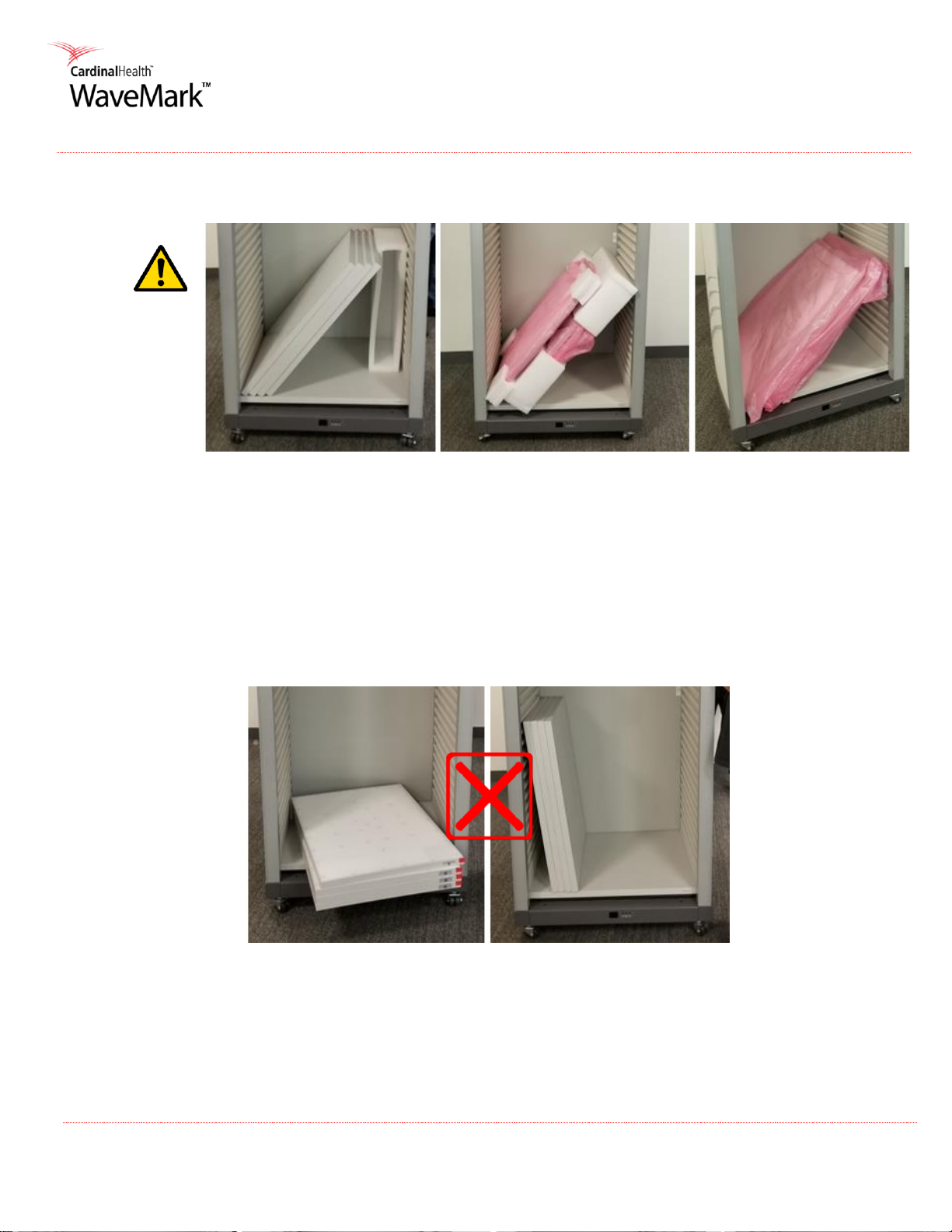

Except for the top and bottom shelves, cabinet shelves will be shipped separately from the
cabinet. Remove shelves from their shipping containers and carefully place on the bottom
shelf for transport.
Shelves should first be placed vertically and then tilted gently to create points of contact with
both side walls. This reduces the risk of the shelves being damaged during transport inside
the hospital facility.
7.2 Cabinet and Shelf Transportation
© 2018 Cardinal Health. All Rights Reserved. CARDINAL HEALTH, the Cardinal Health LOGO and ESSENTIAL TO CARE are trademarks or registered
trademarks of Cardinal Health. All other marks are the property of their respective owners.
