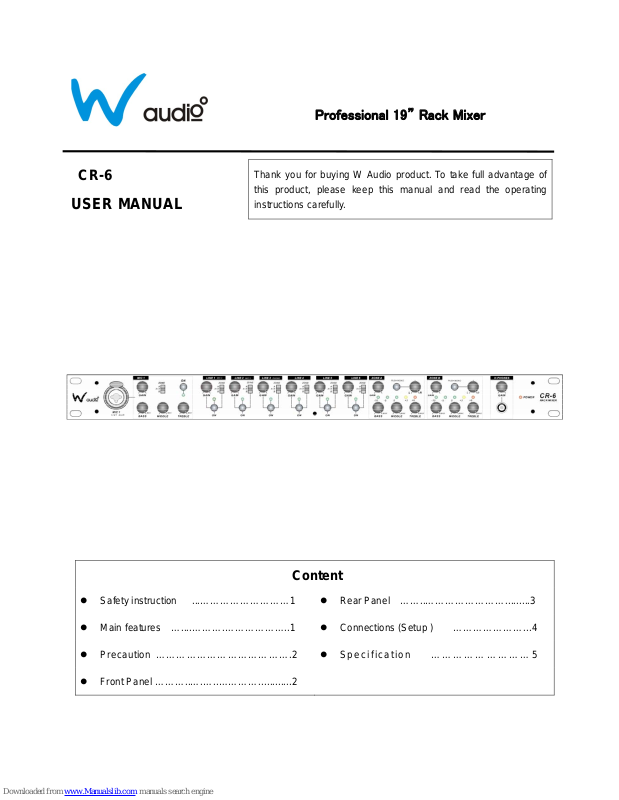

W Audio CR-6 User Manual

Professional 19” Rack Mixer

CR-6

USER MANUAL

Thank you for buying W Audio product. To take full advantage of
this product, please keep this manual and read the operating
instructions carefully.

Content

z Safety instruction ...………………………1 z Rear Panel ……..…………………….........3

z Main features …....……….………………..1 z Connections (Setup ) …………………...4

z Precaution ………………………………….2 z Specification ………………………5

z Front Panel ………..….…..…………............2

CR-6 PROFESSIONAL 19” RACK MIXER USER MANUAL PAGE 1/5 V-1

1. Safety Instructions

The lighting flash with arrowhead symbol, with in an equilateral triangle, is intended to alert the

user to the presence of uninsulated “dangerous voltage “ within the product’s enclosure that may be of
sufficient magnitude to constitute a risk to persons.

The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of

important operating and maintenance ( servicing) instructions in the literature accompanying the appliance.

1.) Caution: To avoid the risk of electric shock, do not remove the cover. No user serviceable parts inside.

2.) To prevent fire or shock hazard, do not expose the unit to rain or moisture. Do not place metal objects or
spill liquid inside the unit; electric shock or malfunction may result.

3.) Don’t cover any ventilation slots as this may result in overheating. Always install the unit in a well

ventilated place. Avoid presence of heat sources, and avoid places which are dusty and humid.

4.) The power cord of the unit should be unplugged from the outlet when left unused for long periods of time.

5.) Do not attempt to repair the unit by yourself. Service or repair should be by qualified personnel only.

2．Main features

The CR-6 is a user friendly mixer specially designed for professional installations. With full versatility, the
19” rack mixer is perfect for discotheques, clubs, theatres, etc.

The rack mixer features:

z Six lines, one phono, three microphone inputs
z Mic 1 is equipped with auto-ducking, sensitivity adjustment, delay time, EQ, and gain control
z Balanced mic inputs on front and rear panels
z Simple on/off switches on front panel
z Dual zone assign for all inputs
z Two zone outputs with gain, pan, EQ, and stereo/mono adjustment
z Both zones have unbalanced and balanced outputs with master gain reduction
z Headphone output with volume control
z Power adapter with 3-way multipole connector
