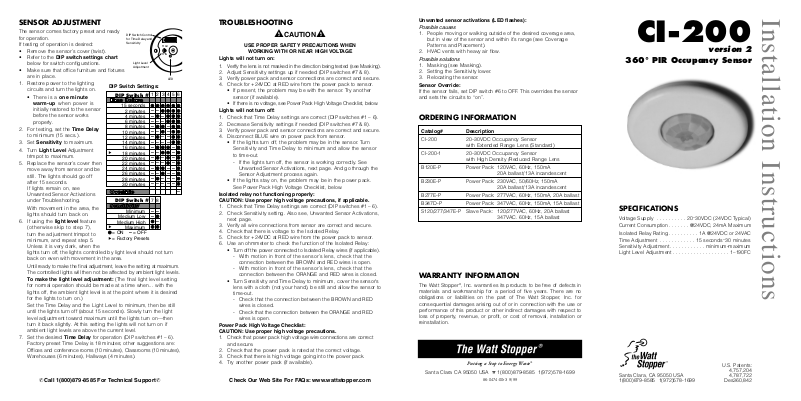

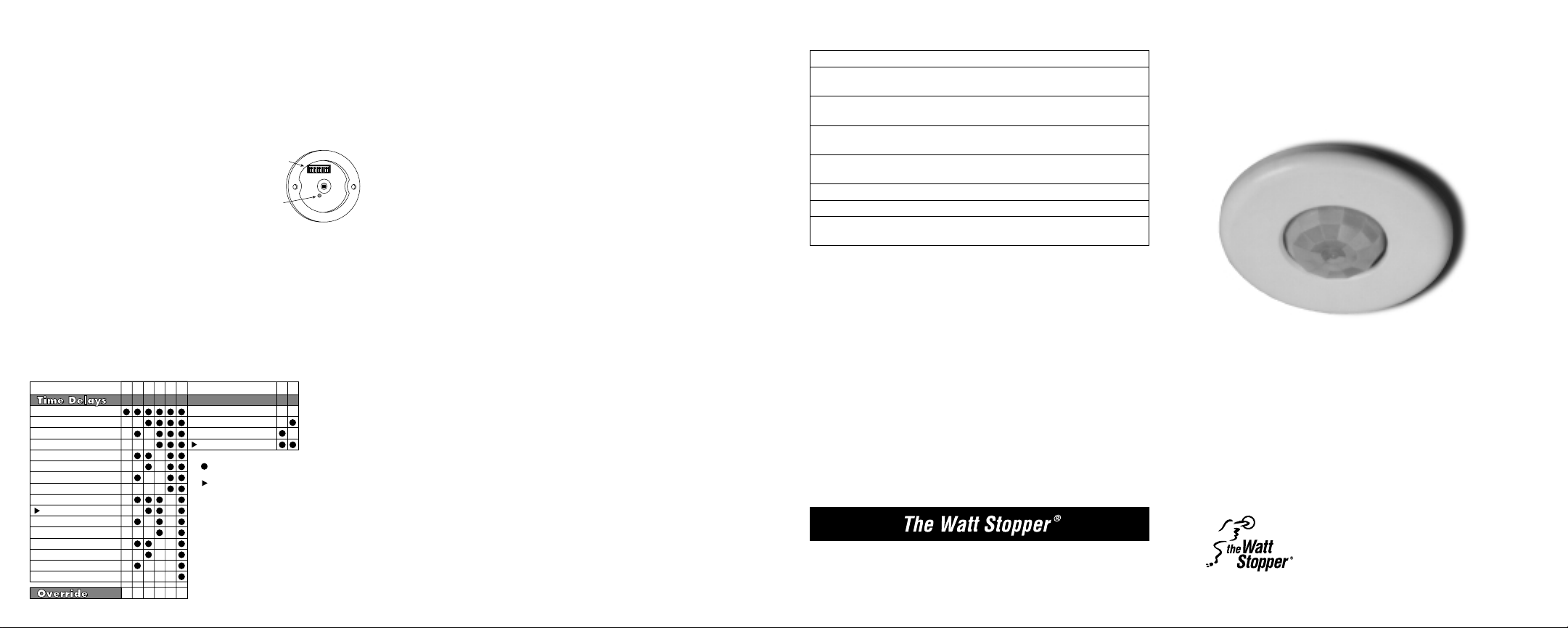

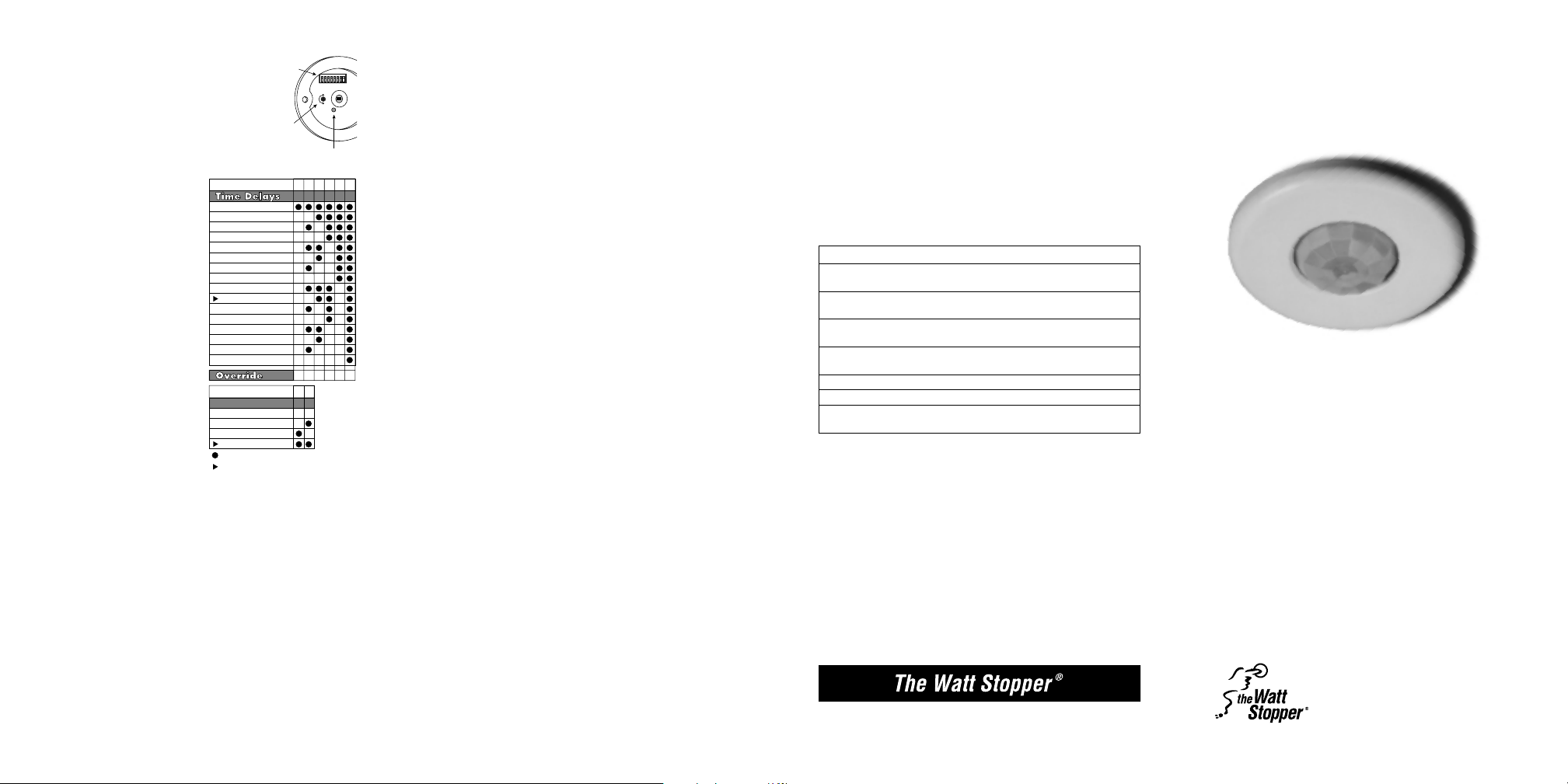

Page 1
SENSOR ADJUSTMENT
LED
Light Level
Adjustment
DIP Switch Control
for Time Delay and
Sensitivity
MAX
MIN
The sensor comes factory preset and ready
for operation.
If testing of operation is desired:
• Remove the sensor’s cover (twist).
• Refer to the DIP switch settings chart
below for switch configurations.
• Make sure that office furniture and fixtures
are in place.
1. Restore power to the lighting
circuits and turn the lights on.
• There is a one minute
warm-up when power is
initially restored to the sensor
before the sensor works
properly.
2. For testing, set the Time Delay
to minimum (15 secs.).
3. Set Sensitivity to maximum.
4. Turn Light Level Adjustment
trimpot to maximum.
5. Replace the sensor’s cover then
move away from sensor and be
still. The lights should go off
after 15 seconds.
If lights remain on, see
Unwanted Sensor Activations
under Troubleshooting.
With movement in the area, the
lights should turn back on.
6. If using the light level feature
(otherwise skip to step 7),
turn the adjustment trimpot to
minimum, and repeat step 5.
Unless it is very dark, when the
lights turn off, the lights controlled by light level should not turn
back on even with movement in the area.
Until ready to make the final adjustment, leave the setting at maximum.
The controlled lights will then not be affected by ambient light levels.
To make the light level adjustment: (The final light level setting
for normal operation should be made at a time when... with the
lights off, the ambient light level is at the point where it is desired
for the lights to turn on.)
Set the Time Delay and the Light Level to minimum, then be still
until the lights turn off (about 15 seconds). Slowly turn the light
level adjustment toward maximum until the lights turn on—then
turn it back slightly. At this setting the lights will not turn on if
ambient light levels are above the current level.
7. Set the desired Time Delay for operation (DIP switches #1 – 6).
Factory preset Time Delay is 18 minutes; other suggestions are:
Offices and conference rooms (10 minutes), Classrooms (10 minutes),
Warehouses (6 minutes), Hallways (4 minutes).
✆Call 1(800)879-8585 For Technical Support✆
DIP Switch Settings:
DIP Switch #
15 seconds
2 minutes
4 minutes
6 minutes
8 minutes
10 minutes
12 minutes
14 minutes
16 minutes
18 minutes
20 minutes
22 minutes
24 minutes
26 minutes
28 minutes
30 minutes
DIP Switch #
Sensitivity
Minimum
Medium Low
Medium High
Maximum
= ON – = OFF
= Factory Presets
1234
56
––
––
–––
––
–– –
–––
––––
––
–– –
–––
––– –
–––
–– ––
––––
–––––
78
–––
–
–
TROUBLESHOOTING
≠CAUTION≠
USE PROPER SAFETY PRECAUTIONS WHEN
Lights will not turn on:
1. Verify the lens is not masked in the direction being tested (see Masking).
2. Adjust Sensitivity settings up if needed (DIP switches #7 & 8).
3. Verify power pack and sensor connections are correct and secure.
4. Check for +24VDC at RED wire from the power pack to sensor.
Lights will not turn off:
1. Check that Time Delay settings are correct (DIP switches #1 – 6).
2. Decrease Sensitivity settings if needed (DIP switches #7 & 8).
3. Verify power pack and sensor connections are correct and secure.
4. Disconnect BLUE wire on power pack from sensor.
Isolated relay not functioning properly:
CAUTION: Use proper high voltage precautions, if applicable.
1. Check that Time Delay settings are correct (DIP switches #1 – 6).
2. Check Sensitivity setting. Also see, Unwanted Sensor Activations,
3. Verify all wire connections from sensor are correct and secure.
4. Check that there is voltage to the Isolated Relay.
5. Check for +24VDC at RED wire from the power pack to sensor.
6. Use an ohmmeter to check the function of the Isolated Relay:
Power Pack High Voltage Checklist:
CAUTION: Use proper high voltage precautions.
1. Check that power pack high voltage wire connections are correct
2. Check that the power pack is rated at the correct voltage.
3. Check that there is high voltage going into the power pack.
4. Try another power pack (if available).
WORKING WITH OR NEAR HIGH VOLTAGE
• If present, the problem may be with the sensor. Try another
sensor (if available).
• If there is no voltage, see Power Pack High Voltage Checklist, below.
• If the lights turn off, the problem may be in the sensor. Turn
Sensitivity and Time Delay to minimum and allow the sensor
to time-out.
- If the lights turn off, the sensor is working correctly. See
Unwanted Sensor Activations, next page. And go through the
Sensor Adjustment process again.
• If the lights stay on, the problem may be in the power pack.
See Power Pack High Voltage Checklist, below.
next page.
• Turn off the power connected to Isolated Relay wires (if applicable).
- With motion in front of the sensor’s lens, check that the
connection between the BROWN and RED wires is open.
- With motion in front of the sensor’s lens, check that the
connection between the ORANGE and RED wires is closed.
• Turn Sensitivity and Time Delay to minimum, cover the sensor’s
lens with a cloth (not your hand), be still and allow the sensor to
time-out.
- Check that the connection between the BROWN and RED
wires is closed.
- Check that the connection between the ORANGE and RED
wires is open.
and secure.
Check Our Web Site For FAQs: www.wattstopper.com
Unwanted sensor activations (LED flashes):
Possible causes
1. People moving or walking outside of the desired coverage area,
but in view of the sensor and within it’s range (see Coverage
Patterns and Placement).
2. HVAC vents with heavy air flow.
Possible solutions
1. Masking (see Masking).
2. Setting the Sensitivity lower.
3. Relocating the sensor.
Sensor Override:
If the sensor fails, set DIP switch #6 to OFF. This overrides the sensor
and sets the circuits to “on”.
ORDERING INFORMATION
Catalog# Description
CI-200 20–30VDC Occupancy Sensor
CI-200-1 20–30VDC Occupancy Sensor
B120E-P Power Pack: 120VAC, 60Hz, 150mA
B230E-P Power Pack: 230VAC, 50/60Hz, 150mA
B277E-P Power Pack: 277VAC, 60Hz, 150mA, 20A ballast
B347D-P Power Pack: 347VAC, 60Hz, 150mA, 15A ballast
S120/277/347E-P Slave Pack: 120/277VAC, 60Hz, 20A ballast
with Extended Range Lens (Standard)
with High Density /Reduced Range Lens
20A ballast/13A incandescent
20A ballast/13A incandescent
347VAC. 60Hz, 15A ballast
WARRANTY INFORMATION
The Watt Stopper®, Inc. warranties its products to be free of defects in
materials and workmanship for a period of five years. There are no
obligations or liabilities on the part of The Watt Stopper, Inc. for
consequential damages arising out of or in connection with the use or
performance of this product or other indirect damages with respect to
loss of property, revenue, or profit, or cost of removal, installation or
reinstallation.
Putting a Stop to Energy Waste
Santa Clara CA 95050 USA ☎ 1(800)879-8585 1(972)578-1699
86-0474-00r3 9/99
®
CI-200
version 2
360° PIR Occupancy Sensor
SPECIFICATIONS
Voltage Supply . . . . . . . . . . 20–30VDC (24VDC Typical)
Current Consumption . . . . . . . @24VDC, 24mA Maximum
Isolated Relay Rating . . . . . . . . . . 1A @24VDC or 24VAC
Time Adjustment . . . . . . . . . . . . 15 seconds–30 minutes
Sensitivity Adjustment. . . . . . . . . . . . minimum-maximum
Light Level Adjustment . . . . . . . . . . . . . . . . . . . 1–190FC
U.S. Patents:
4,757,204
Santa Clara, CA 95050 USA
1(800)879-8585 1(972)578-1699
4,787,722
Des360,842
Installation Instructions
Page 2

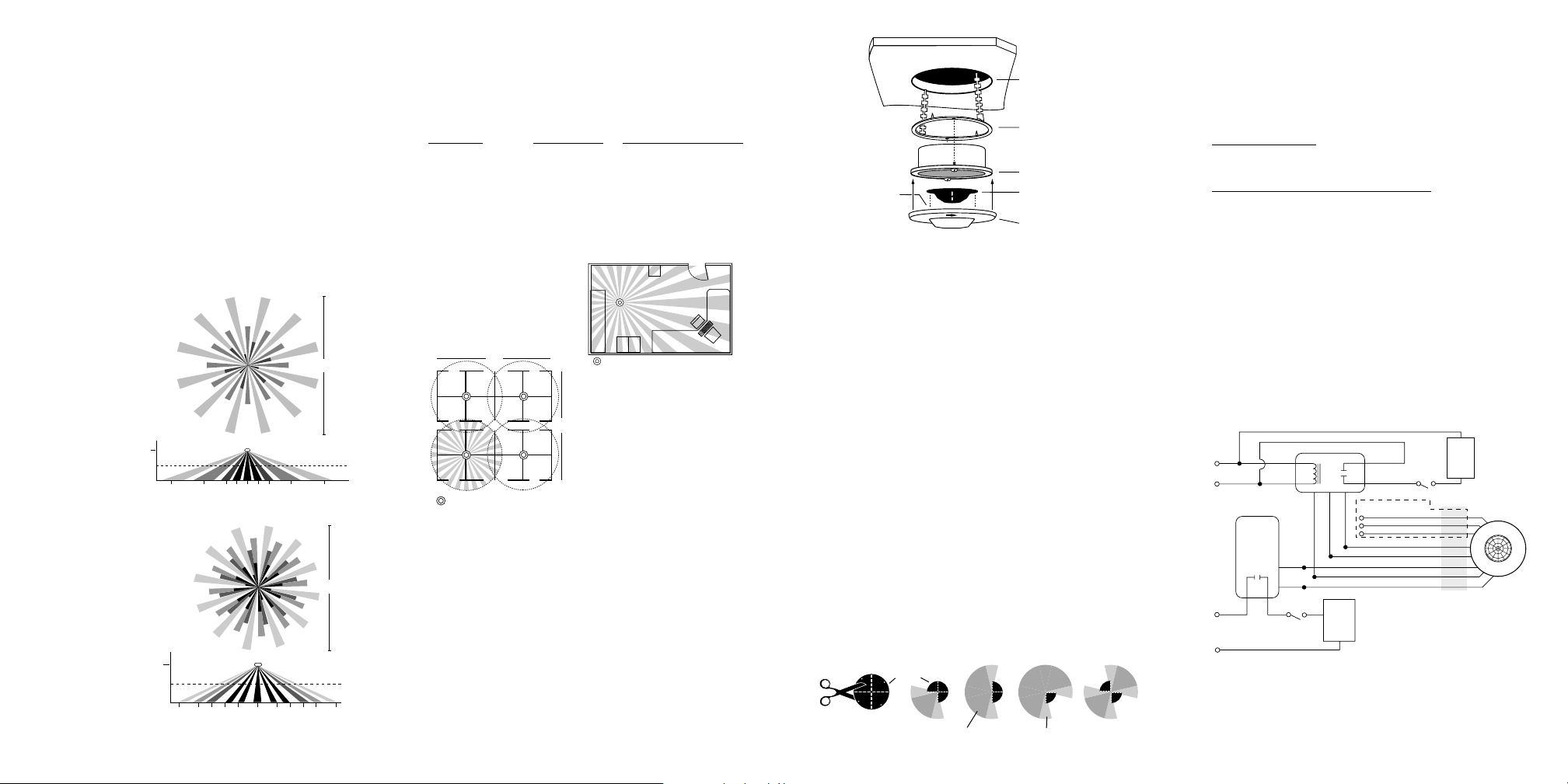

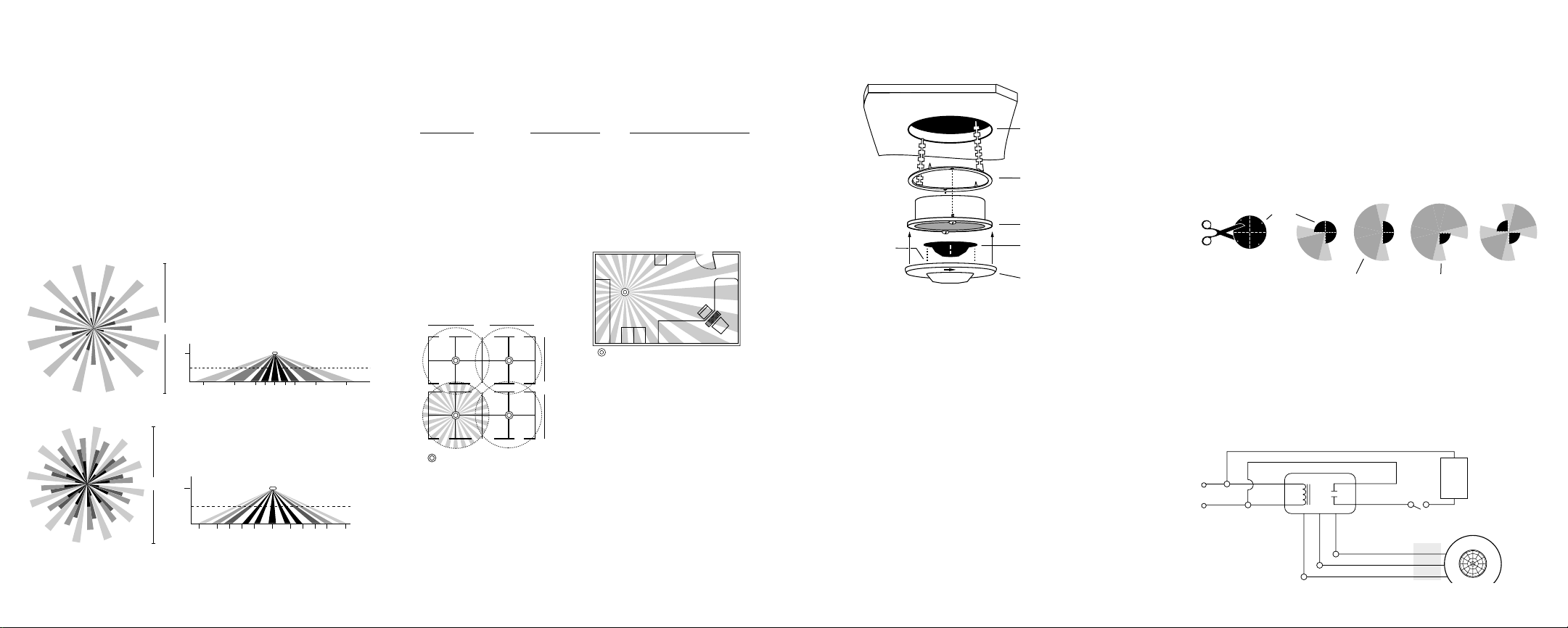

DESCRIPTION
CI-200
36'
36'
CI-200
12'
18'
Ceiling
2-3/4" to 3" hole
(if using 3" mud-ring,
cut to accomodate)
Ceiling attachment ring
(bend behind ceiling
to secure)
Rear housing
Cover (with lens)
Mask secures
to pins on cover
Mask (optional)
cut for desired coverage
The CI-200 is a 24VDC Passive Infrared (PIR) occupancy sensor
which controls lighting or HVAC systems based on occupancy and/or
ambient light levels in a given area.
PIR sensing systems are passive systems which react to changes in
infrared energy (moving body heat) within the coverage area. PIR
sensors must directly “see” motion of an occupant to detect them, so
careful consideration must be given to sensor placement.
COVERAGE PATTERNS
The CI-200 has a multi-cell, multi-tier Fresnel lens with a field of view
of 360°. The sensor has two lens pattern options. The Extended
Range Lens will cover up to 1200 sq ft and 22 ft from the sensor
when mounted at 8ft. The High Density/Reduced Range Lens will
cover up to 500 sq ft and 12 ft from the sensor when mounted at 8ft.
Coverage shown in the diagrams below is maximum and represents
coverage for half-step walking motion, with no barriers or obstacles.
DRAWING NOT TO SCALE
Extended Range Lens (Standard)
CI-200
8 ft
Typical
desk-top
level
22 ft 13 ft 7 ft 3 ft 0 3 ft 7 ft 13 ft 22 ft
High Density/Reduced Range Lens
CI-200-1
8 ft
Typical
desk-top
level
✆Call 1(800)879-8585 For Technical Support✆ ✆Call 1(800)879-8585 For Technical Support✆
12 ft 12 ft 3 ft 3 ft 5 ft 5 ft 7 ft 7 ft 9 ft 9 ft0
44 ft
24 ft
PLACEMENT
The effective coverage distances may be slightly less than the maximum
sensing distance (see Coverage Patterns), depending upon obstacles
such as furniture or partitions, and this must be considered when planning
the number of sensors and their positioning. See the list below for
approximate coverage distances for different types of motion.
Approximate coverage, for a mounting height of 8 feet:
Lens option
alking motion Workstation (hand motion)
W
Extended Range up to 22ft radius (1200 sq ft) 12ft radius (500 sq ft)
High Density up to 12ft radius (500 sq ft) 9ft radius (300 sq ft)
The CI-200 sensor can be mounted at various heights. When you will
be mounting at heights other than 8ft, be aware that as you decrease
the mounting height, you will decrease the range and increase the
sensitivity to smaller motions. Conversely, when you increase the height,
you will increase the range and decrease the sensitivity to smaller motions.
At heights of more than 12 -14ft, you may start to significantly reduce
sensitivity.
Often the best location to install
a CI-200 in a closed office is off-
center (see fig.1). Avoid placing
a sensor directly in line with an
open door in which it has a clear
view out, as the sensor may
detect people walking by.
fig. 1
For open office areas with partitions
it is best to place sensors over
intersections of four workstations
(see fig. 2).
Also avoid placing the sensors close
to air ducts, as rapid air currents or
the differences in temperatures may
cause false activations. For large areas
of coverage use multiple sensors.
fig. 2
INSTALLATION
≠CAUTION≠
TURN POWER OFF AT CIRCUIT BREAKER
BEFORE INSTALLING SENSOR
A 4-S junction box can be used with a 3" mud-ring when local building
codes mandate that low voltage connections be contained in a junction box.
Otherwise a 3" mud-ring or the provided ceiling attachment ring can
be used.
IMPORTANT: If the lens will be masked, the junction box or mud
ring may need to be positioned so that the mask is oriented properly
when the sensor is installed (see Masking).
Cut a hole in the ceiling tile—if using a:
• Ceiling attachment ring (provided)—cut about 2-3/4" to 3" in diameter.
• 3" mud ring—cut the hole to accommodate.
Check Our Web Site For FAQs: www.wattstopper.com
To assemble the sensor:
1. If using the ceiling attachment ring, bend the securing straps up
so the sensor housing can be inserted, and attach it to the sensor
with the provided screws.
2. Attach the mask, if using, into the lens recess and onto the securing pins of the cover.
3. Attach the cover to the rear housing—align tabs on inside of
cover to notches on outside perimeter of rear housing, place
cover on sensor, and twist clockwise to lock.
4. Insert the assembled sensor into the ceiling hole, and if using the
mask, turn the sensor so that the unmasked part of the lens is
toward and centered on the area to be covered.
5. Bend the ceiling attachment ring straps behind the hole to secure
(or attach sensor to mud ring with screws).
MASKING
An insert (mask) is supplied to allow elimination of coverage in
unwanted areas.
The mask is cut as needed and mounted onto anchor pins in the sensor’s cover.
IMPORTANT: Do not use the mask if full coverage is desired.
IMPORTANT: Before securing the sensor in the mounting location,
the assembled sensor must be turned so the unmasked portion of
the lens faces the coverage area (the blue masked area is visible
through the lens).
IMPORTANT: For an already installed sensor—If the sensor can NOT
be turned, then the mask must be cut so that when installed it will be
oriented correctly (note the location of the securing pins in the
cover and note that the cover turns as it locks into position).
Note: At the edges of the masking, there is a small area of reduced
sensitivity, illustrated as the lighter area in the examples below.
Mask
Cut mask into sections
for desired coverage,
shown right.
Coverage area
Reduced sensitivity
WIRING DIRECTIONS
≠CAUTION≠
TURN POWER OFF AT CIRCUIT BREAKER BEFORE WIRING SENSOR
Watt Stopper B series power packs supply power for up to 5 CI-200s.
When using more sensors than this, multiple power packs are required.
F
or all configurations—connect the low voltage:
• RED wire (+24VDC) from power pack to VIOLET wire on sensor.
• BLACK wire (Return) from power pack to GREEN wire on sensor.
Connections f
(refer to wiring diagram below)
Single lighting load controlled by occupancy only—connect:
• BLUE wire from power pack to YELLOW wire on sensor.
Single lighting load controlled by occupancy,
dependent on light level (ambient light)—connect:
• BLUE wire from power pack to BLUE wire on sensor.
One lighting load for occupancy control, and a second load
for occupancy and light level (ambient light) control—connect:
• BLUE wire from power pack to YELLOW wire on sensor.
• BLUE wire from slave pack to BLUE wire on sensor.
• BLACK wire from slave pack to GRAY wire on sensor.
Isolated Relay: (The Isolated Relay is rated for 1A @24VDC or 24VAC)
Connect the wires necessary to the application that requires this output.
• RED (Common) (must be used for proper operation)
• BROWN (Normally Closed)—Open when occupancy is detected.
• ORANGE (Normally Open)—Closed when occupancy is detected.
N
Hot
Hot
N
or the following configurations:
POWER PACK
Black
Red
Black
Blue
SLAVE
PACK
Blue
Black
OFF switch
Red (load)
Light
Level
Lighting
Load
White (Neutral)
Red (Line)White
Red (Load)
Isolated Relay Outputs
Normally Closed Contact
Common
Normally Open Contact
Light Level Output 24VDC
Switch
Control Output 24VDC
Control Return
+24VDC
Common
Lighting
Wires
1-BRN
2-RED
3-ORN
4-YEL
5-GRN
6-BLU
7-VIO
8-GRA
Load
CI-200
Sensor
Page 3
SENSOR ADJUSTMENT
DIP Switch #
15 seconds
4 minutes
6 minutes
8 minutes
10 minutes
12 minutes
14 minutes
16 minutes
18 minutes
20 minutes
22 minutes
24 minutes
26 minutes
28 minutes
2 minutes
Minimum
Medium Low
Medium High
Maximum
1234 78
Sensitivity
56
30 minutes
= ON
– = OFF
= Factory Presets
––
––
–––
––
–– –
–––
––––
––
–– –
–––
––– –
–––
–– ––
– –––
–––––
–
–––
–
The sensor comes factory preset and ready for operation.
If testing of operation is desired:
• Remove the sensor’s cover (twist).
• Refer to the DIP switch settings chart below for switch configurations.
• Make sure that office furniture and fixtures are in place.
1. Restore power to the lighting circuits and turn the lights on.
• There is a one minute warm-up when power is initially restored to the
sensor before the sensor works properly.
2. Set Time Delay to minimum: DIP switches #1
through 6 set to ON (15 secs.).
3. Set Sensitivity to maximum: DIP switches #7
and #8 to ON.
4. Replace the sensor’s cover.
5. Move away from sensor and be still. The lights
should go off after 15 seconds.
Note: If lights remain on, move farther away
or out of sight of the sensor. If lights still remain on, set the Sensitivity to
medium high by setting DIP switches #7 to ON and #8 to OFF, or see
Unwanted Sensor Activations under Troubleshooting.
6. Set the appropriate Time Delay (DIP switches #1 through 6).
The factory preset Time Delay is 18 minutes; other suggestions are:
Offices and conference rooms: 10 minutes.
Classrooms: 10 minutes.
Warehouses: 6 minutes.
Hallways: 4 minutes.
DIP Switch Control
for Time Delay and
Sensitivity
LED
DIP SWITCH SETTINGS
TROUBLESHOOTING
≠CAUTION≠
USE PROPER SAFETY PRECAUTIONS WHEN
Lights will not turn on:
1. Verify the lens is not masked in the direction being tested (see Masking).
2. Adjust Sensitivity settings up if needed (DIP switches #7 & 8).
3. Verify power pack and sensor connections are correct and secure.
4. Check for +24VDC at RED wire from the power pack to sensor.
• If present, the problem may be with the sensor. Try another sensor (if available).
• If there is no voltage, see Power Pack High Voltage Checklist, below.
Lights will not turn off:
1. Check that Time Delay settings are correct (DIP switches #1 – 6).
2. Decrease Sensitivity settings if needed (DIP switches #7 & 8).
3. Verify power pack and sensor connections are correct and secure.
4. Disconnect BLUE wire on power pack from sensor.
• If the lights turn off, the problem may be in the sensor. Turn Sensitivity
and Time Delay to minimum and allow the sensor to time-out.
- If the lights turn off, the sensor is working correctly. See Unwanted
• If the lights stay on, the problem may be in the power pack. See Power
Pack High Voltage Checklist, below.
Power Pack High Voltage Checklist:
CAUTION: Use proper high voltage precautions.
1. Check that power pack high voltage wire connections are correct and secure.
2. Check that the power pack is rated at the correct voltage.
3. Check that there is high voltage going into the power pack.
4. Try another power pack (if available).
Unwanted sensor activations (LED flashes):
Possible causes
1. People moving or walking outside of the desired coverage area, but in view
of the sensor and within it’s range (see Coverage Patterns and Placement).
2. HVAC vents with heavy air flow.
Possible solutions
1. Masking (see Masking).
2. Setting the Sensitivity lower.
3. Relocating the sensor.
Sensor Override:
If the sensor fails, set DIP switch #6 to OFF. This overrides the sensor and sets
the circuits to “on”.
WORKING WITH OR NEAR HIGH VOLTAGE
Sensor Activations, below. And go through the Sensor Adjustment
process again.
✆Call 1(800)879-8585 For Technical Support✆
ORDERING INFORMATION
Catalog# Description
CI-205 20–30VDC Occupancy Sensor
with Extended Range Lens (Standard)
CI-205-1 20–30VDC Occupancy Sensor
with High Density /Reduced Range Lens
B120E-P Power Pack: 120VAC, 60Hz, 150mA
20A ballast/13A incandescent
B230E-P Power Pack: 230VAC, 50/60Hz, 150mA
20A ballast/13A incandescent
B277E-P Power Pack: 277VAC, 60Hz, 150mA, 20A ballast
B347D-P Power Pack: 347VAC, 60Hz, 150mA, 15A ballast
S120/277/347E-P Slave Pack: 120/277VAC, 60Hz, 20A ballast
347VAC. 60Hz, 15A ballast
WARRANTY INFORMATION
The Watt Stopper®, Inc. warranties its products to be free of defects in materials
and workmanship for a period of five years. There are no obligations or liabilities
on the part of The Watt Stopper, Inc. for consequential damages arising out of or
in connection with the use or performance of this product or other indirect
damages with respect to loss of property, revenue, or profit, or cost of removal,
installation or reinstallation.
Putting a Stop to Energy Waste
Santa Clara CA 95050 USA ☎ 1(800)879-8585 1(972)578-1699
86-0476-00r3 9/99
®
CI-205
version
360° PIR Occupancy Sensor
SPECIFICATIONS
Voltages . . . . . . . . . . . . . . . . . . . . . . 20–30VDC (24VDC Typical)
Current Consumption . . . . . . . . . . . . . @24VDC, 11mA Maximum
Time Adjustment . . . . . . . . . . . . . . . . . . . 15 seconds–30 minutes
Sensitivity Adjustment . . . . . . . . . . . . . . . . . . Minimum/Maximum
Santa Clara, CA 95050 USA
1(800)879-8585 1(972)578-1699
2
U.S. Patents:
4,757,204
4,787,722
Des360,842
Installation Instructions
Page 4
DESCRIPTION
8 ft
22 ft 13 ft 7 ft 3 ft 0 3 ft 7 ft 13 ft 22 ft
Typical
desk-top
level
8 ft
12 ft 12 ft 3 ft 3 ft 5 ft 5 ft 7 ft 7 ft 9 ft 9 ft0
Typical
desk-top
level
24 ft
CI-205
12'
18'
The CI-205 is a 24VDC Passive Infrared (PIR) occupancy sensor which controls
lighting or HVAC systems based on occupancy in a given area.
PIR sensing systems are passive systems which react to changes in infrared
energy (moving body heat) within the coverage area. PIR sensors must directly
“see” motion of an occupant to detect them, so careful consideration must be
given to sensor placement.
COVERAGE PATTERNS
The CI-205 has a multi-cell, multi-tier Fresnel lens with a field of view of 360°.
The sensor has two lens pattern options. The Extended Range Lens will cover
up to 1200 sq ft and 22 feet from the sensor when mounted at 8 feet. The High
Density/Reduced Range Lens will cover up to 500 sq ft and 12 feet from the
sensor when mounted at 8 feet.
Coverage shown in the diagrams below is maximum and represents coverage
for half-step, walking motion, with no barriers or obstacles.
DRAWING NOT TO SCALE
Extended Range Lens (Standard)
CI-205
44 ft
High Density/Reduced Range Lens
CI-205-1
PLACEMENT
The effective coverage distances may be slightly less than the maximum sensing
distance (see Coverage Patterns), depending upon obstacles such as furniture
or partitions, and this must be considered when planning the number of sensors
and their positioning. See the list below for approximate coverage distances for
different types of motion.
Approximate coverage, for a mounting height of 8 feet:
Lens option
Extended Range up to 22 ft radius (1200 sq ft) 12ft radius (500 sq ft)
High Density up to 12 ft radius (500 sq ft) 9ft radius (300 sq ft)
The CI-205 sensor can be mounted at various heights. When you will be
mounting at heights other than 8 feet, be aware that as you decrease the
mounting height, you will decrease the range and increase the sensitivity to
smaller motions. Conversely, when you increase the height, you will increase
the range and decrease the sensitivity to smaller motions. At heights of more
than 12-14 feet, you may start to significantly reduce sensitivity.
Often the best location to install a
CI-205 in a closed office is off-center
(see fig.1). Avoid placing a sensor
directly in line with an open door in
which it has a clear view out, as the
sensor may detect people walking by.
36'
CI-205
fig. 2
✆Call 1(800)879-8585 For Technical Support✆ ✆Call 1(800)879-8585 For Technical Support✆Check Our Web Site For FAQs: www.wattstopper.com Check Our Web Site For FAQs: www.wattstopper.com
Walking motion Workstation (hand motion)
fig. 1
For open office areas with partitions it is
36'
best to place sensors over intersections of
four workstations (see fig. 2).
Also avoid placing the sensors close to
air ducts, as rapid air currents or the
differences in temperatures may cause
false activations. For large areas of coverage
use multiple sensors.
INSTALLATION
≠CAUTION≠
TURN POWER OFF AT CIRCUIT BREAKER BEFORE INSTALLING SENSOR
Ceiling
2-3/4" to 3" hole
(if using 3" mud-ring,
cut to accomodate)
Ceiling attachment ring
(bend behind ceiling
to secure)
Rear housing
Mask secures
to pins on cover
A 4-S junction box can be used with a 3" mud-ring when local building codes
mandate that low voltage connections be contained in a junction box.
Otherwise a 3" mud-ring or the provided ceiling attachment ring can be used.
IMPORTANT: If the lens will be masked, the junction box or mud ring may
need to be positioned so that the mask is oriented properly when the sensor is
installed (see Masking).
Cut a hole in the ceiling tile—if using a:
• Ceiling attachment ring (provided)—cut about 2-3/4" to 3" in diameter.
• 3" mud ring—cut the hole to accommodate.
To assemble the sensor:
1. If using the ceiling attachment ring, bend the securing straps up so the sensor
housing can be inserted, and attach it to the sensor with the provided screws.
2. Attach the mask, if using, into the lens recess and onto the securing pins of
the cover.
3. Attach the cover to the rear housing—align tabs on inside of cover to
notches on outside perimeter of rear housing, place cover on sensor, and
twist clockwise to lock.
4. Insert the assembled sensor into the ceiling hole, and if using the mask,
turn the sensor so that the unmasked part of the lens is toward and centered on the area to be covered.
5. Bend the ceiling attachment ring straps behind the hole to secure (or
attach sensor to mud ring with screws).
Mask (optional)
cut for desired coverage
Cover (with lens)
MASKING
An insert (mask) is supplied to allow elimination of coverage in unwanted areas.
The mask is cut as needed and mounted onto anchor pins in the sensor’s cover.
IMPORTANT: Do not use the mask if full coverage is desired.
IMPORTANT: Before securing the sensor in the mounting location, the
assembled sensor must be turned so the unmasked portion of the lens
faces the coverage area (the blue masked area is visible through the lens).
IMPORTANT: For an already installed sensor—If the sensor can NOT be turned,
then the mask must be cut so that when installed it will be oriented correctly
(note the location of the securing pins in the cover and note that the cover
turns as it locks into position).
Note: At the edges of the masking, there is a small area of reduced sensitivity,
illustrated as the lighter area in the examples below.
Mask
Cut mask into sections
for desired coverage,
shown right.
Reduced sensitivityCoverage area
WIRING DIRECTIONS
≠CAUTION≠
TURN POWER OFF AT CIRCUIT BREAKER BEFORE WIRING SENSOR
Watt Stopper B series power packs supply power for up to 10 CI-205s.
When using more sensors than this, multiple power packs are required.
To connect the low voltage wires from the power pack to the sensor:
• RED wire on sensor to RED wire (+24VDC) on power pack.
• BLACK wire (Common) on sensor to BLACK wire on power pack.
• BLUE wire (Control Output) on sensor to BLUE wire on power pack.
N
Hot
POWER PACK
Black
Red
White (Neutral)
Red (Line)White
Red (Load)
Black
Blue
Control Output 24VDC BLUE
Switch
Wires
Common BLACK
+24VDC RED
Lighting
Load
CI-205
Sensor
Loading...
