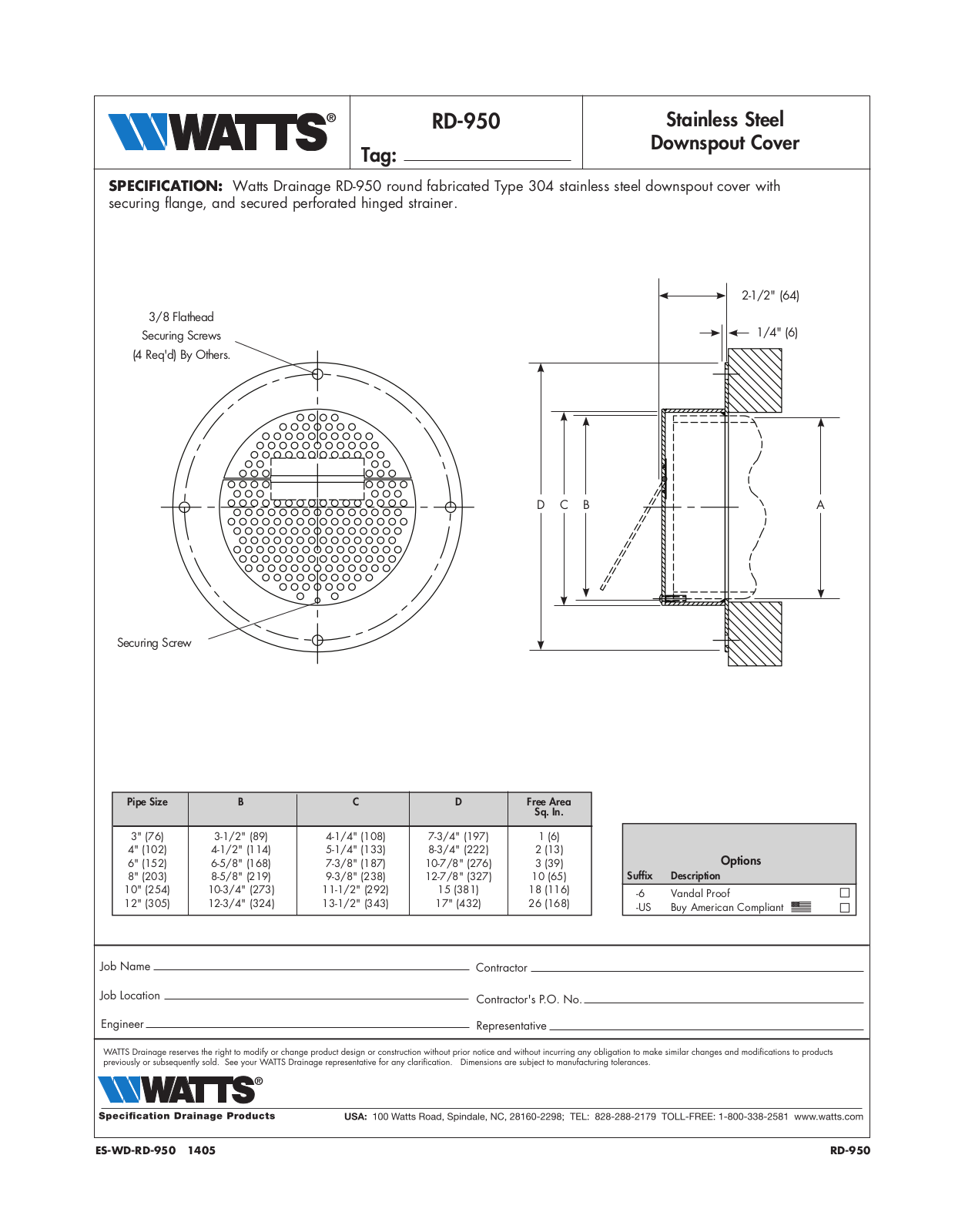

Watts RD-950 User Manual

RD-950

Stainless Steel

Downspout Cover

Tag:

SPECIFICATION: Watts Drainage RD-950 round fabricated Type 304 stainless steel downspout cover with
securing flange, and secured perforated hinged strainer.

2-1/2" (64)

3/8 Flathead

Securing Screws

(4 Req'd) By Others.

B A

CD

1/4" (6)

Securing Screw

Pipe Size B C D Free Area

Sq. In.

3" (76) 3-1/2" (89) 4-1/4" (108) 7-3/4" (197) 1 (6)
4" (102) 4-1/2" (114) 5-1/4" (133) 8-3/4" (222) 2 (13)
6" (152) 6-5/8" (168) 7-3/8" (187) 10-7/8" (276) 3 (39)
8" (203) 8-5/8" (219) 9-3/8" (238) 12-7/8" (327) 10 (65)
10" (254) 10-3/4" (273) 11-1/2" (292) 15 (381) 18 (116)
12" (305) 12-3/4" (324) 13-1/2" (343) 17" (432) 26 (168)

Options

Suffix Description

-6 Vandal Proof

-US Buy American Compliant

ES-WD-RD-950 1405 RD-950
