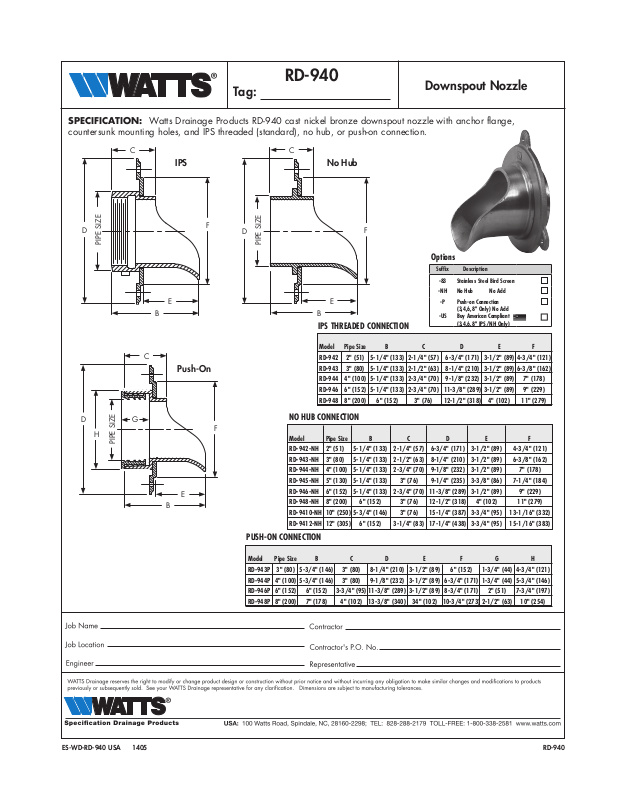

Watts RD-940 User Manual

RD-940

RD-940P

F

C

Tag:

SPECIFICATION: Watts Drainage Products RD-940 cast nickel bronze downspout nozzle with anchor flange,
countersunk mounting holes, and IPS threaded (standard), no hub, or push-on connection.

Downspout Nozzle

D

D

PIPE SIZE

H

C

G

G

PIPE SIZE

C

IPS

F

D

PIPE SIZE

No Hub

F

Options

Suffix Description

-83 Stainless Steel Bird Screen

-NH No Hub No Add

-P

E

B

E

B

IPS THREADED CONNECTION

C

Push-On

Model Pipe Size B C D E F
RD-942 2" (51) 5-1/4" (133) 2-1/4" (57) 6-3/4" (171) 3-1/2" (89) 4-3/4" (121)
RD-943 3" (80) 5-1/4" (133) 2-1/2" (63) 8-1/4" (210) 3-1/2" (89) 6-3/8" (162)
RD-944 4" (100) 5-1/4" (133) 2-3/4" (70) 9-1/8" (232) 3-1/2" (89) 7" (178)
RD-946 6" (152) 5-1/4" (133) 2-3/4" (70) 11-3/8" (289) 3-1/2" (89) 9" (229)
RD-948 8" (200) 6" (152) 3" (76) 12-1/2" (318) 4" (102) 11" (279)

Push-on Connection
(3,4,6,8" Only) No Add
Buy American Compliant

-US
(3,4,6,8" IPS/NH Only)

NO HUB CONNECTION

F

Model Pipe Size B C D E F
RD-942-NH 2" (51) 5-1/4" (133) 2-1/4" (57) 6-3/4" (171) 3-1/2" (89) 4-3/4" (121)
RD-943-NH 3" (80) 5-1/4" (133) 2-1/2" (63) 8-1/4" (210) 3-1/2" (89) 6-3/8" (162)
RD-944-NH 4" (100) 5-1/4" (133) 2-3/4" (70) 9-1/8" (232) 3-1/2" (89) 7" (178)
RD-945-NH 5" (130) 5-1/4" (133) 3" (76) 9-1/4" (235) 3-3/8" (86) 7-1/4" (184)

E

B

RD-946-NH 6" (152) 5-1/4" (133) 2-3/4" (70) 11-3/8" (289) 3-1/2" (89) 9" (229)
RD-948-NH 8" (200) 6" (152) 3" (76) 12-1/2" (318) 4" (102) 11" (279)
RD-9410-NH 10" (250) 5-3/4" (146) 3" (76) 15-1/4" (387) 3-3/4" (95) 13-1/16" (332)
RD-9412-NH 12" (305) 6" (152) 3-1/4" (83) 17-1/4" (438) 3-3/4" (95) 15-1/16" (383)

PUSH-ON CONNECTION

Model Pipe Size B C D E F G H
RD-943P 3" (80) 5-3/4" (146) 3" (80) 8-1/4" (210) 3-1/2" (89) 6" (152) 1-3/4" (44) 4-3/4" (121)
RD-944P 4" (100) 5-3/4" (146) 3" (80) 9-1/8" (232) 3-1/2" (89) 6-3/4" (171) 1-3/4" (44) 5-3/4" (146)
RD-946P 6" (152) 6" (152) 3-3/4" (95) 11-3/8" (289) 3-1/2" (89) 8-3/4" (171) 2" (51) 7-3/4" (197)
RD-948P 8" (200) 7" (178) 4" (102) 13-3/8" (340) 34" (102) 10-3/4" (273) 2-1/2" (63) 10" (254)

ES-WD-RD-940 USA 1405 RD-940
