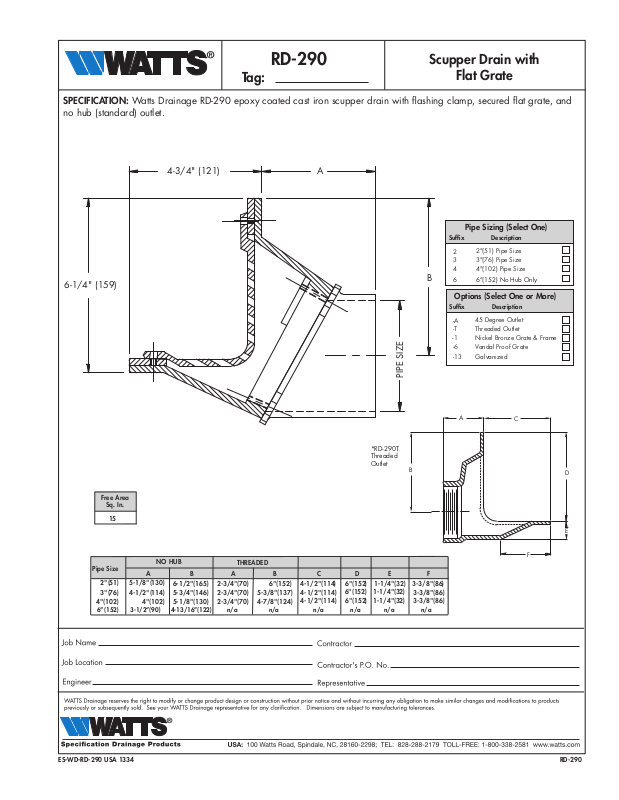

Watts RD-290 User Manual

RD-290

Tag:

Scupper Drain with

Flat Grate

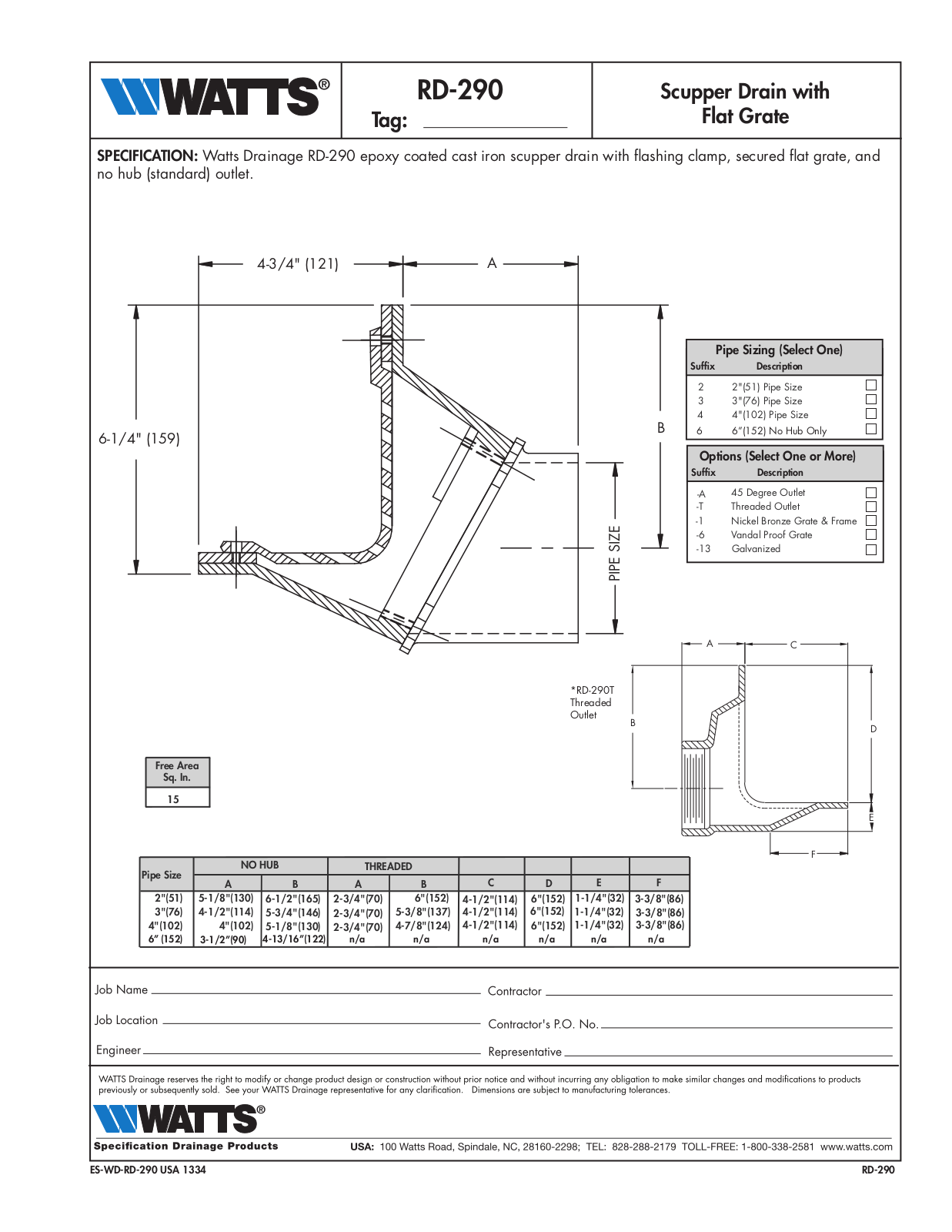

SPECIFICATION: Watts Drainage RD-290 epoxy coated cast iron scupper drain with flashing clamp, secured flat grate, and

no hub (standard) outlet.

6-1/4" (159)

4-3/4" (121)

A

*RD-290T
Threaded
Outlet

B

PIPE SIZE

B

Pipe Sizing (Select One)

Suffix Description

2"(51) Pipe Size

2

3"(76) Pipe Size 3
4"(102) Pipe Size 4

6”(152) No Hub Only

6

Options (Select One or More)

Suffix Description

45 Degree Outlet

-A
Threaded Outlet -T
Nickel Bronze Grate & Frame -1
Vandal Proof Grate-6
Galvanized-13

A

C

D

Free Area

Sq. In.

15

E

Pipe Size

2"(51) 5-1/8"(130)
3"(76) 4-1/2"(114) 5-3/8"(137)

4"(102) 4"(102) 4-7/8"(124)

6” (152)

ES-WD-RD-290 USA 1334 RD-290

NO HUB

A B A B

6-1/2"(165)
5-3/4"(146)
5-1/8"(130)

3-1/2”(90)

4-13/16”(122) n/an/a n/a n/a n/a n/a

THREADED

2-3/4"(70)
2-3/4"(70)
2-3/4"(70)

6"(152)

C

4-1/2"(114)
4-1/2"(114)
4-1/2"(114)

D

6"(152)
6"(152)

6"(152)

E F

1-1/4"(32)
1-1/4"(32)
1-1/4"(32)

3-3/8"(86)
3-3/8"(86)
3-3/8"(86)

F
