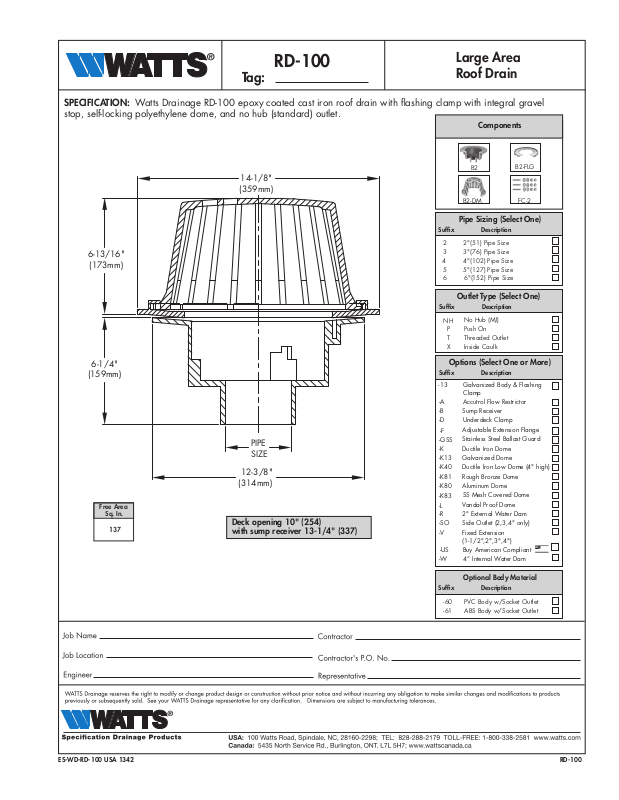

Watts RD-100 User Manual

RD-100

Tag:

Large Area

Roof Drain

SPECIFICATION: Watts Drainage RD-100 epoxy coated cast iron roof drain with flashing clamp with integral gravel

stop, self-locking polyethylene dome, and no hub (standard) outlet.

Components

6-13/16"

(173mm)

6-1/4"

(159mm)

Free Area

Sq. In.

137

14-1/8"

(359mm)

PIPE
SIZE

12-3/8"

(314mm)

Deck opening 10" (254)
with sump receiver 13-1/4" (337)

B2

B2-DM FC-2

B2-FLG

Pipe Sizing (Select One)

Suffix Description

2"(51) Pipe Size

2

3"(76) Pipe Size 3
4"(102) Pipe Size 4
5"(127) Pipe Size5

6"(152) Pipe Size6

Outlet Type (Select One)

Suffix Description

No Hub (MJ)

NH

Push On P
Threaded Outlet T
Inside CaulkX

Options (Select One or More)

Suffix Description

-13

Galvanized Body & Flashing
Clamp

-A

Accutrol Flow Restrictor

-B Sump Receiver

-D Underdeck Clamp
Adjustable Extension Flange

-F
Stainless Steel Ballast Guard

-GSS

-K Ductile Iron Dome

-K13 Galvanized Dome

-K40 Ductile Iron Low Dome (4" high)

-K81 Rough Bronze Dome

-K80 Aluminum Dome
SS Mesh Covered Dome

-K83
Vandal Proof Dome

-L

-R 2" External Water Dam

-SO Side Outlet (2,3,4" only)

-V Fixed Extension
(1-1/2",2",3",4")

-US Buy American Compliant

4” Internal Water Dam

-W

Optional Body Material

Suffix Description

PVC Body w/Socket Outlet-60
ABS Body w/Socket Outlet-61

ES-WD-RD-100 USA 1342 RD-100
