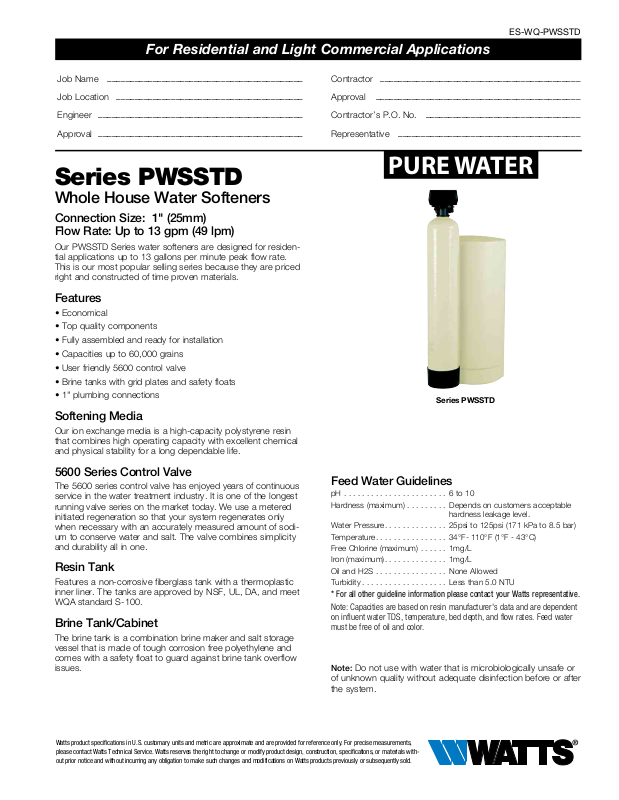

Watts PWSSTD User Manual

For Residential and Light Commercial Applications

ES-WQ-PWSSTD

Job Name

Job Location

Engineer

Approval

–––––––––––––––––––––––––––––––––––––––––––

–––––––––––––––––––––––––––––––––––––––––

–––––––––––––––––––––––––––––––––––––––––––––

–––––––––––––––––––––––––––––––––––––––––––––

Series PWSSTD

Whole House Water Softeners

Connection Size: 1" (25mm)
Flow Rate: Up to 13 gpm (49 lpm)

Our PWSSTD Series water softeners are designed for residen­tial applications up to 13 gallons per minute peak flow rate.
This is our most popular selling series because they are priced
right and constructed of time proven materials.

Features

• Economical

• Top quality components

• Fully assembled and ready for installation

• Capacities up to 60,000 grains

• User friendly 5600 control valve

• Brine tanks with grid plates and safety floats

• 1" plumbing connections

Softening Media

Our ion exchange media is a high-capacity polystyrene resin
that combines high operating capacity with excellent chemical
and physical stability for a long dependable life.

Contractor

Approval

Contractor’s P.O. No.

Representative

––––––––––––––––––––––––––––––––––––––––––––

–––––––––––––––––––––––––––––––––––––––––––––

––––––––––––––––––––––––––––––––––––––––

PURE WATER

––––––––––––––––––––––––––––––––––

Series PWSSTD

5600 Series Control Valve

The 5600 series control valve has enjoyed years of continuous

service in the water treatment industry. It is one of the longest
running valve series on the market today. We use a metered
initiated regeneration so that your system regenerates only
when necessary with an accurately measured amount of sodi­um to conserve water and salt. The valve combines simplicity
and durability all in one.

Resin Tank

Features a non-corrosive fiberglass tank with a thermoplastic
inner liner. The tanks are approved by NSF, UL, DA, and meet
WQA standard S-100.

Brine Tank/Cabinet

The brine tank is a combination brine maker and salt storage
vessel that is made of tough corrosion free polyethylene and
comes with a safety float to guard against brine tank overflow
issues.

Watts product specifications in U.S. customary units and metric are approximate and are provided for reference only. For precise measurements,
please contact Watts Technical Service. Watts reserves the right to change or modify product design, construction, specifications, or materials with­out prior notice and without incurring any obligation to make such changes and modifications on Watts products previously or subsequently sold.

Feed Water Guidelines

pH ....................... 6 to 10

Hardness (maximum) ......... Depends on customers acceptable

Water Pressure .............. 25psi to 125psi (171 kPa to 8.5 bar)

Temperature ................ 34°F- 110°F (1°F - 43°C)

Free Chlorine (maximum) ...... 1mg/L

Iron (maximum) .............. 1mg/L

Oil and H2S ................ None Allowed

Turbidity ................... Less than 5.0 NTU

* For all other guideline information please contact your Watts representative.

Note: Capacities are based on resin manufacturer's data and are dependent
on influent water TDS, temperature, bed depth, and flow rates. Feed water
must be free of oil and color.

Note: Do not use with water that is microbiologically unsafe or

of unknown quality without adequate disinfection before or after

the system.

hardness leakage level.

PWSSTD

PWSSTD30K PWSSTD45K PWSSTD60K

Max/Min Ion Exchange Capacity 30,000/20,000 45,000/30,000 60,0000/40,000
Lbs of salt required for Max/Min capacity 15/6 22.5/9 30/12
Salt Storage Capacity 300 300 300
Flow Rate in GPM @ 15 PSI Drop 8.8 10 10
Backwash Flow Rate GPM 2.0 2.4 3.5
Drain Line Connection Size
Inlet/Outlet Pipe Size 1” 1” 1"
Electrical Requirements 120V/60Hz 120V/60Hz 120V/60Hz
Mineral Tank Size 9" x 48" 12" x 52" 12" x 52"
Brine Tank Size 18"D x 33"H 18"D x 33"H 18"D x 33"H
Floor space required in inches W x D 31 X 19 32 x 19 34 x 19
Approximate Shipping Weight Lbs 112 130 190

1

⁄2" NPT

1

⁄2" NPT

1

⁄2" NPT

D

a

C

B

Side View Back View

e

Dimensions

MoDel No. TaNK INleT ouTleT oVeRall HeIGHT oVeRall DePTH BRINe TaNK

(A & B) E E C D

in. mm in. mm in. mm in. mm in. mm in. mm

PWSSTD30K 9 x 48 229 x 1219 49 1245 49 1245 56 1422 13 330 18 x 33 457 x 838
PWSSTD45K 10 x 54 254 x 1372 55 1397 55 1397 62 1575 13 330 18 x 33 457 x 838
PWSSTD60K 12 x 52 305 x 1321 54 1372 54 1372 60 1524 14 356 18 x 33 457 x 838
