For Residential, Commercial and Industrial Applications
ES-LFBRV
Job Name
Job Location
Engineer
Approval
LEAD FREE
–––––––––––––––––––––––––––––––––––––––––––
–––––––––––––––––––––––––––––––––––––––––
–––––––––––––––––––––––––––––––––––––––––––––
–––––––––––––––––––––––––––––––––––––––––––––
*
Series LFBRV
Combination Ball Valve
and Relief Valve
Sizes: 3⁄4" – 1" (20 - 25 mm)
Series LFBRV, Combination Ball Valve and Relief Valve is an easy
to install two-in-one device. Designed to be used as water heater
shutoff valves to provide both a means to shut off the water supply
to the water heater and to provide protection against excess water
pressure caused by thermal expansion.The Series LFBRV features
Lead Free* construction to comply with Lead Free* installation
requirements.
These valves use a Lead Free* copper silicon alloy body full port
valve design** which includes PTFE seats and a blow out proof
stem design. The relief valve section includes a Viton
stainless steel spring. It is provided with a compression or PEX end
fitting to provide a secure method of connecting a discharge line.
Features
• Easy Installation - Installs in any position
• Low profile design
• Full port ball valve with virgin PTFE seats
• Blowout proof stem
• Secure drain tube connection available with PEX, Barb
or compression fitting models
Specifications
Valve shall include built-in relief protection from water pressure
in excess of 75, 80, 100, or 125psi. Each valve shall be full port
construction**, Lead Free* copper silicon alloy body, blowout proof
316 stainless steel stem, virgin PTFE seats, PTFE stem packing
and stem thrust bearing, Viton
relief spring. Lead Free* combination ball valve and relief valve
shall be constructed using Lead Free* materials. Lead Free* valves
shall comply with state codes and standards, where applicable,
requiring reduced lead content. Valves shall include brass
compression nut and ferrule or PEX end connection for a drain line.
Valve shall be IAPMO listed. Valve shall be a Watts Series LFBRV.
** PEX end connections reduce full port to reduced
port dimensions.
Viton® is a registered trademark of DuPont Dow Elastomers.
®
relief ball and 302 stainless steel
®
ball and
Contractor
Approval
Contractor’s P.O. No.
Representative
––––––––––––––––––––––––––––––––––––––––––––
–––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––
LFBRVT
THD x THD
x Compression
LFBRVPxTxP
PEX x THD x PEX
Available Models
INLET OUTLET RELIEF OUTLET
Sweat Sweat PEX
Sweat Sweat Compression
Thread Thread Compression
PEX PEX Compression
PEX PEX PEX
NOTICE
For Sweat Connections Only:
This valve is designed to be soft soldered into lines without disassembly, using a low temperature solder 420°F (216°C). Other
solders such as 95/5 tin antimony 460°F (238°C) or 96/4 tin silver
430°F (221°C) can be used. However, extreme caution must be
used to prevent seat damage. Higher temperature solders will
damage the seat material. ANSI B16.18 states that the maximum
operating pressure of 50-50 solder connections is 200psi (14 bar) at
100°F (38°C) and decreases with higher temperatures.
Apply heat with the flame directed AWAY from the center of the
valve body. Excessive heat can harm the seats. After soldering, the
packing nut may have to be tightened.
LFBRVP
PEX x PEX
x Compression
LFBRV
S x S x BARB
*The wetted surface of this product contacted by consumable
water contains less than 0.25% of lead by weight.
Watts product specifications in U.S. customary units and metric are approximate and are provided for reference only. For precise measurements,
please contact Watts Technical Service. Watts reserves the right to change or modify product design, construction, specifications, or materials without prior notice and without incurring any obligation to make such changes and modifications on Watts products previously or subsequently sold.
Page 2
Installation
Ball
Valve
Relief
Valve
Watts Vacuum
Relief Valve
Hot to
system
Watts T&P
Relief Valve
Drain Tube
Watts Test Plug
and Gauge
Watts Backflow
Preventer
Watts Shutoff
Water Meter
Cold
Watts Water Pressure Reducing
Valve
Temperature — Pressure Rating
Maximum Temperature: 100°F (32°C)
Maximum Pressure: Valve body rated to 400psi (28 bar)
Watts
Tempering
Valve
Watts
Water
Heater
Straps
Watts Water
Heater Stand
Relief Valve
A
B
C
C
D
C
Standards
Listed by IAPMO
Material of Construction
Handle Nut - Zinc plated carbon steel
Handle - Zinc plated carbon steel with vinyl insulator
Packing Nut - Brass
Stem Packing - PTFE
Thrust Washer - PTFE
Stem - Stainless steel
Body - Lead Free copper silicon alloy
Seats - Virgin PTFE
Ball - Stainless steel
Adapter - Lead Free copper silicon alloy
Ball - Viton
Spring - 302 stainless steel
Spring Cage - Brass
Ferrule - Brass
Nut - Brass
®
E
COMPRESSION: PEX:
A. Ball A. Ball
B. Spring B. Spring
C. Spring Cage C. Spring Cage
D. Ferrule
E. Nut
2
Page 3

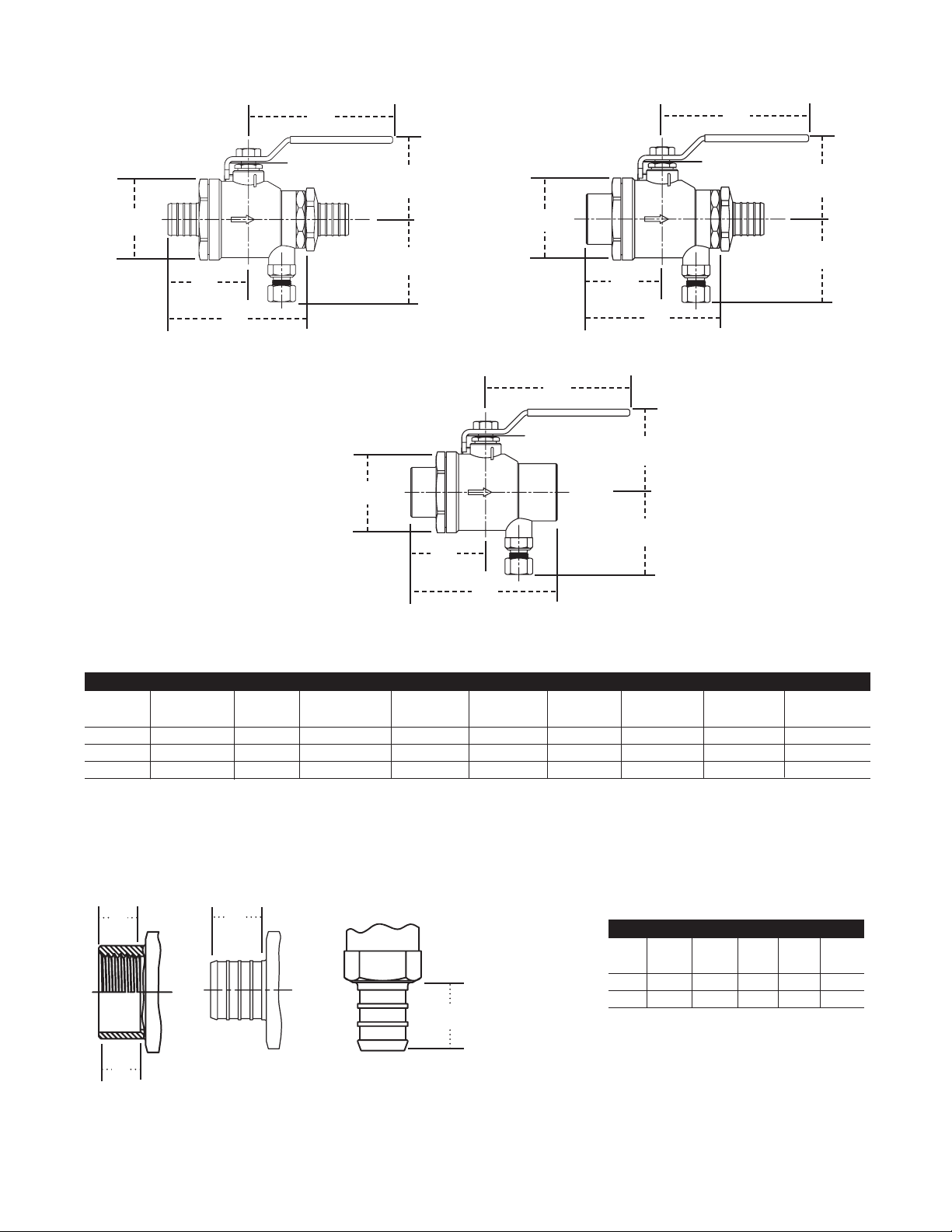

Dimensions — Weights
PEX x PEX
C
D
E
F
B
A
SWEAT x SWEAT
THREAD X THREAD
C
B
SWEAT x PEX
C
B
A
D
E
F
D
E
F
A
MODEL INLET/OUTLET SIZE (DN) DIMENSIONS WEIGHT
A B C D E F
in. mm in. mm in. mm in. mm in. mm in. mm in. mm lbs. kgs.
LFBRVT THD x THD 3⁄4 20 215⁄16 75 13⁄8 36 19⁄16 40 33⁄4 95 115⁄16 49 115⁄16 49 1.00 .45
LFBRVP PEX x PEX
LFBRVSxP SWT x PEX
Standard relief drain connection is a
3
⁄4 20 35⁄8 93 111⁄16 43 19⁄16 40 33⁄4 95 115⁄16 49 115⁄16 49 1.20 .54
3
⁄4 20 33⁄8 86 13⁄8 36 19⁄16 40 33⁄4 95 115⁄16 49 115⁄16 49 1.20 .54
3
⁄8” Compression Fitting, add P for 1⁄2” PEX
Outlet Options
NPT
T
MAKEUP
LENGTH
P
PEX
INSERT
LENGTH
PEX
DRAIN
INSERT
LENGTH
SIZE DIMENSIONS
P R S T Z
in. mm in. mm in. mm in. mm in. mm in. mm
3⁄4 20 13⁄16 21 5⁄8 16 3⁄4 19 9⁄16 14 27⁄32 21
13
R
1 25
⁄16 21 5⁄8 16 7⁄8 23 11⁄16 17 27⁄32 21
S
SWEAT
INSERT
LENGTH
3
Page 4
For additional information, visit our web site at: www.watts.com
A Watts Water Technologies Company
USA: Tel: (978) 688-1811 • Fax: (978) 794-1848 • www.watts.com
Canada: Tel: (905) 332-4090 • Fax: (905) 332-7068 • www.watts.ca
ES-LFBRV 1337 © 2013 Watts
