Watts FS-780 User Manual

FS-780

Tag:

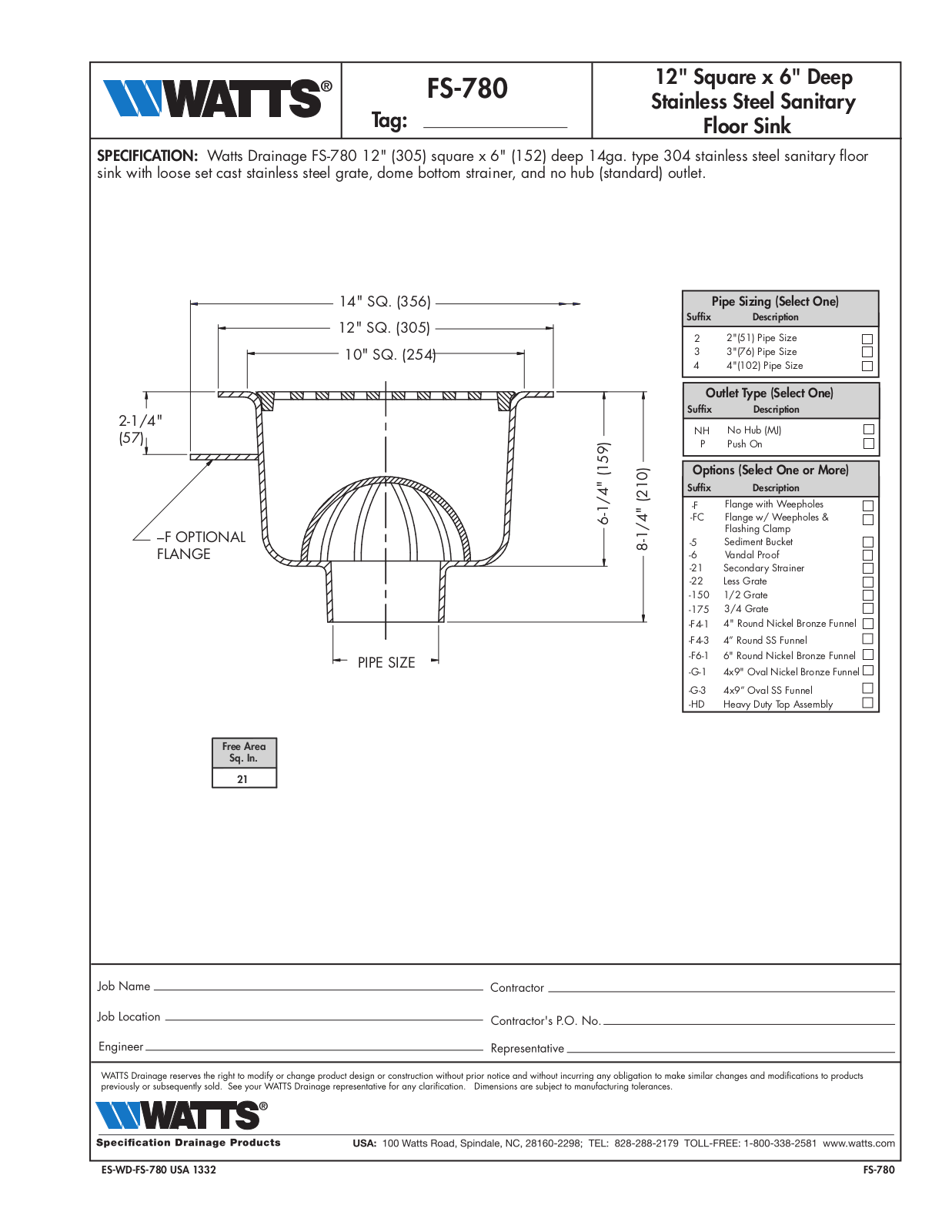

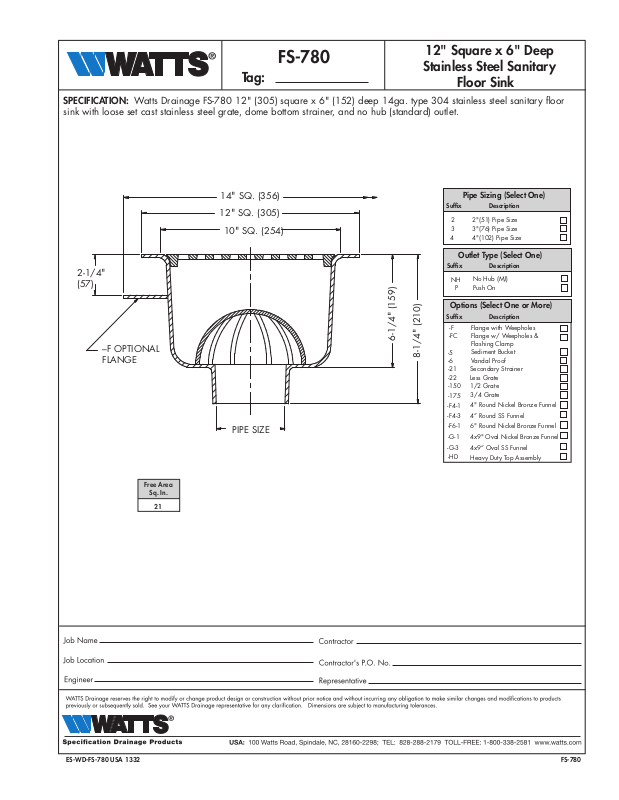

SPECIFICATION: Watts Drainage FS-780 12" (305) square x 6" (152) deep 14ga. type 304 stainless steel sanitary floor

sink with loose set cast stainless steel grate, dome bottom strainer, and no hub (standard) outlet.

Stainless Steel Sanitary

Floor Sink

12" Square x 6" Deep

2-1/4

"

(57)

–F OPTIONAL
FLANGE

Free Area

Sq. In.

21

14" SQ. (356)

"

SQ. (305)

12

"

SQ. (254)

10

PIPE SIZE

(159)

"

6-1/4

Pipe Sizing (Select One)

Suffix Description

2"(51) Pipe Size

2

3"(76) Pipe Size 3
4"(102) Pipe Size 4

Outlet Type (Select One)

Suffix Description

No Hub (MJ)

NH

Push On P

Options (Select One or More)

Suffix Description

(210)

"

8-1/4

Flange with Weepholes

-F
Flange w/ Weepholes &

-FC
Flashing Clamp

Sediment Bucket

-5

-6 Vandal Proof

-21 Secondary Strainer

-22 Less Grate

-150 1/2 Grate
3/4 Grate

-175
4" Round Nickel Bronze Funnel

-F4-1

-F4-3 4” Round SS Funnel

-F6-1

6" Round Nickel Bronze Funnel

-G-1 4x9" Oval Nickel Bronze Funnel

-G-3 4x9” Oval SS Funnel

-HD

Heavy Duty Top Assembly

ES-WD-FS-780 USA 1332 FS-780
