Watts FS-770 User Manual

FS-770

Tag:

8" x 4" x 4" Deep

Sanitary Floor Sink

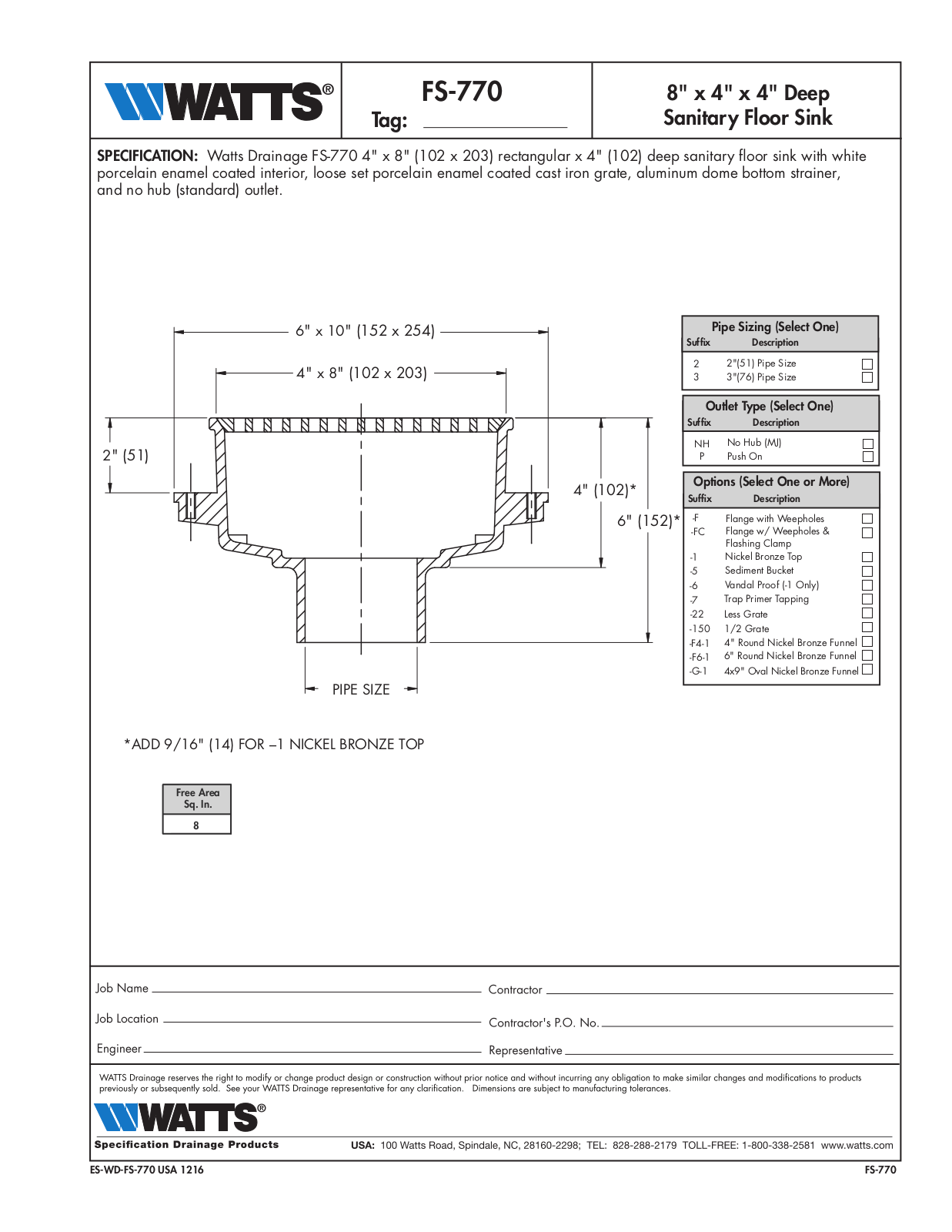

SPECIFICATION: Watts Drainage FS-770 4" x 8" (102 x 203) rectangular x 4" (102) deep sanitary floor sink with white

porcelain enamel coated interior, loose set porcelain enamel coated cast iron grate, aluminum dome bottom strainer,
and no hub (standard) outlet.

6

"

x 10

" (152 x 254)

4" x 8

" (102 x 203)

2

" (51)

PIPE SIZE

*ADD 9/16" (14) FOR –1 NICKEL BRONZE TOP

Pipe Sizing (Select One)

Suffix Description

2"(51) Pipe Size

2

3"(76) Pipe Size 3

Outlet Type (Select One)

Suffix Description

No Hub (MJ)

NH

Push On P

4

" (102)*

6

" (152)*

Options (Select One or More)

Suffix Description

-F

Flange with Weepholes
Flange w/ Weepholes &

-FC
Flashing Clamp

Nickel Bronze Top

-1
Sediment Bucket

-5

Vandal Proof (-1 Only)

-6

Trap Primer Tapping

-7

-22 Less Grate

1/2 Grate

-150

4" Round Nickel Bronze Funnel

-F4-1

6" Round Nickel Bronze Funnel

-F6-1

-G-1 4x9" Oval Nickel Bronze Funnel

Free Area

Sq. In.

8

ES-WD-FS-770 USA 1216 FS-770
