FS-700

Tag:

8" Round x 3" Deep

Sanitary Floor Sink

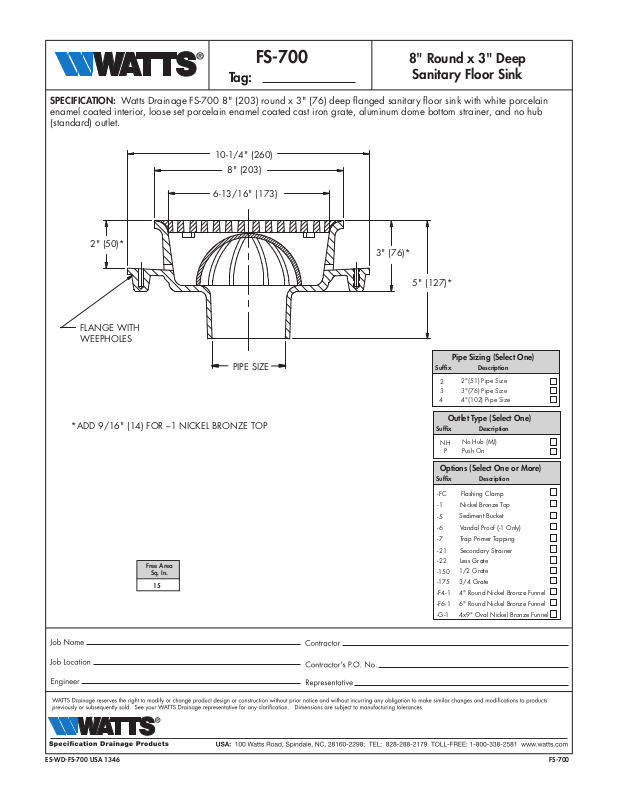

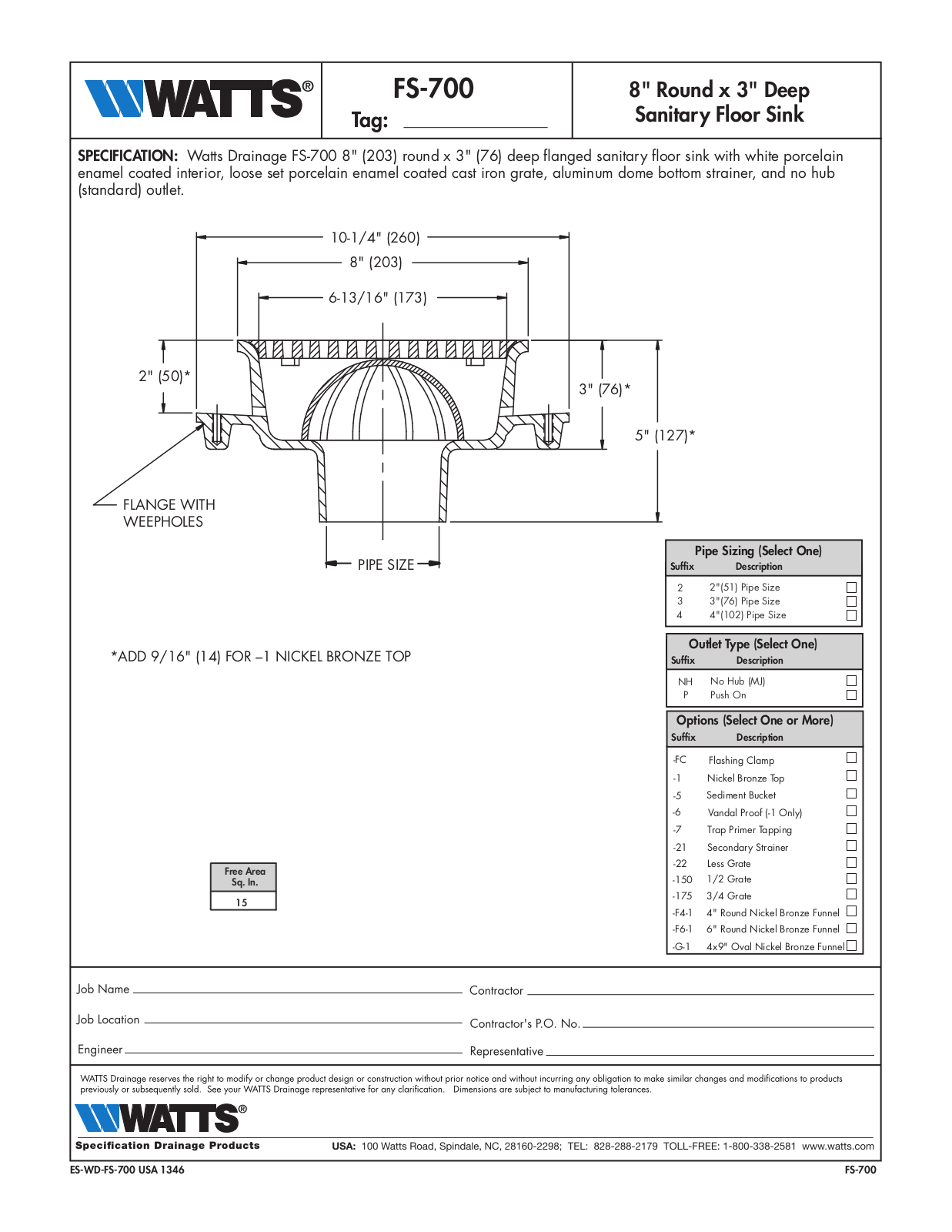

SPECIFICATION: Watts Drainage FS-700 8" (203) round x 3" (76) deep flanged sanitary floor sink with white porcelain

enamel coated interior, loose set porcelain enamel coated cast iron grate, aluminum dome bottom strainer, and no hub
(standard) outlet.

10-1/4" (260)

8" (203)

6-13/16" (173)

2" (50)*

FLANGE WITH
WEEPHOLES

PIPE SIZE

*ADD 9/16" (14) FOR –1 NICKEL BRONZE TOP

Free Area

Sq. In.

15

3" (76)*

5" (127)*

Pipe Sizing (Select One)

Suffix Description

2"(51) Pipe Size

2

3"(76) Pipe Size 3
4"(102) Pipe Size 4

Outlet Type (Select One)

Suffix Description

No Hub (MJ)

NH

Push On P

Options (Select One or More)

Suffix Description

-FC

Flashing Clamp

-1 Nickel Bronze Top

Sediment Bucket

-5

-6

Vandal Proof (-1 Only)

-7

Trap Primer Tapping

-21 Secondary Strainer

-22 Less Grate
1/2 Grate

-150

-175 3/4 Grate

-F4-1 4" Round Nickel Bronze Funnel

-F6-1 6" Round Nickel Bronze Funnel

-G-1 4x9" Oval Nickel Bronze Funnel

ES-WD-FS-700 USA 1346 FS-700
