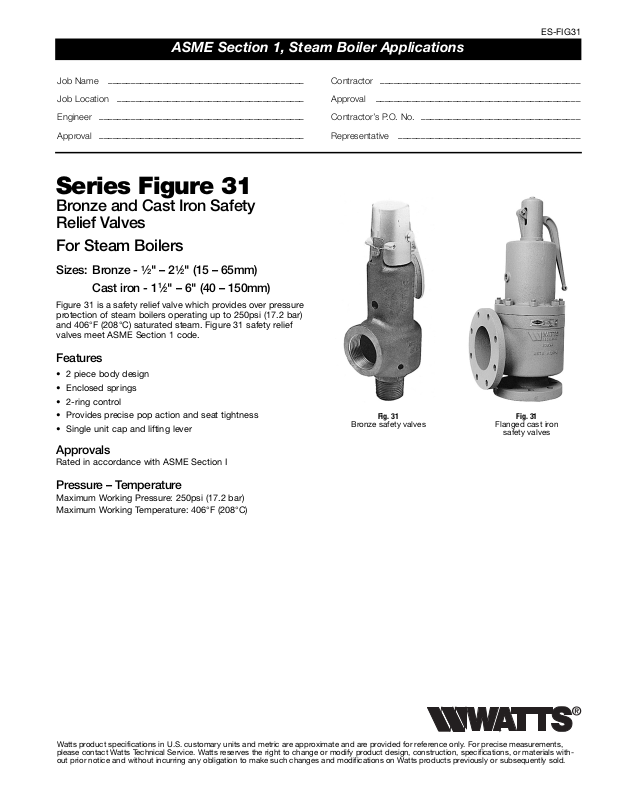

Series Figure 31
Bronze and Cast Iron Safety
Relief Valves
For Steam Boilers
Sizes: Bronze - 1⁄2" – 21⁄2" (15 – 65mm)
Cast iron - 1
1
⁄2" – 6" (40 – 150mm)
Figure 31 is a safety relief valve which provides over pressure
protection of steam boilers operating up to 250psi (17.2 bar)
and 406°F (208°C) saturated steam. Figure 31 safety relief
valves meet ASME Section 1 code.
Features
• 2 piece body design
• Enclosed springs
• 2-ring control
• Provides precise pop action and seat tightness
• Single unit cap and lifting lever
Approvals
Rated in accordance with ASME Section I
Pressure – Temperature
Maximum Working Pressure: 250psi (17.2 bar)
Maximum Working Temperature: 406°F (208°C)
Fig. 31
Bronze safety valves
Fig. 31
Flanged cast iron
safety valves
2
REF. NO. PART NAME MATERIAL
1 Base Bronze
2 Base Ring Bronze
3 Base Ring Set Screw Brass
4 Disc Bronze
5 Guide and Ring Bronze
6 Guide Ring Set Screw Brass
7 Spindle Steel
8 Spring Plated Steel
9 Spring Washer Steel
10 Bonnet Bronze
11 Adjusting Bolt Brass
12 Adjusting Bolt Locknut Plated Steel
13 Lifting Cap Zinc Alloy/Steel
14 Lifting Cap Pin Plated Steel
15 Spindle Nut Plated Steel
16 Spindle Nut Locknut Plated Steel
17 Seal and Wire Stainless Steel

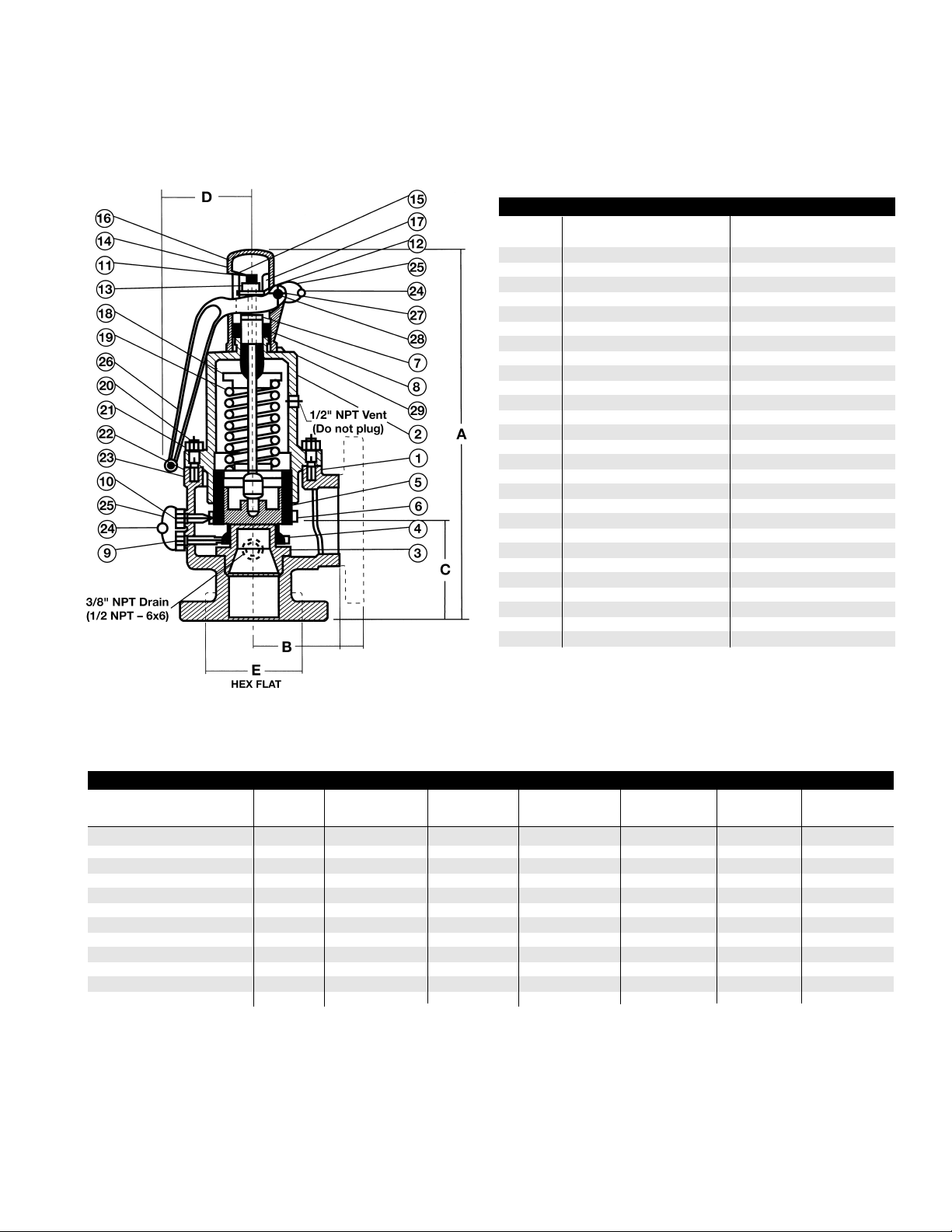

Dimensions — Weights
Watts Bronze Safety Relief Valves
Figure 31
Materials
VALVE SIZE ORIFICE SIZE DIMENSIONS WEIGHT
Inlet x Outlet A B C D* E
in. mm in. mm in. mm in. mm in. mm in. mm lbs. kgs.
1
⁄2 x 3⁄4 15 x 20 D 69⁄16 167 13⁄8 35 21⁄4 57 13⁄8 35 11⁄8 29 2 0.9
3
⁄4 x 3⁄4 20 x 20 D 69⁄16 167 13⁄8 35 21⁄4 57 13⁄8 35 11⁄4 32 2.25 1.0
3
⁄4 x 1 20 x 25 E 71⁄8 181 15⁄8 41 25⁄16 59 13⁄8 35 11⁄4 32 2.5 1.1
1 x 1 25 x 25 E 71⁄8 181 15⁄8 41 25⁄16 59 13⁄8 35 11⁄2 38 2.75 1.2
1 x 11⁄4 25 x 32 F 9 229 17⁄8 48 213⁄16 71 113⁄16 46 11⁄2 38 4 1.8
11⁄4 x 11⁄4 32 x 32 F 9 229 17⁄8 48 213⁄16 71 113⁄16 46 13⁄4 44 4.25 1.9
1
1
⁄4 x 11⁄2 32 x 40 G 911⁄16 246 21⁄8 54 3 76 113⁄16 46 17⁄8 48 7 3.2
11⁄2 x 11⁄2 40 x 40 G 911⁄16 246 21⁄8 54 3 76 113⁄16 46 21⁄16 52 7.25 3.3
1
1
⁄2 x 2 40 x 50 H 121⁄8 308 29⁄16 65 31⁄2 89 23⁄4 70 21⁄4 57 13.5 6.1
2 x 2 50 x 50 H 121⁄8 308 29⁄16 65 31⁄2 89 23⁄4 70 29⁄16 65 13.75 6.2
2 x 21⁄2 50 x 65 J 135⁄16 338 31⁄8 79 33⁄4 95 23⁄4 70 23⁄4 70 17.5 7.9
2
1
⁄2 x 21⁄2 65 x 65 J 135⁄16 338 31⁄8 79 33⁄4 95 23⁄4 70 3 76 17.75 8.0
*Add 1⁄2" to D dimension when lever is pulled out to manually operate the valve.
