ES-WD-FD-660 USA 0607 FD-660

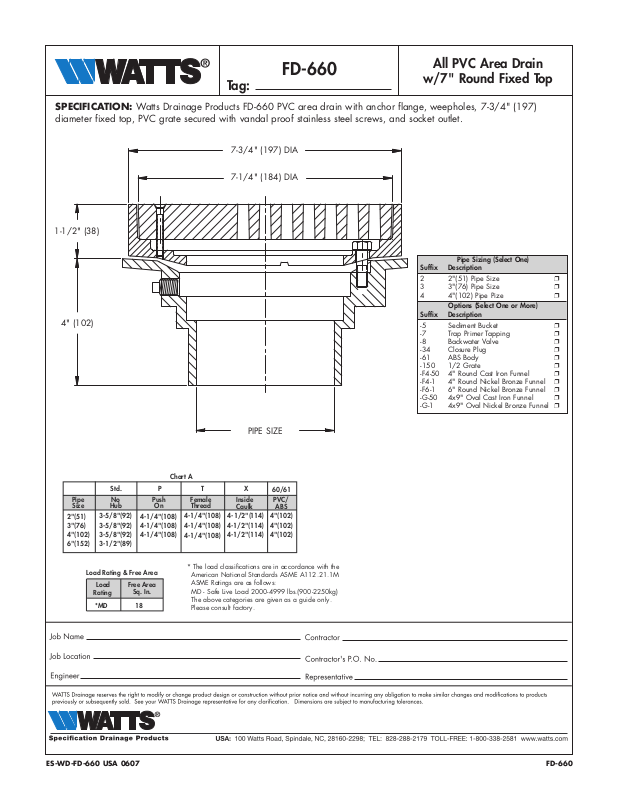

SPECIFICATION: Watts Drainage Products FD-660 PVC area drain with anchor flange, weepholes, 7-3/4" (197)

diameter fixed top, PVC grate secured with vandal proof stainless steel screws, and socket outlet.

All PVC Area Drain

w/7" Round Fixed Top

PIPE SIZE

7-3/4" (197) DIA

7-1/4" (184) DIA

1-1/2" (38)

4" (102)

Pipe Sizing (Select One)

Suffix Description

2 2"(51) Pipe Size Ë 3 3"(76) Pipe Size Ë 4 4"(102) Pipe Pize Ë

Options (Select One or More)

Suffix Description

-5 Sediment Bucket Ë

-7 Trap Primer Tapping Ë

-8 Backwater Valve Ë

-34 Closure Plug Ë

-61 ABS Body Ë

-150 1/2 Grate Ë

-F4-50 4" Round Cast Iron Funnel Ë

-F4-1 4" Round Nickel Bronze Funnel Ë

-F6-1 6" Round Nickel Bronze Funnel Ë

-G-50 4x9" Oval Cast Iron Funnel Ë

-G-1 4x9" Oval Nickel Bronze Funnel Ë

FD-660

Pipe Size

2"(51) 3"(76) 4"(102) 6"(152)

Chart A

Std. P T

Hub

3-5/8"(92) 3-5/8"(92) 3-5/8"(92) 3-1/2"(89)

Push

On Thread

4-1/4"(108) 4-1/4"(108) 4-1/4"(108)

Female

4-1/4"(108) 4-1/4"(108) 4-1/4"(108)

Inside Caulk

4-1/2"(114)

4-1/2"(114) 4-1/2"(114)

60/61

PVC/

ABS 4"(102) 4"(102) 4"(102)

Load Rating & Free Area

Load

Rating

*MD

Free Area

Sq. In.

* The load classifications are in accordance with the American National Standards ASME A112.21.1M ASME Ratings are as follows: MD - Safe Live Load 2000-4999 lbs.(900-2250kg) The above categories are given as a guide only. Please consult factory.
