Watts FD-530 User Manual

FD-530

Tag:

Large Capacity Offset

Parking Area Drain

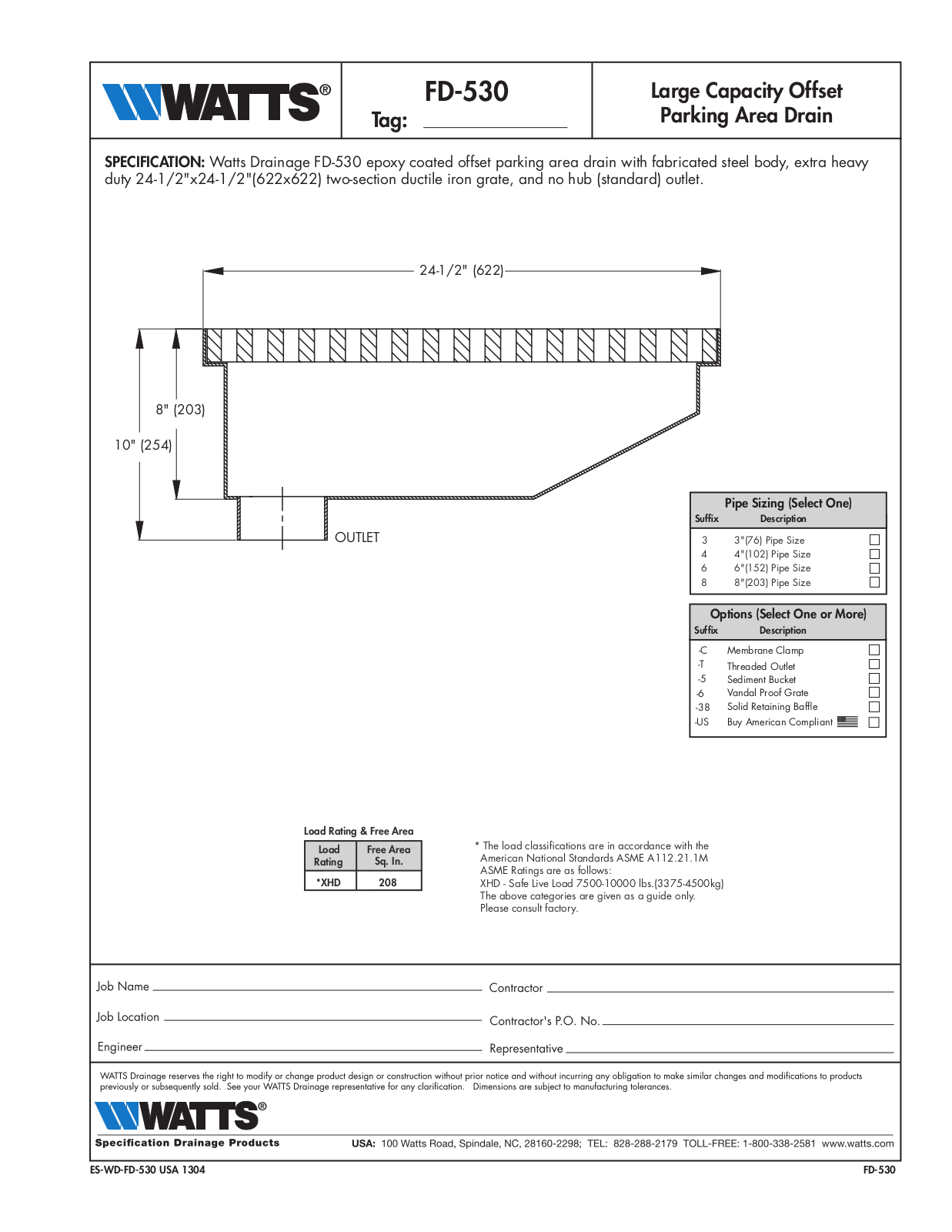

SPECIFICATION: Watts Drainage FD-530 epoxy coated offset parking area drain with fabricated steel body, extra heavy

duty 24-1/2"x24-1/2"(622x622) two-section ductile iron grate, and no hub (standard) outlet.

24-1/2" (622)

8" (203)

10" (254)

Pipe Sizing (Select One)

Suffix Description

OUTLET

3"(76) Pipe Size 3
4"(102) Pipe Size 4
6"(152) Pipe Size 6
8"(203) Pipe Size 8

Load Rating & Free Area

Load

Rating

*XHD

Free Area

Sq. In.

208

Options (Select One or More)

Suffix Description

-C

-T

-5

-6

-38

-US Buy American Compliant

* The load classifications are in accordance with the
American National Standards ASME A112.21.1M
ASME Ratings are as follows:
XHD - Safe Live Load 7500-10000 lbs.(3375-4500kg)
The above categories are given as a guide only.
Please consult factory.

Membrane Clamp
Threaded Outlet

Sediment Bucket
Vandal Proof Grate
Solid Retaining Baffle

ES-WD-FD-530 USA 1304 FD-530
