15"x15" Shallow Body

Promenade Drain

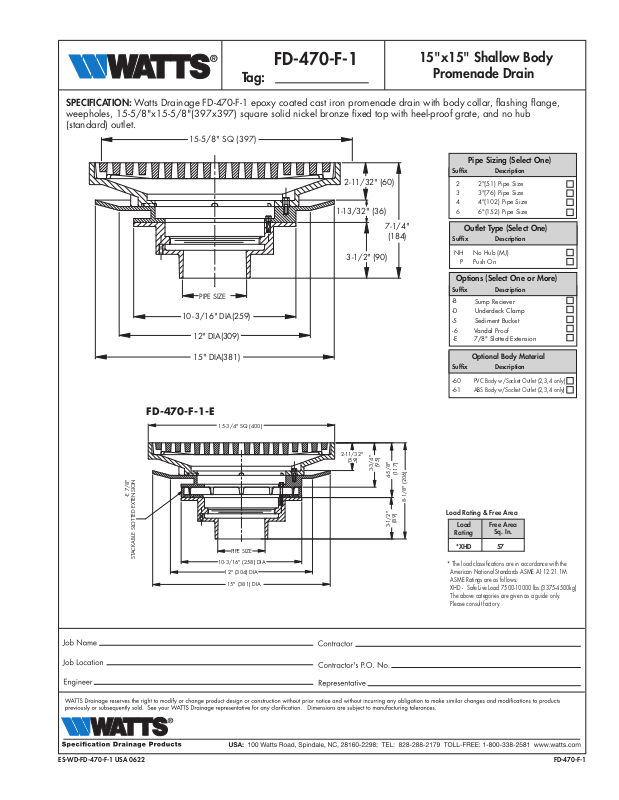

SPECIFICATION: Watts Drainage FD-470-F-1 epoxy coated cast iron promenade drain with body collar, ﬂashing ﬂange,

weepholes, 15-5/8"x15-5/8"(397x397) square solid nickel bronze ﬁxed top with heel-proof grate, and no hub (standard) outlet.

15-5/8" SQ (397)

Pipe Sizing (Select One)

Sufﬁx Description

2-11/32" (60)

1-13/32" (36)

7-1/4"

(184)

3-1/2" (90)

PIPE SIZE

10-3/16" DIA(259)

12" DIA(309)

2"(51) Pipe Size

3"(76) Pipe Size 3 4"(102) Pipe Size 4

6"(152) Pipe Size

Outlet Type (Select One)

Sufﬁx Description

No Hub (MJ)

Push On P

Options (Select One or More)

Sufﬁx Description

-B

Sump Reciever

-D

Underdeck Clamp

-5

Sediment Bucket

Vandal Proof

-6

-E

7/8" Slotted Extension

FD-470-F-1-E

-E 7/8"

STACKABLE SLOTTED EXTENSION

15" DIA(381)

15-3/4" SQ (400)

PIPE SIZE

10-3/16" (258) DIA

12" (304) DIA

15" (381) DIA

2-11/32"

(59)

(95)

3-3/4"

(117)

4-5/8"

(89)

3-1/2"

8-1/8" (206)

Optional Body Material

Sufﬁx Description

PVC Body w/Socket Outlet (2,3,4 only)

-60 ABS Body w/Socket Outlet (2,3,4 only)

-61

Load Rating & Free Area

Load

Rating

*XHD

* The load classiﬁcations are in accordance with the American National Standards ASME A112.21.1M ASME Ratings are as follows: XHD - Safe Live Load 7500-10000 lbs.(3375-4500kg) The above categories are given as a guide only. Please consult factory.
