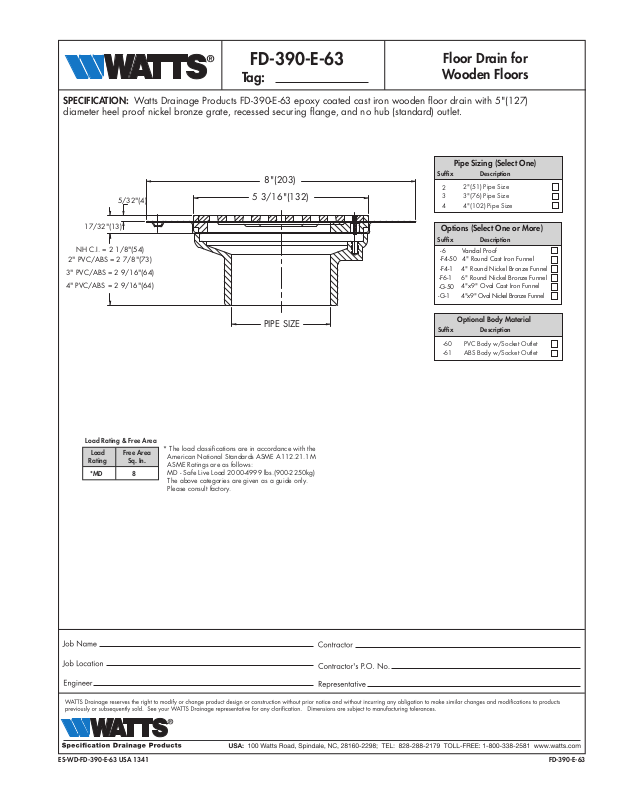

Watts FD-390-E-63 User Manual

FD-390-E-63

Tag:

Floor Drain for

Wooden Floors

SPECIFICATION: Watts Drainage Products FD-390-E-63 epoxy coated cast iron wooden floor drain with 5"(127)

diameter heel proof nickel bronze grate, recessed securing flange, and no hub (standard) outlet.

Pipe Sizing (Select One)

Suffix Description

2"(51) Pipe Size

2

3"(76) Pipe Size 3
4"(102) Pipe Size 4

5/32"(4)

8"(203)

5 3/16"(132)

17/32"(13)

NH C.I. = 2 1/8"(54)

2" PVC/ABS = 2 7/8"(73)

3" PVC/ABS = 2 9/16"(64)

4" PVC/ABS = 2 9/16"(64)

Load Rating & Free Area

Load

Rating

*MD

Free Area

Sq. In.

8

PIPE SIZE

* The load classifications are in accordance with the
American National Standards ASME A112.21.1M
ASME Ratings are as follows:
MD - Safe Live Load 2000-4999 lbs.(900-2250kg)
The above categories are given as a guide only.
Please consult factory.

Options (Select One or More)

Suffix Description

-6

Vandal Proof
4" Round Cast Iron Funnel

-F4-50

-F4-1

4" Round Nickel Bronze Funnel

-F6-1 6" Round Nickel Bronze Funnel
4"x9" Oval Cast Iron Funnel

-G-50
4"x9" Oval Nickel Bronze Funnel

-G-1

Optional Body Material

Suffix Description

PVC Body w/Socket Outlet-60
ABS Body w/Socket Outlet-61

ES-WD-FD-390-E-63 USA 1341 FD-390-E-63
