Watts FD-390-E User Manual

FD-390-E

Tag:

General Purpose

Floor Drain

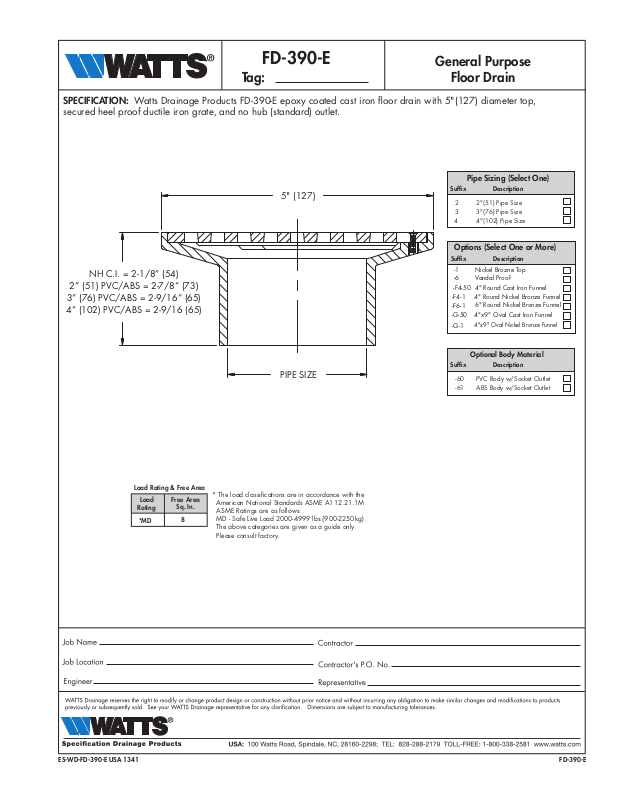

SPECIFICATION: Watts Drainage Products FD-390-E epoxy coated cast iron floor drain with 5"(127) diameter top,

secured heel proof ductile iron grate, and no hub (standard) outlet.

Pipe Sizing (Select One)

5" (127)

NH C.I. = 2-1/8” (54)

2” (51) PVC/ABS = 2-7/8” (73)

3” (76) PVC/ABS = 2-9/16” (65)

4” (102) PVC/ABS = 2-9/16 (65)

Suffix Description

2"(51) Pipe Size

2

3"(76) Pipe Size 3
4"(102) Pipe Size 4

Options (Select One or More)

Suffix Description

-1

Nickel Brozne Top

-6

Vandal Proof

-F4-50

4" Round Cast Iron Funnel

-F4-1 4" Round Nickel Bronze Funnel
6" Round Nickel Bronze Funnel

-F6-1

4"x9" Oval Cast Iron Funnel

-G-50

4"x9" Oval Nickel Bronze Funnel

-G-1

Load Rating & Free Area

Load

Rating

*MD

Free Area

Sq. In.

8

PIPE SIZE

* The load classifications are in accordance with the
American National Standards ASME A112.21.1M
ASME Ratings are as follows:
MD - Safe Live Load 2000-4999 lbs.(900-2250kg)
The above categories are given as a guide only.
Please consult factory.

Optional Body Material

Suffix Description

PVC Body w/Socket Outlet-60
ABS Body w/Socket Outlet-61

ES-WD-FD-390-E USA 1341 FD-390-E
